Iseki SSM48 SRM48 SBC350 Mower Parts Manual (8595-098-100-10) PDF

Description

Iseki SSM48 SRM48 SBC350 Mower Parts Manual (8595-098-100-10) – PDF DOWNLOAD

FILE DETAILS:

Iseki SSM48 SRM48 SBC350 Mower Parts Manual (8595-098-100-10) – PDF DOWNLOAD

Language : English
Pages : 96
Downloadable : Yes
File Type : PDF

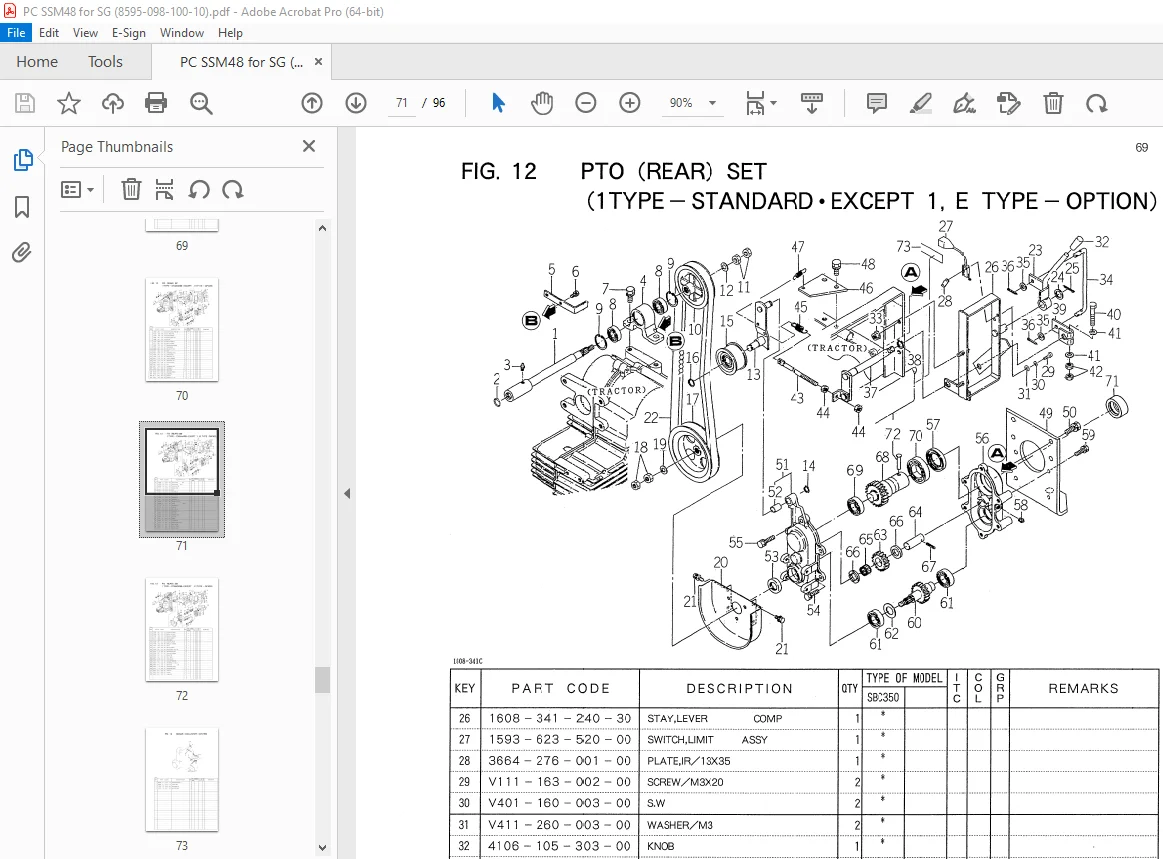

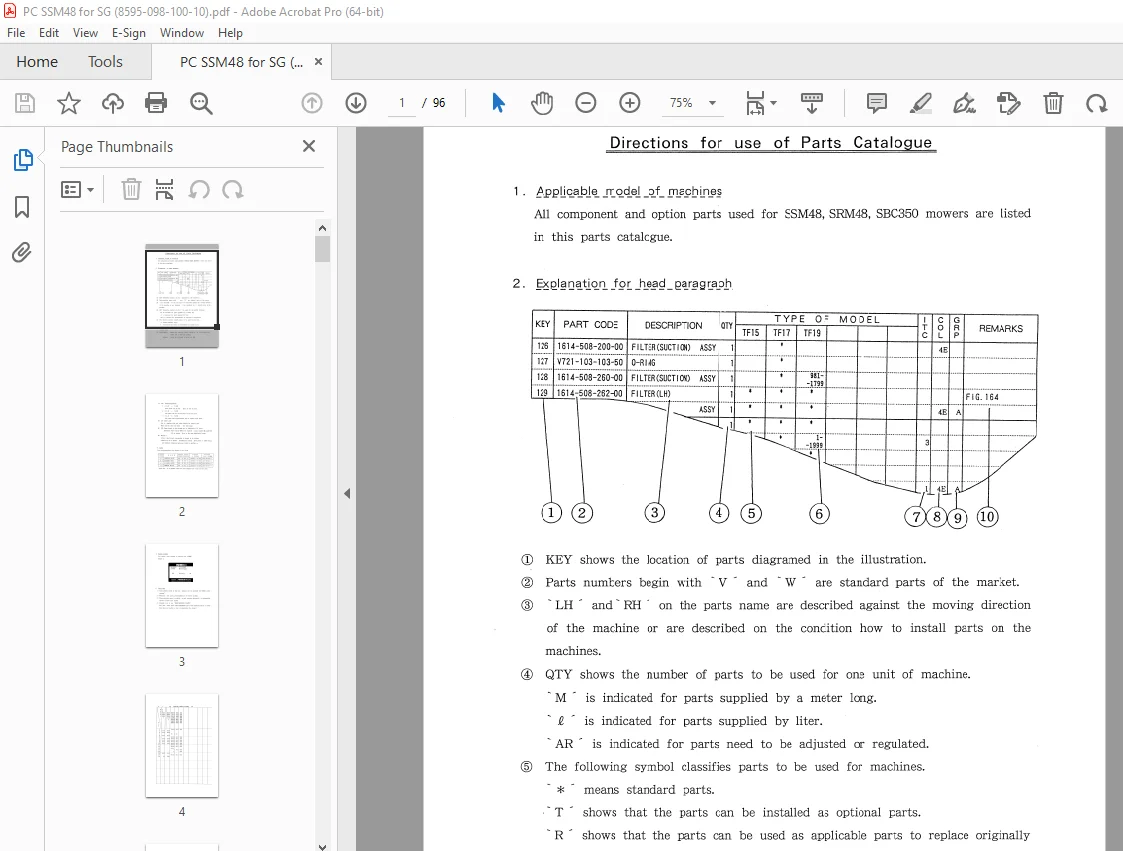

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki SSM48 SRM48 SBC350 Mower Parts Manual (8595-098-100-10) – PDF DOWNLOAD

SSM48
JOINT (UNIVERSAL) SYSTEM (U TYPE) Fig 1
JOINT (UNIVERSAL) SYSTEM (EXCEPT U TYPE) Fig 2
JOINT (UNIVERSAL) SYSTEM (EXCEPT U TYPE) (OPTION) Fig 3
COUNTER SYSTEM (AE TYPE)
CASE (BEVEL) SYSTEM (EXCEPT U TYPE)
CASE (BEVEL) SYSTEM (U TYPE)
PULLEY SYSTEM
METAL AND BLADE SYSTEM
DECK (MOWER/ 48) AND COVER SYSTEM
GAUGE WIIEEL SYSTEM
LINK (FRONT) SYSTEM (U TYPE)
LINK (MAIN) SYSTEM (U TYPE)
LINK (REAR) SYSTEM (U15 TYPE) Fig 13
LINK (REAR) SYSTEM (U18 TYPE) Fig 14
PTO COVER SYSTEM (ME TYPE) (No 200001-) Fig 15
LABEL (EXCEPT U TYPE) Fig 16
LABEL (U TYPE) Fig 17
LABEL (E TYPE, EXCEPT U) (OPTION) , Fig 18
CONTENTS
SRM48
JOINT (UNIVERSAL) SYSTEM (U TYPE)
JOINT (UNIVERSAL) SYSTEM (EXCEPT U TYPE)
CASE (BEVEL) SYSTEM (EXCEPT U TYPE)
CASE (BEVEL) SYSTEM (U TYPE)
PULLEY SYSTEM
METAL AND BLADE SYSTEM
DECK (MOWER/ 48) AND COVER SYSTEM
GAUGE WIIEEL SYSTEM •
LINK (FRONT) SYSTEM CU TYPE)
LINK (MAIN) SYSTEM (U TYPE)
LINK (REAR) SYSTEM (U15 TYPE) Fig 11
LINK (REAR) SYSTEM (UIS TYPE) Fig 12
LABEL Fig 13
SBC350
FRAME (COLLECTOR) SYSTEM (EXCEPT J TYPE) Fig 1
FRAME (COLLECTOR) SYSTEM (J TYPE)
FRAME (BLOWER) SYSTEM
FAN SYSTEM
LEVER (COLLECTOR) SYSTEM (EXCEPT J TYPE)
COLLECTOR (SIDE) SYSTEM (EXCEPT J TYPE)
LOCK SYSTEM (EXCEPT J TYPE)
COVER (SHOOTER) SYSTEM
PTO (REAR) SET (02 TYPE) Fig 9
PTO (REAR) SET (01 TYPE) Fig 10
PTO (REAR) SET (EXCEPT 1, E TYPE) (OPTION) Fig 11
PTO (REAR) SET (1 TYPE-STANDARD EXCEPTl, E TYPE—OPTION) Fig 12
SENSOR (COLLECTOR) SYSTEM Fig 13
LABEL Fig 14
