Iseki SSM48 SSM54 SMM54 SRM54 Mower Parts Manual PDF

Description

Iseki SSM48 SSM54 SMM54 SRM54 Mower Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Iseki SSM48 SSM54 SMM54 SRM54 Mower Parts Manual – PDF DOWNLOAD

Language : English
Pages : 86
Downloadable : Yes
File Type : PDF

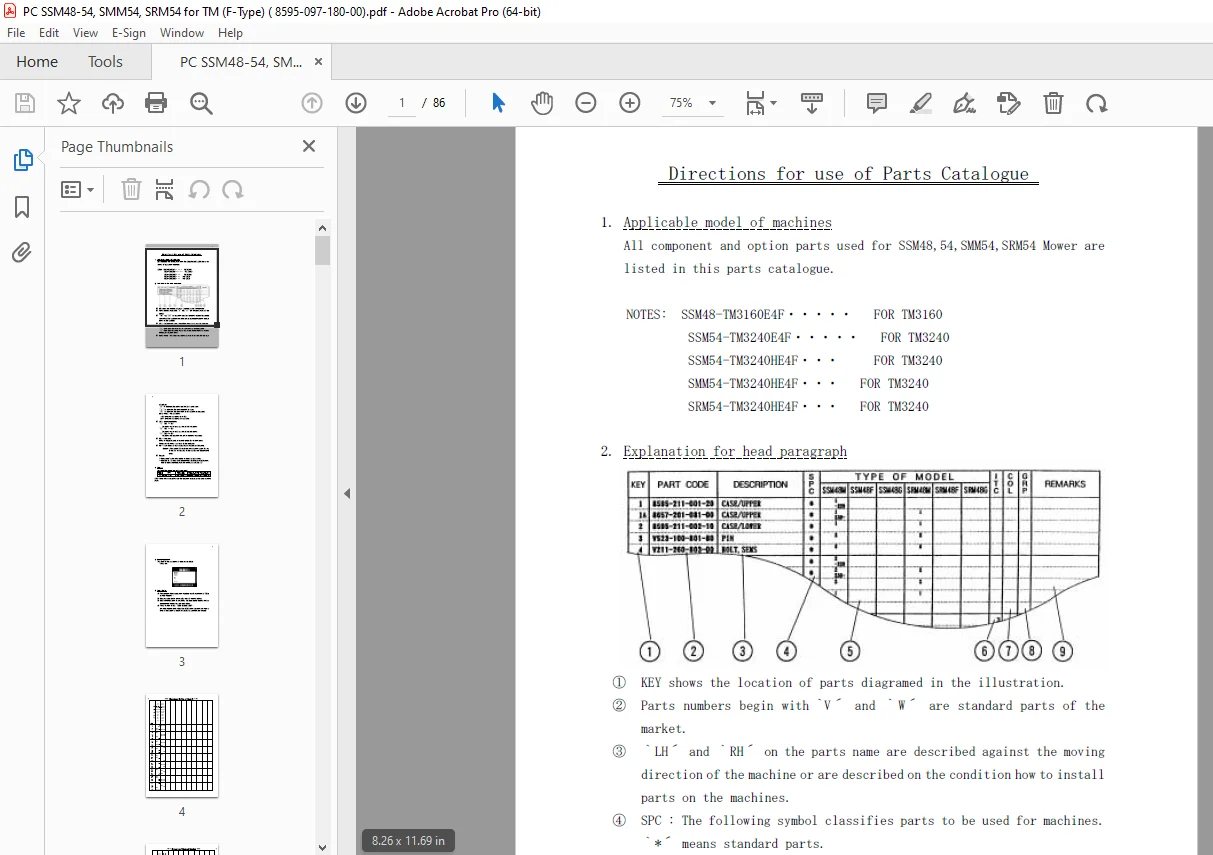

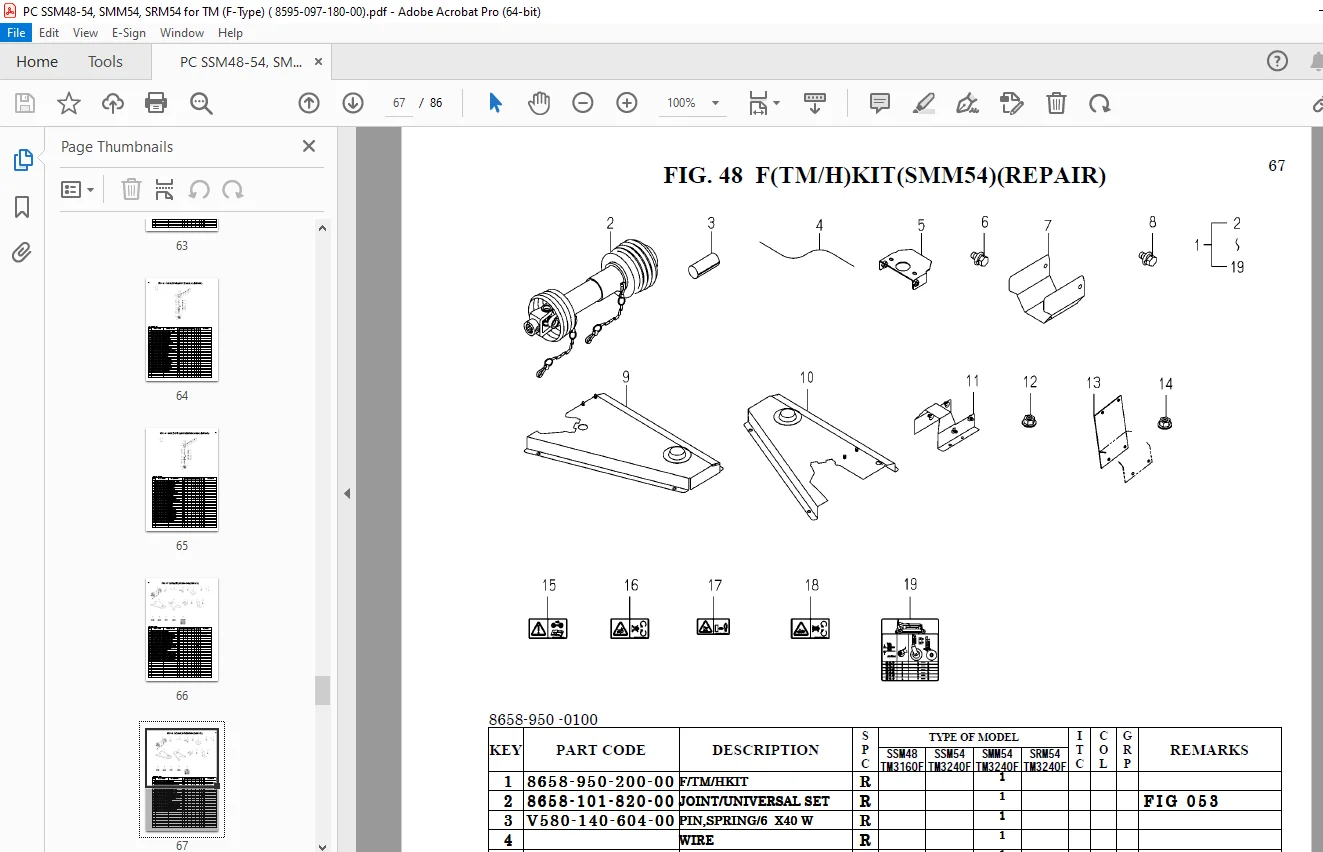

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki SSM48 SSM54 SMM54 SRM54 Mower Parts Manual – PDF DOWNLOAD

SSM48,54,SMM54,SRM54
JOINT(UNIVERSAL)SYSTEM
(EXCEPT SSM48-E4F,SSM54-E4F TYPE) Fig 1
JOINT(UNIVERSAL)SYSTEM
(SSM54-E4F TYPE) Fig 2
JOINT(UNIVERSAL)SYSTEM
(SSM48-E4F TYPE) Fig 3
COVER(JOINT)SYSTEM Fig 4
CASE(BEVEL)SYSTEM(SSM54) Fig 5
CASE(BEVEL)SYSTEM(SSM48) Fig 6
CASE(BEVEL)SYSTEM(SMM54,SRM54) Fig 7
PULLEY SYSTEM(SMM54,SRM54) Fig 8
PULLEY SYSTEM(SSM48) Fig 9
PULLEY SYSTEM(SSM54) Fig 10
BELT SYSTEM(EXCEPT SSM48) Fig 11
BELT SYSTEM(SSM48) Fig 12
METAL SYSTEM(SMM54,SRM54) Fig 13
METAL SYSTEM(SSM48,SSM54) Fig 14
SETTING PARTS(BLADE)SYSTEM(SMM54) Fig 15
BLADE SYSTEM(SRM54) Fig 16
BLADE SYSTEM(SSM48) Fig 17
BLADE SYSTEM(SSM54) Fig 18
DECK(MOWER)SYSTEM(SRM54) Fig 19
DECK(MOWER)SYSTEM(SSM54) Fig 20
DECK(MOWER)SYSTEM(SMM54) Fig 21
DECK(MOWER)SYSTEM(SSM48) Fig 22
COVER(DISCHARGE)SYSTEM(SSM48) Fig 23
COVER(DISCHARGE)SYSTEM(SSM54) Fig 24
10
COVER(DISCHARGE)SYSTEM(SRM54) Fig 25
COVER(BELT)SYSTEM(SSM48) Fig 26
COVER(BELT)SYSTEM(SSM54) Fig 27
COVER(BELT)SYSTEM(SMM54,SRM54) Fig 28
WHEEL(GAUGE)SYSTEM(SRM54) Fig 29
WHEEL(GAUGE)SYSTEM(SSM54) Fig 30
WHEEL(GAUGE)SYSTEM(SSM48) Fig 31
WHEEL(GAUGE)SYSTEM(SMM54) Fig 32
LINK(LIFT)SYSTEM(SRM54)(1/2)(2/2) Fig 33
LINK(LIFT)SYSTEM
(SSM54-HE4F,SMM54-HE4F TYPE)(1/2)(2/2) Fig 34
LINK(LIFT)SYSTEM(SSM54-E4F TYPE)(1/2)(2/2) Fig 35
LINK(LIFT)SYSTEM(SSM48)(1/2)(2/2) Fig 36
CYLINDER SYSTEM(SSM48) Fig 37
CYLINDER SYSTEM(EXCEPT SSM48) Fig 38
ADJUST(HEIGHT)SYSTEM(EXCEPT SSM48) Fig 39
PROTECTOR SYSTEM(SRM54) Fig 40
LABEL(SSM54) Fig 41
LABEL(SMM54) Fig 42
LABEL(SRM54) Fig 43
LABEL(SSM48) Fig 44
OPTIONAL PARTS
CASE(BEVEL)ASSY(SSM48,54)(REPAIR) Fig 45
CASE(BEVEL)ASSY(SMM54,SRM54)(REPAIR) Fig 46
F(TM)KIT(SSM54-E4F)(REPAIR) Fig 47
F(TM/H)KIT(SMM54)(REPAIR) Fig 48
F(TM/H)KIT(SRM54)(REPAIR) Fig 49
F(TM)KIT(SSM48)(REPAIR) Fig 50
F(TM/H)KIT(SSM54-HE4F)(REPAIR) Fig 51
COMPONENT PARTS
COMPONENT PARTS
FOR 8657-101-520-00 ON Fig 2 Fig 52
COMPONENT PARTS
FOR 8658-101-820-00 ON Fig 1 Fig 53

DESCRIPTION:

Iseki SSM48 SSM54 SMM54 SRM54 Mower Parts Manual – PDF DOWNLOAD

Parts Order:
1) Parts numbers listed in the parts catalogue are all registered in “ISEKI
on-line computer”.
2) When you order parts, please make sure of correct numbers.
3) When substitute parts is available, the part number ordered will be
automatically turned to a new part number.
4) Please be sure to use “ISEKI GENUINE PARTS”.
Any other similar parts other than ISEKI parts when used may cause a
trouble that makes us unable to repair or guarantee the warrant.

S.V 06/03/2025
