Iseki TG5395,5475 Tractor Parts Manual (1747-095-100-0A) – PDF DOWNLOAD

Description

Iseki TG5395,5475 Tractor Parts Manual (1747-095-100-0A) – PDF DOWNLOAD

FILE DETAILS:

Iseki TG5395,5475 Tractor Parts Manual (1747-095-100-0A) – PDF DOWNLOAD

Language : English
Pages : 560
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki TG5395,5475 Tractor Parts Manual (1747-095-100-0A) – PDF DOWNLOAD

TG5395(EXCEPT CY-TYPE)
ENGINE(E3CD-WTB04)
CYLINDER HEAD Fig 101
CYLINDER HEAD COVER Fig 102
INLET MANIFOLD Fig 103
EXHAUST MANIFOLD Fig 104
TURBO CHARGER Fig 105
CYLINDER BLOCK(1/2)(2/2) Fig 201
OIL PAN Fig 202
REAR PLATE Fig 203
TIMING GEAR CASE Fig 204
HANGER Fig 205
VALVE Fig 301
CAM SHAFT Fig 302
PISTON Fig 303
CRANK SHAFT Fig 304
OIL PUMP Fig 401
WATER PUMP Fig 402
COOLING FAN Fig 403
INJECTION NOZZLE Fig 501
INJECTION PUMP Fig 502
FUEL PIPE Fig 503
ADAPTER Fig 504
ELECTRIC (1) Fig 801
ELECTRIC (2) Fig 802
SHORT BLOCK ENGIASSY Fig P01
10
BEARING/UNDER SIZE (OPTION) Fig P02
PISTON/OVER SIZE (OPTION) Fig P03
REPAIR PARTS (OPTION) Fig P04
COMPONENT PARTS
FOR 6215-300-037-00 ON Fig 501 Fig S01
COMPONENT PARTS
FOR 6215-600-078-10 ON Fig 502 Fig S02
COMPONENT PARTS
FOR 6281-100-007-20 ON Fig 801 Fig S03
COMPONENT PARTS
FOR 6281-200-015-00 ON Fig 801 Fig S04
11
C o n t e n t s
TG5395( CY-TYPE)
ENGINE(E3CD-WTB05)
CYLINDER HEAD Fig 101
CYLINDER HEAD COVER Fig 102
INLET MANIFOLD Fig 103
EXHAUST MANIFOLD Fig 104
TURBO CHARGER Fig 105
CYLINDER BLOCK(1/2)(2/2) Fig 201
OIL PAN Fig 202
REAR PLATE Fig 203
TIMING GEAR CASE Fig 204
HANGER Fig 205
VALVE Fig 301
CAM SHAFT Fig 302
PISTON Fig 303
CRANK SHAFT Fig 304
OIL PUMP Fig 401
WATER PUMP Fig 402
COOLING FAN Fig 403
INJECTION NOZZLE Fig 501
INJECTION PUMP Fig 502
FUEL PIPE Fig 503
ADAPTER Fig 504
ELECTRIC (1) Fig 801
ELECTRIC (2) Fig 802
SHORT BLOCK ENGIASSY Fig P01
12
BEARING/UNDER SIZE (OPTION) Fig P02
PISTON/OVER SIZE (OPTION) Fig P03
REPAIR PARTS (OPTION) Fig P04
COMPONENT PARTS
FOR 6215-300-037-00 ON Fig 501 Fig S01
COMPONENT PARTS
FOR 6215-600-078-10 ON Fig 502 Fig S02
COMPONENT PARTS
FOR 6281-100-007-20 ON Fig 801 Fig S03
COMPONENT PARTS
FOR 6281-200-015-00 ON Fig 801 Fig S04
13
C o n t e n t s
TG5475(EXCEPT CY-TYPE)
ENGINE(E4CG-WB18)
CYLINDER HEAD Fig 101
CYLINDER HEAD COVER Fig 102
INLET MANIFOLD Fig 103
EXHAUST MANIFOLD Fig 104
CYLINDER BLOCK Fig 201
OIL PAN Fig 202
REAR PLATE Fig 203
TIMING GEAR CASE Fig 204
HANGER Fig 205
VALVE Fig 301
CAM SHAFT Fig 302
PISTON Fig 303
CRANK SHAFT Fig 304
OIL PUMP Fig 401
WATER PUMP Fig 402
COOLING FAN Fig 403
INJECTION NOZZLE Fig 501
INJECTION PUMP Fig 502
FUEL PIPE Fig 503
ADAPTER Fig 504
ELECTRIC (1) Fig 801
ELECTRIC (2) Fig 802
SHORT BLOCK ENGIASSY Fig P01
BEARING/UNDER SIZE (OPTION) Fig P02
14
PISTON/OVER SIZE (OPTION) Fig P03
REPAIR PARTS (OPTION) Fig P04
COMPONENT PARTS
FOR 6215-300-045-10 ON Fig 501 Fig S01
COMPONENT PARTS
FOR 6215-600-119-20 ON Fig 502 Fig S02
COMPONENT PARTS
FOR 6281-100-010-30 ON Fig 801 Fig S03
COMPONENT PARTS
FOR 6281-200-015-00 ON Fig 801 Fig S04
15
C o n t e n t s
TG5475(CY-TYPE)
ENGINE(E4CG-WB19)
CYLINDER HEAD Fig 101
CYLINDER HEAD COVER Fig 102
INLET MANIFOLD Fig 103
EXHAUST MANIFOLD Fig 104
CYLINDER BLOCK Fig 201
OIL PAN Fig 202
REAR PLATE Fig 203
TIMING GEAR CASE Fig 204
HANGER Fig 205
VALVE Fig 301
CAM SHAFT Fig 302
PISTON Fig 303
CRANK SHAFT Fig 304
OIL PUMP Fig 401
WATER PUMP Fig 402
COOLING FAN Fig 403
INJECTION NOZZLE Fig 501
INJECTION PUMP Fig 502
FUEL PIPE Fig 503
ADAPTER Fig 504
ELECTRIC (1) Fig 801
ELECTRIC (2) Fig 802
SHORT BLOCK ENGIASSY Fig P01
BEARING/UNDER SIZE (OPTION) Fig P02
16
PISTON/OVER SIZE (OPTION) Fig P03
REPAIR PARTS (OPTION) Fig P04
COMPONENT PARTS
FOR 6215-300-045-10 ON Fig 501 Fig S01
COMPONENT PARTS
FOR 6215-600-119-20 ON Fig 502 Fig S02
COMPONENT PARTS
FOR 6281-100-010-30 ON Fig 801 Fig S03
COMPONENT PARTS
FOR 6281-200-015-00 ON Fig 801 Fig S04
17
C o n t e n t s
CHASSIS
RADIATOR SYSTEM(TG5395)(1/2)(2/2) Fig 101
RADIATOR SYSTEM(TG5475-R TYPE)(1/2)(2/2) Fig 102
RADIATOR SYSTEM(TG5475-C TYPE)(1/2)(2/2) Fig 103
MUFFLER SYSTEM(TG5395) Fig 104
MUFFLER SYSTEM(TG5475) Fig 105
CLEANER(AIR)SYSTEM(TG5395) Fig 106
CLEANER(AIR)SYSTEM(TG5475) Fig 107
TANK SYSTEM(TG5395 TYPE)(1/2)(2/2) Fig 108
TANK(FUEL)SYSTEM(TG5475-R TYPE)(1/2)(2/2) Fig 109
TANK(FUEL)SYSTEM(TG5475-C TYPE)(1/2)(2/2) Fig 110
PEDAL(HST)SYSTEM Fig 111
AXLE(HST)SYSTEM(TG5395) Fig 112
AXLE(HST)SYSTEM(TG5475) Fig 113
CASE(TRANSMISSION/FRONT)SYSTEM
(TG5395) Fig 201
CASE(TRANSMISSION/FRONT)SYSTEM
(TG5475) Fig 202
HST UNIT SYSTEM Fig 203
GEAR(PTO)SYSTEM(TG5395) Fig 204
GEAR(PTO)SYSTEM(TG5475) Fig 205
CASE(TRANSMISSION/MID)SYSTEM Fig 206
GEAR(MAIN)SYSTEM Fig 207
GEAR(SUB)SYSTEM Fig 208
GEAR(4WD)SYSTEM(TG5395) Fig 209
GEAR(4WD)SYSTEM(TG5475) Fig 210
GEAR(PTO)SYSTEM(TG5395) Fig 211
GEAR(PTO)SYSTEM(TG5475) Fig 212
18
MID PTO SYSTEM(TG5475)(1/2)(2/2) Fig 213
MID PTO SYSTEM(TG5395)(1/2)(2/2) Fig 214
CASE(TRANSMISSION/REAR)SYSTEM Fig 215
FORK(SHIFT/SUB)SYSTEM Fig 216
ARM(SHIFT/4WD)SYSTEM Fig 217
FORK(SHIFT)SYSTEM Fig 218
LEVER(REVERSE)SYSTEM Fig 219
LEVER(SUB)SYSTEM(TG5395) Fig 220
LEVER(SHIFT/SUB)SYSTEM(TG5475) Fig 221
LEVER(4WD)SYSTEM(TG5395) Fig 222
LEVER(4WD)SYSTEM(TG5475) Fig 223
LEVER(PTO)SYSTEM(TG5395) Fig 224
LEVER(PTO)SYSTEM(TG5475) Fig 225
PINION(DRIVE)SYSTEM(TG5395) Fig 301
PINION(DRIVE)SYSTEM(TG5475) Fig 302
DIFF SYSTEM Fig 303
HOUSING(AXLE)SYSTEM(TG5475) Fig 304
HOUSING(AXLE)SYSTEM(TG5395) Fig 305
DIFF-LOCK(HST)SYSTEM(TG5395) Fig 306
DIFF-LOCK(HST) SYSTEM(TG5475) Fig 307
BRAKE(HST)SYSTEM(TG5395) Fig 308
BRAKE(HST)SYSTEM(TG5475) Fig 309
PEDAL(BRAKE)SYSTEM(TG5395) Fig 310
PEDAL(BRAKE)SYSTEM(TG5475) Fig 311
BRAKE(PARKING)SYSTEM(TG5395) Fig 312
BRAKE(PARKING)SYSTEM(TG5475) Fig 313
WHEEL(STEERING)SYSTEM(TG5395) Fig 401
WHEEL(STEERING)SYSTEM(TG5475) Fig 402
COLUMN(STEERING)SYSTEM Fig 403
STEERING(POWER)SYSTEM(TG5395) Fig 404
STEERING(POWER)SYSTEM(TG5475) Fig 405
BRACKET(AXLE)SYSTEM(TG5395) Fig 406
BRACKET(AXLE)SYSTEM(TG5475) Fig 407
19
SHAFT(DRIVE)SYSTEM(TG5475) Fig 408
SHAFT(DRIVE)SYSTEM(TG5395) Fig 409
CASE(BEVEL)SYSTEM(TG5395) Fig 410
CASE(BEVEL)SYSTEM(TG5475) Fig 411
HOUSING(AXLE)SYSTEM(TG5395) Fig 412
HOUSING(AXLE)SYSTEM(TG5475) Fig 413
CASE(GEAR/FRONT)SYSTEM(TG5475) Fig 414
CASE(GEAR/FRONT)SYSTEM(TG5395)(1/2)(2/2) Fig 415
TIE ROD SYSTEM(TG5395) Fig 416
TIE ROD SYSTEM(TG5475) Fig 417
CYLINDER CASE SYSTEM(TG5395) Fig 501
CYLINDER CASE SYSTEM(TG5475)(1/2)(2/2) Fig 502
MECHANICAL LINK(POSITION)SYSTEM
(TG5395)(1/2)(2/2) Fig 503
MECHANICAL LINK(POSITION)SYSTEM
(TG5475)(1/2)(2/2) Fig 504
COVER(RELIEF METAL)SYSTEM Fig 505
HYD SYSTEM(MAIN)(TG5395)(1/2)(2/2) Fig 506
HYD SYSTEM(MAIN)(TG5475) (1/2)(2/2) Fig 507
HYD SYSTEM(SUB)(TG5395)(1/3)-(3/3) Fig 508
HYD SYSTEM(SUB)(TG5475)(1/3)-(3/3) Fig 509
3P LINK SYSTEM(TG5395-R TYPE) Fig 510
3P LINK SYSTEM(TG5395-C TYPE) Fig 511
3P LINK SYSTEM(TG5475-R TYPE) Fig 512
3P LINK SYSTEM(TG5475-C TYPE) Fig 513
LIFT ROD(BEVEL)SYSTEM(TG5395) Fig 514
LIFT ROD(BEVEL)SYSTEM(TG5475) Fig 515
TOP LINK BRACKET SYSTEM(D TYPE) Fig 516
TOP LINK BRACKET SYSTEM
(EXCEPT D TYPE) Fig 517
DRAW BAR(FIX)SYSTEM
(TG5395 TYPE EXCEPT D) Fig 518
DRAW BAR(FIX)SYSTEM
(TG5475 TYPE EXCEPT D) Fig 519
20
HOOD SYSTEM(TG5395-R TYPE) Fig 601
HOOD SYSTEM(TG5395-C TYPE) Fig 602
HOOD SYSTEM(TG5475-C TYPE) Fig 603
HOOD SYSTEM(TG5475-R TYPE) Fig 604
GRILLE SYSTEM(TG5395 TYPE) Fig 605
GRILLE SYSTEM(TG5475 TYPE) Fig 606
COVER(SIDE)SYSTEM(TG5395-R TYPE) Fig 607
COVER(SIDE)SYSTEM(TG5475-C TYPE) Fig 608
COVER(SIDE)SYSTEM(TG5395-C TYPE) Fig 609
COVER(SIDE)SYSTEM(TG5475-R TYPE) Fig 610
FENDER SYSTEM(TG5395-R TYPE) Fig 611
FENDER SYSTEM(TG5475-R TYPE) Fig 612
LEVER(GUIDE)STEM(R TYPE) Fig 613
LEVER(GUIDE)STEM(C TYPE) Fig 614
MOUNT SYSTEM(R TYPE) Fig 615
MOUNT SYSTEM(TG5395-C TYPE) Fig 616
MOUNT SYSTEM(TG5475-C TYPE) Fig 617
FLOOR(FRONT)SYSTEM(TG5395-C TYPE) Fig 618
INSULATOR(FLOOR)SYSTEM
(TG5395-R TYPE) Fig 619
FLOOR(FRONT)SYSTEM(TG5395-R TYPE) Fig 620
FLOOR(FRONT)SYSTEM(TG5475-R TYPE) Fig 621
INSULATOR(FLOOR)SYSTEM
(TG5475-R TYPE) Fig 622
FLOOR(REAR)SYSTEM(TG5395-R TYPE) Fig 623
FLOOR(REAR)SYSTEM(TG5395-C TYPE) Fig 624
FLOOR(REAR)SYSTEM(TG5475-R TYPE) Fig 625
FLOOR(REAR)SYSTEM(TG5475-C TYPE) Fig 626
ELC SYSTEM(FRONT)(TG5395)(1/2)(2/2) Fig 627
ELC SYSTEM(FRONT)(TG5475)(1/2)(2/2) Fig 628
ELC SYSTEM(MAIN)(TG5395)(1/3)-(3/3) Fig 629
ELC SYSTEM(MAIN)(TG5475)(1/3)-(3/3) Fig 630
ELC SYSTEM(REAR)(R TYPE) Fig 631
21
ELC SYSTEM(REAR)(C TYPE) Fig 632
METER PANEL SYSTEM Fig 633
ELC SYSTEM(TG5395-C TYPE)(1/3)-(3/3) Fig 634
ELC SYSTEM(TG5475-C TYPE)(1/3)-(3/3) Fig 635
CONTROLLER SYSTEM(1/2)(2/2) Fig 636
7P SOCKET SYSTEM Fig 637
FRAME(REAR)SYSTEM(TG5395-R TYPE) Fig 701
FRAME(REAR)SYSTEM(TG5475-R TYPE) Fig 702
FRAME SYSTEM(TG5395-R TYPE) Fig 703
FRAME SYSTEM(TG5475-R TYPE) Fig 704
ROOF SYSTEM(C TYPE) Fig 705
FENDER(OVER)SYSTEM(C TYPE) Fig 706
FRAME SYSTEM(TG5395-C TYPE) Fig 707
FRAME SYSTEM(TG5475-C TYPE) Fig 708
GLASS(FRONT)SYSTEM(C TYPE) Fig 709
DOOR SYSTEM(C TYPE) Fig 710
LOCK(DOOR)SYSTEM(C TYPE) Fig 711
GLASS(SIDE)SYSTEM(C TYPE) Fig 712
GLASS(REAR)SYSTEM(C TYPE) Fig 713
INTERIOR SYSTEM(C TYPE) Fig 714
AIR CODITIONER(ENGINE)SYSTEM
(TG5475-C TYPE)(1/2)(2/2) Fig 715
HEATER(CABIN)SYSTEM
(TG5395-C TYPE)(1/2)(2/2) Fig 716
AIR CODITIONER(CABIN)SYSTEM
(TG5475-C TYPE)(1/2)(2/2) Fig 717
ORNAMENT(TG5395) Fig 901
ORNAMENT(TG5475) Fig 902
LABEL(CONTROL) Fig 903
LABEL(COUTION)(R TYPE) Fig 904
LABEL(C TYPE) Fig 905
LABEL(CAUTION)(C TYPE) Fig 906
LABEL(CAUTION) Fig 907
22
LABEL(CE) Fig 908
TOOL(TG5395) Fig 909
OPTIONAL PARTS
REAR WHEEL SYSTEM(OPTION)(TG5475) Fig P01
REAR WHEEL SYSTEM(OPTION)(TG5395) Fig P02
REAR WHEEL(OPTION)SYSTEM Fig P03
REAR WHEEL(TURF)SYSTEM
(OPTION)(TG5395) Fig P04
REAR WHEEL(TURF)SYSTEM
(OPTION)(TG5475) Fig P05
REAR WHEEL(TURF)SYSTEM
(OPTION)(TG5475) Fig P06
FRONT WHEEL(4WD)SYSTEM
(OPTION)(TG5395) Fig P07
FRONT WHEEL(9 5-16)SYSTEM
(OPTION)(TG5475) Fig P08
HUB RING(4WD)SYSTEM(TG5395) Fig P09
FRONT WHEEL(4WD)SYSTEM
(OPTION)(TG5395) Fig P10
FRONT WHEEL(8-16)SYSTEM
(OPTION)(TG5475) Fig P11
FRONT WHEEL(TURF)SYSTEM
(OPTION)(TG5475) Fig P12
FRONT WHEEL(TURF)SYSTEM
(OPTION)(TG5475) Fig P13
FRONT WHEEL(4WD/TURF)SYSTEM
(OPTION)(TG5395) Fig P14
CUT OFF PLUG SYSTEM(OPTION) Fig P15
JOY STICK VALVE SET
(OPTION)(TG5395)(1/2)(2/2) Fig P16
JOY STICK VALVE SET
(OPTION)(TG5475)(1/2)(2/2) Fig P17
23
VALVE(REMOTE/1R)SET
(OPTION)(TG5395-R TYPE) Fig P18
VALVE(REMOTE/1R)SET(OPTION)(TG5475) Fig P19
VALVE(REMOTE/2R)SET
(OPTION)(TG5395-R TYPE) Fig P20
VALVE(REMOTE/2R)SET(OPTION)(TG5475) Fig P21
ELC SYSTEM(CABIN)SET(OPTION)(C TYPE) Fig P22
CONTROLLER SYSTEM(OPTION) Fig P23
PTO UP-STOP SET(OPTION) Fig P24
CABIN SET(OPTION)(C TYPE) Fig P25
COMPONENT PARTS
COMPONENT PARTS
FOR K135-015-000-00 ON Fig 508,509 Fig S01
COMPONENT PARTS
FOR K135-028-000-00 ON Fig 506 Fig S02
COMPONENT PARTS
FOR K211-073-000-00 ON Fig 506,507 Fig S03
COMPONENT PARTS
FOR K211-074-000-20 ON Fig P16,17 Fig S04
COMPONENT PARTS
FOR 1564-527-300-40 ON Fig 514,515 Fig S05
COMPONENT PARTS
FOR 1640-530-600-10 ON Fig P18,19,20,21 Fig S06
COMPONENT PARTS
FOR 1646-407-670-20 ON Fig 405 Fig S07
COMPONENT PARTS
FOR 1696-658-340-20 ON Fig P22,634,635 Fig S08
COMPONENT PARTS
FOR 1723-407-200-30 ON Fig 404 Fig S09
COMPONENT PARTS
FOR 1729-782-510-20 ON Fig 716,717 Fig S10
24
COMPONENT PARTS
FOR 1729-782-610-20 ON Fig 717 Fig S11
COMPONENT PARTS
FOR 1731-658-230-30 ON Fig P22 Fig S12
COMPONENT PARTS
FOR 1742-209-210-00 ON Fig 204 Fig S13
COMPONENT PARTS
FOR 1744-209-210-00 ON Fig 205 Fig S14
COMPONENT PARTS
FOR 1746-781-220-10 ON Fig 716 Fig S15
COMPONENT PARTS
FOR 3824-248-990-20 ON Fig 715 Fig S16
WIRING DIAGRAM
WIRING DIAGRAM(1/10)
WIRING DIAGRAM(2/10)
WIRING DIAGRAM(3/10)
WIRING DIAGRAM(4/10)
WIRING DIAGRAM(5/10)
WIRING DIAGRAM(6/10)
WIRING DIAGRAM(7/10)
WIRING DIAGRAM(8/10)
WIRING DIAGRAM(9/10)
WIRING DIAGRAM(10/10)

DESCRIPTION:

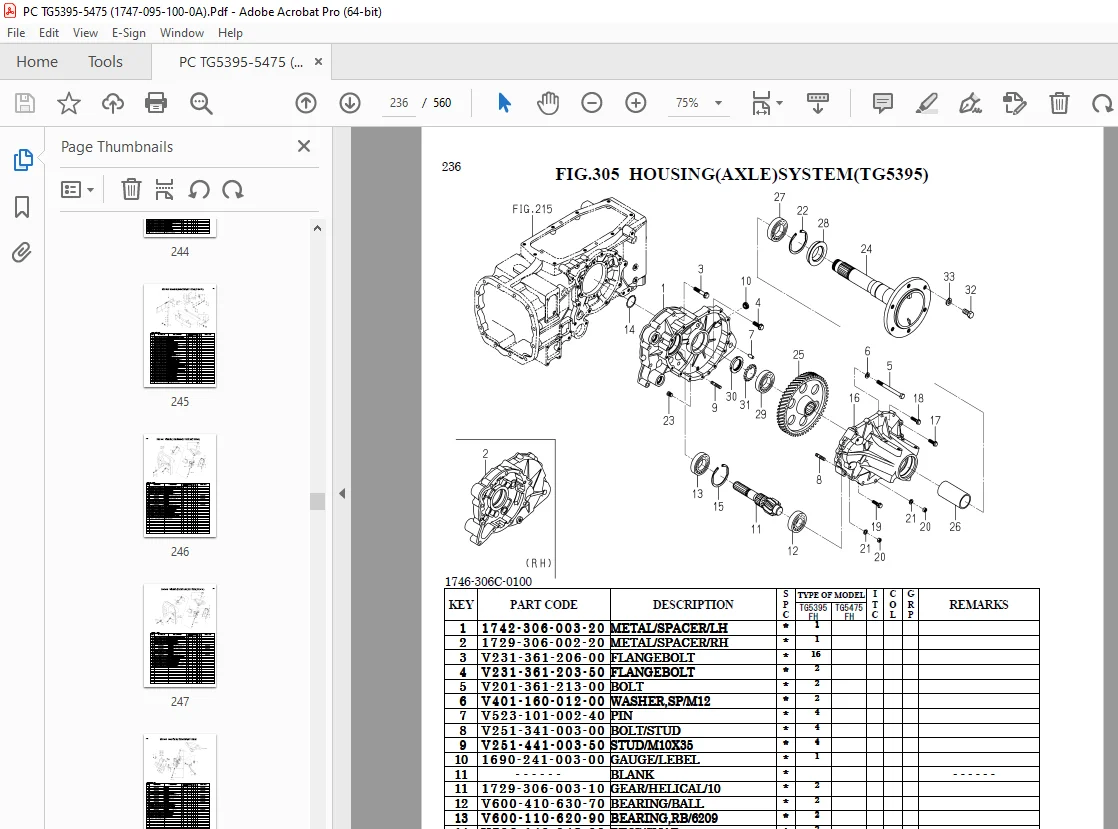

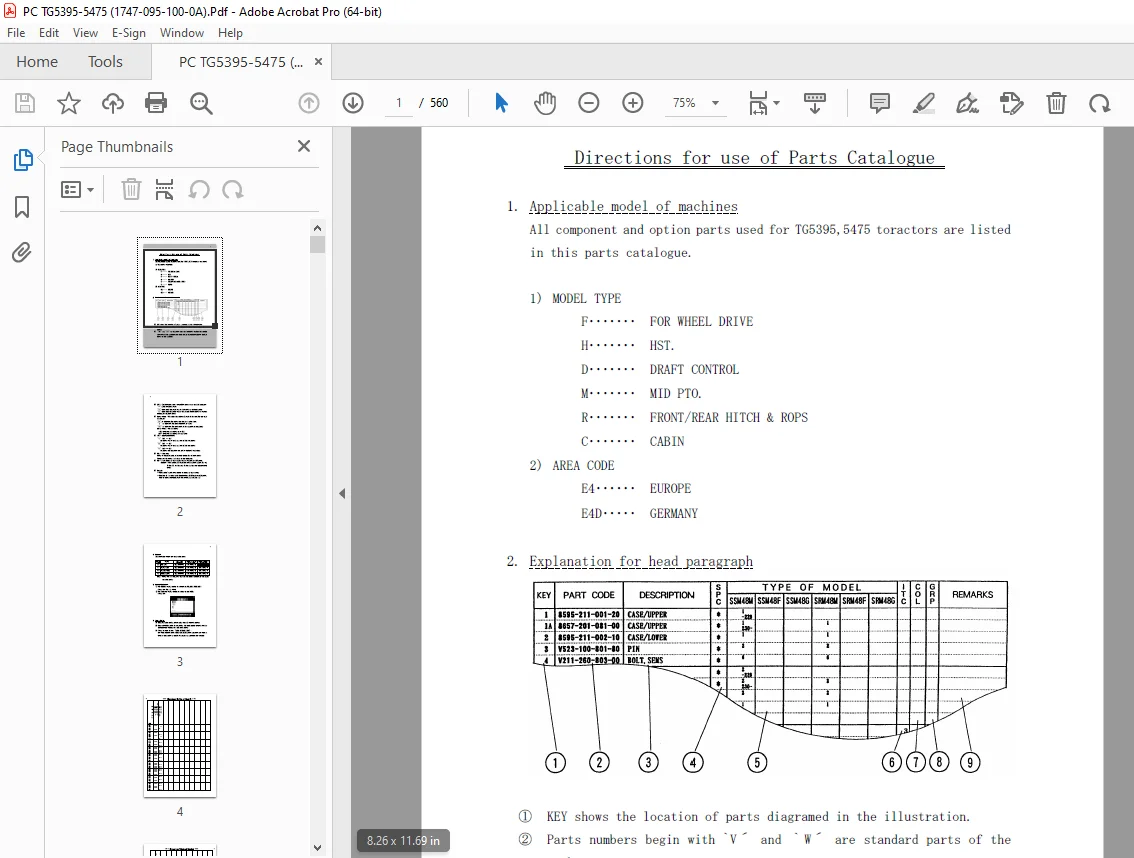

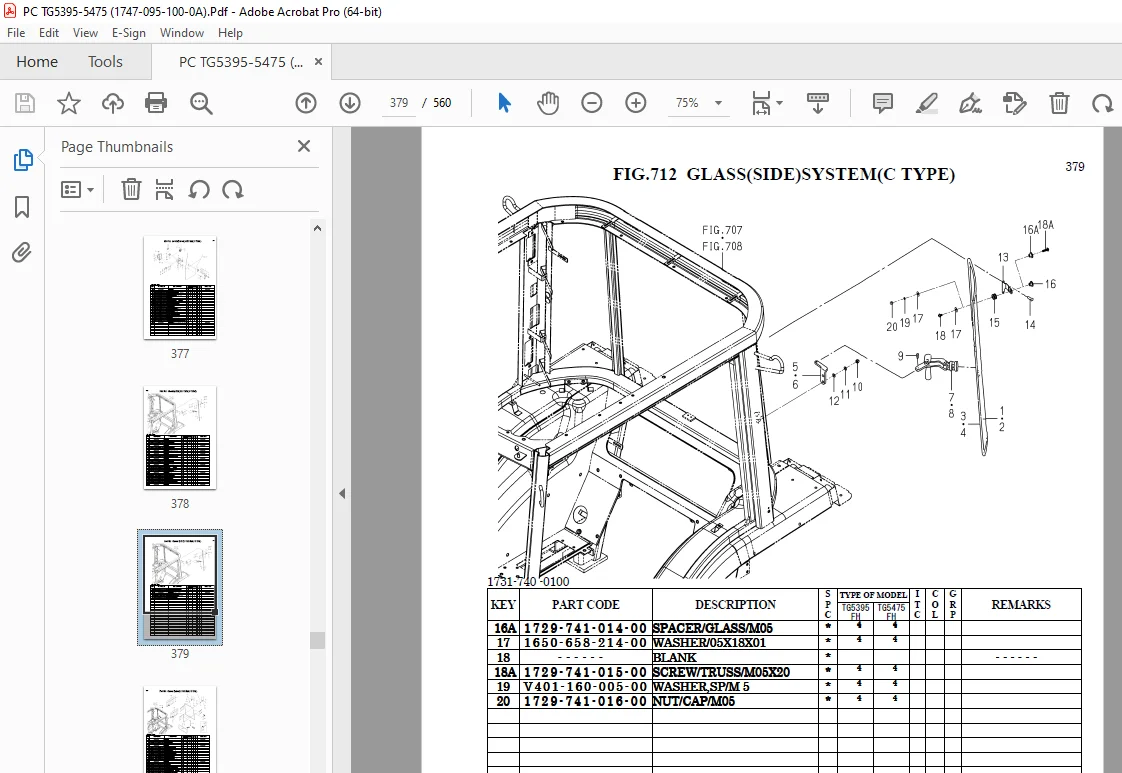

Iseki TG5395,5475 Tractor Parts Manual (1747-095-100-0A) – PDF DOWNLOAD

Parts Order:

1) When you order parts, please make sure of correct numbers.
2) When substitute parts is available, the part number ordered will be
automatically turned to a new part number.
3) Please be sure to use “ISEKI GENUINE PARTS”.
Any other similar parts other than ISEKI parts when used may cause a
trouble that makes us unable to repair or guarantee the warrant.

S.V 31/03/2025
