Iseki TG6625H TG6675 TG6675H Tractor Parts Manual (1817-097-110-10) PDF

Description

Iseki TG6625H TG6675 TG6675H Tractor Parts Manual (1817-097-110-10) – PDF DOWNLOAD

FILE DETAILS:

Iseki TG6625H TG6675 TG6675H Tractor Parts Manual (1817-097-110-10) – PDF DOWNLOAD

Language : English
Pages : 431
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki TG6625H TG6675 TG6675H Tractor Parts Manual (1817-097-110-10) – PDF DOWNLOAD

TG6625H-MWJCYE4,MWJCYE40,MWJCYE4G
TG6675-MWJCYE4,MWJCYE4D,MWJCYE4G,WJRE4,WJRE4A,WJRE4G,WRE4,WRE4A
TG6675H-MWJCYE4,MWJCYE4D,MWJCYE4G

TG6625(H TYPE),TG6675(H TYPE)
ENGINE(N4LDI-TA4501,TA4502)
CYLINDER BLOCK/OIL PAN Fig 001
CRANKSHAFT/PISTON Fig 002
FLYWHEEL/REAR PLATE/STARTER Fig 003
CYLINDER HEAD/ROCKER ARM Fig 004
HEAD COVER Fig 005
EXHAUST MANIFOLD/
TURBO CHARGER/OMS Fig 006
OIL PUMP/WATER PUMP/
THERMOSTAT CASE/ALTERNATOR Fig 007
TIMING GEAR CASE/CAMSHAFT Fig 008
INJECTOR/HP PUMP/FUEL FILTER Fig 009
EGR Fig 010
DOC Fig 011
BALANCER Fig 012
HARNESS WIRE Fig 013
ACCESSORY PARTS Fig 014
11
C o n t e n t s
TG6675(EXCEPT H TYPE)
ENGINE(N4LDI-TA4503)
CYLINDER BLOCK/OIL PAN Fig 001
CRANKSHAFT/PISTON Fig 002
FLYWHEEL/REAR PLATE/STARTER Fig 003
CYLINDER HEAD/ROCKER ARM Fig 004
HEAD COVER Fig 005
EXHAUST MANIFOLD/
TURBO CHARGER/OMS Fig 006
OIL PUMP/WATER PUMP/
THERMOSTAT CASE/ALTERNATOR Fig 007
TIMING GEAR CASE/CAMSHAFT Fig 008
INJECTOR/HP PUMP/FUEL FILTER Fig 009
EGR Fig 010
DOC Fig 011
BALANCER Fig 012
HARNESS WIRE Fig 013
ACCESSORY PARTS Fig 014
12
C o n t e n t s
CHASSIS
ENGINE(PARTS)SYSTEM
(6675 TYPE EXCEPT M) Fig 1
ENGINE(PARTS)SYSTEM(6675-M TYPE) Fig 2
ENGINE(PARTS)SYSTEM
(6675H,6625H TYPE) Fig 3
RADIATOR SYSTEM(1/2)(2/2) Fig 4
TOOL(HOOD)SYSTEM Fig 5
PIPE(TAIL)SYSTEM Fig 6
CLEANER(AIR)SYSTEM Fig 7
HOSE(CLEANER/AIR)SYSTEM
(6675 TYPE EXCEPT M) Fig 8
INTERCOOLER SYSTEM Fig 9
TANK(FUEL)SYSTEM(6675 TYPE)(1/2)(2/2) Fig 10
BRACKET(FILTER)SYSTEM
(6675-M TYPE) Fig 11
BRACKET(FILTER)SYSTEM
(6675 TYPE EXCEPT M) Fig 12
PIPING(COOLER/FUEL)SYSTEM Fig 13
TANK(FUEL)SYSTEM(1/2)(2/2) Fig 14
BRACKET(FILTER)SYSTEM
(6675H,6625H TYPE) Fig 15
LEVER(THROTTLE)SYSTEM Fig 16
PEDAL(HST)SYSTEM(6675 TYPE) Fig 17
PEDAL(HST)SYSTEM(6675H,6625H TYPE) Fig 18
DAMPER(INPUT)SYSTEM(6675 TYPE) Fig 19
DAMPER(INPUT)SYSTEM
(6675H,6625H TYPE) Fig 20
13
PEDAL(CLUTCH)SYSTEM(6675 TYPE) Fig 21
CASE(TRANSMISSION)SYSTEM
(6675H,6625H TYPE) Fig 22
CASE(TRANSMISSION)SYSTEM
(6675 TYPE) Fig 23
GEAR(REVERSE)SYSTEM(6675 TYPE) Fig 24
HST SYSTEM(6675H,6625H TYPE) Fig 25
PUMP(GEAR)SYSTEM(6675 TYPE) Fig 26
PUMP(GEAR)SYSTEM
(6675H,6625H TYPE) Fig 27
GEAR(PTO)SYSTEM(6675 TYPE) Fig 28
GEAR(PTO)SYSTEM(6675H,6625H TYPE) Fig 29
CASE(TRANSMISSION)SYSTEM
(6675 TYPE) Fig 30
CASE(TRANSMISSION)SYSTEM
(6675H,6625H TYPE) Fig 31
GEAR(MAIN)SYSTEM(6675 TYPE) Fig 32
GEAR(MAIN)SYSTEM
(6675H,6625H TYPE) Fig 33
GEAR(SUB)SYSTEM(6675 TYPE) Fig 34
GEAR(SUB)SYSTEM(6675H,6625H TYPE) Fig 35
GEAR(4WD)SYSTEM(6675H,6625H TYPE) Fig 36
GEAR(4WD)SYSTEM(6675 TYPE) Fig 37
GEAR(PTO)SYSTEM(6675 TYPE) Fig 38
GEAR(PTO)SYSTEM(6675H,6625H TYPE) Fig 39
PTO(MID)SYSTEM
(6675-M TYPE-STANDARD/
EXCEPT M TYPE-OPTION)(1/2)(2/2) Fig 40
COVER(MID)SYSTEM
(6675 TYPE EXCEPT M) Fig 41
PTO(MID)SYSTEM
(6675H,6625H TYPE)(1/2)(2/2) Fig 42
CASE(TRANSMISSION)SYSTEM
(6675 TYPE) Fig 43
14
CASE(TRANSMISSION)SYSTEM
(6675H,6625H TYPE) Fig 44
FORK(SHIFT/MAIN)SYSTEM(6675 TYPE) Fig 45
FORK(SHIFT/CHANGE/SUB)SYSTEM
(6675H,6625H TYPE) Fig 46
FORK(SHIFT/CHANGE/SUB)SYSTEM
(6675 TYPE) Fig 47
ARM(SHIFT/4WD)SYSTEM
(6675H,6625H TYPE) Fig 48
ARM(SHIFT/4WD)SYSTEM(6675 TYPE) Fig 49
FORK(SHIFT/PTO)SYSTEM
(6675H,6625H TYPE) Fig 50
FORK(SHIFT/PTO)SYSTEM(6675 TYPE) Fig 51
LEVER(REVERSE)SYSTEM
(6675 TYPE)(NO 1-11) Fig 52
LEVER(REVERSE)SYSTEM
(6675 TYPE-NO 12-) Fig 53
LEVER(MAIN)SYSTEM(6675 TYPE) Fig 54
LEVER(SUB)SYSTEM(6675 TYPE) Fig 55
LEVER(SUB)SYSTEM(6675H,6625H TYPE) Fig 56
LEVER(4WD)SYSTEM
(6675H,6625H TYPE) Fig 57
LEVER(4WD)SYSTEM(6675 TYPE) Fig 58
LEVER(PTO)SYSTEM(6675 TYPE) Fig 59
LEVER(PTO)SYSTEM(6675H,6625H TYPE) Fig 60
PINION(DRIVE)SYSTEM(6675 TYPE) Fig 61
PINION(DRIVE)SYSTEM
(6675H,6625H TYPE) Fig 62
CASE(DIFFERENTIAL/REAR)SYSTEM
(6675 TYPE) Fig 63
CASE(DIFFERENTIAL/REAR)SYSTEM
(6675H,6625H TYPE) Fig 64
HOUSING(AXLE/REAR)SYSTEM
(6675 TYPE) Fig 65
15
HOUSING(AXLE/REAR)SYSTEM
(6675H,6625H TYPE) Fig 66
PEDAL(DIFF-LOCK)SYSTEM
(6675 TYPE EXCEPT M) Fig 67
PEDAL(DIFF-LOCK)SYSTEM
(6675-M TYPE) Fig 68
PEDAL(DIFF-LOCK)SYSTEM
(6675H,6625H TYPE) Fig 69
LEVER(BRAKE/PARKING)SYSTEM
(6675H,6625H TYPE) Fig 70
LEVER(BRAKE/PARKING)SYSTEM
(6675 TYPE) Fig 71
PEDAL(BRAKE)SYSTEM
(6675 TYPE EXCEPT M) Fig 72
PEDAL(BRAKE)SYSTEM(6675-M TYPE) Fig 73
PEDAL(BRAKE)SYSTEM
(6675H,6625H TYPE) Fig 74
LEVER(BRAKE/PARKING)SYSTEM
(6675 TYPE) Fig 75
LEVER(BRAKE/PARKING)SYSTEM
(6675H,6625H TYPE) Fig 76
WHEEL(STEERING)SYSTEM(6675 TYPE) Fig 77
WHEEL(STEERING)SYSTEM
(6675H,6625H TYPE) Fig 78
COLUMN(STEERING)SYSTEM Fig 79
STEERING(POWER)SYSTEM(6675 TYPE) Fig 80
STEERING(POWER)SYSTEM
(6675H,6625H TYPE) Fig 81
BRACKET(AXLE)SYSTEM(6675M TYPE) Fig 82
BUMPER SYSTEM
(EXCEPT M TYPE-STD/
M TYPE-OPTION) Fig 83
BRACKET(AXLE)SYSTEM
(6675 TYPE M TYPE) Fig 84
16
BRACKET(AXLE)SYSTEM
(6675H,6625H TYPE) Fig 85
SHAFT(DRIVE/FRONT)SYSTEM
(6675 TYPE) Fig 86
SHAFT(DRIVE/FRONT)SYSTEM
(6675H,6625H TYPE) Fig 87
CASE(DIFFERENTIAL/FRONT)SYSTEM Fig 88
HOUSING(AXLE/FRONT)SYSTEM Fig 89
CASE(GEAR/FRONT)SYSTEM(1/2)(2/2) Fig 90
ROD(TIE)SYSTEM Fig 91
CASE(CYLINDER)SYSTEM
(6675 TYPE)(1/2)(2/2) Fig 92
CASE(CYLINDER)SYSTEM
(6675H,6625H TYPE)(1/2)(2/2) Fig 93
LEVER(POSITION)SYSTEM(6675 TYPE) Fig 94
LEVER(POSITION)SYSTEM
(6675H,6625H TYPE)(1/2)(2/2) Fig 95
CONTROL(DRAFT)SET(6675 TYPE)(1/2)(2/2) Fig 96
PIPING(MAIN)SYSTEM(6675 TYPE)(1/2)(2/2) Fig 97
PIPING(MAIN)SYSTEM
(6675H,6625H TYPE)(1/2)(2/2) Fig 98
PIPING(SUB)SYSTEM(6675 TYPE)(1/3)-(3/3) Fig 99
PIPING(SUB)SYSTEM
(6675H,6625H TYPE)(1/3)-(3/3) Fig 100
JOY STICK SYSTEM
(6675H,6625H-D TYPE) Fig 101
JOY STICK SYSTEM
(6675 TYPE EXCEPT D,JRA)(1/2)(2/2) Fig 102
COVER(OUTLET)SYSTEM
(6675-R TYPE EXCEPT J) Fig 103
JOY STICK SYSTEM(6675-D TYPE) Fig 104
JOY STICK SYSTEM(6675-JRA TYPE)(1/2)(2/2) Fig 105
JOY STICK SYSTEM
(6675H,6625H TYPE EXCEPT D)(1/2)(2/2) Fig 106
17
VALVE(REMOTE/2R)SET SYSTEM
(6675 TYPE)(1/2)(2/2) Fig 107
VALVE(REMOTE/2R)SET SYSTEM
(6675H,6625H TYPE)(1/2)(2/2) Fig 108
LINK(3P)SYSTEM
(6675 TYPE EXCEPT-M) Fig 109
LINK(3P)SYSTEM(6675H,6625H TYPE) Fig 110
LINK(3P)SYSTEM(6675-M TYPE) Fig 111
ROD(LIFT)SYSTEM(6675H,6625H TYPE) Fig 112
ROD(LIFT)SYSTEM(6675 TYPE) Fig 113
COVER(SHIELD/PTO)SYSTEM
(6675 TYPE) Fig 114
BRACKET(LINK/TOP)SYSTEM
(6675H,6625H TYPE) Fig 115
DRAW BAR SYSTEM(6675 TYPE) Fig 116
DRAW BAR SYSTEM(6675H,6625H TYPE) Fig 117
HOOD(LONG)SYSTEM
(6675 TYPE EXCEPT M) Fig 118
HOOD(LONG)SYSTEM(6675-M TYPE) Fig 119
GRILLE SYSTEM Fig 120
COVER(SIDE)SYSTEM Fig 121
FENDER SYSTEM(6675 TYPE EXCEPT M) Fig 122
GUIDE(LEVER)SYSTEM(6675 TYPE) Fig 123
GUIDE(LEVER)SYSTEM
(6675H,6625H TYPE) Fig 124
GUIDE(RH)SYSTEM
(6675 TYPE EXCEPT M) Fig 125
GUIDE(RH)SYSTEM(M TYPE) Fig 126
MOUNT SYSTEM(A TYPE) Fig 127
MOUNT SYSTEM(6675H,6625H TYPE) Fig 128
MOUNT SYSTEM(6675-M TYPE) Fig 129
MOUNT SYSTEM
(6675 TYPE EXCEPT M,A) Fig 130
18
FLOOR(FRONT)SYSTEM
(6675 TYPE M TYPE) Fig 131
FLOOR(FRONT)SYSTEM(M TYPE) Fig 132
FLOOR(REAR)SYSTEM
(6675 TYPE EXCEPT M) Fig 133
FLOOR(REAR)SYSTEM(6675-M TYPE) Fig 134
FLOOR(REAR)SYSTEM
(6675H,6625H TYPE) Fig 135
ELC (FRONT)SYSTEM
(EXCEPT G TYPE)(1/2)(2/2) Fig 136
ELC (FRONT)SYSTEM(G TYPE)(1/2)(2/2) Fig 137
ELC (MAIN)SYSTEM(6675 TYPE)(1/2)(2/2) Fig 138
ELC (MAIN)SYSTEM
(6675H,6625H TYPE)(1/2)(2/2) Fig 139
ELC (FLOOR)SYSTEM
(6675 TYPE EXCEPT M) Fig 140
ELC (FLOOR)SYSTEM(6675-M TYPE) Fig 141
ELC (FLOOR)SYSTEM
(6675H,6625H TYPE)(1/2)(2/2) Fig 142
PANEL SYSTEM Fig 143
ELC (CABIN)SYSTEM(M TYPE)(1/2)(2/2) Fig 144
CONTROL SYSTEM(6675 TYPE) Fig 145
CONTROL SYSTEM
(6675H,6625H TYPE)(1/2)(2/2) Fig 146
FRAME(REAR)SYSTEM
(6675 TYPE EXCEPT M,A) Fig 147
FRAME(REAR)SYSTEM(A TYPE) Fig 148
FRAME(CENTER)SYSTEM(A TYPE) Fig 149
FRAME(UPPER)SYSTEM
(6675 TYPE EXCEPT M,A) Fig 150
ROOF(CABIN)SYSTEM(M TYPE) Fig 151
FENDER(OVER)SYSTEM
(M TYPE EXCEPT D) Fig 152
19
FRAME(CABIN)SYSTEM(M TYPE) Fig 153
FRAME(CABIN)SYSTEM
(6675H,6625H TYPE) Fig 154
GLASS(FRONT/CABIN)SYSTEM(M TYPE) Fig 155
DOOR(CABIN)SYSTEM(M TYPE) Fig 156
LOCK(DOOR/CABIN)SYSTEM(M TYPE) Fig 157
GLASS(SIDE/CABIN)SYSTEM(M TYPE) Fig 158
GLASS(REAR/CABIN)SYSTEM(M TYPE) Fig 159
INTERIOR(CABIN)SYSTEM(M TYPE) Fig 160
AIR CONDITIONER
(ENGINE)SYSTEM(M TYPE)(1/2)(2/2) Fig 161
AIR CONDITIONER(CABIN)SYSTEM
(M TYPE)(1/2)(2/2) Fig 162
ORNAMENT(6675M,6675H TYPE) Fig 163
ORNAMENT(6625A TYPE) Fig 164
LABEL(CONTROL)(6675-J TYPE) Fig 165
LABEL(CONTROL)(A TYPE) Fig 166
LABEL(PROTECTION LEVEL)(M TYPE) Fig 167
LABEL(CONTROL)(6675-M TYPE) Fig 168
LABEL(CONTROL)
(6675 TYPE EXCEPT J) Fig 169
LABEL(CONTROL)(6675H,6625H TYPE) Fig 170
LABEL(F-GUS)
(M TYPE)(6675-M TYPE-NO 24-) Fig 171
LABEL(CAUTION)(6675H,6625H TYPE) Fig 172
LABEL(CAUTION)(6675-M TYPE) Fig 173
LABEL(CAUTION)
(6675 TYPE EXCEPT M) Fig 174
LABEL(CAUTION/STEP) Fig 175
OPTIONAL REPAIR PARTS
WHEEL(REAR/13 6-28)ASSY(OPTION) Fig 176
20
WHEEL
(REAR/TURF/475/65D-20)ASSY
(EXCEPT A TYPE)(OPTION) Fig 177
WHEEL(FRONT/8-16-4)ASSY(OPTION) Fig 178
WHEEL
(FRONT/TURF/29X12 00-15)ASSY
(EXCEPT A TYPE)(OPTION) Fig 179
CYLINDER(SUB/LH/5)SET
(6675H,6625H TYPE)(OPTION) Fig 180
PLUG(M18)ASSY(OPTION) Fig 181
JOYSTICK(E4/5)SET
(6675 TYPE EXCEPT J)(OPTION)(1/2)(2/2) Fig 182
BALL(CAT2)(6675 TYPE)(OPTION) Fig 183
(6675H,6625H TYPE)(OPTION)
LAMP(HEAD/LHT)ASSY Fig 184
HARNESS(SEAT/GRAMMER)ASSY
(OPTION) Fig 185
COVER ASSY
(6675H,6625H TYPE)(REPAIR) Fig 186
ELC (CABIN)SYSTEM(M TYPE)(OPTION) Fig 187
HOOK SET(M TYPE)(OPTION) Fig 188
WEIGHT(15)SET(OPTION) Fig 189
COMPONENT PARTS
COMPONENT PARTS
FOR K200-249-100-10 ON FIG 99 Fig 190
COMPONENT PARTS
FOR K200-251-000-20 ON FIG 98 Fig 191
COMPONENT PARTS
FOR K200-251-000-20 ON FIG 99 Fig 192
COMPONENT PARTS
FOR K211-104-000-10 ON
FIG 101,102,104,105,106,182 Fig 193
21
COMPONENT PARTS
FOR K211-117-000-00 ON FIG 98 Fig 194
COMPONENT PARTS
FOR K211-111-000-00 ON FIG 97 Fig 195
COMPONENT PARTS Fig 196
COMPONENT PARTS
FOR 1646-407-670-20 ON FIG 80,81 Fig 197
COMPONENT PARTS
FOR 1757-658-270-10 ON FIG 187 Fig 198
COMPONENT PARTS
FOR 1772-654-210-00 ON FIG 140 Fig 199
COMPONENT PARTS
FOR 1792-782-600-20 ON FIG 162 Fig 200
COMPONENT PARTS
FOR 1800-782-400-20 ON FIG 162 Fig 201
COMPONENT PARTS
FOR 1801-512-300-10 ON FIG 107,108 Fig 202
COMPONENT PARTS
FOR 1802-209-200-10 ON FIG 29 Fig 203
COMPONENT PARTS
FOR 1804-203-200-00 ON FIG 24 Fig 204
COMPONENT PARTS
FOR 1804-209-200-10 ON FIG 28 Fig 205
COMPONENT PARTS
FOR 1816-203-500-00 ON FIG 25 Fig 206
WIRING DIAGRAM
WIRING DIAGRAM(CY TYPE)(1/3)
WIRING DIAGRAM(CY TYPE)(2/3)
WIRING DIAGRAM(CY TYPE)(3/3)
WIRING DIAGRAM(R TYPE)(1/3)
WIRING DIAGRAM(R TYPE)(2/3)
22
WIRING DIAGRAM(R TYPE)(3/3)

DESCRIPTION:

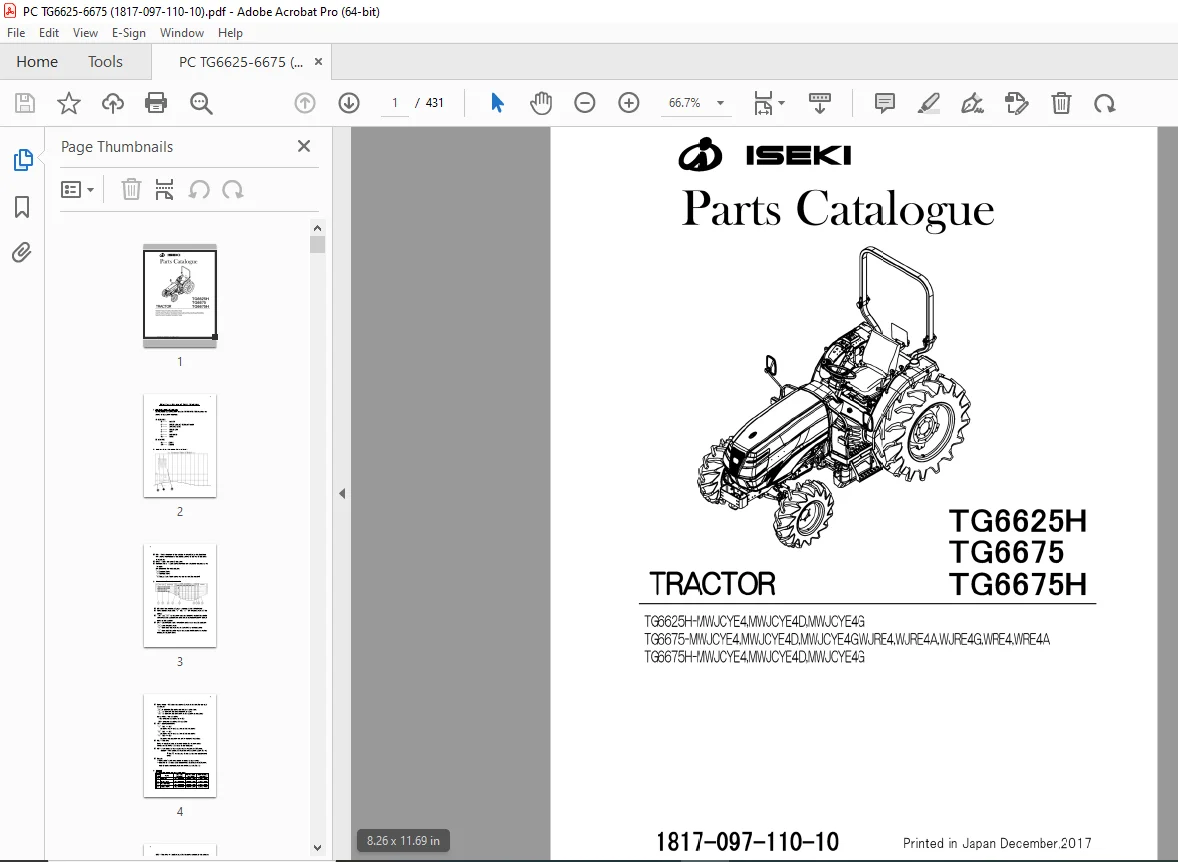

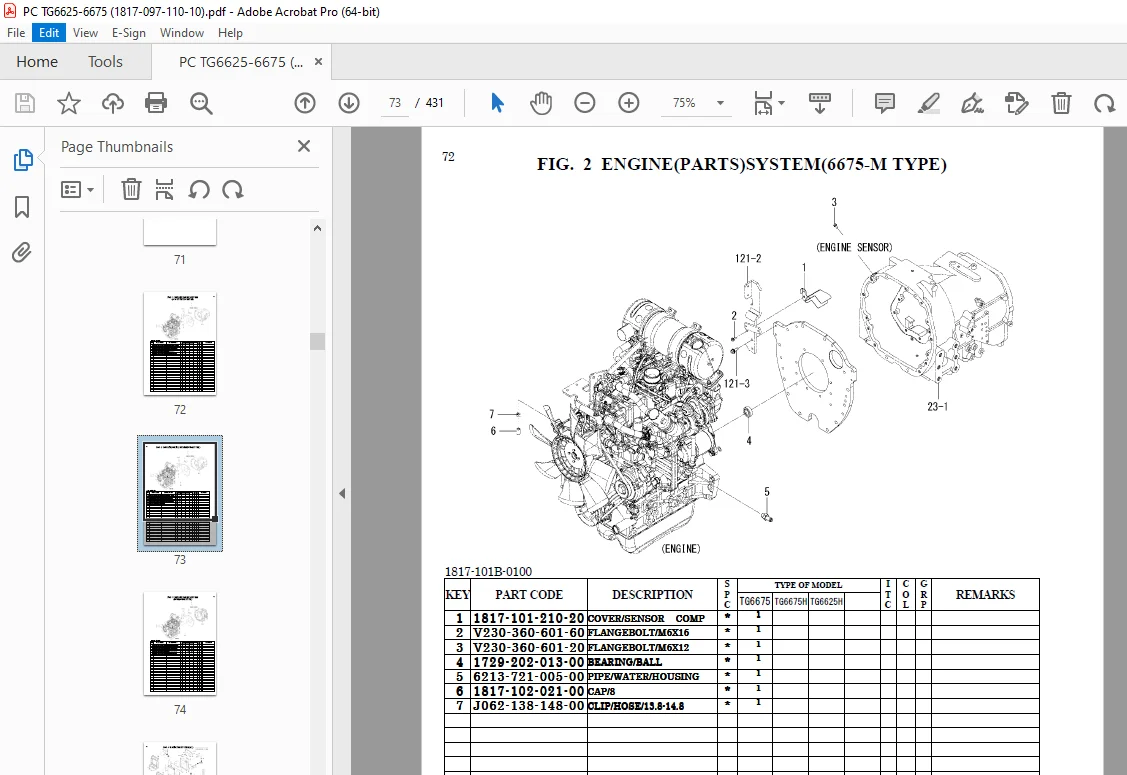

Iseki TG6625H TG6675 TG6675H Tractor Parts Manual (1817-097-110-10) – PDF DOWNLOAD

TG6625H-MWJCYE4,MWJCYE40,MWJCYE4G
TG6675-MWJCYE4,MWJCYE4D,MWJCYE4G,WJRE4,WJRE4A,WJRE4G,WRE4,WRE4A
TG6675H-MWJCYE4,MWJCYE4D,MWJCYE4G

Parts Order:
1) When you order parts, please make sure of correct numbers.
2) When substitute parts is available, the part number ordered will be
automatically turned to a new part number.
3) Please be sure to use “ISEKI GENUINE PARTS”.
Any other similar parts other than ISEKI parts when used may cause a
trouble that makes us unable to repair or guarantee the warrant.

S.V 31/03/2025
