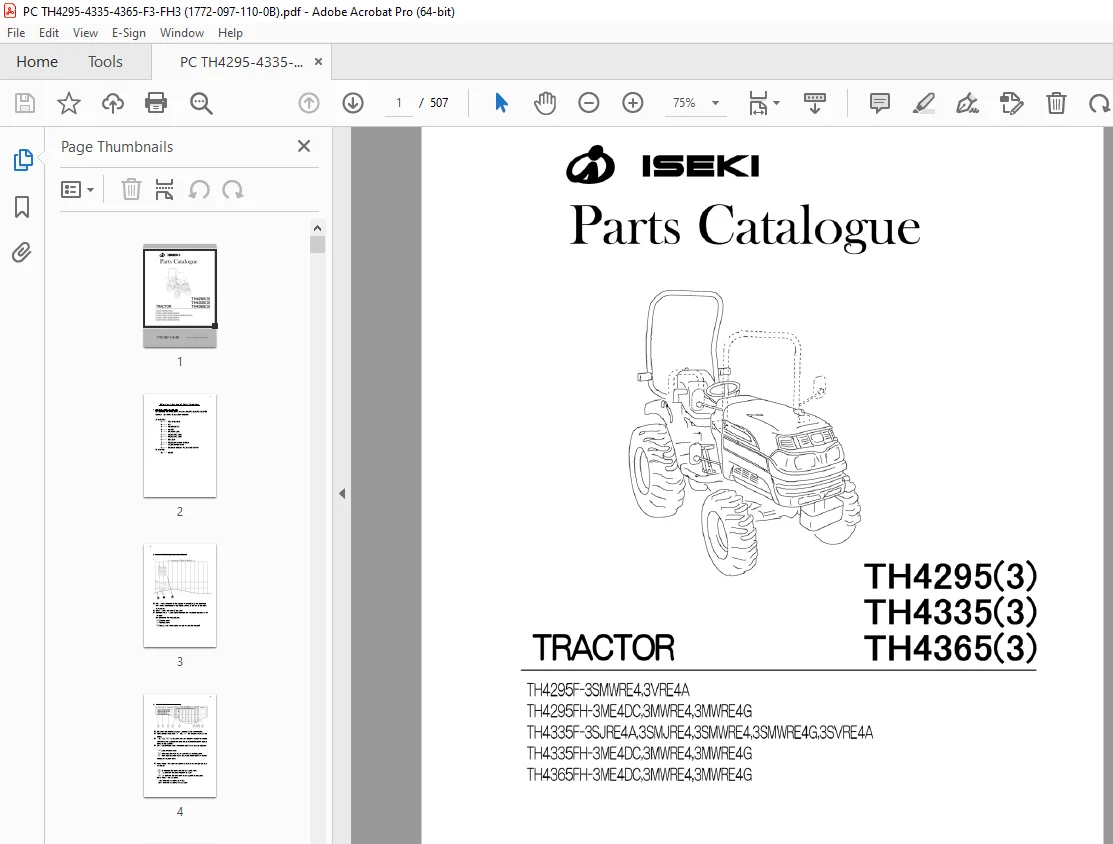

Iseki TH4295(3) TH4335(3) TH4365(3) TRACTOR Parts Manual (1772-097-110-0B) PDF

Description

Iseki TH4295(3) TH4335(3) TH4365(3) TRACTOR Parts Manual (1772-097-110-0B) – PDF DOWNLOAD

FILE DETAILS:

Iseki TH4295(3) TH4335(3) TH4365(3) TRACTOR Parts Manual (1772-097-110-0B) – PDF DOWNLOAD

Language : English
Pages : 507
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki TH4295(3) TH4335(3) TH4365(3) TRACTOR Parts Manual (1772-097-110-0B) – PDF DOWNLOAD

TH4295F-3SMWRE4,3VRE4A
TH4295FH-3ME40C,3MWRE4,3MWRE4G
TH4335F-3SJRE4A3SMJRE4,3SMWRE4,3SMWRE4G,3SVRE4A
TH4335FH-3ME4CC,3MWRE4,3MWRE4G
TH4365FH-3ME40C,3MWRE4,3MWRE4G

TH4295-F3(V TYPE),F3(S TYPE),FH3(EXCEPT C TYPE),FH3(C TYPE)
ENGINE(E3CD-B91,B92,B93,B94)
SHORT BLOCK ENGIASSY Fig 1
CYLINDER HEAD Fig 2
CYLINDER HEAD COVER Fig 3
INLET MANIFOLD Fig 4
EXHAUST MANIFOLD Fig 5
CYLINDER BLOCK Fig 6
CYLINDER BLOCK Fig 7
BEARING/UNDER SIZE (OPTION) Fig 8
OIL PAN Fig 9
REAR PLATE Fig 10
TIMING GEAR CASE Fig 11
HANGER Fig 12
VALVE Fig 13
CAM SHAFT Fig 14
PISTON Fig 15
PISTON/OVER SIZE (OPTION) Fig 16
CRANK SHAFT Fig 17
CRANK SHAFT Fig 18
CRANK SHAFT Fig 19
OIL PUMP Fig 20
WATER PUMP Fig 21
COOLING FAN Fig 22
COOLING FAN Fig 23
INJECTION NOZZLE Fig 24
12
INJECTION PUMP Fig 25
FUEL PIPE Fig 26
ADAPTER Fig 27
ELECTRIC (1) Fig 28
ELECTRIC (1) Fig 29
ELECTRIC (2) Fig 30
REPAIR PARTS(OPTION) Fig 31
COMPONENT PARTS
FOR 6215-300-045-10 ON Fig 024 Fig 32
COMPONENT PARTS
FOR 6215-600-104-20 ON Fig 025 Fig 33
COMPONENT PARTS
FOR 6281-100-007-40 ON Fig 028,029 Fig 34
COMPONENT PARTS
FOR 6281-200-015-00 ON Fig 029 Fig 35
COMPONENT PARTS
FOR 6281-200-020-00 ON Fig 028 Fig 36
13
C o n t e n t s
TH4335-F3,FH3(EXCEPT C TYPE),FH3(C TYPE)
ENGINE(E3CD-B88,B89,B90)
SHORT BLOCK ENGIASSY Fig 1
CYLINDER HEAD Fig 2
CYLINDER HEAD COVER Fig 3
INLET MANIFOLD Fig 4
EXHAUST MANIFOLD Fig 5
CYLINDER BLOCK Fig 6
CYLINDER BLOCK Fig 7
BEARING/UNDER SIZE (OPTION) Fig 8
OIL PAN Fig 9
REAR PLATE Fig 10
TIMING GEAR CASE Fig 11
HANGER Fig 12
VALVE Fig 13
CAM SHAFT Fig 14
PISTON Fig 15
PISTON/OVER SIZE (OPTION) Fig 16
CRANK SHAFT Fig 17
CRANK SHAFT Fig 18
OIL PUMP Fig 19
WATER PUMP Fig 20
COOLING FAN Fig 21
COOLING FAN Fig 22
INJECTION NOZZLE Fig 23
INJECTION PUMP Fig 24
14
FUEL PIPE Fig 25
ADAPTER Fig 26
ELECTRIC (1) Fig 27
ELECTRIC (1) Fig 28
ELECTRIC (2) Fig 29
REPAIR PARTS(OPTION) Fig 30
COMPONENT PARTS
FOR 6215-300-045-10 ON Fig 023 Fig 31
COMPONENT PARTS
FOR 6215-600-104-20 ON Fig 024 Fig 32
COMPONENT PARTS
FOR 6281-100-007-40 ON Fig 027,028 Fig 33
COMPONENT PARTS
FOR 6281-200-015-00 ON Fig 028 Fig 34
COMPONENT PARTS
FOR 6281-200-020-00 ON Fig 027 Fig 35
15
C o n t e n t s
TH4365-FH3(EXCEPT C TYPE),FH3(C TYPE)
ENGINE(E3CG-B25,B26)
SHORT BLOCK ENGIASSY Fig 1
CYLINDER HEAD Fig 2
CYLINDER HEAD COVER Fig 3
INLET MANIFOLD Fig 4
EXHAUST MANIFOLD Fig 5
CYLINDER BLOCK Fig 6
BEARING/UNDER SIZE (OPTION) Fig 7
OIL PAN Fig 8
REAR PLATE Fig 9
TIMING GEAR CASE Fig 10
HANGER Fig 11
VALVE Fig 12
CAM SHAFT Fig 13
PISTON Fig 14
PISTON/OVER SIZE (OPTION) Fig 15
CRANK SHAFT Fig 16
OIL PUMP Fig 17
WATER PUMP Fig 18
COOLING FAN Fig 19
INJECTION NOZZLE Fig 20
INJECTION PUMP Fig 21
FUEL PIPE Fig 22
ADAPTER Fig 23
ELECTRIC (1) Fig 24
16
ELECTRIC (1) Fig 25
ELECTRIC (2) Fig 26
REPAIR PARTS(OPTION) Fig 27
REPAIR PARTS(OPTION) Fig 28
COMPONENT PARTS
FOR 6215-300-045-10 ON Fig 020 Fig 29
COMPONENT PARTS
FOR 6215-600-104-20 ON Fig 021 Fig 30
COMPONENT PARTS
FOR 6281-100-007-40 ON Fig 024,025 Fig 31
COMPONENT PARTS
FOR 6281-200-015-00 ON Fig 025 Fig 32
COMPONENT PARTS
FOR 6281-200-020-00 ON Fig 024 Fig 33
17
C o n t e n t s
CHASSIS
RADIATOR SYSTEM
(EXCEPT H TYPE)(1/2)(2/2) Fig 1
RADIATOR SYSTEM(4365 TYPE)(1/2)(2/2) Fig 2
RADIATOR SYSTEM
(4295,4335-H TYPE)(1/2)(2/2) Fig 3
MUFFLER SYSTEM(4295,4335 TYPE) Fig 4
MUFFLER SYSTEM(4365 TYPE) Fig 5
CLEANER(AIR)SYSTEM Fig 6
FUEL SYSTEM(4295,4335-H TYPE)(1/2)(2/2) Fig 7
FUEL SYSTEM
(4295,4335 TYPE EXCEPT H/4365 TYPE)(1/2)(2/2) Fig 8
THROTTLE SYSTE(H TYPE) Fig 9
THROTTLE SYSTE
(4295,4335 TYPE EXCEPT H) Fig 10
CLUTCH(MAIN)SYSTEM(4295-VR TYPE) Fig 11
CLUTCH(MAIN)SYSTEM
(4295 TYPE EXCEPT H,V/
4335 TYPE EXCEPT H) Fig 12
PEDAL(CLUTCH)SYSTEM
(4295,4335 EXCEPT H TYPE) Fig 13
CASE(TRANSMISSION/FRONT)SYSTEM
(4295-V TYPE) Fig 14
CASE(TRANSMISSION/FRONT)SYSTEM
(4295 TYPE EXCEPT H,V/4335 TYPE) Fig 15
CASE(TRANSMISSION/FRONT)SYSTEM
(H TYPE) Fig 16
GEAR(INPUT)SYSTEM(4295-V TYPE) Fig 17
18
GEAR(INPUT)SYSTEM
(4295 TYPE EXCEPT H,V/
4335 TYPE EXCEPT H) Fig 18
HST SYSTEM(H TYPE) Fig 19
GEAR(PTO)SYSTEM
(4295 TYPE EXCEPT H,V/
4335 TYPE EXCEPT H) Fig 20
GEAR(PTO)SYSTEM(H TYPE) Fig 21
CASE(TRANSMISSION/MID)SYSTEM
(H TYPE) Fig 22
GEAR(MAIN)SYSTEM
(4295 TYPE EXCEPT H,V/
4335 TYPE EXCEPT H) Fig 23
GEAR(MAIN)SYSTEM(4295-V TYPE) Fig 24
GEAR(MAIN)SYSTEM(H TYPE) Fig 25
GEAR(SUB)SYSTEM
(4295 TYPE ECEPT H,V/
4335 TYPE EXCEPT H) Fig 26
GEAR(SUB)SYSTEM(4295-V TYPE) Fig 27
GEAR(SUB)SYSTEM(H TYPE) Fig 28
COVER(CASE/TRANSMISSION/
REAR/UPPER)SYSTEM(4295-V TYPE) Fig 29
GEAR(4WD)SYSTEM Fig 30
GEAR(PTO)SYSTEM
(4295 TYPE EXCEPT H,V/
4335 TYPE EXCEPT H) Fig 31
GEAR(PTO)SYSTEM(4295-V TYPE) Fig 32
GEAR(PTO)SYSTEM(H TYPE) Fig 33
COVER(MID/PTO)SYSTEM
(V TYPE,J TYPE EXCEPT M) Fig 34
PTO(MID)SYSTEM(C TYPE)(1/2)(2/2) Fig 35
PTO(MID)SYSTEM
(R TYPE EXCEPT J,V)(1/2)(2/2) Fig 36
19
CASE(TRANSMISSION/REAR)SYSTEM
(4295,4335 TYPE EXCEPT H) Fig 37
CASE(TRANSMISSION/REAR)SYSTEM
(HR TYPE) Fig 38
CASE(TRANSMISSION/REAR)SYSTEM
(C TYPE) Fig 39
FORK(SHIFT/REVERSE)SYSTEM
(4295 TYPE EXCEPT D,H/
4335 TYPE EXCEPT H) Fig 40
METAL(TRUNNION)SYSTEM(H TYPE) Fig 41
FORK(SHIFT/MAIN)SYSTEM
(4295 TYPE EXCEPT V,H/
4335 TYPE EXCEPT H) Fig 42
FORK(SHIFT/MAIN)SYSTEM
(4295-V TYPE) Fig 43
FORK(SHIFT/SUB)SYSTEM
(4295,4335 TYPE EXCEPT H) Fig 44
FORK(SHIFT/SUB)SYSTEM(H TYPE) Fig 45
ARM(SHIFT/4WD)SYSTEM Fig 46
FORK(SHIFT/PTO)SYSTEM Fig 47
LEVER(REVERSE)SYSTEM
(4295 TYPE EXCEPT H,V/
4335 TYPE EXCEPT H) Fig 48
LEVER(MAIN)SYSTEM
(4295,4335 TYPE EXCEPT H) Fig 49
LEVER(SUB)SYSTEM(C TYPE) Fig 50
LEVER(SUB)SYSTEM(EXCEPT C TYPE) Fig 51
LEVER(4WD)SYSTEM Fig 52
LEVER(PTO)SYSTEM(EXCEPT C TYPE) Fig 53
LINK(PTO)SYSTEM(C TYPE) Fig 54
PEDAL(HST)SYSTEM(H TYPE) Fig 55
AUTO CRUISE SYSTEM
(H TYPE EXCEPT C) Fig 56
20
AUTO CRUISE SYSTEM(C TYPE) Fig 57
CABLE(PEDAL/HST)SYSTEM(H TYPE) Fig 58
PINION(DRIVE/REAR)SYSTEM
(4295,4335 TYPE EXCEPT H) Fig 59
PINION(DRIVE/REAR)SYSTEM(H TYPE) Fig 60
CASE
(DIFFERENTIAL GEAR/REAR)SYSTEM
(4295,4335 TYPE EXCEPT H) Fig 61
CASE
(DIFFERENTIAL GEAR/REAR)SYSTEM
(H TYPE) Fig 62
HOUSING(AXLE/REAR)SYSTEM Fig 63
SHAFT(WHEEL/REAR)SYSTEM
(EXCEPT H TYPE) Fig 64
SHAFT(WHEEL/REAR)SYSTEM(H TYPE) Fig 65
PEDAL
(CLUTCH/DIFFERENTIAL GEAR)SYSTEM
(EXCEPT H TYPE) Fig 66
CLUTCH(DIFFERENTIAL GEAR)SYSTEM
(H TYPE) Fig 67
BRAKE SYSTEM(EXCEPT H TYPE) Fig 68
BRAKE SYSTEM(H TYPE) Fig 69
PEDAL(BRAKE)SYSTEM(H TYPE) Fig 70
PEDAL(BRAKE)SYSTEM
(EXCEPT H TYPE) Fig 71
LEVER(BRAKE/PARKING)SYSTEM
(EXCEPT H TYPE) Fig 72
LEVER(BRAKE/PARKING)SYSTEM
(H TYPE) Fig 73
WHEEL(STEERING)SYSTEM Fig 74
COVER(COLUMN/STEERING)SYSTEM Fig 75
CONTROLLER(STEERING)SYSTEM
(V,J TYPE) Fig 76
21
CONTROLLER(STEERING)SYSTEM
(EXCEPT H,V TYPE) Fig 77
CONTROLLER(STEERING)SYSTEM
(H TYPE) Fig 78
BRACKET(AXLE)SYSTEM
(4295,4335 TYPE) Fig 79
BRACKET(AXLE)SYSTEM(4365 TYPE) Fig 80
PLATE(BUMPER)SYSTEM
(EXCEPT H TYPE-OPTION/
H TYPE-STANDARD) Fig 81
HITCH(FRONT)SYSTEM
(EXCEPT C TYPE) Fig 82
SHAFT(DRIVE/FRONT)SYSTEM Fig 83
CASE
(DIFFERENTIAL GEAR/FRONT)SYSTEM Fig 84
METAL(PIVOT)SYSTEM Fig 85
HOUSING(AXLE/FRONT)SYSTEM
(EXCEPT V,J TYPE) Fig 86
HOUSING(AXLE/FRONT)SYSTEM
(V,J TYPE) Fig 87
GEAR(FINAL)SYSTEM Fig 88
ROD(TIE)SYSTEM(EXCEPT V,J TYPE) Fig 89
ROD(TIE)SYSTEM(V,J TYPE) Fig 90
STOPPER(HOUSING)SYSTEM
(EXCEPT V,J TYPE) Fig 91
COVER(CYLINDER)SYSTEM
(EXCEPT V,J TYPE) Fig 92
COVER(CYLINDER)SYSTEM(V,J TYPE) Fig 93
CASE(CYLINDER)SYSTEM(1/3)-(3/3) Fig 94
LEVER(POSITION)SYSTEM(C TYPE)(1/2)(2/2) Fig 95
LEVER(POSITION)SYSTEM
(V,J TYPE)(1/2)(2/2) Fig 96
LINK(POSITION)SYSTEM
(EXCEPT C,V,J TYPE)(1/2)(2/2) Fig 97
22
COVER(CASE/CYLINDER/SIDE)SYSTEM
(C,V,J TYPE) Fig 98
LEVER(DRAFT)SYSTEM(V,J TYPE) Fig 99
PIPING(MAIN)SYSTEM
(4295-V TYPE)(1/2)(2/2) Fig 100
COVER(VALVE/RELIF)SYSTEM
(EXCEPT J TYPE) Fig 101
PIPING(MAIN)SYSTEM
(4295 TYPE EXCEPT H,V/
4335 TYPE EXCEPT H)(1/2)(2/2) Fig 102
PIPING(MAIN)SYSTEM(4365 TYPE)(1/2)(2/2) Fig 103
PIPING(MAIN)SYSTEM
(4295,4335-H TYPE)(1/2)(2/2) Fig 104
PIPING(SUB)SYSTEM(H TYPE) Fig 105
COVER(FENDER)SYSTEM
(EXCEPT C,J TYPE) Fig 106
JOY STICK SYSTEM(4335-J TYPE)(1/2)(2/2) Fig 107
VALVE(REMOTE/1R)SYSTEM(V TYPE) Fig 108
VALVE(REMOTE/2R)SYSTEM
(EXCEPT C,V,J TYPE) Fig 109
LINK(3P)SYSTEM
(V TYPE,J TYPE EXCEPT M) Fig 110
LINK(3P)SYSTEM(EXCEPT V,J TYPE) Fig 111
ROD(LIFT)SYSTEM Fig 112
BRACKET(LINK/TOP)SYSTEM
(MR TYPE) Fig 113
COVER(SHAFT/PTO)SYSTEM(V TYPE) Fig 114
BRACKET(LINK/TOP)SYSTEM(C TYPE) Fig 115
DRAW BAR SYSTEM(EXCEPT C TYPE) Fig 116
HOOD SYSTEM
(4295,4335 TYPE EXCEPT H) Fig 117
HOOD SYSTEM(4365 TYPE) Fig 118
HOOD SYSTEM(4295,4335-H TYPE) Fig 119
23
GRILLE SYSTEM
(4295,4335 TYPE EXCEPT H) Fig 120
GRILLE SYSTEM(H TYPE) Fig 121
COVER(SIDE)SYSTEM(H TYPE) Fig 122
COVER(SIDE)SYSTEM
(4295,4335 TYPE EXCEPT H) Fig 123
MIRROR SYSTEM(MR TYPE) Fig 124
MIRROR SYSTEM(V,J TYPE) Fig 125
MOUNT(FRAME)SYSTEM(V,J TYPE) Fig 126
MOUNT(FRAME)SYSTEM(MR TYPE) Fig 127
MOUNT(FRAME)SYSTEM(C TYPE) Fig 128
PANEL(DASH)SYSTEM(4295-V TYPE) Fig 129
PANEL(DASH)SYSTEM
(4295 TYPE EXCEPT H,V/
4335 TYPE EXCEPT H) Fig 130
PANEL(DASH)SYSTEM(H TYPE) Fig 131
FLOOR(REAR)SYSTEM(4295-V TYPE) Fig 132
FLOOR(REAR)SYSTEM
(4295 TYPE EXCEPT H,V/
4335 TYPE EXCEPT H) Fig 133
FLOOR(REAR)SYSTEM
(H TYPE EXCEPT C) Fig 134
FLOOR(REAR)SYSTEM(C TYPE) Fig 135
PLATE(NUMBER)SYSTEM(MR TYPE) Fig 136
PLATE(NUMBER)SYSTEM(V,JA TYPE) Fig 137
HARNESS(ALTERNATOR)SYSTEM
(C TYPE) Fig 138
ELC (FRONT)SYSTEM
(4295 TYPE EXCEPT H,V/
4335 TYPE EXCEPT H,G) Fig 139
ELC (FRONT)SYSTEM
(G TYPE EXCEPT H) Fig 140
ELC (FRONT)SYSTEM(4295-V TYPE) Fig 141
24
ELC (FRONT)SYSTEM
(H TYPE EXCEPT G) Fig 142
ELC (FRONT)SYSTEM(HG TYPE) Fig 143
ELC (MAIN)SYSTEM
(EXCEPT V,JA TYPE)(1/2)(2/2) Fig 144
ELC (MAIN)SYSTEM(V,JA TYPE)(1/2)(2/2) Fig 145
ELC (REAR)SYSTEM
(EXCEPT H,V,JA TYPE) Fig 146
ELC (REAR)SYSTEM(4295-V TYPE)(1/2)(2/2) Fig 147
ELC (REAR)SYSTEM(4335-V,JA TYPE) Fig 148
ELC (REAR)SYSTEM
(H TYPE EXCEPT G) Fig 149
ELC (REAR)SYSTEM(C TYPE) Fig 150
PANEL(INSTRUMENT)SYSTEM Fig 151
CONTROL(PTO)SYSTEM(4295-V TYPE) Fig 152
CONECTOR(CONTROL/PTO)SYSTEM
(4295 TYPE EXCEPT V) Fig 153
HARNESS(SOCKET/7P)SYSTEM
(EXCEPT J TYPE) Fig 154
HARNESS(SOCKET/7P)SYSTEM(J TYPE) Fig 155
FRAME(REAR/UNDER)SYSTEM
(EXCEPT C TYPE) Fig 156
FRAME(REAR/UPPER)SYSTEM(A TYPE) Fig 157
FRAME(MID)SYSTEM(A TYPE) Fig 158
FRAME(REAR/UPPER)SYSTEM
(A,C TYPE) Fig 159
ORNAMENT(4335 TYPE EXCEPT H) Fig 160
ORNAMENT(4295 TYPE EXCEPT H) Fig 161
ORNAMENT(4335-H TYPE) Fig 162
ORNAMENT(4295-H TYPE) Fig 163
ORNAMENT(4365 TYPE) Fig 164
LABEL(PROTECTION LEVEL)(C TYPE) Fig 165
(4295,4335 TYPE EXCEPT H,V)
LABEL(CONTROL) Fig 166
25
LABEL(CONTROL)(4295-A TYPE) Fig 167
LABEL(CONTROL)(4335-A TYPE) Fig 168
LABEL(CONTROL)(H TYPE EXCEPT C) Fig 169
LABEL(CONTROL)(C TYPE) Fig 170
LABEL(CAUTION)
(EXCEPT C TYPE,EXCEPT 4295-V TYPE ) Fig 171
LABEL(CAUTION)(4295-V TYPE) Fig 172
LABEL(CAUTION)(C TYPE) Fig 173
TOOLS Fig 174
OPTIONAL PARTS
GEAR(CREEP)SET
(4295 TYPE EXCPET H,V/
4325 TYPE EXCEPT H)(OPTION) Fig 175
PTO(MID)SET
(4335-A TYPE)(OPTION)(1/2)(2/2) Fig 176
WHEEL(REAR/AGR/12 4-16)SYSTEM
(OPTION) Fig 177
WHEEL(REAR/TURF/13 6-16)SYSTEM
(OPTION) Fig 178
WHEEL(REAR/AGR/9 5-24)SYSTEM
(OPTION) Fig 179
WHEEL(REAR/AGR/11 2-24)SYSTEM
(V,J TYPE)(OPTION) Fig 180
WHEEL(REAR/TURF/315/80D-16)SYSTEM
(OPTION) Fig 181
WHEEL(REAR/AGR/9 5-22)SYSTEM
(OPTION) Fig 182
WHEEL(FRONT/AGR/6-14)SYSTEM
(OPTION) Fig 183
WHEEL(FRONT/TURF/26X12 0)SYSTEM
(OPTION) Fig 184
26
WHEEL
(FRONT/TURF/24X8 50-12)SYSTEM
(V,J TYPE)(OPTION) Fig 185
WHEEL(FRONT/AGR/7-16)SYSTEM
(OPTION) Fig 186
WHEEL(FRONT/AGR/7-14)SYSTEM
(OPTION) Fig 187
JOY STICK(E4)SET
(EXCEPT H TYPE)(OPTION)(1/2)(2/2) Fig 188
JOY STICK(H/E4)SET
(H TYPE EXCEPT C)(OPTION)(1/2)(2/2) Fig 189
VALVE(REMOTE/2ND/3)SET
(J TYPE)(OPTION) Fig 190
VALVE(REMOTE/1ST)SET
(J TYPE)(OPTION) Fig 191
VALVE(REMOTE/2ND)SET
(V TYPE)(OPTION) Fig 192
HITCH(TRAILER/EC)SET(OPTION) Fig 193
KIT(CN-4P-M)SET(OPTION) Fig 194
WEIGHT(15)SET
(4295,4335-EXCEPT H TYPE)(OPTION) Fig 195
COMPONENT PARTS
COMPONENT PARTS
FOR K135-028-000-00 ON Fig 23,17 Fig 196
COMPONENT PARTS
FOR K200-215-000-10 ON Fig 29,35 Fig 197
COMPONENT PARTS
FOR K211-086-000-10 ON Fig 1,2 Fig 198
COMPONENT PARTS
FOR K500-001-000-30 ON Fig 19 Fig 199
COMPONENT PARTS
FOR 1640-530-600-10 ON Fig 2 Fig 200
27
COMPONENT PARTS
FOR 1672-105-210-00 ON Fig 7,8 Fig 201
COMPONENT PARTS
FOR 1719-511-350-00 ON Fig 108,109 Fig 202
COMPONENT PARTS
FOR 1740-128-500-10 ON Fig 20 Fig 203
COMPONENT PARTS
FOR 1772-407-300-10 ON Fig 77,78 Fig 204
COMPONENT PARTS
FOR 1772-654-210-00 ON Fig 148,149,150,151 Fig 205
COMPONENT PARTS
FOR 1773-407-300-30 ON Fig 76 Fig 206
COMPONENT PARTS
FOR 1826-177-300-00 ON Fig 21 Fig 207
WIRING DIAGRAM
WIRING DIAGRAM(1/2)
WIRING DIAGRAM(2/2)

DESCRIPTION:

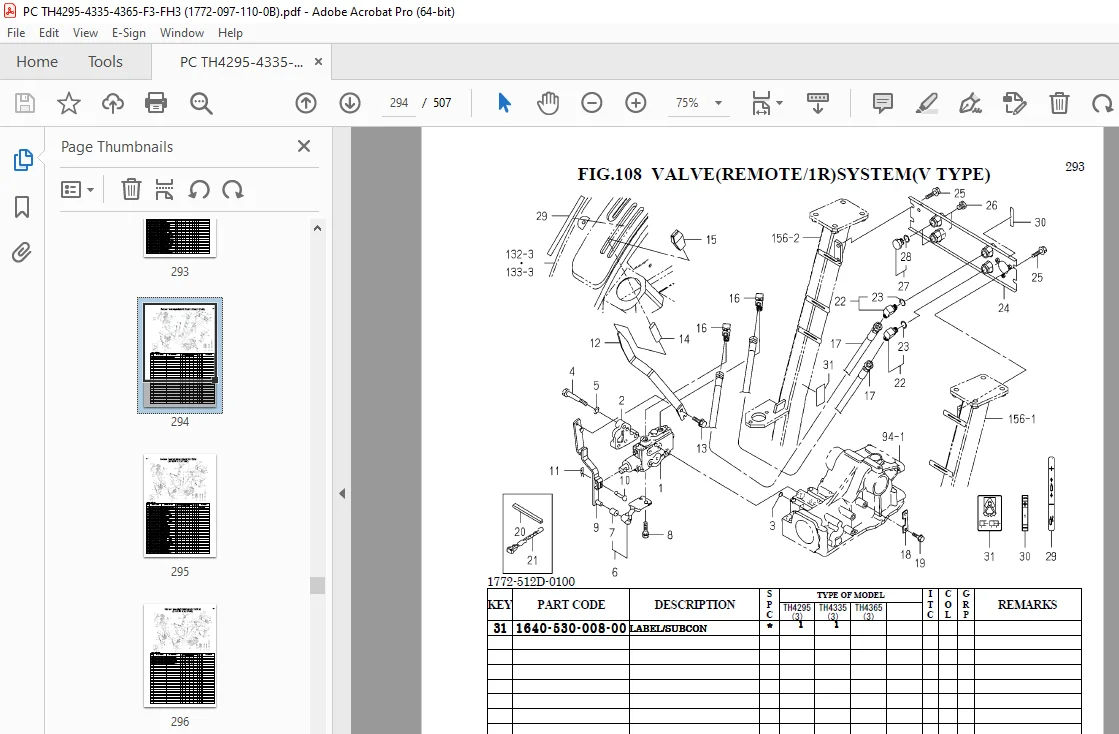

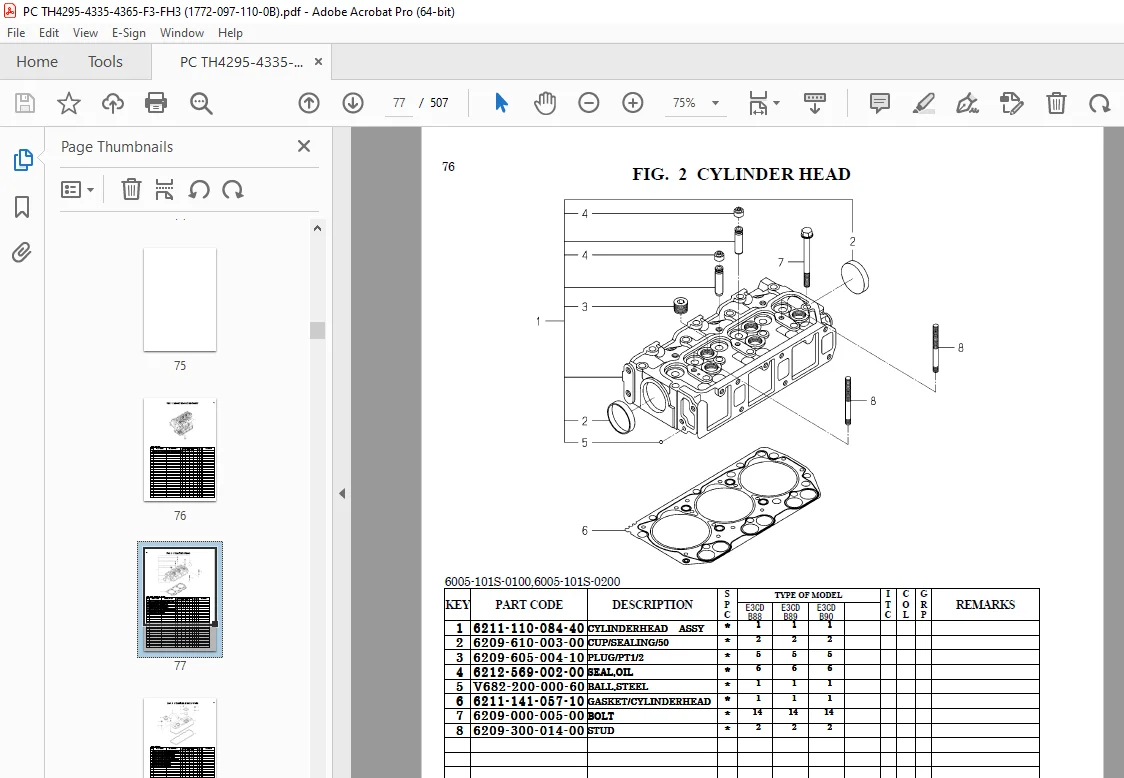

Iseki TH4295(3) TH4335(3) TH4365(3) TRACTOR Parts Manual (1772-097-110-0B) – PDF DOWNLOAD

TH4295F-3SMWRE4,3VRE4A
TH4295FH-3ME40C,3MWRE4,3MWRE4G
TH4335F-3SJRE4A3SMJRE4,3SMWRE4,3SMWRE4G,3SVRE4A
TH4335FH-3ME4CC,3MWRE4,3MWRE4G
TH4365FH-3ME40C,3MWRE4,3MWRE4G

Parts Order:
1) When you order parts, please make sure of correct numbers.
2) When substitute parts is available, the part number ordered will be
automatically turned to a new part number.
3) Please be sure to use “ISEKI GENUINE PARTS”.
Any other similar parts other than ISEKI parts when used may cause a
trouble that makes us unable to repair or guarantee the warrant.

S.V 1/04/2025
