Iseki TK538H Tractor Parts Manual 1674-097-120-00 – PDF DOWNLOAD

Description

Iseki TK538H Tractor Parts Manual 1674-097-120-00 – PDF DOWNLOAD

FILE DETAILS:

Iseki TK538H Tractor Parts Manual 1674-097-120-00 – PDF DOWNLOAD

Language : English
Pages : 260
Downloadable : Yes
File Type : PDF

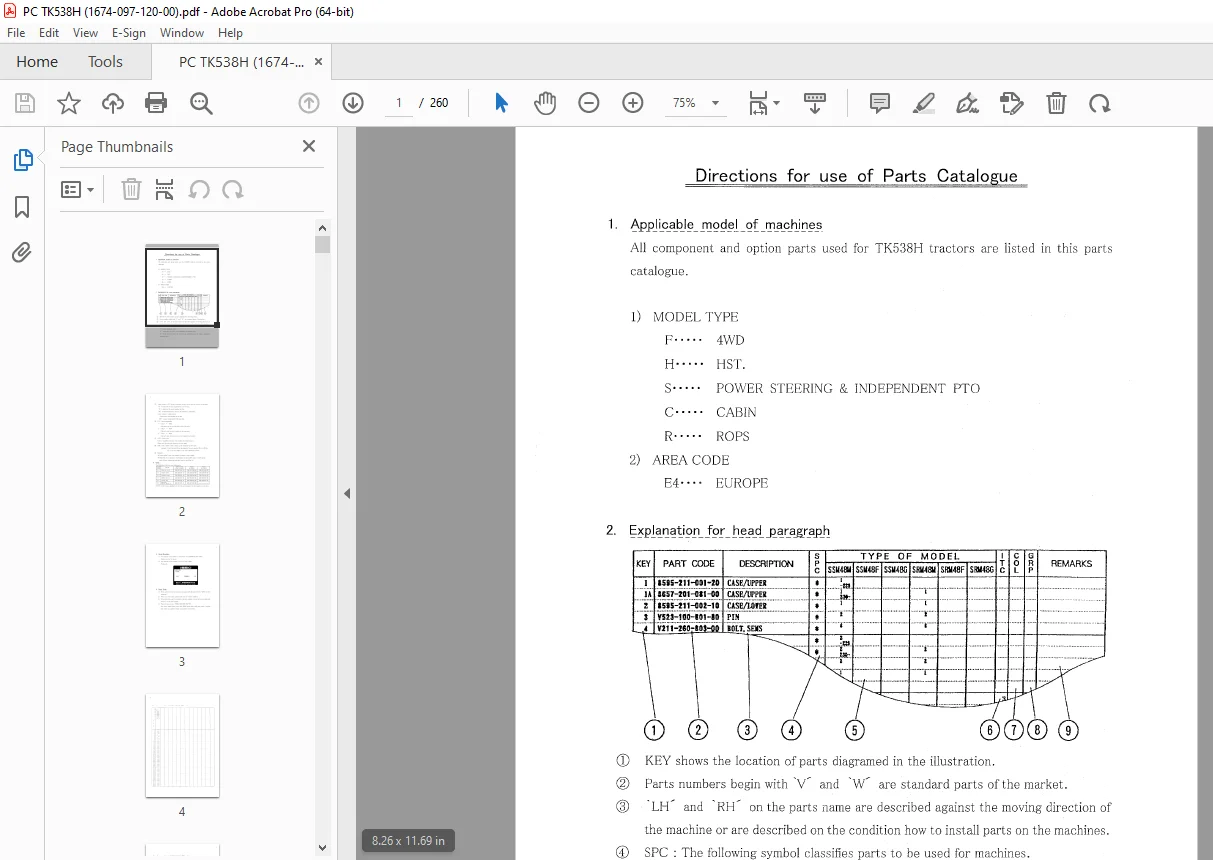

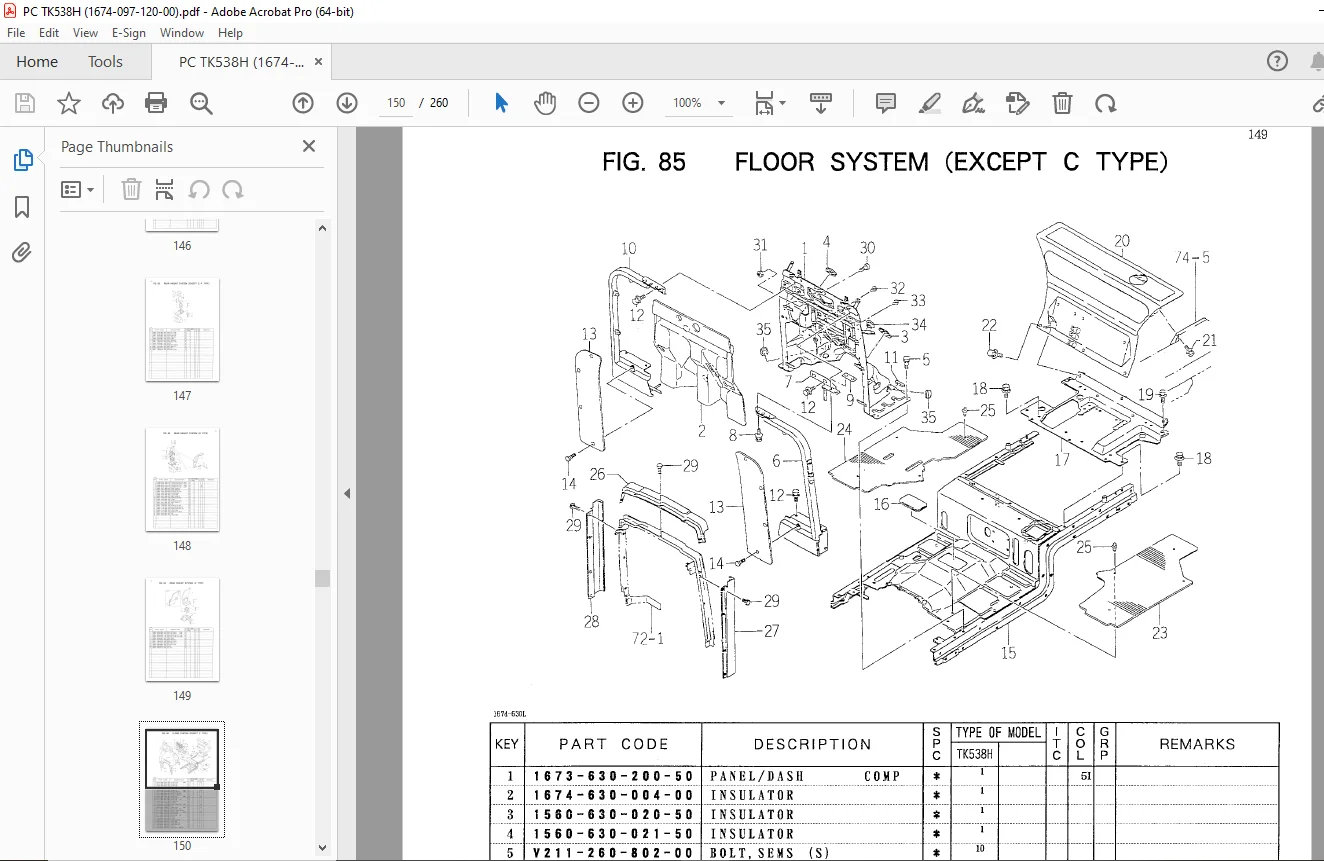

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki TK538H Tractor Parts Manual 1674-097-120-00 – PDF DOWNLOAD

TK538H
ENG I NE (E3CD-TB05)
CYLINDER HEAD
CYLINDER HEAD COVER
INLET MANIFOLD
EXH:AUST MANIFOLD
TURBO CHARGER
CYLINDER BLOCK
BEARING/UNDER SIZE (OPTION)
OIL PAN
REAR PLATE
TIMING GEAR CASE
HANGER
VALVE
CAM SHAFT
PISTON
PISTON/OVER SIZE (OPTION)
CRANK SHAFT
OIL PUMP
WATER PUMP
COOLING FAN
INJECTION NOZZLE
INJECTION PUMP
FUEL PIPE
ELECTRIC (1)
ELECTRIC (2)
REPAIR PARTS (OPTION)
COMPONENT PARTS FOR 6215 – 300 – 037 – 00 ON Fig 20
COMPONENT PARTS FOR 6215 – 600 – 078 – 00 ON Fig 21
COMPONENT PARTS FOR 6281 – 100 – 007 – 20 ON Fig 23
COMPONENT PARTS FOR 6281 – 200 – 020 – 00 ON Fig 23
CHASSIS
FUEL SySTEM
AIR CLEANER SySTEM
RADIATOR SySTEM
MUFFLER SYSTEM (EXCEPT C TYPE)
MUFFLER (UPPER) SYSTEM (C TYPE)
TANK (FUEL) SYSTEM (EXCEPT C TypE)
TANK (FUEL) SYSTEM (C TYPE)
BATTERY BASE SySTEM
ACCELERATOR SySTEM
CASE (FRONT) SySTEM
INPUT SHAFT SySTEM
MAIN GEAR SySTEM
HST UNIT SySTEM
GEAR (PTa) SySTEM
METAL (TRUNNION) SySTEM
CASE (MIDDLE) SySTEM
CASE (SPACER) SySTEM
METAL (HST) SySTEM
REAR MISSION CASE SySTEM
COVER HOLDER, COVER (BOTTOM) SySTEM
SUB CHANGE GEAR SySTEM
SUB CHANGE SySTEM
4WD DRIVE GEAR SySTEM
4WD CHANGE SySTEM
P-TO COuNTER S'{ST EM
PTa CHANGE GEAR SySTEM
PTa CHANGE SySTEM
SUB CHANGE SySTEM
LEVER (SUB) SYSTEIV1
LEVER (PTa) SYSTEM (A)
LEVER (PTO) SYSTEM (B)
LEVER (4WD) , ROD (4WD) SYSTEM
DRIVE PINION SySTEM
DIFFERENTIAL GEAR SySTEM
REAR AXLE HOUSING SySTEM
WHEEL PINION SySTEM
REAR WHEEL SHAFT SySTEM
BRAKE SySTEM
ROD (BRAKE) SySTEM
BRAKE (ARM) SySTEM
BRAKE PEDAL SySTEM
PARKING BRAKE SySTEM
DIFF – LOCK PEDAL SySTEM
STEERING WHEEL SySTEM
STEERING SHAFT SySTEM
TILT HANDLE SySTEM
POWER STEERING SySTEM
AXLE BRACKET SySTEM
DRIVE SHAFT SySTEM
BEVEL CASE SySTEM
AXLE HOUSING SySTEM
FRONT GEAR CASE SySTEM
TIE ROD SySTEM
CYLINDER CASE SySTEM
LIFT ARM SySTEM
CYLINDER SySTEM
SLOW RETURN SHAFT SySTEM
LINK (POSITION) SySTEM
BRACKET (POSITION) SySTEM
LEVER (POSITION), ROD (POSITION) SySTEM
PIPING (MAIN) SYSTEM 0/3) (2/3) (3/3)
PIPING (SUB) SySTEM
STACK SYSTEM (EXCEPT C TyPE)
PIPING (COOLER) SySTEM
COVER (SHIELD), REAR HITCH SySTEM ,
3P LINK SySTEM
LOWER LINK, LIFT ROD SySTEM
VALVE (REMOTE/2R) SYSTEM (C TypE)
GRILLE SySTEM
HOOD SYSTEM (C TYPE)
HOOD SYSTEM (EXCEPT C TypE)
FRAME (HOOD), DASH – BOARD SySTEM
FAN COVER SySTEM
FENDER SYSTEM (EXCEPT C TypE)
FENDER SYSTEM (C TYPE)
LEVER GUIDE, LEVER STOPPER SySTEM
SEAT SySTEM
BACK MIRROR SYSTEM (EXCEPT C TypE)
FRONT MOUNT SYSTEM (R TYPE)
FRONT MOUNT SYSTEM (EXCEPT C, R TyPE)
FRONT MOUNT SYSTEM (C TYPE)
REAR MOUNT SYSTEM (EXCEPT C, R TypE)
REAR MOUNT SYSTEM (R TyPE)
REAR MOUNT SYSTEM (C TYPE)
FLOOR SYSTEM (EXCEPT C TypE)
FLOOR SYSTEM (C TYPE)
PEDAL (HST) SYSTEM
CRUISE CONTROL SySTEM
BATTERY (DELKOR) SySTEM
HEAD LAMP SYSTEM :
LAMP SYSTEM (EXCEPT C TypE)
LAMP SYSTEM (C TYPE)
PANEL SySTEM
SWITCH SYSTEM
HARNESS SYSTEM (EXCEPT C TYPE)
HARNESS SYSTEM (C TyPE)
HARNESS (CAB) SYSTEM (C TYPE)
SWITCH (PTO) SYSTEM (S, P TypE)
MIRROR SYSTEM (C TYPE) Fig 99
FRAME (FRONT) SYSTEM (C TYPE) Fig 100
FRAME (REAR) SYSTEM (C TYPE) Fig 101
FRAME (ACCESSORY) SYSTEM (C TYPE) Fig 102
CANOPY SYSTEM (C TYPE) Fig 103
CAB GLASS SYSTEM (C TYPE) Fig 104
DOOR SYSTEM (C TYPE) Fig 105
DOOR GLASS SYSTEM (C TYPE) Fig 106
DOOR SEAL, DOOR LOCK SYSTEM (C TYPE) Fig 107
REAR GLASS, SEAL SYSTEM (C TYPE) Fig 108
COCKPIT SYSTEM (C TYPE) Fig 109
HEATER SYSTEM (C TYPE) 0/2) (2/2) Fig 110
ORNAMENT Fig 111
LABEL (CONTROL) Fig 112
LABEL (ENGLISH) Fig 113
LABEL Fig 114
TOOL Fig 115
OPTIONAL PARTS
AIR CLEANER ASSY (OPTION) Fig 116
MUFFLER (TAIL/UPPER) SYSTEM (EXCEPT C TYPE) (OPTION) Fig 117
PTa (MIDDLE) SET (OPTION) Fig 118
REAR WHEEL SYSTEM (OPTION) Fig 119
REAR WHEEL (TURF) SYSTEM (OPTION) Fig 120
FRONT HITCH SET (OPTION) Fig 121
FRONT HITCH (EEC) SET (OPTION) Fig 122
SPACER (AXLE) SET (OPTION) Fig 123
FRONT WHEEL SYSTEM (OPTION) Fig 124
HUB RING SYSTEM (OPTION) Fig 125
FRONT WHEEL (TURF) SYSTEM (OPTION) Fig 126
DRAFT SET (OPTION) Fig 127
VALVE (REMOTE/1) SET (OPTION) Fig 128
DRAW BAR SET (OPTION) Fig 129
TRAILER HITCH SET (OPTION) Fig 130
CREVICE (DRAW BAR) SYSTEM (OPTION) Fig 131
HIGH HITCH SET (OPTION) Fig 132
VALVE (REMOTE/1R) SET (OPTION) Fig 133
VALVE (REMOTE/2R) SET (EXCEPT C TYPE) (OPTION) Fig 134
VALVE (REMOTE/2) SET (OPTION) Fig 135
SUB STEP (R) SYSTEM (OPTION) Fig 136
SOCKET (7P) SYSTEM (OPTION) Fig 137
SWITCH (SAFETY/REPAIR) SET (OPTION) Fig 138
2 ROPS SYSTEM (R TYPE) (OPTION) Fig 139
ROPS SET (EXCEPT C, R TYPE) (OPTION) (1/2) (2/2) Fig 140
INTERIOR SYSTEM (C TYPE) (OPTION) Fig 141
COMPONENT PARTS
COMPONENT PARTS FOR K211 – 005 – 000 – 10 ON Fig 128, 135 Fig 142
COMPONENT PARTS FOR K211 – 008 – 000 – 10 ON Fig 56 Fig 143
COMPONENT PARTS FOR K256 – 001 – 000 – 00 ON Fig 62 Fig 144
COMPONENT PARTS FOR K275 – 001 – 000 – 00 ON Fig 62 Fig 145
COMPONENT PARTS FOR 1561 – 221 – 500 – 10 ON Fig 14 Fig 146
COMPONENT PARTS FOR 1581 – 621 – 530 – 00 ON Fig 97 Fig 147
COMPONENT PARTS FOR 1640 – 530 – 600 – 10 ON Fig 68, 133, 134 Fig 148
COMPONENT PARTS FOR 1673 – 407 – 550 – 00 ON Fig 47 Fig 149
COMPONENT PARTS FOR 1674 – 658 – 220 – 00 ON Fig 93 Fig 150
WIRING DIAGRAM

DESCRIPTION:

Iseki TK538H Tractor Parts Manual 1674-097-120-00 – PDF DOWNLOAD

Parts Order:
1) Parts numbers listed in the parts catalogue are all registered in “ISEKI on-line computer” .
2) When you order parts, please make sure of correct numbers.
3) When substitute parts is available, the part number ordered will be automatically
turned to a new part number.
4) Please be sure to use “ISEKI GENUINE PARTS”.
Any other similar parts other than ISEKI parts when used may cause a trouble
that makes us unable to repair or guarantee the warrant.

S.V 06/03/2025
