Iseki Tractor SGR17/SGR19/SGR22/Parts Manual – PDF DOWNLOAD

Description

Iseki Tractor SGR17/SGR19/SGR22/Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Iseki Tractor SGR17/SGR19/SGR22/Parts Manual – PDF DOWNLOAD

Language : English
Pages : 286
Downloadable : Yes
File Type : PDF

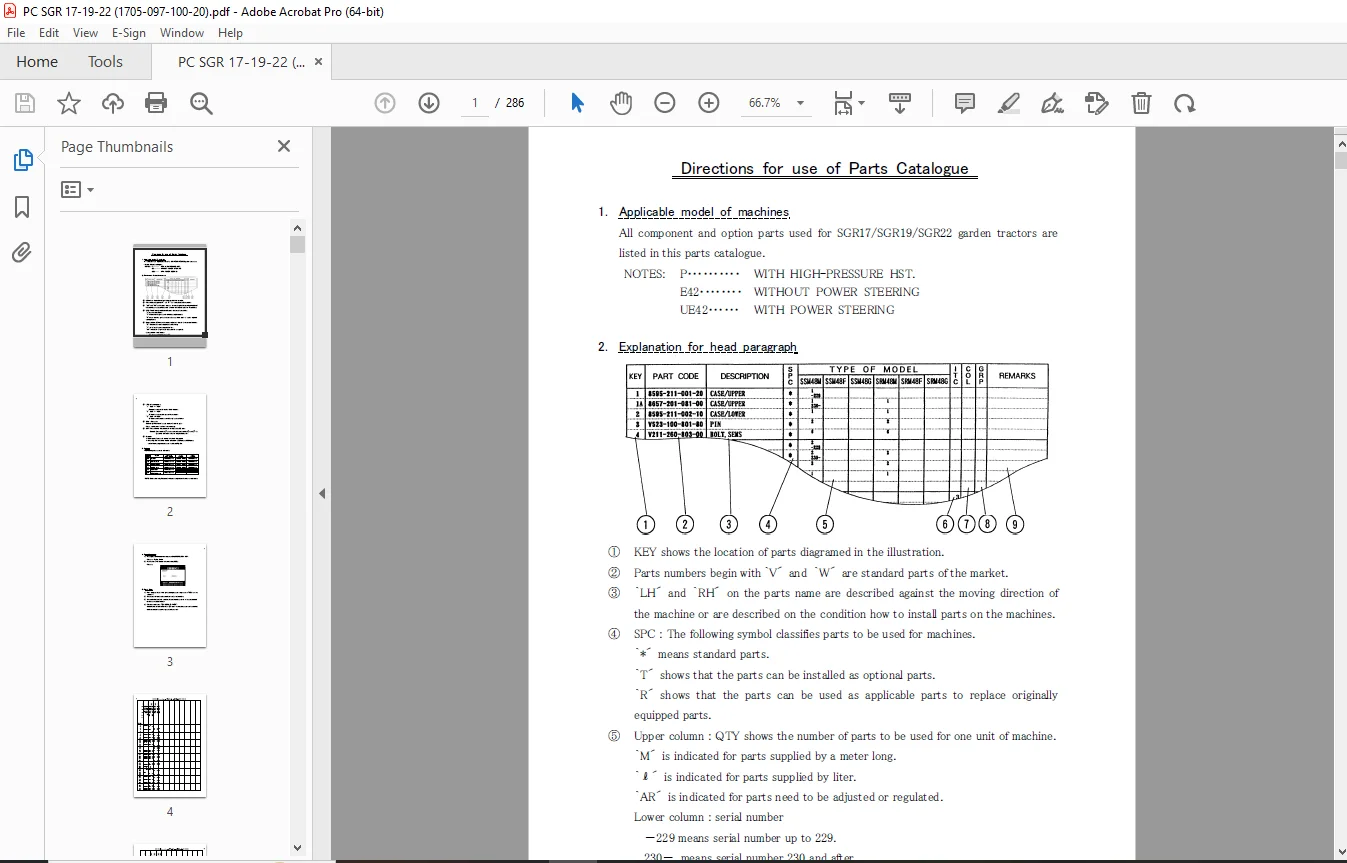

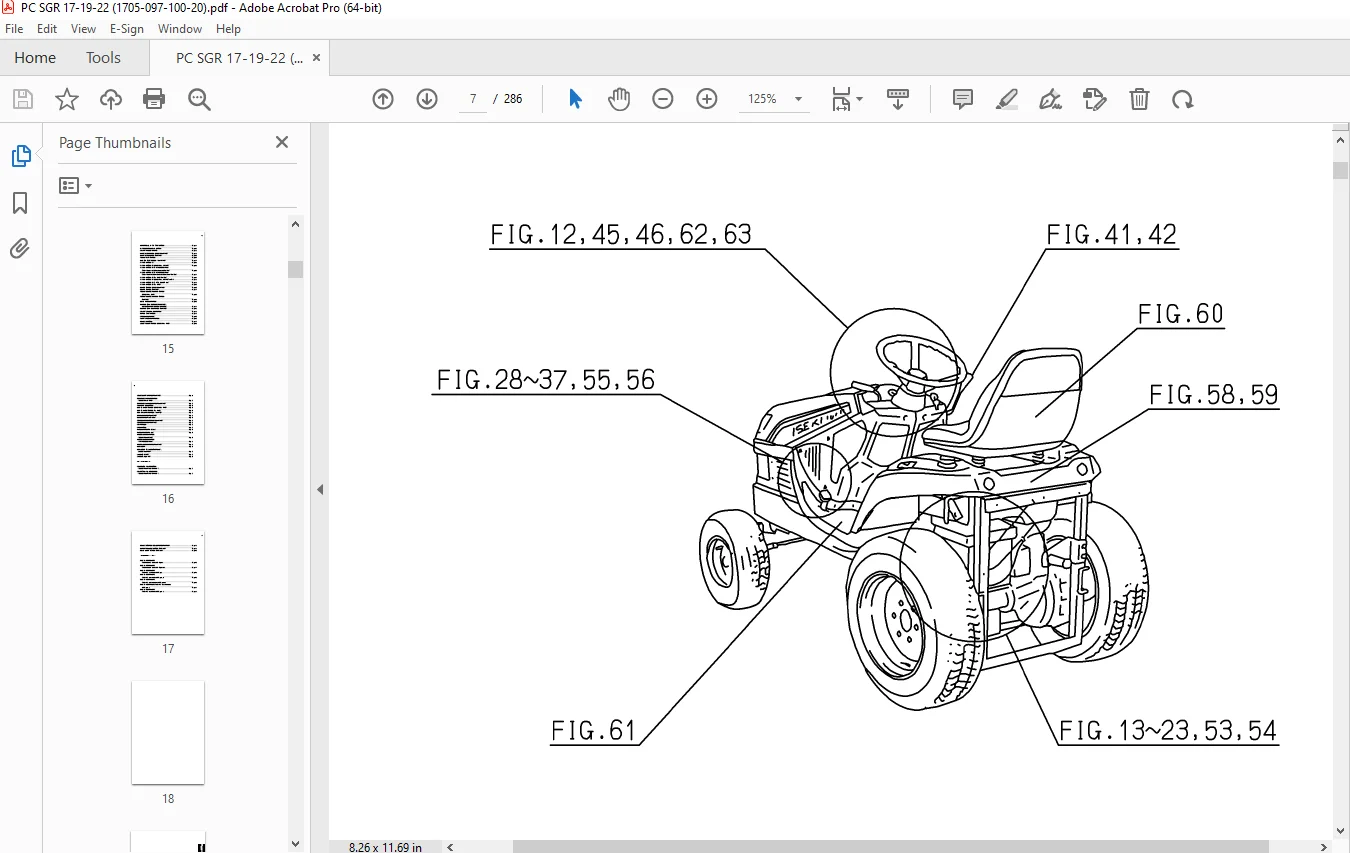

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Iseki Tractor SGR17/SGR19/SGR22/Parts Manual – PDF DOWNLOAD

CYLINDER HEAD. Fig. 1
CYLINDER HEAD COVER .Fig. 2
INLET MANIFOLD. Fig. 3
EXHAUST MANIFOLD .Fig. 4
CYLINDER BLOCK. Fig. 5
BEARING/UNDER SIZE (OPTION).Fig. 6
OIL PAN. Fig. 7
REAR PLATE. Fig. 8
TIMING GEAR CASE Fig. 9
HANGER Fig. 10
VALVE Fig. 11
CAM SHAFT .Fig. 12
PISTON. Fig. 13
PISTON/OVER SIZE (OPTION). Fig. 14
CRANK SHAFT Fig. 15
OIL PUMP Fig. 16
WATER PUMP .Fig. 17
COOLING FAN Fig. 18
INJECTION NOZZLE. Fig. 19
INJECTION PUMP. Fig. 20
FUEL PIPE .Fig. 21
ELECTRIC (1) Fig. 22
ELECTRIC (2) Fig. 23
REPAIR PARTS (OPTION).Fig. 24
8
COMPONENT PARTS
FOR 6215-300-037-00 ON Fig.19Fig. 25
COMPONENT PARTS
FOR 6215-600-032-10 ON Fig.20Fig. 26
COMPONENT PARTS
FOR 6281-100-014-00 ON Fig.22Fig. 27
COMPONENT PARTS
FOR 6281-100-015-00 ON Fig.22Fig. 28
COMPONENT PARTS
FOR 6281-200-008-10 ON Fig.22Fig. 29
9
C o n t e n t s
SGR19
ENGINE(E393-G02)
CYLINDER HEAD. Fig. 1
CYLINDER HEAD COVER .Fig. 2
INLET MANIFOLD. Fig. 3
EXHAUST MANIFOLD .Fig. 4
CYLINDER BLOCK .Fig. 5
BEARING/UNDER SIZE (OPTION).Fig. 6
OIL PAN. Fig. 7
REAR PLATE. Fig. 8
TIMING GEAR CASE Fig. 9
HANGER Fig. 10
VALVE Fig. 11
CAM SHAFT .Fig. 12
PISTON. Fig. 13
PISTON/OVER SIZE (OPTION). Fig. 14
CRANK SHAFT Fig. 15
OIL PUMP Fig. 16
WATER PUMP .Fig. 17
COOLING FAN Fig. 18
INJECTION NOZZLE. Fig. 19
INJECTION PUMP. Fig. 20
FUEL PIPE .Fig. 21
ELECTRIC (1) Fig. 22
ELECTRIC (2) Fig. 23
REPAIR PARTS (OPTION).Fig. 24
10
COMPONENT PARTS
FOR 6215-300-037-00 ON Fig.19Fig. 25
COMPONENT PARTS
FOR 6215-600-032-10 ON Fig.20Fig. 26
COMPONENT PARTS
FOR 6281-100-014-00 ON Fig.22Fig. 27
COMPONENT PARTS
FOR 6281-100-015-00 ON Fig.22Fig. 28
COMPONENT PARTS
FOR 6281-200-008-10 ON Fig.22Fig. 29
11
C o n t e n t s
SGR22
ENGINE(E3112-G01)
CYLINDER HEAD .Fig. 1
CYLINDER HEAD COVER. Fig. 2
INLET MANIFOLD. Fig. 3
EXHAUST MANIFOLD .Fig. 4
CYLINDER BLOCK. Fig. 5
BEARING/UNDER SIZE (OPTION).Fig. 6
OIL PAN. Fig. 7
REAR PLATE.  Fig. 8
TIMING GEAR CASE Fig. 9
HANGER Fig. 10
VALVE Fig. 11
CAM SHAFT. Fig. 12
PISTON .Fig. 13
PISTON/OVER SIZE (OPTION). Fig. 14
CRANK SHAFT Fig. 15
OIL PUMP Fig. 16
WATER PUMP. Fig. 17
COOLING FAN Fig. 18
INJECTION NOZZLE. Fig. 19
INJECTION PUMP. Fig. 20
FUEL PIPE. Fig. 21
ELECTRIC (1) Fig. 22
ELECTRIC (2) Fig. 23
REPAIR PARTS (OPTION).Fig. 24
12
COMPONENT PARTS
FOR 6215-300-036-00 ON Fig.19Fig. 25
COMPONENT PARTS
FOR 6215-600-103-10 ON Fig.20Fig. 26
COMPONENT PARTS
FOR 6281-100-014-00 ON Fig.22Fig. 27
COMPONENT PARTS
FOR 6281-200-008-10 ON Fig.22Fig. 28
13
C o n t e n t s
CHASSIS
ENGINE MOUNT SYSTEM
(EXCEPT H3,P TYPE).Fig. 1
ENGINE MOUNT SYSTEM
(P TYPE EXCEPT H3).Fig. 2
ENGINE MOUNT SYSTEM (H3 TYPE) Fig. 3
RADIATOR SYSTEM (SGR17,19)(1/2)(2/2)Fig. 4
RADIATOR SYSTEM (SGR22)(1/2)(2/2).Fig. 5
MUFFLER SYSTEM Fig. 6
AIR CLEANER SYSTEM (EXCEPT H3 TYPE).Fig. 7
AIR CLEANER SYSTEM (H3 TYPE).Fig. 8
FUEL FILTER (EXCEPT H3 TYPE),
FUEL TANK SYSTEM Fig. 9
FUEL FILTER SYSTEM (H3 TYPE)Fig. 10
BATTERY SYSTEM .Fig. 11
ACCELERATOR SYSTEM Fig. 12
PROPELLER SHAFT SYSTEM
(EXCEPT H3 TYPE)
(SGR17-No.1-411/SGR19-No.1-518)Fig. 13
PROPELLER SHAFT SYSTEM
(EXCEPT H3 TYPE)
(SGR17-No.412-/SGR19-No.519-/SGR22-No.1-).Fig. 14
PROPELLER SHAFT SYSTEM (H3 TYPE) Fig. 15
CASE (INPUT) SYSTEM (H3 TYPE). Fig. 16
DAMPER (ENGINE) SYSTEM (H3 TYPE)Fig. 17
CASE (TRANSMISSION) SYSTEM. Fig. 18
HST SYSTEM (EXCEPT H3 TYPE).Fig. 19
HST SYSTEM (H3 TYPE). Fig. 20
14
INPUT GEAR,SHAFT (PTO) SYSTEM Fig. 21
DIFFERENTIAL GEAR SYSTEM Fig. 22
SHAFT (WHEEL) SYSTEM Fig. 23
LINK (HST) SYSTEM (EXCEPT H3 TYPE)Fig. 24
LINK (HST) SYSTEM (H3 TYPE) Fig. 25
PEDAL (HST) SYSTEM Fig. 26
DAMPER (HST) SYSTEM (H3,P TYPE)Fig. 27
PIPING SYSTEM (1). Fig. 28
PIPING SYSTEM (2) (EXCEPT H3,P TYPE).Fig. 29
PIPING SYSTEM (3) (U TYPE EXCEPT H3)
(SGR17-No.1-411/SGR19-No.1-518)(1/2)(2/2).Fig. 30
PIPING SYSTEM (3) (U TYPE EXCEPT H3)
(SGR17-No.412-/SGR19-No.519-/SGR22-No.1-)(1/2)(2/2)Fig. 31
PIPING SYSTEM (3) (H3 TYPE)(1/2)(2/2). Fig. 32
PIPING SYSTEM (3) (EXCEPT H3,U TYPE)(1/2)(2/2). Fig. 33
PIPING SYSTEM (2) (P TYPE EXCEPT H3).Fig. 34
PIPING SYSTEM (2) (H3 TYPE)Fig. 35
BRAKE SYSTEM (EXCEPT H3 TYPE)Fig. 36
BRAKE SYSTEM (H3 TYPE)Fig. 37
PEDAL (BRAKE),PARKING SYSTEM
(EXCEPT H3 TYPE) Fig. 38
PEDAL (BRAKE),PARKING SYSTEM
(H3 TYPE).Fig. 39
REAR WHEEL SYSTEM. Fig. 40
CLUTCH (MOWER/EXCEPT PU TYPE),
LEVER (CLUTCH/MOWER) SYSTEM Fig. 41
CLUTCH (MOWER) SYSTEM (PU TYPE) Fig. 42
SHAFT (PTO/MOWER) SYSTEM. Fig. 43
COVER (PTO) SYSTEM Fig. 44
STEERING SYSTEM. Fig. 45
POST (STEERING) SYSTEM. Fig. 46
CHASSIS SYSTEM Fig. 47
AXLE (FRONT) SYSTEM (EXCEPT H3 TYPE)Fig. 48
15
AXLE (FRONT) SYSTEM (H3 TYPE) Fig. 49
KNUCKLE SPINDLE SYSTEM
(EXCEPT H3,U TYPE) Fig. 50
KNUCKLE SPINDLE SYSTEM (H3,U TYPE)Fig. 51
FRONT WHEEL SYSTEM Fig. 52
LINK (MOWER) SYSTEM (EXCEPT H3 TYPE).Fig. 53
LINK (MOWER) SYSTEM (H3 TYPE).Fig. 54
HEIGHT ADJUST SYSTEM (H3 TYPE)Fig. 55
UP STOP SYSTEM (H3 TYPE).Fig. 56
HOOD SYSTEM(1/3)(2/3)(3/3).Fig. 57
FENDER SYSTEM (EXCEPT H3 TYPE).Fig. 58
FENDER SYSTEM (H3 TYPE).Fig. 59
SEAT SYSTEM. Fig. 60
STEP SYSTEM. Fig. 61
PANEL SYSTEM (SGR17,19). Fig. 62
PANEL SYSTEM (SGR22) Fig. 63
WIRE HARNESS SYSTEM
(EXCEPT H3,P TYPE).Fig. 64
WIRE HARNESS SYSTEM
(P TYPE EXCEPT H3).Fig. 65
WIRE HARNESS SYSTEM (H3 TYPE). Fig. 66
ORNAMENT .Fig. 67
ORNAMENT (P),LABEL (CONTROL),
LABEL (CAUTION).Fig. 68
LABEL (M TYPE) Fig. 69
LABEL (G,F,D,H,T,V)Fig. 70
OPTIONAL PARTS
PROPELLER SHAFT SYSTEM
(EXCEPT H3 TYPE) (OPTION)Fig. 71
SHAFT (PTO/FRONT) SYSTEM
(EXCEPT H3 TYPE) (OPTION)Fig. 72
16
CHASSIS (COVER/REAR) SYSTEM (OPTION)Fig. 73
HITCH (TRAILER) SYSTEM (OPTION)Fig. 74
HEAD LIGHT SYSTEM (OPTION)Fig. 75
COMPONENT PARTS
COMPONENT PARTS
FOR K200-069-000-00 ON Fig.29. Fig. 76
COMPONENT PARTS
FOR K200-078-000-00 ON Fig.34,35 Fig. 77
COMPONENT PARTS
FOR 1588-105-220-00 ON Fig.9Fig. 78
COMPONENT PARTS
FOR 1705-202-210-00 ON Fig.19,20.Fig. 79
COMPONENT PARTS
FOR 1705-202-510-00,10 ON Fig.19,20Fig. 80
COMPONENT PARTS FOR 1705-408-210-00,10
ON Fig.30-32 Fig. 81
COMPONENT PARTS
FOR 1705-408-220-00 ON Fig.30-32.Fig. 82
17

E N G I N E
6003

G.B  10/12/24
