Iseki Tractor TA545 Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Iseki Tractor TA545 Parts Manual – PDF DOWNLOAD
Language : English
Pages : 476
Downloadable : Yes
File Type : PDF

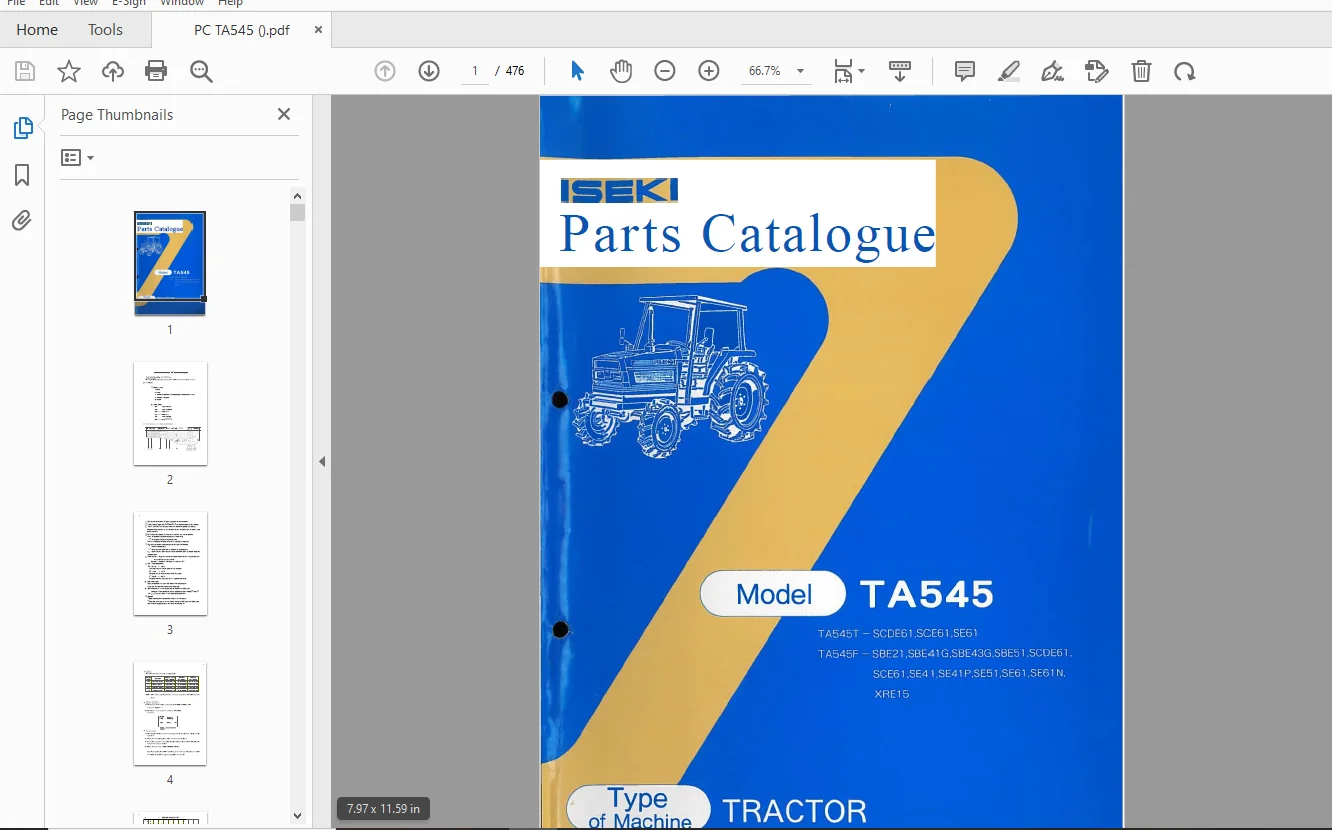

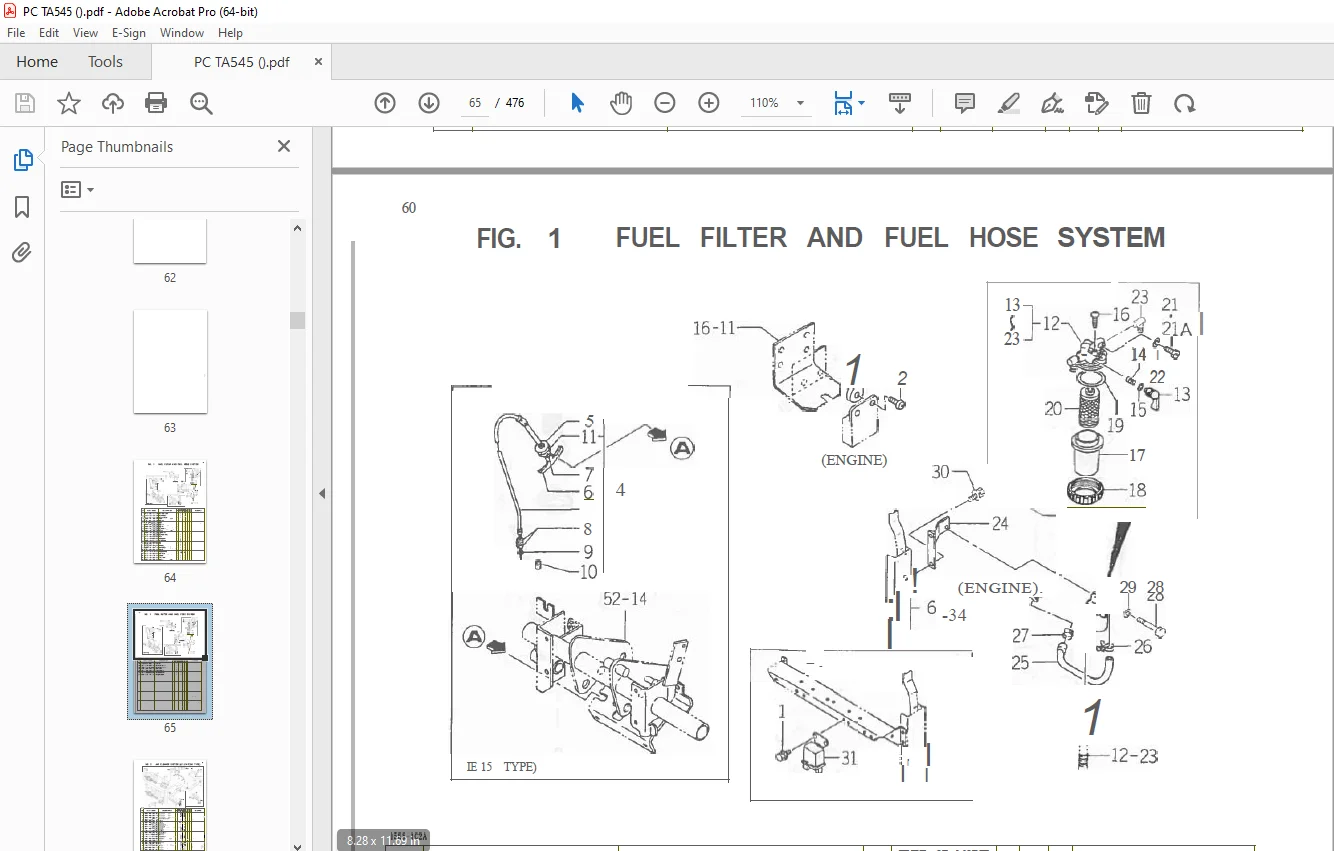

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Iseki Tractor TA545 Parts Manual – PDF DOWNLOAD
TA545
ENGINE (4JA 1 – PB,PB01)
CYLINDER HEAD AND OTHER PARTS Fig. 1
CYLINDER BLOCK AND OTHER PARTS Fig. 2
TIMING GEAR CASE AND OTHER PARTS Fig. 3
OIL PAN AND OTHER PARTS Fig. 4
OIL PUMP AND FIXING PARTS Fig. 5
CRAN KSHAFT PISTON CONN. ROD AND FLYWHEEL Fig. 6
VALVE MECHANISM Fig. 7
OIL FILTER AND FUEL FILTER Fig. 8
OIL PIPE AND OTHER PARTS Fig. 9
COOLING SYSTEM (FAN, WATER AND OIL) Fig. 10
AIR INTAKE AND EXHAUST SYSTEM Fig. 11
FUEL SYSTEM Fig. 12
ENGINE FOOT, HANGER AND FIXING PARTS Fig. 13
INJECTION PUMP AND OTHER PARTS Fig. 14
ELECTRICAL PARTS Fig. 15
COMPONENT PARTS FOR ~~~i:::: 6~8 :::: t~i :::: 68 ON Fig.14 Fig. 16
COMPONENT PARTS FOR 66889974 -_ 303179 -_ 328317 -_000 O0N F·Ig.l4 FI.g. 17
COMPONENT PARTS FOR 6894 – 122 – 262 – 50 ON Fig.12 Fig. 18
COMPONENT PARTS FOR 6894 – 178 – 843 – 00 ON Fig.14 Fig. 19
COMPONENT PARTS FOR 6894 – 171 – 296 – 30 ON Fig.15 Fig. 20
COMPONENT PARTS FOR 6894 – 338 – 096 – 00 ON Fig.15 Fig. 21
REPAIR KIT PARTS FOR 6587 – 810 – 736 – 60· Fig. 22
ENGINE (4JA 1 – PB,PB01)
CYLINDER HEAD AND OTHER PARTS Fig. 1
CYLINDER BLOCK AND OTHER PARTS Fig. 2
TIMING GEAR CASE AND OTHER PARTS Fig. 3
OIL PAN AND OTHER PARTS Fig. 4
OIL PUMP AND FIXING PARTS Fig. 5
CRAN KSHAFT PISTON CONN. ROD AND FLYWHEEL Fig. 6
VALVE MECHANISM Fig. 7
OIL FILTER AND FUEL FILTER Fig. 8
OIL PIPE AND OTHER PARTS Fig. 9
COOLING SYSTEM (FAN, WATER AND OIL) Fig. 10
AIR INTAKE AND EXHAUST SYSTEM Fig. 11
FUEL SYSTEM Fig. 12
ENGINE FOOT, HANGER AND FIXING PARTS Fig. 13
INJECTION PUMP AND OTHER PARTS Fig. 14
ELECTRICAL PARTS Fig. 15
COMPONENT PARTS FOR ~~~i:::: 6~8 :::: t~i :::: 68 ON Fig.14 Fig. 16
COMPONENT PARTS FOR 66889974 -_ 303179 -_ 328317 -_000 O0N F·Ig.l4 FI.g. 17
COMPONENT PARTS FOR 6894 – 122 – 262 – 50 ON Fig.12 Fig. 18
COMPONENT PARTS FOR 6894 – 178 – 843 – 00 ON Fig.14 Fig. 19
COMPONENT PARTS FOR 6894 – 171 – 296 – 30 ON Fig.15 Fig. 20
COMPONENT PARTS FOR 6894 – 338 – 096 – 00 ON Fig.15 Fig. 21
REPAIR KIT PARTS FOR 6587 – 810 – 736 – 60· Fig. 22
CHASSIS
FUEL FILTER AND FUEL HOSE SYSTEM Fig. 1
AIR CLEANER SYSTEM (E61,E41P,E15 TYPE) Fig. 2
AIR CLEANER SYSTEM (EXCEPT E61,E41P,EI5 TYPE) (F – No. 1′”‘-‘408) Fig. 3
AIR CLEANER SYSTEM (EXCEPT E61,E41P,EI5 TYPE) (F – NoA09′”‘-‘) Fig. 4
PRE CLEANER SYSTEM (E15 TYPE) Fig. 5
RADIATOR SYSTEM Fig. 6
MUFFLER SYSTEM (EXCEPT E41P TYPE) Fig. 7
MUFFLER SYSTEM (E41P TYPE) Fig. 8
MUFFLER SYSTEM (EXCEPT E41P,E15 TYPE) (OPTION) Fig. 9
FUEL TANK SYSTEM (EXCEPT B,C,E15 TYPE) Fig. 10
FUEL TANK SYSTEM (B TYPE) Fig. 11
FUEL TANK SYSTEM (E15 TYPE) Fig. 12
FUEL TANK SYSTEM (C TYPE) Fig. 13
SUB FUEL TANK SYSTEM (EXCEPT E15 TYPE) Fig. 14
BATTERY BRACKET SYSTEM Fig. 15
ACCELERATOR SYSTEM Fig. 16
CLUTCH AND INPUT METAL SYSTEM (E15 TYPE) Fig. 17
CLUTCH AND INPUT METAL SYSTEM (EXCEPT E15 TYPE) Fig. 18
CLUTCH PEDAL SYSTEM Fig. 19
FRONT P.T.O. SET (EXCEPT E21,E41P TYPE) (OPTION) Fig. 20
FRONT P.T.O. SET (E21 TYPE) (OPTION) Fig. 21
FRONT THREE POINT LINK SET (EXCEPT E41P,E15 TYPE) (OPTION) Fig. 22
FRONT TRANSMISSION CASE SYSTEM Fig. 23
INPUT GEAR AND CHANGE GEAR SYSTEM (EXCEPT E15 TYPE) Fig. 24
INPUT GEAR AND CHANGE GEAR SYSTEM (E15 TYPE) Fig. 25
REVERSE CHANGE GEAR SYSTEM Fig. 26
P.T.O. DRIVE SHAFT SYSTEM Fig. 27
MAIN CHANGE SYSTEM Fig. 28
REVERSE CHANGE SYSTEM Fig. 29
TRANSMISSION CASE (SPACER) SYSTEM Fig. 30
TRANSMISSION CASE (SPACER) SYSTEM (E21 TYPE) Fig. 31
REAR TRANSMISSION CASE SYSTEM Fig. 32
SUB CHANGE GEAR SYSTEM Fig. 33
SUB SHIFT SYSTEM Fig. 34
4WD DRIVE GEAR SYSTEM (F TYPE) Fig. 35
P.T.O. COUNTER GEAR AND P.T.O. CHANGE GEAR SYSTEM (E15 TYPE) Fig. 36
P.T.O. COUNTER GEAR AND P.T.O. CHANGE
GEAR SYSTEM (EXCEPT E15 TYPE) Fig. 37
MID P.T.O. SET (OPTION) Fig. 38
P.T.O. SHIFT SYSTEM (EXCEPT E15 TYPE) Fig. 39
P.T.O. SHIFT SYSTEM (E15 TYPE) : Fig. 40
SUB SHIFT LEVER SYSTEM Fig. 41
REVERSE LEVER SYSTEM Fig. 42
P.T.O. LEVER AND 4WD LEVER SYSTEM (EXCEPT E15 TYPE) Fig. 43
P.T.O. LEVER AND 4WD LEVER SYSTEM (E15 TYPE) Fig. 44
MAIN SHIFT LEVER SYSTEM Fig. 45
DIFFERENTIAL CASE SYSTEM Fig. 46
REAR AXLE HOUSING SYSTEM Fig. 47
WHEEL SHAFT SYSTEM Fig. 48
BRAKE SYSTEM Fig. 49
BRAKE ROD SYSTEM Fig. 50
PARKING BRAKE SYSTEM (E21 TYPE) Fig. 51
BRAKE PEDAL SYSTEM Fig. 52
REAR WHEEL SYSTEM (EXCEPT E43G TYPE) Fig. 53
STEERING WHEEL SYSTEM Fig. 54
POWER STEERING ASSY Fig. 55
O~ TANK SYSTEM Fig. 56
AXLE BRACKET SYSTEM Fig. 57
FRONT AXLE SYSTEM (0 (T TYPE) Fig. 58
FRONT AXLE SYSTEM (2) (T TYPE) Fig. 59
FRONT WHEEL SYSTEM (T TYPE) Fig. 60
FRONT DRIVE SHAFT SYSTEM (F TYPE) Fig. 61
FRONT DIFFERENTIAL CASE SYSTEM (F TYPE) Fig. 62
AXLE HOUSING SYSTEM (F TYPE EXCEPT E15) Fig. 63
11
12
AXLE HOUSING SYSTEM (E15 TYPE) Fig. 64
FRONT GEAR CASE SYSTEM (1) (F TYPE) Fig. 65
FRONT GEAR CASE SYSTEM (2) (F TYPE) Fig. 66
KNUCKLE ARM AND TIE ROD SYSTEM (F TYPE) Fig. 67
FRONT WHEEL SYSTEM (F TYPE EXCEPT E61N,E15) Fig. 68
FRONT WHEEL SYSTEM (FE15 TYPE) Fig. 69
FRONT WHEEL SYSTEM (FE61N TYPE) Fig. 70
CYLINDER CASE SYSTEM (EXCEPT E41P,E15 TYPE) Fig. 71
CYLINDER CASE SYSTEM (E41P TYPE) Fig. 72
CYLINDER CASE SYSTEM (E15 TYPE) Fig. 73
LIFT ARM AND RELIEF VALVE SYSTEM Fig. 74
CYLINDER SYSTEM Fig. 75
POSITION LINK SYSTEM Fig. 76
DRAFT LINK SYSTEM (EXCEPT E15 TYPE) Fig. 77
POSITION LEVER SYSTEM Fig. 78
DRAFT LEVER SYSTEM (EXCEPT E15 TYPE) Fig. 79
HYDRAULIC PIPING SYSTEM (1) (EXCEPT E41P,E15 TYPE) Fig. 80
HYDRAULIC PIPING SYSTEM (1) (E41P TYPE) Fig. 81
HYDRAULIC PIPING SYSTEM (1) (E15 TYPE) Fig. 82
HYDRAULIC PIPING SYSTEM (2) (E15 TYPE) Fig. 83
HYDRAULIC PIPING SYSTEM (3) Fig. 84
STACK SYSTEM Fig. 85
TRAILER HITCH SYSTEM (EXCEPT E41P,E15 TYPE) (OPTION) Fig. 86
SWING DRAW – BAR SYSTEM
(E61,E41P TYPE – STANDARD/B,SE41,SE51 TYPE – OPTION) Fig. 87
SHIELD COVER SYSTEM (EXCEPT E15 TYPE) Fig. 88
TRAILER HITCH AND REAR HITCH SYSTEM (E15 TYPE) Fig. 89
THREE POINT LINK SYSTEM (EXCEPT E41P,E15 TYPE) Fig. 90
THREE POINT LINK SYSTEM (E15 TYPE) Fig. 91
LOWER LINK AND LIFT ROD SYSTEM (EXCEPT E15 TYPE) Fig. 92
LOWER LINK AND LIFT ROD SYSTEM (E15 TYPE) Fig. 93
VALVE (REMOTE/I) SET
(E61 TYPE – STANDARD/B,SE41,SE51 TYPE – OPTION) Fig. 94
VALVE (REMOTE/2) SET
(E41G,E43G TYPE – STANDARD/E21,E51,SE41,SE61 TYPE – OPTION) Fig. 95
VALVE (REMOTE/2) SET (E61 TYPE) (OPTION) Fig. 96
VALVE (REMOTE/I) SET (E61 TYPE) (T – NO.1—43· F – No.1—335) Fig. 97
VALVE (REMOTE/2) SET
(SE41P TYPE – STANDARD/E41G,E43G TYPE – OPTION) Fig. 98
AUTO LINK SYSTEM (E15 TYPE) Fig. 99
RADARMATIC SYSTEM (1) (E15 TYPE) Fig. 100
RADARMATIC SYSTEM (2) (E15 TYPE) Fig. 101
RADARMATIC SYSTEM (3) (E15 TYPE) Fig. 102
BONNET SYSTEM (1) Fig. 103
BONNET SYSTEM (2) Fig. 104
GRII…LE SYSTEM Fig. 105
HOOD FRAME SYSTEM Fig. 106
FAN COVER SYSTEM (EXCEPT E15 TYPE) Fig. 107
FAN COVER SYSTEM (E15 TYPE) Fig. 108
FENDER SYSTEM (EXCEPT B,C,E41P,E15 TYPE) Fig. 109
FENDER SYSTEM (E15 TYPE) Fig. 110
FENDER SYSTEM (B,C TYPE EXCEPT E21) Fig. 111
FENDER SYSTEM (E21 TYPE) Fig. 112
FENDER SYSTEM (E41P TYPE) Fig. 113
LEVER GUIDE SYSTEM Fig. 114
SEAT SYSTEM (EXCEPT E15 TYPE) Fig. 115
SEAT SYSTEM (E15 TYPE) Fig. 116
FRONT MOUNT BRACKET SYSTEM (EXCEPT B,C,E15 TYPE) Fig. 117
FRONT MOUNT BRACKET SYSTEM (B,C,E15 TYPE) Fig. 118
REAR MOUNT BRACKET SYSTEM (C,E15 TYPE) Fig. 119
REAR MOUNT BRACKET SYSTEM (EXCEPT B,C,E15 TYPE) Fig. 120
REAR MOUNT BRACKET SYSTEM (B TYPE) Fig. 121
DASH PANEL AND FLOOR PANEL SYSTEM (EXCEPT B,C,E15 TYPE) Fig. 122
DASH PANEL AND FLOOR PANEL SYSTEM (B TYPE) Fig. 123
DASH PANEL AND FLOOR PANEL SYSTEM (E15 TYPE) Fig. 124
DASH PANEL AND FLOOR PANEL SYSTEM (C TYPE) Fig. 125
FOOT COVER SYSTEM (E15 TYPE) Fig. 126
13
14
BATTERY SYSTEM Fig. 127
LAMP SYSTEM Fig. 128
LAMP SYSTEM (E61 TYPE) Fig. 129
LAMP SYSTEM (EXCEPT E61,E15 TYPE) Fig. 130
LAMP SYSTEM (E41P,EI5 TYPE) Fig. 131
LAMP SYSTEM (E15 TYPE) Fig. 132
INSTRUMENT PANEL SYSTEM (EXCEPT E61,E15 TYPE) Fig. 133
INSTRUMENT PANEL SYSTEM (E61 TYPE) Fig. 134
INSTRUMENT PANEL SYSTEM (E15 TYPE) Fig. 135
SWITCH SYSTEM (E61 TYPE) Fig. 136
SWITCH SYSTEM (E15 TYPE) Fig. 137
SWITCH SYSTEM (EXCEPT E61,E15 TYPE) Fig. 138
SWITCH SYSTEM Fig. 139
HARNESS SYSTEM (EXCEPT E61,E15 TYPE) Fig. 140
HARNESS SYSTEM (E61 TYPE) Fig. 141
HARNESS SYSTEM (E15 TYPE) Fig. 142
ELECTRICAL SYSTEM (1) (B TYPE) Fig. 143
ELECTRICAL SYSTEM (2) (B TYPE) Fig. 144
ELECTRICAL SYSTEM (3) (C TYPE) Fig. 145
ELECTRICAL SYSTEM (4) (C TYPE) Fig. 146
ELECTRICAL SYSTEM (5) (C TYPE) (OPTION) Fig. 147
ELECTRICAL SYSTEM (6) (C TYPE) (OPTION) Fig. 148
ELECTRICAL SYSTEM (7) (C TYPE) (OPTION) Fig. 149
ELECTRICAL SYSTEM (8) (EXCEPT E15 TYPE) Fig. 150
REAR VIEW MIRROR SYSTEM Fig. 151
FRONT FRAME SYSTEM (C TYPE) (T – NO.1-53· F – No.I-408) Fig. 152
FRONT FRAME SYSTEM (B,C,EI5 TYPE) (T – No.54-· F – No.409-) Fig. 153
FRAME SYSTEM (C,EI5 TYPE) (T – NO.1-53· F – No.I-408) Fig. 154
REAR FRAME SYSTEM (C,EI5 TYPE) (T – No.54- • F – No.409-) Fig. 155
SUB FENDER SYSTEM (B,C,EI5 TYPE) Fig. 156
ROOF SYSTEM (C TYPE) Fig. 157
ROOF SYSTEM (E15 TYPE) (F – NO.I-408) Fig. 158
ROOF SYSTEM (E15 TYPE) (F – No.409-) Fig. 159
ROOF SYSTEM (D TYPE) (T – NO.1-53· F – No.I-408) Fig. 160
ROOF SYSTEM (D TYPE) (T – 54- • F – 409-) Fig. 161
FRONT GLASS SYSTEM (B,C TYPE) Fig. 162
DOOR SYSTEM (C TYPE) (T – NO.1-53· F – No.1-408) Fig. 163
DOOR SYSTEM (C TYPE) (T – No.54- • F – No.409-) Fig. 164
DOOR GLASS SYSTEM (C TYPE) Fig. 165
REAR GLASS SYSTEM (C TYPE) Fig. 166
INTERIOR AND COCKPIT SYSTEM (C TYPE) Fig. 167
HEATER SYSTEM (SCE61 TYPE) Fig. 168
HEATER SYSTEM (D TYPE) (T – NO.1-52· F – No.1-39l) Fig. 169
HEATER SYSTEM (D TYPE) (T – No.53- • F – No.392-) Fig. 170
COOLER SYSTEM (D TYPE) (T – NO.1-52· F – No.1-39l) Fig. 171
COOLER SYSTEM (D TYPE) (T – No.53- • F – No.392-) Fig. 172
COMPRESSOR BRACKET SYSTEM (l) (D TYPE) Fig. 173
COMPRESSOR BRACKET SYSTEM (2) (D TYPE) Fig. 174
MARK (1) Fig. 175
MARK (2) Fig. 176
TOOLS Fig. 177
COMPONENT PARTS FOR K185-020-000-00 ON Fig.22 Fig. 178
COMPONENT PARTS FOR K211-009-000-00. 10 ON Fig.75 Fig. 179
COMPONENT PARTS FOR K211-013-000-00. 10 ON Fig.75 Fig. 180
COMPONENT PARTS FOR K211-005-000-10 ON Fig.94-98 Fig. 181
COMPONENT PARTS FOR 1564-519-200-20 ON Fig.lOO (F – No.1-138) Fig. 182
COMPONENT PARTS FOR K221-002-000-00 ON Fig.lOO (F – No.1-138) Fig. 183
COMPONENT PARTS FOR K200-020-000-00 ON Fig.lOO (F – No.139-) Fig. 184
COMPONENT PARTS FOR K185-006-000-00. 10 ON Fig.lOO Fig. 185
G.B 10/12/24
FUEL FILTER AND FUEL HOSE SYSTEM Fig. 1
AIR CLEANER SYSTEM (E61,E41P,E15 TYPE) Fig. 2
AIR CLEANER SYSTEM (EXCEPT E61,E41P,EI5 TYPE) (F – No. 1′”‘-‘408) Fig. 3
AIR CLEANER SYSTEM (EXCEPT E61,E41P,EI5 TYPE) (F – NoA09′”‘-‘) Fig. 4
PRE CLEANER SYSTEM (E15 TYPE) Fig. 5
RADIATOR SYSTEM Fig. 6
MUFFLER SYSTEM (EXCEPT E41P TYPE) Fig. 7
MUFFLER SYSTEM (E41P TYPE) Fig. 8
MUFFLER SYSTEM (EXCEPT E41P,E15 TYPE) (OPTION) Fig. 9
FUEL TANK SYSTEM (EXCEPT B,C,E15 TYPE) Fig. 10
FUEL TANK SYSTEM (B TYPE) Fig. 11
FUEL TANK SYSTEM (E15 TYPE) Fig. 12
FUEL TANK SYSTEM (C TYPE) Fig. 13
SUB FUEL TANK SYSTEM (EXCEPT E15 TYPE) Fig. 14
BATTERY BRACKET SYSTEM Fig. 15
ACCELERATOR SYSTEM Fig. 16
CLUTCH AND INPUT METAL SYSTEM (E15 TYPE) Fig. 17
CLUTCH AND INPUT METAL SYSTEM (EXCEPT E15 TYPE) Fig. 18
CLUTCH PEDAL SYSTEM Fig. 19
FRONT P.T.O. SET (EXCEPT E21,E41P TYPE) (OPTION) Fig. 20
FRONT P.T.O. SET (E21 TYPE) (OPTION) Fig. 21
FRONT THREE POINT LINK SET (EXCEPT E41P,E15 TYPE) (OPTION) Fig. 22
FRONT TRANSMISSION CASE SYSTEM Fig. 23
INPUT GEAR AND CHANGE GEAR SYSTEM (EXCEPT E15 TYPE) Fig. 24
INPUT GEAR AND CHANGE GEAR SYSTEM (E15 TYPE) Fig. 25
REVERSE CHANGE GEAR SYSTEM Fig. 26
P.T.O. DRIVE SHAFT SYSTEM Fig. 27
MAIN CHANGE SYSTEM Fig. 28
REVERSE CHANGE SYSTEM Fig. 29
TRANSMISSION CASE (SPACER) SYSTEM Fig. 30
TRANSMISSION CASE (SPACER) SYSTEM (E21 TYPE) Fig. 31
REAR TRANSMISSION CASE SYSTEM Fig. 32
SUB CHANGE GEAR SYSTEM Fig. 33
SUB SHIFT SYSTEM Fig. 34
4WD DRIVE GEAR SYSTEM (F TYPE) Fig. 35
P.T.O. COUNTER GEAR AND P.T.O. CHANGE GEAR SYSTEM (E15 TYPE) Fig. 36
P.T.O. COUNTER GEAR AND P.T.O. CHANGE
GEAR SYSTEM (EXCEPT E15 TYPE) Fig. 37
MID P.T.O. SET (OPTION) Fig. 38
P.T.O. SHIFT SYSTEM (EXCEPT E15 TYPE) Fig. 39
P.T.O. SHIFT SYSTEM (E15 TYPE) : Fig. 40
SUB SHIFT LEVER SYSTEM Fig. 41
REVERSE LEVER SYSTEM Fig. 42
P.T.O. LEVER AND 4WD LEVER SYSTEM (EXCEPT E15 TYPE) Fig. 43
P.T.O. LEVER AND 4WD LEVER SYSTEM (E15 TYPE) Fig. 44
MAIN SHIFT LEVER SYSTEM Fig. 45
DIFFERENTIAL CASE SYSTEM Fig. 46
REAR AXLE HOUSING SYSTEM Fig. 47
WHEEL SHAFT SYSTEM Fig. 48
BRAKE SYSTEM Fig. 49
BRAKE ROD SYSTEM Fig. 50
PARKING BRAKE SYSTEM (E21 TYPE) Fig. 51
BRAKE PEDAL SYSTEM Fig. 52
REAR WHEEL SYSTEM (EXCEPT E43G TYPE) Fig. 53
STEERING WHEEL SYSTEM Fig. 54
POWER STEERING ASSY Fig. 55
O~ TANK SYSTEM Fig. 56
AXLE BRACKET SYSTEM Fig. 57
FRONT AXLE SYSTEM (0 (T TYPE) Fig. 58
FRONT AXLE SYSTEM (2) (T TYPE) Fig. 59
FRONT WHEEL SYSTEM (T TYPE) Fig. 60
FRONT DRIVE SHAFT SYSTEM (F TYPE) Fig. 61
FRONT DIFFERENTIAL CASE SYSTEM (F TYPE) Fig. 62
AXLE HOUSING SYSTEM (F TYPE EXCEPT E15) Fig. 63
11
12
AXLE HOUSING SYSTEM (E15 TYPE) Fig. 64
FRONT GEAR CASE SYSTEM (1) (F TYPE) Fig. 65
FRONT GEAR CASE SYSTEM (2) (F TYPE) Fig. 66
KNUCKLE ARM AND TIE ROD SYSTEM (F TYPE) Fig. 67
FRONT WHEEL SYSTEM (F TYPE EXCEPT E61N,E15) Fig. 68
FRONT WHEEL SYSTEM (FE15 TYPE) Fig. 69
FRONT WHEEL SYSTEM (FE61N TYPE) Fig. 70
CYLINDER CASE SYSTEM (EXCEPT E41P,E15 TYPE) Fig. 71
CYLINDER CASE SYSTEM (E41P TYPE) Fig. 72
CYLINDER CASE SYSTEM (E15 TYPE) Fig. 73
LIFT ARM AND RELIEF VALVE SYSTEM Fig. 74
CYLINDER SYSTEM Fig. 75
POSITION LINK SYSTEM Fig. 76
DRAFT LINK SYSTEM (EXCEPT E15 TYPE) Fig. 77
POSITION LEVER SYSTEM Fig. 78
DRAFT LEVER SYSTEM (EXCEPT E15 TYPE) Fig. 79
HYDRAULIC PIPING SYSTEM (1) (EXCEPT E41P,E15 TYPE) Fig. 80
HYDRAULIC PIPING SYSTEM (1) (E41P TYPE) Fig. 81
HYDRAULIC PIPING SYSTEM (1) (E15 TYPE) Fig. 82
HYDRAULIC PIPING SYSTEM (2) (E15 TYPE) Fig. 83
HYDRAULIC PIPING SYSTEM (3) Fig. 84
STACK SYSTEM Fig. 85
TRAILER HITCH SYSTEM (EXCEPT E41P,E15 TYPE) (OPTION) Fig. 86
SWING DRAW – BAR SYSTEM
(E61,E41P TYPE – STANDARD/B,SE41,SE51 TYPE – OPTION) Fig. 87
SHIELD COVER SYSTEM (EXCEPT E15 TYPE) Fig. 88
TRAILER HITCH AND REAR HITCH SYSTEM (E15 TYPE) Fig. 89
THREE POINT LINK SYSTEM (EXCEPT E41P,E15 TYPE) Fig. 90
THREE POINT LINK SYSTEM (E15 TYPE) Fig. 91
LOWER LINK AND LIFT ROD SYSTEM (EXCEPT E15 TYPE) Fig. 92
LOWER LINK AND LIFT ROD SYSTEM (E15 TYPE) Fig. 93
VALVE (REMOTE/I) SET
(E61 TYPE – STANDARD/B,SE41,SE51 TYPE – OPTION) Fig. 94
VALVE (REMOTE/2) SET
(E41G,E43G TYPE – STANDARD/E21,E51,SE41,SE61 TYPE – OPTION) Fig. 95
VALVE (REMOTE/2) SET (E61 TYPE) (OPTION) Fig. 96
VALVE (REMOTE/I) SET (E61 TYPE) (T – NO.1—43· F – No.1—335) Fig. 97
VALVE (REMOTE/2) SET
(SE41P TYPE – STANDARD/E41G,E43G TYPE – OPTION) Fig. 98
AUTO LINK SYSTEM (E15 TYPE) Fig. 99
RADARMATIC SYSTEM (1) (E15 TYPE) Fig. 100
RADARMATIC SYSTEM (2) (E15 TYPE) Fig. 101
RADARMATIC SYSTEM (3) (E15 TYPE) Fig. 102
BONNET SYSTEM (1) Fig. 103
BONNET SYSTEM (2) Fig. 104
GRII…LE SYSTEM Fig. 105
HOOD FRAME SYSTEM Fig. 106
FAN COVER SYSTEM (EXCEPT E15 TYPE) Fig. 107
FAN COVER SYSTEM (E15 TYPE) Fig. 108
FENDER SYSTEM (EXCEPT B,C,E41P,E15 TYPE) Fig. 109
FENDER SYSTEM (E15 TYPE) Fig. 110
FENDER SYSTEM (B,C TYPE EXCEPT E21) Fig. 111
FENDER SYSTEM (E21 TYPE) Fig. 112
FENDER SYSTEM (E41P TYPE) Fig. 113
LEVER GUIDE SYSTEM Fig. 114
SEAT SYSTEM (EXCEPT E15 TYPE) Fig. 115
SEAT SYSTEM (E15 TYPE) Fig. 116
FRONT MOUNT BRACKET SYSTEM (EXCEPT B,C,E15 TYPE) Fig. 117
FRONT MOUNT BRACKET SYSTEM (B,C,E15 TYPE) Fig. 118
REAR MOUNT BRACKET SYSTEM (C,E15 TYPE) Fig. 119
REAR MOUNT BRACKET SYSTEM (EXCEPT B,C,E15 TYPE) Fig. 120
REAR MOUNT BRACKET SYSTEM (B TYPE) Fig. 121
DASH PANEL AND FLOOR PANEL SYSTEM (EXCEPT B,C,E15 TYPE) Fig. 122
DASH PANEL AND FLOOR PANEL SYSTEM (B TYPE) Fig. 123
DASH PANEL AND FLOOR PANEL SYSTEM (E15 TYPE) Fig. 124
DASH PANEL AND FLOOR PANEL SYSTEM (C TYPE) Fig. 125
FOOT COVER SYSTEM (E15 TYPE) Fig. 126
13
14
BATTERY SYSTEM Fig. 127
LAMP SYSTEM Fig. 128
LAMP SYSTEM (E61 TYPE) Fig. 129
LAMP SYSTEM (EXCEPT E61,E15 TYPE) Fig. 130
LAMP SYSTEM (E41P,EI5 TYPE) Fig. 131
LAMP SYSTEM (E15 TYPE) Fig. 132
INSTRUMENT PANEL SYSTEM (EXCEPT E61,E15 TYPE) Fig. 133
INSTRUMENT PANEL SYSTEM (E61 TYPE) Fig. 134
INSTRUMENT PANEL SYSTEM (E15 TYPE) Fig. 135
SWITCH SYSTEM (E61 TYPE) Fig. 136
SWITCH SYSTEM (E15 TYPE) Fig. 137
SWITCH SYSTEM (EXCEPT E61,E15 TYPE) Fig. 138
SWITCH SYSTEM Fig. 139
HARNESS SYSTEM (EXCEPT E61,E15 TYPE) Fig. 140
HARNESS SYSTEM (E61 TYPE) Fig. 141
HARNESS SYSTEM (E15 TYPE) Fig. 142
ELECTRICAL SYSTEM (1) (B TYPE) Fig. 143
ELECTRICAL SYSTEM (2) (B TYPE) Fig. 144
ELECTRICAL SYSTEM (3) (C TYPE) Fig. 145
ELECTRICAL SYSTEM (4) (C TYPE) Fig. 146
ELECTRICAL SYSTEM (5) (C TYPE) (OPTION) Fig. 147
ELECTRICAL SYSTEM (6) (C TYPE) (OPTION) Fig. 148
ELECTRICAL SYSTEM (7) (C TYPE) (OPTION) Fig. 149
ELECTRICAL SYSTEM (8) (EXCEPT E15 TYPE) Fig. 150
REAR VIEW MIRROR SYSTEM Fig. 151
FRONT FRAME SYSTEM (C TYPE) (T – NO.1-53· F – No.I-408) Fig. 152
FRONT FRAME SYSTEM (B,C,EI5 TYPE) (T – No.54-· F – No.409-) Fig. 153
FRAME SYSTEM (C,EI5 TYPE) (T – NO.1-53· F – No.I-408) Fig. 154
REAR FRAME SYSTEM (C,EI5 TYPE) (T – No.54- • F – No.409-) Fig. 155
SUB FENDER SYSTEM (B,C,EI5 TYPE) Fig. 156
ROOF SYSTEM (C TYPE) Fig. 157
ROOF SYSTEM (E15 TYPE) (F – NO.I-408) Fig. 158
ROOF SYSTEM (E15 TYPE) (F – No.409-) Fig. 159
ROOF SYSTEM (D TYPE) (T – NO.1-53· F – No.I-408) Fig. 160
ROOF SYSTEM (D TYPE) (T – 54- • F – 409-) Fig. 161
FRONT GLASS SYSTEM (B,C TYPE) Fig. 162
DOOR SYSTEM (C TYPE) (T – NO.1-53· F – No.1-408) Fig. 163
DOOR SYSTEM (C TYPE) (T – No.54- • F – No.409-) Fig. 164
DOOR GLASS SYSTEM (C TYPE) Fig. 165
REAR GLASS SYSTEM (C TYPE) Fig. 166
INTERIOR AND COCKPIT SYSTEM (C TYPE) Fig. 167
HEATER SYSTEM (SCE61 TYPE) Fig. 168
HEATER SYSTEM (D TYPE) (T – NO.1-52· F – No.1-39l) Fig. 169
HEATER SYSTEM (D TYPE) (T – No.53- • F – No.392-) Fig. 170
COOLER SYSTEM (D TYPE) (T – NO.1-52· F – No.1-39l) Fig. 171
COOLER SYSTEM (D TYPE) (T – No.53- • F – No.392-) Fig. 172
COMPRESSOR BRACKET SYSTEM (l) (D TYPE) Fig. 173
COMPRESSOR BRACKET SYSTEM (2) (D TYPE) Fig. 174
MARK (1) Fig. 175
MARK (2) Fig. 176
TOOLS Fig. 177
COMPONENT PARTS FOR K185-020-000-00 ON Fig.22 Fig. 178
COMPONENT PARTS FOR K211-009-000-00. 10 ON Fig.75 Fig. 179
COMPONENT PARTS FOR K211-013-000-00. 10 ON Fig.75 Fig. 180
COMPONENT PARTS FOR K211-005-000-10 ON Fig.94-98 Fig. 181
COMPONENT PARTS FOR 1564-519-200-20 ON Fig.lOO (F – No.1-138) Fig. 182
COMPONENT PARTS FOR K221-002-000-00 ON Fig.lOO (F – No.1-138) Fig. 183
COMPONENT PARTS FOR K200-020-000-00 ON Fig.lOO (F – No.139-) Fig. 184
COMPONENT PARTS FOR K185-006-000-00. 10 ON Fig.lOO Fig. 185
G.B 10/12/24
