DESCRIPTION:

Iseki Tractor TX1210 Parts Manual – PDF DOWNLOAD

CONSTRUCTION OF PARTS LIST:

1. 1. Sketch in this list points out all range of component parts, accessories, and order-made parts and for the Engine Model MITSUBISHI
   K2B-11G series.
   Explanation of Type
   TX1210 …………….. Standard·-Type
   TX1210F ……………. 4 Wheel Drive Type
2. ”V, W” mark on the head of parts-number means standard parts you can get in an ordinary market. “V” ……. ISO screw “W” ……. ISEKI standard parts
3. Complete” in parts-name indicates that over two parts are being welded or coaked.
4.  Each component of an set is listed next to the set in which it is included, being prefixed with a black point(s) as shown below.

Example)
STEERING WHEEL SET
• WHEEL, steering}
• CAP, steering
• EMBLEM
Component and subassembly
of STEERING WHEEL SET

TABLE OF CONTENTS:

Iseki Tractor TX1210 Parts Manual – PDF DOWNLOAD

Crank Case Group 1
Gear Case Group 3
Cylinder Head Group 5
Main Moving Parts Group 7
Timing Parts Group 9
Fuel Supply Parts Group 11
Fuel Injection Pump 13
Nozzle 1 7
Ruel Filter 1 9
Goverμor Parts Gr cup 2 1
Lubricatin g Parts Group 2 3
Cooling Parts Group 2 5
Intake and Exhaust Parts Group 2 7
Electrical Equipment 2 9
Starter 3 1
Alternator 3 3
Repair Gasket Kit 3 5
Air Cleaner and Radiator System
Bonnet and Frame System
Front Axle Case System (For F-type)
Front Axle Case and Knuckle Arm System (For F-type) 49
Front Axle System 5 1
Front Differential System (For F-type)
Front Wheel System (For F-type)
Front Wheel System 5 7
Drive Shaft System (For F-type) 5 9
Steering System – 6 1
Clutch Housing and Clutch Pedal System
Brake Rod System 67
Fuel Tank Battery and Throttle Lever System
Front Transmission Case System 7 1
Front Transmission Gear System (For F-type) 73
Front Transmission Gear System 7 7
Shifting System (For F-type)
Rear Transmission Case System
Shaft System
Rear Axle System
Accelerative Pedal and Throttle Lever System ~
Sub Gear Case System 93
Creep Gear System 95
Differential Gear System 99
Brake System 1 O 1
Cylinder Case System 103
Lift Arm System 1 O 5
Hydraulic Piping System 1 o 7
seat and Fender System 1 o 9
Electrical Sy stem 111
Wiring Diagram 11 5
Weight System 11 7
Three Point System 11 9
Tools and Trailer Hitch System 1 21

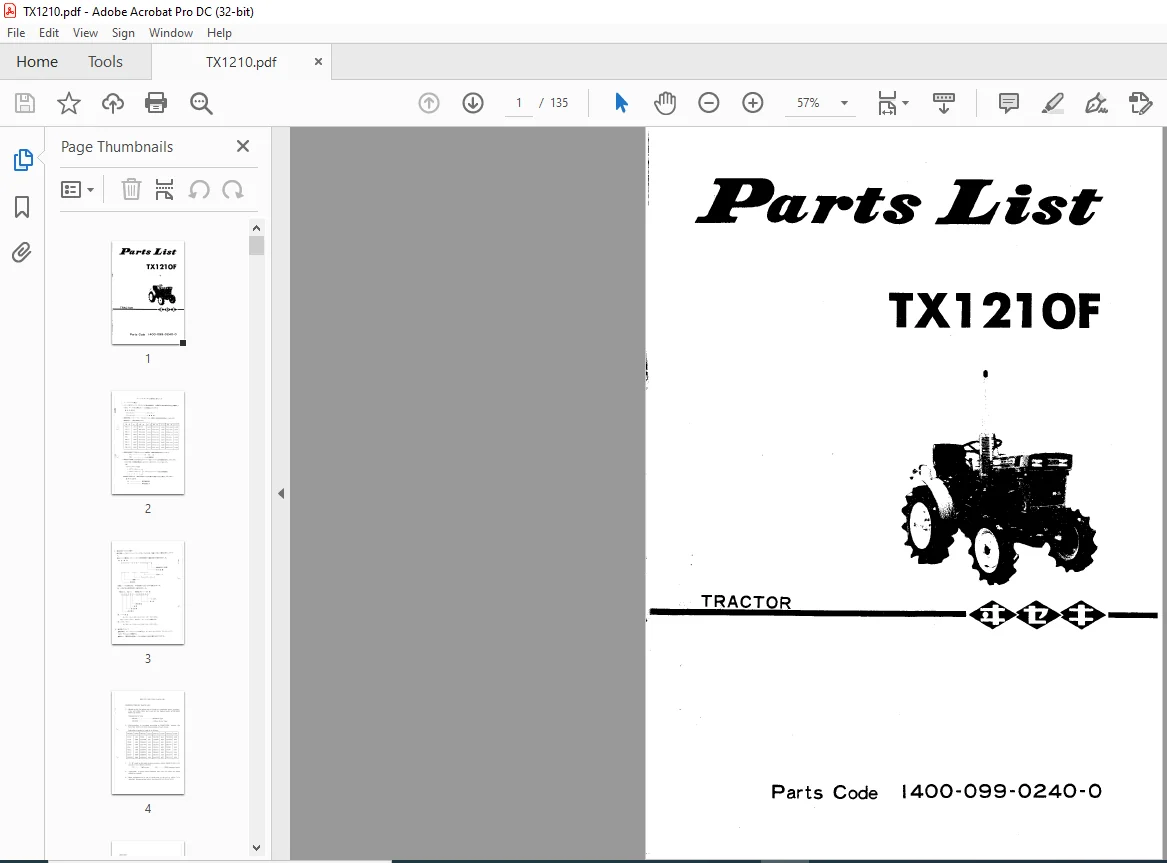

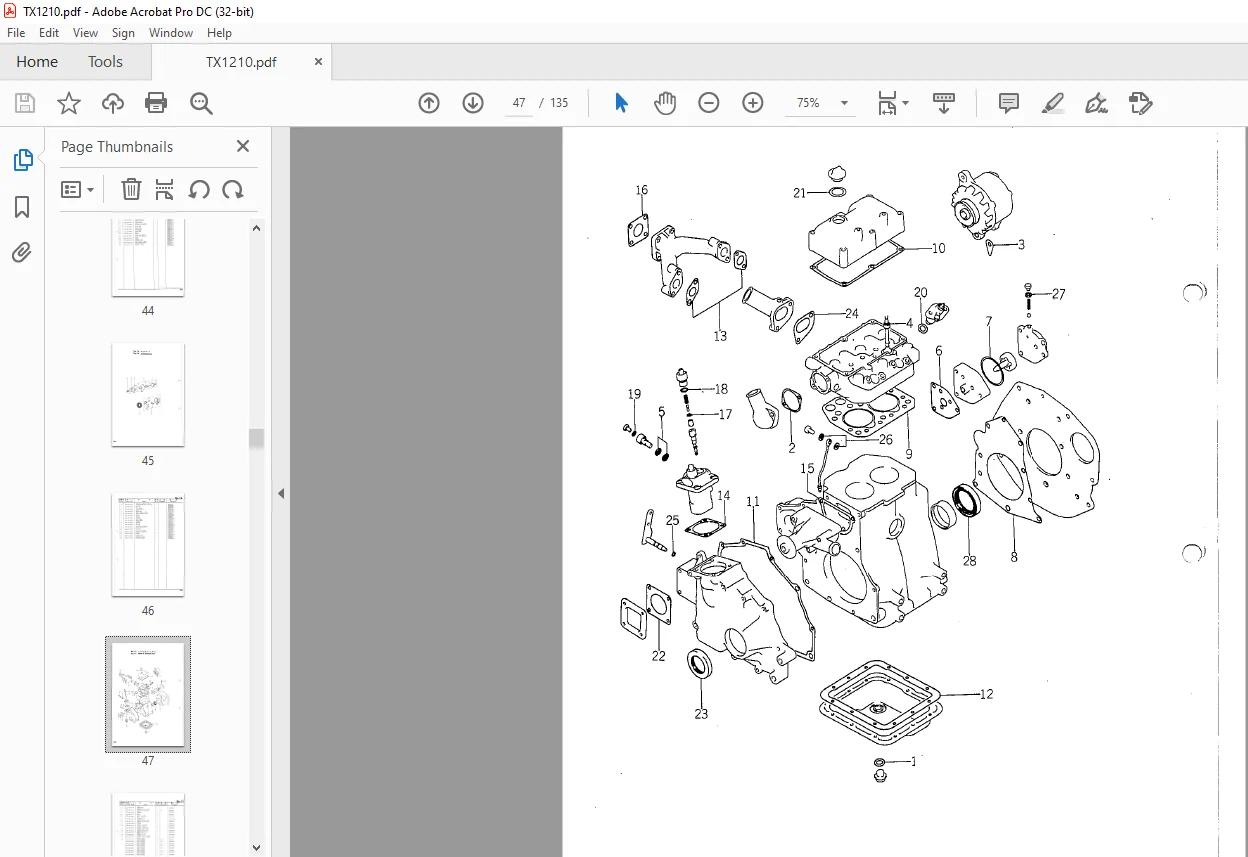

IMAGES PREVIEW OF THE MANUAL:
