Iseki Tractor TXG23 Parts Catalogue Manual – PDF DOWNLOAD

Description

Iseki Tractor TXG23 Parts Catalogue Manual – PDF DOWNLOAD

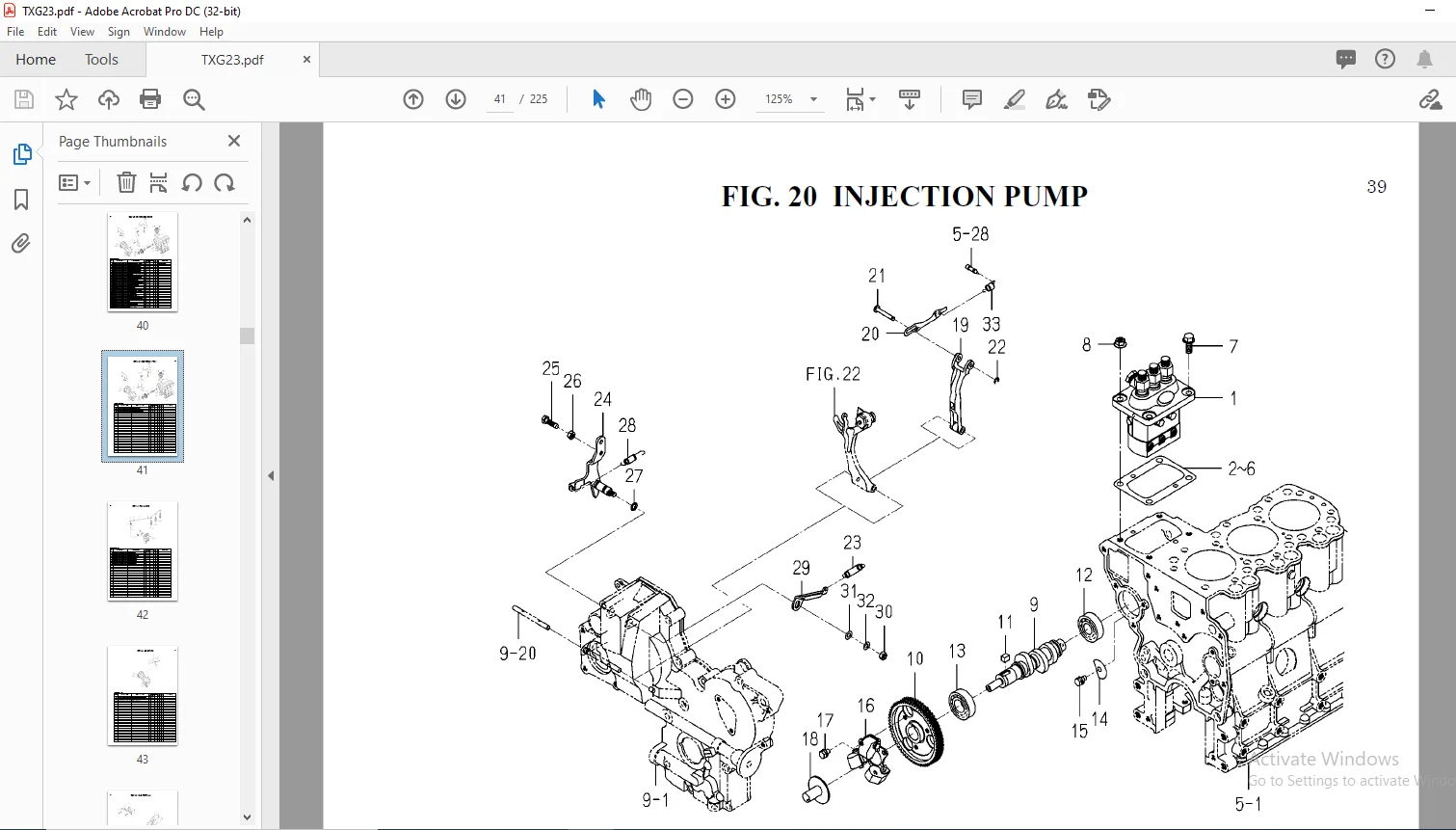

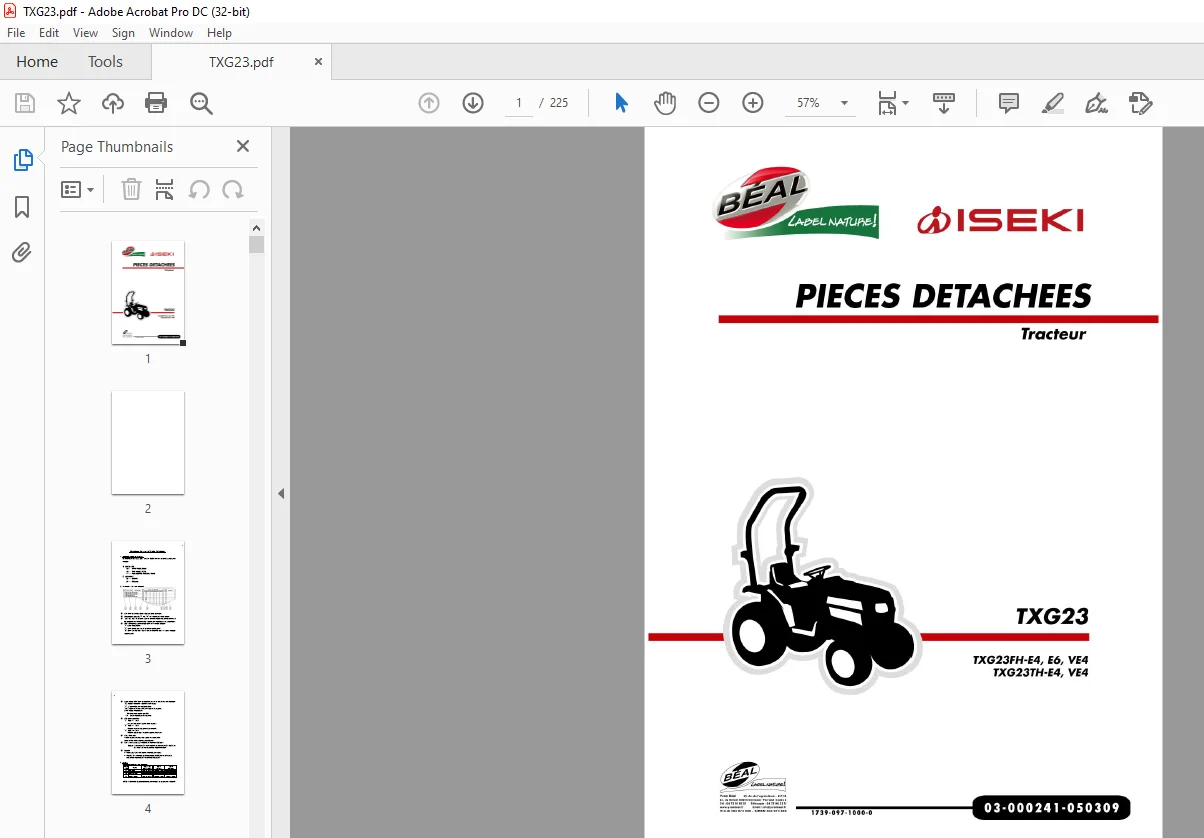

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Iseki Tractor TXG23 Parts Catalogue Manual – PDF DOWNLOAD

Parts Order
1) Parts numbers listed in the parts catalogue are all registered in 􃵰ISEKI on-line
computer􃵱.
2) When you order parts, please make sure of correct numbers.
3) When substitute parts is available, the part number ordered will be automatically
turned to a new part number.
4) Please be sure to use 􃵰ISEKI GENUINE PARTS􃵱.
Any other similar parts other than ISEKI parts when used may cause a trouble that
makes us unable to repair or guarantee the warrant.

TABLE OF CONTENTS:

Iseki Tractor TXG23 Parts Catalogue Manual – PDF DOWNLOAD

ENGINE(E3112-B12)
CYLINDER HEAD……………………………………………………………………………………………..Fig. 1
CYLINDER HEAD COVER…………………………………………………………………………………Fig. 2
INLET MANIFOLD……………………………………………………………………………………………Fig. 3
EXHAUST MANIFOLD………………………………………………………………………………………Fig. 4
CYLINDER BLOCK……………………………………………………………………………………………Fig. 5
BEARING/UNDER SIZE (OPTION)…………………………………………………………………….Fig. 6
OIL PAN……………………………………………………………………………………………………………Fig. 7
REAR PLATE…………………………………………………………………………………………………….Fig. 8
GEAR CASE………………………………………………………………………………………………………Fig. 9
HANGER………………………………………………………………………………………………………….. Fig. 10
VALVE………………………………………………………………………………………………………………Fig. 11
CAM SHAFT………………………………………………………………………………………………………Fig. 12
PISTON……………………………………………………………………………………………………………..Fig. 13
PISTON/OVER SIZE (OPTION)………………………………………………………………………….Fig. 14
CRANK SHAFT………………………………………………………………………………………………….Fig. 15
OIL PUMP…………………………………………………………………………………………………………Fig. 16
WATER PUMP…………………………………………………………………………………………………..Fig. 17
COOLING FAN………………………………………………………………………………………………….Fig. 18
INJECTION NOZZLE……………………………………………………………………………………….. Fig. 19
INJECTION PUMP…………………………………………………………………………………………… Fig. 20
FUEL PIPE………………………………………………………………………………………………………..Fig. 21
ADAPTER………………………………………………………………………………………………………….Fig. 22
ELECTRIC (1)……………………………………………………………………………………………………Fig. 23
ELECTRIC (2)……………………………………………………………………………………………………Fig. 24
8
LABEL………………………………………………………………………………………………………………Fig. 25
REPAIR PARTS (OPTION)…………………………………………………………………………………Fig. 26
COMPONENT PARTS
FOR 6215-300-036-00 ON Fig.19……………………………………………………………………..Fig. 27
COMPONENT PARTS
FOR 6215-600-103-10 ON Fig.20……………………………………………………………………..Fig. 28
COMPONENT PARTS
FOR 6281-100-014-00 ON Fig.23……………………………………………………………………..Fig. 29
COMPONENT PARTS
FOR 6281-200-005-00 ON Fig.23……………………………………………………………………..Fig. 30
9
C o n t e n t s
CHASSIS
ENGINE MOUNT SYSTEM………………………………………………………………………………..Fig. 1
RADIATOR SYSTEM………………………………………………………………………………………… Fig. 2
MUFFLER SYSTEM (E6 TYPE)………………………………………………………………………….Fig. 3
MUFFLER SYSTEM (E4 TYPE)………………………………………………………………………….Fig. 4
AIR CLEANER SYSTEM…………………………………………………………………………………… Fig. 5
FUEL PUMP SYSTEM……………………………………………………………………………………….Fig. 6
FUEL TANK SYSTEM………………………………………………………………………………………. Fig. 7
BATTERY SYSTEM……………………………………………………………………………………………Fig. 8
ACCELERATOR LEVER SYSTEM……………………………………………………………………..Fig. 9
INPUT SHAFT SYSTEM…………………………………………………………………………………….Fig. 10
CASE (TRANSMISSION) SYSTEM (F TYPE)………………………………………………………Fig. 11
CASE (TRANSMISSION) SYSTEM (T TYPE)………………………………………………………Fig. 12
METAL (HST) SYSTEM……………………………………………………………………………………..Fig. 13
HST SYSTEM…………………………………………………………………………………………………….Fig. 14
GEAR (PUMP) SYSTEM…………………………………………………………………………………….Fig. 15
GEAR (SUB) SYSTEM………………………………………………………………………………………..Fig. 16
GEAR (4WD) SYSTEM (F TYPE)……………………………………………………………………….. Fig. 17
GEAR (NOT 4WD) SYSTEM (T TYPE)………………………………………………………………..Fig. 18
GEAR (PTO) SYSTEM………………………………………………………………………………………..Fig. 19
METAL (PTO) SYSTEM……………………………………………………………………………………..Fig. 20
CHANGE (SUB) SYSTEM…………………………………………………………………………………..Fig. 21
CHANGE (4WD) SYSTEM (F TYPE)………………………………………………………………….. Fig. 22
CAP (NOT 4WD) SYSTEM (T TYPE)…………………………………………………………………..Fig. 23
CHANGE (PTO) SYSTEM…………………………………………………………………………………..Fig. 24
LEVER (SUB),LEVER (4WD/F TYPE) SYSTEM…………………………………………………. Fig. 25
LEVER (PTO) SYSTEM………………………………………………………………………………………Fig. 26
PEDAL (HST) SYSTEM…………………………………………………………………………………….. Fig. 27
10
PINION (DRIVE) SYSTEM…………………………………………………………………………………Fig. 28
DIFFERENTIAL GEAR SYSTEM……………………………………………………………………….Fig. 29
DIFF-LOCK SYSTEM……………………………………………………………………………………….. Fig. 30
HOUSING (AXLE),SHAFT (WHEEL) SYSTEM………………………………………………….. Fig. 31
BRAKE SYSTEM……………………………………………………………………………………………….Fig. 32
PEDAL (BRAKE) SYSTEM (E6 TYPE)………………………………………………………………..Fig. 33
PEDAL (BRAKE) SYSTEM (E4 TYPE)………………………………………………………………..Fig. 34
PEDAL (DIFF-LOCK) SYSTEM…………………………………………………………………………. Fig. 35
BRAKE (PARKING) SYSTEM (E6 TYPE)……………………………………………………………Fig. 36
BRAKE (PARKING) SYSTEM (E4 TYPE)……………………………………………………………Fig. 37
STEERING (POWER) SYSTEM…………………………………………………………………………. Fig. 38
CYLINDER SYSTEM………………………………………………………………………………………… Fig. 39
PIPING (POWER STEERING) SYSTEM……………………………………………………………..Fig. 40
BRACKET (AXLE) SYSTEM……………………………………………………………………………….Fig. 41
SHAFT (DRIVE) SYSTEM (F TYPE)………………………………………………………………….. Fig. 42
CASE (BEVEL) SYSTEM (F TYPE)……………………………………………………………………. Fig. 43
HOUSING (AXLE) SYSTEM (F TYPE)………………………………………………………………..Fig. 44
AXLE (2WD) SYSTEM (T TYPE)…………………………………………………………………………Fig. 45
CASE (GEAR/FRONT) SYSTEM (F TYPE)…………………………………………………………. Fig. 46
KNUCKLE SPINDLE SYSTEM (T TYPE)……………………………………………………………Fig. 47
ROD (TIE) SYSTEM (F TYPE)…………………………………………………………………………….Fig. 48
ROD (TIE) SYSTEM (T TYPE)…………………………………………………………………………….Fig. 49
CASE (CYLINDER) SYSTEM (F TYPE)………………………………………………………………Fig. 50
CASE (CYLINDER) SYSTEM (T TYPE)………………………………………………………………Fig. 51
CONTROL SYSTEM (F TYPE)……………………………………………………………………………Fig. 52
CONTROL SYSTEM (T TYPE)……………………………………………………………………………Fig. 53
PIPING (MAIN) SYSTEM (F TYPE EXCEPT V)…………………………………………………..Fig. 54
PIPING (MAIN) SYSTEM (FV TYPE)………………………………………………………………….Fig. 55
PIPING (MAIN) SYSTEM (T TYPE EXCEPT V)…………………………………………………..Fig. 56
PIPING (MAIN) SYSTEM (TV TYPE)………………………………………………………………….Fig. 57
PIPING (SUB) SYSTEM……………………………………………………………………………………..Fig. 58
LINK (3P) SYSTEM (F TYPE)…………………………………………………………………………….Fig. 59
LINK (3P) SYSTEM (T TYPE)…………………………………………………………………………….Fig. 60
11
ROD (LIFT) SYSTEM (F TYPE)…………………………………………………………………………. Fig. 61
VALVE (REMOTE/2DR-1S) SET (V TYPE)(1/2)(2/2)……………………………………………. Fig. 62
MOWER LINK SYSTEM (F TYPE)……………………………………………………………………..Fig. 63
MOWER LINK SYSTEM (T TYPE)……………………………………………………………………..Fig. 64
CYLINDER LIFT SYSTEM (T TYPE)………………………………………………………………….Fig. 65
HOOD SYSTEM (E6 TYPE)………………………………………………………………………………..Fig. 66
HOOD SYSTEM (E4 TYPE)………………………………………………………………………………..Fig. 67
GRILLE SYSTEM………………………………………………………………………………………………Fig. 68
COVER SYSTEM……………………………………………………………………………………………….Fig. 69
FENDER SYSTEM (E6 TYPE)…………………………………………………………………………… Fig. 70
FENDER SYSTEM (E4 TYPE EXCEPT V)…………………………………………………………..Fig. 71
FENDER SYSTEM (V TYPE)…………………………………………………………………………….. Fig. 72
SEAT SYSTEM (E6 TYPE)………………………………………………………………………………….Fig. 73
SEAT SYSTEM (E4 TYPE)………………………………………………………………………………….Fig. 74
MIRROR SYSTEM (E4 TYPE)…………………………………………………………………………….Fig. 75
FLOOR SYSTEM………………………………………………………………………………………………. Fig. 76
HEAD LAMP SYSTEM……………………………………………………………………………………….Fig. 77
LAMP SYSTEM (E6 TYPE)…………………………………………………………………………………Fig. 78
LAMP SYSTEM (E4 TYPE)…………………………………………………………………………………Fig. 79
PANEL SYSTEM (E6 TYPE)……………………………………………………………………………… Fig. 80
PANEL SYSTEM (E4 TYPE)……………………………………………………………………………… Fig. 81
SWITCH SYSTEM (E6 TYPE)…………………………………………………………………………….Fig. 82
SWITCH SYSTEM (E4 TYPE)…………………………………………………………………………….Fig. 83
HARNESS SYSTEM (E6 TYPE)………………………………………………………………………….Fig. 84
HARNESS SYSTEM (E4 TYPE)………………………………………………………………………….Fig. 85
ROPS SYSTEM (FE4 TYPE)……………………………………………………………………………….Fig. 86
FRAME (REAR) SYSTEM
(T TYPE-STANDARD/FE4 TYPE-OPTION)……………………………………………………..Fig. 87
ROPS (UNDER) SYSTEM (T TYPE)…………………………………………………………………… Fig. 88
ORNAMENT………………………………………………………………………………………………………Fig. 89
LABEL (CONTROL)………………………………………………………………………………………….. Fig. 90
LABEL………………………………………………………………………………………………………………Fig. 91
SMV BRACKET (E6 TYPE)……………………………………………………………………………….. Fig. 92
12
OPTIONAL PARTS
REAR WHEEL SYSTEM (F TYPE) (OPTION)……………………………………………………..Fig. 93
REAR WHEEL (TURF) SYSTEM (OPTION)………………………………………………………..Fig. 94
FRONT HITCH SET (OPTION)…………………………………………………………………………..Fig. 95
FRONT WHEEL SYSTEM (F TYPE) (OPTION)…………………………………………………..Fig. 96
FRONT WHEEL (TURF) SYSTEM
(F TYPE) (OPTION)………………………………………………………………………………………..Fig. 97
FRONT WHEEL (TURF) SYSTEM
(T TYPE) (OPTION)………………………………………………………………………………………..Fig. 98
PIPING (ATTACHMENT) SET
(E6 TYPE) (OPTION)………………………………………………………………………………………Fig. 99
LINK (3P),LIFT ROD SET (T TYPE) (OPTION)………………………………………………….. Fig.100
DRAW BAR SET (OPTION)………………………………………………………………………………..Fig.101
VALVE (REMOTE/2DR-1S) SET
(E4 TYPE EXCEPT V) (OPTION)(1/2)(2/2)……………………………………………………….Fig.102
CYLINDER LIFT SET (FE4 TYPE) (OPTION)……………………………………………………. Fig.103
ROPS SYSTEM (E6 TYPE) (OPTION)…………………………………………………………………Fig.104
ROPS SYSTEM (E4 TYPE) (OPTION)…………………………………………………………………Fig.105
COMPONENT PARTS
COMPONENT PARTS
FOR K211-066-000-10 ON Fig.54-57………………………………………………………………..Fig.106
COMPONENT PARTS
FOR 1725-105-220-00 ON Fig.6……………………………………………………………………….Fig.107
COMPONENT PARTS
FOR 1725-210-210-00 ON Fig.14……………………………………………………………………..Fig.108
COMPONENT PARTS
FOR 1725-219-210-00 ON Fig.19……………………………………………………………………..Fig.109
WIRING DIAGRAM (E4)
13
WIRING DIAGRAM (E6)
