Isuzu 6WG1 Engine 2013MY LV-Series Workshop Manual PDF
$28.95
Isuzu 6WG1 Engine 2013MY LV-Series Workshop Manual – PDF DOWNLOAD
Description
Isuzu 6WG1 Engine 2013MY LV-Series Workshop Manual – PDF DOWNLOAD
FILE DETAILS:
Isuzu 6WG1 Engine 2013MY LV-Series Workshop Manual – PDF DOWNLOADย
Language : English
Pages : 276
Downloadable : Yes
File Type : PDF

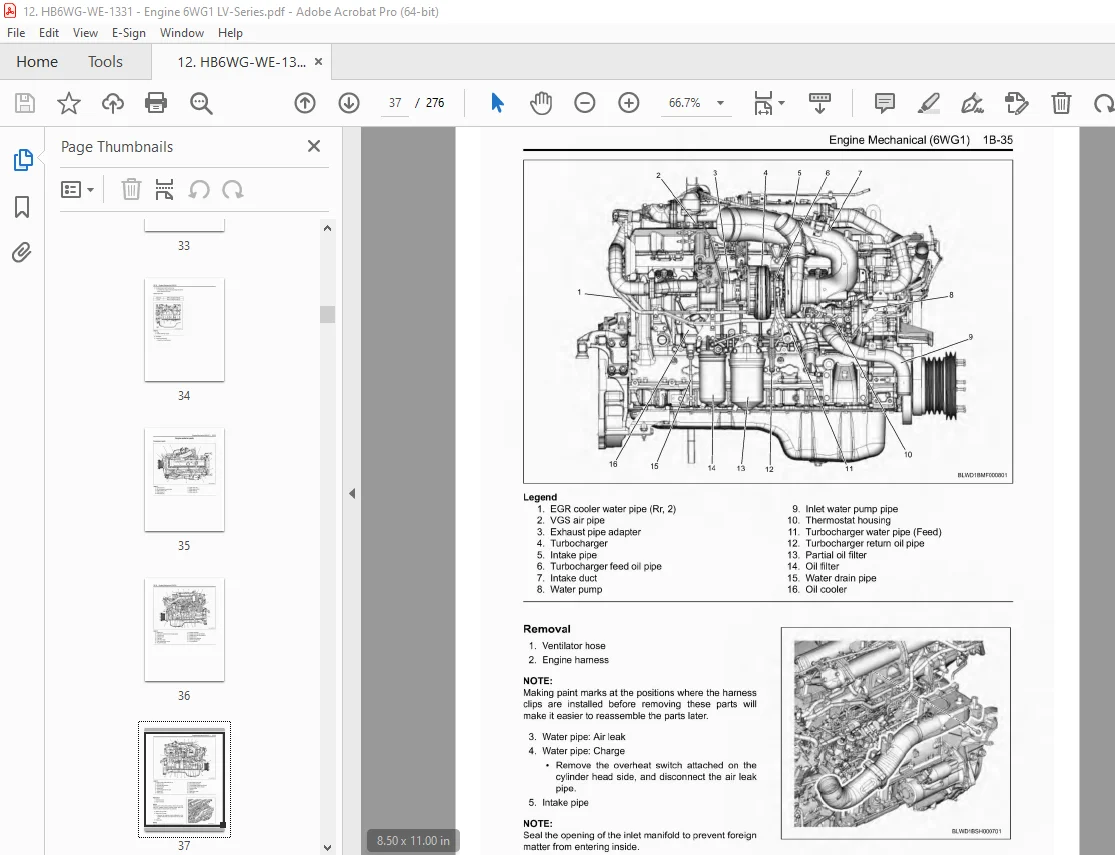

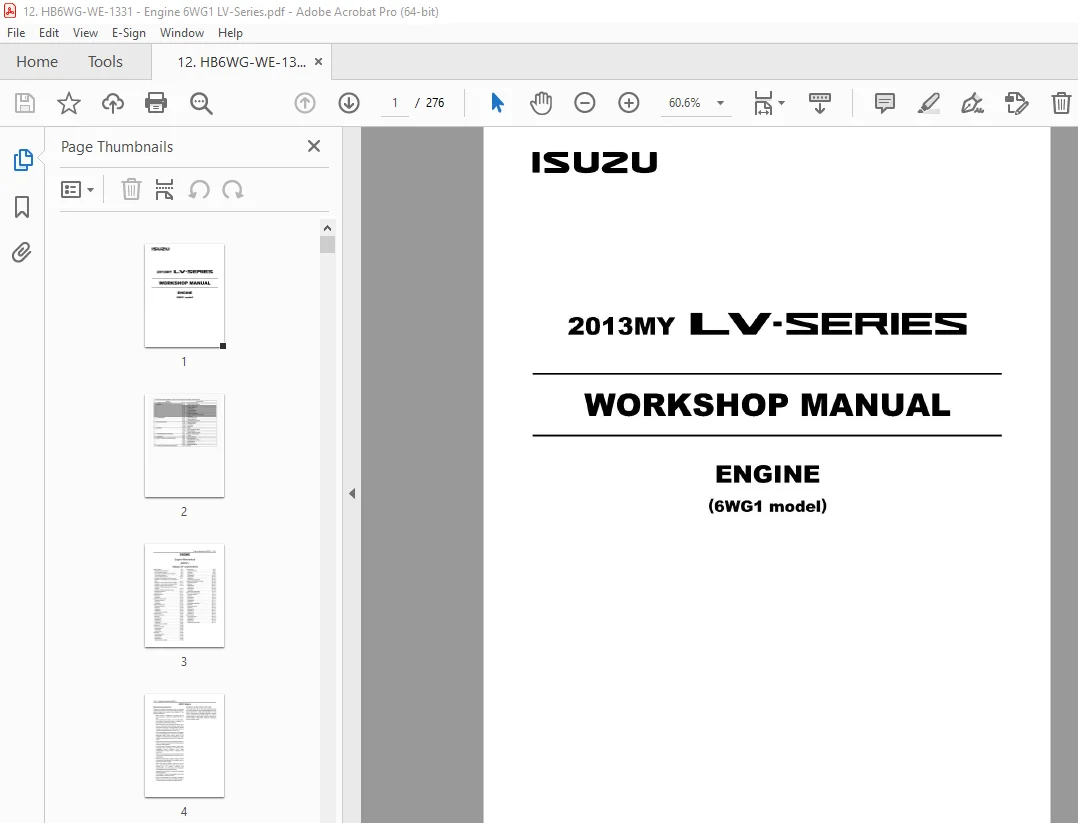

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Isuzu 6WG1 Engine 2013MY LV-Series Workshop Manual – PDF DOWNLOADย
ะพ GENERAL INFORMATION ะะด General lnformation
1 ENGINE 1ะ Enaine Control Svstem
1ะ Enaine Mechanical
1ะก Enaine Coollna
1D Enaine Fuel
JE Engine Electrical – 1G Enaine Exhaust
1ะ Enaine Lubrication
11 Enaine SDะฒed Control Svstem
1J lnduction
2 SUSPENSION 2ะ Front Suspension
2ะก Rear Susoension
2D Wheel and Tire Svstem
3 DRIVELI NE/ AXLE ะะ2 Rear Differential
ะะก1 Prooeller Shaft
ะะก2 Front Axle
ะทัะท Rear Axle
4 BRAKES 4ะ Brake
4ะก Anti-Lock Brake (ABS)
4D Parkina Brake
4F Speed Retarder Svstem
5 TRANSMISSION/ะขRANSAXLE 5ะก Manual Transmission
5ะ Clutch
6 STEERING 6ะ Power Steerina
9 BODY, ะกะะ AND ACCESSORIES 9ะ Liqhtinq Svstem
9ะ Wiper/Washer Svstem
9ะก Entertainment
9D Wirinq Svstem
9ะ Meter and Gauae
11 FRAME AND FRAME ACCESSORIES 1 1ะ Frame
DESCRIPTION:
Isuzu 6WG1 Engine 2013MY LV-Series Workshop Manual – PDF DOWNLOADย
Maintenance precautions:
Observe the following precautions when conducting engine maintenance in order to both safeguard against engine damage and maintain the reliaะฌility of the engine performance.
โข When raising or supporting the engine, do not allow the jacks to come into contact with the oil ัะฐะฟ .When lowering the engine, use an engine pallet, wood frame or other such means to support it at the engine foot and flywheel housing.
โข When the intake system has been removed, cover the air intake to prevent foreign matter from entering the cylinders. lf foreign matter is allowed to enter, the cylinders and other parts may ะฌะต seriously damaged when the engine is run.
โข When conducting maintenance work ะพะฟ the engine body, ะฌะต absolutely sure to disconnect the batterygrounding ัะฐะซะต. When power needs to ะฌะต supplied to the engine during inspections or other such jobs, exercise ัะฐะณะต since short- circuiting may occur.
โข Apply plenty of engine oil to the sliding surfaces in order to protect and lubricate the sliding surfaces during the initial operation.
โข When the valve train parts, pistons, piston rings,connecting rods, connecting rod bearings and crankshaft journal bearings have been disassemะซed, arrange them in sequence and store them.
โข When re-mounting the parts, mount the same parts in the same positions where they were prior to disassemะซy.
โข Whenever the gaskets, oil seals, O-rings and other such parts are disassemะซed, ะฌะต absolutely sure to replace them with new parts.
โข When using liquid gaskets, remove all the old ones, wash the parts where they were used to remove any oil, grease, moisture and contamination, and then apply the designated liquid gaskets and assemะซe the parts.
โข Assemะซe the parts within 7 minutes after applying the liquid gaskets. lf more than 7 minutes have elapsed, remove the liquid gaskets, and re-apply them.
S.V 06/01/2025ย ย
