Isuzu N-Series Power Take Off (Oil Pump)Workshop Manual – PDF DOWNLOAD

Description

Isuzu N-Series Power Take Off (With Oil Pump)Workshop Manual – PDF DOWNLOAD

FILE DETAILS:

Isuzu N-Series Power Take Off (With Oil Pump)Workshop Manual – PDF DOWNLOAD
Language : English
Pages : 63
Downloadable : Yes
File Type : PDF

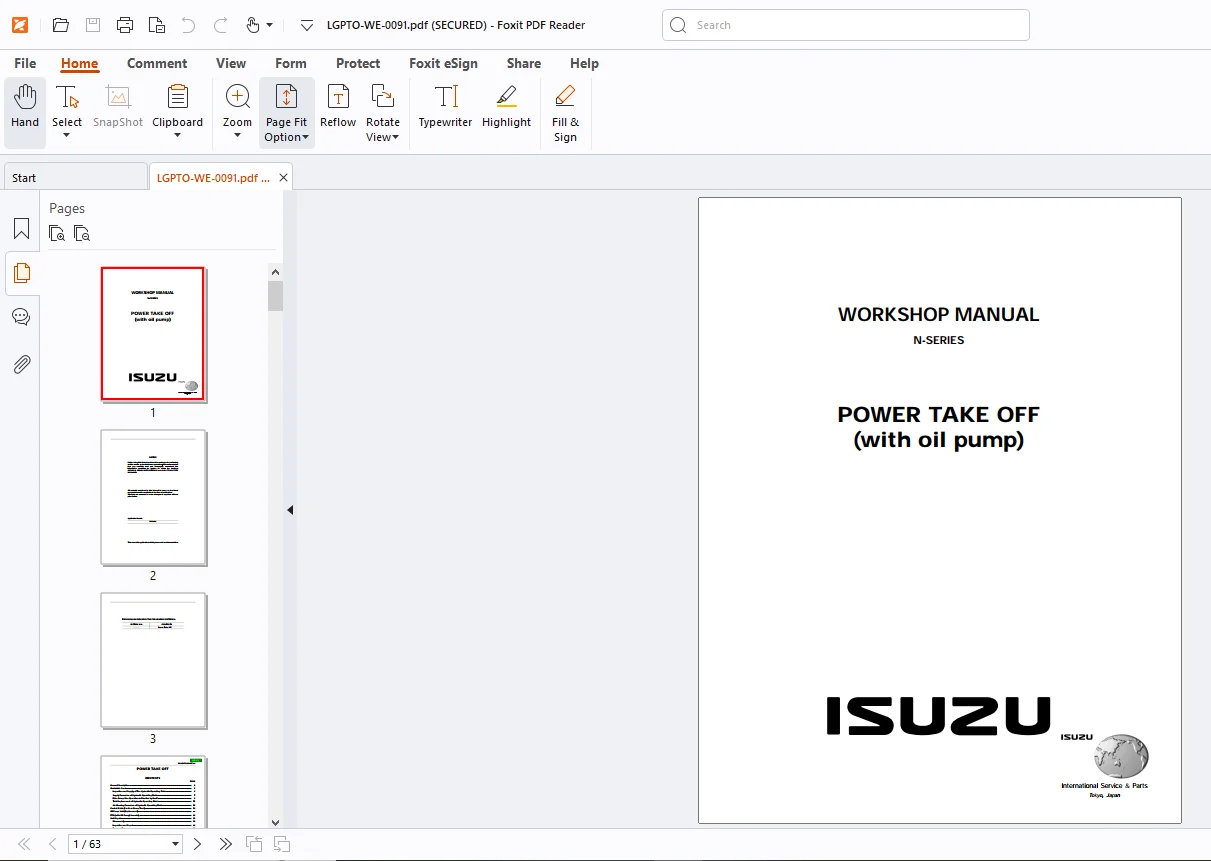

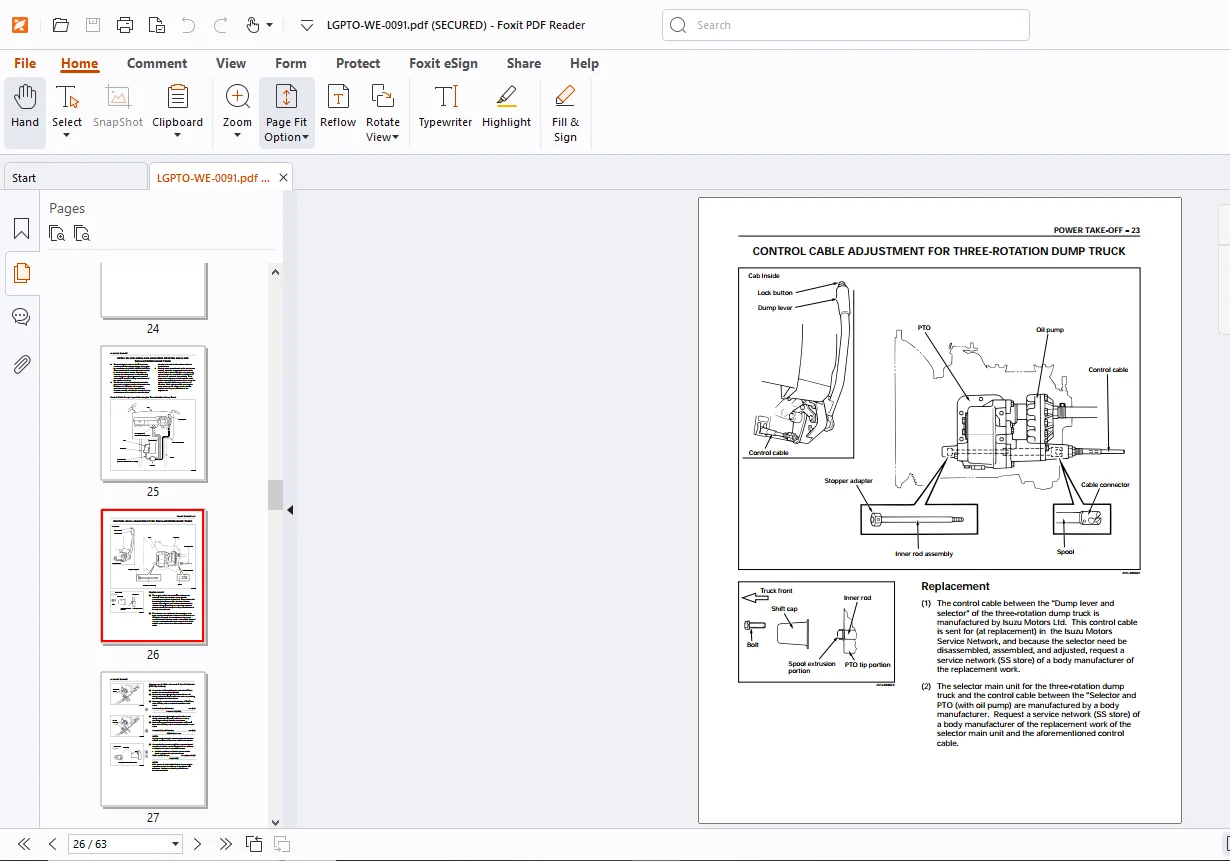

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Isuzu N-Series Power Take Off (With Oil Pump)Workshop Manual – PDF DOWNLOAD

TOP 0
POWER TAKE OFF (with oil pump) 1
POWER TAKE OFF 4
GENERAL DESCRIPTION 5
ON-VEHICLE SERVICE 8
Inspection and Supply of The Hydraulic Operating Fluid 8
Supply Procedure of Hydraulic Operating Fluid10
If the Dump Rise Operation is Disabled by Itself11
Total Replacement of Hydraulic Operating Fluid14
Air Bleeding Procedure of Hydraulic Operating Fluid15
CONTROL CABLE (FOR REAR DUMP TRUCK)17
OIL PUMP UNIT (REPLACEMENT)32
PTO (With OIL PUMP) ASSEMBLY37
UNIT REPAIR42
DISASSEMBLY42
INSPECTION AND REPAIR47
REASSEMBLY49
TROBLESHOOTING55
MAIN DATA AND SPECIFICATIONS59
FIXING TORQUE59
SPECIAL TOOLS60

DESCRIPTION:

Isuzu N-Series Power Take Off (With Oil Pump)Workshop Manual – PDF DOWNLOAD

GENERAL DESCRIPTION:

• The side with an oil pump PTO integrates the PTO and the oil pump and installed in the left side of a transmission. The shift rod for switching the “ON” and “OFF” of the hydraulic circuit of the PTO is provided at the bottom of the PTO and the oil pump main unit.
• The “ON” and “OFF” of the PTO uses a gear slide system and turn on and off the power by sliding the output gear. The idle gear bearing uses a needle bearing and the output shaft uses a ball bearing to ensure durability.
• The oil pump section consists of the gear pump part and the hydraulic circuit switching part, and the gear pump section fixs efficiency by selecting and assembling the side plate.
• Further, the hydraulic circuit switching portion switches the three positions of “Up”, “Neutral”, and “Down” by the spool provided on the rod extension. The dump control system uses a cable system.
