Jaguar 2.4 Litre Mark 2 And 240 Saloon Spare Parts Manual – PDF DOWNLOAD

Description

Jaguar 2.4 Litre Mark 2 And 240 Saloon Spare Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Jaguar 2.4 Litre Mark 2 And 240 Saloon Spare Parts Manual – PDF DOWNLOAD

Language : English
Pages : 439
Downloadable : Yes
File Type : PDF

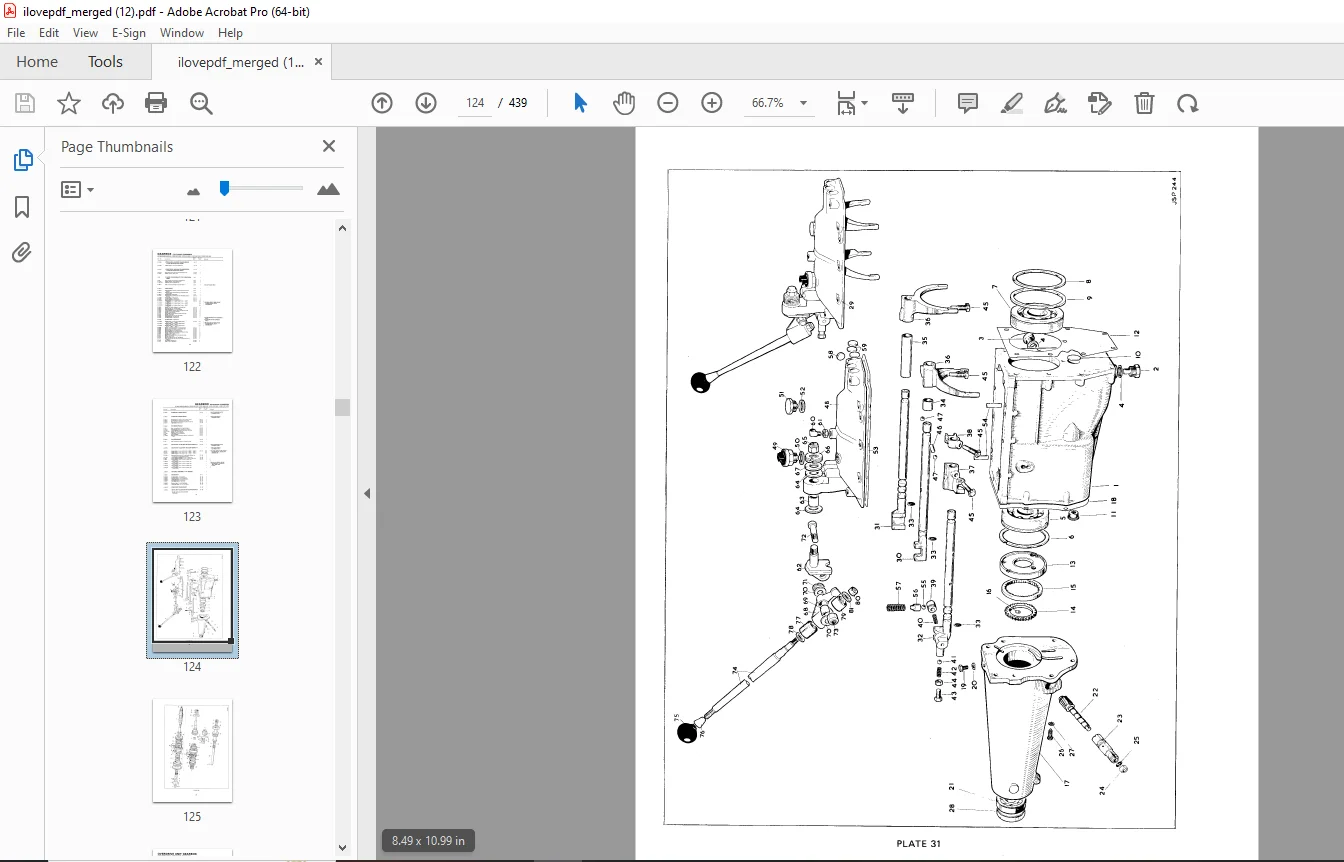

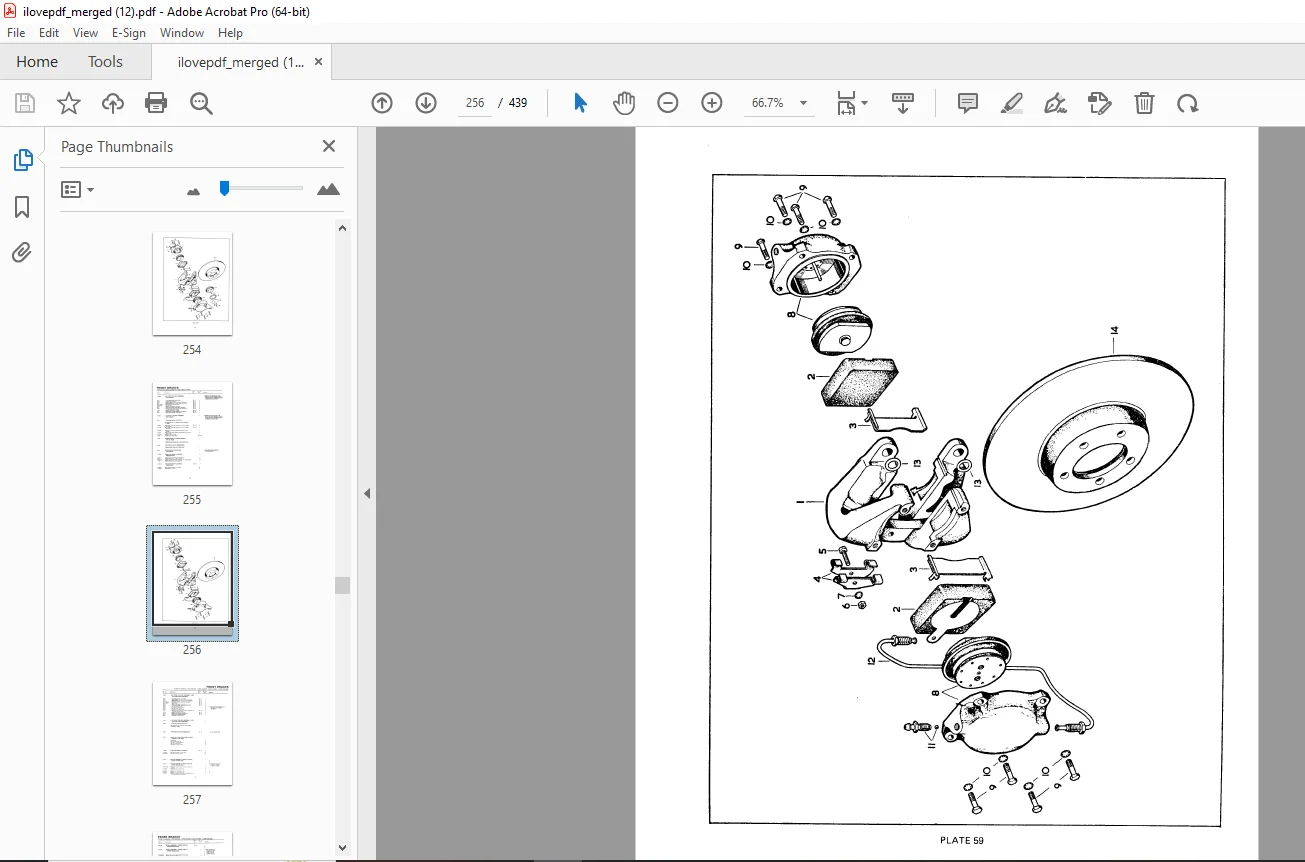

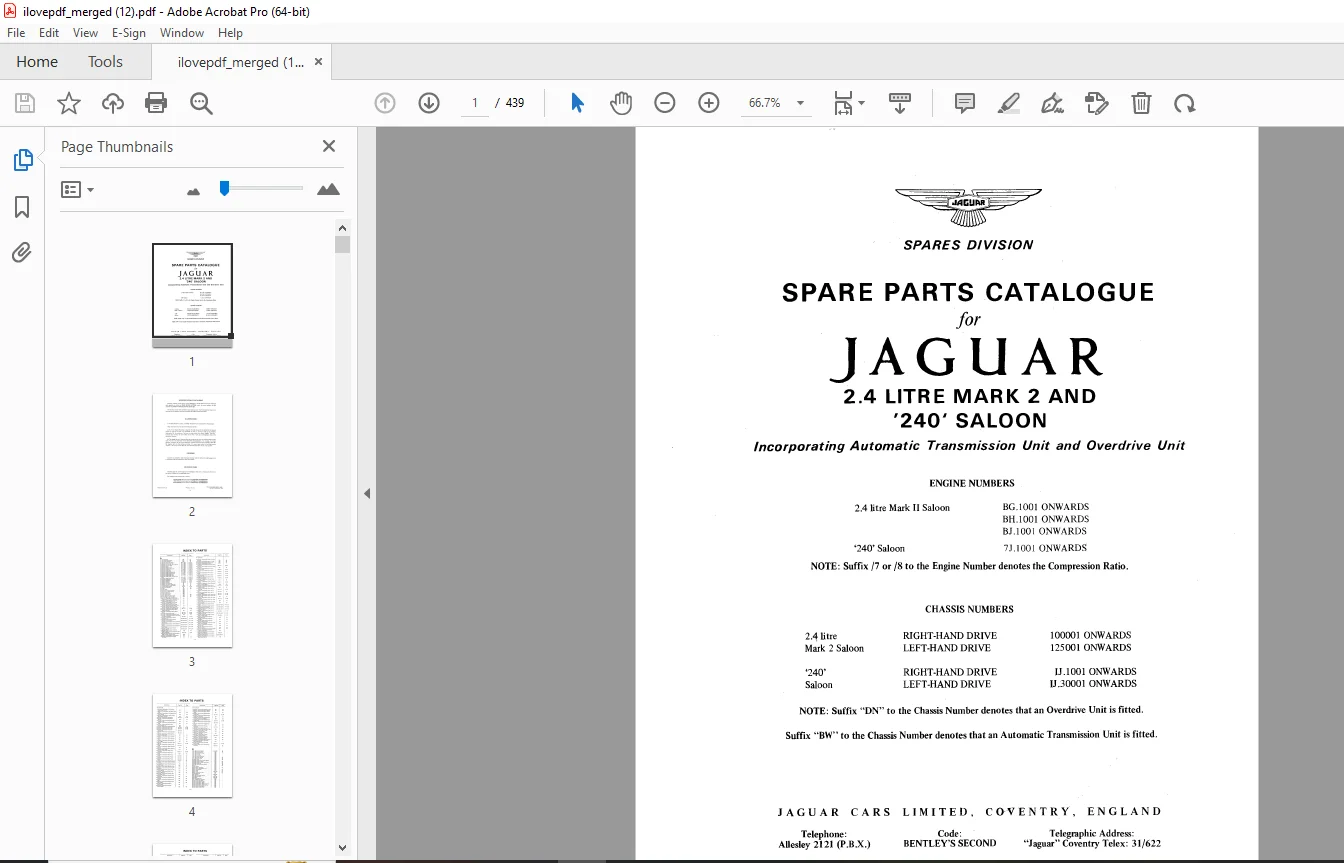

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Jaguar 2.4 Litre Mark 2 And 240 Saloon Spare Parts Manual – PDF DOWNLOAD

General Information . 2
Index to Parts 3
Cylinder Block 13
Crankshaft 14
Crankshaft Damper & Pulley 15
Connecting Rod 15
Flywheel 16
Piston Assembly . 16
Oil Sump Assembly . 17
Dipstick 18
Engine Mountings 18
Engine Gasket Set . 20
Plate 1 . 21
Oil Pump 22
Oil Delivery Pipes 22
Oil Suction Pipe 23
Plate 2 . 24
Oil Cleaner – 1st type 25
Plate 3 . 26
Oil Cleaner – 2nd type 27
Plate 4 . 28
Oil Cleaner – 3rd type 29
Plate 5 . 30
Oil Cleaner – 4th type 31
Plate 6 . 32
Water Pump 33
Pulley & Fan 33
Driving Belt 33
Hoses . 33
Return & Feed Pipes . 34
Plate 7 . 36
Cylinder Head . 37
Gasket Set 38
Valves & Springs 38
Tappet 39
Camshaft 39
Camshaft Covers . 40
Breather Pipes 41
Exhaust Manifold 42
Inlet Manifold 42
Thermostat Housing 43
Water Outlet 43
Spark Plug & H.T. Lead 44
Plate 8 . 46
Timing Gear . 47
Camshaft Sprocket . 47
Idler Sprocket 47
Eccentric Shaft . 47
Intermediate Sprocket & Shaft . 48
Timing Chain 48
Timing Chain Tensioner 49
Timing Cover 49
Dynamo Adjusting Link . 49
Plate 9 . 50
Carburetters – Solex – 2.4 litre 51
Carburetter Linkage . 53
Petrol Filter . 54
Plate 10 56
Carburetters – S.U. – 240 . 57
Carburetter Linkage . 59
Plate 11 62
Air Cleaner – 2.4 litre . 63
Plate 12 64
Air Cleaner – 240 . 65
Plate 13 66
Accelerator Controls RHD – 1st type . 67
Plate 14 69
Accelerator Controls RHD – 2nd type . 70
Plate 15 72
Accelerator Controls RHD – 3rd type . 73
Plate 16 75
Accelerator Controls LHD – 1st type . 76
Plate 17 78
Accelerator Controls LHD – 2nd type . 79
Plate 18 81
Accelerator Controls LHD – 3rd type . 82
Plate 19 84
Acc. Controls RHD auto – 1st type . 85
Plate 20 88
Acc. Controls RHD auto – 2nd type . 89
Plate 21 91
Acc. Controls RHD auto – 3rd type . 92
Plate 22 94
Acc. Controls LHD auto – 1st type . 95
Plate 23 97
Acc. Controls LHD auto – 2nd type . 98
Plate 24 100
Acc. Controls RHD auto – 3rd type .101
Plate 25 103
Clutch Unit .104
Clutch Unit – 1st type 104
Clutch Cover 104
Release Bearing .104
Driven Plate 104
Plate 26 105
Clutch Unit – 2nd type 106
Clutch Cover 106
Release Bearing .106
Driven Plate 106
Plate 27 107
Clutch Housing 108
Oil Seal 108
Clutch Shaft & Fork .109
Slave Cylinder 109
Clutch Pipe & Hose 110
Clutch Master Cylinder 111
Clutch Pedal 112
Plate 28 113
Gearbox 0
Gearbox Assembly – G.B. series 114
Case & Extension 114
Oil Seal 114
Selectors .114
Top Cover .115
Change – Speed Lever 116
Mainshaft & Gears .116
Constant Pinion Shaft .117
Reverse Spindle & Gear 117
Gear Cluster 117
Plate 29 118
Plate 30 119
Gearbox Assembly – JC series 120
Gearbox Case 120
Oil Seal 120
Selectors .121
Change-Speed Lever 121
Mainshaft & Gears .122
Constant Pinion Shaft .123
Reverse Spindle & Gear 123
Countershaft 123
Gear Unit .123
Gearbox Assembly – KC series 123
Mainshaft .123
Constant Pinion Shaft .123
Gear Unit .123
Plate 31 124
Plate 32 125
Overdrive Type Gearbox – GBN series .126
Gearbox Case 126
Selectors .126
Change – Speed Lever 127
Mainshaft & Gears .128
Constant Pinion Shaft .128
Reverse Spindle & Gear 128
Countershaft 128
Gear Unit .129
Plate 33 130
Plate 34 131
Overdrive Type Gearbox – JCN series .132
Gearbox Case 132
Selectors .132
Change-Speed Lever 133
Mainshaft & Gears .133
Constant Pinion Shaft .134
Reverse Spindle & Gear 134
Countershaft 134
Gear Unit .134
Plate 35 137
Plate 36 138
Overdrive Type Gearbox – KCN series .136
Mainshaft .136
Constant Pinion Shaft .136
Gear Unit .136
Plate 35 137
Plate 36 137
Overdrive Unit 139
Overdrive Unit – 28/1369 139
Plunger & Filter 139
Cam .140
Operating Piston 140
Accumulator Piston 140
Solenoid 141
Thrust Ring .141
Sliding Member 141
Sun Wheel, Planetary Carrier & Annulus 141
Inner Member 142
Speedometer Drive .142
Oil Seal 142
Plate 37 144
Plate 38 145
Overdrive Unit – 28/61743 .146
Plunger & Filter 146
Main Operating Valve 146
Non-Return Valve Kit 146
Cam .147
Operating Piston 147
Accumulator Piston 147
Solenoid 147
Thrust Ring .147
Sliding Member 147
Sun Wheel, Planetary Carrier & Annulus 148
Inner Member 148
Oil Seal 148
Plate 39 150
Automatic Transmission – model DG .151
Converter .151
Dipstick 151
Servo Pistons .151
Reverse Servo .152
Brake Band 152
Front Pump & Collector Ring .152
Mainshaft .153
Rear Planetary Carrier Assembly .153
Ring Gear Assembly 153
Free Wheel Unit .154
Valve Block Assembly 155
Oil Filter & Sump .155
Governor 157
Speedometer Drive Gear 157
Solenoid 158
Seal, Gasket & Repair Kits 159
Plate 40 160
Plate 41 161
Plate 42 162
Plate 43 163
Automatic Transmission – later 164
Converter .164
Kick-Down Cable .164
Selector Lever 164
Servo Assemblies 165
Speedometer Driven Gear .165
Front Pump Assembly .165
Clutch Assemblies .166
Brake Band 166
Planetary Gears & Rear Drum .167
Mainshaft .167
Rear Pump .167
Governor 167
Valve Bodies Assembly .168
Oil Tubes .168
Oil Pan .168
Seal, Gasket & Repair Kits 169
Plate 44 170
Plate 45 171
Mounting Details 172
Plate 46 177
Hand Control – 1st type .178
Plate 71 181
Hand Control – 2nd type .182
Plate 72 185
Hand Control – 3rd type .187
Plate 73 188
Propeller Shaft – standard gearbox 189
Plate 47 191
Propeller Shaft – automatic transmission 192
Plate 48 195
Plate 49 196
Propeller Shaft – overdrive unit 197
Plate 50 199
Rear Axle – overdrive models 203
Rear Axle Shaft .204
Rear Brake Calipers .204
Rear Axle Hubs 205
Plate 52 207
Rear Axle – std. & auto transmission 208
Rear Axle Shafts 209
Rear Brake Calipers .209
Rear Axle Hubs 210
Plate 53 212
Rear Axle – “POWR-LOK” – overdrive 213
Rear Axle Shaft .214
Rear Brake Calipers .214
Rear Axle Hubs 215
Plate 54 216
Rear Axle – “POWR-LOK” – std & auto .217
Rear Axle Shaft .218
Rear Brake Calipers .218
Rear Axle Hubs 219
Plate 55 220
Front Suspension 221
Rubber Mountings & Bump Stop 222
Upper Wishbone 223
Ball Joint – upper ball joint .224
Lower Wishbone Lever 224
Coil Spring .225
Shock Absorber 225
Gaitors – lower ball pin 226
Stub Axle Shaft .227
Front Hub .227
Front Brake Caliper .228
Brake Disc 228
Tie Rod Assemblies 229
Anti-Roll Bar .230
Steering Box Assembly .231
Steering Idler Assembly .231
Plate 56 233
Rear Suspension .234
Road Spring .234
Torque Arm Assembly .234
Panhard Rod Assembly 234
Shock Absorber 234
Plate 57 236
Road Wheels .237
Steering Box Assembly .239
Plate 68 240
Steering Box Assembly .241
Plate 69 242
Steering Column .243
Lower Steering Column .243
Universal Joint .243
Upper Steering Column .244
Lock & Ignition Switch 245
Steering Wheel 246
Switch Covers .248
Plate 70 251
Front Brakes – 1st type .252
Front Calipers 252
Front Pads 252
Front Hose 253
Front Disc 253
Plate 58 254
Front Brakes – 2nd type .255
Front Calipers 255
Front Pads 255
Front Hose 255
Front Disc 255
Plate 59 256
Front Brakes – 3rd type .257
Front Calipers 257
Front Pads 257
Front Disc 257
Plate 60 259
Rear Brakes – 1st type 260
Rear Calipers .260
Handbrake Mechanism .261
Rear Hose .262
Rear Hub 263
Plate 61 264
Rear Brakes – 2nd type 260
Rear Calipers .261
Handbrake Mechanism .261
Rear Hose .262
Rear Hub 263
Plate 61 264
Rear Brakes – 3rd type 265
Rear Calipers .265
Handbrake Mechanism .266
Rear Hose .267
Rear Hub 267
Plate 62 268
Brake Servo – 6 7/8″ 269
Plate 63 271
Servo Reservac Tank .272
Plate 64 274
Brake Controls 275
Fluid Supply Tank .275
Hydraulic Pipes .276
Brake Master Cylinder .277
Brake Housing & Pedal .278
Brake Servo .278
Hydraulic Pipes & Hoses .279
Plate 65 282
Brake Controls – automatic transmission .283
Fluid Supply Tank .283
Hydraulic Pipes .284
Brake Master Cylinder .285
Brakes Housing & Pedal 286
Brake Servo .287
Hydraulic Pipes & Hoses .287
Plate 66 290
Handbrake Control .291
Handbrake Assembly 291
Handbrake Lever .291
Handbrake Compensator .292
Handbrake Cables 292
Plate 67 294
Cooling .295
Radiator Assembly .295
Fan Shield 296
Radiator Hoses 296
Plate 74 298
Heater 0
Case Assembly .299
Water Radiator 299
Heater Motor 300
Feed Pipes & Hoses 300
Water Valve .301
Return Pipes & Hoses 301
Controls 302
Cables 302
Plate 88 304
Exhaust System – single .305
Down Pipe .305
Silencer 305
Intermediate Pipe .305
Tail Pipe .306
Plate 75 307
Exhaust System – dual .308
Down Pipes 308
Silencer 308
Tail Pipe .309
Heat Shields 309
Plate 76 310
Petrol Tank .311
Filler Cap 311
Petrol Tank Element .311
Petrol Pump .311
Petrol Pipes 312
Petrol Filter .313
Petrol Pipes – carburetter 314
Plate 77 315
Body Shells .316
Body Underframe .321
Plate 78 324
Body Panels .325
Roof Panel 325
Body side Assembly 325
“A” Post Panels .325
“B” & “C” Post Panels .325
“D” Post Panels .326
Front Wings .326
Bonnet Fittings .327
Windscreen Header Panel .327
Bonnet 328
Door Shells Assemblies 328
Door Fittings .329
Boot Lid 332
Boot Lid Fittings .332
Seat Runners 333
Plate 79 334
Body Fittings .335
Front Bumper 335
Front Number Plate Carrier 336
Headlamp Motif 336
Horn Grille .336
Radiator Grille .336
Sun Visors 337
Windscreen Glass & Seals 338
Interior Mirror .339
Gearbaox Cover 339
Tread Plate .340
Scuttle Side Casing .341
Front Seat Assemblies & Fittings 341
Roof Lining .344
Facia & Fittings 345
Cubby Box .347
Capping Assemblies 348
Door Cappings & Weatherstrips .349
Carpets & Felts .352
Trim Details 358
Back Light Glass & Seals 359
Boot Fittings .360
Emblems .361
Sealing Rubber 361
Rear Bumper .362
Chrome Finishers & Beads 364
Jaguar Mascot .364
Front Door Fittings .367
Rear Door Fittings 373
Plate 80 379
Plate 81 380
Plate 82 381
Plate 83 382
Plate 84 383
Plate 85 384
Plate 86 385
Body Fittings – automatic transmission 386
Carpet Felts 386
Carpets .387
Trim Panels .390
Tool Kit 391
Radios & Speakers .392
Wheel Discs & Rimbellishers .392
Towing Bar 392
Rear Door Locks .393
Reclining Seats .393
Petrol Tank .394
Spare Wheel Clamp .395
Sliding Roof Kit 395
Seat Belts 396
Heated Backlight 397
Key Fob .397
Wood-Rim Steering Wheel .397
Lock & Ignition Switch Assembly .397
Dynamo 398
Starter .399
Ignition Coil .399
Distributor .400
Petrol Pump .401
Control Box .403
Fuse Box 404
Instrument Panel 404
Dash Switches .405
Ameter 406
Warning Lamps .406
Choke Cable .407
Instruments .409
Headlamps .411
Headlamp Dipper Switch 412
Lamp Assemblies .413
Horns .416
Column Switches .418
Fog Lamps .420
Windscreen Wipers .421
Battery .421
Harnesses .422
Electrical Cables .423
Grommets & Plugs 424
Cable Clips .425
Plate 89 426
Plate 90 427
Plate 91 428
Electrical Equipment – automatic transmission .432
Starter .432
Throttle Switch .432
Solenoids .432
Speedometer & Cables 433
Harnesses .434
Column Switches .435

G.B 26/01/25
