Jaguar 3.4 Litre (Publication J.25) Spare Parts Manual – PDF DOWNLOAD

Description

Jaguar 3.4 Litre (Publication J.25) Spare Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Jaguar 3.4 Litre (Publication J.25) Spare Parts Manual – PDF DOWNLOAD

Language : English
Pages : 359
Downloadable : Yes
File Type : PDF

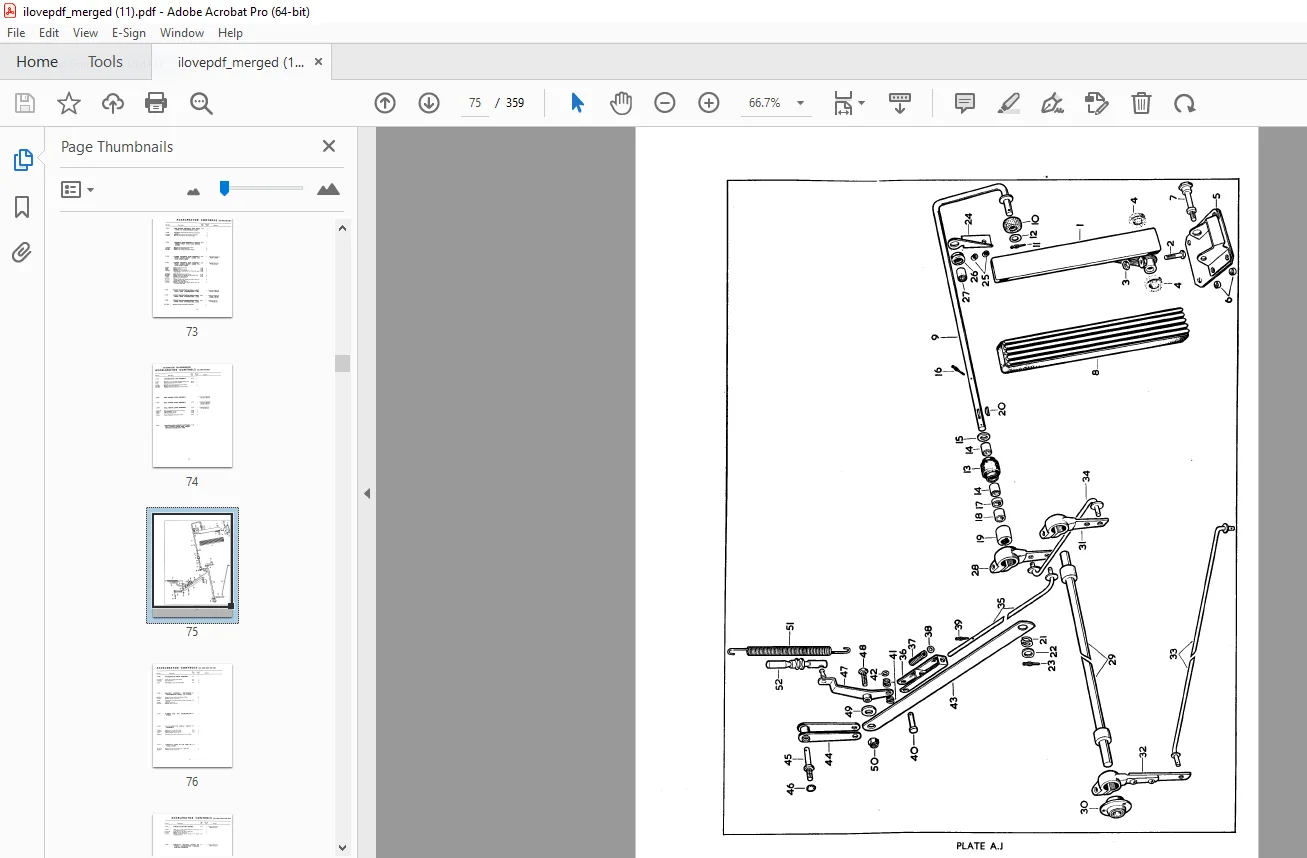

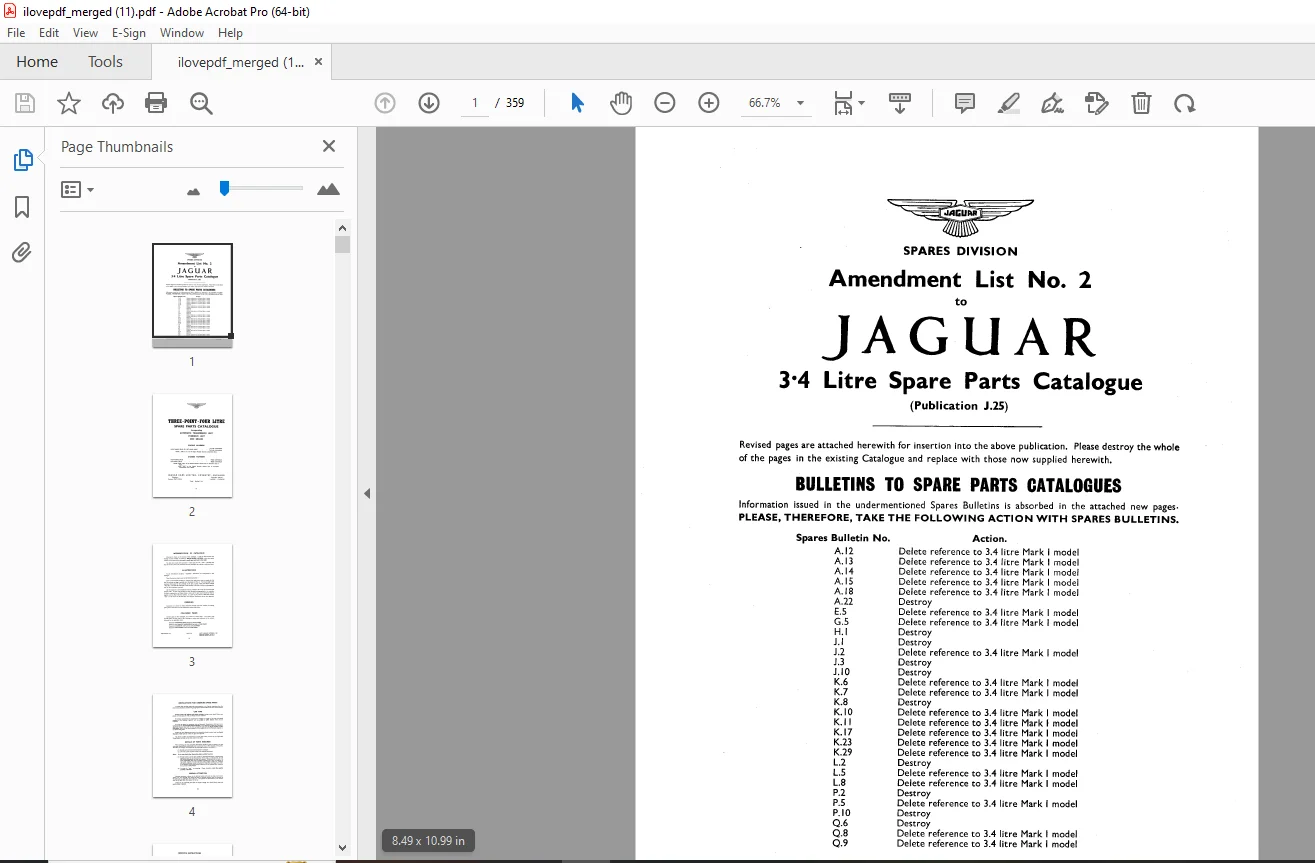

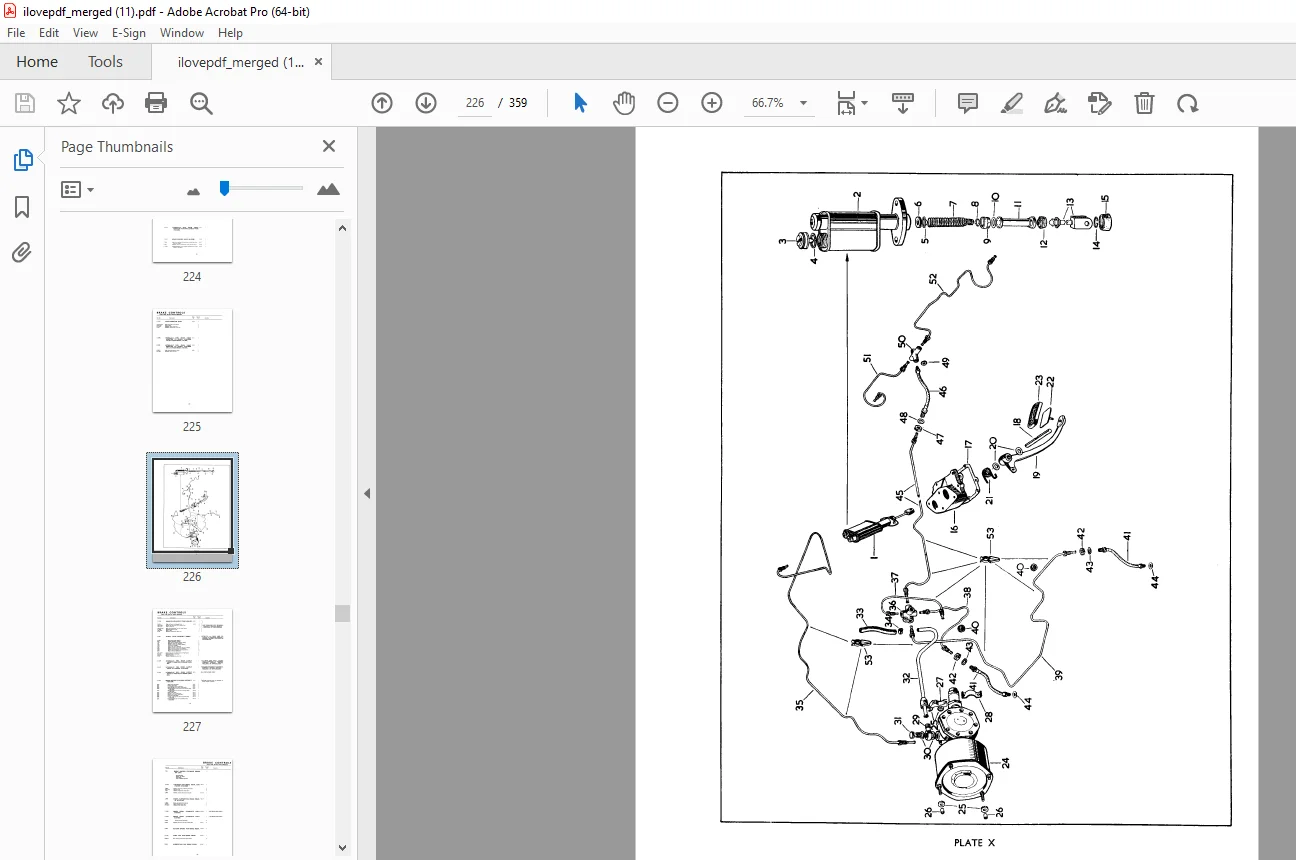

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Jaguar 3.4 Litre (Publication J.25) Spare Parts Manual – PDF DOWNLOAD

Amendments1
Engine & Chassis Nos2
Catalogue Use.3
Index.6
Cylinder Block 15
Dynamo Mounts. 16
Crankshaft & Pulleys 16
Con Rod & Piston 17
Flywheel 17
Sump 18
Oil Pipes. 19
Engine Mounts. 19
Gasket Sets. 22
Plate A. 23
Oil Pump 24
Plate B. 25
Oil Filter Assy. 26
Plate C. 27
Oil Fiter Assy 28
Plate AC 29
Water Pump 30
Fan & Drive Belt 30
Hoses. 30
Plate D. 33
Cylinder Head Assy 34
Cylinder Head Gasket Sets. 34
Valves & Springs 35
Tappets & Shims. 35
Camshafts. 36
Rev. Counter Drive 36
Oil Filler Cap 38
Exhaust Manifold 38
Inlet Manifold 39
Vacuum Connections 39
Thermostat 41
Spark Plugs & HT Leads 42
Plate E. 44
Sprockets, Chains & Tensioners 45
Timing Cover 48
Dynamo Adjusting 48
Plate F. 49
Carburetters 50
Petrol Filter. 53
Plate G. 54
Carburetters 55
Linkages & Pipes 56
Petrol Filter. 57
Linkages & Pipes 51
Plate AG 60
Ailr Cleaner Installation. 61
Plate H. 63
Oil Bath Air Cleaner 64
Plate AH 66
Accelerator Controls. RHD. 67
Plate J. 70
Accelerator Controls Automatic. RHD. 71
Plate AJ 75
Accelerator Controls. LHD. 76
Plate K. 79
Accelerator Controls Automatic. LHD. 80
Plate AK 83
Clutch Unit. 84
Plate L. 85
Clutch Housing 86
Clutch Controls. 87
Slave Cylinder & Pipes 88
Clutch Master Cylinder 89
Clutch Pedal 90
Plate M. 92
Standard Gearbox 93
External Gearbox . 93
Internal Gearbox 95
Plate N. 97
Plate P. 98
External Gearbox 99
Internal Gearbox101
Plate AN103
Plate AP104
External Gearbox105
Internal Gearbox106
Plate BN110
Plate BP111
Overdrive Unit Gearbox0
External Gearbox112
Internal Gearbox113
Plate ABN.116
Plate ABP.117
External Gearbox118
Internal Gearbox121
Plate BBN.123
Plate BBP.124
Overdrive Unit0
Overdrive Unit125
External Front Casing.125
Internal Front Casing.125
Drain Plug & Filter.126
Solenoid127
Internal Rear Casing128
External Rear Casing129
Plate GN130
Plate HN131
Automatic Transmission Unit.132
Converter Assembly132
Servos133
Brake Bands.134
Pumps.135
Sun & Planet Gears136
Valve Block.137
External Automatic Transmission.139
Internal Automatic Transmission.140
Seals & Gasket Kits.141
Plate CN142
Plate DN143
Plate EN144
Plate FN145
Mounting Details146
Anti Creep Device.149
Automatic Transmission Hand Control.0
Hand Control For Automatic Transmission.150
Gear Control Cable151
Plate AAZ.152
Propeller Shaft.153
Plate Q.154
Propeller Shaft Automatic Transmission155
Plate AQ157
Propeller Shaft Overdrive Unit158
Plate BQ159
Rear Axle.160
Rear Axle Shaft & Hub.162
Rear Brake Drum & Backplate.162
Plate R.164
Rear Axle.165
Rear Axle Shaft & Hub.166
Rear Brake Drum & Backplate.166
Splined Hub.167
Plate AR168
Rear Suspension.169
Rear Road Spring169
Panhard Rod.170
Rear Shock Absorber.170
Plate S.171
Front Suspension Cross Member.172
Upper Wshbones173
Upper Ball Joints.173
Lower Wishbones.174
Shock Absorbers.174
Lower Ball Joint175
Stub Axle Shaft & Carrier.175
Hub Assembly176
Splined Hub.176
Tie Rods & Steering Levers176
Anti Roll Bar.177
Steering Box & Idler178
Plate T.179
Road Wheels & Nave Plates.180
Steering Unit.182
Steering Box182
Plate Z.183
Steering Box184
Plate ZZ185
Steering Column.186
Steering Wheel188
Plate AZ189
Front Brake Drum Type.190
Wheel Cylinders and Shoes.190
Plate U.192
Front Brake Disc Type.193
Front Disc193
Caliper.193
Front Brake Hose194
Front Hub Assembly194
Splined Hub.194
Plate AU195
Rear Brake Drum Type196
Wheel Cylinders.197
Plate V.198
Rear Brake Disc Type199
Caliper.199
Rear Disc.201
Rear Brake Hose.202
Plate AV203
Front Brake Disc Type.204
Caliper.204
Front Disc205
Plate BV206
Rear Brake Disc Type207
Caliper.207
Rear Disc.208
Plate CV209
Brake Vacuum Servo 5 1/2″.210
Plate W.212
Brake Vacuum Servo 6 7/8″.213
Plate AW215
Brake Vacuum Servo 6 /78″ For Use With Disc Brakes216
Plate BW218
Reservac Tank For Brake Servo.219
Plate CW220
Brake Controls For Drum Brakes221
Brake Master Cylinder.221
Brake Pedals & Fittings.222
Vacuum Pipes & Hoses223
Hydrauic Pipes & Fittings.224
Plate X.226
Brake Controls For Disc Brakes227
Brake Fluid Supply Tank.227
Brake Master Cylinder.227
Brake Pedals & Fittings.228
Vacuum Pipes & Hoses229
Hydraulic Pipes & Fittings230
Plate AX232
Brake Controls For Disc Brakes233
Brake Fluid Supply Tank.233
Brake Master Cylinder.233
Brake Pedals & Fittings.234
Vacuum Pipes & Hoses235
Hydraulic Pipes & Fittings236
Plate BX238
Brake Controls For Drum Brakes. Automatic Transmission239
Brake Master Cylinder.239
Brake Pedals & Fittings.239
Vacuum Pipes & Hoses241
Hydrauic Pipes & Fittings.242
Plate CX244
Hand Brake Controls.245
Cable & Compensator.246
Plate Y.248
Hand Brake Controls For Disc Brakes.249
Cables249
Compensator.250
Plate AY251
Cooling System252
Radiator252
Hoses.253
Plate BZ254
Heating.0
Heater Casing.255
Water Radiator255
Motor.255
Control Cable & Water Valve 255
Pipes & Hoses.256
Dash Controls.257
Plate LZ258
Pipes & Silencers.259
Mountings & Fittings260
Plate CZ261
Petrol Tank.262
Pipes & Hoses.262
Filter263
Plate DZ264
Shell & Fixings.265
Underframe267
Front Inner Valances268
Floors268
Trunk Floor.269
Plate EZ271
Roof Panel272
Body Side & A Posts.272
B C D Posts.273
Front Wings.275
Tonneau Side Panel .277
Bonnet279
Doors.280
Trunk Lid.283
Rear Wheel Arch Covers284
Plate FZ286
Front Bumper Assembly.287
Radiator Grille.288
Bonnet Chromium Beading.289
Windscreen & Visors.290
Instrument Panel292
Cubby Box.294
Gearbox Cover.295
Air Ducts.296
Tread Plates297
Scuttle Side Casings298
Seats.299
Listing Rails & Roof Lining.300
Tacking Strips .302
Carpets.302
Interior Trim & Fixings.305
Interior Lamp.306
Back Light Glass306
Boot Mat & Trunk Lid Seal.307
Trunk Lid Emblems.308
Number Plate Lamp.309
Trunk Interior Fittings.309
Sealing Rubbers.310
Rear Bumper Assembly311
Door Fittings & Handles.312
Door Glass314
Door Casings317
Plate GZ324
Plate HZ325
Plate JZ326
Plate KZ327
Automatic Transmission Body Fittings328
Bench Type Seat.329
Tool Kit330
Radio.331
Locking Petrol Filler Cap.332
Rim Embellishers332
Towing Bar332
Front Bucket Seats333
Split Bench Seat333
Exterior Sun Visor333
Dynamo334
Starter.334
Ignition Coil.335
Distributor.335
Petrol Pump.336
Control Box.337
Instrument Panel338
Switches338
Instruments.339
Tank Sender Unit342
Head, Side & Tail Lamps.342
Horns.345
Switches346
Wipers346
Battery & Fixings.348
Harnesses.349
Plugs & Grommets350
Starter Motor Automatic Transmission351
Throttle Switch Automatic Transmission351
Instruments Automatic Transmission352
Overdrive Electrics.354
Instruments Overdrive.355
Harnesses Overdrive.356

DESCRIPTION:

Jaguar 3.4 Litre (Publication J.25) Spare Parts Manual – PDF DOWNLOAD

INSTRUCTIONS FOR ORDERING SPARE PARTS:

• To avoid delay through inaccurate interpretation, it is of great importance that the information detailed in the following paragraphs be strictly adhered to when placing orders.

CAR TYPE:

• Always quote the engine and chassis numbers except when Stock Orders are placed, in which case the Year and Model must be indicated.
• If Gearbox components are required it is necessary to quote on the order the serial number of the Gearbox, together with any prefix or suffix letters which may be indicated.
• An order for spares in connection with an Automatic Transmission Unit must be accompanied by the Transmission Serial Number. If it is desired to replace the Converter Assembly, however, the order for this Component must bear the Serial number of the Converter which will be found stamped on the engine side of the Flywheel, adjacent to the Starter Ring Gear.
• Orders for parts affecting Overdrive Unit should be clearly marked with the Serial Number of the Unit for which the parts are required.

The Serial numbers are stamped on a brass plate which is fitted to the right-hand Wing-Valance and also on the Units referred to above.

DETAILS OF PARTS REQUIRED:

• When ordering, the most complete information should be given to enable us to deal with your requirements expeditiously and to minimize delay in the dispatch of the goods. Therefore we strongly recommend that the following procedure be adopted :-

(1) Identify part with technical description in catalogue.

(2) On order, quote (a) part number, (b) technical description

G.B 26/01/25
