Jaguar S-Type Sedan Gasoline & Diesel Electrical Guide Manual S.No.VIN:N52048 – PDF DOWNLOAD
FILE DETAILS:
Jaguar S-Type Sedan Gasoline & Diesel Electrical Guide Manual S.No.VIN:N52048 – PDF DOWNLOAD
Language : English
Pages : 184
Downloadable : Yes
File Type : PDF

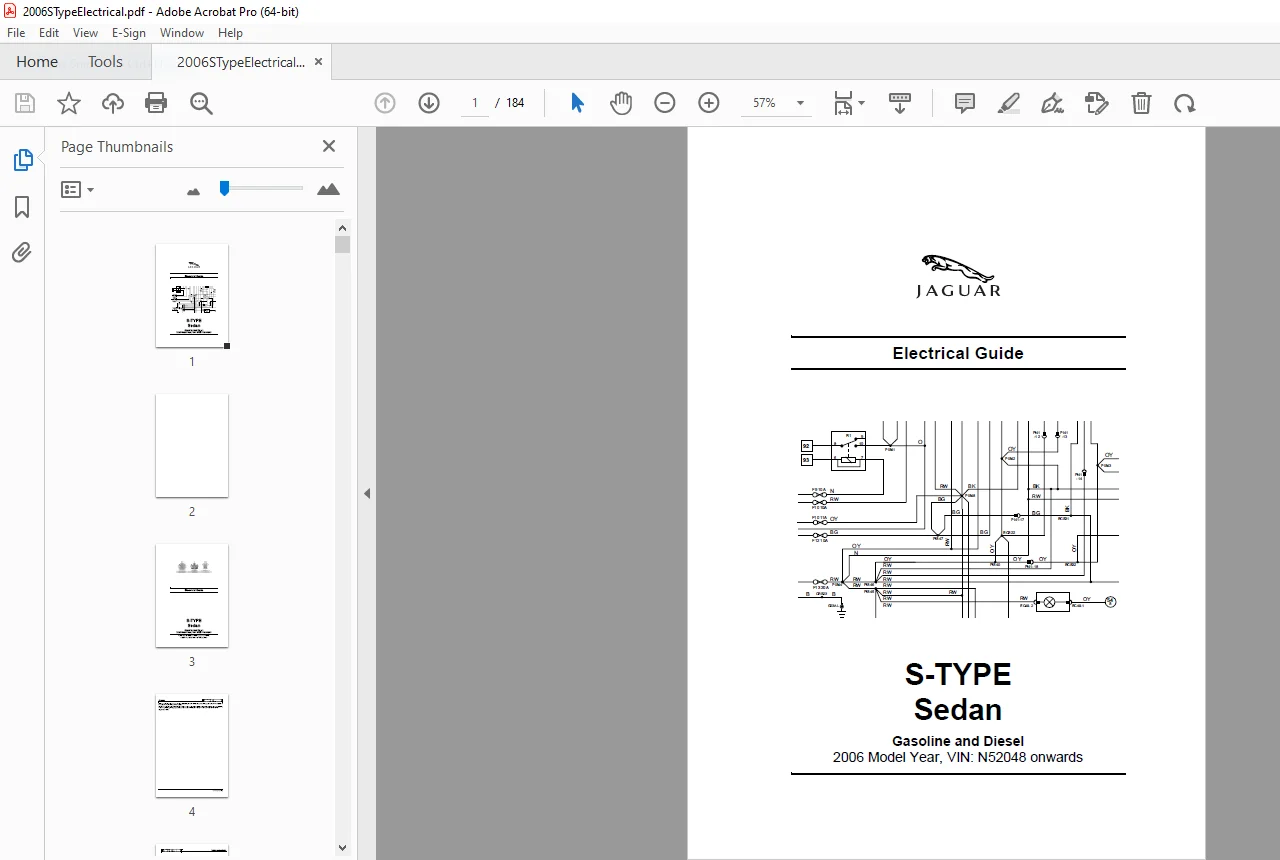

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Jaguar S-Type Sedan Gasoline & Diesel Electrical Guide Manual S.No.VIN:N52048 – PDF DOWNLOAD
Table of Contents: Figures . 2
Abbreviations and Acronyms 4
Introduction . 6
User Instructions . 7
Symbols and Codes. 9
Network Configuration 12
Fusebox Location. 13
Relay and Fuse Location14
Harness In-Line Connectors. 15
Control Module Location17
Ground Point Location 19
Control Module Pin Identification 20

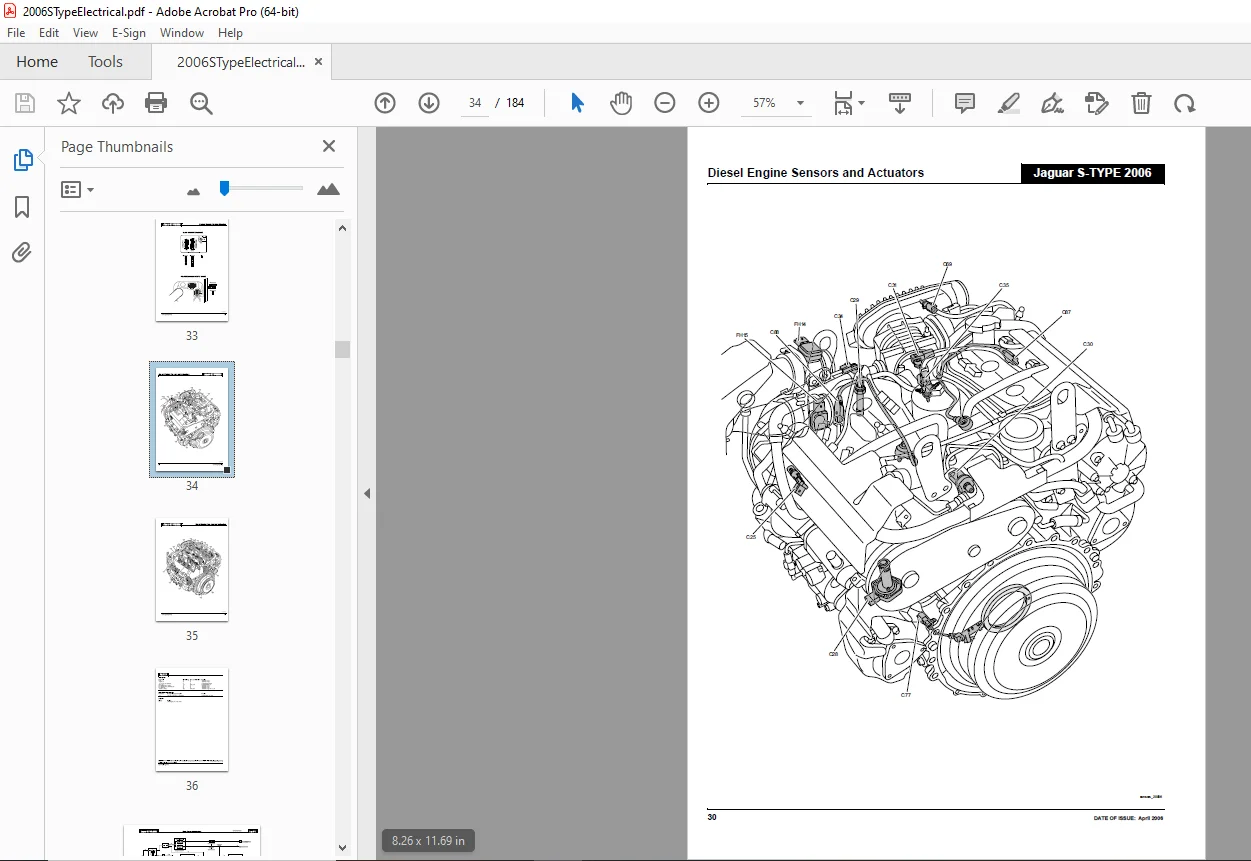

Diesel Engine Sensors and Actuators 30
Electrical Guide Figures and Data . follows after page 31
(pages are numbered by Figure number)
DESCRIPTION:
Jaguar S-Type Sedan Gasoline & Diesel Electrical Guide Manual S.No.VIN:N52048 – PDF DOWNLOAD
Electrical Guide Format :
This Electrical Guide is made up of two major sections:
• the first section, at the front of the book, provides general information for and about the use of the book; model-specific information and illustrations to aid in the understanding of the electrical / electronic systems, as well as the location and identification of components.
• the second section includes the Figures, which are the basis of the book. Each Figure is identified by a Figure Number (e.g. Fig. 01.1) and Title. The page adjacent to the Figure contains data information specific to that Figure. NOTE: Data pages are not available for inclusion in Provisional versions of the Electrical Guide.
Electrical System Architecture:
Power Supplies
The electrical system is a supply-side switched system. The ignition switch directly carries much of the ignition switched power supply load.
Power supply is provided via three methods:
• Direct battery power supply;
• Ignition switched power supply;
• Switched system power supply. The ‘Switched System Power Supply’ circuit is controlled via the FEM (Front Electronic Module) and the REM (Rear Electronic Module). Refer to Fig. 01.6 for circuit activation details.
Fuse Boxes:
The electrical harness incorporates two hard-wired power distribution fuse boxes:
• the Front Power Distribution Fuse Box, located in the engine compartment;
• the Rear Power Distribution Fuse Box, located in the trunk.
