Jaguar X-Type 2.0 L,2.5 L & 3.0 L Gasoline 2.0 L & 2.2 L Diesel Sedan & Estate(Wagon) Electrical Guide Manual S.No.VIN:J04731 – PDF DOWNLOAD

FILE DETAILS:

Jaguar X-Type 2.0 L,2.5 L & 3.0 L Gasoline 2.0 L & 2.2 L Diesel Sedan & Estate(Wagon) Electrical Guide Manual S.No.VIN:J04731 – PDF DOWNLOAD

Language : English
Pages : 200
Downloadable : Yes
File Type : PDF

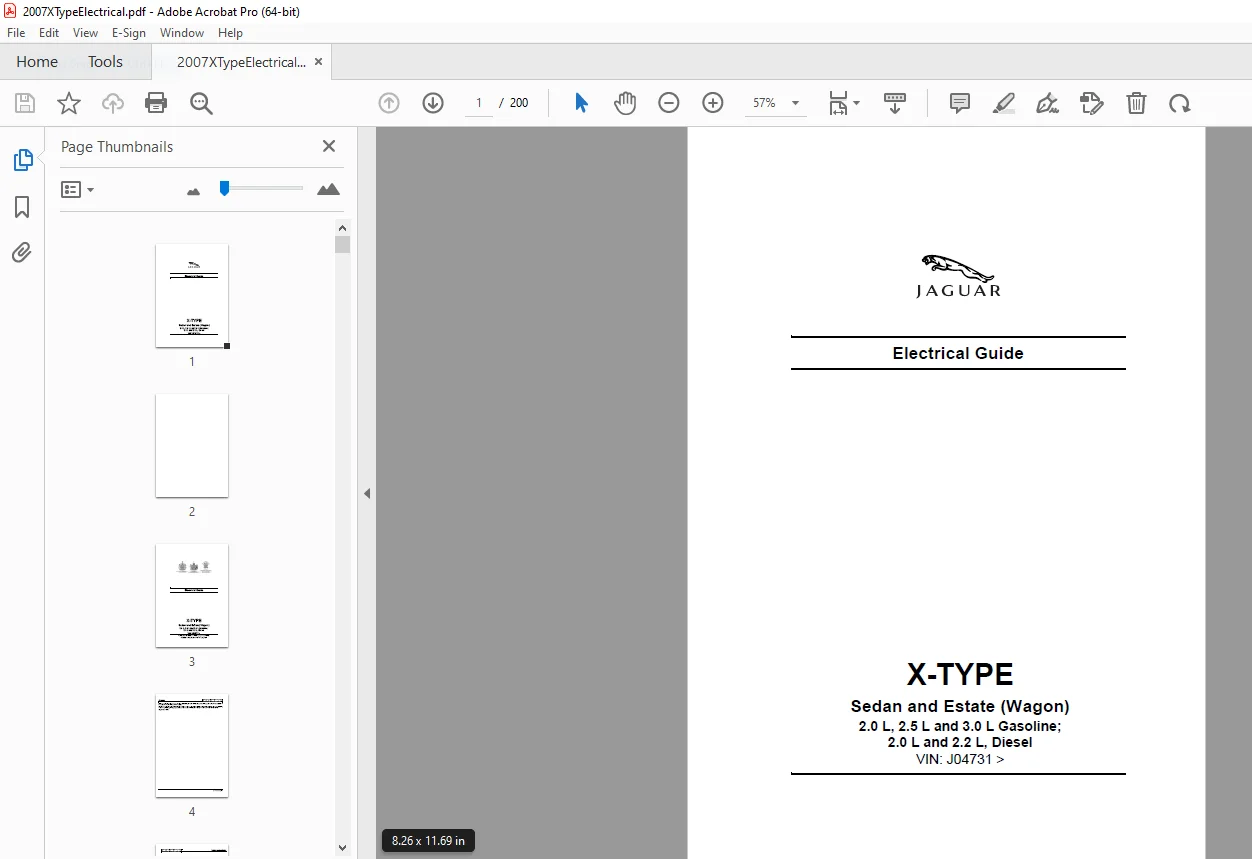

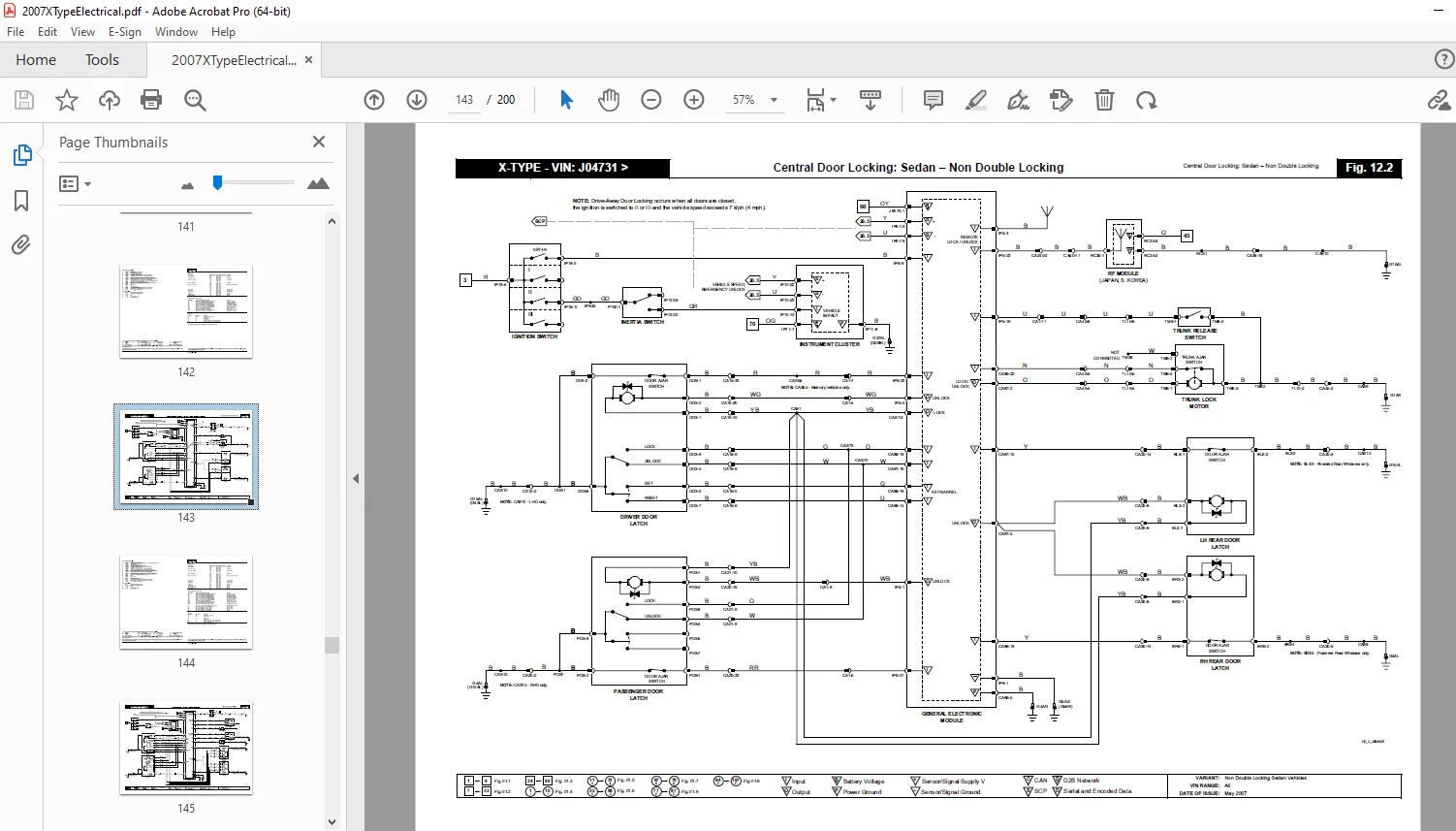

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Jaguar X-Type 2.0 L,2.5 L & 3.0 L Gasoline 2.0 L & 2.2 L Diesel Sedan & Estate(Wagon) Electrical Guide Manual S.No.VIN:J04731 – PDF DOWNLOAD

Table of Contents: Figures . 2
Abbreviations and Acronyms 5
Introduction . 6
User Instructions . 7
Symbols and Codes . 9
Network Configuration 13
Relay and Fuse Location 14
Fusebox Connectors . 16
Major Harnesses and Fusebox Location 17
Harness In-Line Connector Location . 19
Ground Point Location 22
Control Module Location 23
Control Module Pin Identification 25
Electrical Guide Figures and Data . follows after page 32

DESCRIPTION:

Jaguar X-Type 2.0 L,2.5 L & 3.0 L Gasoline 2.0 L & 2.2 L Diesel Sedan & Estate(Wagon) Electrical Guide Manual S.No.VIN:J04731 – PDF DOWNLOAD

Electrical Guide Format:
This Electrical Guide is made up of two major sections:
• the first section, at the front of the book, provides general information for and about the use of the book; model-specific
information and illustrations to aid in the understanding of the Jaguar X-TYPE electrical / electronic systems, as well as the
location and identification of components.
• the second section includes the Figures, which are the basis of the book. Each Figure is identified by a Figure Number
(e.g. Fig. 01.1) and Title. The page adjacent to the Figure contains data information specific to that Figure.

Electrical System Architecture:
Power Supplies
The electrical system is a supply-side switched system. The ignition switch directly carries much of the ignition switched power
supply load.
Power supply is provided via three methods:
• Direct battery power supply;
• Ignition switched power supply;
• ‘Battery Saver Power Supply’.
The ‘Battery Saver Power Supply’ circuit is controlled via the GEM (General Electronic Module). Refer to Fig. 01.7 for circuit
activation details.
Fuse boxes
The electrical harness incorporates two serviceable power distribution fuse boxes:
• the Power Distribution Fusebox located in the engine compartment;
• the Passenger Junction Fusebox located in the left-hand ‘A’ Post
All fuses and relays (except the trailer towing accessory kit and two Diesel vehicle relays) are located in the two fuse boxes.
Vehicle Networks
The X-TYPE employs three different networks:
• CAN (Controller Area Network) for high-speed power train communications;
• SCP (Standard Corporate Protocol) network for slower speed body systems communications;
• D2B (Optical) Network for very high-speed ‘real-time’ audio data transfer.
