JCB Liftall Loadall 526-56, 531, 70_550-80 Service Manual – PDF DOWNLOAD
Original price was: $89.00.$28.95Current price is: $28.95.
JCB Liftall Loadall 526-56, 531, 70_550-80 Service Manual
Description
JCB Liftall Loadall 526-56, 531, 70_550-80 Service Manual
FILE DETAILS:
JCB Liftall Loadall 526-56, 531, 70_550-80 Service Manual
Size: 485 MB
Fomat: PDF
Language: English
Brand: JCB
Type of machine: Liftall Loadall 526-56,531,70, 535-95, 536-60, 541-70, 533-105, 536-70, 550-80
Type of document: Service Manual
Model: 9813-0900
Page of number: 2947
DESCRIPTION:
JCB Liftall Loadall 526-56, 531, 70_550-80 Service Manual
FORMAT:
The manual is compiled in sections, the first three are numbered and contain information as follows:
1 General Information – Use the Applications Tables at the front of the section to see which topic in the manual is applicable to which machine model. The section also includes general information such as torque settings and service tools.
2 Care & Safety – includes warnings, cautions and general procedures related to aspects of workshop procedures contained in the manual. 3 Routine Maintenance – includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with dismantling, overhaul etc. of specific components, for example:
A Attachments
B Body and Framework…etc.
- The sections contain topics. Each topic is a self contained set of data about a machine SYSTEM or Device. Some topics are only applicable to some machine models. Use the Applications Tables in this section to see which topic is applicable to which machine model.
- Each topic contains data such as specifications, descriptions, fault finding and test procedures. Device topics also contain removal, replacement, dismantle and assemble procedures. Some topics contain procedures and specifications for different variants.
- This happens because of market requirements, or when the machine specification changes after a period of time. Where applicable, a table in the introduction of each topic contains information to help you identify the correct specifications or procedures.
- Each topic also contains a Related Topics table. This table lists all the topics that contain related data. For example a hydraulic SYSTEM contains devices such as valves and pumps. These devices have their own topics and they are listed in the SYSTEM related topics table.
TABLE OF CONTENTS:
JCB Liftall Loadall 526-56, 531, 70_550-80 Service Manual
Section 1 – General Information
Section 2 – Care and Safety
Section 3 – Routine Maintenance
Section B – Body and Framework
Section C – Electrics
Section E – Hydraulics
Section F – Transmission
Section G – Brakes
Section H – Steering
Section K – Engine
Section M – Electronic Data Systems
Customer Support: [email protected]

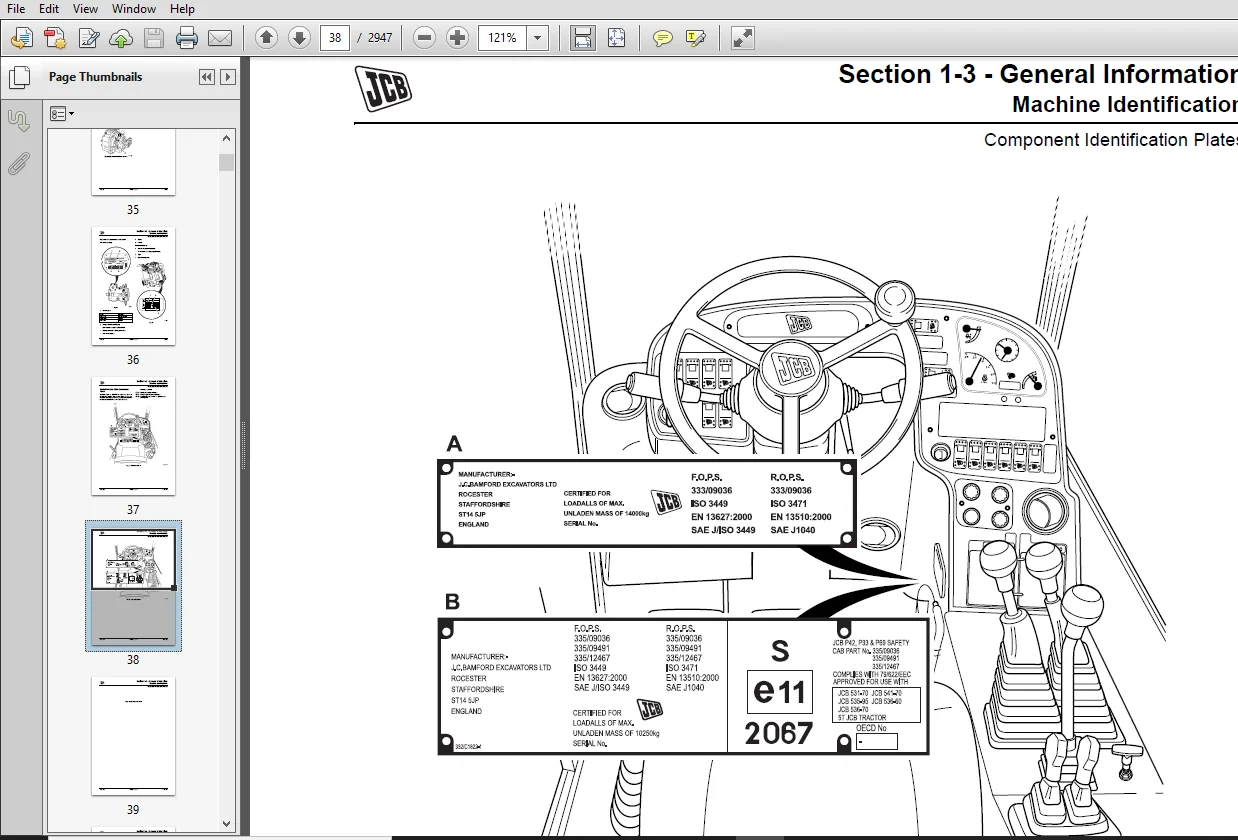

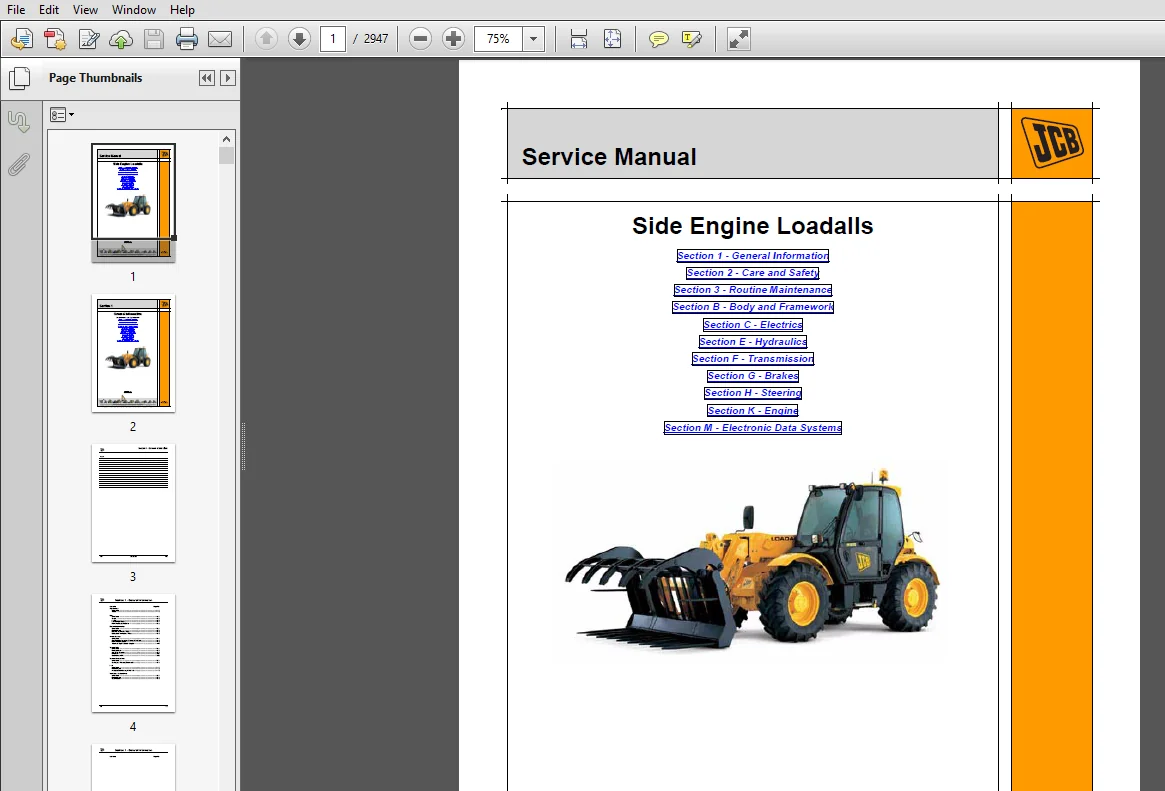

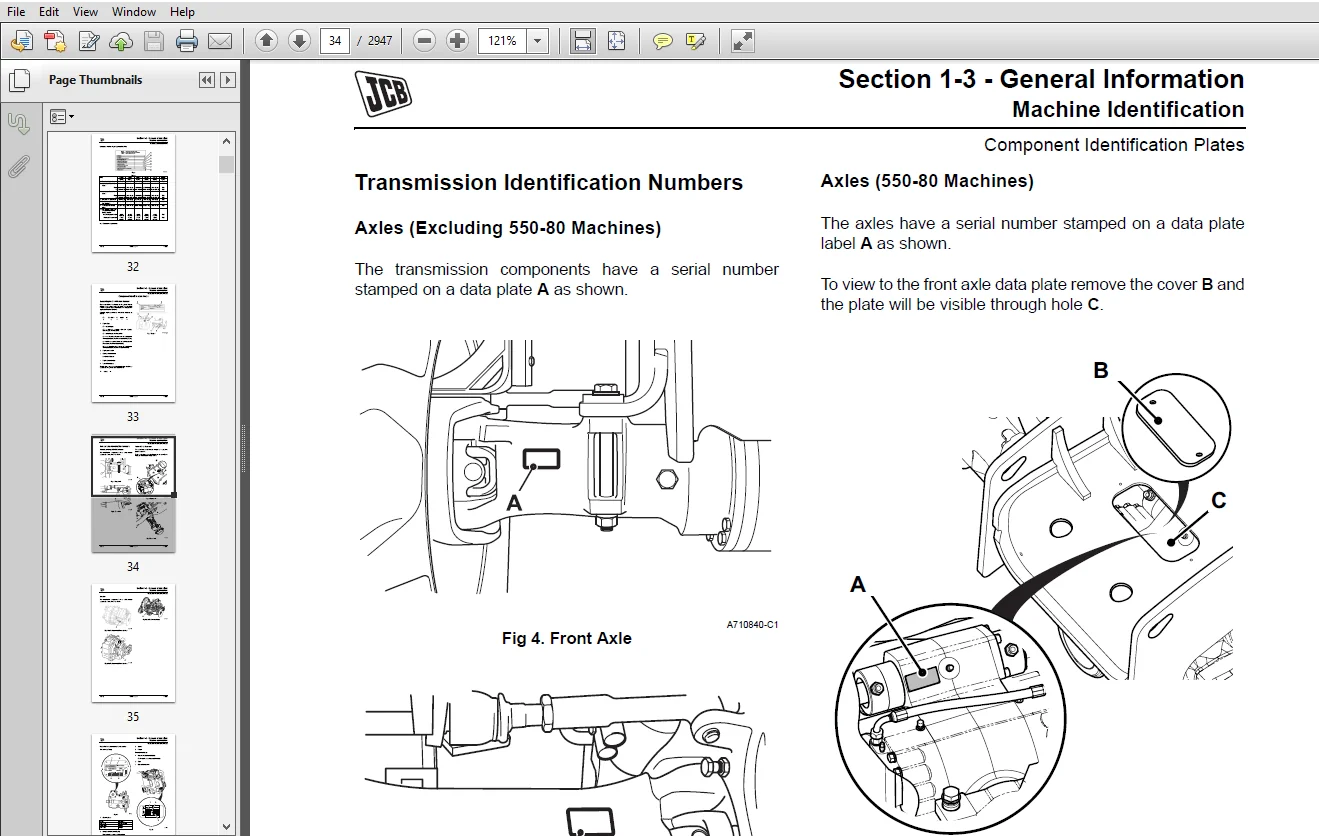

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
