JCB Liftall Loadall 527-58 Tier 4 Final Service Manual – PDF DOWNLOAD

Description

JCB Liftall Loadall 527-58 Tier 4 Final Service Manual

FILE DETAILS:

JCB Liftall Loadall 527-58 Tier 4 Final Service Manual

Size: 206 MB
Fomat: PDF
Language: English
Brand: JCB
Type of machine: Liftall Loadall 527-58 Tier 4 Final
Type of document: Service Manual
Model: 9813-7550
Page of number: 1769

DESCRIPTION:

JCB Liftall Loadall 527-58 Tier 4 Final Service Manual

INTRODUCTION:

Training:

• To operate the machine safely you must know the machine and have the skill to use it. You must abide by all relevant laws, health and safety regulations that apply to the country you are operating in. The operator’s manual instructs you on the machine, its controls and its safe operation; it is not a training manual. Ensure that you receive the correct training before operating any machinery.
• Failing to do so will result in incorrect operation of the machine and you will be putting yourself and others at risk. In some markets, and for work on certain jobsites, you may be required to have been trained and assessed in accordance with an operator competence scheme. Make sure that you and your machine comply with relevant local laws and jobsite requirements – it is your responsibility.

Care and Alertness:

All the time you are working with or on the machine, take care and stay alert. Always be careful. Always be alert for hazards.

Clothing:

You can be injured if you do not wear the correct clothing. Loose clothing can get caught in the machinery. Keep cuffs fastened. Do not wear a necktie or scarf. Keep long hair restrained. Remove rings, watches and personal jewellery.

Alcohol and Drugs:

It is extremely dangerous to operate machinery when under the influence of alcohol or drugs. Do not consume alcoholic drinks or take drugs before or while operating the machine or attachments. Be aware of medicines which can cause drowsiness.

TABLE OF CONTENTS:

JCB Liftall Loadall 527-58 Tier 4 Final Service Manual

01 – Machine
03 – Attachments, Couplings and Load
Handling
06 – Body and Framework
09 – Operator Station
12 – Heating, Ventilating and Air-
Conditioning (HVAC)
15 – Engine
18 – Fuel and Exhaust System
21 – Cooling System
27 – Driveline
30 – Hydraulic System
33 – Electrical System
72 – Fasteners and Fixings
75 – Consumable Products
78 – After Sales

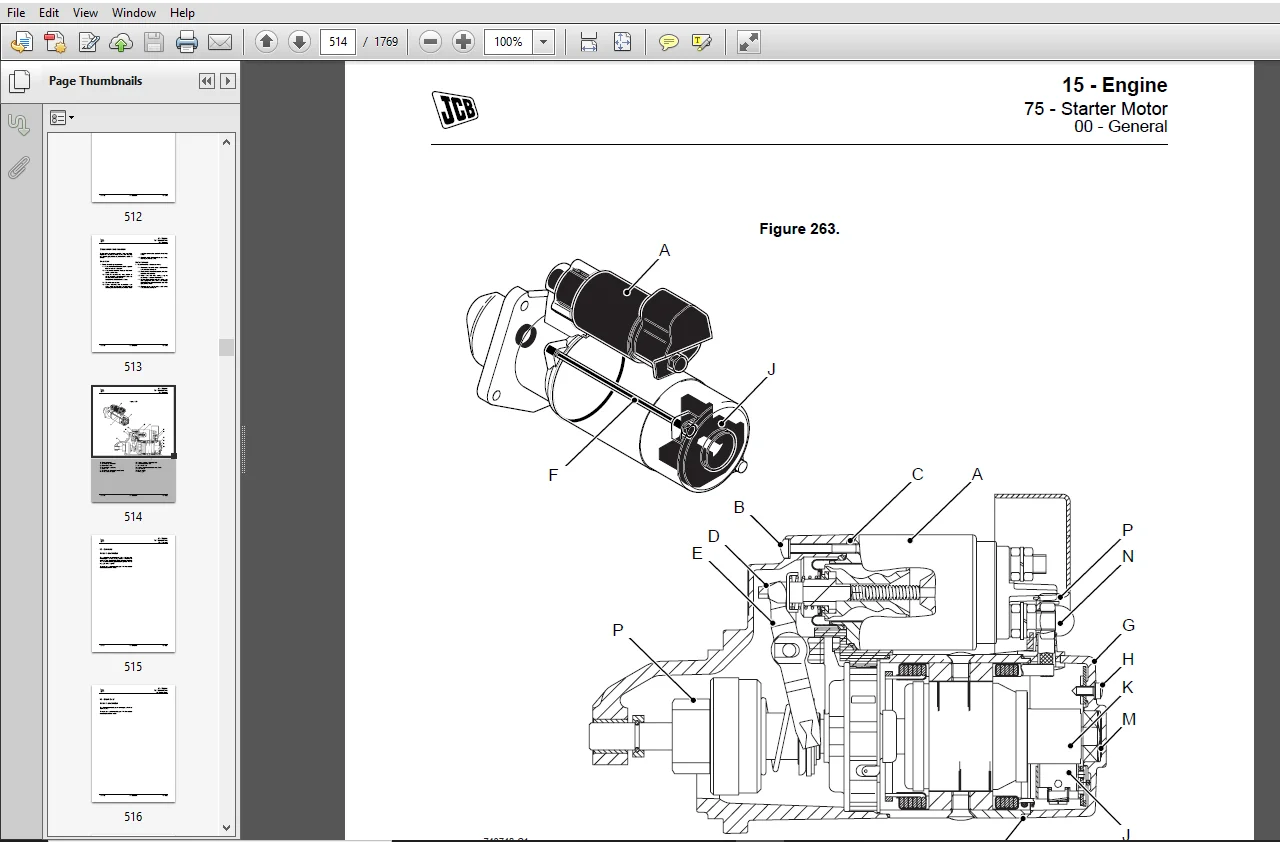

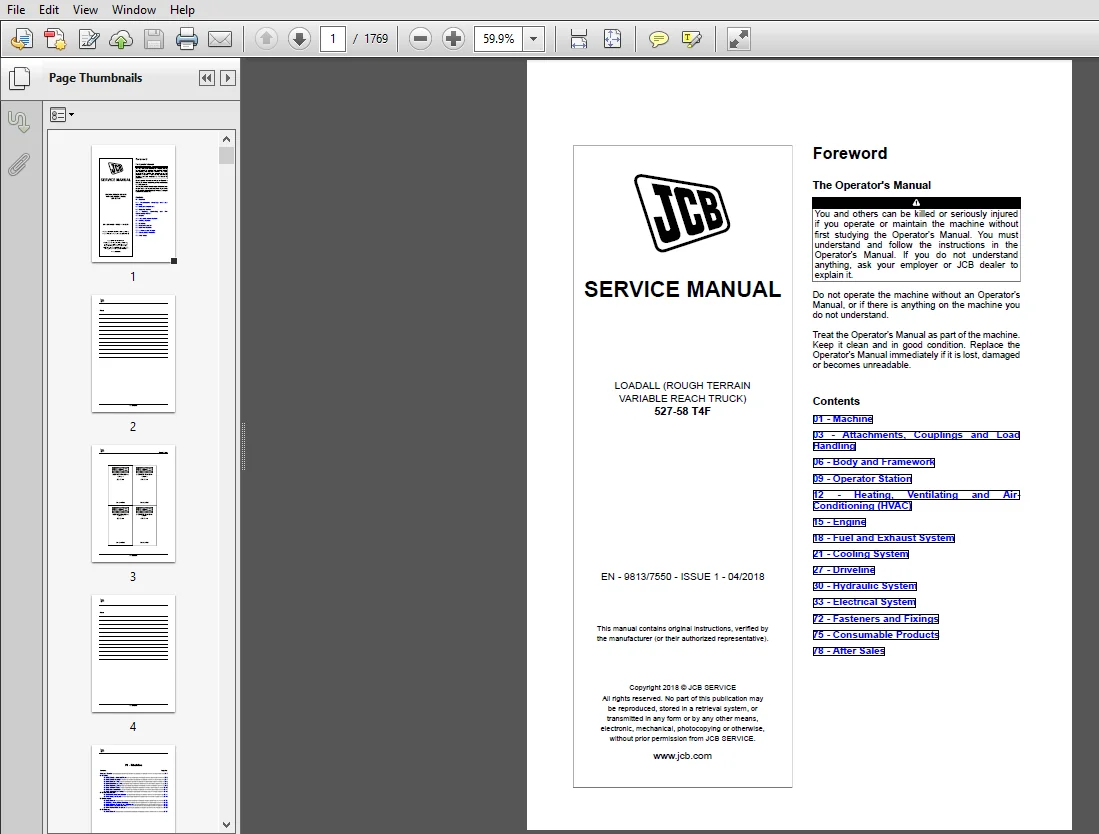

IMAGES PREVIEW OF THE MANUAL:

Questions? Email us: [email protected]

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
