JCB SD 55ST AXLE Service Manual – PDF DOWNLOAD
Original price was: $89.00.$27.95Current price is: $27.95.
JCB SD 55ST AXLE Service Manual
Description
JCB SD 55ST AXLE Service Manual
FILE DETAILS:
JCB SD 55ST AXLE Service Manual
Language: English
Brand: JCB
Type of machine: Drivetrain SD 55 ST Axle
Type of document: Service Manual
Model: 9803-9220
Page of number: 66
TABLE OF CONTENTS:
JCB SD 55ST AXLE Service Manual
- General Information
- Care & Safety
- Routine Maintenance
- Hydraulics
- Axles
DESCRIPTION:
JCB SD 55ST AXLE Service Manual
- This publication is designed for the benefit at Service Engineers. These personnel should have a sound knowledge at workshop practice. salety procedures, and general techniques associated with the maintenance and repair of hydraulic equipment. Renewal of oil seals, gaskets. etc, and any component showing obvious signs of wear or damage is expected as a matter oi course.
- It is expected that components will be cleaned and lubricated where appropriate. and thatany opened hose or pipe .connectionsrwill beblanked to prevent excessive loss at hydraulic lluldand lngress of dirt. Finally, please remember above all else SAFETY MUST COME FIRST!
The manual is compiled in sections. the limt three are numbered and contain information asloilens; . .
1 = General Inlormation – includes torque settings and service tools.
2 = Care &’Salely – includes warnings and cautions pertinent to aspectsofworkshep procedures etc.
3 = Routine Maintenance – includes service schedules and recommended lubricants etc.
The remaining sections deal with Dismantling, Overhaul etc. at specific components:
4 = Hydraulics
5 = Axles
The page numbering in each section is not continuous. This alerts for the insertion of new items in later issues of the manual. Section cententsrtochnicaldatapoperationdescriptionselders-inserted attha beginning bleach section. All sections are listed on the hunt cover. tabbed cfivider cards align directly with individual sections on the lrent cover ler rapid rciorcrvco.

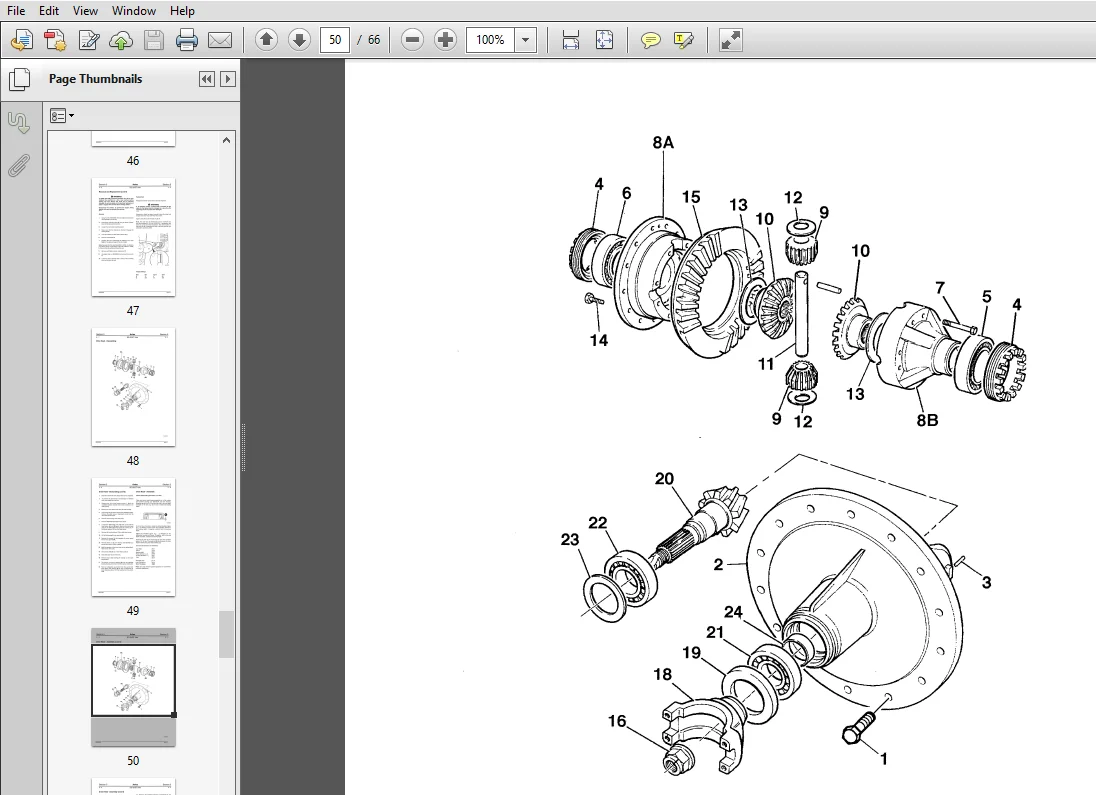

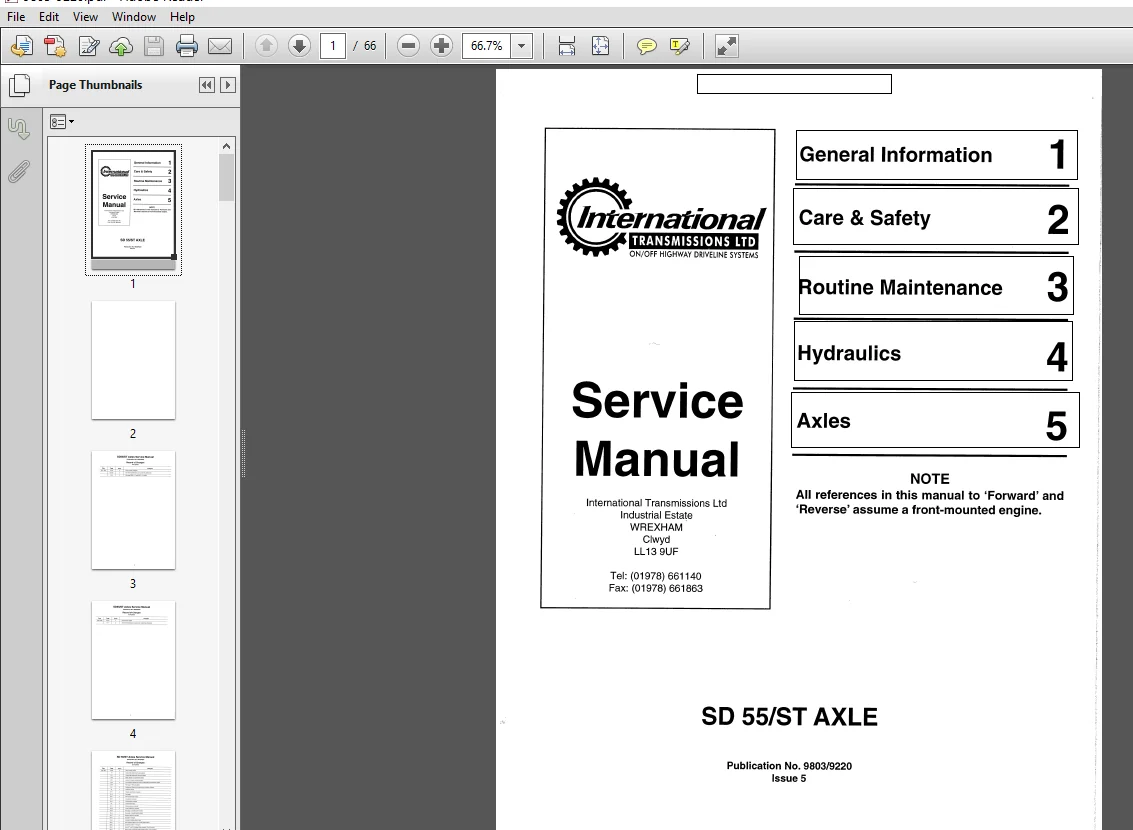

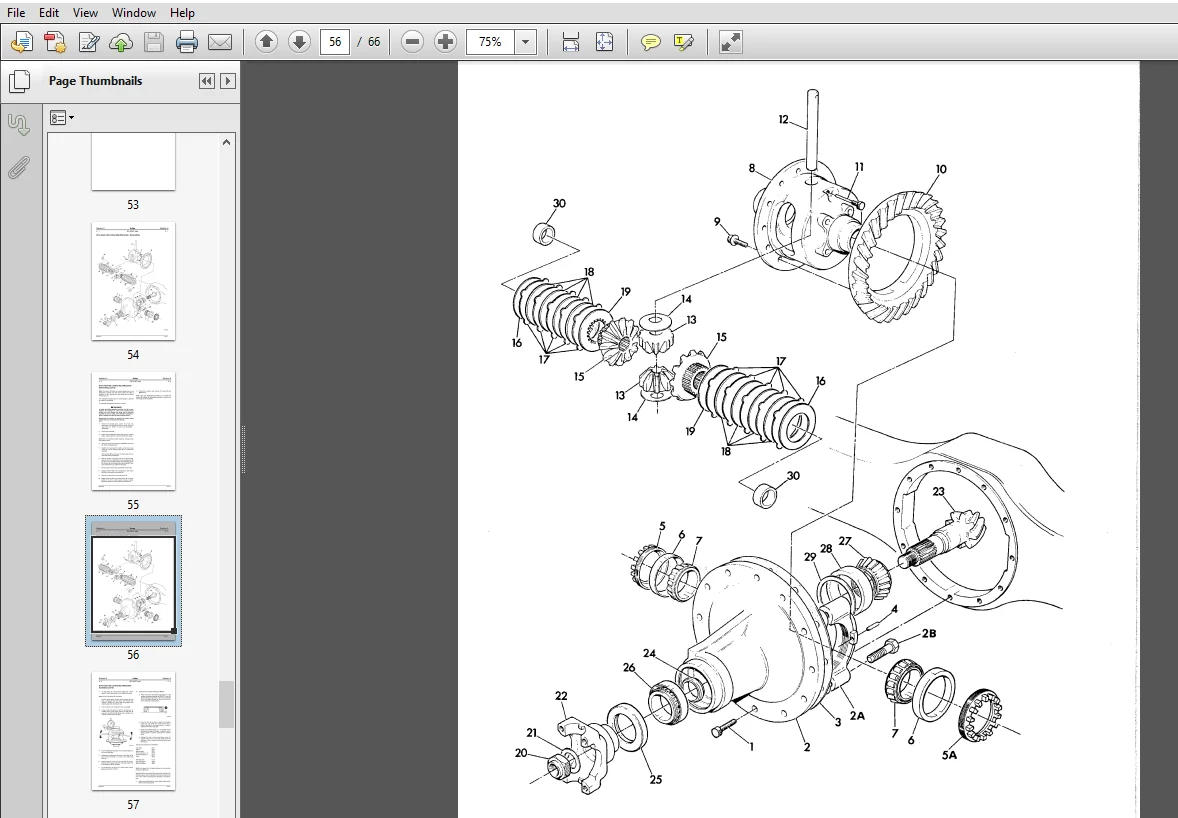

IMAGES PREVIEW OF THE MANUAL:
JCB SD 55ST AXLE SERVICE MANUAL – PDF DOWNLOAD:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
