Jeep AX15 Transmission Service Manual – PDF DOWNLOAD
Original price was: $86.95.$25.95Current price is: $25.95.
Jeep AX15 Transmission Service Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Jeep AX15 Transmission Service Manual – PDF DOWNLOAD
DESCRIPTION:
Jeep AX15 Transmission Service Manual – PDF DOWNLOAD
GENERAL INFORMATION :
The AX 15 is a 5-speed, synchromesh, manual transmission. Fifth gear is an overdrive range with a ratio of 0.79:1. The shift mechanism is integral and mounted in the shift tower portion of the adapter housing (Fig. 1). An adapter housing is used to attach the transmission to the transfer case on 4-wheel drive models.
A standard extension housing is used on 2-wheel drive models. The AX 15 is used in XJ and YJ models with a 4.0L engine. The AX 15 is designed for use with either two-wheel drive or four-wheel drive applications.
TRANSMISSION IDENTIFICATION :
The AX 15 identification code numbers are on the bottom surface of the transmission gear case (Fig. 2). The first number is year of manufacture. The second and third numbers indicate month of manufacture. The next series of numbers is the transmission serial number.
TRANSMISSION SHIFT PATTERN:
The AX 15 shift pattern is shown in Figure 3. First and second and third and fourth gear ranges are in line for improved shifting. Fifth and reverse gear ranges are also in line at the extreme right of the pattern (Fig. 3). The AX 15 is equipped with a reverse lockout mechanism. The shift lever must be moved through the Neutral detent before making a shift to reverse.
TABLE OF CONTENTS:
Jeep AX15 Transmission Service Manual – PDF DOWNLOAD
General Information 32
Service Diagnosis 33
Transmission Assembly and Adjustment 51
Transmission Disassembly and Overhaul 36
Transmission Gear Ratios 33
Transmission Identification 32
Transmission Installation—AX 15 35
Transmission Lubricant 33
Transmission Removal—AX 15 34
Transmission Shift Pattern 33
Transmission Switch and Plug Locations 33
Contact us: [email protected]

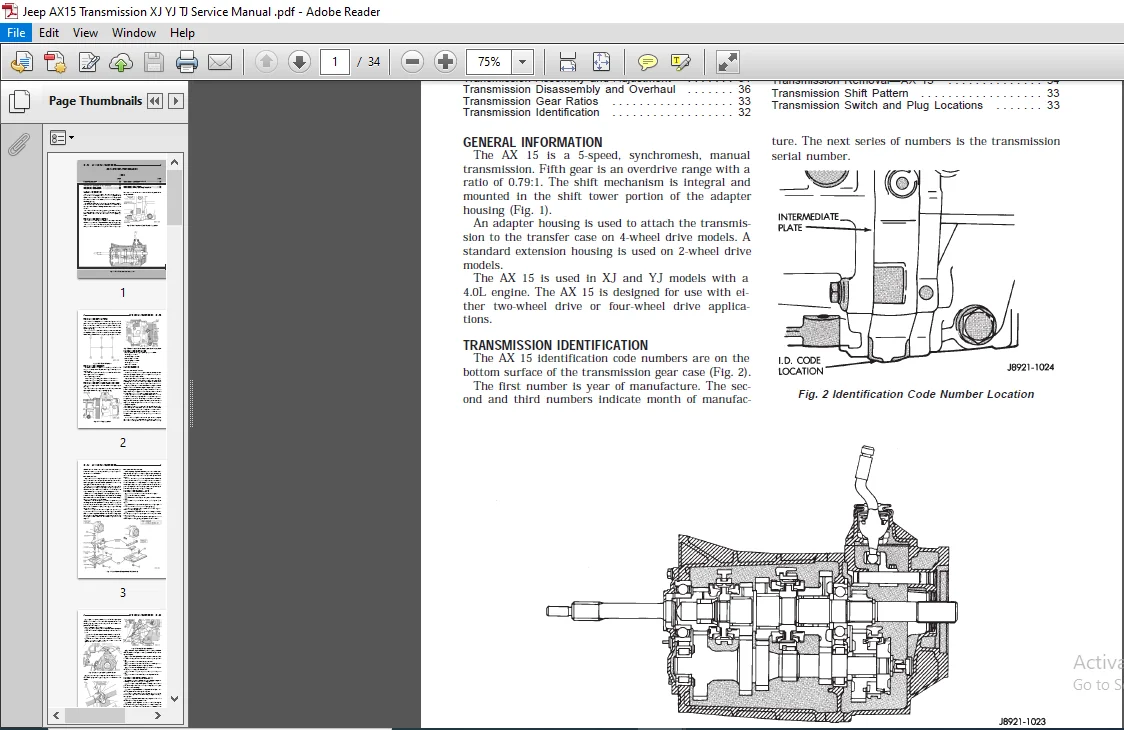

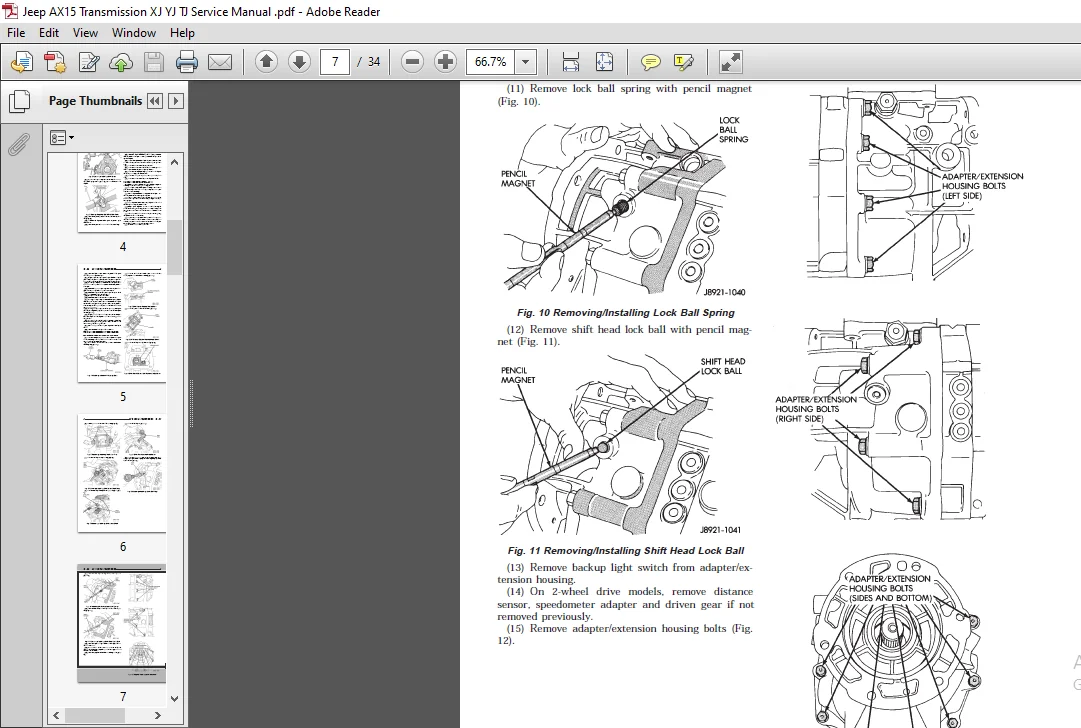

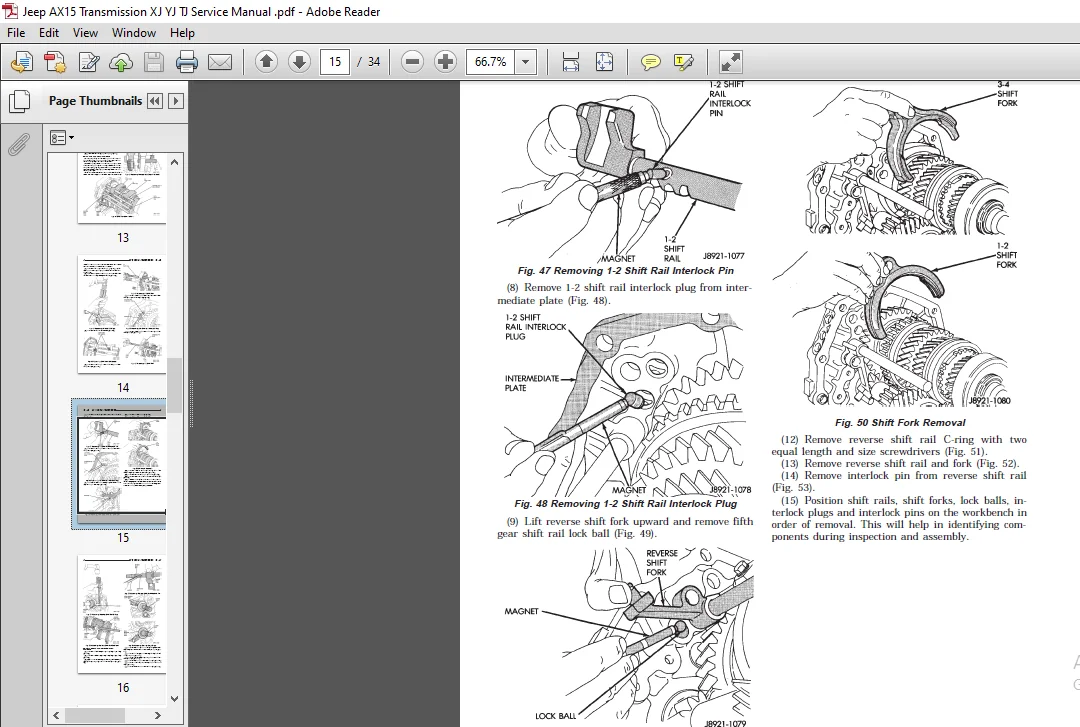

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
