John Deere 1470E CH9 T3 CTL Harvester Operator’s Manual – PDF DOWNLOAD

Description

John Deere 1470E CH9 T3 CTL Harvester Operator’s Manual – PDF DOWNLOAD

FILE DETAILS:

John Deere 1470E CH9 T3 CTL Harvester Operator’s Manual – PDF DOWNLOAD

P/N: F685914GENI_XU
Language: English
Division: Forestry
Product Lines: Wheeled Harvesters
Publication Type: Operator’s Manuals
Associated Models: 1470E IT4 CH9 T3
Series: E SERIES
Serial: 1WJ1470E001901-1915

Operator’s manual for 1470E T3 CH9 built on IT4 platform equipped with Gen I Rotating and Leveling Cabin.

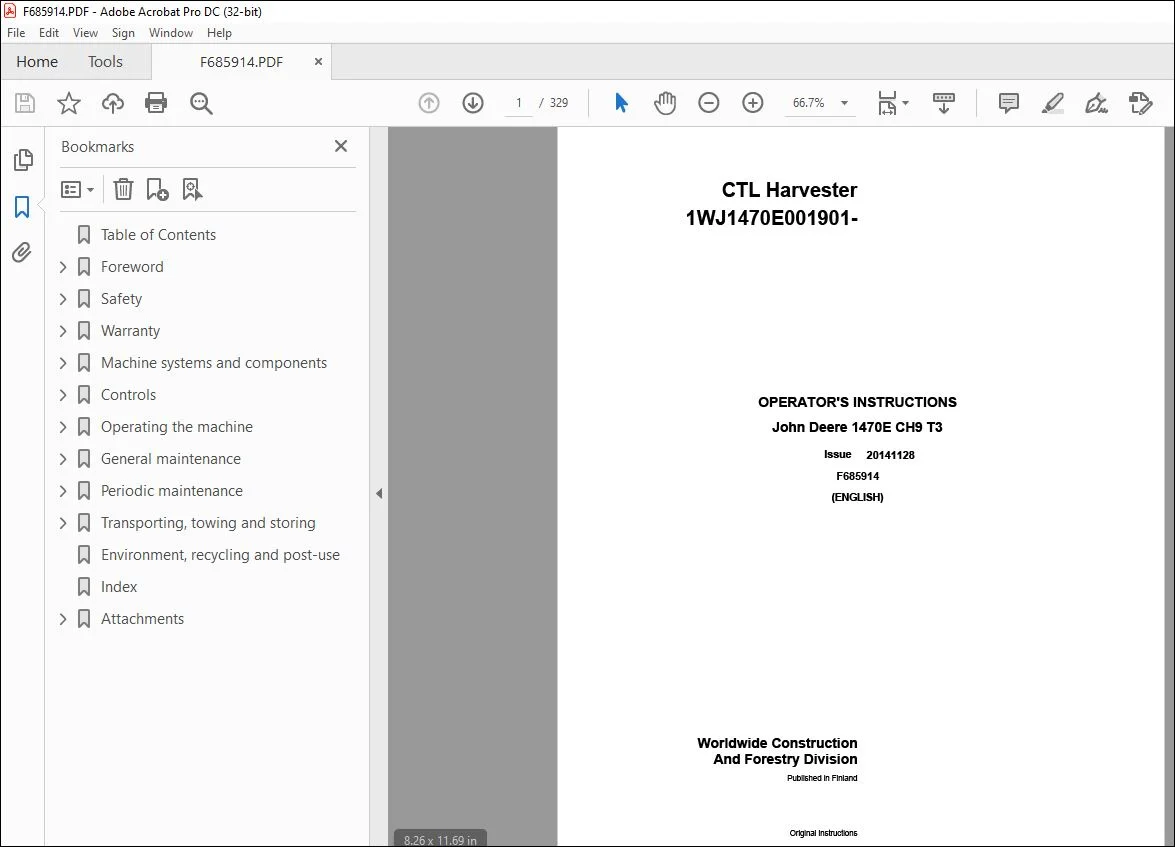

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere 1470E CH9 T3 CTL Harvester Operator’s Manual – PDF DOWNLOAD

Table of Contents 2
Foreword 10
Foreword 10
Declaration of conformity 10
John Deere Harvester 10
Machine identification 11
Engine Identification 12
Harvester brochures 12
Safety 13
Follow Laws and Regulations 13
Recognize Safety Information 13
Understand Signal Words 14
Prepare for Emergencies 14
Wear Protective Clothing 15
Handle Chemical Products Safely 15
Install Radio Transmitters Properly 16
Operating 16
Inspect machine 17
Attach Do not Operate Tag 17
Prevent Machine Runaway 18
Use Handholds and Steps 18
Handle Starting Fluids Safely 19
Pay Attention to Bystanders 19
Carry no passangers 20
Use Seat Belt 20
Cabin protective structures 21
Secondary exit 22
Harvester cabin noise 22
Vibration levels in harvester cabin 23
Avoid Risks under Difficult Conditions 24
Operate the Boom Safely 24
Stop Working if Machine Gives an Alarm 25
Keep Danger Zone Clear 25
Avoid saw chain shots 26
Avoid Crush Points 27
Avoid Power Lines 27
Driving/Transporting on Public Roads 28
Cold environment operation 28
Ensure Safety before Driving on Frozen Waters 29
Avoid Fires and Explosions 29
What To Do If the Machine Catches Fire? 30
Hand-held fire extinguisher 31
After a fire 31
Maintenance 32
Keep Machine in Good Condition 32
Use Proper Clothing 33
Use Proper Tools 33
Support Machine Properly 34
Service Cooling System Safely 34
Prevent Battery Explosions 35
Prevent Acid Burns 35
Start Only from Operator’s Seat 36
Beware of Exhaust Fumes 36
Avoid High Pressure Fluids 37
Avoid Heating near Pressurized Fluid Lines 37
Make Welding Repairs Safely 38
Service Tires Safely 38
Service Air Conditioner Safely 39
Replace Xenon Worklamps Safely 39
Service Accumulators Safely 40
Service Steering System Safely 40
Refueling and Servicing Fuel System 41
Dispose of Waste Properly 41
Safety Decal Locations 41
Cabin Safety Decals 42
Machine Safety Decals 42
Non-text Safety Decals 43
Warranty 44
Standard Warranty Clauses 44
Standard Warranty 44
Extended Coverage 44
Periodic Maintenance 44
Machine systems and components 45
Cabin 45
Electric system 46
Batteries 47
Main switch panel 48
Power outlets 49
Fuses and relays 50
Main fuses 51
Battery center tab fuse 52
Front carriage fuses 53
Front carriage relays 54
Cabin fuses 55
Cabin relays 57
Rear carriage fuses and relays 58
Wiring harness fuses and relays 60
Machine control system (1270E/1470E) 61
Engine Control Unit (ECU) 62
Engine sensors (9 0L) 63
Engine sensors 1/4 64
Engine sensors 2/4 65
Engine sensors 3/4 66
Engine sensors 4/4 67
Sensors, air intake system and coolant 68
Sensors, ambient temperature 69
Sensors, hydraulic oil tank 70
Sensors, transmission 71
Sensors, brake system 72
Sensors, fuel tank 73
Position sensors, frame 74
Sensors, CH9 boom 75
Sensors, cabin 76
Sensors, work hydraulics 77
Bulbs 77
Grounding points, frame 79
Grounding points, cabin 80
Telematics components 81
Modules 82
Antennas 83
Hydraulics 84
Optional equipment 84
Central greasing system 85
Safety instructions 85
CH9 harvester 86
Rear frame 87
Middle joint 88
Dispensers on front frame 89
Greasing points on front frame 90
CH9 boom 91
Boom base 92
Lifting lever 93
Main boom 94
Jib boom 95
Controls 96
Driving controls 96
Main switch 97
Safety switches and emergency stop 98
Ignition switch 99
Dashboard 100
Boom controls 102
Left keypad in harvester 103
Right keypad in harvester 104
Extra keypad 105
Lights and wipers 106
Cabin lights and service lights 107
Work lights 108
Driving lights 109
Window wipers and washers 110
Right-hand side storage box 111
Central locking system 112
Air Conditioner 113
General system operation 113
Temperature setting 115
Fan control 115
Recirc mode 116
Defrost mode 117
Pre-heater system 118
Operation sequences 119
Setting the timer 120
Switching on the heater 120
Heating pre-selection 121
Switching off the heater 121
Changing the Heating Duration 122
Remote control 122
Operating the machine 124
Engine 124
Starting the engine 124
Cold weather starting 125
After starting 125
Turning off the engine 126
Driving 126
Off-road driving 126
On-road driving 127
Cabin rotating and levelling 128
High/low gear and front wheel drive 128
ECO mode 129
Differential locks 130
Boom and harvester head 131
Warming up work hydraulics 131
Using the Boom 132
Processing Power Control modes 133
Boom levelling 133
Boom suspended mode 134
After Using the Boom 135
At the End of the Work Day 135
General maintenance 136
Refueling the Machine 136
Fluids and lubricants 137
Diesel fuel 137
Bio-Diesel Fuel 138
Minimizing the effect of cold weather on diesel engines 139
Handling and storing diesel fuel 140
Lubricity of diesel fuel 140
Engine oil 141
Diesel engine oil and filter service intervals 141
Diesel engine break-in oil 142
Additional engine oil information 143
Coolant 144
Hydraulic oil requirements 147
Gear oil 148
Brake fluid 149
Grease 150
Hydraulic pressure measurements 150
Drive hydraulics 151
Maximum drive pressure 152
Drive motor pressure cut-off setting 153
Work hydraulics 154
A11 LS pressure difference Delta P 154
A11 main pressure relief valve 155
A11 maximum work pressure settings 157
A10 LS pressure difference Delta P 158
A10 main pressure relief valve 159
A10 maximum work pressure settings 160
Auxiliary valve pressure 161
Boom valve LS relief pressures 162
Checking cabin rotating and levelling pressure 163
Hydraulic fan pump pressure 164
Brake hydraulics 164
Drive and work brake pressures 165
Loading range pressures 166
Loading pressure 167
Engine hoods 168
Lifting the hoods 169
Lifting the hoods without electric power 170
Changing Wheels 171
Tracks, chains and wheel ballasting 172
Anti-Slip Fitting 173
Tracks fitting 1/4 174
Tracks fitting 2/4 175
Tracks fitting 3/4 176
Tracks fitting 4/4 177
Cabin windows cleaning 178
Vacuum pump 179
Hydraulic oil sampling valve 180
Using Booster Batteries 180
Welding instructions 181
Periodic maintenance 182
Introduction 182
Uptime maintenance planner 182
Optional equipment maintenance 182
Pre-heater maintenance 183
Run the pre-heater for a few minutes 183
Fault diagnosis 184
Service codes 184
Greasing system maintenance 186
Lubrication frequency and volume amount adjustment 187
Reservoir filling 188
System check 189
Troubleshooting 190
Fire protection system maintenance 191
10 hours or daily 192
50 hours or weekly 193
Every 12 months 194
Every 10 hours or daily 194
Check hydraulic oil level 195
Check engine oil level 196
Check boom structures visually 197
Every 50 hours or weekly 197
Check machine visually 198
Check high/low gear oil level 199
Check differential oil level 200
Check hub gear oil level 201
Check boom screw joints 202
Check joint pins of the boom 203
Check harvester head mounting 204
Check bogie casing for leaks 205
Check the cooler cleanness 206
Grease middle joint 207
Check and grease cabin rotation and levelling system 208
Check boom slew housing oil level 209
Grease the boom 210
Manual centralised greasing 211
Rotator and link 211
Every 250 hours 212
Check high/low gear oil level 212
Check bogie casing oil quality and level 213
Check tyre pressures 214
Check the door switch 215
Check cabin fresh-air filters 216
Check extension boom clearances 217
Every 500 hours 217
Change engine oil and oil filter 218
Replace fuel filters 220
Check the drive belt wear 222
Check crankcase vent tube 223
Check air intake system 224
Check cooling system 225
Check engine coolant level 226
Drain water deposited in boom base 227
Check electrolyte level of batteries 228
Every 1000 hours 229
Replace air filter elements 230
Test engine coolant 232
Change hydraulic oil 233
Replace hydraulic tank oil filters 235
Replace hydraulic tank breather 236
Bleed hydraulic tank 237
Grease the driveshafts 238
Grease bogie slew bearings 239
Check wheel rims and fastening bolts 240
Check axle fastening bolts 241
Check frame brake fastening screws 242
Check air conditioner 243
Change cabin fresh-air filters 244
Replace Puradyn filter element 245
Clean rotator magnetic plug 246
Tighten rotator bottom screws 247
Every 2000 hours 248
Check valve clearance 1/2 249
Check valve clearance 2/2 251
Change coolant 253
Check engine vibration damper 255
Change high/low gear oil 256
Change differential oil 257
Change bogie casing oil 259
Change hub gear oil 260
Change the boom slew housing oil 261
As required 262
Clean the machine 263
Replace coolant filter 264
Drain fuel filters 265
Replace drive belt 266
Replace filter-dryer-receiver 267
Check secondary exit 276
Check cabin stairs 277
Check drive brake oil level 278
Check brake cylinders 279
Change brake pedal circuit oil 280
Adjust brake cylinders 281
Adjust rotator link brakes 283
Inspect chain shot guard 284
Identification of excessive wear and damage 285
Transporting, towing and storing 286
Transporting the Machine 286
Harvester head fastening for transportation 287
Chain lengths for boom and head combinations 287
Harvester transportation position 289
Tie-down and lifting points 290
Towing the machine 290
Release parking brake cylinders 291
Releasing twin pump drive valve 292
Releasing the work brake 293
Releasing the steering 294
Stowing a disabled boom 294
By-passing the boom valve 295
Preparing machine for storage 296
After Storage 298
Environment, recycling and post-use 300
Index 301
Attachments 305
Declaration of Conformity template_en 306
1270E_1470E_IT4_en 308
1270E_1470E_T3T2_(IT4)_en 311
1270E_8W_(IT4)_specs_en 314
a02326_Arm_Silikonilayout 316
Bucher_Saw_Motor_Warmup 318
UMP_1270E_1470E_T3_(IT4)_EN 321
Nokian_Heavy_Tyres_Pressure_Handbook_John_Deere 324
