John Deere 1510C, 1512C, 1810C, 1812C, 1814C & 2112C Scrapers Operators Manual – PDF DOWNLOAD

FILE DETAILS:

John Deere 1510C, 1512C, 1810C, 1812C, 1814C & 2112C Scrapers Operators Manual – PDF DOWNLOAD

P/N: OMCM1030_XM
Language: English
Division: Construction
Product Lines: Scrapers
Publication Type: Operator’s Manuals
Associated Models: 1510C, 1512C, 1810C, 1812C, 1814C, 2112C
Series: C SERIES

1510C, 1512C, 1810C, 1812C, 1814C, and 2112C Carry-all Scrapers;

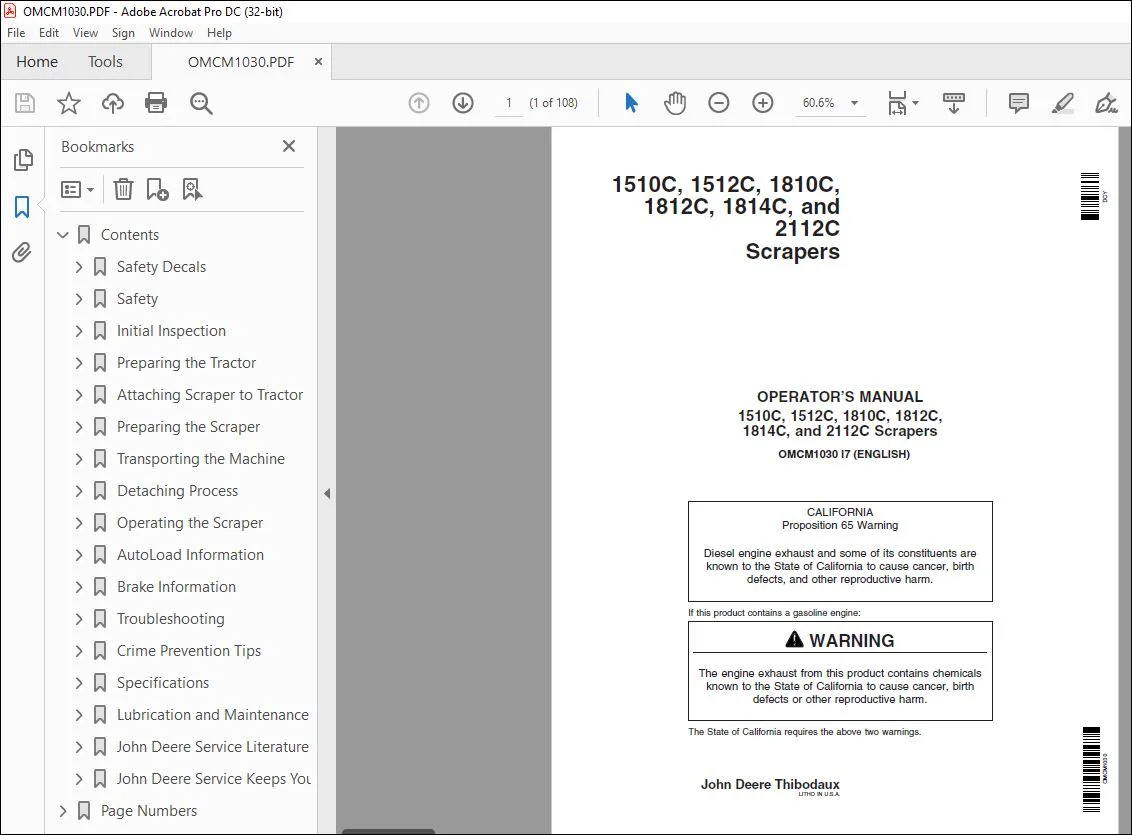

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere 1510C, 1512C, 1810C, 1812C, 1814C & 2112C Scrapers Operators Manual – PDF DOWNLOAD

Contents 3
Safety Decals 5
Safety Signs 5
Safety Signs 6
Safety Signs 7
Safety 8
Recognize Safety Information 8
Understand Signal Words 8
Follow Safety Instructions 8
Use Proper Tools 9
Follow Safety Instructions 9
Service Tires Safely 10
Stay Clear of Moving Tractor 10
Keep Riders Off Machine 10
Wear Protective Clothing 11
Prepare for Emergencies 11
Use Safety Lights and Devices 11
Transport Safely 12
Remove Paint Before Welding or Heating 13
Remove Paint Before Welding or Heating 14
Avoid Heating Near Pressurized Fluid Lines 14
Avoid High-Pressure Fluids 15
Protect Against High Pressure Spray 15
Dispose of Waste Properly 16
Initial Inspection 17
Initial Inspection 17
Preparing the Tractor 18
Matching Tractor to Scraper 18
Recommendations for Tractor Set-up 20
Tractor Hydraulic System 21
Install Scraper Drawbar 21
Ballast Recommendations 22
Attaching Scraper to Tractor 23
General Information 23
Marking Proper Hose Connections 23
Attaching Scraper to Tractor 24
Removing Standard Drawbar & Installing Scraper Drawbar 25
Connect Warning Light Plug 26
Yoke Type Hitch 26
Connecting the Scraper to the Quick Attach Drawbar or Quick Attach Hitch 27
Connecting the Scraper to the Rear Quick Attach Hitch 29
Hitching Rear Scraper to Front Scraper 30
Setting Proper Hitch Height of Scrapers 31
How to Adjust Hitch Height 32
Preparing the Scraper 33
Cutting Edges (SN T8XXXXC08XXXX) 33
Setting the Blade (Cutting Edge) (Below SN T8XXXXC08XXXX) 36
Leveling the Blade (Cutting Edge) 37
Setting the Router Bits 38
To Adjust Router Bits Using Hitch Height 39
Transporting the Machine 40
Positioning Tractor Drawbar for Transport 40
Attach Warning Light Plug 40
Transporting the Machine 41
Transport Lockup System 42
Detaching Process 44
Detaching Scraper from Tractor 44
Detaching Process 45
Operating the Scraper 47
Scraper Component Locations 47
Operating the Tractor Safely 48
Avoid Contact with Pesticides 49
Use Caution on Hillsides 50
Overload Conditions 51
Loading the Scraper(s) 53
Protecting the Tractor Tires 55
Effective Scraper Traffic Patterns 56
Using Tandem Scrapers 58
Controlling Soil Moisture 58
Finishing the Field (Manual Control) 59
Soil Damaged Caused by Leveling 60
Top Loading Scrapers Requires Caution 62
AutoLoad Information 63
Sensor Calibration 63
Adjusting the Scraper Position Sensor Voltages 64
Brake Information 66
Brake Installation for a Brake-Ready Scraper 66
Brake Bleed Procedure 71
Changing of Brake Pads 73
Brake Disassembly 79
Brake Assembly 82
Troubleshooting 84
Operational Problems 84
Operational Problems 85
Operational Problems 86
Operational Problems 87
Operational Problems 88
Crime Prevention Tips 89
Keep Proof of Ownership 89
Keep Machines Secure 89
Specifications 90
SPECIFICATIONS 90
SPECIFICATIONS 92
Optional Equipment 93
Metric Bolt and Screw Torque Values 94
Unified Inch Bolt and Screw Torque Values 95
RECORD SCRAPER IDENTIFICATION NUMBER 96
Lubrication and Maintenance 97
10 Hour Service and Inspection 97
Recommended Daily Inspection 100
250 Hour Service 101
Periodic Maintenance 101
John Deere Service Literature Available 105
Technical Information 105
John Deere Service Keeps You On The Job 107
John Deere Is At Your Service When You Need It 107
