John Deere 210LE Landscape Loader Operator’s Manual – PDF DOWNLOAD

Description

John Deere 210LE Landscape Loader Operator’s Manual – PDF DOWNLOAD

FILE DETAILS:

John Deere 210LE Landscape Loader Operator’s Manual – PDF DOWNLOAD

P/N: OMT186794_VQ
Language: English
Division: Construction
Product Lines: Landscape Loaders
Publication Type: Operator’s Manuals
Associated Models: 210LE
Series: E SERIES

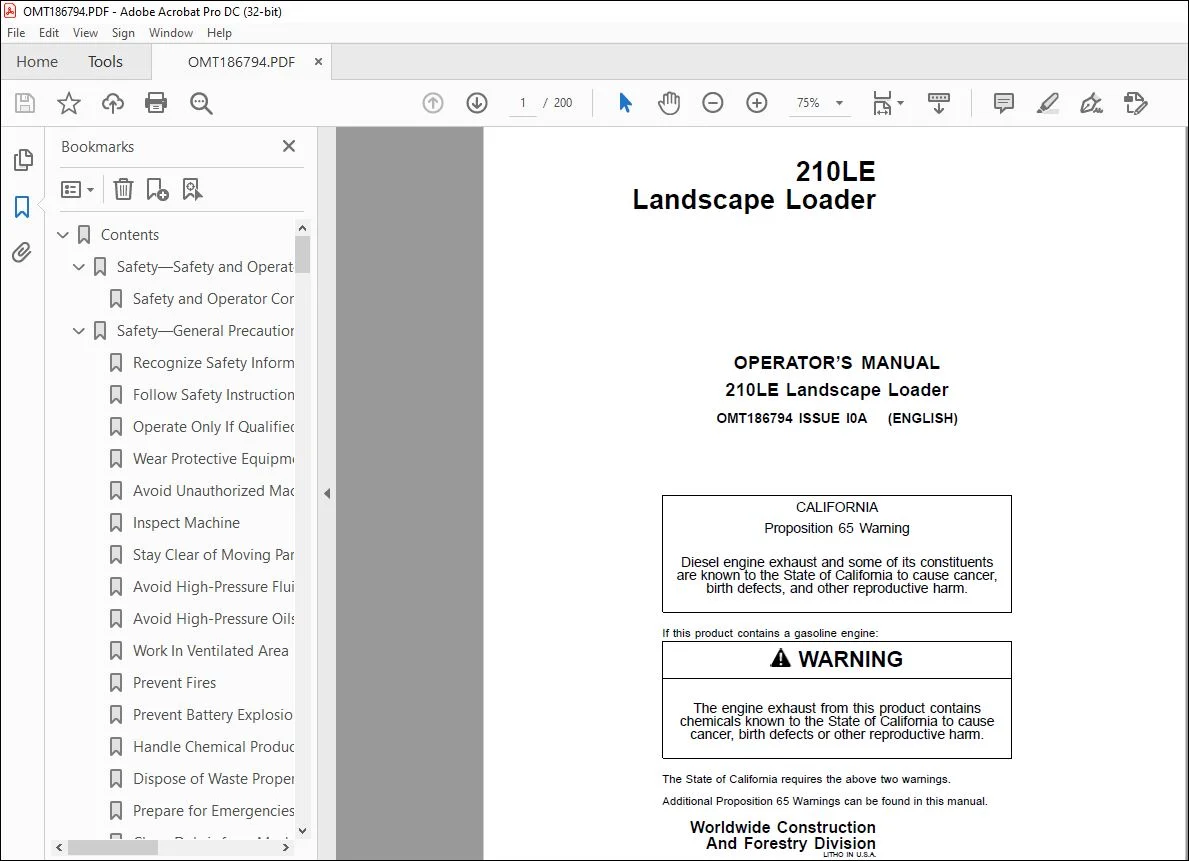

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere 210LE Landscape Loader Operator’s Manual – PDF DOWNLOAD

Contents 5
Safety—Safety and Operator Conveniences 9
Safety and Operator Convenience Features 9
Safety—General Precautions 10
Recognize Safety Information 10
Follow Safety Instructions 10
Operate Only If Qualified 10
Wear Protective Equipment 10
Avoid Unauthorized Machine Modifications 11
Inspect Machine 11
Stay Clear of Moving Parts 11
Avoid High-Pressure Fluids 11
Avoid High-Pressure Oils 12
Work In Ventilated Area 12
Prevent Fires 12
Prevent Battery Explosions 13
Handle Chemical Products Safely 13
Dispose of Waste Properly 14
Prepare for Emergencies 14
Clean Debris from Machine 14
Safety—Operating Precautions 16
Use Steps and Handholds Correctly 16
Start Only From Operator’s Seat 16
Use and Maintain Seat Belt 16
Prevent Unintended Machine Movement 16
Avoid Work Site Hazards 16
Keep Riders Off Machine 17
Avoid Backover Accidents 17
Avoid Machine Tipover 17
Add and Operate Attachments Safely 18
Use Special Care When Operating 18
Operating or Traveling On Public Roads 19
Inspect and Maintain ROPS 19
Stay Clear of Rotating Drivelines 19
Safety—Maintenance Precautions 21
Park and Prepare for Service Safely 21
Service Tires Safely 21
Service Cooling System Safely 21
Remove Paint Before Welding or Heating 22
Make Welding Repairs Safely 22
Drive Metal Pins Safely 22
Safety Signs 24
Replace Safety Signs 24
Safety Signs 24
Operation—Operator’s Station 27
Display Monitor Functions 27
Controls—Steering Console 28
Front Loader Controls 30
Three-Point Hitch Levers and Engine Speed Control Knob 30
Seat Belt—Operation 30
Seat Belt—Maintenance 31
Seat Controls—Suspension 31
Seat Controls—Non-Suspension 31
Accessory Power Outlets—12 Volt—If Equipped 32
Operator’s Manual Holder 32
Vandal Protection 32
Fire Extinguisher 33
Operation—Operating the Machine 34
Inspect Machine Daily Before Starting 34
Check Instruments Before Starting 35
Engine Break-In Period 35
Starting the Engine 35
Starting Fluid—Cold Weather Start Aid (S N —882699) 37
Starting Fluid—Cold Weather Start Aid (S N 882700—) 39
Using Coolant Heater—If Equipped 40
Warm-Up 40
Cold Weather Warm-Up 40
Driving the Machine 40
Operating Loader 43
Operating Three-Point Hitch 43
Operating PTO—If Equipped 45
Operating Differential Lock 46
Operating Mechanical Front Wheel Drive (MFWD)—If Equipped 46
Lifting 47
Parking the Machine 47
Loading Machine on a Trailer 48
Towing 49
Maintenance—Machine 51
Diesel Fuel 51
Lubricity of Diesel Fuel 51
Handling and Storing Diesel Fuel 51
Biodiesel Fuel 52
Testing Diesel Fuel 53
Minimizing the Effect of Cold Weather on Diesel Engines 53
Low Sulfur Diesel Fuel Conditioner 54
Diesel Fuel Storage 55
Alternative and Synthetic Lubricants 55
Diesel Engine Break-In™ Oil 55
Diesel Engine Oil 56
Diesel Engine Oil and Filter Service Intervals 57
Engine Oil (S N —881401) 58
Engine and Hydraulic Oil (S N 881402—) 59
Transmission, Hydraulic, Axles, and Mechanical Front Wheel Drive 60
Transmission, Axles, and Mechanical Front Wheel Drive Oil (S N 61
Grease 61
PTO Gear Case Oil—If Equipped 62
Heavy Duty Diesel Engine Coolant 62
Drain Intervals for Diesel Engine Coolant 63
John Deere COOL-GARD™ II COOLANT EXTENDER 64
Supplemental Coolant Additives 64
Operating in Warm Temperature Climates 65
Additional Information About Diesel Engine Coolants and John Dee 65
Testing Diesel Engine Coolant 66
Maintenance—Periodic Maintenance 68
Service Machine at Specified Intervals 68
Check Hour Meter Regularly 68
Battery Disconnect—If Equipped 68
Prepare Machine for Maintenance 69
Loader Boom Service Lock 69
Opening and Closing Engine Hood (S N 882700— ) 70
Fuel Tank 71
Fluid Analysis Program Test Kits and 3-Way Coolant Test Kit 71
Service Intervals (S N —888000) 71
Required Parts (S N —888000) 73
Service Intervals (S N 888001—) 75
Required Parts (S N 888001—) 78
Maintenance—As Required 79
Inspect Loader Boom Service Lock (S N —888000) 79
Drain Fuel Tank Water and Sediment 79
Check Tire Pressure 80
Tire Inflation Pressures 81
Check Park Brake (S N —888000) 81
Inspect Belt 82
Lubricate Front Non-Powered Axle Wheel Bearings (S N —888000) 82
Lubricate Draft Link Wear Plates 82
Clean Dust Unloader Valve 83
Inspecting and Cleaning Dusty Secondary and Primary Element (S N 83
Draining Water Separator Sediment (S N 888001—) 84
Lubricate MFWD Drive Shaft Splines—If Equipped (S N 888001—) 84
Check Wheel Fasteners (S N 888001—) 85
Check Coolant 85
Maintenance—Every 10 Hours or Daily 87
Check Engine Oil Level 87
Check Hydraulic Oil Level 87
Check Coolant Overflow Tank Level 88
Lubricate Loader Pivots 88
Lubricate 4-in-1 Bucket Pivots—If Equipped 89
Lubricate MFWD Drive Shaft Splines—If Equipped (S N —888000) 90
Lubricate Three-Point Hitch Pivots (S N —888000) 90
Lubricate Three-Point Hitch Pivots (S N 888001—) 91
Lubricate Lift Cylinder (S N —888000) 92
Lubricate MFWD Drive Shaft Universal Joints—If Equipped (S N —8 92
Lubricate MFWD Front Axle Universal Joints—If Equipped 93
Lubricate MFWD Front Axle Pivot—If Equipped (S N —888000) 93
Lubricate MFWD Front Axle Pivot (S N 888001—) 94
Lubricate Non-Powered Front Axle Steering—If Equipped 94
Maintenance—Every 50 Hours 96
Check Transmission Oil Level (S N 888001—) 96
Maintenance—Initial Service – 100 Hours 97
Change Engine Break-In Oil and Replace Filter (S N —882699) 97
Change Engine Break-In Oil and Replace Filter (S N 882700—88800 98
Change Transmission and Torque Converter Oil and Replace Filter 99
Maintenance—Initial Service – 250 Hours 100
Change Engine Break-In Oil and Replace Filter (S N 888001— ) 100
Maintenance—Every 250 Hours 101
Change Engine Oil and Replace Filter (S N —882699) 101
Check MFWD Axle Oil—If Equipped 101
Check MFWD Planetary Housing Oil—If Equipped 102
Check Rear Axle Oil Level (S N —888000) 103
Check Rear Axle Oil Level (S N 888001—) 103
Check Battery Electrolyte Level and Terminals 104
Check Transmission Oil Level (S N —888000) 105
Take Engine Oil Sample 106
Maintenance—Every 500 Hours 107
Check Air Intake Hose 107
Change Engine Oil and Replace Filter (S N 882700— ) 107
Replace Hydraulic Oil Filter and PTO Filter—If Equipped (S N —8 109
Replace Fuel Filter 109
Inspect and Clean Hydraulic Reservoir Fill Screen and Breather S 110
Take Fluid Samples 110
Maintenance—Every 1000 Hours 112
Change MFWD Front Axle Housing Oil—If Equipped (S N —888000) 112
Change MFWD Front Wheel Planetary Housing Oil—If Equipped (S N — 112
Clean, Pack, and Adjust Front Non-Powered Axle Wheel Bearings—If 112
Change Rear Axle Oil (S N —888000) 114
Replace Hydraulic Oil Filter and PTO Filter—If Equipped (S N 88 114
Change Transmission and Torque Converter Oil and Replace Filter 115
Change Transmission and Torque Converter Oil and Replace Filter 117
Change Hydraulic Reservoir Oil, Filter, PTO Oil and Filter—If Eq 118
Clean Engine Crankcase Vent Tube 119
Adjust Engine Speed Control Linkage (S N —882699) 120
Adjust Engine Speed Control Linkage (S N 882700— ) 122
Replace Air Cleaner Elements 122
Check Coolant 123
Maintenance—Every 2000 Hours 125
Adjust Engine Valve Lash (Clearance) 125
Change MFWD Front Axle Housing Oil—If Equipped (S N 888001—) 125
Change MFWD Front Wheel Planetary Housing Oil—If Equipped (S N 8 125
Change Rear Axle and Planetary Housing Oil (S N 888001—) 125
Change Hydraulic Reservoir Oil, Filter, PTO Oil and Filter—If Eq 126
Maintenance—Every 6000 Hours 127
Draining the Cooling System 127
Filling the Cooling System 128
Miscellaneous—Machine 129
Inspecting and Cleaning Dusty Secondary and Primary Element 129
Checking Coolant Hoses and Radiator 129
Do Not Service or Adjust Injection Nozzles or Injection Pump 129
Draining Fuel Filter Sediment 130
Precautions for Alternator and Regulator 130
Handling, Checking and Servicing Batteries Carefully 130
Using Booster Batteries—12-Volt System 132
Replacing Batteries 132
Removing Batteries 132
Using Battery Charger 133
Fuse Specifications—(S N —880053) 134
Fuse Specifications—(S N 880054—882699) 135
Fuse Specifications—(S N 882700—888000) 136
Fuse Specifications—(S N 888001— ) 138
Remove and Install Halogen Bulb 139
Changing Backup Alarm Volume (S N —882699) 139
Checking Neutral Start System 140
Changing Loader Buckets 141
Adding Attachments/Accessories to Roll-Over Protective Structure 141
Welding On Machine 142
Welding Near Electronic Control Units 142
Keep Electronic Control Unit Connectors Clean 142
External Service Brake Inspection (S N —888000) 142
External Service Brake Inspection (S N 888001—) 143
Bleeding Service Brakes (S N —880907) 144
Bleed Service Brakes (S N 880908— ) 145
Toe-In Check and Adjust (S N —888000) 146
Toe-In Check and Adjust (S N 888001—) 148
Rear Counterweights 148
Adding Liquid Ballast to Rear Tires 148
Adding Liquid Ballast to Front Tires 148
Do Not Service Control Valves, Cylinders, Pumps or Motors 149
Checking Wheel Fasteners (S N —888000) 149
Keep ROPS Installed Properly 149
Hardware Torque Specifications 150
Unified Inch Bolt and Screw Torque Values 150
Metric Bolt and Screw Torque Values 151
Miscellaneous—Operational Checkout 153
Operational Checkout 153
Diagnostic Trouble Codes 153
Gauge and Indicator Check with Engine Off 153
Transmission Control Lever (TCL), Neutral Start Circuit and Reve 154
Park Brake, Charge Indicator Light, Hour Meter Circuit and Engin 155
Brake System Checks 157
Steering System Checks 158
Transmission Neutral Disconnect Circuit Check 159
Driving Checks 159
Mechanical Front Wheel Drive (MFWD) Driving Check — If Equipped 161
Hydraulic System Checks 162
Check Operation of Accessories (Engine Off) 165
Operator Station Checks 166
Miscellaneous Checks 167
Miscellaneous—Troubleshooting 168
Troubleshooting Procedure 168
Engine 168
Hydraulic System 171
Electrical System 173
Gauges and Indicators 175
Transmission 178
MFWD 178
Rear Axle 179
Miscellaneous—Storage 180
Prepare Machine for Storage 180
Monthly Storage Procedure 180
Miscellaneous—Specifications 182
210LE Travel Speed (S N —888000) 182
210LE Travel Speed (S N 888001—) 182
210LE Landscape Loader Drain and Refill Capacities (S N —888000 182
210LE Landscape Loader Drain and Refill Capacities (S N 888001— 183
210LE Landscape Loader Dimensions 184
210LE Landscape Loader 187
210LE Landscape Loader Weight 187
210LE Landscape Loader Buckets 188
Miscellaneous—Machine Numbers 189
Record Product Identification Number (PIN) 189
Record Engine Serial Number 189
Record Transmission Serial Number—Manual Shift (S N —888000) 189
Record Transmission Serial Number—Powershift (S N —888000) 189
Record Transmission Serial Number (S N 888001—) 190
Record Rear Axle Housing Serial Number 190
Record (MFWD) Front Axle Housing Serial Number 190
Keep Proof of Ownership 191
Keep Machines Secure 191
Page Number 5
Section 1-1 9
Section 1-2 10
Section 1-3 16
Section 1-4 21
Section 1-5 24
Section 2-1 27
Section 2-2 34
Section 3-1 51
Section 3-2 68
Section 3-3 79
Section 3-4 87
Section 3-5 96
Section 3-6 97
Section 3-7 100
Section 3-8 101
Section 3-9 107
Section 3-10 112
Section 3-11 125
Section 3-12 127
Section 4-1 129
Section 4-2 153
Section 4-3 168
Section 4-4 180
Section 4-5 182
Section 4-6 189

S.V 03/24
