John Deere 22” STT FELLING HEAD Operator’s Manual – PDF DOWNLOAD

Description

John Deere 22” STT FELLING HEAD Operator’s Manual – PDF DOWNLOAD

FILE DETAILS:

John Deere 22” STT FELLING HEAD Operator’s Manual – PDF DOWNLOAD

P/N: OMF276738_SJ
Language: English
Division: Forestry
Product Lines: Felling Heads
Publication Type: Operator’s Manuals
Associated Models: 22 INCH
Serial: 950001 – 960634

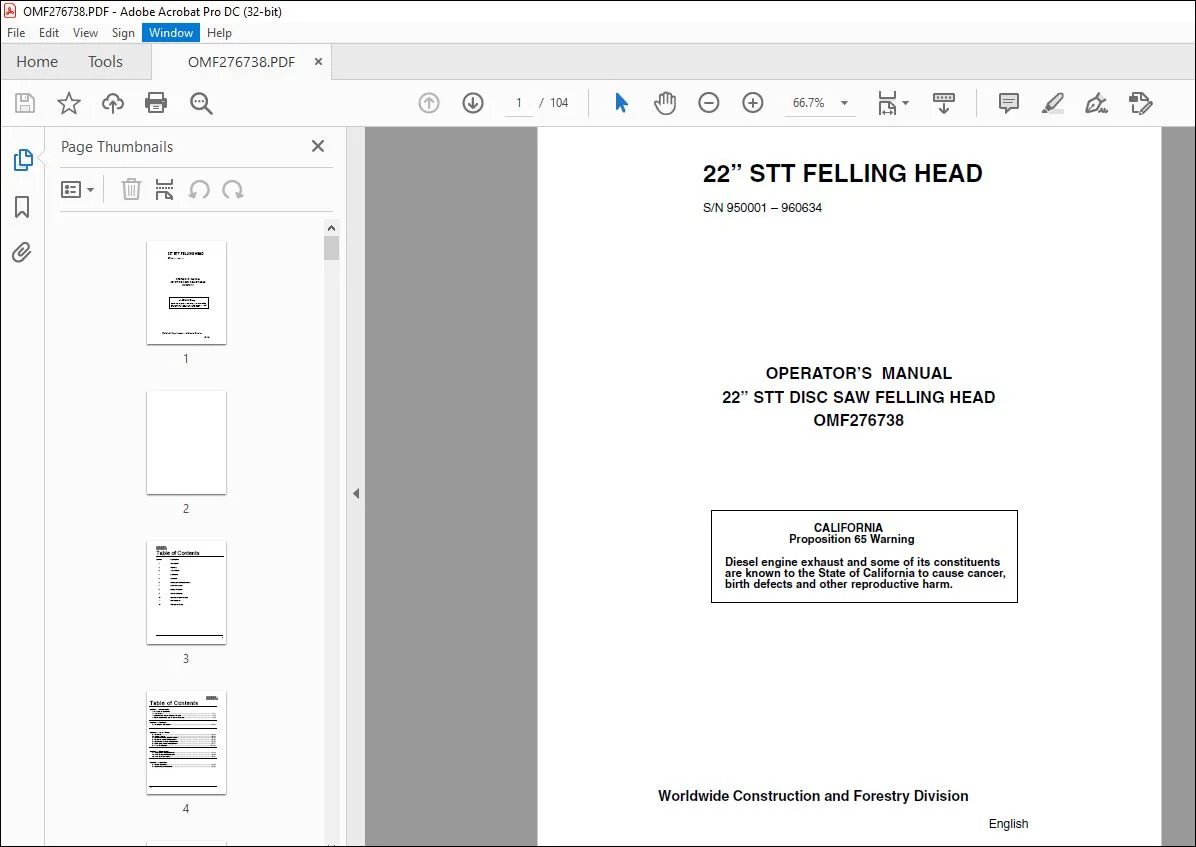

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere 22” STT FELLING HEAD Operator’s Manual – PDF DOWNLOAD

Section 1 – Introduction 7
i – iv Table of Contents 3
1 1 Foreword 8
1 2 Model and Serial Number Record 9
1 3 Non-approved Field Product Changes 10
Section 2 – Warranty 11
2 1 Warranty Certificate 12
Section 3 – Safety Rules 13
3 1 General 14
3 2 Safety Symbol 14
3 3 Understanding Signal Words 14
3 4 General Safety Precautions 15
3 5 Operating Safety Precautions 18
3 6 Servicing Safety Precautions 19
3 7 Fire Prevention 22
Section 4 – Description 23
4 1 Equipment Nomenclature 24
4 2 Saw Component Description 25
4 3 Saw Drive Description 26
Section 5 – Operation 27
5 1 Basic Operation 28
5 2 Operating Instructions 31
Section 6 – Lubrication and Maintenance 33
6 1 Maintenance Schedule 34
6 2 Maintenance Procedures 35
6 3 Disc Blade Description 46
6 4 Disc Blade Inspection 47
6 5 Tooth Removal 48
6 6 Tooth Assembly 48
6 7 Carbide Tip Replacement 49
6 8 Disc Blade & Tooth Data 51
6 9 Disc Blade Removal 53
6 10 Disc Blade Installation 55
6 11 Drive Shaft Components 57
6 12 Drive Shaft Removal 58
6 13 Drive Shaft Assembly 62
6 14 Unscheduled Maintenance 69
Section 7 – Hydraulic System Schematics 75
7 1 Start-up Procedure 76
7 2 Pressure Setting 77
7 3 Saw Motor Cross Section 7 Schematic 80
Section 8 – Electrical System Schematics 81
8 1 Saw Speed Sense Equipment 82
8 2 Saw Speed tachometer 84
Section 9 – Trouble Shooting 85
9 1 Saw Blade Stalling 86
9 1 1 Operator Technique 86
9 1 2 Blade Maintenance 86
9 1 3 Hydraulic 87
9 1 4 Can’t Obtain Maximum Blade Speed 88
Section 10 – Equipment Specifications 89
10 1 Specifications 90
10 2 Service Specifications By Model 91
10 3 Dimensions 94
Section 11 – Miscellaneous 95
11 1 Measurement Conversions 96
11 2 Wood Measurement Equivalents 97
11 3 Weights of Commercially Important Woods 97
11 4 General Bolt Torque Values 98
Section 12 – Index 101
12 1 Alphabetical Index 101

S.V 03/24
