John Deere 224 RIGID CUTTERBAR PLATFORM WITH BAT REEL Parts Catalog Manual – PDF DOWNLOAD

Description

John Deere 224 RIGID CUTTERBAR PLATFORM WITH BAT REEL Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

John Deere 224 RIGID CUTTERBAR PLATFORM WITH BAT REEL Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 134
Downloadable : Yes
File Type : PDF
Size: 1.31 MB

TABLE OF CONTENTS:

John Deere 224 RIGID CUTTERBAR PLATFORM WITH BAT REEL Parts Catalog Manual – PDF DOWNLOAD

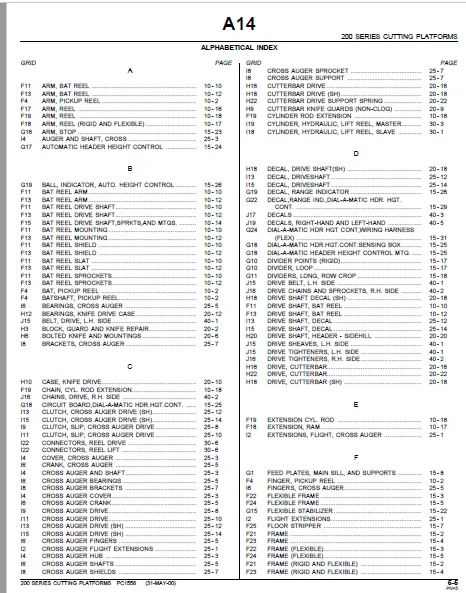

GRIDS 1
ALPHABETICAL INDEX 5
A5
ARM, BAT REEL 18
ARM, BAT REEL 20
ARM, PICKUP REEL 10
ARM, REEL24
ARM, REEL26
ARM, REEL (RIGID AND FLEXIBLE)25
ARM, STOP49
AUGER AND SHAFT, CROSS 85
AUTOMATIC HEADER HEIGHT CONTROL 50
B5
BALL, INDICATOR, AUTO HEIGHT CONTROL 52
BAT REEL ARM18
BAT REEL ARM20
BAT REEL DRIVE SHAFT 18
BAT REEL DRIVE SHAFT 20
BAT REEL DRIVE SHAFT,SPRKTS,AND MTGS 22
BAT REEL MOUNTING 18
BAT REEL MOUNTING 20
BAT REEL SHIELD18
BAT REEL SHIELD20
BAT REEL SLAT 18
BAT REEL SLAT 20
BAT REEL SPROCKETS18
BAT REEL SPROCKETS20
BAT, PICKUP REEL 10
BATSHAFT, PICKUP REEL10
BEARINGS, CROSS AUGER87
BEARINGS, KNIFE DRIVE CASE 70
BELT, DRIVE, LH SIDE 119
BLOCK, GUARD AND KNIFE REPAIR 60
BOLTED KNIFE AND MOUNTINGS 64
BRACKETS, CROSS AUGER89
C5
CASE, KNIFE DRIVE 68
CHAIN, CYL ROD EXTENSION 26
CHAINS, DRIVE, RH SIDE 120
CIRCUIT BOARD,DIAL-A-MATIC HDRHGTCONT 51
CLUTCH, CROSS AUGER DRIVE (SH)94
CLUTCH, CROSS AUGER DRIVE (SH)96
CLUTCH, SLIP, CROSS AUGER DRIVE 90
CLUTCH, SLIP, CROSS AUGER DRIVE 92
CONNECTORS, REEL DRIVE 104
CONNECTORS, REEL LIFT 104
COVER, CROSS AUGER85
CRANK, CROSS AUGER87
CROSS AUGER AND SHAFT85
CROSS AUGER BEARINGS 87
CROSS AUGER BRACKETS 89
CROSS AUGER COVER 85
CROSS AUGER CRANK 87
CROSS AUGER DRIVE 90
CROSS AUGER DRIVE 92
CROSS AUGER DRIVE (SH) 94
CROSS AUGER DRIVE (SH) 96
CROSS AUGER FINGERS 87
CROSS AUGER FLIGHT EXTENSIONS 83
CROSS AUGER HUB85
CROSS AUGER SHAFTS87
CROSS AUGER SHIELDS 89
CROSS AUGER SPROCKET89
CROSS AUGER SUPPORT 89
CUTTERBAR DRIVE74
CUTTERBAR DRIVE (SH) 76
CUTTERBAR DRIVE SUPPORT SPRING80
CUTTERBAR KNIFE GUARDS (NON-CLOG)67
CYLINDER ROD EXTENSION 26
CYLINDER, HYDRAULIC, LIFT REEL, MASTER101
CYLINDER, HYDRAULIC, LIFT REEL, SLAVE 99
D5
DECAL, DRIVE SHAFT(SH) 76
DECAL, DRIVESHAFT 94
DECAL, DRIVESHAFT 96
DECAL, RANGE INDICATOR 52
DECAL,RANGE IND,DIAL-A-MATIC HDR HGT CONT 55
DECALS 121
DECALS, RIGHT-HAND AND LEFT-HAND123
DIAL-A-MATIC HDR HGT CONT,WIRING HARNESS (FLEX)57
DIAL-A-MATIC HDRHGTCONTSENSING BOX 51
DIAL-A-MATIC HEADER HEIGHT CONTROL MTG51
DIVIDER POINTS (RIGID) 43
DIVIDER, LOOP 43
DIVIDERS, LONG, ROW CROP44
DRIVE BELT, LH SIDE 119
DRIVE CHAINS AND SPROCKETS, RH SIDE 120
DRIVE SHAFT DECAL (SH) 76
DRIVE SHAFT, BAT REEL18
DRIVE SHAFT, BAT REEL20
DRIVE SHAFT, DECAL94
DRIVE SHAFT, DECAL96
DRIVE SHAFT, HEADER – SIDEHILL78
DRIVE SHEAVES, LH SIDE 119
DRIVE TIGHTENERS, LH SIDE 119
DRIVE TIGHTENERS, RH SIDE 120
DRIVE, CUTTERBAR 74
DRIVE, CUTTERBAR 80
DRIVE, CUTTERBAR (SH)76
E5
EXTENSION CYL ROD26
EXTENSION, RAM 25
EXTENSIONS, FLIGHT, CROSS AUGER 83
F5
FEED PLATES, MAIN SILL, AND SUPPORTS34
FINGER, PICKUP REEL 10
FINGERS, CROSS AUGER 87
FLEXIBLE FRAME 29
FLEXIBLE FRAME 31
FLEXIBLE STABILIZER 48
FLIGHT EXTENSIONS 83
FLOOR STRIPPER 33
FRAME 28
FRAME 30
FRAME (FLEXIBLE) 29
FRAME (FLEXIBLE) 31
FRAME (RIGID AND FLEXIBLE) 28
FRAME (RIGID AND FLEXIBLE) 30
FRAME (RIGID) 29
FRAME (RIGID) 31
G5
GUARD AND KNIFE REPAIR BLOCK 60
GUARD, PICKUP REEL14
GUARD, PICKUP REEL16
GUARDS AND WEAR PLATES 66
GUARDS, CUTTERBAR KNIFE (NON-CLOG) 67
GUARDS, LIFTING59
H5
HARNESS, WIRING, AUTO HEIGHT CONTROL 56
HEADER DRIVE SHAFT – SIDEHILL 78
HEADER HEIGHT CONTROL, DIAL-A-MATIC 51
HOSE, HYDRAULIC DRIVE REEL113
HOSES, HYDRAULIC, PICKUP REEL114
HOSES, REEL DRIVE104
HOSES, REEL LIFT 104
HOSES, REEL LIFT 110
HUB, CROSS AUGER 85
HYDRAULIC CYLINDER, LIFT REEL, MASTER 101
HYDRAULIC CYLINDER, LIFT REEL, SLAVE99
HYDRAULIC DRIVE REEL HOSE 113
HYDRAULIC DRIVE REEL HOSES, PICKUP REEL 114
HYDRAULIC DRIVE REEL LINES102
HYDRAULIC DRIVE REEL LINES105
HYDRAULIC DRIVE REEL LINES, BAT REEL 112
HYDRAULIC HOSES, BAT REEL 112
HYDRAULIC LIFT REEL MASTER CYLINDER101
HYDRAULIC LIFT REEL OIL LINES106
HYDRAULIC LIFT REEL OIL LINES108
HYDRAULIC LIFT REEL SLAVE CYLINDER 99
HYDRAULIC MOTOR, HYDROSTATIC DRIVE REEL 115
HYDROSTATIC DRIVE REEL HYDRAULIC MOTOR115
I5
IDLER, KNIFE DRIVE79
IND,RANGE,DIAL-A-MATIC HDR HGT CONT55
INDICATOR, RANGE, AUTO HEIGHT CONTROL 52
K5
KNIFE AND GUARD REPAIR BLOCK 60
KNIFE AND MOUNTINGS, BOLTED64
KNIFE AND MOUNTINGS, RIVETED 62
KNIFE DRIVE CASE 68
KNIFE DRIVE CASE BEARINGS AND SUPPORTS 70
KNIFE DRIVE IDLER AND TIGHTENER 79
KNIFE GUARDS, CUTTERBAR (NON-CLOG) 67
L5
LIFTING GUARDS 59
LINES, HYDRAULIC DRIVE REEL 105
LINES, HYDRAULIC, BAT REEL112
LINES, OIL, HYDRAULIC LIFT REEL 106
LINES, OIL, HYDRAULIC LIFT REEL 108
LINES, REEL, HYDRAULIC DRIVE 102
LINK, PUSH, STOP ARM49
LINKAGE, HEIGHT SENSING 52
M5
MAIN SILL, FEED PLATES, AND SUPPORTS34
MOTOR, HYD, HYDROSTATIC DRIVE REEL115
MOTOR, REEL116
MOUNTING, AUTO HEADER HEIGHT CONTROL 50
MOUNTING, BAT REEL18
MOUNTING, BAT REEL20
MOUNTING, CUTTERBAR DRIVE 80
MOUNTING, ROW CROP DIVIDERS44
MOUNTINGS, BAT REEL DRIVE 22
N5
NOSE, LOOP DIVIDER43
O5
OIL LINES, HYDRAULIC LIFT REEL 106
OIL LINES, HYDRAULIC LIFT REEL 108
OIL LINES, REEL LIFT110
P5
PICKUP REEL 9
PICKUP REEL 10
PICKUP REEL ARM 9
PICKUP REEL ARM10
PICKUP REEL ARM11
PICKUP REEL BAT 9
PICKUP REEL BAT10
PICKUP REEL BATSHAFT 9
PICKUP REEL BATSHAFT 10
PICKUP REEL DRIVE SHAFT 14
PICKUP REEL DRIVE SHAFT 16
PICKUP REEL ECCENTRIC SPIDER 13
PICKUP REEL FINGER 9
PICKUP REEL FINGER10
PICKUP REEL FINGER11
PICKUP REEL GUARD 14
PICKUP REEL GUARD 16
PICKUP REEL MOUNTINGS14
PICKUP REEL MOUNTINGS16
PICKUP REEL SPIDER11
PICKUP REEL SPIDER PLATE 9
PICKUP REEL SPIDER PLATE10
PICKUP REEL SPROCKETS14
PICKUP REEL SPROCKETS16
PIN, REEL ARM 26
PLATE, DIVIDER POINT SKID 43
PLATE, PICKUP REEL SPIDER 10
PLATES, PROTECTION (RIGID) 38
PLATES, SKID (RIGID) 38
POINTS, DIVIDER (RIGID) 43
PROTECTION PLATES (RIGID) 38
R5
REEL ARM 24
REEL ARM (RIGID AND FLEXIBLE) 25
REEL ARM (RIGID AND FLEXIBLE) 26
REEL LIFT OIL LINES 110
REEL LINES, HYDRAULIC DRIVE 102
REEL MOTOR 116
REEL, PICKUP10
REINFORCEMENT, STOP ARM 49
RIGID FRAME 29
RIGID FRAME 31
RIVETED KNIFE AND MOUNTINGS62
ROW CROP LONG DIVIDERS 44
S5
SEALS 36
SENSING SWITCHES, AUTO HDR HGT CONT50
SHAFT AND AUGER, CROSS 85
SHAFT, BAT REEL DRIVE22
SHAFT, CROSS AUGER DRIVE90
SHAFT, CROSS AUGER DRIVE92
SHAFT, CROSS AUGER DRIVE (SH) 94
SHAFT, CROSS AUGER DRIVE (SH) 96
SHAFT, CUTTERBAR DRIVE 74
SHAFT, HEADER DRIVE – SIDEHILL78
SHAFTS, CROSS AUGER 87
SHEAVE, CUTTERBAR DRIVE (SH) 76
SHEAVE, IDLER, KNIFE DRIVE 79
SHIELD 117
SHIELD, BAT REEL 18
SHIELD, BAT REEL 20
SHIELD, CROSS AUGER DRIVE 90
SHIELD, CROSS AUGER DRIVE 92
SHIELD, CROSS AUGER DRIVE (SH)94
SHIELD, CROSS AUGER DRIVE (SH)96
SHIELD, CUTTERBAR DRIVE 74
SHIELD, CUTTERBAR DRIVE (SH) 76
SHIELDS, CROSS AUGER 89
SHIELDS, DRIVE117
SHOE, DIVIDER 43
SHOES, SKID (FLEXIBLE) 41
SIDEHILL – HEADER DRIVE SHAFT 78
SKID PLATES (RIGID) 38
SKID SHOES (FLEXIBLE)41
SLAT, BAT REEL 18
SLAT, BAT REEL 20
SPIDER, ECCENTRIC, PICKUP REEL13
SPRING, CUTTERBAR DRIVE 80
SPRING, STABILIZER81
SPRING, STABILIZER82
SPROCKET, CROSS AUGER89
SPROCKET, CROSS AUGER DRIVE90
SPROCKET, CROSS AUGER DRIVE92
SPROCKET, CROSS AUGER DRIVE (SH) 94
SPROCKET, CROSS AUGER DRIVE (SH) 96
SPROCKET, CUTTERBAR DRIVE 74
SPROCKETS, BAT REEL 18
SPROCKETS, BAT REEL 20
SPROCKETS, BAT REEL DRIVE 22
SPROCKETS, PICKUP REEL 14
SPROCKETS, PICKUP REEL 16
STABILIZER (FLEXIBLE)48
STABILIZER ARM 48
STABILIZER SPRING 81
STABILIZER SPRING 82
STOP ARM, PUSH LINK, AND REINFORCEMENT 49
STOP, CYL ROD EXTENSION26
STRIPPER, FLOOR 33
SUPPORT, CROSS AUGER 89
SUPPORTS, KNIFE DRIVE CASE 70
SUPPORTS, MAIN SILL, AND FEED PLATES34
SWITCHES, MOUNTING, AUTO HEIGHT CONTROL 50
SWITCHES, SENSING, AUTO HEIGHT CONTROL50
T5
TIGHTENER, KNIFE DRIVE 79
TIGHTENERS AND SHEAVE ON LH SIDE 119
TIGHTENERS AND SPROCKETS, RH SIDE120
W5
WEAR PLATES 66
WIRING HARNESS-AUTO HDR HEIGHT CONTROL 56
WIRING HARNESS,DIAL-A-MATIC HDR HGT CONT 57

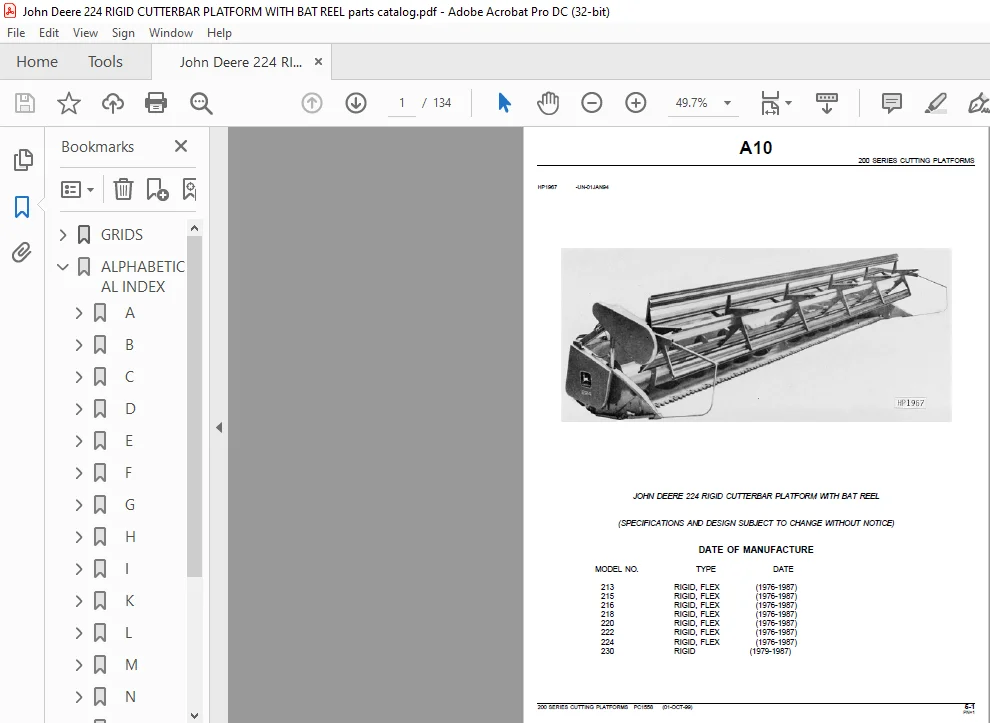

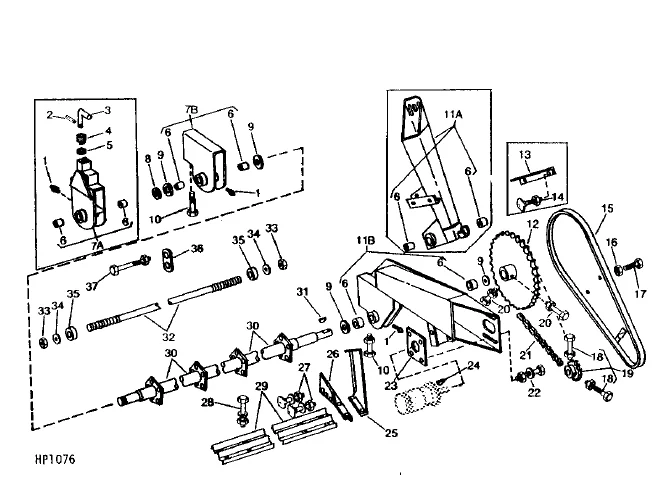

IMAGES PREVIEW OF THE MANUAL:
