John Deere 2956G Log Loader Operator’s Manual OMT450702X019

Description

John Deere 2956G Log Loader Operator’s Manual OMT450702X019 – PDF DOWNLOAD

FILE DETAILS:

John Deere 2956G Log Loader Operator’s Manual OMT450702X019 – PDF DOWNLOAD

• P/N: OMT450702X019_Z4
• Language: English
• Division: Forestry
• Product Lines: Log Loaders
• Publication Type: Operator’s Manuals
• Associated Models: 2956G
• Serial: 1FF2956G_ _F290001

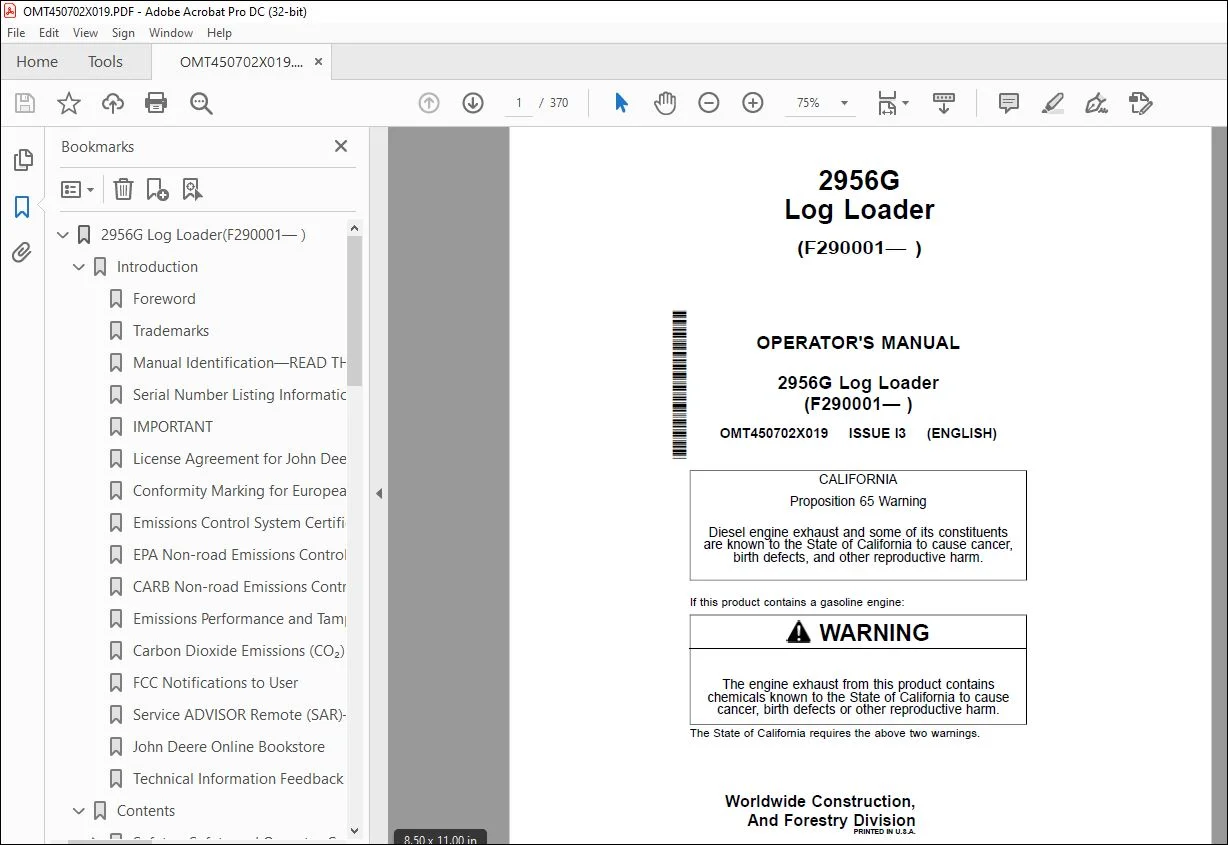

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere 2956G Log Loader Operator’s Manual OMT450702X019 – PDF DOWNLOAD

2956G Log Loader(F290001— ) 1
Introduction 2
Foreword 2
Trademarks 2
Manual Identification—READ THIS FIRST! 3
Serial Number Listing Information 5
IMPORTANT 5
License Agreement for John Deere Software 6
Conformity Marking for European Union (EU), United Kingdom (UKCA), Eurasian Economic Union (EAEU), and Canada (CA) 9
Emissions Control System Certification Label 10
EPA Non-road Emissions Control Warranty Statement—Compression Ignition 11
CARB Non-road Emissions Control Warranty Statement—Compression Ignition 13
Emissions Performance and Tampering 19
Carbon Dioxide Emissions (CO₂) 20
FCC Notifications to User 21
Service ADVISOR Remote (SAR)—SOFTWARE TERMS AND CONDITIONS 22
John Deere Online Bookstore 25
Technical Information Feedback Form 26
Contents 27
Safety—Safety and Operator Conveniences 31
Safety and Operator Convenience Features 31
Safety—General Precautions 34
Information for European Union Directives and Eurasian Economic Union Technical Regulations Compliance 34
Recognize Safety Information 36
Follow Safety Instructions 36
Prepare for Emergencies 36
Operate Only If Qualified 37
Wear Protective Equipment 37
Protect Against Noise 37
Avoid Unauthorized Machine Modifications 37
Control Pattern 38
Control Pattern Selector—If Equipped 38
Inspect Machine 38
Stay Clear of Moving Parts 38
Avoid High-Pressure Oils and Fluids 39
Work In Ventilated Area 39
Avoid Static Electricity Risk When Refueling 40
Prevent Fires, Clean Debris From Machine 41
In Case of Machine Fire 41
Prevent Battery Explosions 42
Handle Chemical Products Safely 42
Handle Starting Fluid Safely 42
Decommissioning — Proper Recycling and Disposal of Fluids and Components 43
Exhaust Filter Ash Handling and Disposal 43
Add Cab Guarding for Special Uses 43
Safety—Operating Precautions 44
Use Steps and Handholds Correctly 44
Start Only From Operator’s Seat 44
Use and Maintain Seat Belt 44
Heated and Ventilated Operator’s Seat 45
Prevent Unintended Machine Movement 45
Avoid Work Site Hazards 46
Keep Riders Off Machine 46
Avoid Backover Accidents 47
Avoid Machine Tip Over and Machine Damage 47
Avoid Power Lines 48
Inspect and Maintain ROPS 48
Keep the Operator Protective Structure (OPS) in Place 48
Operate Boom With Care 49
Operating on Slopes 49
Use Special Care When Lifting Objects 49
Use Care When Swinging Machine 49
Travel Safely 50
Prevent Acid Burns 50
Add and Operate Attachments Safely 50
Saw Chain Hazard 51
Safety—Maintenance Precautions 52
Park and Prepare for Service Safely 52
Service Machines Safely 52
Service Cooling System Safely 53
Remove Paint Before Welding or Heating 53
Make Welding Repairs Safely 53
Drive Metal Pins Safely 54
Use Proper Lifting Equipment 54
Clean Exhaust Filter Safely 55
Chain Shot Guard Inspection 56
Safety—Safety Signs and Other Instructions 58
Safety Signs and Other Instructions 58
Operation—Operator’s Station 81
Pedals, Levers, and Panels 81
Switch Panel 82
Switch Panel Functions 83
Rear Panel 84
Horn Button 85
Power Boost Button 86
Pilot Shutoff Lever 86
Left Console 87
Travel Alarm and Travel Alarm Cancel Switch 87
Cab Dome Light Switch 87
Horn Switch—Processor Only 88
Reversing Fan Switch—If Equipped 88
Max Speed Program Switch—If Equipped 88
Hydraulic Oil Tank Pressure Vent Switch—If Equipped 90
Right Console 91
Exhaust Filter Parked Cleaning Switch 92
Service and Access Lights Switch—If Equipped 93
Service ADVISOR™ Remote (SAR) Switch 94
USB Charge Port—If Equipped 94
Cab Heater and Air Conditioner 96
Selecting Display Between Celsius and Fahrenheit 97
Operating the AM/FM Radio 98
Satellite Radio—If Equipped 100
Hydraulic Oil Level Alarm—If Equipped 102
Fire Extinguisher Mounting Location 102
Alternative Exit 103
Adjusting the Air Suspension Seat 104
Adjusting the Mechanical Suspension Seat—If Equipped 107
Adjusting Pilot Control Lever Console Height 108
Adjusting Pull-Down Sunshades—If Equipped 108
Side Monitor—If Equipped 109
Operation—Monitor Operation 110
Monitor 110
Monitor Functions 111
Aftertreatment Indicators Overview 112
Monitor Start-Up 113
Main Menu 114
Main Menu—Alarm List 115
Main Menu—Air Conditioner 121
Main Menu—Radio 123
Main Menu—Setting Menu 124
Main Menu—Setting Menu—Date and Time 125
Main Menu—Setting Menu—Attachment Adjustment—Processor Only 125
Main Menu—Setting Menu—Attachment Name Input 126
Main Menu—Setting Menu—Auto-Shutdown 126
Main Menu—Setting Menu—Auto Exhaust Filter Cleaning 127
Main Menu—Setting Menu—Sub Meter Selection 128
Main Menu—Setting Menu—Rear View Camera Monitor 129
Main Menu—Setting Menu—Display Item Selection 130
Main Menu—Setting Menu—Brightness Adjustment 130
Main Menu—Setting Menu—Language 130
Main Menu—Setting Menu—Unit Selection 131
Main Menu—Setting Menu—Main Menu Sequence Change 131
Main Menu—Information Menu 132
Main Menu—Information Menu—Operation 133
Main Menu—Information Menu—Maintenance 134
Main Menu—Information Menu—Troubleshooting 134
Main Menu—Information Menu—Monitoring 135
Operation—Operating the Machine 136
Before Starting Work 136
Operator Ability 136
Inspect Machine Daily Before Starting 137
Battery Disconnect Switch 137
Engine Break-In Period 138
Starting Engine 139
Cold Weather Start Aid 140
Cold Weather Warm-Up 141
Operate Within Machine Limits 142
Travel Pedals and Levers 142
Control Levers 143
Required Machine Stop Warning 145
Exhaust Filter 147
Exhaust Filter Parked Cleaning 148
Selective Catalytic Reduction (SCR) System Overview 151
Service ADVISOR™ Remote (SAR) Software Delivery Process 152
Service ADVISOR™ Remote (SAR) Operation 153
Lifting 154
Operating in Water and Mud 156
Driving Up a Steep or Slippery Slope 156
Lower Boom With Engine Stopped 157
Parking the Machine 158
Loading Machine for Transport 158
Towing-Recovery Procedure 161
Machine Retrieval 161
Lifting the Machine 162
Maintenance—Machine 163
Required Emission-Related Information 163
Diesel Fuel 163
Diesel Fuel Specifications 163
Lubricity of Diesel Fuel 164
Handling and Storing Diesel Fuel 164
Biodiesel Fuel 165
Testing Diesel Fuel 166
Supplemental Diesel Fuel Additives 166
Fuel Filters 166
Minimizing the Effect of Cold Weather on Diesel Engines 167
Diesel Exhaust Fluid (DEF) — Use in Selective Catalytic Reduction (SCR) Equipped Engines 168
Refilling Diesel Exhaust Fluid (DEF) Tank 169
Testing Diesel Exhaust Fluid (DEF) 170
Storing Diesel Exhaust Fluid (DEF) 170
Disposal of Diesel Exhaust Fluid (DEF) 171
Alternative and Synthetic Lubricants 171
Mixing of Lubricants 171
Lubricant Storage 171
John Deere Break-In Plus™ Engine Oil — Interim Tier 4, Final Tier 4, Stage IIIB, Stage IV, and Stage V 172
Diesel Engine Oil — Interim Tier 4, Final Tier 4, Stage IIIB, Stage IV, and Stage V 172
Engine Oil and Filter Service Intervals — Interim Tier 4, Final Tier 4, Stage IIIB, Stage IV, and Stage V Engines 173
Diesel Engine Oil Service Interval for Operation at High Altitude 173
Oil Filters 174
Hydraulic Oil 174
Swing Gear Case and Travel Gear Case Oils 175
Pump Drive Gear Case Oil 175
Cab Tilt Oil—Rear Entry Cab Only 176
Track Adjuster, Working Tool Pivot, Swing Bearing, and Swing Bearing Gear Grease 177
Diesel Engine Coolant (engine with wet sleeve cylinder liners) 178
Water Quality for Mixing with Coolant Concentrate 179
Operating in Warm Temperature Climates 179
Testing Coolant Freeze Point 180
Disposing of Coolant 180
Maintenance—Periodic Maintenance 181
Service Machine at Specified Intervals 181
Check the Hour Meter Regularly 181
Prepare Machine for Maintenance 182
Open Access Doors for Service 183
Open Engine Cover for Service 184
Cab Tilting Procedure—Rear Entry Cab Only 185
Fuel Tank 185
Fluid Analysis Program Test Kits and 3-Way Coolant Test Kit 186
Service Intervals 187
Required Parts 189
Maintenance—As Required 191
Remove and Clean Fuel Tank Inlet Screen 191
Drain Water and Sediment From Fuel Tank Sump 191
Clean Cab Fresh Air and Cab Recirculating Air Filters 191
Check and Adjust Track Sag 195
Clean Rear Camera Lens—If Equipped 196
Clean Radiator Air Inlet Screen 197
Lubricate Door Hinges 197
Service Exhaust Filter 198
Clean and Tighten Battery Terminals 198
Replace High-Pressure Supply Filter—If Equipped 199
Replace Case Drain Filter—If Equipped 200
Maintenance—Every 10 Hours or Daily 201
Check Engine Oil Level 201
Check Engine Coolant Level 202
Check Hydraulic Tank Oil Level 203
Lubricate Front End Pin Joints 205
Lubricate Working Tool Pivots—If Equipped 205
Maintenance—Every 50 Hours or Weekly 206
Drain Primary Fuel Filter and Water Separator 206
Drain Auxiliary Fuel Filter and Water Separator—If Equipped 206
Lubricate Swing Bearing 206
Maintenance—Every 100 Hours 207
Inspect and Re-Torque Track Hardware 207
Maintenance—Every 250 Hours 208
Check Swing Gear Case Oil Level 208
Drain Water and Sediment From Hydraulic Tank 209
Check Pump Drive Gear Case Oil Level 210
Check Hybrid Battery Electrolyte Level—If Equipped 211
Check Travel Gear Case Oil Level 213
Take Engine Oil Sample 213
Maintenance—Every 500 Hours 214
Lubricate Swing Bearing Gear 214
Replace Primary Fuel Filter and Water Separator 215
Replace Final Fuel Filter 216
Replace Auxiliary Fuel Filter and Water Separator—If Equipped 217
Check Air Intake Hoses 217
Drain and Refill Engine Oil and Replace Filter 218
Check Cab Tilt Oil Level—Rear Entry Cab Only 219
Take Fluid Samples 219
Maintenance—Every 1000 Hours 220
Drain and Refill Swing Gear Case Oil 220
Replace Hydraulic Tank Oil Filter 221
Replace Pilot Oil Filter 222
Inspect Serpentine Belt 223
Drain and Refill Pump Drive Gear Case Oil 223
Remove and Clean Open Crankcase Ventilation (OCV) Hose 224
Replace Air Cleaner Elements 225
Replace Air Cleaner Dust Unloader Valve 226
Replace Fuel Tank Breather 226
Check Coolant Condition 227
Maintenance—Every 2000 Hours 228
Drain and Refill Hydraulic Tank Oil and Clean Suction Screen 228
Check and Adjust Engine Valve Lash 230
Drain and Refill Travel Gear Case Oil 230
Access Diesel Exhaust Fluid (DEF) Dosing Unit Filter 230
Replace Diesel Exhaust Fluid (DEF) Dosing Unit Filter 231
Replace Open Crankcase Ventilation (OCV) Filter 231
Maintenance—Every 4000 Hours 232
Replace Diesel Exhaust Fluid (DEF) Tank Breather Filter 232
Maintenance—Every 5000 Hours 233
Drain and Refill Hydraulic Tank Oil and Clean Suction Screen 233
Replace Hydraulic Tank Cap Breather Element 235
Drain and Refill Cab Tilt Oil—Rear Entry Cab Only 236
Maintenance—Every 6000 Hours 237
Drain Cooling System 237
Cooling System Fill and Deaeration Procedure 239
Replace Diesel Exhaust Fluid (DEF) In-Line Filter 240
Miscellaneous—Machine 244
Clean Machine Regularly 244
Bleed Fuel System 244
Bleed Hydraulic System 245
Clean Radiator, Oil Cooler, Charge Air Cooler, and Fuel Cooler 245
Check Windshield Washer Fluid Level—If Equipped 246
Inspect and Clean Polycarbonate Windows 247
Do Not Service or Adjust Injection Nozzles or High-Pressure Fuel Pump 248
Do Not Service Control Valves, Cylinders, Pumps, or Motors 248
Precautions for Alternator and Regulator 248
Handling, Checking, and Servicing Batteries Carefully 248
Using Battery Charger 250
Using Booster Batteries—24-Volt System 252
Replacing Batteries 252
Welding On Machine 253
Keep Electronic Control Unit Connectors Clean 253
Adding 12-Volt Accessories 253
JDLink Machine Monitoring System (MMS)—If Equipped 254
Replacing Fuses 254
Fluid Sampling Test Ports—If Equipped 256
Keep ROPS Installed Properly 256
Tool Mounting Provisions—If Equipped 257
Inspect Seat Belt 258
Replacing Seat Belt 258
Track Sag General Information 259
Check Track Shoe Hardware 259
Hardware Torque Specifications 259
Unified Inch Bolt and Screw Torque Values 260
Metric Bolt and Screw Torque Values 261
Miscellaneous—Operational Checkout 262
Operational Checkout 262
Miscellaneous—Troubleshooting 310
Troubleshooting Procedure 310
Engine 311
Hydraulic System 315
Front Attachments Electrical Controls 316
Electrical System 317
Software Update 319
Miscellaneous—Storage 320
Prepare Machine for Storage 320
Monthly Storage Procedure 321
Preparing Engine for Long-Term Storage 322
Removing Engine From Long-Term Storage 323
Miscellaneous—Machine Numbers 324
Record Product Identification Number (PIN) 324
Record Engine Serial Number 324
Record Travel Motor Serial Numbers 325
Record Swing Motor Serial Number 325
Record Hydraulic Pump Serial Number 325
Keep Proof of Ownership 326
Keep Machines Secure 326
Miscellaneous—Specifications 327
Engine Specifications 327
Drain and Refill Capacities 327
Log Loader Live Heel Grapple Machine Specifications 328
Log Loader Butt-N-Top Machine Specifications 331
Log Loader Power Clam Machine Specifications 334
Processor Machine Specifications 337
Log Loader Live Heel Grapple Working Ranges 340
Log Loader Butt-N-Top Working Ranges 342
Log Loader Power Clam Working Ranges 344
Processor Working Ranges 346
Log Loader Live Heel Grapple Lift Capacity—Undercarriage: 2690 mm (8 ft 10 in) 348
Log Loader Live Heel Grapple Lift Capacity—Undercarriage: 2920 mm (9 ft 7 in) 350
Log Loader Butt-N-Top and Power Clam Lift Capacity—Undercarriage: 2690 mm (8 ft 10 in) 352
Log Loader Butt-N-Top and Power Clam Lift Capacity—Undercarriage: 2920 mm (9 ft 7 in) 353
Processor Lift Capacity—Undercarriage: 2690 mm (8 ft 10 in) 354
Processor Lift Capacity—Undercarriage: 2920 mm (9 ft 7 in) 355
Eurasian Economic Union 356
Machine Design Life 356
Page Number 31
Section 1-1 31
Section 1-2 34
Section 1-3 44
Section 1-4 52
Section 1-5 58
Section 2-1 81
Section 2-2 110
Section 2-3 136
Section 3-1 163
Section 3-2 181
Section 3-3 191
Section 3-4 201
Section 3-5 206
Section 3-6 207
Section 3-7 208
Section 3-8 214
Section 3-9 220
Section 3-10 228
Section 3-11 232
Section 3-12 233
Section 3-13 237
Section 4-1 244
Section 4-2 262
Section 4-3 310
Section 4-4 320
Section 4-5 324
Section 4-6 327

S.V 04/24
