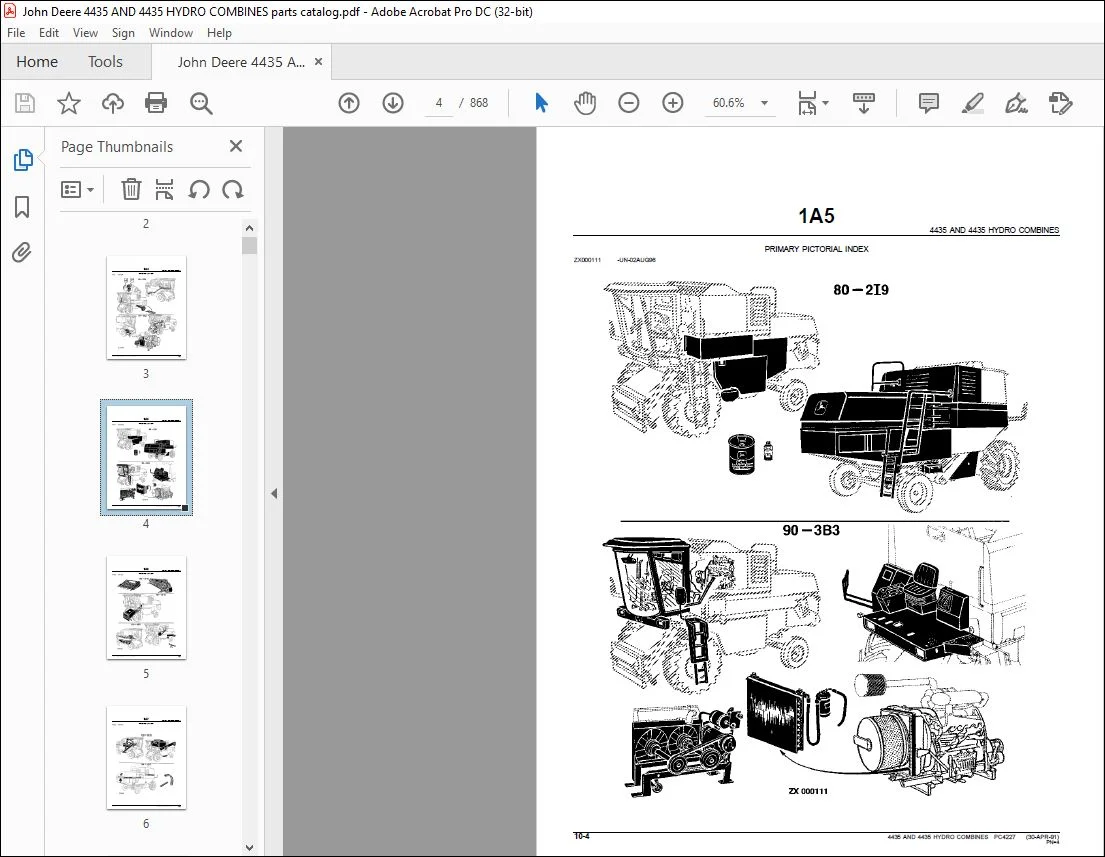

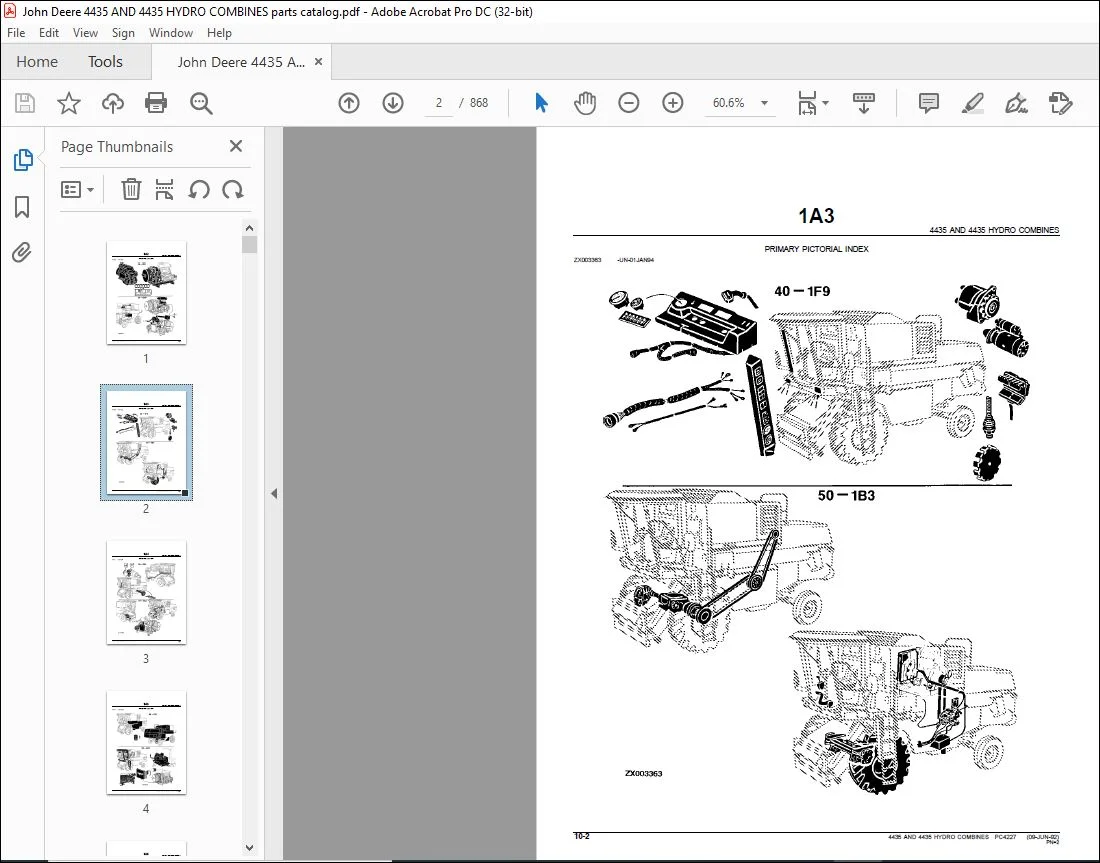

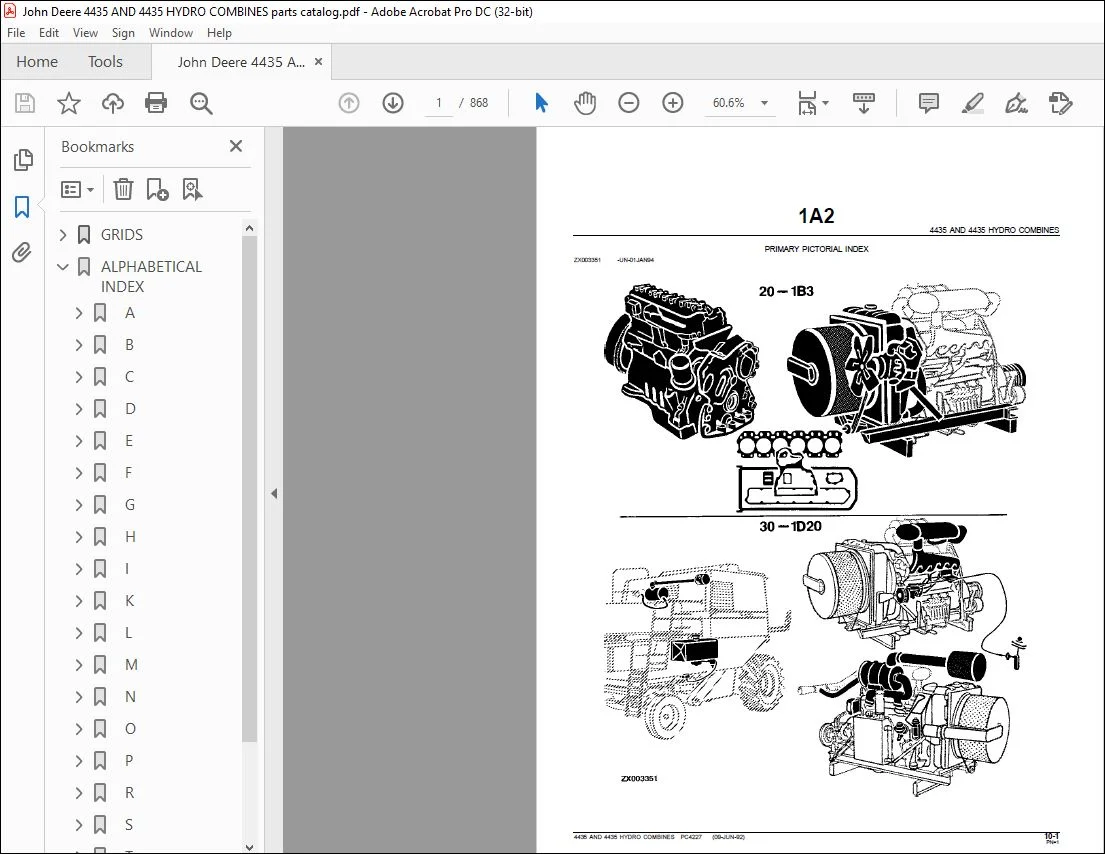

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

JOHN DEERE 4435 & 4435 HYDRO COMBINE PARTS CATALOG MANUAL – PDF DOWNLOAD

FOR 900 SERIES PLATFORM PARTS INFORMATION, REFER TO JOHN DEERE 900 SERIES PLATFORM PARTS
CATALOG – PC-2104.
FOR 40 SERIES CORN HEAD PARTS INFORMATION, REFER TO JOHN DEERE 40 SERIES CORN HEAD PARTS
CATALOG – PC-1223.
FOR 50A SERIES ROW-CROP HEAD PARTS INFORMATION, REFER TO JOHN DEERE 50A SERIES ROW-CROP
HEAD PARTS CATALOG – PC-1747.
FOR 912 THREE-ROLLER BELT PICKUP PARTS INFORMATION, REFER TO JOHN DEERE THREE-ROLLER BELT PICKUP
PARTS CATALOG – PC-2210.

IMPORTANT:
THIS PARTS CATALOG CONTAINS PARTS INFORMATION FOR THE 4420 COMBINE. MACHINE VINTAGE
IS DETERMINED BY THE COMBINE SERIAL NUMBER OR THE PRODUCT IDENTIFICATION NUMBER (PIN).
IT IS IMPORTANT THAT THE CORRECT NUMBERS BE USED WHEN ORDERING PARTS.
DIRECTION ARROW:
ARROWS ARE USED WITH ILLUSTRATIONS TO INDICATE THE FRONT OF THE UNIT. “RIGHT-HAND” AND “LEFTHAND”
SIDES ARE DETERMINED BY FACING IN THE DIRECTION OF MACHINE FORWARD TRAVEL.
BOX-ENCLOSED ILLUSTRATIONS:
A KEY NUMBER, SHOWN IN THE PARTS LIST, IS ASSIGNED TO A BOX ENCLOSING ALL PARTS SOLD AS A
SERVICE ASSEMBLY. A BOX NOT KEYED INCLUDES NON-CURRENT PARTS.

TABLE OF CONTENTS:

JOHN DEERE 4435 & 4435 HYDRO COMBINE PARTS CATALOG MANUAL – PDF DOWNLOAD

PRIMARY PICTORIAL INDEX AND GENERAL INFORMATION 10
BASIC ENGINE 20
FUEL AND AIR 30
ELECTRICAL 40
POWER TRAIN 50
STEERING AND BRAKES 60
HYDRAULICS 70
SEPARATOR SHELL 80
OPERATOR’S STATION 90
HEADERS – REFER TO INDIVIDUAL HEADER PARTS CATALOGS 100
FEEDER HOUSE 110
SEPARATOR 120
GRAIN TANK AND UNLOADING AUGER 130
DECALS, BELTS AND CHAINS 150
NUMERICAL INDEX 180

2H3 ACCUMULATOR, HYDRAULIC LINES 70 – 24 3D7 CAB SOUNDPROOFING 90 – 50
3G25 ADAPTER PLATES, PLATFORM 110 – 36 3D10 CAB SOUNDPROOFING (RIGHT-HAND) 90 – 53
4I5 ADJUSTING DEVICE FOR UNLOADING AUGER 130 – 56 3D9 CAB STORAGE RACK 90 – 52
4F3 ADJUSTING DEVICE, STRAW CHOPPER 120 – 93C 3D1 CAB WINDOWS AND MOLDINGS 90 – 44
3C11 ADJUSTMENT INDICATOR, CONCAVE 90 – 30 1J9 CABLE CLIPS,CONNECTORS AND PLUGS 40 – 92
1E16 AIR CLEANER AND AIR INTAKE TUBES 30 – 22 1I9 CABLE-HARVEST PERFORMANCE MONITOR 40 – 70
3E21 AIR CONDITIONING CLEANING UNIT TUBE 90 – 88 1H11 CABLE-STRAW CHOPPER WITH LOW SPEED
3E13 AIR CONDITIONING HOSES AND COUPLERS 90 – 80 CONTROL 40 – 48
3F5 AIR CONDITIONING SUCTION FAN DRIVE 90 – 98 2C3 CABLE, CONTROL, HYDROSTATIC DRIVE 50 – 22
3D20 AIR FILTER, CAB ROOF 90 – 64 1I9 CABLE, INFO PANEL 40 – 70
1D22 AIR INTAKE MANIFOLD(6359D) 30 – 2 1B21 CAMSHAFT 20 – 16
1D23 AIR INTAKE MANIFOLD(6359T) 30 – 3 1G7 CENTRAL ELECTRICAL HOUSING 40 – 18
1E16 AIR INTAKE TUBES, AIR CLEANER 30 – 22 4H12 CENTRAL LUBRICATING POINT 130 – 38
3D19 AIR OUTLET PANEL 90 – 62 4C18 CHAFFER 120 – 38
1F20 ALTERNATOR 40 – 7 4C20 CHAFFER EXTENSION 120 – 40
1F19 ALTERNATOR ATTACHING PARTS 40 – 6 4C16 CHAFFER FRAME 120 – 36
1J3 ANTENNA 40 – 86 3G5 CHAIN, FEEDER CONVEYOR 110 – 16
1F19 ATTACHING PARTS, ALTERNATOR 40 – 6 4G15 CHAIN, TAILINGS ELEVATOR 130 – 16
3C23 ATTACHING PARTS, CAB 90 – 42 4J6 CHAINS, LEFT-HAND SIDE 150 – 15
4H8 AUGER, LEVELING, GRAIN TANK 130 – 34 4J1 CHAINS, RIGHT-HAND SIDE 150 – 10
4H12 AUGER, UNLOADING 130 – 38 4J3 CHAINS, RIGHT-HAND SIDE 150 – 12
4G17 AUGER, UPPER TAILINGS 130 – 18 4J5 CHAINS, RIGHT-HAND SIDE 150 – 14
1C13 AUXILIARY PULLEY 20 – 30 2C7 CHARGE PUMP MOUNTING, HYDROSTATIC DRIVE 50 – 26
2E15 AXLE SUPPORT AND V-SUPPORT FOR REAR AXLE 60 – 10 4F23 CLEAN GRAIN AUGERS, HOUSING 130 – 2
2E9 AXLE, REAR 60 – 4 4G1 CLEAN GRAIN AUGERS, LOWER TAILINGS 130 – 4
4G9 CLEAN GRAIN ELEVATOR DRIVE 130 – 10
4G11 CLEAN GRAIN ELEVATOR HEAD 130 – 12
B 4G3 CLEAN GRAIN ELEVATOR HOUSING 130 – 6
4G5 CLEAN GRAIN ELEVATOR MOUNTING PARTS 130 – 7A
1G20 BASIC WIRING HARNESS 40 – 32 4G7 CLEAN GRAIN ELEVATOR, CONVEYOR CHAIN 130 – 8
1G22 BASIC WIRING HARNESS 40 – 34 2J21 CLEANING FAN GUARDS FOR CORN EQUIPMENT 80 – 34
1G24 BASIC WIRING HARNESS 40 – 36 2J19 CLEANING FAN GUARDS, STANDARD 80 – 32
1J7 BASIC WIRING HARNESS 40 – 90 4D18 CLEANING FAN-ADJUSTING ROD 120 – 64
1H5 BASIC WIRING HARNESS, THERMOSTAT SWITCH 40 – 42 4C24 CLEANING SHOE SUSPENSION 120 – 44
1F15 BATTERY AND CABLES 40 – 2 3E21 CLEANING UNIT TUBE, AIR CONDITIONING 90 – 88
2J11 BATTERY MOUNTINGS 80 – 24 1B24 CLOSING (WITHOUT OIL FILLER NECK) 20 – 18
4E5 BEARING, STRAW WALKER 120 – 74 2D11 CLUTCH 50 – 54
1C2 BEARINGS/CRANKSHAFT 20 – 21 3E4 CLUTCH AND SERVICE VALVES, COMPRESSOR 90 – 71
1C3 BEARINGS/CRANKSHAFT 20 – 22 2D9 CLUTCH HOUSING, DRIVE SHEAVE 50 – 52
4C2 BEATER 120 – 22 2D5 CLUTCH MASTER CYLINDER 50 – 48
4C12 BEATER DRIVE 120 – 32 2D6 CLUTCH OIL LINES 50 – 49
4C4 BEATER, VARIABLE DRIVE WITH CENTER 1G18 CLUTCH PEDAL, ELECTRICAL SWITCH 40 – 30
OIL SUPPLY 120 – 24 2D7 CLUTCH SLAVE CYLINDER, ELECTRICAL
2H17 BEATER, VARIABLE DRIVE WITH CENTER OIL TRANSMISSION BRAKE 50 – 50
SUPPLY, HYDRAULIC LINE 70 – 38 1E13 COLD WEATHER STARTING AID 30 – 18
1C20 BELT (WATER PUMP) 20 – 38 2K15 COMBINE MAINTENANCE PRODUCTS 80 – 52
2C9 BELT, HYDROSTATIC DRIVE UNIT 50 – 28 1G3 COMPRESSOR CABLES 40 – 16
4D11 BLADES, FAN SHAFT 120 – 56 1G5 COMPRESSOR CABLES 40 – 17A
1B8 BLOCK,CYLINDER 20 – 4 3E4 COMPRESSOR CLUTCH AND SERVICE VALVES 90 – 71
1B9 BLOCK,CYLINDER 20 – 5 3E3 COMPRESSOR HARDWARE KIT 90 – 70
3F18 BOTTOM SHEET, FEEDER HOUSE 110 – 6 3E11 COMPRESSOR HOSES 90 – 78
2F1 BRAKE CYLINDER 60 – 22 3F1 COMPRESSOR HOSES 90 – 94
2E22 BRAKE LINES (LOWER) 60 – 18 3E17 COMPRESSOR MOUNTING 90 – 84
2E24 BRAKE LINES (UPPER) 60 – 20 3E7 COMPRESSOR MOUNTING PARTS 90 – 74
2E18 BRAKE PEDALS 60 – 14 3E5 COMPRESSOR PARTS 90 – 72
2E20 BRAKE VALVE 60 – 16 4B16 CONCAVE 120 – 10
1G11 BRAKE, TRANSMISSION 40 – 22 4B18 CONCAVE – SUSPENSION 120 – 12
3C11 CONCAVE ADJUSTMENT INDICATOR 90 – 30
3C9 CONCAVE AND BRAKE LEVERS 90 – 28
C 3E15 CONDENSER 90 – 82
3E19 CONDENSER AND MOUNTING 90 – 86
3C23 CAB ATTACHING PARTS 90 – 42 3E25 CONDENSER FAN, FRONT 90 – 92
3D22 CAB FAN 90 – 66 3E23 CONDENSER FAN, REAR 90 – 90
3D3 CAB MOUNTING AND CYLINDERS 90 – 46 1C7 CONNECTING ROD(6359D) 20 – 24
3D13 CAB ROOF 90 – 56 1C9 CONNECTING ROD(6359T) 20 – 26
4435 AND 4435 HYDRO COMBINES PC4227 (08-AUG-96) 10-13
PN=13
1A15
4435 AND 4435 HYDRO COMBINES
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
2C3 CONTROL CABLE, HYDROSTATIC DRIVE 50 – 22 4F15 DEFLECTOR, STRAW SPREADER 120 – 104
1H15 CONTROL LEVER 40 – 52 1I15 DIAL-A-MATIC ELECTRICAL PARTS 40 – 74
3C7 CONTROL LEVER – CUTTING PLATFORM/ 1I17 DIAL-A-MATIC MECHANICAL PARTS 40 – 76
HYDRAULIC REVERSER 90 – 26 2D19 DIFFERENTIAL 50 – 62
3C20 CONTROL LEVER, CYLINDER SPEED 90 – 39 1B12 DIPSTICK FASTENING 20 – 8
2G22 CONTROL VALVE FITTINGS, ELECTRO-MAGNETIC 70 – 18 1B10 DIPSTICK,OIL 20 – 6
2G18 CONTROL VALVE FITTINGS, MAIN 70 – 14 1B11 DIPSTICK,OIL 20 – 7
2G16 CONTROL VALVE POPPETS, MAIN 70 – 12 2F2 DISK BRAKES FOOT BRAKES 60 – 24
2G24 CONTROL VALVE, ELECTRO MAGNETIC 70 – 20 2F4 DISK BRAKES HANDBRAKE 60 – 26
2G20 CONTROL VALVE, ELECTRO-MAGNETIC 70 – 16 2B14 DISPLACEMENT CONTROL VALVE, HYDROST DR 50 – 8
2B14 CONTROL VALVE, HYDROST DR DISPLACEMENT 50 – 8 1I19 DISTRIBUTION BOX, SOLENOIDS 40 – 78
2G14 CONTROL VALVE, MAIN 70 – 10 1G1 DISTRIBUTOR BOX-ENGINE AREA 40 – 14
4G7 CONVEYOR CHAIN, CLEAN GRAIN ELEVATOR 130 – 8 4E15 DISTRIBUTOR HOUSING, STRAW CHOPPER 120 – 84
2J21 CORN EQUIPMENT, CLEANING FAN GUARDS 80 – 34 1J4 DOME LIGHT 40 – 87
4E9 COUNTERKNIFES, STRAW CHOPPER 120 – 78 3D5 DOOR HANDLE, CAB 90 – 48
1D11 COUNTERSHAFT FOR ROTARY RADIATOR SCREEN 20 – 54 4H7 DOOR, ACCESS, GRAIN TANK 130 – 32
4F7 COUNTERSHAFT, STRAW CHOPPER 120 – 96 1D13 DRAINING ENGINE OIL, ENGINE BREATHER 20 – 56
2I7 COUPLER, CUTTING PLATFORM 70 – 54 4I20 DRIVE BELTS, LEFT-HAND SIDE 150 – 4
3C22 COVER PLATE, OPERATOR’S PLATFORM 90 – 41 4I22 DRIVE BELTS, LEFT-HAND SIDE 150 – 6
1B16 COVER,ROCKER ARM 20 – 12 4I23 DRIVE BELTS, LEFT-HAND SIDE 150 – 7
1C1 COVER,TIMING GEAR 20 – 20 4I24 DRIVE BELTS, LEFT-HAND SIDE 150 – 8
3D15 COVERS, CAB 90 – 58 4I25 DRIVE BELTS, LEFT-HAND SIDE 150 – 9
4H10 COVERS, INNER UNLOADING AUGER 130 – 36 4I18 DRIVE BELTS, RIGHT-HAND SIDE 150 – 2
1C12 CRANKSHAFT PULLEY 20 – 29 4G19 DRIVE IDLER, TAILINGS AUGER 130 – 20
1C2 CRANKSHAFT/BEARINGS 20 – 21 4F5 DRIVE IDLERS, STRAW CHOPPER 120 – 94
1C3 CRANKSHAFT/BEARINGS 20 – 22 4D15 DRIVE PARTS – SEPARATOR AND FAN 120 – 60
1C4 CRANKSHAFT/BEARINGS KIT 20 – 22A 4E13 DRIVE PULLEY, STRAW CHOPPER 120 – 82
4D24 CURTAIN 120 – 68 2D9 DRIVE SHEAVE, CLUTCH HOUSING 50 – 52
1H21 CUTTING PLATFORM HEIGHT INDICATOR 40 – 58 4F15 DRIVE SHIELD, STRAW SPREADER 120 – 104
2H19 CUTTING PLATFORM PRESSURE INDICATOR HOSE 70 – 40 2E1 DRIVE WHEEL AXLE AND EXTENSION 50 – 68
2I7 CUTTING PLATFORM, COUPLER 70 – 54 2E3 DRIVE WHEELS 50 – 70
2I5 CUTTING PLATFORMS 200 SERIES U S , 4C12 DRIVE, BEATER 120 – 32
MODIFICATION PARTS 70 – 52 4D13 DRIVE, FAN VARIATOR 120 – 58
4B9 CYLINDER ACCESS DOOR 120 – 2 4D5 DRIVE, LOWER CHAFFER BOARD 120 – 50
1B8 CYLINDER BLOCK 20 – 4 2G12 DRIVE, MAIN HYDRAULIC PUMP 70 – 8
1B9 CYLINDER BLOCK 20 – 5 4I9 DRIVE, OUTER UNLOADING AUGER 130 – 60
2B12 CYLINDER BLOCK KIT, HYDROSTATIC PUMP 50 – 6 4I11 DRIVE, OUTER UNLOADING AUGER 130 – 62
1B17 CYLINDER HEAD 20 – 13 4I7 DRIVE, OUTER UNLOADING AUGER, GEAR CASE 130 – 58
1C6 CYLINDER LINER/PISTON KIT (6359D) 20 – 23 4D7 DRIVE, SLIP CLUTCH STRAW WALKER 120 – 52
1C11 CYLINDER LINER/PISTON KIT (6359T) 20 – 28 4D5 DRIVE, STRAW WALKER 120 – 50
3C20 CYLINDER SPEED CONTROL LEVER 90 – 39 3F7 DRIVE, SUCTION FAN 90 – 100
2F1 CYLINDER, BRAKE 60 – 22 4G21 DRIVE, TAILINGS ELEVATOR 130 – 22
2F20 CYLINDER, STEERING 60 – 42 4H18 DRIVE, UNLOADING, GRAIN TANK 130 – 44
3D3 CYLINDERS, CAB 90 – 46 4H20 DRIVE, UNLOADING, GRAIN TANK 130 – 46
4H24 DRIVES, PADDLE, INNER UNLOADING AUGER 130 – 50
D
E
4K5 DASHBOARD PANEL DECALS 150 – 38
4J20 DECALS 150 – 29 1E1 ELBOW, EXHAUST (6359T) 30 – 5A
4K5 DECALS, DASHBOARD PANEL 150 – 38 1G12 ELECTRIC CONNECTIONS, TRANSMISSION
4J19 DECALS, ENGINE SECTION 150 – 28 WIRING HARNESS 40 – 24
4J15 DECALS, LEFT HAND 150 – 24 2G24 ELECTRIC ORIFICE FOR ELECTRO-MAGNETIC
4J9 DECALS, LEFT-HAND 150 – 18 CONTROL VALVE 70 – 20
4J13 DECALS, LEFT-HAND 150 – 22 1F23 ELECTRICAL CONNECTIONS ENGINE 40 – 10
4J21 DECALS, LEFT-HAND 150 – 30 1H13 ELECTRICAL FAN ADJUSTMENT 40 – 50
4K1 DECALS, OPERATOR’S PLATFORM 150 – 34 1E22 ELECTRICAL FUEL TRANSFER PUMP 30 – 28
4K3 DECALS, OPERATOR’S PLATFORM 150 – 36 1I15 ELECTRICAL PARTS, DIAL-A-MATIC 40 – 74
4J17 DECALS, REAR 150 – 26 1H13 ELECTRICAL PARTS, STRAW CHOPPER 40 – 50
4J7 DECALS, RIGHT HAND 150 – 16 1G18 ELECTRICAL SWITCH- CLUTCH PEDAL 40 – 30
4J11 DECALS, RIGHT-HAND 150 – 20 2D7 ELECTRICAL TRANSMISSION BRAKE, CLUTCH
4J23 DECALS, RIGHT-HAND 150 – 32 SLAVE CYLINDER 50 – 50
4E17 DEFLECTOR, STRAW CHOPPER 120 – 86 2G20 ELECTRO-MAGNETIC CONTROL VALVE 70 – 16
4E21 DEFLECTOR, STRAW CHOPPER 120 – 90 2G24 ELECTRO-MAGNETIC CONTROL VALVE 70 – 20
4E23 DEFLECTOR, STRAW CHOPPER 120 – 92 2G22 ELECTRO-MAGNETIC CONTROL VALVE FITTINGS 70 – 18
4F1 DEFLECTOR, STRAW CHOPPER 120 – 93A 1G11 ELECTRO-MAGNETIC-TRANSMISSION-BRAKE 40 – 22
4F3 DEFLECTOR, STRAW CHOPPER 120 – 93C 1H1 ELECTROMAGNETIC CLUTCH-HEADER DRIVE 40 – 38
10-14 4435 AND 4435 HYDRO COMBINES PC4227 (08-AUG-96)
PN=14
1A16
4435 AND 4435 HYDRO COMBINES
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
4G9 ELEVATOR DRIVE, CLEAN GRAIN 130 – 10 2H25 FLOW CONTROL VALVE, HYDROSTATIC REEL
4G11 ELEVATOR HEAD, CLEAN GRAIN 130 – 12 DRIVE 70 – 46
4G3 ELEVATOR HOUSING, CLEAN GRAIN 130 – 6 1C17 FLYWHEEL 20 – 34
4G5 ELEVATOR MOUNTING PARTS, CLEAN GRAIN 130 – 7A 1C16 FLYWHEEL HOUSING 20 – 33
4G7 ELEVATOR, CLEAN GRAIN, CONVEYOR CHAIN 130 – 8 2F2 FOOT BRAKES, DISK BRAKES 60 – 24
4G13 ELEVATOR, TAILINGS 130 – 14 4C16 FRAME, CHAFFER 120 – 36
4G21 ELEVATOR, TAILINGS, DRIVE 130 – 22 2I14 FRONT AXLE SUPPORT 80 – 4
1D4 ENGINE – MOUNTING PARTS 20 – 47 3E25 FRONT CONDENSER FAN 90 – 92
1D13 ENGINE BREATHER AND DRAINING ENGINE OIL 20 – 56 2B10 FRONT COVER, HYDROSTATIC PUMP 50 – 4
2J9 ENGINE COMPARTMENT FLOOR SHEETS 80 – 22 1B13 FRONT PLATE (6359D) 20 – 9
1D10 ENGINE COMPARTMENT SEALING PADS 20 – 53 1B14 FRONT PLATE(6359T) 20 – 10
2K11 ENGINE COMPARTMENT SHEETS 80 – 48 2J23 FRONT SEPARATOR SHIELDS, LEFT-HAND 80 – 36
1D3 ENGINE COOLANT HEATER 20 – 46 3F18 FRONT SHIELD, FEEDER HOUSE 110 – 6
1D1 ENGINE GASKET SET 20 – 44 1E4 FUEL FILTER AND LINES 30 – 8
4J19 ENGINE SECTION DECALS 150 – 28 1E5 FUEL FILTER AND LINES 30 – 9
1D15 ENGINE SUPPORT 20 – 58 1E10 FUEL INJECTION LINES 30 – 14
1F21 ENGINE WIRING HARNESS 40 – 8 1E11 FUEL INJECTION NOZZLE (4435) 30 – 15
1F23 ENGINE, ELECTRICAL CONNECTIONS 40 – 10 1E12 FUEL INJECTION NOZZLE (4435HY) 30 – 16
1F25 ETHER COLD WEATHER STARTING AID CABLE 40 – 12 1E8 FUEL INJECTION PUMP(6359D) 30 – 12
3D24 EVAPORATOR 90 – 67A 1E9 FUEL INJECTION PUMP(6359T) 30 – 13
3D23 EVAPORATOR / HEATER CORE 90 – 67 1E4 FUEL LINES AND FILTER 30 – 8
1E18 EXHAUST EJECTOR AND PIPE 30 – 24 1E5 FUEL LINES AND FILTER 30 – 9
1E1 EXHAUST ELBOW (6359T) 30 – 5A 1E23 FUEL PRE-FILTER 30 – 30
1D25 EXHAUST MANIFOLD (6359T) 30 – 5 1F3 FUEL PRE-FILTER, GASKET-SET 30 – 34
1D24 EXHAUST MANIFOLD(6359D) 30 – 4 1F1 FUEL PRE-FILTER, REPAIR-SET 30 – 32
2E1 EXTENSION, DRIVE WHEEL AXLE 50 – 68 2B21 FUEL PRE-FILTER, REPAIR-SET 50 – 16
1E20 FUEL TANK 30 – 26
1E7 FUEL TRANSFER PUMP (SOFABEX)(3701) 30 – 11
F 1E6 FUEL TRANSFER PUMP “SOFABEX” 30 – 10
1E22 FUEL TRANSFER PUMP, ELECTRICAL 30 – 28
1H13 FAN ADJUSTMENT, ELECTRIC 40 – 50 1G9 FUSES AND STRIP TERMINAL 40 – 20
4D15 FAN DRIVE PARTS 120 – 60
2J19 FAN GUARDS, CLEANING, STANDARD 80 – 32
4D9 FAN HOUSING 120 – 54 G
4D11 FAN SHAFT AND BLADES 120 – 56
4D13 FAN VARIATOR DRIVE, UPPER 120 – 58 1D1 GASKET SET 20 – 44
1C21 FAN, ENGINE 20 – 39 1D1 GASKET SET ENGINE 20 – 44
1B12 FASTENING,DIPSTICK 20 – 8 2H22 GASKET SET FOR REEL DRIVE HYDRAULIC PUMP 70 – 43
3G5 FEEDER CONVEYOR CHAIN 110 – 16 1F3 GASKET-SET, FUEL PRE-FILTER 30 – 34
3G21 FEEDER CONVEYOR DRIVE 110 – 32 4I7 GEAR CASE, OUTER UNLOADING AUGER DRIVE 130 – 58
3G3 FEEDER CONVEYOR DRUM 110 – 14 2D13 GEAR SHIFTING PARTS 50 – 56
3F15 FEEDER CONVEYOR HOUSING 110 – 2 1C1 GEAR,TMING COVER 20 – 20
3F17 FEEDER CONVEYOR RETURN SHIELDS 110 – 4 1B22 GEARS,IDLE 20 – 17
3F18 FEEDER HOUSE FRONT SHIELD AND BOTTOM 1B23 GEARS,IDLE 20 – 17A
SHEET 110 – 6 4C14 GRAIN PAN 120 – 34
3G23 FEEDER HOUSE GUARDS 110 – 34 4D1 GRAIN PAN SHAFT AND SUSPENSION 120 – 46
3G13 FEEDER HOUSE LOWER BEARINGS AND 4G23 GRAIN TANK 130 – 24
SPROCKETS,LEFT-HAND 110 – 24 4H7 GRAIN TANK ACCESS DOOR 130 – 32
2I20 FEEDER HOUSE SUPPORT 80 – 9A 1I1 GRAIN TANK FILL INDICATOR 40 – 62
3F22 FEEDER HOUSE UPPER SHAFT AND SPROCKETS 110 – 10 4H14 GRAIN TANK INNER UNLOADING AUGER 130 – 40
3F24 FEEDER HOUSE UPPER SHEAVE AND SPROCKETS 110 – 11A 4H8 GRAIN TANK LEVELING AUGER 130 – 34
3G1 FEEDER HOUSE UPPER SHEAVE AND SPROCKETS 110 – 12 4H16 GRAIN TANK PADDLE 130 – 42
1I11 FIELD LIGHTS 40 – 72 4H5 GRAIN TANK SAMPLE 130 – 30
1I1 FILL INDICATOR, GRAIN TANK 40 – 62 4H1 GRAIN TANK SHEETS 130 – 26
1B10 FILTER,OIL 20 – 6 4H18 GRAIN TANK UNLOADING DRIVE 130 – 44
1B11 FILTER,OIL 20 – 7 4H20 GRAIN TANK UNLOADING DRIVE SHAFT AND
2D23 FINAL DRIVE GEARS 50 – 66 BEARINGS 130 – 46
2D21 FINAL DRIVE HOUSINGS 50 – 64 4H3 GRAIN TANK WINDOWS AND HANDRAIL 130 – 28
4B20 FINGER GRATE 120 – 14 2H9 GROUND DRIVE HYDRAULIC LINES 70 – 30
2G22 FITTINGS, CONTROL VALVE 70 – 18 4E6 GUARDS LEFT-HAND 120 – 75
2C13 FITTINGS, HYDROSTATIC DRIVE 50 – 32 3G23 GUARDS, FEEDER HOUSE 110 – 34
2G18 FITTINGS, MAIN CONTROL VALVE 70 – 14
3D11 FLOOR MATS 90 – 54
2J9 FLOOR SHEETS, ENGINE COMPARTMENT 80 – 22 H
2I1 FLOW CONTROL VALVE REPAIR KIT,
HYDROSTATIC REEL DRIVE 70 – 47 4H3 HANDRAIL, GRAIN TANK 130 – 28
3B12 HANDRAILS, OPERATOR’S PLATFORM 90 – 6
4435 AND 4435 HYDRO COMBINES PC4227 (08-AUG-96) 10-15
PN=15
1A17
4435 AND 4435 HYDRO COMBINES
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
3E3 HARDWARE KIT, COMPRESSOR 90 – 70 2C1 HYDROSTATIC MOTOR VALVE 50 – 20
1I9 HARVEST PERFORMANCE MONITOR, CABLE 40 – 70 2B20 HYDROSTATIC PUMP SERVO 50 – 14
1I3 HARVESTRAK SENSORS 40 – 64 2H25 HYDROSTATIC REEL DRIVE FLOW CONTROL
1I5 HARVESTRAK WIRING HARNESSES 40 – 66 VALVE 70 – 46
1B17 HEAD,CYLINDER 20 – 13 2I1 HYDROSTATIC REEL DRIVE FLOW CONTROL
3F20 HEADER ATTACHING PIN 110 – 8 VALVE REPAIR KIT 70 – 47
3G7 HEADER DRIVE CHAIN 110 – 18 2I2 HYDROSTATIC REEL DRIVE MOTOR 70 – 48
3G15 HEADER DRIVE SHAFT 110 – 26 2I3 HYDROSTATIC REEL DRIVE, HYDRAULIC LINES
1H1 HEADER DRIVE, ELECTROMAGNETIC CLUTCH 40 – 38 AND HOSES 70 – 50
1I21 HEADER HEIGHT RESUME 40 – 80 2I5 HYDROSTATIC REEL DRIVE, MODIFICATION
2J15 HEADER LIFT CYLINDER SAFETY STOP 80 – 28 PARTS FOR CUTTING PLATFORM 70 – 52
2H8 HEADER LIFT HYDRAULIC CYLINDER 70 – 29 2H3 HYDRUALIC LINES AND ACCUMULATOR 70 – 24
3F10 HEADERS 100 – A02
1G16 HEADLIGHTS 40 – 28
3D17 HEADLINER 90 – 60 I
3D24 HEATER CORE 90 – 67A
3E1 HEATER VALVE AND HOSES 90 – 68 1B22 IDLE GEARS 20 – 17
1D3 HEATER, ENGINE COOLANT 20 – 46 1B23 IDLE GEARS 20 – 17A
1H21 HEIGHT INDICATOR, CUTTING PLATFORM 40 – 58 4C6 IDLER ARM, SEPARATOR DRIVE 120 – 26
1G16 HORN 40 – 28 4C8 IDLER, SEPARATOR DRIVE 120 – 28
3E13 HOSES AND COUPLERS, AIR CONDITIONING 90 – 80 2F10 INDIVIDUAL PARTS FOR STEERING PUMP 60 – 32
2C11 HOSES, HYDROSTATIC DRIVE 50 – 30 2F14 INDIVIDUAL PARTS FOR STEERING PUMP 60 – 36
1G7 HOUSING, CENTRAL ELECTRICAL 40 – 18 1I9 INFO PANEL, CABLE 40 – 70
2B8 HOUSING, HYDROSTATIC PUMP 50 – 2 1I7 INFORMATION PANEL 40 – 68
4F23 HOUSING, LOWER TAILINGS AND CLEAN GRAIN 3D15 INNER ROOF AND COVERS 90 – 58
AUGERS 130 – 2 4H24 INNER UNLOADING AUGER AND PADDLE DRIVES 130 – 50
4I1 HOUSING, OUTER UNLOADING AUGER 130 – 52 4H10 INNER UNLOADING AUGER COVERS 130 – 36
4E7 HOUSING, STRAW CHOPPER 120 – 76 4H14 INNER UNLOADING AUGER, GRAIN TANK 130 – 40
4E15 HOUSING, STRAW CHOPPER DISTRIBUTOR 120 – 84 1H18 INSTRUMENT PANEL 40 – 55
1C25 HOUSING, THERMOSTAT 20 – 43 1H19 INSTRUMENT PANEL 40 – 56
4G17 HOUSING, UPPER TAILINGS 130 – 18 1H17 INSTRUMENT PANEL, WIRING HARNESS 40 – 54
1C16 HOUSING,FLYWHEEL 20 – 33 1E15 INTAKE TUBES, PRECLEANER 30 – 21
1J11 HOUSINGS FOR ELECTRICAL PLUG CONNECTORS 40 – 94 1D22 INTAKE,AIR MANIFOLD(6359D) 30 – 2
2C5 HYDRAULIC BELT TENSIONING 50 – 24 1D23 INTAKE,AIR MANIFOLD(6359T) 30 – 3
2D3 HYDRAULIC CLUTCH OPERATING PARTS 50 – 46
4I13 HYDRAULIC CYLINDER MOUNTING, SWING,
UNLOADING AUGER 130 – 64 K
2H8 HYDRAULIC CYLINDER, HEADER LIFT 70 – 29
2H11 HYDRAULIC HOSE, REEL LIFT 70 – 32 1C5 KIT, UNDERSIZE CRANKSHAFT/BEARINGS 20 – 22B
2H17 HYDRAULIC LINE, VARIABLE DRIVE WITH 1C4 KIT,CRANKSHAFT/BEARINGS 20 – 22A
CENTER OIL SUPPLY FOR BEATER 70 – 38 1C6 KIT,CYLINDER LINER/PISTON (6359D) 20 – 23
2I3 HYDRAULIC LINES AND HOSES, HYDROSTATIC 1C11 KIT,CYLINDER LINER/PISTON (6359T) 20 – 28
REEL DRIVE 70 – 50 4E11 KNIVES, STRAW CHOPPER 120 – 80
2H9 HYDRAULIC LINES, GROUND DRIVE 70 – 30
2G8 HYDRAULIC LINES, HYDRAULIC PUMP 70 – 4
2G8 HYDRAULIC LINES, MAIN HYDR RESERVOIR 70 – 4 L
2H13 HYDRAULIC LINES, REEL ADJUSTMENT 70 – 34
2H1 HYDRAULIC LINES, REVERSE DRIVE 70 – 22 2J7 LADDER, REAR SERVICE PLATFORM 80 – 20
2H15 HYDRAULIC LINES, UNLOADING AUGER 70 – 36 3C5 LEFT-HAND LEVERS 90 – 24
2H21 HYDRAULIC PUMP, REEL DRIVE 70 – 42 2J13 LEFT-HAND REAR SEPARATOR SHIELD 80 – 26
2H22 HYDRAULIC PUMP,GASKET SET, REEL DRIVE 70 – 43 2K3 LEFT-HAND SHIELD BRACKET 80 – 40
2H23 HYDRAULIC RESERVOIR, REEL DRIVE FITTINGS 70 – 44 2K5 LEFT-HAND SHIELD BRACKET 80 – 42
3G9 HYDRAULIC REVERSER DRIVE 110 – 20 4F1 LEVER ADJUSTMENT,STRAW CHOPPER DEFLECTOR 120 – 93A
3G11 HYDRAULIC REVERSER SHIFTER 110 – 22 3C9 LEVERS, CONCAVE AND BRAKE 90 – 28
3C7 HYDRAULIC REVERSER, CONTROL LEVER – 3C5 LEVERS, LEFT-HAND 90 – 24
CUTTING PLATFORM 90 – 26 1J4 LIGHT, DOME 40 – 87
2H7 HYDRAULIC SWING UNLOADING AUGER CYLINDER 70 – 28 1I11 LIGHTS, FIELD 40 – 72
2B14 HYDROST DR DISPLACEMENT CONTROL VALVE 50 – 8 1C7 LINER(6359D) 20 – 24
2B18 HYDROSTATIC DRIVE CHARGE PUMP 50 – 12 1C9 LINER(6359T) 20 – 26
2C7 HYDROSTATIC DRIVE CHARGE PUMP MOUNTING 50 – 26 1E10 LINES,FUEL INJECTION 30 – 14
2C3 HYDROSTATIC DRIVE CONTROL CABLE 50 – 22 1H7 LOW SHAFT SPEED CONTROL SENDING
2C15 HYDROSTATIC DRIVE LOWER OIL HOSES 50 – 34 UNIT, WIRING HARNESS 40 – 44
2B23 HYDROSTATIC DRIVE MOTOR KIT 50 – 18 1H9 LOW SHAFT SPEED CONTROL SENDING UNIT 40 – 46
2C13 HYDROSTATIC DRIVE OIL COOLER, FITTINGS 50 – 32 1H11 LOW SPEED CONTROL, CABLE 40 – 48
2C17 HYDROSTATIC DRIVE OIL RESERVOIR 50 – 36 4D5 LOWER CHAFFER BOARD DRIVE 120 – 50
2B7 HYDROSTATIC DRIVE PUMP 50 – 1 2J17 LOWER DRIVE GUARDS, LEFT-HAND 80 – 30
2B16 HYDROSTATIC DRIVE PUMP COVER 50 – 10 4D17 LOWER FAN VARIABLE SHEAVES 120 – 62
10-16 4435 AND 4435 HYDRO COMBINES PC4227 (08-AUG-96)
PN=16
1A18
4435 AND 4435 HYDRO COMBINES
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
3G17 LOWER REEL DRIVE 110 – 28 4K3 OPERATOR’S PLATFORM DECALS 150 – 36
3G19 LOWER REEL DRIVE GUARDS 110 – 30 3B12 OPERATOR’S PLATFORM HANDRAILS 90 – 6
4G1 LOWER TAILINGS AND CLEAN GRAIN AUGERS 130 – 4 3B10 OPERATOR’S PLATFORM LADDER 90 – 4
4F23 LOWER TAILINGS AND CLEAN GRAIN AUGERS 3B14 OPERATOR’S PLATFORM PARTS 90 – 8
HOUSING 130 – 2 3C21 OPERATOR’S PLATFORM SOUNDPROOFING 90 – 40
4G1 LOWER TAILINGS, CLEAN GRAIN AUGERS 130 – 4 1G14 OPERATOR’S PLATFORM WIRING HARNESS 40 – 26
4F23 LOWER TAILINGS, HOUSING 130 – 2 3C16 OPERATOR’S PLATFORM, OPERATING CABLES 90 – 34
4H12 LUBRICATING POINT, CENTRAL 130 – 38 3B8 OPERATOR’S PLATFROM 90 – 2
4C10 LUBRICATING POINT, SEPARATOR DRIVE IDLER 120 – 30 3B16 OPERATOR’S SEAT 90 – 11
4I3 OUTER UNLOADING AUGER 130 – 54
4I9 OUTER UNLOADING AUGER DRIVE 130 – 60
M 4I11 OUTER UNLOADING AUGER DRIVE 130 – 62
4I7 OUTER UNLOADING AUGER DRIVE GEAR CASE 130 – 58
1B25 MAGNETIC PICK UP 20 – 19 4I1 OUTER UNLOADING AUGER HOUSING 130 – 52
2G14 MAIN CONTROL VALVE 70 – 10
2G18 MAIN CONTROL VALVE FITTINGS 70 – 14
2G16 MAIN CONTROL VALVE POPPETS 70 – 12 P
2G10 MAIN HYDRAULIC PUMP 70 – 6
2G12 MAIN HYDRAULIC PUMP DRIVE AND MOUNTING 70 – 8 4H24 PADDLE DRIVES, INNER UNLOADING AUGER 130 – 50
2G6 MAIN HYDRAULIC RESERVOIR 70 – 2 4H16 PADDLE, GRAIN TANK 130 – 42
1D25 MANIFOLD, EXHAUST (6359T) 30 – 5 3D19 PANEL, AIR OUTLET 90 – 62
1D24 MANIFOLD, EXHAUST(6359D) 30 – 4 3E5 PARTS, COMPRESSOR 90 – 72
1C25 MANIFOLD, WATER 20 – 43 2E18 PEDALS, BRAKE 60 – 14
2D5 MASTER CYLINDER, CLUTCH 50 – 48 1B25 PICK UP,MAGNETIC 20 – 19
1I17 MECHANICAL PARTS, DIAL-A-MATIC 40 – 76 1C7 PISTON(6359D) 20 – 24
2I5 MODIFICATION PARTS FOR 200 SERIES U S 1C9 PISTON(6359T) 20 – 26
CUTTING PLATFORMS 70 – 52 1C6 PISTON/CYLINDER LINER,KIT (6359D) 20 – 23
3D1 MOLDINGS, CAB 90 – 44 1C11 PISTON/CYLINDER LINER,KIT (6359T) 20 – 28
2B23 MOTOR KIT, HYDROSTATIC DRIVE 50 – 18 1B13 PLATE,FRONT (6359D) 20 – 9
1D17 MOTOR PULLEY 20 – 60 1B14 PLATE,FRONT(6359T) 20 – 10
2I2 MOTOR, HYDROSTATIC REEL DRIVE 70 – 48 3G25 PLATFORM ADAPTER PLATES 110 – 36
1F17 MOTOR, STARTING 40 – 4 2K13 PLUGGED CYLINDER TOOL 80 – 50
4G5 MOUNTING PARTS, CLEAN GRAIN ELEVATOR 130 – 7A 2G16 POPPETS, MAIN CONTROL VALVE 70 – 12
1D4 MOUNTING PARTS, ENGINE 20 – 47 4B22 POSI TORQ VARIABLE CYLINDER SHEAVES 120 – 16
1J1 MOUNTING PARTS, RADIO AND SPEAKERS 40 – 84 2C21 POSI-TORQ COUNTERSHAFT AND ARM (UPPER
2J11 MOUNTINGS, BATTERY 80 – 24 UNIT) 50 – 40
1E18 MUFFLER, EXHAUST EJECTOR AND PIPE 30 – 24 2D1 POSI-TORQ SHEAVES (LOWER UNIT) 50 – 44
1H15 MULTI-FUNCTIONAL RELAY 40 – 52 2C23 POSI-TORQ SHEAVES (UPPER UNIT) 50 – 42
2C19 POSI-TORQ SUPPORTS (UPPER UNIT) 50 – 38
1E23 PRE-FILTER, FUEL 30 – 30
N 1E15 PRECLEANER AND AIR INTAKE TUBES 30 – 21
2H19 PRESSURE INDICATOR HOSE, CUTTING
1E11 NOZZLE,FUEL INJECTION (4435) 30 – 15 PLATFORM 70 – 40
1E12 NOZZLE,FUEL INJECTION (4435HY) 30 – 16 1A2 PRIMARY PICTORIAL INDEX 10 – 1
1A3 PRIMARY PICTORIAL INDEX 10 – 2
1A4 PRIMARY PICTORIAL INDEX 10 – 3
O 1A5 PRIMARY PICTORIAL INDEX 10 – 4
1A6 PRIMARY PICTORIAL INDEX 10 – 5
1C22 OIL COOLER 20 – 40 1A7 PRIMARY PICTORIAL INDEX 10 – 6
2C13 OIL COOLER, HYDROSTATIC DRIVE 50 – 32 1D17 PULLEY, MOTOR 20 – 60
1B10 OIL DIPSTICK 20 – 6 1C13 PULLEY,AUXILIARY 20 – 30
1B11 OIL DIPSTICK 20 – 7 1C12 PULLEY,CRANKSHAFT 20 – 29
1B10 OIL FILTER 20 – 6 2B16 PUMP COVER, HYDROSTATIC DRIVE 50 – 10
1B11 OIL FILTER 20 – 7 1E7 PUMP, FUEL TRANSFER (SOFABEX)(3701) 30 – 11
2C15 OIL HOSES, LOWER, HYDROSTATIC DRIVE 50 – 34 1E6 PUMP, FUEL TRANSFER “SOFABEX” 30 – 10
2D6 OIL LINES, CLUTCH 50 – 49 2B7 PUMP, HYDROSTATIC DRIVE 50 – 1
2C11 OIL LINES, UPPER, HYDROSTATIC DRIVE 50 – 30 2B18 PUMP, HYDROSTATIC DRIVE CHARGE 50 – 12
1E2 OIL LINES,TURBOCHARGER 30 – 6 1C14 PUMP, OIL 20 – 31
1C15 OIL PAN 20 – 32 1C18 PUMP, WATER 20 – 36
1C14 OIL PUMP 20 – 31 1E8 PUMP,FUEL INJECTION(6359D) 30 – 12
2C17 OIL RESERVOIR, HYDROSTATIC DRIVE 50 – 36 1E9 PUMP,FUEL INJECTION(6359T) 30 – 13
3C16 OPERATING CABLES ON OPERATOR’S PLATFORM 90 – 34 1B20 PUSH RODS 20 – 15A
3C12 OPERATING CONTROLS, RIGHT-HAND 90 – 32
3C14 OPERATING CONTROLS, RIGHT-HAND 90 – 33A
2D3 OPERATING PARTS, HYDRAULIC CLUTCH 50 – 46 R
3C22 OPERATOR’S PLATFORM COVER PLATE 90 – 41
4K1 OPERATOR’S PLATFORM DECALS 150 – 34 1D5 RADIATOR 20 – 48
4435 AND 4435 HYDRO COMBINES PC4227 (08-AUG-96) 10-17
PN=17
1A19
4435 AND 4435 HYDRO COMBINES
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
1D7 RADIATOR SCREEN, ROTARY 20 – 50 1F10 SECTIONAL PICTORIAL INDEX 40 – A02
1J1 RADIO AND SPEAKERS MOUNTING PARTS 40 – 84 1F11 SECTIONAL PICTORIAL INDEX 40 – A03
4B13 RASP BAR CYLINDER 120 – 6 1F12 SECTIONAL PICTORIAL INDEX 40 – A04
4B15 RASP BAR CYLINDER SHAFT 120 – 9 1F13 SECTIONAL PICTORIAL INDEX 40 – A05
2E9 REAR AXLE 60 – 4 1F14 SECTIONAL PICTORIAL INDEX 40 – A06
2E7 REAR AXLE FRAME AND SUPPORT 60 – 2 2B3 SECTIONAL PICTORIAL INDEX 50 – A01
2E11 REAR AXLE SPINDLES 60 – 6 2B4 SECTIONAL PICTORIAL INDEX 50 – A02
2E15 REAR AXLE, AXLE SUPPORT AND V-SUPPORT 60 – 10 2B5 SECTIONAL PICTORIAL INDEX 50 – A03
3E23 REAR CONDENSER FAN 90 – 90 2B6 SECTIONAL PICTORIAL INDEX 50 – A04
4J17 REAR DECALS 150 – 26 2E5 SECTIONAL PICTORIAL INDEX 60 – A02
2I22 REAR HOOD 80 – 10 2E6 SECTIONAL PICTORIAL INDEX 60 – A03
2J3 REAR HOOD LOWER SHEETS 80 – 16 2G3 SECTIONAL PICTORIAL INDEX 70 – A02
2J1 REAR HOOD RAILING 80 – 14 2G4 SECTIONAL PICTORIAL INDEX 70 – A03
2I24 REAR HOOD, REINFORCEMENTS 80 – 12 2G5 SECTIONAL PICTORIAL INDEX 70 – A04
2J7 REAR SERVICE PLATFORM LADDER 80 – 20 2I9 SECTIONAL PICTORIAL INDEX 80 – A02
3B23 REAR VIEW MIRROR 90 – 18 2I10 SECTIONAL PICTORIAL INDEX 80 – A03
2E17 REAR WHEELS 60 – 12 2I11 SECTIONAL PICTORIAL INDEX 80 – A04
3E9 RECEIVER – DRYER AND HOSES 90 – 76 3B3 SECTIONAL PICTORIAL INDEX 90 – A02
3F3 RECEIVER – DRYER AND HOSES 90 – 96 3B4 SECTIONAL PICTORIAL INDEX 90 – A03
4B24 REDUCTION TRANSMISSION, VARIABLE 3B5 SECTIONAL PICTORIAL INDEX 90 – A04
CYLINDER SHEAVES 120 – 18 3B6 SECTIONAL PICTORIAL INDEX 90 – A05
2H13 REEL ADJUSTMENT, HYDRAULIC LINES 70 – 34 3B7 SECTIONAL PICTORIAL INDEX 90 – A06
2H23 REEL DRIVE FITTINGS AND HYDRAULIC 3F12 SECTIONAL PICTORIAL INDEX 110 – A01
RESERVOIR 70 – 44 3F13 SECTIONAL PICTORIAL INDEX 110 – A02
2H21 REEL DRIVE HYDRAULIC PUMP 70 – 42 3F14 SECTIONAL PICTORIAL INDEX 110 – A03
2H22 REEL DRIVE HYDRAULIC PUMP, GASKET SET 70 – 43 4B3 SECTIONAL PICTORIAL INDEX 120 – A02
2H11 REEL LIFT HYDRAULIC HOSE 70 – 32 4B4 SECTIONAL PICTORIAL INDEX 120 – A03
2I24 REINFORCEMENTS, REAR HOOD 80 – 12 4B5 SECTIONAL PICTORIAL INDEX 120 – A04
1G10 RELAY PLUG SOCKET 40 – 21 4B6 SECTIONAL PICTORIAL INDEX 120 – A05
1F1 REPAIR-SET, FUEL PRE-FILTER 30 – 32 4B7 SECTIONAL PICTORIAL INDEX 120 – A06
2B21 REPAIR-SET, FUEL PRE-FILTER 50 – 16 4B8 SECTIONAL PICTORIAL INDEX 120 – A07
2C17 RESERVOIR, OIL, HYDROSTATIC DRIVE 50 – 36 4F21 SECTIONAL PICTORIAL INDEX 130 – A02
1B18 RETAINERS(6359D) 20 – 14 4F22 SECTIONAL PICTORIAL INDEX 130 – A03
1B19 RETAINERS(6359T) 20 – 15 4I17 SECTIONAL PICTORIAL INDEX 150 – A01
4E19 RETAINERS, STRAW CHOPPER 120 – 88 1H9 SENDING UNIT, LOW SHAFT SPEED CONTROL 40 – 46
4C22 RETURN PAN WITH SIEVES 120 – 42 1I3 SENSORS, HARVESTRAK 40 – 64
3F17 RETURN SHIELDS, FEEDER CONVEYOR 110 – 4 4C8 SEPARATOR DRIVE IDLER 120 – 28
2H1 REVERSE DRIVE HYDRAULIC LINES 70 – 22 4C6 SEPARATOR DRIVE IDLER ARM 120 – 26
2H5 REVERSE DRIVE HYDRAULIC MOTOR 70 – 26 4C10 SEPARATOR DRIVE IDLER, LUBRICATING POINT 120 – 30
1H6 REVERSER SWITCH 40 – 43 4D15 SEPARATOR DRIVE PARTS 120 – 60
1B20 ROCKER ARM 20 – 15A 2K7 SEPARATOR MIDDLE SHIELD, RIGHT-HAND 80 – 44
1B16 ROCKER ARM COVER 20 – 12 2J13 SEPARATOR SHIELD, LEFT-HAND REAR 80 – 26
1B20 ROCKER ARM SHAFT 20 – 15A 2K9 SEPARATOR SHIELD, RIGHT-HAND LOWER 80 – 46
1D7 ROTARY RADIATOR SCREEN 20 – 50 2J23 SEPARATOR SHIELDS 80 – 36
1D11 ROTARY RADIATOR SCREEN, COUNTERSHAFT 20 – 54 2K1 SEPARATOR SHIELDS – UPPER, LEFT-HAND 80 – 38
1D9 ROTARY RADIATOR SCREEN, SUCTION NOZZLE 20 – 52 2J5 SERVICE PLATFORM, REAR, RIGHT-HAND 80 – 18
4E11 ROTOR, STRAW CHOPPER 120 – 80 2B8 SERVO, HYDROSTATIC PUMP 50 – 2
2B20 SERVO, HYDROSTATIC PUMP 50 – 14
1D1 SET, GASKET 20 – 44
S 1C24 SHACKLES 20 – 42
2B12 SHAFT, HYDROSTATIC PUMP 50 – 6
4F17 SAFETY RAIL, STRAW SPREADER 120 – 106 4B15 SHAFT, RASP BAR CYLINDER 120 – 9
1G19 SAFETY STARTING SWITCH 40 – 31 2C9 SHEAVES, HYDROSTATIC DRIVE UNIT 50 – 28
1H15 SAFETY-SWITCH, CONTROL LEVER 40 – 52 4H1 SHEETS, GRAIN TANK 130 – 26
2F12 SEAL KIT, STEERING PUMP 60 – 34 2J23 SHIELDS, SEPARATOR 80 – 36
1D10 SEALING PADS, ENGINE COMPARTMENT 20 – 53 3C1 SHIFT CONSOLE AND COVERS, RIGHT-HAND 90 – 20
3B16 SEAT 90 – 11 3C3 SHIFT CONSOLE, LEFT-HAND 90 – 22
3B21 SEAT ADJUSTMENT 90 – 16 4D3 SHOE CRANK AND PITMAN 120 – 48
3B17 SEAT CUSHIONS 90 – 12 4C24 SHOE SUSPENSION, CLEANING 120 – 44
3B19 SEAT MOUNTING 90 – 14 1B6 SHORT BLOCK ASSEMBLY 20 – 2
3B15 SEAT SUPPORT 90 – 10 2I18 SIDE SHEETS, LEFT-HAND 80 – 8
1B3 SECTIONAL PICTORIAL INDEX 20 – A01 2I16 SIDE SHEETS, RIGHT-HAND 80 – 6
1B4 SECTIONAL PICTORIAL INDEX 20 – A02 4C22 SIEVES, RETURN PAN 120 – 42
1B5 SECTIONAL PICTORIAL INDEX 20 – A03 4D7 SLIP CLUTCH – STRAW WALKER DRIVE 120 – 52
1D20 SECTIONAL PICTORIAL INDEX 30 – A02 1I19 SOLENOIDS, DISTRIBUTOR BOX 40 – 78
1D21 SECTIONAL PICTORIAL INDEX 30 – A03 3D7 SOUNDPROOFING, CAB 90 – 50
1F9 SECTIONAL PICTORIAL INDEX 40 – A01 3C21 SOUNDPROOFING, OPERATOR’S PLATFORM 90 – 40
10-18 4435 AND 4435 HYDRO COMBINES PC4227 (08-AUG-96)
PN=18
1A20
4435 AND 4435 HYDRO COMBINES
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
2E11 SPINDLES, REAR AXLE 60 – 6 4G21 TAILINGS ELEVATOR DRIVE 130 – 22
1B18 SPRINGS(6359D) 20 – 14 4G17 TAILINGS, UPPER, AUGER AND HOUSING 130 – 18
1B19 SPRINGS(6359T) 20 – 15 1B20 TAPPETS 20 – 15A
3F24 SPROCKETS, FEEDER HOUSE UPPER SHEAVE 110 – 11A 2C5 TENSIONING SYSTEM, BELT, HYDRAULIC 50 – 24
3G1 SPROCKETS, FEEDER HOUSE UPPER SHEAVE 110 – 12 1C25 THERMOSTAT 20 – 43
1F17 STARTING MOTOR 40 – 4 1C25 THERMOSTAT HOUSING 20 – 43
1G19 STARTING SWITCH 40 – 31 1H5 THERMOSTAT SWITCH FOR HYDOSTATIC DRIVE 40 – 42
2F6 STEERING COLUMN 60 – 28 1F5 THROTTLE LINKAGE 30 – 36
2F8 STEERING COLUMN 60 – 30 2E13 TIE RODS, STEERING 60 – 8
2F20 STEERING CYLINDER 60 – 42 1C1 TIMING GEAR COVER 20 – 20
2F16 STEERING HOSES, FRONT 60 – 38 2I15 TOOL BOX WITH SUPPORT 80 – 5
2F18 STEERING HOSES, REAR 60 – 40 2K13 TOOL, PLUGGED CYLINDER 80 – 50
2F16 STEERING LINES, FRONT 60 – 38 2K14 TOOLS 80 – 51
2F18 STEERING LINES, REAR 60 – 40 2D15 TRANSMISSION CASE 50 – 58
2F10 STEERING PUMP, INDIVIDUAL PARTS 60 – 32 2D17 TRANSMISSION GEARS 50 – 60
2F14 STEERING PUMP, INDIVIDUAL PARTS 60 – 36 1G12 TRANSMISSION WIRING HARNESS 40 – 24
2F12 STEERING PUMP, SEAL KIT 60 – 34 1G11 TRANSMISSION-BRAKE 40 – 22
2E13 STEERING TIE RODS 60 – 8 2I12 TRAVERSE BRACKET AND SUPPORTS 80 – 2
4B11 STONE TRAP 120 – 4 1B15 TUBE,VENT 20 – 11
3D9 STORAGE RACK, CAB 90 – 52 1E2 TURBOCHARGER 30 – 6
4E9 STRAW CHOPPER COUNTERKNIFES AND SUPPORT 120 – 78 1E2 TURBOCHARGER OIL LINES 30 – 6
4F7 STRAW CHOPPER COUNTERSHAFT 120 – 96
4E21 STRAW CHOPPER DEFLECTOR 120 – 90
4E23 STRAW CHOPPER DEFLECTOR 120 – 92 U
4F1 STRAW CHOPPER DEFLECTOR 120 – 93A
4F3 STRAW CHOPPER DEFLECTOR 120 – 93C 1C5 UNDERSIZE CRANKSHAFT/BEARINGS KIT 20 – 22B
4E17 STRAW CHOPPER DEFLECTORS FOR DISTRIBUTOR 120 – 86 4H12 UNLOADING AUGER 130 – 38
4E15 STRAW CHOPPER DISTRIBUTOR HOUSING 120 – 84 4H22 UNLOADING AUGER DRIVE LINKAGE 130 – 48
4F5 STRAW CHOPPER DRIVE IDLERS 120 – 94 4I1 UNLOADING AUGER HOUSING 130 – 52
4E13 STRAW CHOPPER DRIVE PULLEY 120 – 82 2H15 UNLOADING AUGER HYDRAULIC LINES 70 – 36
4F9 STRAW CHOPPER DRIVE SHIELD 120 – 98 4I15 UNLOADING AUGER LOWER SUPPORT 130 – 66
4E7 STRAW CHOPPER HOUSING 120 – 76 3C18 UNLOADING AUGER SWING CONTROL LINKAGE 90 – 36
4E19 STRAW CHOPPER RETAINERS 120 – 88 4I13 UNLOADING AUGER SWING HYDRAULIC CYLINDER
4E11 STRAW CHOPPER ROTOR AND KNIVES 120 – 80 MOUNTING 130 – 64
1H11 STRAW CHOPPER, CABLE 40 – 48 4I3 UNLOADING AUGER, OUTER 130 – 54
1H13 STRAW CHOPPER, ELECTRICAL PARTS 40 – 50 4I9 UNLOADING AUGER, OUTER, DRIVE 130 – 60
4F13 STRAW SPREADER BLADES 120 – 102 4I11 UNLOADING AUGER, OUTER, DRIVE 130 – 62
4F11 STRAW SPREADER DRIVE 120 – 100 4I7 UNLOADING AUGER, OUTER, DRIVE GEAR CASE 130 – 58
4F17 STRAW SPREADER SAFETY RAIL 120 – 106 4H18 UNLOADING DRIVE, GRAIN TANK 130 – 44
4F15 STRAW SPREADER, DEFLECTOR 120 – 104 4H20 UNLOADING DRIVE, GRAIN TANK 130 – 46
4F15 STRAW SPREADER, DRIVE SHIELD 120 – 104 4D13 UPPER FAN VARIATOR DRIVE 120 – 58
4D20 STRAW WALKER 120 – 66 2J15 UPPER TAILINGS ELEVATOR GUARD 80 – 28
4D22 STRAW WALKER 120 – 67A
4E5 STRAW WALKER BEARING 120 – 74
4E1 STRAW WALKER CRANKSHAFT, FRONT 120 – 70 V
4E3 STRAW WALKER CRANKSHAFT, REAR 120 – 72
4D5 STRAW WALKER DRIVE 120 – 50 1B18 VALVE SEATS(6359D) 20 – 14
1H23 STRAW WALKER WARNING SYSTEM 40 – 60 1B19 VALVE SEATS(6359T) 20 – 15
3F7 SUCTION FAN DRIVE 90 – 100 2C1 VALVE, HYDROSTATIC MOTOR 50 – 20
3F5 SUCTION FAN DRIVE, AIR CONDITIONING 90 – 98 1B18 VALVES(6359D) 20 – 14
1D9 SUCTION NOZZLE FOR ROTARY RADIATOR 1B19 VALVES(6359T) 20 – 15
SCREEN 20 – 52 4B22 VARIABLE CYLINDER SHEAVES, POSI TORQ 120 – 16
2I20 SUPPORT, FEEDER HOUSE 80 – 9A 4B24 VARIABLE CYLINDER SHEAVES, REDUCTION
2I14 SUPPORT, FRONT AXLE 80 – 4 TRANSMISSION 120 – 18
4I15 SUPPORT, LOWER, UNLOADING AUGER 130 – 66 4C1 VARIABLE CYLINDER SUSPENSION 120 – 20
4B18 SUSPENSION, CONCAVE 120 – 12 4C4 VARIABLE DRIVE WITH CENTER OIL SUPPLY
4C1 SUSPENSION, VARIABLE CYLINDER 120 – 20 FOR BEATER 120 – 24
2B10 SWASHPLATE, HYDROSTATIC PUMP 50 – 4 2H17 VARIABLE DRIVE WITH CENTER OIL SUPPLY
1H6 SWITCH, REVERSER 40 – 43 FOR BEATER HYDRAULIC LINE 70 – 38
4D17 VARIABLE SHEAVES, LOWER FAN 120 – 62
1B15 VENT TUBE 20 – 11
T 3D5 VISOR AND DOOR HANDLE 90 – 48
1H3 TAIL LIGHTS 40 – 40
4G19 TAILINGS AUGER DRIVE IDLER 130 – 20 W
4G13 TAILINGS ELEVATOR 130 – 14
4G15 TAILINGS ELEVATOR CHAIN 130 – 16 1H3 WARNING LIGHTS 40 – 40
4435 AND 4435 HYDRO COMBINES PC4227 (08-AUG-96) 10-19
PN=19
1A21
4435 AND 4435 HYDRO COMBINES
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
1H23 WARNING SYSTEM, STRAW WALKER 40 – 60
1C25 WATER MANIFOLD 20 – 43
1C18 WATER PUMP 20 – 36
2E3 WHEELS, DRIVE 50 – 70
4H3 WINDOWS, GRAIN TANK 130 – 28
1J5 WINDSHIELD WIPERS (UPPER) 40 – 88
1J5 WIPERS (UPPER), WINDSHIELD 40 – 88
3E16 WIRE TRAY, AIR CONDITIONING HOSES 90 – 83
3E16 WIRE TRAY, HEATER HOSES 90 – 83
1H17 WIRING HARNESS – INSTRUMENT PANEL 40 – 54
1G20 WIRING HARNESS, BASIC 40 – 32
1G22 WIRING HARNESS, BASIC 40 – 34
1G24 WIRING HARNESS, BASIC 40 – 36
1J7 WIRING HARNESS, BASIC 40 – 90
1F21 WIRING HARNESS, ENGINE 40 – 8
1I13 WIRING HARNESS, GRAIN TANK 40 – 73A
1H7 WIRING HARNESS, LOW SHAFT SPEED CONTROL
SENDING UNIT 40 – 44
1G14 WIRING HARNESS, OPERATOR’S PLATFORM 40 – 26
1G12 WIRING HARNESS, TRANSMISSION 40 – 24
1I5 WIRING HARNESSES, HARVESTRAK 40 – 66
1I23 WIRING, CAB ROOF 40 – 82

Customer Support: [email protected]

https://vimeo.com/743309194

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

I.G
