John Deere 605C Crawler Loader Operators Manual OMT217598 – PDF DOWNLOAD
FILE DETAILS:
John Deere 605C Crawler Loader Operators Manual OMT217598 – PDF DOWNLOAD
Language : English
Pages : 194
Downloadable : Yes
File Type : PDF

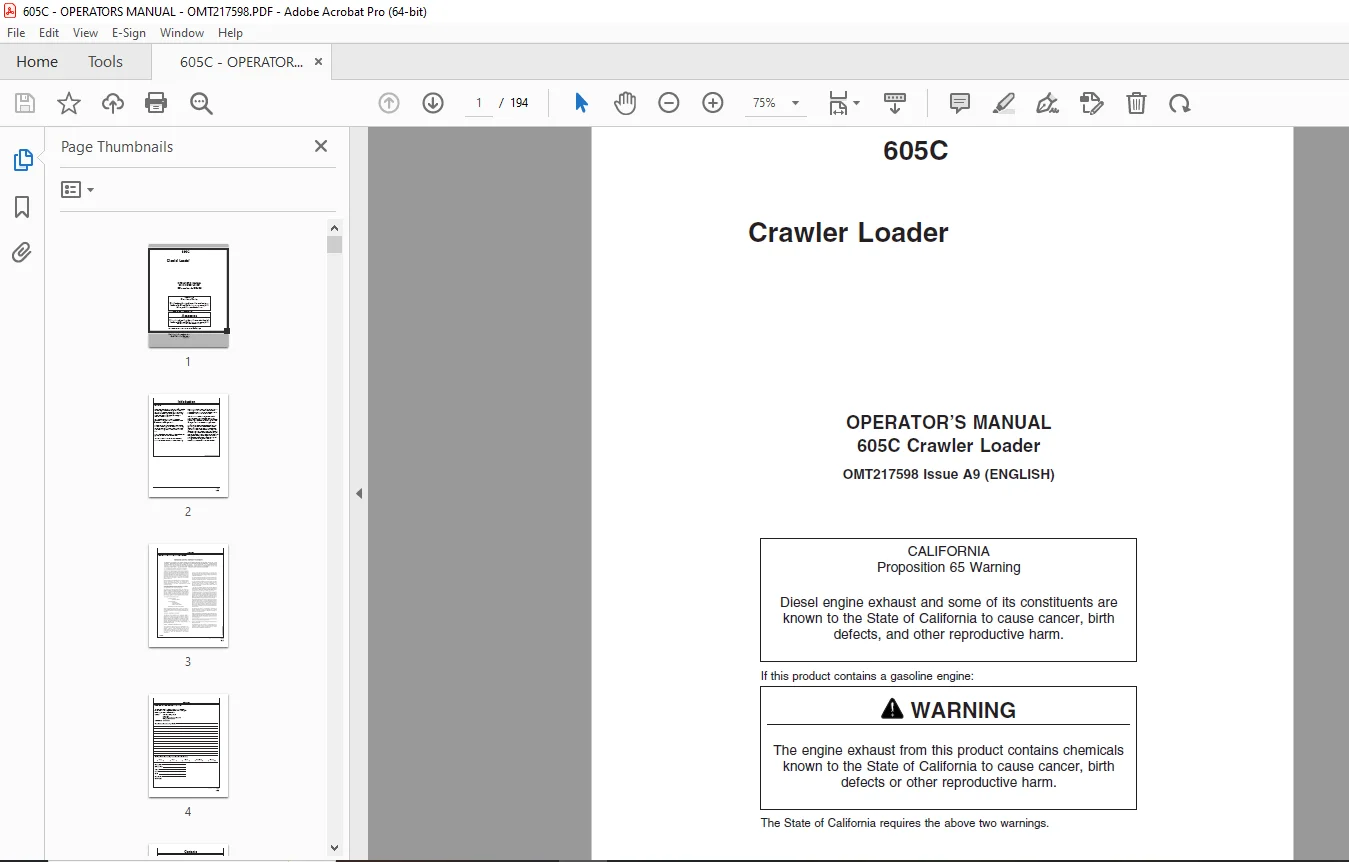

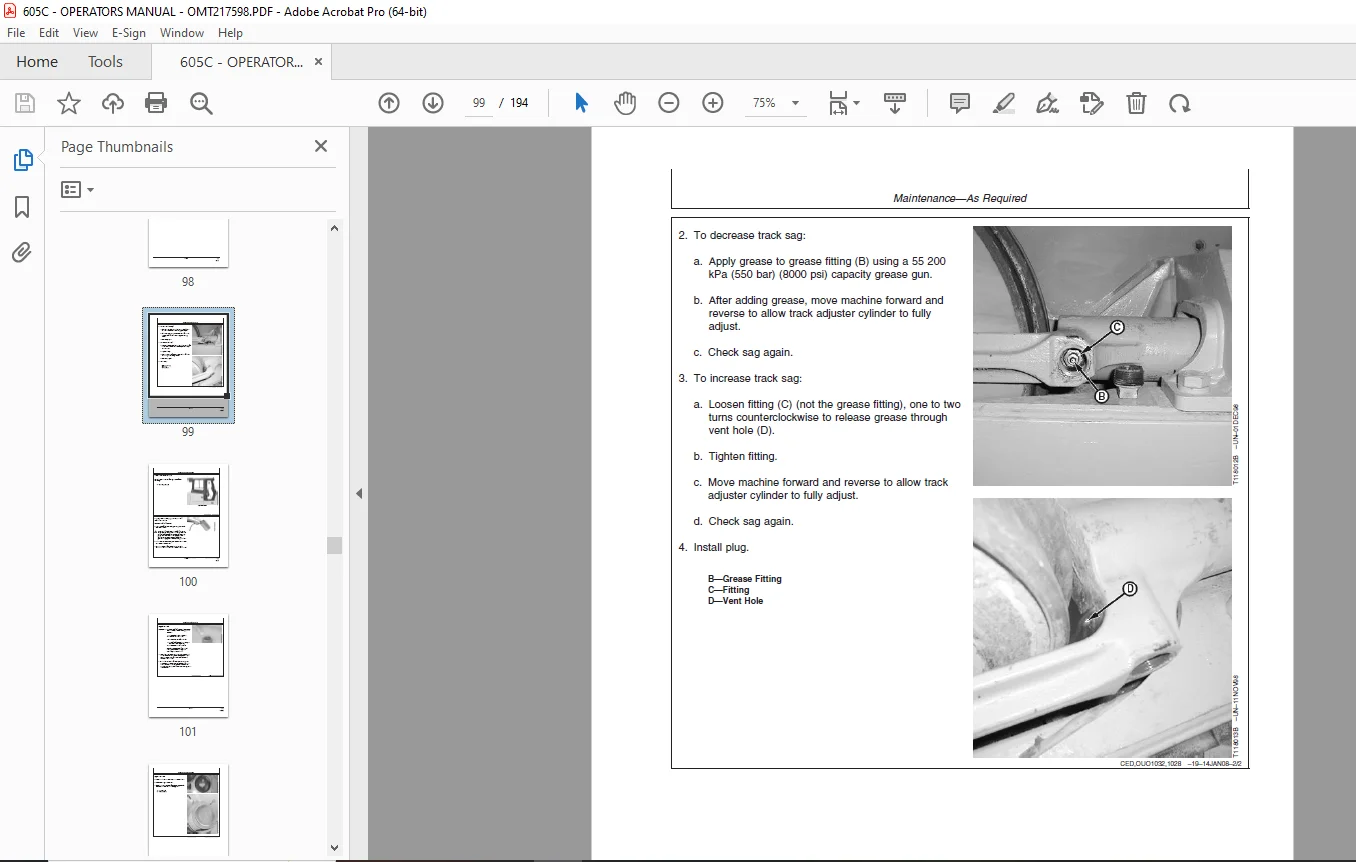

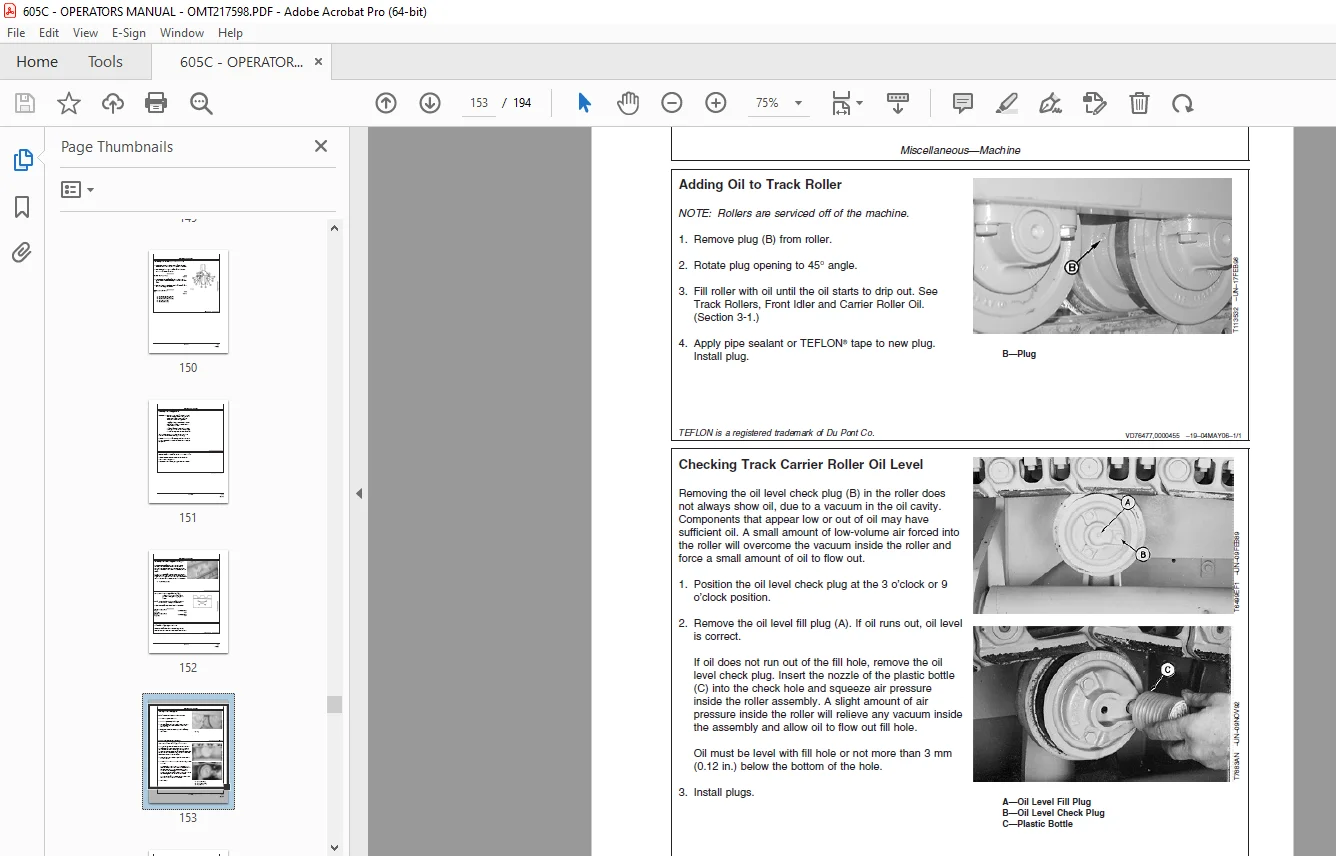

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
John Deere 605C Crawler Loader Operators Manual OMT217598 – PDF DOWNLOAD
Contents 5
Safety—Safety and Operator Conveniences 9
Safety and Operator Conveniences 9
Safety—General Precautions 10
Recognize Safety Information 10
Follow Safety Instructions 10
Operate Only If Qualified 11
Wear Protective Equipment 11
Avoid Unauthorized Machine Modifications 11
Inspect Machine 12
Add Cab Guarding For Special Uses 12
Stay Clear of Moving Parts 12
Avoid High-Pressure Fluids 13
Avoid High-Pressure Oils 13
Beware of Exhaust Fumes 14
Prevent Fires 14
Prevent Battery Explosions 14
Handle Chemical Products Safely 15
Dispose of Waste Properly 15
Prepare for Emergencies 15
Safety—Operating Precautions 16
Start Only From Operator’s Seat 16
Use and Maintain Seat Belt 16
Use Steps and Handholds Correctly 16
Prevent Unintended Machine Movement 17
Avoid Work Site Hazards 18
Keep Riders Off Machine 18
Avoid Backover Accidents 19
Avoid Machine Tip Over 19
Safety—Maintenance Precautions 20
Park And Prepare For Service Safely 20
Service Cooling System Safely 20
Remove Paint Before Welding or Heating 21
Make Welding Repairs Safely 21
Drive Metal Pins Safely 22
Safety—Safety Signs 23
Safety Signs 23
Operation—Operator’s Station 24
Operator’s Station 24
Instrument Panel 25
Instrument Panel Switches 26
Instrument Panel Indicators 27
Instrument Panel Gauges 28
Hydraulic Oil Temperature Gauge 28
Diagnostic Display Unit (DDU) 29
Low Speed Range Switch 30
Horn Button 30
Emergency Travel Stop Button 31
Park Lock Lever 31
Key Switch 32
Windshield Wiper and Washer 32
Heating and Air Conditioning Controls 33
Working Light Switch 34
Operator Warning Light 34
Adjust Standard Suspension Seat 35
Adjust Air Suspension Seat—If Equipped 36
Operator’s Manual Compartment 37
Dome Light 37
Door Latch 38
Window Lock 38
Secondary Exit 38
Operation—Operating the Machine 39
Inspect Machine Daily Before Starting 39
Starting the Engine 40
Engine Warm-Up 43
Cold Weather Warm-Up 43
Cold Weather Start Aid 43
Steering the Machine 45
Steering the Machine—Transmission Control Lever—V-Pattern (If Equipped) 45
Using Engine Speed Control Knob 48
Controlling Machine Travel Speed 49
Driving the Machine 50
Stopping the Engine 51
Stopping the Machine 52
Parking the Machine 53
Parking Brake 54
Pilot Control Lever 55
Using Boom Float 57
Using Bucket Return-to-Dig 57
Using Boom Height Kickout 58
Operating Multi-Purpose Bucket 59
Operating and Maintenance Undercarriage Tips 60
Operating in Water 61
Loading Machine on a Trailer 62
Loading Machine with Crane 64
Towing the Machine 65
Maintenance—Machine 69
Diesel Fuel 69
Biodiesel Fuel 70
Low Sulfur Diesel Fuel Conditioner 71
Diesel Fuel Storage 72
Diesel Engine Oil 73
Diesel Engine Oil and Filter Service Intervals 74
Track Rollers, Front Idler and Carrier Roller Oil 75
Transmission, Hydraulic and Final Drive Seal Cavity Oil 75
Splitter Box Oil 75
Final Drive Oil 76
Grease 77
Diesel Engine Coolant 78
Alternative And Synthetic Lubricants 79
Heavy Duty Diesel Engine Coolant 80
Drain Intervals for Diesel Engine Coolant 81
John Deere COOL-GARD™ II COOLANT EXTENDER 82
Supplemental Coolant Additives 82
Operating in Warm Temperature Climates 83
Additional Information About Diesel Engine Coolants and John Deere COOL-GARD™ II COOLANT EXTENDER 84
Testing Diesel Engine Coolant 85
Maintenance—Periodic Maintenance 86
Service Your Machine at Specified Intervals 86
Check the Hour Meter Regularly 86
Prepare Machine for Maintenance 87
Fuel Tank 88
Tilt Cab/Canopy (ROPS) 88
Maintenance and Repair Record Keeping System 91
Fluid Analysis Program Test Kits and 3-Way Coolant Test Kit 92
Service Intervals 93
Required Parts 95
Maintenance—As Required 96
Drain Water and Sediment From Primary Fuel Filter/Water Separator 96
Drain Water and Sediment From Fuel Tank 96
Check Track Sag 97
Adjust Track Sag 98
Grease Cab Door Hinges100
Inspect, Clean, and Replace Engine Air Cleaner Elements100
Inspect Belt103
Checking Track Shoe Cap Screw Torque104
Check and Clean Radiator Core and Oil Cooler Core105
Cleaning and Replacing Cab Fresh Air Filters106
Cleaning and Replacing Cab Recirculating Air Filter107
Maintenance—Every 10 Hours or Daily108
Check Coolant Level108
Check Engine Oil Level109
Check Transmission/Hydraulic System Oil Level110
Maintenance—Every 50 Hours111
Check Splitter Box Oil Level111
Grease Loader Linkage and Cylinder Pivots112
Maintenance—Initial Service – 250 Hours113
Change Engine Oil and Filter113
Maintenance—Every 500 Hours115
Change Engine Oil and Filter115
Replace Primary Fuel Filter/Water Separator115
Replace Final Fuel Filter116
Check Battery Electrolyte Level and Terminals117
Replace Transmission/Hydraulic Oil Return Filter120
Check Transmission/Hydraulic Charge Oil Case Return Filters121
Change Splitter Box Oil121
Check Final Drive Oil Level122
Change Final Drive Oil123
Check Air Intake Hose123
Check Coolant Conditioner In Radiator124
Replace Transmission/Hydraulic Charge Oil Filter125
Maintenance—Every 1000 Hours126
Check Transmission/Hydraulic Charge Oil Case Return Filters126
Maintenance—Every 2000 Hours 127
Drain and Flush Cooling System127
Replace Engine Crankcase Oil Separator (If Equipped)130
Check and Adjust Engine Valve Lash130
Change Transmission/Hydraulic System Oil131
Miscellaneous—Machine132
Adjust Armrest132
Bleeding Fuel System132
Replacing Belt134
Resetting Circuit Breaker135
Fuse and Relay Specifications136
Replacing Fuses137
Replacing Dome Light Bulb138
Replacing Indicator Bulbs138
Replacing Control Panel Button Bulbs139
Replacing Working Light Bulb139
Removing and Installing Bucket Teeth140
Do Not Service or Adjust Injection Nozzles or Injection Pump140
Do Not Service Control Valves and Cylinders140
Precautions for Alternator and Regulator141
Handling, Checking and Servicing Batteries Carefully142
Using Booster Batteries—24-Volt System144
Using Battery Charger145
Removing and Installing Batteries146
Checking Air Conditioner Receiver/Dryer147
Track Sag General Information148
Checking and Adjusting Idler Side Play149
Checking and Adjusting Idler Vertical Play150
Cleaning Track Components151
Do Not Service Control Valves and Cylinders151
Checking Track Shoe Cap Screw Torque152
Hardware Torque Specifications152
Adding Oil to Track Roller153
Checking Track Carrier Roller Oil Level153
Miscellaneous—Operational Checkout155
Operational Checkout155
Cooling System Checks155
155
156
156
156
157
157
Air System Check157
158
Lubrication System Checks158
158
Fuel System Checks158
159
159
159
Engine Speed and Performance Checks159
160
Transmission Checks160
160
160
160
161
161
162
162
Key Switch, Instrument Control Panel , Battery, And Hour Meter Checks162
162
163
163
164
164
Reverse Warning Alarm Checks (With Engine Off)164
164
Neutral Start Switch and Start Circuit Checks164
165
165
Engine Speed Control Dial and Brake Checks165
165
Undercarriage Checks165
166
166
166
166
167
Accessory Checks167
167
167
167
Blower/Heater/Air Conditioning Component Operational Checks—If Equipped168
168
168
168
169
169
169
169
Miscellaneous—Troubleshooting170
Engine170
Electrical System172
Hydraulic System173
Travel Gear and Track173
Heating System174
Miscellaneous—Storage175
Prepare Machine For Storage175
Monthly Storage Procedure176
Miscellaneous—Specifications179
605C Crawler Loader Dimensions179
605C Crawler Loader Specifications184
605C Crawler Loader Drain and Refill Capacities186
Miscellaneous—Machine Numbers187
Record Product Identification Number (PIN)187
Record Engine Serial Number187
DESCRIPTION:
John Deere 605C Crawler Loader Operators Manual OMT217598 – PDF DOWNLOAD
Foreword:
- READ THIS MANUAL carefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury or equipment damage. This manual and safety signs on your machine may also be available in other languages. (See your authorized dealer to order.)
- THIS MANUAL SHOULD BE CONSIDERED a permanent part of your machine and should remain with the machine when you sell it.
- MEASUREMENTS in this manual are given in both metric and customary U.S. unit equivalents. Use only correct replacement parts and fasteners. Metric and inch fasteners may require a specific metric or inch tool.
- RIGHT-HAND AND LEFT-HAND sides are determined by facing in the direction of forward travel.
- WRITE PRODUCT IDENTIFICATION NUMBERS (P.I.N.) in the Machine Numbers section. Accurately record all the numbers to help in tracing the machine should it be stolen. Your dealer also needs these numbers when you order parts. File the identification numbers in a secure place off the machine.
- WARRANTY is provided as part of John Deere’s support program for customers who operate and maintain their equipment as described in this manual. The warranty is explained on the warranty certificate which you should have received from your dealer. This warranty provides you the assurance that John Deere will back its products where defects appear within the warranty period. In some circumstances, John Deere also provides field improvements, often without charge to the customer, even if the product is out of warranty. Should the equipment be abused, or modified to change its performance beyond the original factory specifications, the warranty will become void and field improvements may be denied. Setting fuel delivery above specifications or otherwise overpowering machines will result in such action.
