John Deere 6105R 6115R 6125R 6130R 6140R 6150R 6170R INSTALLATION INSTRUCTIONS MANUAL MHM1559

Description

John Deere 6105R, 6115R, 6125R, 6130R, 6140R, 6150R, 6170R, 6190R, 6210R, 6090M, 6100M, 6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M, 6090MC, 6100MC, 6110MC, 6090RC, 6100RC, 6110RC, 6095MC, 6105MC, 6115MC, 6095RC, 6105RC, 6115RC  INSTALLATION INSTRUCTIONS MANUAL MHM1559  – PDF DOWNLOAD

FILE DETAILS:

John Deere 6105R, 6115R, 6125R, 6130R, 6140R, 6150R, 6170R, 6190R, 6210R, 6090M, 6100M, 6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M, 6090MC, 6100MC, 6110MC, 6090RC, 6100RC, 6110RC, 6095MC, 6105MC, 6115MC, 6095RC, 6105RC, 6115RC  INSTALLATION INSTRUCTIONS MANUAL MHM1559  – PDF DOWNLOAD

Language :English
Pages :64
Downloadable : Yes
File Type : PDF

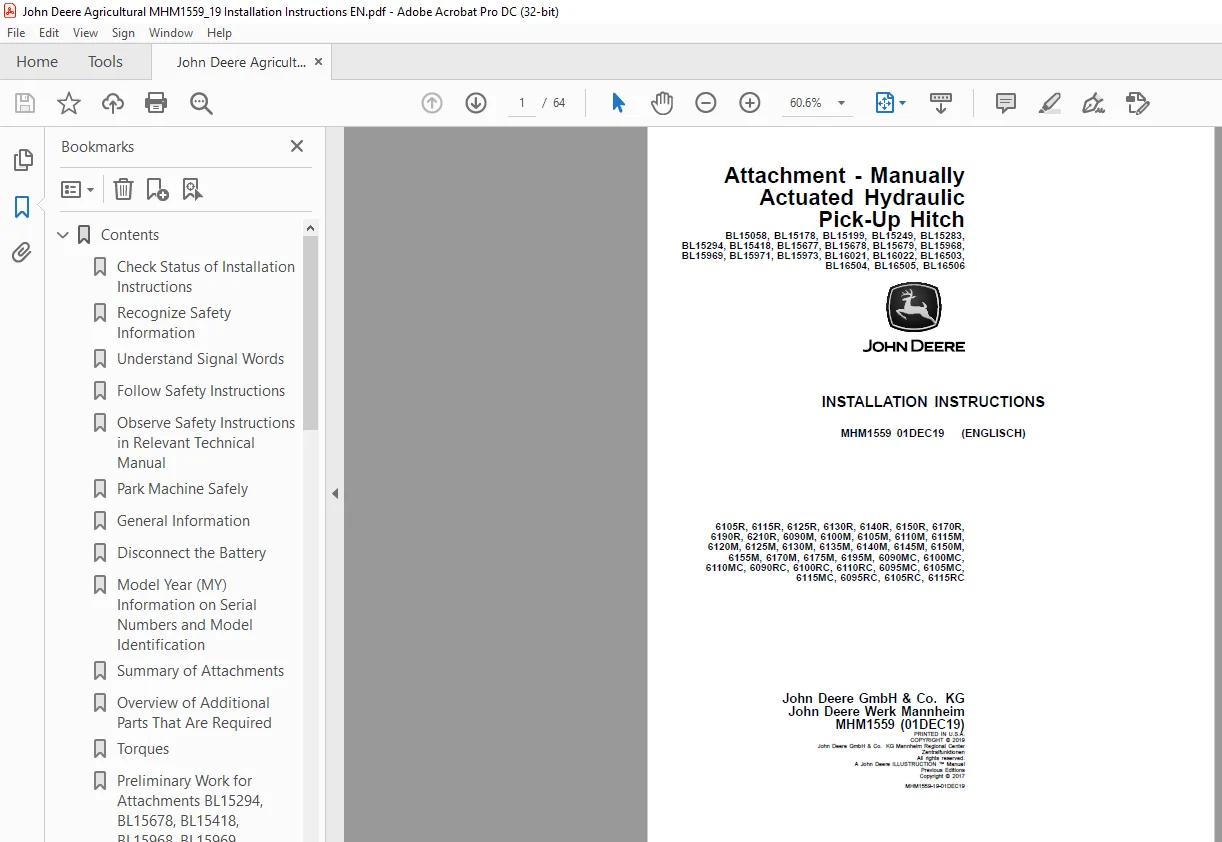

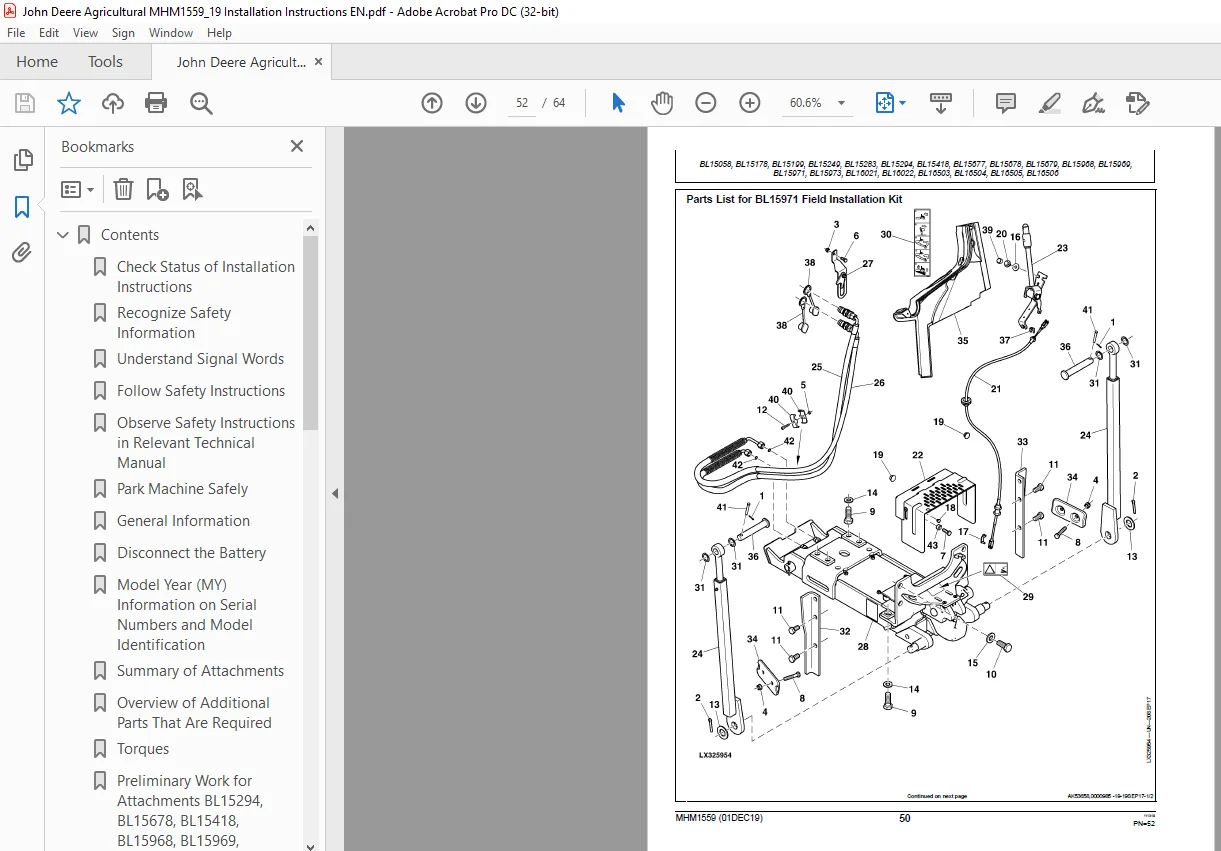

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere 6105R, 6115R, 6125R, 6130R, 6140R, 6150R, 6170R, 6190R, 6210R, 6090M, 6100M, 6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M, 6090MC, 6100MC, 6110MC, 6090RC, 6100RC, 6110RC, 6095MC, 6105MC, 6115MC, 6095RC, 6105RC, 6115RC  INSTALLATION INSTRUCTIONS MANUAL MHM1559  – PDF DOWNLOAD

Attachment – Manually
Actuated Hydraulic
Pick-Up Hitch
BL15058, BL15178, BL15199, BL15249, BL15283,
BL15294, BL15418, BL15677, BL15678, BL15679, BL15968,
BL15969, BL15971, BL15973, BL16021, BL16022, BL16503,
BL16504, BL16505, BL16506

Contents 1
Check Status of Installation Instructions 3
Recognize Safety Information 3
Understand Signal Words 3
Follow Safety Instructions 3
Observe Safety Instructions in Relevant Technical Manual 3
Park Machine Safely 4
General Information 4
Disconnect the Battery 4
Model Year (MY) Information on Serial Numbers and Model Identification 4
Summary of Attachments 5
Overview of Additional Parts That Are Required 5
Torques 7
Preliminary Work for Attachments BL15294, BL15678, BL15418, BL15968, BL15969, BL16503, and BL16504 7
Install Control Lever and Control Cable 8
Install the Pick-Up Hitch 11
Position the Hydraulic Hoses and Install the Holder 15
Apply Decals 16
Adjust the Pick-Up Hitch 17
In Reverse Order, Re-install All the Parts Removed from the Tractor 17
Operational Check 17
Note 17
Drawbar Installation 17
Parts List for BL16021 Field Installation Kit 19
Parts List for BL16022 Field Installation Kit 20
Parts List for BL15058 Field Installation Kit 21
Parts List for BL15178 Field Installation Kit 23
Parts List for BL15199 Field Installation Kit 26
Parts List for BL15249 Field Installation Kit 29
Parts List for BL15283 Field Installation Kit 31
Parts List for BL15294 Field Installation Kit 33
Parts List for BL15418 Field Installation Kit 36
Parts List for BL15677 Field Installation Kit 38
Parts List for BL15678 Field Installation Kit 40
Parts List for BL15679 Field Installation Kit 43
Parts List for BL15968 Field Installation Kit 45
Parts List for BL15969 Field Installation Kit 48
Parts List for BL15971 Field Installation Kit 51
Parts List for BL15973 Field Installation Kit 53
Parts List for BL16503 Field Installation Kit 55
Parts List for BL16504 Field Installation Kit 58
Parts List for BL16505 Field Installation Kit 60
Parts List for BL16506 Field Installation Kit 62
