John Deere 624K Loader Parts Manual PC10058 – PDF DOWNLOAD

Description

John Deere 624K Loader Parts Manual PC10058 – PDF DOWNLOAD

FILE DETAILS:

John Deere 624K Loader Parts Manual PC10058 – PDF DOWNLOAD

Language : English
Pages : 964
Downloadable : Yes
File Type : PDF

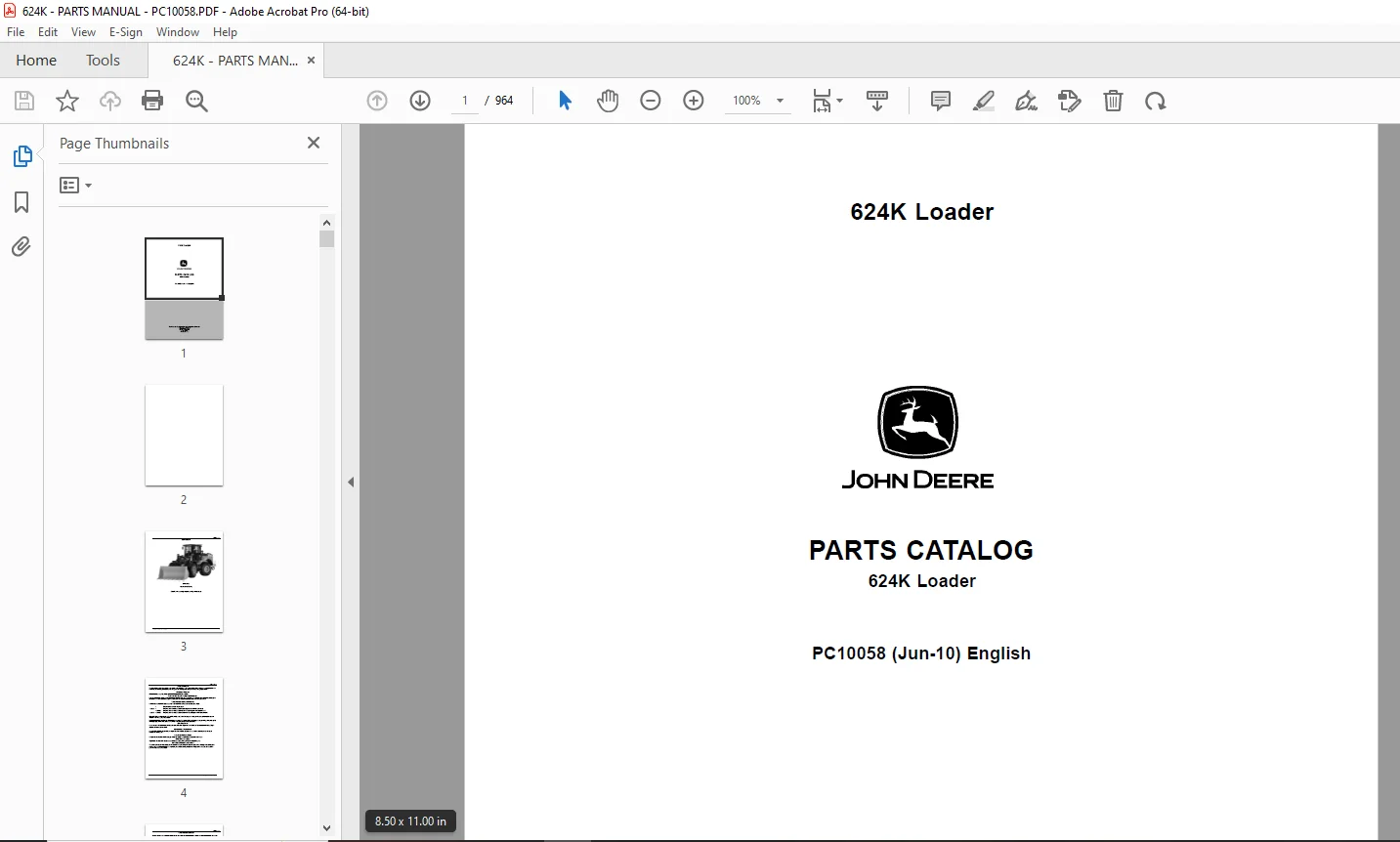

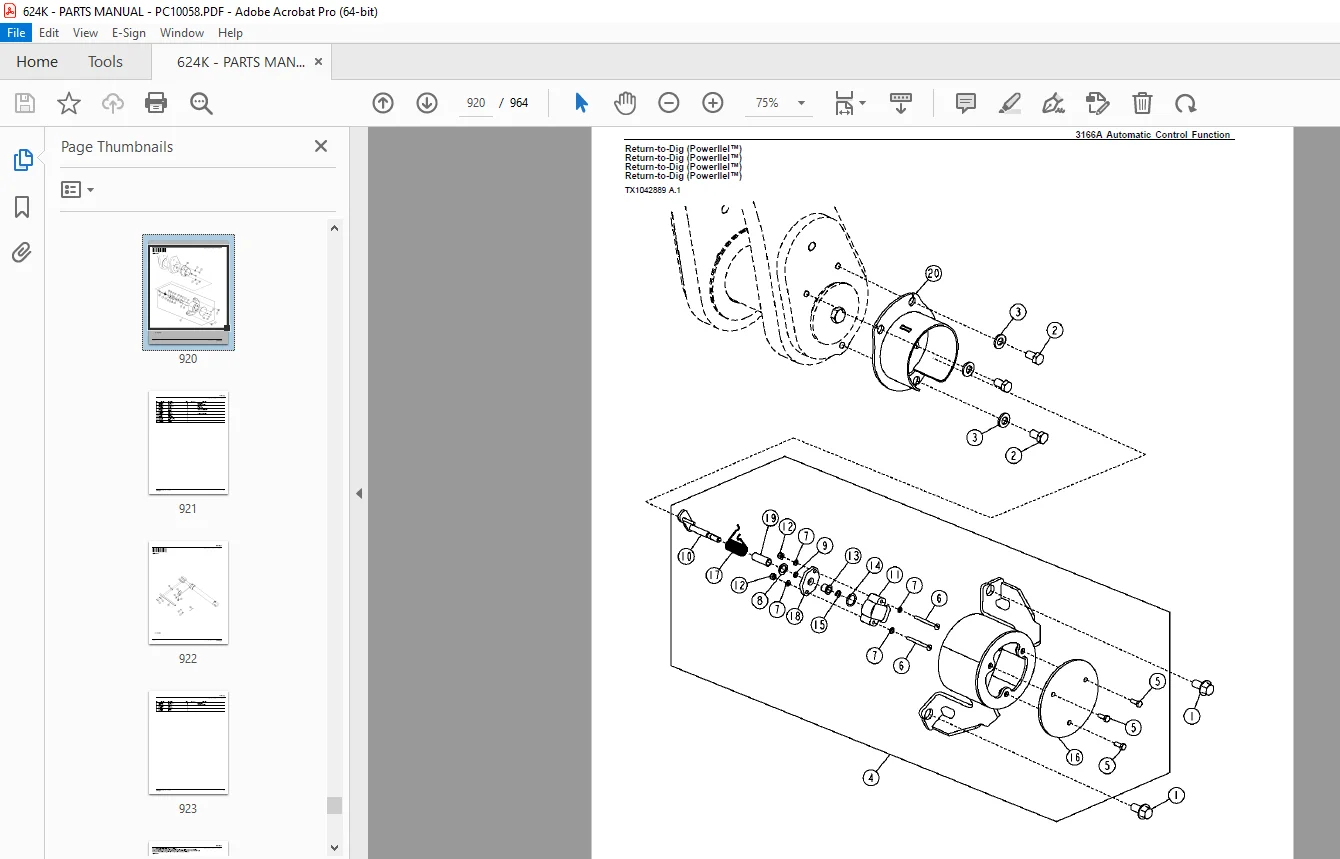

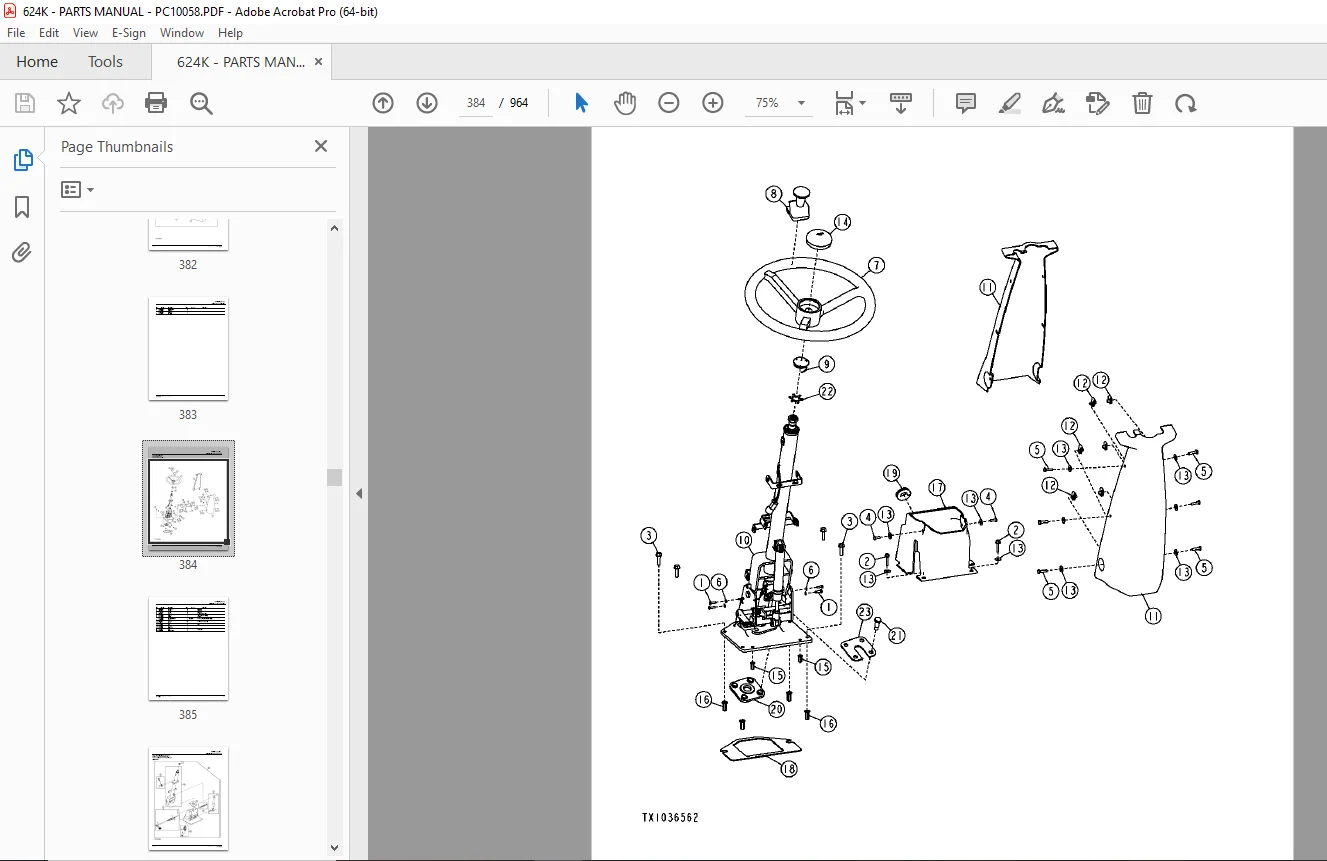

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere 624K Loader Parts Manual PC10058 – PDF DOWNLOAD

624K Loader 1
Contents 1
Introduction 3
SECTIONS 1
01 Wheels & Tires & Tracks 32
0110 Powered Wheels, Tires & Fastenings 32
1 – 3 Pc Rim (205 X 25 Tire) (600/65R25 Low Profile Tire) 32
3 – 1 Pc Logger Rim (28L X 26 Tire) 34
02 Axles, Differentials & Suspension Systems 36
0201 Drive Axle Hsg & Support (Inc Final Drives) 36
1 – Front Axle 36
3 – Rear Axle with Standard Differential 38
5 – Rear Axle with Hydraulic Differential 40
0242 Axle Mounting Parts 42
1 – Axle Stop (8 Degree) 42
3 – Axle Mounting 44
0263 Lines, Hoses & Fittings 46
1 – Front Differential Lock Line 46
3 – Rear Differential Lock Line 48
5 – Differential Lock Switch 50
7 – Auto Differential Lock 52
02A Axle 54
0200A Axle YZ19333, YZ19332 54
1 – YZ120777 SPIRAL BEVEL ASSEMBLY 4778:1;RH,TMIV,1200 SERIES 54
3 – RE35709 SPIRAL BEVEL ASSEMBLY 4778;LH,TMIV,1400 SERIES 56
5 – YZ120747 INPUT YOKE WITH SLINGER (1550)TMIV,1200 SERIES 58
7 – YZ120750 INPUT YOKE WITH SLINGER 1550, TMIV(1400 SERIES) 60
9 – YZ120709 AXLE HOUSING AND SHAFT TMIV,1200 SERIES 62
11 – YZ120720 AXLE HOUSING AND SHAFT; TMIV,1400 SERIES 64
13 – YZ121797 AXLE HOUSING AND SHAFT; TMIV,1400 SERIES 66
15 – YZ121323 STANDARD INPUT HOUSING, OSCILLATING;TMIV,1200 SERI 68
17 – YZ121049 STANDARD INPUT HOUSING, NON-OSCILLATING (1400);COD 70
19 – YZ121322 OSCILLATION, DUAL CENTER PIVOT; TMIV,1200 SERIES 72
21 – YZ120724 DUAL BRAKES 4800:1; TMIV,1400 SERIES 74
23 – YZ120713 DUAL BRAKES; TMIV,1200 SERIES 76
25 – YZ121237 DIFFERENTIAL LOCK; TMIV,1200 SERIES 78
27 – YZ121256 DIFFERENTIAL LOCK; TMIV,1400 SERIES 80
29 – YZ120988 STANDARD DIFFERENTIAL; TMIV,1200 SERIES 82
31 – YZ120944 STANDARD DIFFERENTIAL CASE; TMIV,1200 SERIES 84
33 – YZ121182 STANDARD DIFFERENTIAL CASE; TMIV,1400 SERIES 86
35 – YZ120946 FINAL DRIVE 48:1; TMIV,1200 SERIES 88
37 – YZ120753 FINAL DRIVE 48:1; TMIV,1400 SERIES 90
03 Transmission 92
0325 Input Drive Shafts & U-joints 92
1 – Drive Shafts 92
0342 Transmission Mounting Parts 94
1 – Transmission 94
0350 Gears, Shafts & Power Shift Clutches 96
1 – Transmission Oil Filter 96
3 – Torque Converter 98
5 – Transmission Input Shaft100
7 – Transmission Housing102
9 – Transmission Speed Sensor104
11 – Transmission Oil Pump106
13 – Transmission Cover and Gasket108
15 – Transmission Internal Oil Lines110
17 – Transmission Control Valve Manifold112
19 – Brake Valve To Transmission Control Valve114
21 – Transmission Output Shaft116
23 – Torque Converter Relief Valve and Transmission Minimum Pres118
25 – Power Takeoff120
27 – Low Range Forward Clutch Assembly122
29 – Reverse Clutch Assembly124
31 – First Gear Clutch Assembly126
33 – Second Gear Clutch Assembly128
35 – Third Gear Clutch Assembly130
37 – High Range Forward Clutch Assembly132
0351 Gears, Shafts, Bearings & Seals134
1 – Drive Damper and Cover134
0360 Transmission Hydraulics136
1 – Transmission Lines and Fittings136
04 Engine139
139 – Sectional Pictorial Index139
140 – Sectional Pictorial Index140
141 – Sectional Pictorial Index141
0400A Engine 6068HDW79142
1 – 1144 (ROCKER ARM COVER)142
3 – 1241 (OIL FILL)144
4 – 1320 (CRANKSHAFT PULLEY)145
5 – 1405 (FLYWHEEL HOUSING)146
6 – 1503 (FLYWHEEL)147
7 – 169Z (FUEL INJECTION PUMP)148
9 – 17BL (AIR INLET)150
11 – 1946 (OIL PAN)152
13 – 2001 (WATER PUMP PULLEY)154
14 – 2154 (THERMOSTAT COVER)155
15 – 2255 (THERMOSTAT)156
16 – Engine Coolant Heater Fittings157
17 – 2876 (EXHAUST MANIFOLD)158
19 – 2917 (VENTILATING SYSTEM)160
21 – 3041 (STARTING MOTOR)162
23 – 35DZ (FUEL FILTER)164
25 – 3614 FRONT PLATE AND IDLE GEARS (UPPER AND LOWER)166
27 – 3713 (FUEL TRANSFER PUMP)168
29 – 3917 (THERMOSTAT HOUSING / BY PASS TUBE TO WATER PUMP)170
31 – 4035 (ENGINE OIL DIPSTICK)172
33 – 4330 (STARTING AID)174
35 – 4440 (TIMING GEAR COVER)176
37 – 4633 (CYLINDER BLOCK)178
39 – 4712 (CRANKSHAFT / BEARINGS)180
41 – 4836 (CONNECTING RODS AND PISTONS)182
43 – 4905 (ROCKER ARM / SHAFT / TAPPET / PUSH ROD)184
45 – 5024 (OIL PUMP)186
47 – 5120 (CYLINDER HEAD)188
49 – 5204 (AUXILIARY DRIVE)190
50 – 5497 (TURBO AIR INLET BRACKET)191
51 – 5728 (WATER PUMP INLET)192
52 – 5945 (OIL COOLER)193
53 – 6275 (ALTERNATOR BRACKETS)194
54 – 6284 (ALTERNATOR BRACKETS)195
55 – 6389 (FUEL LINES)196
57 – 65TE (TURBOCHARGER)198
59 – 6698 (TEMPERATURE SWITCH)200
61 – 6721 (SENSORS)202
63 – 8169 (PRIMARY FUEL FILTER)204
65 – 8491 (WIRING HARNESS ACCESSORIES)206
66 – 8718 (BELT TENSIONER)207
67 – 8842 (OIL FILTER)208
69 – 8903 (EXHAUST GAS RECIRCULATION (EGR)210
71 – 9801 (LIFT STRAPS)212
73 – 9901 -(COMPLETE BLOCK ASSEMBLY)214
75 – 9901 (REPLACEMENT ENGINE)216
260 Engine219
219 – Sectional Pictorial Index219
220 – Sectional Pictorial Index220
221 – Sectional Pictorial Index221
222 – Sectional Pictorial Index222
05 Engine Auxiliary System312
0505 Cold Weather Starting Aids312
1 – Engine Block Coolant Heater (110 Volt)312
3 – Engine Block Coolant Heater (220 Volt)314
5 – Fuel-Fired Coolant Heater316
0511 Radiator & Fan Shroud318
1 – Cooling Package318
3 – Cooling System (Engine 6068HDW79)320
5 – Cooling System (Engine 6068HDW83)322
7 – Axle Cooling System ( – 626437)324
9 – Axle Cooling System (626438 – )326
11 – Axle Cooling System Kit ( – 626437)328
13 – Axle Cooling System Kit (626438 – )330
15 – Axle Cooling System w/ Secondary Steering (626438 – )332
0512 Fan334
1 – Door with Fan and Fan Guard334
3 – Standard Fan Drive Pump and Motor336
5 – Standard Fan Drive Hoses338
7 – Reversing Fan Drive Pump and Motor340
9 – Reversing Fan Drive Hoses342
11 – Reversing Fan Drive Kit344
13 – Reversing Fan Drive Valve346
0515 Engine Speed Controls348
1 – Engine Speed Control Pedal348
0520 Intake System350
1 – Air Intake System (Engine 6068HDW79)350
3 – Air Intake System (Engine 6068HDW83)352
5 – Air Pre-Cleaner354
0530 External Exhaust Systems356
1 – Muffler and Black Exhaust Pipe (Engine 6068HDW79)356
3 – Muffler and Chrome Exhaust Pipe (Engine 6068HDW79)358
5 – Muffler and Black Exhaust Pipe (Engine 6068HDW83)360
7 – Muffler and Chrome Exhaust Pipe (Engine 6068HDW83)362
0540 Engine Mounting364
1 – Engine Mounts (Engine 6068HDW79)364
3 – Engine Mounts (Engine 6068HDW83)366
0560 External Fuel Supply Systems368
1 – Fuel Tank368
3 – Fuel System370
5 – Severe Duty Fuel System372
7 – Severe Duty Fuel Filter Kit374
09 Steering System376
0930 Emergency Steering376
1 – Secondary Steering376
3 – Secondary Steering (Joystick)378
5 – Secondary Steering Kit380
7 – Secondary Steering Valve382
0962 Steering Valve & Control384
1 – Steering Column384
3 – Steering Column Components386
5 – Steering Valve388
7 – Joystick Steering390
9 – Joystick Steering Kit392
11 – Joystick Steering Valve394
0963 Steering Lines, Hoses & Fittings396
1 – Steering Cylinder Hydraulic Hoses396
0965 Steering Cylinders398
1 – Steering Cylinder and Fittings398
3 – Steering Cylinder400
0974 Wiring Harnesses & Switches402
1 – Joystick Steering Wiring Harness402
3 – Left-hand Joystick Handle404
10 Service Brakes406
1062 Service Brake Valve406
1 – Brake Valve, Pedals and Linkage406
1063 Service Brake Links, Hoses & Fittings408
1 – Brake Valve Hydraulics408
1064 Reservoir & Accumulator410
1 – Brake Accumulator410
11 Parking Brakes412
1115 Controls Linkage412
1 – Park Brake Mounting412
3 – Park Brake414
13 Miscellaneous Vehicle416
1322 Decals & Trademarks416
1 – Decals and Labels (English)416
3 – Cab Decals and Labels (English)418
5 – Canopy Decals and Labels (English)420
7 – Decals and Labels (French)422
9 – Decals and Labels (Spanish)424
11 – Decals and Labels (Russian)426
13 – Decal Electrical Cold Start (English)428
1330 Shipping & Packaging430
1 – Lift Hooks430
1369 Greases, Oils, Fuels & Coolants432
1 – Environmental Drain432
3 – Quick Service434
1370 Lubrication Systems436
1 – Axle Seal Grease Lines436
15 Equipment Attaching438
1520 Hitches & Hitch Pins438
1 – Rear Hitch438
3 – Rear Hitch and Counterweight440
16 Vehicle Electrical Systems442
1671 Batteries, Support & Cables442
1 – Batteries and Battery Cables442
3 – Battery Box444
1672 Alternator, Regulator & Charging System Wiring446
1 – 80 Amp Alternator (without A/C)446
3 – 80 Amp Alternator (with A/C)448
5 – 100 Amp Alternator (without A/C)450
7 – 100 Amp Alternator (with A/C)452
1673 Vehicle Lighting System454
1 – Turn Signal and Marker Lights (Z-Bar)454
3 – Heavy Duty LED Turn Signal and Marker Lights (Z-Bar)456
5 – Turn Signal and Marker Lights (Powerllel™)458
7 – Heavy Duty LED Turn Signal and Marker Lights (Powerllel™)460
9 – Door-Activated Domelight Switch462
11 – Heavy Duty Rear Lights464
13 – Cab Work Lights466
15 – Beacon Light468
17 – License Plate Bracket (RH)470
19 – License Plate Bracket (LH)472
1674 Wiring Harness & Switches474
1 – Main Wiring Harness (Z-Bar)474
3 – Main Wiring Harness (Powerllel™)476
5 – Main Wiring Harness (Tool Carrier)478
7 – Loader Frame Wiring Harness (Z-Bar)480
9 – Loader Frame Wiring Harness (Powerllel™)482
11 – Engine Frame Wiring Harness484
13 – Engine Wiring Harness486
15 – Transmission Wiring Harness488
17 – Rear Frame Wiring Harness490
19 – Cab Wiring Harness492
21 – Cab Roof Wiring Harness494
23 – Load Center Wiring Harness496
25 – Dash Module with Steering Column FNR498
27 – Dash Module with Joystick FNR500
29 – Steering Column Wiring Harness502
31 – HVAC Module Wiring Harness504
33 – 10 Amp Converter (24 V to 12 V)506
35 – 10 Amp Converter (24 V to 12 V) (Dual Outlet)508
37 – Wiper Motor Jumper Harness510
39 – Water Separator w/ Electric Fuel Pump Wiring Harness512
41 – Connector Caps (6068HDW83)514
1676 Instruments & Indicators516
1 – Cab Monitor516
17 Frame Chassis Or Supporting Structure518
1741 Engine Or Main Frame518
1 – Engine Frame518
1743 Hinges, Yokes & Gudgeons520
1 – Engine Frame Steering Cushions520
1746 Frame Bottom Guards522
1 – Fuel Tank Guard522
3 – Bottom Guards524
1749 Chassis Weights526
1 – Main Counterweight526
18 Operator’s Station528
1807 Special Noise Control Items528
1 – Cab Noise Reduction Foam528
1810 Operator Enclosure530
1 – Roof530
3 – Cab Mounts532
5 – Cab Headliner534
7 – Canopy Headliner536
1811 ROPS, FOPS, OPS, Or Body Frame538
1 – Cab538
3 – Cab Trim540
5 – Cab Glass542
7 – Cab Door544
9 – Canopy546
11 – Canopy Trim548
13 – Canopy Rear Window550
1812 Platform552
1 – Cab Floor Mat552
3 – Canopy Floor Mat554
1813 Body Sides, Doors, Shields And Glazing556
1 – Cab Shields556
1814 Windshield & Wipers558
1 – Front and Rear Windshield Wiper558
3 – Window Washer Reservoir560
1816 Instrument & Control Mounting Structure562
1 – Cab Interior Paneling and Covers562
3 – Canopy Interior Paneling and Covers564
5 – Right Armrest566
7 – Right Armrest (Joystick Pilot Controller)568
9 – Right Armrest (Four Lever Pilot Controller)570
11 – Joystick Steering Left Armrest572
1821 Seat And Seat Belts574
1 – Cloth Seat574
3 – Vinyl Seat576
5 – Deluxe Seat578
7 – Deluxe Seat (Joystick Steering)580
9 – Seat Suspension Service Kits582
1822 Steps & Handholds584
1 – Rear Hanging Step584
3 – Close Mounted Steps586
5 – Access Platform and Steps588
1831 Heater, Hoses & Controls590
1 – Front Console590
3 – Underfloor Ducts592
5 – HVAC Ducts594
7 – Heater Hoses596
1832 Air Cond System Compressor & Drive598
1 – A/C Compressor598
1833 Condenser, Evaporator & Lines600
1 – A/C Delete Cover600
3 – A/C Condenser602
5 – HVAC Module (Heater Only)604
7 – HVAC Module606
9 – HVAC Module Components608
1835 Pressurizer610
1 – HVAC Pre-Cleaner610
19 Sheet Metal & Styling612
1911 Hood & Hood Supports612
1 – Hood612
1912 Engine Sideshields614
1 – Engine Side Shields614
1913 Miscellaneous Shields616
1 – Frame Locking Bar616
3 – Transmission Shields618
5 – Level 1 Sound Package620
7 – Level 2 Sound Package622
1927 Fenders624
1 – Front Fenders624
3 – Full Coverage Front Fenders626
5 – Full Coverage Rear Fenders628
7 – Front Fender Plates (Tool Carrier)630
9 – Rear Platforms632
20 Safety, Convenience & Miscellaneous634
2001 Radio634
1 – AM/FM/WB Radio634
3 – AM/FM/WB Radio Kit636
5 – AM/FM/WB Radio with CD Player638
7 – AM/FM/WB Radio with CD Player Kit640
2002 Mirror642
1 – Rear View Mirror642
3 – Exterior Mirror644
5 – Heated Exterior Mirror646
2003 Fire Extinguisher648
1 – Fire Extinguisher648
2004 Warning Devices Including Horn & Reverse Alarm650
1 – Horn650
3 – Back-Up Alarm652
5 – Rear Object Detection System654
7 – Embedded Payload Scale656
2007 Sun Visor658
1 – Sun Visor658
2008 Reflectors & SMV Sign660
1 – Slow Moving Vehicle Sign660
2013 Anti-Theft662
1 – Coat Hook662
21 Vehicle Main Hydraulic System664
2161 Hydraulic Pumps & Drives664
1 – Hydraulic Pump664
3 – Spin Control666
2162 Hydraulic Selective Control & Load Holding Valves668
1 – Main Hydraulic Pump Manifold668
3 – Pressure Regulator Valve (PRV)670
5 – Pump Manifold Guard672
2163 Hydraulic Lines & Hoses674
1 – Main Hydraulic Lines674
2164 Hydraulic Reservoir, Filter & Cooler676
1 – Hydraulic Oil Reservoir676
3 – High Altitude Reservoir Pressurization Kit678
26 Global Vehicle Communication680
2601 Communication Controller680
1 – JDLink™ Ultimate680
31 Loader682
3101 Cutting Edge682
1 – Auxiliary Cutting Edge (2690 mm)682
3 – Bucket Teeth (2690 mm Cutting Edge)684
3102 Bucket (Including Teeth)686
1 – Pin-On Bucket (35 yd³)686
3 – Pin-On Bucket (35 yd³) (NeverGrease™)688
5 – Standard Coupler Bucket (30 yd³)690
7 – Standard Coupler Bucket (35 yd³)692
9 – Hi-Vis Coupler Bucket (30 yd³)694
11 – Hi-Vis Coupler Bucket (35 yd³)696
13 – Spillguard698
3103 Forks700
1 – Standard Coupler Forks700
3 – Hi-Vis Coupler Forks702
5 – Bolt-on Fork Frame Guard704
3104 Attachment Coupler706
1 – Standard Coupler (Z-Bar)706
3 – Standard Coupler (Powerllel™)708
5 – Hi-Vis Coupler (Z-Bar)710
7 – Hi-Vis Coupler (Z-Bar) (NeverGrease™)712
9 – Hi-Vis Coupler Kit (Z-Bar)714
11 – Hi-Vis Coupler (Powerllel™)716
13 – Hi-Vis Coupler (Tool Carrier)718
15 – Hi-Vis Coupler Hydraulic Cylinder720
17 – Standard Coupler Bucket Blanks722
19 – Hi-Vis Coupler Bucket Blanks724
3141 Main Frame726
1 – Loader Frame (Z-Bar)726
3 – Loader Frame (Z-Bar) (NeverGrease™)728
5 – Loader Frame (Powerllel™)730
7 – Loader Frame (Tool Carrier)732
3143 Moveable Frame734
1 – Loader Boom (Z-Bar)734
3 – Loader Boom (Z-Bar) (NeverGrease™)736
5 – Loader Boom (High Lift Z-Bar)738
7 – Loader Boom (High Lift Z-Bar) (NeverGrease™)740
9 – Loader Boom (Powerllel™)742
11 – Loader Boom (Tool Carrier)744
13 – Boom Lock746
3145 Bucket Loader Linkage748
1 – Loader Boom Linkage (Z-Bar)748
3 – Loader Boom Linkage (Z-Bar) (NeverGrease™)750
5 – Loader Boom Linkage (High Lift Z-Bar)752
7 – Loader Boom Linkage (High Lift Z-Bar) (NeverGrease™)754
9 – Loader Boom Linkage (Powerllel™)756
11 – Loader Boom Linkage (Tool Carrier)758
3162 Control & Load Holding Valves760
1 – Two Spool Loader Control Valve (Z-Bar)760
3 – Two Spool Loader Control Valve (Powerllel™)762
5 – Three Spool Loader Control Valve (Z-Bar)764
7 – Three Spool Loader Control Valve (Powerllel™ )766
9 – Three Spool Loader Control Valve (Tool Carrier)768
11 – Four Spool Loader Control Valve (Z-Bar)770
13 – Four Spool Loader Control Valve (Powerllel™)772
15 – Inlet Valve Section with Relief Valve774
17 – Boom Valve Section776
19 – Bucket Valve Section778
21 – Auxiliary Valve Section780
23 – Outlet Valve Section782
25 – Fifth Function Valve Section784
27 – Two Lever Pilot Controller786
29 – Three Lever Pilot Controller788
31 – Four Lever Pilot Controller790
33 – Joystick Pilot Controller (without FNR)792
35 – Joystick Pilot Controller (without FNR) and Auxiliary Lever794
37 – Joystick Pilot Controller (with FNR)796
39 – Joystick Pilot Controller (with FNR) and Auxiliary Lever798
41 – Electric Fifth Function800
43 – Two Lever To Three Lever Pilot Controller Conversion Kit (Z802
45 – Two Lever To Three Lever Pilot Controller Conversion Kit (P804
47 – Three Lever To Four Lever Pilot Controller Conversion Kit (806
49 – Three Lever To Four Lever Pilot Controller Conversion Kit (808
51 – Two Lever Controller to Joystick Conversion Kit810
53 – Three Lever Controller to Joystick with Auxiliary Lever Con812
55 – Four Lever Controller To Dual Joystick Conversion Kit814
57 – Joystick To Two Lever Controller Conversion Kit816
59 – Joystick To Joystick with Auxiliary Lever Conversion Kit (Z818
61 – Joystick To Joystick with Auxiliary Lever Conversion Kit (P820
63 – Joystick with Auxiliary Lever to Three Lever Controller Con822
65 – Joystick Handle (with FNR) Conversion Kit824
67 – Two Lever Pilot Controller826
69 – Auxiliary Single Lever Controller828
71 – Auxiliary Dual Lever Controller830
73 – Joystick Pilot Controller Components832
75 – Right-hand Joystick Handle with FNR Switch834
77 – Auxiliary Joystick Controller836
79 – Ride Control (Powerllel™)838
81 – Ride Control (Z-Bar)840
83 – Ride Control (Tool Carrier)842
85 – Ride Control844
87 – Ride Control Valve846
89 – Pin Disconnect Valve Hydraulic Lines848
91 – Pin Disconnect Hydraulic Lines (Z-Bar)850
93 – Pin Disconnect Hydraulic Lines (Powerllel™)852
95 – Pin Disconnect Hydraulic Lines (Tool Carrier)854
97 – Pin Disconnect Valve856
3163 Lines, Hoses & Fittings858
1 – Boom and Bucket Cylinder Hydraulics (Z-Bar) (2-Spool Control858
3 – Boom and Bucket Cylinder Hydraulics (Z-Bar) (3-Spool Control860
5 – Boom and Bucket Cylinder Hydraulics (Z-Bar) (4-Spool Control862
7 – Boom and Bucket Cylinder Hydraulics (Powerllel™) (2-Spool Co864
9 – Boom and Bucket Cylinder Hydraulics (Powerllel™) (3-Spool Co866
11 – Boom and Bucket Cylinder Hydraulics (Powerllel™) (4-Spool C868
13 – Boom and Bucket Cylinder Hydraulics (Tool Carrier) (3-Spool870
15 – Two Function Pilot Lines872
17 – Three Function Pilot Lines874
19 – Four Function Pilot Lines876
21 – Third Function Coupler Hydraulics (Z-Bar)878
23 – Third Function Coupler Hydraulics (High Lift Z-Bar)880
25 – Third Function Coupler Hydraulics (Powerllel™)882
27 – Third Function Coupler Hydraulics (Tool Carrier)884
29 – Cable Reinforced Coupler Hydraulics (Z-Bar) (Powerllel™)886
31 – Cable Reinforced Coupler Hydraulics (High Lift Z-Bar)888
33 – Cable Reinforced Hi-Vis Coupler Hydraulics (Z-Bar)890
35 – Cable Reinforced Hi-Vis Coupler Hydraulics (High Lift Z-Bar892
37 – Cable Reinforced Hi-Vis Coupler Hydraulics (Powerllel™)894
39 – Pin Disconnect Hi-Vis Coupler Hydraulics (Tool Carrier)896
3165 Hydraulic Cylinders898
1 – Boom and Bucket Cylinder Pins and Bushings (Z-Bar)898
3 – Boom and Bucket Cylinder Pins and Bushings (Z-Bar) (NeverGre900
5 – Boom Cylinder (Z-Bar)902
7 – Bucket Cylinder (Z-Bar)904
9 – Boom and Bucket Cylinder Pins and Bushings (Powerllel™)906
11 – Boom Cylinder (Powerllel™)908
13 – Bucket Cylinder (Powerllel™)910
15 – Boom and Bucket Cylinder Pins and Bushings (Tool Carrier)912
17 – Boom Cylinder (Tool Carrier)914
19 – Bucket Cylinder (Tool Carrier)916
3166A Automatic Control Function918
1 – Return-to-Dig (Z-Bar)918
3 – Return-to-Dig (Powerllel™)920
5 – Return-to-Dig (Tool Carrier)922
7 – Boom-Height Kick-Out / Return-to-Carry (Z-Bar)924
9 – Boom-Height Kick-Out / Return-to-Carry (Powerllel™)926
11 – Boom-Height Kick-Out / Return-to-Carry (Tool Carrier)928
Alphabetical Index 13
A 0
A/C Binary Switch Connector, HVAC Module Harness504
A/C Clutch Connector, Engine Harness486
A/C Clutch Diode, Engine Harness486
A/C Compressor598
A/C Condenser602
A/C Delete Cover600
A/C Lines, Compressor598
A/C Lines, Condenser and Receiver-Dryer602
A/C Receiver-Dryer602
Access Platform and Steps588
Accumulator Solenoid Connector, Engine Frame Harness484
Accumulator, Brake410
Accumulator, Pressure Regulator Valve (PRV)668
Accumulator, Ride Control (Powerllel™)838
Accumulator, Ride Control (Tool Carrier)842
Accumulator, Ride Control (Z-Bar)840
Accumulator, Ride Control844
Actuator, Boom-Height Kick-Out (Powerllel™)926
Actuator, Boom-Height Kick-Out (Tool Carrier)928
Actuator, Boom-Height Kick-Out (Z-Bar)924
Actuator, Return-to-Carry (Powerllel™)926
Actuator, Return-to-Carry (Tool Carrier)928
Actuator, Return-to-Carry (Z-Bar)924
Actuator, Return-to-Dig (Powerllel™)920
Actuator, Return-to-Dig (Tool Carrier)922
Actuator, Return-to-Dig (Z-Bar)918
ADJUSTING STRAP, ALTERNATOR (6275) (HDW83)276
Air Cleaner (Engine 6068HDW79)350
Air Cleaner (Engine 6068HDW83)352
AIR COMPRESSOR, MIDLAND AUX DRIVE (9901)303
Air Cooler Hose (Engine 6068HDW79)320
Air Cooler Hose (Engine 6068HDW83)322
Air Cooler, Charge318
Air Duct, HVAC Pre-Cleaner610
Air Duct594
Air Filter (Engine 6068HDW79)350
Air Filter (Engine 6068HDW83)352
Air Filter Cover, Cab Recirculation Filter562
Air Filter Restriction Indicator (Engine 6068HDW79)350
Air Filter Restriction Indicator (Engine 6068HDW83)352
Air Filter Restriction Indicator Connector, Engine Harness486
Air Filter, Cab594
AIR INTAKE (17BL) (HDW79)150
Air Intake System (Engine 6068HDW79)350
Air Intake System (Engine 6068HDW83)352
Air Pre-Cleaner354
AIR PRESSURE SENSOR (6744)278
Air Spring Kit, Seat Suspension582
AIR TEMPERATURE SENSOR (1797)232
AIR TEMPERATURE SENSOR (6721) (HDW79)202
AIR TEMPERATURE SENSOR (6744)278
Air Vents, Front Console590
Alarm System, Cab496
Alarm, Back-Up652
ALTERNATOR ADJUSTING STRAP (6275) (HDW79)194
ALTERNATOR ADJUSTING STRAP (6275) (HDW83)276
ALTERNATOR BRACKETS (6284) (HDW74)195
Alternator Excitation Connector, Engine Harness486
ALTERNATOR MOUNTING BRACKETS (6275) (HDW79)194
ALTERNATOR MOUNTING BRACKETS (6275) (HDW83)276
Alternator, 100 A (w/ A/C)452
Alternator, 100 A (w/o A/C)450
Alternator, 80 A (w/ A/C)448
Alternator, 80 A (w/o A/C)446
AM/FM/WB Radio Kit636
AM/FM/WB Radio with CD Player Kit640
AM/FM/WB Radio with CD Player638
AM/FM/WB Radio634
Ambient Air Temperature Sensor Connector, Engine Harness486
Antenna, AM/FM/WB Radio Kit636
Antenna, AM/FM/WB Radio w/ CD Player Kit640
Antenna, AM/FM/WB Radio w/ CD Player638
Antenna, AM/FM/WB Radio634
Antenna, JDLink™ Ultimate680
Arm, Wiper558
Armrest, Joystick Steering Kit392
Armrest, Joystick Steering572
Armrest, LH – Cloth Seat574
Armrest, LH – Deluxe Seat (Joystick Steering)580
Armrest, LH – Deluxe Seat578
Armrest, LH – Vinyl Seat576
Armrest, LH572
Armrest, RH (4-Lever Controller)570
Armrest, RH (Joystick)568
Armrest, RH566
ASSEMBLY, SPIRAL BEVEL 54
ASSEMBLY, SPIRAL BEVEL 56
Attachment Coupler, Hi-Vis (Powerllel™)716
Attachment Coupler, Hi-Vis (Tool Carrier)718
Attachment Coupler, Hi-Vis (Z-Bar) (NeverGrease™)712
Attachment Coupler, Hi-Vis (Z-Bar)710
Attachment Coupler, Standard (Powerllel™)708
Attachment Coupler, Standard (Z-Bar)706
Auto Differential Lock 52
Auxiliary Cutting Edge (2690 mm)682
AUXILIARY DRIVE COVER (5204) (HDW79)190
AUXILIARY DRIVE COVER (5204)272
Auxiliary Dual Lever Controller830
Auxiliary Hydraulics, Coupler (High Lift Z-Bar)880
Auxiliary Hydraulics, Coupler (Powerllel™)882
Auxiliary Hydraulics, Coupler (Tool Carrier)884
Auxiliary Hydraulics, Coupler (Z-Bar)878
Auxiliary Hydraulics, Coupler Cable Reinforced (High Lift Z-Bar)888
Auxiliary Hydraulics, Coupler Cable Reinforced (Z-Bar)886
Auxiliary Hydraulics, Hi-Vis Coupler Cable Reinforced (High892
Auxiliary Hydraulics, Hi-Vis Coupler Cable Reinforced894
Auxiliary Hydraulics, Hi-Vis Coupler Cable Reinforced (Z-Bar)890
Auxiliary Joystick Controller836
Auxiliary Single Lever Controller828
Auxiliary Valve Section780
Axle Cooling System ( – 626437)324
Axle Cooling System (626438 – )326
Axle Cooling System Kit ( – 626437)328
Axle Cooling System Kit (626438 – )330
Axle Cooling System w/ Secondary Steering (626438 – )332
Axle Disconnect Connector, Transmission Harness488
Axle Drive Shafts 92
AXLE HOUSING AND SHAFT 62
AXLE HOUSING AND SHAFT 64
AXLE HOUSING AND SHAFT 66
Axle Mounting 44
Axle Oil Circulation Pump (Axle Cooling System Kit) (SN328
Axle Oil Circulation Pump (Axle Cooling System Kit) (SN330
Axle Oil Circulation Pump (Axle Cooling System w/ Secondary332
Axle Oil Circulation Pump (SN -626437)324
Axle Oil Circulation Pump (SN 626438- )326
Axle Oil Cooler (Axle Cooling System Kit) (SN -626437)328
Axle Oil Cooler (Axle Cooling System Kit) (SN 626438- )330
Axle Oil Cooler (Axle Cooling System w/ Secondary Steering)332
Axle Oil Cooler (SN -626437)324
Axle Oil Cooler (SN 626438- )326
Axle Seal Grease Lines436
Axle Stop (8 Degree) 42
Axle Supports 44
Axle, Front 36
Axle, Rear (Hydraulic Differential) 40
Axle, Rear (Standard Differential) 38
B 0
Back-Up Alarm652
Back-up Light, License Plate Bracket (LH)472
Bar, Frame Lock616
Batteries and Battery Cables442
Battery Box444
Battery Cables442
Battery Disconnect Switch442
Battery Test Connector, Engine Frame Harness484
Beacon Light468
BEARING CONNECTING ROD (9901) (UNDERSIZED)285
BEARING KIT (CONNECTING ROD) (9901) (STANDARD)284
BEARING KIT, MAIN (9901)288
BEARING KIT, MAIN287
BEARING THRUST (9901)289
Bearing, Driveline414
Bearing, Transmission Input Shaft100
BEARINGS / CONNECTING ROD (4834)264
BEARINGS, CONNECTING GOD (4836) HDW79182
BEARINGS, CRANKSHAFT (4712) (HDW79)180
BEARINGS, CRANKSHAFT (4712)262
Bellcrank, Loader Boom Linkage (High Lift Z-Bar) (NeverGrease™)754
Bellcrank, Loader Boom Linkage (High Lift Z-Bar)752
Bellcrank, Loader Boom Linkage (Powerllel™)756
Bellcrank, Loader Boom Linkage (Tool Carrier)758
Bellcrank, Loader Boom Linkage (Z-Bar) (NeverGrease™)750
Bellcrank, Loader Boom Linkage (Z-Bar)748
Belt, 100 A Alternator (w/ A/C)452
Belt, 100 A Alternator (w/o A/C)450
Belt, 80 A Alternator (w/ A/C)448
Belt, 80 A Alternator (w/o A/C)446
Belt, Seat – Cloth Seat574
Belt, Seat – Deluxe Seat (Joystick Steering)580
Belt, Seat – Deluxe Seat578
Belt, Seat – Vinyl Seat576
Blade, Wiper558
Blanks, Hi-Vis Coupler Bucket724
Blanks, Standard Coupler Bucket722
Block Heater, Engine (110 V)312
Block Heater, Engine (220 V)314
BLOCK, CAMSHAFT(4633) (HDW79)178
BLOCK, COMPLETE ASSEMBLY214
Blower Motor Connector, HVAC Module Harness504
Blower Motor, HVAC Module608
Bolt-on Fork Frame Guard704
Boom and Bucket Cylinder Hydraulics (Powerllel™) (2-Spool864
Boom and Bucket Cylinder Hydraulics (Powerllel™) (3-Spool866
Boom and Bucket Cylinder Hydraulics (Powerllel™) (4-Spool868
Boom and Bucket Cylinder Hydraulics (Tool Carrier) (3-Spool870
Boom and Bucket Cylinder Hydraulics (Z-Bar) (2-Spool Control858
Boom and Bucket Cylinder Hydraulics (Z-Bar) (3-Spool Control860
Boom and Bucket Cylinder Hydraulics (Z-Bar) (4-Spool Control862
Boom and Bucket Cylinder Pins and Bushings (Powerllel™)906
Boom and Bucket Cylinder Pins and Bushings (Tool Carrier)912
Boom and Bucket Cylinder Pins and Bushings (Z-Bar)900
Boom and Bucket Cylinder Pins and Bushings (Z-Bar)898
Boom Cylinder (Powerllel™)908
Boom Cylinder (Tool Carrier)914
Boom Cylinder (Z-Bar)902
Boom Cylinder Lines (Powerllel™) (2-Spool Control Valve)864
Boom Cylinder Lines (Powerllel™) (3-Spool Control Valve)866
Boom Cylinder Lines (Powerllel™) (4-Spool Control Valve)868
Boom Cylinder Lines (Tool Carrier) (3-Spool Control Valve)870
Boom Cylinder Lines (Z-Bar) (2-Spool Control Valve)858
Boom Cylinder Lines (Z-Bar) (3-Spool Control Valve)860
Boom Cylinder Lines (Z-Bar) (4-Spool Control Valve)862
Boom Linkage (High Lift Z-Bar) (NeverGrease™)754
Boom Linkage (High Lift Z-Bar)752
Boom Linkage (Powerllel™)756
Boom Linkage (Tool Carrier)758
Boom Linkage (Z-Bar) (NeverGrease™)750
Boom Linkage (Z-Bar)748
Boom Lock746
Boom Valve Section776
Boom, Loader (High Lift Z-Bar) (NeverGrease™)740
Boom, Loader (High Lift Z-Bar)738
Boom, Loader (Powerllel™)742
Boom, Loader (Tool Carrier)744
Boom, Loader (Z-Bar) (NeverGrease™)736
Boom, Loader (Z-Bar)734
Boom-Height Kick-Out / Return-to-Carry (Powerllel™)926
Boom-Height Kick-Out / Return-to-Carry (Tool Carrier)928
Boom-Height Kick-Out / Return-to-Carry (Z-Bar)924
Boot, 2-Lever Pilot Controller826
Boot, Auxiliary Dual Lever Controller830
Boot, Auxiliary Joystick Controller836
Boot, Auxiliary Single Lever Controller828
Boot, Joystick Pilot Controller832
Bottom Guards524
Box, Battery444
Bracket, (Axle Cooling System w/ Secondary Steering) (SN332
Bracket, License Plate (LH)472
Bracket, License Plate (RH)470
BRACKET, TURBO AIR INLET (5497) (HDW79)191
BRACKET, TURBO AIR INLET (5497)273
BRACKETS, ALTERNATOR (6284) (HDW74)195
BRACKETS, ALTERNATOR ADJUSTING (6275) (HDW79)194
BRACKETS, ALTERNATOR ADJUSTING (6275) (HDW83)276
BRACKETS, WIRING HARNESS (8484)280
BRACKETS, WIRING HARNESS (8491) HDW79206
Brake Accumulator410
Brake Disk, Park Brake414
Brake Light Connector, Rear Frame Harness490
Brake Lights464
Brake Lines408
Brake Pedal406
Brake Valve Hydraulics408
Brake Valve To Transmission Control Valve114
Brake Valve, Pedals and Linkage406
Brake, Park414
BRAKES, DUAL 74
BRAKES, DUAL 76
Breather, Front Axle 36
Breather, Fuel Tank (Severe Duty Fuel System)372
Breather, Fuel Tank370
Breather, Rear Axle (Hydraulic Differential) 40
Breather, Rear Axle (Standard Differential) 38
Bucket and Boom Cylinder Pins and Bushings (Powerllel™)906
Bucket and Boom Cylinder Pins and Bushings (Tool Carrier)912
Bucket and Boom Cylinder Pins and Bushings (Z-Bar)900
Bucket and Boom Cylinder Pins and Bushings (Z-Bar)898
Bucket Blanks, Hi-Vis Coupler724
Bucket Blanks, Standard Coupler722
Bucket Cutting Edge, Auxiliary (2690 mm)682
Bucket Cylinder (Powerllel™)910
Bucket Cylinder (Tool Carrier)916
Bucket Cylinder (Z-Bar)904
Bucket Cylinder Lines (Powerllel™) (2-Spool Control Valve)864
Bucket Cylinder Lines (Powerllel™) (3-Spool Control Valve)866
Bucket Cylinder Lines (Powerllel™) (4-Spool Control Valve)868
Bucket Cylinder Lines (Tool Carrier) (3-Spool Control Valve)870
Bucket Cylinder Lines (Z-Bar) (2-Spool Control Valve)858
Bucket Cylinder Lines (Z-Bar) (3-Spool Control Valve)860
Bucket Cylinder Lines (Z-Bar) (4-Spool Control Valve)862
Bucket Linkage (High Lift Z-Bar) (NeverGrease™)754
Bucket Linkage (High Lift Z-Bar)752
Bucket Linkage (Powerllel™)756
Bucket Linkage (Tool Carrier)758
Bucket Linkage (Z-Bar) (NeverGrease™)750
Bucket Linkage (Z-Bar)748
Bucket Spillguard698
Bucket Teeth (2690 mm Cutting Edge)684
Bucket Valve Section778
Bucket, Hi-Vis Coupler (30 yd³)694
Bucket, Hi-Vis Coupler (35 yd³)696
Bucket, Pin-On (35 yd³) (NeverGrease™)688
Bucket, Pin-On (35 yd³)686
Bucket, Standard Coupler (30 yd³)690
Bucket, Standard Coupler (35 yd³)692
Bumper Kit, Seat Suspension582
Bumper, Steering520
Bushing, Loader Boom (High Lift Z-Bar) (NeverGrease™)740
Bushing, Loader Boom (High Lift Z-Bar)738
Bushing, Loader Boom (Powerllel™)742
Bushing, Loader Boom (Tool Carrier)744
Bushing, Loader Boom (Z-Bar) (NeverGrease™)736
Bushing, Loader Boom (Z-Bar)734
Bushing, Loader Boom Linkage (High Lift Z-Bar) (NeverGrease™)754
Bushing, Loader Boom Linkage (High Lift Z-Bar)752
Bushing, Loader Boom Linkage (Powerllel™)756
Bushing, Loader Boom Linkage (Tool Carrier)758
Bushing, Loader Boom Linkage (Z-Bar) (NeverGrease™)750
Bushing, Loader Boom Linkage (Z-Bar)748
Bushing, Steering Cylinder398
Button Cap, Left-hand Joystick Handle404
Button Cap, Right-hand Joystick Handle with FNR Switch834
BY PASS TUBE, THERMOSTAT HOUSING (3917) (HDW79)170
C 0
Cab Air Filters594
Cab Alarm System496
Cab Decals and Labels (English)418
Cab Domelight Switch462
Cab Door544
Cab Floor Cover Plate540
Cab Floor Mat552
Cab Front Console590
Cab Glass542
Cab Harness Connector, Wiper Motor Jumper Harness510
Cab Headliner534
Cab Interior Paneling and Covers562
Cab Monitor516
Cab Mounts532
Cab Noise Reduction Foam528
Cab Rear View Mirror642
Cab Roof Harness Connector, AM/FM/WB Radio Kit Speaker Harness636
Cab Roof Harness Connector, AM/FM/WB Radio Speaker Harness634
Cab Roof Harness Connector, AM/FM/WB Radio w/ CD Player Kit640
Cab Roof Harness Connector, AM/FM/WB Radio w/ CD Player638
Cab Roof Wiring Harness494
Cab Roof530
Cab Shields556
Cab Trim540
Cab Wiring Harness Mounting, Load Center496
Cab Wiring Harness492
Cab Work Lights Connector, Cab Roof Harness494
Cab Work Lights466
Cable Reinforced Coupler Hydraulics (High Lift Z-Bar)888
Cable Reinforced Coupler Hydraulics (Z-Bar) (Powerllel™)886
Cable Reinforced Hi-Vis Coupler Hydraulics (High Lift Z-Bar)892
Cable Reinforced Hi-Vis Coupler Hydraulics (Powerllel™)894
Cable Reinforced Hi-Vis Coupler Hydraulics (Z-Bar)890
Cable, HVAC Module Control (Heater Only)604
Cable, HVAC Module Control606
Cables, Battery442
Cab538
Cam Speed Sensor Connector, Engine Harness486
Camera, Rear Object Detection System654
Canopy Decals and Labels (English)420
Canopy Floor Cover Plate548
Canopy Floor Mat554
Canopy Front Console590
Canopy Headliner536
Canopy Interior Paneling and Covers564
Canopy Rear Window550
Canopy Trim548
Canopy546
Cap, Connector514
Cap, Fuel Tank368
Cap, High Altitude Reservoir Pressurization Kit678
Cap, Hydraulic Reservoir676
Cap, Surge Tank (Engine 6068HDW79)320
Cap, Surge Tank (Engine 6068HDW83)322
Cap, Transmission Oil Fill Tube136
Cap, Window Washer Reservoir560
CASE, STD DIFFERENTIAL 84
CASE, STD DIFF 86
CD Player Radio638
Charge Air Cooler318
Cleaner, Air (Engine 6068HDW79)350
Cleaner, Air (Engine 6068HDW83)352
Close Mounted Steps586
Cloth Seat574
Clutch and Pulley Kit, A/C Compressor598
Clutch Assembly, First Gear126
Clutch Assembly, High Range Forward132
Clutch Assembly, Low Range Forward122
Clutch Assembly, Second Gear128
Clutch Assembly, Third Gear130
Coat Hook662
CODE 1144 ROCKER ARM COVER (HDW79)142
CODE 1144 ROCKER ARM COVER224
CODE 1241 OIL FILL (HDW79)144
Code 1241 Oil Filler Neck226
CODE 1320 CRANKSHAFT PULLEY (HDW79)145
CODE 1320 CRANKSHAFT PULLEY227
CODE 1405 FLYWHEEL HOUSING228
CODE 1405 FLYWHEEL HOUSING (HDW79)146
CODE 1503 FLYWHEEL (HDW79)147
CODE 1503 FLYWHEEL229
CODE 169Z FUEL INJECTION PUMP (HDW79)148
CODE 16S4 FUEL INJECTION PUMP230
CODE 1797 INTAKE MANIFOLD232
CODE 17BL AIR INTAKE (HDW79)150
CODE 1946 OIL PAN (HDW74)152
CODE 1946 OIL PAN234
CODE 2001 WATER PUMP AND PULLEY236
CODE 2001 WATERPUMP PULLEY (HDW79)154
CODE 2154 THERMOSTAT COVER (HDW79)155
CODE 2154 THERMOSTAT COVER237
CODE 2255 THERMOSTAT (HDW79)156
CODE 2255 THERMOSTAT238
CODE 2698 COOLANT HEATER (ENGINE)239
CODE 2876 EXHAUST MANIFOLD HDW79)158
CODE 28AY EXHAUST MANIFOLD240
CODE 2917 VENTILATING SYSTEM (HDW79)160
CODE 2917 VENTILATING SYSTEM242
CODE 3041 STARTER (HDW79)162
CODE 3041 STARTING MOTOR244
CODE 35DZ FUEL FILTER, FINAL (HDW79)164
CODE 35EM FUEL FILTER246
CODE 35EM FUEL FILTER246
CODE 3614 FRONT PLATE AND IDLER GEAR (HDW74)166
CODE 3626 FRONT PLATE248
CODE 3713 FUEL TRANSFER PUMP (HDW79)168
CODE 3799 COVER, WITHOUT FUEL PUMP250
CODE 3917 THERMOSTAT HOUSING (HDW79)170
CODE 3933 THERMOSTAT HOUSING252
CODE 4035 ENIGINE OIL DIPSTICK254
CODE 4035 OIL DIPSTICK (HDW79)172
CODE 4330 STARTING AID (HDW79)174
CODE 4330 STARTING AID256
CODE 4440 TIMING GEAR COVER (HDW79)176
CODE 4451 TIMING GEAR COVER258
CODE 4633 CYLINDER BLOCK (HDW79)178
CODE 4657 TIMING GEAR COVER260
CODE 4712 CRANKSHAFT, BEARINGS (HDW79)180
CODE 4712 CRANKSHAFT, BEARINGS262
CODE 4834 CONNECTING RODS AND PISTONS264
CODE 4836 CONNECTING ROD, PISTONS HDW79182
CODE 4905 ROCKER ARM, SHAFT, PUSH ROD266
CODE 4905 ROCKER ARMS (HDW79)184
CODE 5024 OIL PUMP (HDW79)186
CODE 5024 OIL PUMP268
CODE 5120 CYLINDER HEAD (HDW79)188
CODE 5128 CYLINDER HEAD270
CODE 5204 AUXILIARY DRIVE (HDW79)190
CODE 5204 AUXILIARY DRIVE COVER272
CODE 5497 TURBO AIR INLET (HDW79)191
CODE 5497 TURBO AIR INLET273
CODE 5728 WATER PUMP INLET (HDW79)192
CODE 5728 WATER PUMP INLET274
CODE 5945 OIL COOLER (HDW79)193
CODE 5951 OIL COOLER275
CODE 6275 ALTERNATOR BRACKETS (HDW79)194
CODE 6284 ALTERNATOR BRACKETS (HDW74)195
CODE 6375 ALTERNATOR MOUNTING BRACKETS (HDW83)276
CODE 6389 FUEL FILTER LINES (HDW79)196
CODE 65TE TURBOCHARGER AND OIL LINES (HDW79)198
CODE 6698 TEMPERATURE SWITCH PLUG (HDW79)200
CODE 6698 TEMPERATURE SWITCH, WITHOUT277
CODE 6721 ELECTRONIC TACH DRIVE (HDW79)202
CODE 6744 ENGINE SENSORS278
CODE 8169 WATER SEPARATOR (HDW79)204
CODE 8484 WIRING HARNESS BRACKETS280
CODE 8491 WIRING HARNESS BRACKETS (HDW79)206
CODE 8718 FAN DRIVE TENSIONER (HDW79)207
CODE 8718 FAN DRIVE TENSIONER281
CODE 8842 OIL FILTER, FILTER HEAD282
CODE 8842 OIL FILTER (HDW79)208
CODE 8903 EXHAUST GAS RECIRCULATION (HDW79)210
CODE 9801 LIFT STRAPS283
CODE 9801 LIFT STRAPS212
CODE 9901 AIR COMPRESSOR303
CODE 9901 BEARING KIT (CONNECTING ROD) (STANDARD)284
CODE 9901 BEARING KIT, MAIN286
CODE 9901 BEARING KIT, MAIN288
CODE 9901 CONNECTING ROD BEARING (UNDERSIZED)285
CODE 9901 CONTROL VALVE301
CODE 9901 EGR VALVE GASKET KIT300
CODE 9901 ENGINE GASKET KIT298
CODE 9901 ENGINE GASKET SET,296
CODE 9901 ENGINE OVERHAUL KIT308
CODE 9901 MAIN BEARING KIT287
CODE 9901 MAIN THRUST BEARING289
CODE 9901 PISTON LINER KIT (9901)294
CODE 9901 PISTON RING KIT304
CODE 9901 REAR OIL SEAL291
CODE 9901 REPLACEMENT ENGINE310
CODE 9901 REPLACEMENT ENGINE216
CODE 9901 STARTER RELAY302
CODE 9901 STARTER RELAY305
CODE 9901 WATER PUMP REPAIR KIT292
CODE 9902 CYLINDER LINER PACKING(9901)290
CODE 9902 INJECTION NOZZLE306
Cold Start428
COLD WEATHER STARTING AID (4330) (HDW79)174
COLD WEATHER STARTING AID (4330)256
Column, Steering (Components)386
Column, Steering384
COMMON RAIL SYSTEM, HIGH PRESSURE (169Z) (HDW79)148
COMPLETE BLOCK ASSEMBLY214
Compressor Kit, Seat Suspension582
Compressor, A/C598
Condenser, A/C602
CONNECTING ROD BEARING (9901) (UNDERSIZED)285
CONNECTING ROD BEARING KIT (9901) (STANDARD)284
CONNECTING ROD, BEARINGS (4836) HDW79182
CONNECTING RODS AND PISTONS (4834)264
Connector Caps (6068HDW83)514
Connector Cap514
Connectors, AM/FM/WB Radio Kit Speaker Harness636
Connectors, AM/FM/WB Radio Speaker Harness634
Connectors, AM/FM/WB Radio w/ CD Player Kit Speaker Harness640
Connectors, AM/FM/WB Radio w/ CD Player Speaker Harness638
Connectors, Cab Roof Harness494
Connectors, Engine Frame Harness484
Connectors, Engine Harness486
Connectors, HVAC Module Harness504
Connectors, Joystick Steering Harness402
Connectors, Loader Frame Harness (Powerllel™)482
Connectors, Loader Frame Harness (Z-Bar)480
Connectors, Rear Frame Harness490
Connectors, Steering Column Harness502
Connectors, Transmission Harness488
Connectors, Water Separator w/ Electric Fuel Pump Harness512
Connectors, Wiper Motor Jumper Harness510
Console Cover, Cab562
Console Cover, Canopy564
Console, Front590
Console, HVAC Control590
CONTROL VALVE (9901)301
Control Valve Fittings, Embedded Payload Scale656
Control Valve Lines to Boom and Bucket Cylinders (Powerllel™)864
Control Valve Lines to Boom and Bucket Cylinders (Powerllel™)866
Control Valve Lines to Boom and Bucket Cylinders (Powerllel™)868
Control Valve Lines to Boom and Bucket Cylinders (Tool870
Control Valve Lines to Boom and Bucket Cylinders (Z-Bar)858
Control Valve Lines to Boom and Bucket Cylinders (Z-Bar)860
Control Valve Lines to Boom and Bucket Cylinders (Z-Bar)862
Control Valve Manifold, Transmission112
Control Valve Section, Auxiliary780
Control Valve Section, Boom776
Control Valve Section, Bucket778
Control Valve Section, Electric Fifth Function784
Control Valve Section, Inlet774
Control Valve Section, Outlet782
Control Valve, Loader (2-Spool) (Powerllel™)762
Control Valve, Loader (2-Spool) (Z-Bar)760
Control Valve, Loader (3-Spool) (Powerllel™)766
Control Valve, Loader (3-Spool) (Tool Carrier)768
Control Valve, Loader (3-Spool) (Z-Bar)764
Control Valve, Loader (4-Spool) (Powerllel™)772
Control Valve, Loader (4-Spool) (Z-Bar)770
Control Valve, Transmission114
Control, Fuel-Fired Coolant Heater316
Control, HVAC Module (Heater Only)604
Control, HVAC Module606
Control, Ride844
Controller Conversion Kit, Pilot – 2-Lever to 3-Lever804
Controller Conversion Kit, Pilot – 2-Lever to 3-Lever (Z-Bar)802
Controller Conversion Kit, Pilot – 2-Lever to Joystick810
Controller Conversion Kit, Pilot – 3-Lever to 4-Lever808
Controller Conversion Kit, Pilot – 3-Lever to 4-Lever (Z-Bar)806
Controller Conversion Kit, Pilot – 3-Lever to Joystick w/812
Controller Conversion Kit, Pilot – 4-Lever to Dual Joysticks814
Controller Conversion Kit, Pilot – Joystick (w/o FNR) to824
Controller Conversion Kit, Pilot – Joystick to 2-Lever816
Controller Conversion Kit, Pilot – Joystick to Joystick w/820
Controller Conversion Kit, Pilot – Joystick to Joystick w/818
Controller Conversion Kit, Pilot – Joystick w/ Auxiliary Lever t822
Controller, Auxiliary Dual Lever830
Controller, Auxiliary Joystick836
Controller, Auxiliary Single Lever828
Controller, Engine496
Controller, FLC2496
Controller, JDLink™ Ultimate680
Controller, Pilot – 2-Lever786
Controller, Pilot – 2-Lever826
Controller, Pilot – 3-Lever788
Controller, Pilot – 4-Lever790
Controller, Pilot – Joystick (w/ FNR) and Auxiliary Lever798
Controller, Pilot – Joystick (w/ FNR)796
Controller, Pilot – Joystick (w/o FNR) and Auxiliary Lever794
Controller, Pilot – Joystick (w/o FNR)792
Controller, Pilot – Joystick832
Controller, Transmission496
Conversion Kit, Pilot Controller – 2-Lever to 3-Lever804
Conversion Kit, Pilot Controller – 2-Lever to 3-Lever (Z-Bar)802
Conversion Kit, Pilot Controller – 2-Lever to Joystick810
Conversion Kit, Pilot Controller – 3-Lever to 4-Lever808
Conversion Kit, Pilot Controller – 3-Lever to 4-Lever (Z-Bar)806
Conversion Kit, Pilot Controller – 3-Lever to Joystick w/812
Conversion Kit, Pilot Controller – 4-Lever to Dual Joysticks814
Conversion Kit, Pilot Controller – Joystick (w/o FNR) to824
Conversion Kit, Pilot Controller – Joystick to 2-Lever816
Conversion Kit, Pilot Controller – Joystick to Joystick w/820
Conversion Kit, Pilot Controller – Joystick to Joystick w/818
Conversion Kit, Pilot Controller – Joystick w/ Auxiliary Lever t822
Converter (10 A), AM/FM/WB Radio Kit636
Converter (10 A), AM/FM/WB Radio w/ CD Player Kit640
Converter, 10 A (24 V to 12 V) (Dual Outlet)508
Converter, 10 A (24 V to 12 V)506
Converter, Torque 98
COOLANT HEATER (2698) (ENGINE)239
Coolant Heater, Engine Block (110 V)312
Coolant Heater, Engine Block (220 V)314
Coolant Heater, Fuel-Fired316
Coolant Temperature Sensor Connector, Engine Harness486
Cooler, Charge Air318
COOLER, ENGINE OIL (5945) (HDW79)193
COOLER, ENGINE OIL (5951)275
Cooler, Hydraulic Oil318
Cooler, Transmission Oil318
Cooling Package Frame318
Cooling Package318
Cooling System (Engine 6068HDW79)320
Cooling System (Engine 6068HDW83)322
Cooling System Kit, Axle (SN -626437)328
Cooling System Kit, Axle (SN 626438- )330
Cooling System w/ Secondary Steering, Axle (SN 626438- )332
Cooling System, Axle (SN -626437)324
Cooling System, Axle (SN 626438- )326
Counterweight, Hitch440
Counterweight, Main526
Coupler Bucket Blanks, Hi-Vis724
Coupler Bucket Blanks, Standard722
Coupler Bucket, Hi-Vis (30 yd³)694
Coupler Bucket, Hi-Vis (35 yd³)696
Coupler Bucket, Standard (30 yd³)690
Coupler Bucket, Standard (35 yd³)692
Coupler Cylinder, Hi-Vis720
Coupler Forks, Hi-Vis702
Coupler Forks, Standard700
Coupler Hydraulics, Cable Reinforced (High Lift Z-Bar)888
Coupler Hydraulics, Cable Reinforced (Z-Bar) (Powerllel™)886
Coupler Hydraulics, Hi-Vis Cable Reinforced (High Lift Z-Bar)892
Coupler Hydraulics, Hi-Vis Cable Reinforced (Powerllel™)894
Coupler Hydraulics, Hi-Vis Cable Reinforced (Z-Bar)890
Coupler Hydraulics, Hi-Vis Pin Disconnect (Tool Carrier)896
Coupler Hydraulics, Third Function (High Lift Z-Bar)880
Coupler Hydraulics, Third Function (Powerllel™)882
Coupler Hydraulics, Third Function (Tool Carrier)884
Coupler Hydraulics, Third Function (Z-Bar)878
Coupler Kit, Hi-Vis (Z-Bar)714
Coupler, Hi-Vis (Powerllel™)716
Coupler, Hi-Vis (Tool Carrier)718
Coupler, Hi-Vis (Z-Bar) (NeverGrease™)712
Coupler, Hi-Vis (Z-Bar)710
Coupler, Standard (Powerllel™)708
Coupler, Standard (Z-Bar)706
Cover Plate, Cab Floor540
Cover Plate, Canopy Floor548
Cover, A/C Delete600
COVER, AUXILIARY DRIVE (5204) (HDW79)190
COVER, AUXILIARY DRIVE (5204)272
Cover, Battery444
Cover, Button – Left-hand Joystick Handle404
Cover, Button – Right-hand Joystick Handle with FNR Switch834
Cover, Cab A-Post540
Cover, Canopy A-Post548
Cover, Drive Damper134
Cover, Front Console590
Cover, Gearbox Housing102
Cover, HVAC Control Console590
Cover, Radar524
COVER, ROCKER ARM (1144) (HDW79)142
COVER, ROCKER ARM (1144)224
COVER, ROCKER ARM VENT HOSE(2917)242
Cover, Steering Column w/ Joystick FNR500
COVER, THERMOSTAT (2154) (HDW79)155
COVER, THERMOSTAT (2154)237
COVER, TIMING GEAR (4440) (HDW79)176
COVER, TIMING GEAR (4451)258
Cover, Torque Converter 98
Cover, Transmission108
COVER, WITHOUT FUEL PUMP (3799)250
COVER,TIMING GEAR (4657)260
Covers, Cab Interior562
Covers, Canopy Interior564
Crank Speed Sensor Connector, Engine Harness486
CRANKSHAFT POSITION SENSOR (6721) (HDW79)202
CRANKSHAFT PULLEY (1320) (HDW79)145
CRANKSHAFT PULLEY (1320)227
CRANKSHAFT, BEARINGS (4712) (HDW79)180
CRANKSHAFT, BEARINGS (4712)262
Cup Holder, Canopy564
Cushion, Steering520
Cushions, Cloth Seat574
Cushions, Deluxe Seat (Joystick Steering)580
Cushions, Deluxe Seat578
Cushions, Vinyl Seat576
Cutting Edge (2690 mm), Bucket Teeth684
Cutting Edge, Auxiliary (2690 mm)682
Cutting Edge, Hi-Vis Coupler (30 yd³)694
Cutting Edge, Hi-Vis Coupler (35 yd³)696
Cutting Edge, Pin-On Bucket (35 yd³) (NeverGrease™)688
Cutting Edge, Pin-On Bucket (35 yd³)686
Cutting Edge, Standard Coupler Bucket (30 yd³)690
Cutting Edge, Standard Coupler Bucket (35 yd³)692
Cycle Counter Switch496
CYLINDER BLOCK WITH CAMSHAFT (4633) (HDW79)178
CYLINDER BLOCK WITH LINERS (4633) (HDW79)178
Cylinder Fittings, Steering398
CYLINDER HEAD (5120) (HDW79)188
CYLINDER HEAD (5128)270
CYLINDER LINER (4834)264
CYLINDER LINER (4836) HDW79182
CYLINDER LINER PACKING (9901)290
CYLINDER LINER PACKING (9901)294
Cylinder Lines, Boom (Powerllel™) (2-Spool Control Valve)864
Cylinder Lines, Boom (Powerllel™) (3-Spool Control Valve)866
Cylinder Lines, Boom (Powerllel™) (4-Spool Control Valve)868
Cylinder Lines, Boom (Tool Carrier) (3-Spool Control Valve)870
Cylinder Lines, Boom (Z-Bar) (2-Spool Control Valve)858
Cylinder Lines, Boom (Z-Bar) (3-Spool Control Valve)860
Cylinder Lines, Boom (Z-Bar) (4-Spool Control Valve)862
Cylinder Lines, Bucket (Powerllel™) (2-Spool Control Valve)864
Cylinder Lines, Bucket (Powerllel™) (3-Spool Control Valve)866
Cylinder Lines, Bucket (Powerllel™) (4-Spool Control Valve)868
Cylinder Lines, Bucket (Tool Carrier) (3-Spool Control Valve)870
Cylinder Lines, Bucket (Z-Bar) (2-Spool Control Valve)858
Cylinder Lines, Bucket (Z-Bar) (3-Spool Control Valve)860
Cylinder Lines, Bucket (Z-Bar) (4-Spool Control Valve)862
Cylinder Lock, Boom746
Cylinder, Boom (Powerllel™)908
Cylinder, Boom (Tool Carrier)914
Cylinder, Boom (Z-Bar)902
Cylinder, Bucket (Powerllel™)910
Cylinder, Bucket (Tool Carrier)916
Cylinder, Bucket (Z-Bar)904
Cylinder, Hi-Vis Coupler (Powerllel™)716
Cylinder, Hi-Vis Coupler (Tool Carrier)718
Cylinder, Hi-Vis Coupler (Z-Bar) (NeverGrease™)712
Cylinder, Hi-Vis Coupler (Z-Bar)710
Cylinder, Hi-Vis Coupler720
Cylinder, Standard Coupler (Powerllel™)708
Cylinder, Standard Coupler (Z-Bar)706
Cylinder, Steering Column386
Cylinder, Steering400
D 0
Damper, Drive134
Dash Module with Joystick FNR500
Dash Module with Steering Column FNR498
Decal Electrical Cold Start (English)428
Decal, 2-Lever Fingertip Controls786
Decal, 3-Lever Fingertip Controls788
Decal, 4-Lever Fingertip Controls790
Decal, Axle/Gearbox Oil (Axle Cooling System Kit) (SN -626437)328
Decal, Axle/Gearbox Oil (Axle Cooling System Kit) (SN330
Decal, Axle/Gearbox Oil (Axle Cooling System w/ Secondary332
Decal, Axle/Gearbox Oil (SN -626437)324
Decal, Axle/Gearbox Oil (SN 626438- )326
Decal, Boom Lock746
Decal, High Lift Loader Boom (NeverGrease™)740
Decal, High Lift Loader Boom738
Decal, Joystick (w/ FNR) and Auxiliary Lever Controls798
Decal, Joystick (w/ FNR) Controls796
Decal, Joystick (w/o FNR) and Auxiliary Lever Controls794
Decal, Joystick (w/o FNR) Controls792
Decal, Load Capacity – Hi-Vis Coupler Forks702
Decal, Load Capacity – Standard Coupler Forks700
Decal, Quick Service434
Decal, Ride Control Accumulator844
Decal, Secondary Steering Kit380
Decals and Labels (English)416
Decals and Labels (French)422
Decals and Labels (Russian)426
Decals and Labels (Spanish)424
Decals and Labels, Cab (English)418
Decals and Labels, Canopy (English)420
Deluxe Seat (Joystick Steering)580
Deluxe Seat578
Detent Kit, Auxiliary Dual Lever Controller830
Detent Kit, Auxiliary Single Lever Controller828
Diesel-Fired Coolant Heater316
Differential Lock Line, Front 46
Differential Lock Line, Rear 48
Differential Lock Solenoid Connector, Engine Frame Harness484
Differential Lock Switch 50
Differential Lock, Auto 52
DIFFERENTIAL LOCK 78
DIFFERENTIAL LOCK 80
Differential Support, Axle 44
DIFFERENTIAL, STD 82
Diode, A/C Clutch486
Diode, VEC (Vehicle Electrical Center)496
DIPSICK, ENGINE OIL (4035)254
Dipstick, Engine Oil (Axle Cooling System Kit) (SN -626437)328
Dipstick, Engine Oil (Axle Cooling System Kit) (SN 626438- )330
Dipstick, Engine Oil (Axle Cooling System w/ Secondary332
Dipstick, Engine Oil (Axle Cooling System) (SN -626437)324
Dipstick, Engine Oil (Axle Cooling System) (SN 626438- )326
DIPSTICK, OIL (4035) (HDW79)172
Disk, Low Range Forward Clutch Assembly122
Disk, Park Brake414
Disk, Reverse Clutch Assembly124
Display Monitor, Cab516
Display, Fuel-Fired Coolant Heater316
Domelight Connector, Cab Roof Harness494
Domelight Switch462
Domelight, Cab534
Door with Fan and Fan Guard334
Door, Battery Box444
Door, Cab544
Door, Engine614
Door, Main Counterweight526
Door-Activated Domelight Switch462
Drain Hose, Engine Oil (Engine 6068HDW79)364
Drain Hose, Engine Oil (Engine 6068HDW83)366
Drain Plug, Hydraulic Reservoir676
Drain Plug, Transmission102
Drawbar and Rear Counterweight440
Drawbar438
Drip Rail, Canopy546
Drive Damper and Cover134
Drive Light (Powerllel™)458
Drive Light (Z-Bar)454
Drive Light Connector, Loader Frame Harness (Powerllel™)482
Drive Light Connector, Loader Frame Harness (Z-Bar)480
Drive Light, LED (Powerllel™)460
Drive Light, LED (Z-Bar)456
Drive Shaft, Torque Converter 98
Drive Shafts, Transmission 92
Drive Shafts 92
DRIVE, FINAL 88
DRIVE, FINAL 90
Driveline Bearing414
Driveshaft, First Gear Clutch Assembly126
Driveshaft, High Range Forward Clutch Assembly132
Driveshaft, Second Gear Clutch Assembly128
Driveshaft, Third Gear Clutch Assembly130
Drum, First Gear Clutch Assembly126
Drum, High Range Forward Clutch Assembly132
Drum, Low Range Forward Clutch Assembly122
Drum, Reverse Clutch Assembly124
Drum, Second Gear Clutch Assembly128
Drum, Third Gear Clutch Assembly130
DUAL BRAKES 4800:1 74
DUAL BRAKES 76
DUAL CENTER PIVOT 72
Dual Lever Controller, Auxiliary830
Dual Lever Pilot Controller826
Dual VEC496
Duct, Air594
Duct, HVAC Pre-Cleaner610
Duct, HVAC594
Ducts, Underfloor592
E 0
Easy Payload Weighing Kit656
EGR (8903) (HDW79)210
EGR VALVE GASKET KIT (9901)300
Electric Fifth Function Valve Section784
Electric Fifth Function800
ELECTRONIC TACH DRIVE277
Embedded Payload Scale656
Emblem, Slow Moving Vehicle (SMV)660
Engine Air Plenum614
Engine Block Coolant Heater (110 Volt)312
Engine Block Coolant Heater (220 Volt)314
Engine Compartment Sound Absorption620
Engine Controller496
Engine Coolant Heater Fittings157
Engine Coolant Heater Fittings157
Engine Coolant Sampling Fitting434
Engine Fan Drive Pump and Motor, Reversing Fan Drive Kit344
Engine Fan Drive Pump and Motor, Reversing340
Engine Fan Drive Pump and Motor, Standard336
Engine Fan334
Engine Frame Guard524
Engine Frame Harness Connector, Rear Frame Harness490
Engine Frame Steering Cushions520
Engine Frame Wiring Harness Mounting (Powerllel™)476
Engine Frame Wiring Harness Mounting (Tool Carrier)478
Engine Frame Wiring Harness Mounting (Z-Bar)474
Engine Frame Wiring Harness484
Engine Frame518
ENGINE GASKET KIT 9901298
ENGINE GASKET SET,296
Engine Harness Connector, Water Separator w/ Electric Fuel512
Engine Mounts (Engine 6068HDW79)364
Engine Mounts (Engine 6068HDW83)366
ENGINE OIL DIPSTICK (4035) (HDW79)172
ENGINE OIL DIPSTICK254
Engine Oil Drain Hose (Engine 6068HDW79)364
Engine Oil Drain Hose (Engine 6068HDW83)366
Engine Oil Sampling Fitting434
ENGINE OVERHAUL KIT (9901)308
ENGINE SENSORS278
Engine Service Door614
Engine Side Shields614
Engine Speed Control Pedal348
ENGINE SPEED, SENSOR (6721) (HDW79)202
ENGINE SPEED, SENSOR (6744)278
Engine Wiring Harness Mounting (Powerllel™)476
Engine Wiring Harness Mounting (Tool Carrier)478
Engine Wiring Harness Mounting (Z-Bar)474
Engine Wiring Harness486
ENGINE, REPLACEMENT310
ENGINE, SERVICE310
Environmental Drain432
Evaporator Core, HVAC Module608
EXHAUST GAS RECIRCULATION (8903) (HDW79)210
EXHAUST MANIFOLD (2876) (HDW79)158
EXHAUST MANIFOLD (28AY)240
Exhaust Pipe, Black (Engine 6068HDW79)356
Exhaust Pipe, Black (Engine 6068HDW83)360
Exhaust Pipe, Chrome (Engine 6068HDW79)358
Exhaust Pipe, Chrome (Engine 6068HDW83)362
Exhaust Pipe, Fuel-Fired Coolant Heater316
EXHAUST VALVE (5120) (HDW79)188
EXHAUST VALVE (5128)270
Expansion Valve, HVAC Module608
Extension Plates, Front Fenders (Tool Carrier)630
Exterior Mirror644
Extinguisher, Fire648
F 0
Fan Door334
Fan Drive Hoses, Reversing Fan Drive Kit344
Fan Drive Hoses, Reversing342
Fan Drive Hoses, Standard338
Fan Drive Kit, Reversing344
Fan Drive Motor, Reversing Fan Drive Kit344
Fan Drive Motor, Reversing340
Fan Drive Motor, Standard336
FAN DRIVE PULLEY (8718) (HDW79)207
FAN DRIVE PULLEY (8718)281
Fan Drive Pump (Axle Cooling System Kit) (SN -626437)328
Fan Drive Pump (Axle Cooling System Kit) (SN 626438- )330
Fan Drive Pump (Axle Cooling System w/ Secondary Steering)332
Fan Drive Pump (Axle Cooling System) (SN -626437)324
Fan Drive Pump (Axle Cooling System) (SN 626438- )326
Fan Drive Pump, Reversing Fan Drive Kit344
Fan Drive Pump, Reversing340
Fan Drive Pump, Standard336
Fan Drive Valve, Reversing346
Fan Guard334
Fan Hub334
Fan Shroud334
Fan Solenoid Connector, Rear Frame Harness490
Fan, Engine334
Fenders, Front – Extension Plates (Tool Carrier)630
Fenders, Front Full Coverage626
Fenders, Front624
Fenders, Rear Full Coverage628
Fifth Function Valve Section784
Fifth Function, Electric800
Fill Tube, Transmission Oil136
FILL, OIL (1241) (HDW79)144
Filler Cap226
FILTER HEAD / OIL FILTER (8842)282
Filter Head, Transmission Oil 96
FILTER LINES, FUEL (6389) HDW79196
Filter Restriction Indicator Switch, Transmission Oil112
Filter, (Axle Cooling System w/ Secondary Steering) (SN332
Filter, Air Cleaner (Engine 6068HDW79)350
Filter, Air Cleaner (Engine 6068HDW83)352
Filter, Axle Cooling System (SN -626437)324
Filter, Axle Cooling System (SN 626438- )326
Filter, Axle Cooling System Kit (SN -626437)328
Filter, Axle Cooling System Kit (SN 626438- )330
Filter, Cab Air594
FILTER, FINAL FUEL (35EM)246
FILTER, FINAL FUEL (35DZ) (HDW79)164
Filter, Fuel – In-Line (Severe Duty Fuel System)372
Filter, Fuel – In-Line370
Filter, Fuel – Severe Duty372
FILTER, FUEL PRIMARY (8169) (HDW79)204
Filter, Fuel; In-Line (Severe Duty Fuel Filter Kit)374
Filter, Fuel; Severe Duty (Severe Duty Fuel Filter Kit)374
Filter, High Altitude Reservoir Pressurization Kit678
Filter, Hydraulic Reservoir676
FILTER, OIL (8842) (HDW79208
FILTER, OIL / FILTER HEAD (8842)282
FILTER, TRANSMISSION OIL 96
FINAL FUEL FILTER (35EM)246
FINAL DRIVE 48:1 88
FINAL DRIVE 48:1 90
Fire Extinguisher648
First Gear Clutch Assembly126
Fittings, 2-Spool Control Valve (Powerllel™)762
Fittings, 2-Spool Control Valve (Z-Bar)760
Fittings, 3-Spool Control Valve (Powerllel™)766
Fittings, 3-Spool Control Valve (Tool Carrier)768
Fittings, 3-Spool Control Valve (Z-Bar)764
Fittings, 4-Spool Control Valve (Powerllel™)772
Fittings, 4-Spool Control Valve (Z-Bar)770
Fittings, Boom and Bucket Cylinder (Powerllel™)906
Fittings, Boom and Bucket Cylinder (Tool Carrier)912
Fittings, Boom and Bucket Cylinder (Z-Bar) (NeverGrease™)900
Fittings, Boom and Bucket Cylinder (Z-Bar)898
Fittings, Fluid Sampling434
Fittings, Transmission 94
FLC2 Controller496
Floor Cover Plate, Cab540
Floor Cover Plate, Canopy548
Floor Mat, Cab552
Floor Mat, Canopy554
Fluid Sampling Ports434
FLYWHEEL (1503)229
FLYWHEEL (1503) (HDW79)147
FLYWHEEL HOUSING (1405) (HDW79)146
FLYWHEEL HOUSING (1405)228
FNR Switch Connector, Steering Column Harness502
FNR Switch, Left-hand Joystick Handle404
FNR Switch, Right-hand Joystick Handle834
FNR Switch, Steering Column498
Foam, Cab Noise Reduction528
Fork Frame Guard704
Forks, Hi-Vis Coupler702
Forks, Standard Coupler700
Four Function Pilot Lines876
Four Lever Controller Armrest, RH570
Four Lever Controller To Dual Joystick Conversion Kit814
Four Lever Pilot Controller790
Four Spool Loader Control Valve (Powerllel™)772
Four Spool Loader Control Valve (Z-Bar)770
Frame Guard, Fork704
Frame Locking Bar616
Frame, Cooling Package318
Frame, Engine518
Frame, Fork – Hi-Vis Coupler702
Frame, Fork – Standard Coupler700
Frame, Hi-Vis Coupler (Powerllel™)716
Frame, Hi-Vis Coupler (Tool Carrier)718
Frame, Hi-Vis Coupler (Z-Bar) (NeverGrease™)712
Frame, Hi-Vis Coupler (Z-Bar)710
Frame, Loader (Powerllel™)730
Frame, Loader (Tool Carrier)732
Frame, Loader (Z-Bar) (NeverGrease™)728
Frame, Loader (Z-Bar)726
Frame, Standard Coupler (Powerllel™)708
Frame, Standard Coupler (Z-Bar)706
Freeze Control Switch Connector, HVAC Module Harness504
Fresh Air Filter, Cab594
Front and Rear Windshield Wiper558
Front Axle 36
Front Console590
Front Differential Lock Line 46
Front Fender Plates (Tool Carrier)630
Front Fenders, Full Coverage626
Front Fenders624
Front Lights (Powerllel™)458
Front Lights (Z-Bar)454
Front Lights, LED (Powerllel™)460
Front Lights, LED (Z-Bar)456
FRONT PLATE (3614) (HDW74)166
FRONT PLATE (3626)248
Front Windshield Wiper558
FUEL FILTER LINES (6389) (HDW79)196
FUEL FILTER, FINAL (35DZ) (HDW79)164
FUEL FILTER, FINAL (35EM)246
Fuel Filter, In-Line (Severe Duty Fuel Filter Kit)374
Fuel Filter, In-Line (Severe Duty Fuel System)372
Fuel Filter, In-Line370
Fuel Filter, Severe Duty (Severe Duty Fuel Filter Kit)374
Fuel Filter, Severe Duty372
FUEL INJECTION PUMP (16S4)230
FUEL INJECTION PUMP, COMMON RAIL (169Z) (HDW79)148
Fuel Injector Connector, Engine Harness486
Fuel Line, Fuel-Fired Coolant Heater316
Fuel Lines (Severe Duty Fuel Filter Kit)374
Fuel Lines (Severe Duty Fuel System)372
FUEL LINES, HIGH PRESSURE (169Z) (HDW79)148
Fuel Lines370
Fuel Pump Control Valve Connector, Engine Harness486
Fuel Pump, Fuel-Fired Coolant Heater316
Fuel Rail Pressure Sensor Connector, Engine Harness486
Fuel Sender (Severe Duty Fuel System)372
Fuel Sender Connector, Engine Frame Harness484
Fuel Sender370
Fuel Strainer368
Fuel System370
Fuel Tank Guard522
Fuel Tank Lines (Severe Duty Fuel System)372
Fuel Tank Lines370
Fuel Tank368
Fuel Temperature Sensor Connector, Engine Harness486
FUEL TRANSFER PUMP (3713) (HDW79)168
Fuel-Fired Coolant Heater316
Full Coverage Front Fenders626
Full Coverage Rear Fenders628
Fuse Panel496
Fuse, VEC (Vehicle Electrical Center)496
G 0
Gas Cylinder, Steering Column386
GAS RECIRCULATION, EXHAUST (8903) (HDW79)210
GASKET KIT, EGR VALVE (9901)300
GASKET KIT, FUEL FILTER (35DZ) (HDW79)164
GASKET SET, ENGINE296
GASKET, ROCKER ARM COVER (1144) (HDW79)142
GASKET, ROCKER ARM COVER (1144)224
GASKET, THERMOSTAT HOUSING (3933)252
GASKET, TIMING GEAR COVER (4440) (HDW79)176
Gasket, Transmission Cover108
Gauge, Hydraulic Reservoir676
Gear Selector, Steering Column498
Gear Shift System112
GEAR, OIL PUMP (5024) (HDW79)186
GEAR, OIL PUMP (5024)268
Gear, Transmission Input100
GEAR, UPPER IDLER (3614) (HDW74)166
Gearbox Housing102
Glass, Cab Door544
Glass, Cab542
GlobalTRACS™ Box, JDLink™ Ultimate680
Grease Lines, Axle436
Grip, Left-hand Joystick404
Grip, Right-hand Joystick with FNR Switch834
Ground Speed Radar Sensor 52
Ground, Engine Frame Harness484
Ground, Load Center Harness496
GTT Box, JDLink™ Ultimate680
Guard, Engine Frame524
Guard, Fan334
Guard, Fork Frame704
Guard, Fuel Tank522
Guard, Loader Frame524
Guard, Pressure Regulator Valve (PRV)672
Guard, Pump Manifold672
Guard, Transmission524
Guards, Bottom524
Guards, Transmission618
H 0
Handle, Cab Door544
Handle, Joystick Pilot Controller832
Handle, Left-hand Joystick404
Handle, Main Counterweight526
Handle, Right-hand Joystick with FNR Switch834
Harness, Wiring – AM/FM/WB Radio Kit Speaker636
Harness, Wiring – AM/FM/WB Radio Speaker634
Harness, Wiring – AM/FM/WB Radio w/ CD Player Kit Speaker640
Harness, Wiring – AM/FM/WB Radio w/ CD Player Speaker638
Harness, Wiring – Auto Differential Lock 52
Harness, Wiring – Beacon Light Jumper468
Harness, Wiring – Electric Fifth Function Valve Section784
Harness, Wiring – Electric Fifth Function800
Harness, Wiring – Fuel-Fired Coolant Heater316
Harness, Wiring – JDLink™ Ultimate680
Harness, Wiring – Joystick Steering Kit392
Harness, Wiring – Joystick Steering402
Harness, Wiring – License Plate Light (LH)472
Harness, Wiring – License Plate Light (RH)470
Harness, Wiring – Rear Object Detection System654
Harness, Wiring – Return-to-Dig (Z-Bar)918
Harness, Wiring – Ride Control844
Harness, Wiring – Right-hand Joystick Handle with FNR Switch834
Harness, Wiring – Secondary Steering (Joystick)378
Harness, Wiring – Secondary Steering Kit380
Harness, Wiring – Secondary Steering376
Harness, Wiring – Steering Column (Joystick FNR)500
Harness, Wiring – Steering Column (Steering Column FNR)498
Harness, Wiring – Transmission Control Valve114
Harness, Wiring – Water Separator w/ Electric Fuel Pump372
Head Light (Powerllel™)458
Head Light (Z-Bar)454
Head Light, LED (Powerllel™)460
Head Light, LED (Z-Bar)456
HEAD, CYLINDER (5120) (HDW79)188
HEAD, FILTER / OIL FILTER (8842)282
HEAD, OIL FILTER (8842) (HDW79)208
Headliner, AM/FM/WB Radio w/ CD Player638
Headliner, AM/FM/WB Radio634
Headliner, Cab534
Headliner, Canopy536
Heated Exterior Mirror Connector, Cab Roof Harness494
Heated Exterior Mirror646
Heater Control (Heater Only)604
Heater Control606
Heater Core, HVAC Module608
Heater Hoses596
HEATER, COOLANT (2698) (ENGINE)239
Heater, Engine Block (110 V)312
Heater, Engine Block (220 V)314
Heater, Engine Coolant – Fuel-Fired316
Heavy Duty LED Turn Signal and Marker Lights (Powerllel™)460
Heavy Duty LED Turn Signal and Marker Lights (Z-Bar)456
Heavy Duty Rear Lights464
Hi-Vis Coupler (Powerllel™)716
Hi-Vis Coupler (Tool Carrier)718
Hi-Vis Coupler (Z-Bar) (NeverGrease™)712
Hi-Vis Coupler (Z-Bar)710
Hi-Vis Coupler Bucket (30 yd³)694
Hi-Vis Coupler Bucket (35 yd³)696
Hi-Vis Coupler Bucket Blanks724
Hi-Vis Coupler Forks702
Hi-Vis Coupler Hydraulic Cylinder720
Hi-Vis Coupler Hydraulics, Cable Reinforced (High Lift Z-Bar)892
Hi-Vis Coupler Hydraulics, Cable Reinforced (Powerllel™)894
Hi-Vis Coupler Hydraulics, Cable Reinforced (Z-Bar)890
Hi-Vis Coupler Hydraulics, Pin Disconnect (Tool Carrier)896
Hi-Vis Coupler Kit (Z-Bar)714
High Altitude Reservoir Pressurization Kit678
High Beam Switch (Joystick FNR)500
High Beam Switch (Steering Column FNR)498
High Beam Switch Connector, Steering Column Harness502
HIGH PRESSURE, COMMON RAIL SYSTEM (169Z) (HDW79)148
High Range Forward Clutch Assembly132
Hinge, Rear Fender628
Hitch and Rear Counterweight440
Hitch438
Holder, Operator’s Manual (Cab)562
Holder, Operator’s Manual (Canopy)564
Hood Sound Absorption620
Hood612
Hook Plates, Hi-Vis Coupler Bucket724
Hook Plates, Standard Coupler Bucket722
Hook, Coat662
Hook, Lift430
Horn Connector, Loader Frame Harness (Powerllel™)482
Horn Connector, Loader Frame Harness (Z-Bar)480
Horn Contact Kit386
Horn Switch Connector, Steering Column Harness502
Horn Switch384
Horn650
Hose, Air Cooler (Engine 6068HDW79)320
Hose, Air Cooler (Engine 6068HDW83)322
Hose, Brake Accumulator410
Hose, Brake Valve to Axles408
Hose, Brake Valve406
Hose, Environmental Drain432
Hose, Front Differential Lock 46
Hose, Fuel-Fired Coolant Heater316
Hose, Heater596
Hose, Park Brake Breather412
Hose, Radiator (Engine 6068HDW79)320
Hose, Radiator (Engine 6068HDW83)322
Hose, Rear Differential Lock 48
HOSE, ROCKER ARM COVER VENT(2917)(HDW79)160
Hose, Secondary Steering (Joystick)378
Hose, Secondary Steering Kit380
Hose, Secondary Steering376
Hose, Steering Cylinder396
Hose, Window Washer Reservoir560
Hoses, (Axle Cooling System w/ Secondary Steering) (SN332
Hoses, 2-Function872
Hoses, 2-Lever Pilot Controller786
Hoses, 3-Function874
Hoses, 3-Lever Pilot Controller788
Hoses, 4-Function876
Hoses, 4-Lever Pilot Controller790
Hoses, A/C Compressor598
Hoses, A/C Condenser and Receiver-Dryer602
Hoses, Axle Cooling System (Axle Cooling System Kit) (SN328
Hoses, Axle Cooling System (Axle Cooling System Kit) (SN330
Hoses, Axle Cooling System (SN -626437)324
Hoses, Axle Cooling System (SN 626438- )326
Hoses, Boom Cylinder (Powerllel™) (2-Spool Control Valve)864
Hoses, Boom Cylinder (Powerllel™) (3-Spool Control Valve)866
Hoses, Boom Cylinder (Powerllel™) (4-Spool Control Valve)868
Hoses, Boom Cylinder (Tool Carrier) (3-Spool Control Valve)870
Hoses, Boom Cylinder (Z-Bar) (2-Spool Control Valve)858
Hoses, Boom Cylinder (Z-Bar) (3-Spool Control Valve)860
Hoses, Boom Cylinder (Z-Bar) (4-Spool Control Valve)862
Hoses, Bucket Cylinder (Powerllel™) (2-Spool Control Valve)864
Hoses, Bucket Cylinder (Powerllel™) (3-Spool Control Valve)866
Hoses, Bucket Cylinder (Powerllel™) (4-Spool Control Valve)868
Hoses, Bucket Cylinder (Tool Carrier) (3-Spool Control Valve)870
Hoses, Bucket Cylinder (Z-Bar) (2-Spool Control Valve)858
Hoses, Bucket Cylinder (Z-Bar) (3-Spool Control Valve)860
Hoses, Bucket Cylinder (Z-Bar) (4-Spool Control Valve)862
Hoses, Coupler Cable Reinforced (High Lift Z-Bar)888
Hoses, Coupler Cable Reinforced (Z-Bar) (Powerllel™)886
Hoses, Coupler Third Function (High Lift Z-Bar)880
Hoses, Coupler Third Function (Powerllel™)882
Hoses, Coupler Third Function (Tool Carrier)884
Hoses, Coupler Third Function (Z-Bar)878
Hoses, Electric Fifth Function800
Hoses, Fuel (Severe Duty Fuel Filter Kit)374
Hoses, Fuel (Severe Duty Fuel System)372
Hoses, Fuel370
Hoses, Hi-Vis Coupler Cable Reinforced (High Lift Z-Bar)892
Hoses, Hi-Vis Coupler Cable Reinforced (Powerllel™)894
Hoses, Hi-Vis Coupler Cable Reinforced (Z-Bar)890
Hoses, Hi-Vis Coupler Pin Disconnect (Tool Carrier)896
Hoses, HVAC Module (Heater Only)604
Hoses, HVAC Module606
Hoses, Joystick (w/ FNR) Pilot Controller and Auxiliary Lever798
Hoses, Joystick (w/ FNR) Pilot Controller796
Hoses, Joystick (w/o FNR) Pilot Controller and Auxiliary Lever794
Hoses, Joystick (w/o FNR) Pilot Controller792
Hoses, Joystick Steering Kit392
Hoses, Joystick Steering390
Hoses, Main Hydraulic674
Hoses, Pin Disconnect (Powerllel™)852
Hoses, Pin Disconnect (Tool Carrier)854
Hoses, Pin Disconnect (Z-Bar)850
Hoses, Pin Disconnect Valve848
Hoses, Reversing Fan Drive Kit344
Hoses, Reversing Fan Drive342
Hoses, Ride Control (Powerllel™)838
Hoses, Ride Control (Tool Carrier)842
Hoses, Ride Control (Z-Bar)840
Hoses, Ride Control844
Hoses, Standard Fan Drive338
Hoses, Transmission136
HOUSING, FLYWHEEL (1405) (HDW79)146
HOUSING, FLYWHEEL (1405)228
Housing, HVAC Module608
HOUSING, OIL PUMP (5024) (HDW79)186
HOUSING, OIL PUMP (5024)268
HOUSING, STANDARD INPUT NON- OSC 70
HOUSING, STD INPUT 68
HOUSING, THERMOSTAT (3917) (HDW79)170
HOUSING, THERMOSTAT (3933)252
Housing, Torque Converter 98
Housing, Transmission102
Hub, Engine Fan334
HVAC Control Console590
HVAC Ducts594
HVAC Louvers590
HVAC Module (Heater Only)604
HVAC Module Components608
HVAC Module Wiring Harness504
HVAC Module606
HVAC Pre-Cleaner610
Hydraulic Fan Drive Pump (Axle Cooling System Kit) (SN328
Hydraulic Fan Drive Pump (Axle Cooling System Kit) (SN330
Hydraulic Fan Drive Pump (Axle Cooling System w/ Secondary332
Hydraulic Fan Drive Pump (Axle Cooling System) (SN -626437)324
Hydraulic Fan Drive Pump (Axle Cooling System) (SN 626438- )326
Hydraulic Hoses, (Axle Cooling System w/ Secondary Steering)332
Hydraulic Hoses, Axle Cooling System (Axle Cooling System Kit) (328
Hydraulic Hoses, Axle Cooling System (Axle Cooling System Kit) (330
Hydraulic Hoses, Axle Cooling System (SN -626437)324
Hydraulic Hoses, Axle Cooling System (SN 626438- )326
Hydraulic Hoses, Electric Fifth Function800
Hydraulic Lines, 2-Function872
Hydraulic Lines, 2-Lever Pilot Controller786
Hydraulic Lines, 3-Function874
Hydraulic Lines, 3-Lever Pilot Controller788
Hydraulic Lines, 4-Function876
Hydraulic Lines, 4-Lever Pilot Controller790
Hydraulic Lines, Coupler Cable Reinforced (High Lift Z-Bar)888
Hydraulic Lines, Coupler Cable Reinforced (Z-Bar) (Powerllel™)886
Hydraulic Lines, Coupler Third Function (High Lift Z-Bar)880
Hydraulic Lines, Coupler Third Function (Powerllel™)882
Hydraulic Lines, Coupler Third Function (Tool Carrier)884
Hydraulic Lines, Coupler Third Function (Z-Bar)878
Hydraulic Lines, Hi-Vis Coupler Cable Reinforced (High Lift892
Hydraulic Lines, Hi-Vis Coupler Cable Reinforced (Powerllel™)894
Hydraulic Lines, Hi-Vis Coupler Cable Reinforced (Z-Bar)890
Hydraulic Lines, Hi-Vis Coupler Pin Disconnect (Tool Carrier)896
Hydraulic Lines, Joystick (w/ FNR) Pilot Controller and798
Hydraulic Lines, Joystick (w/ FNR) Pilot Controller796
Hydraulic Lines, Joystick (w/o FNR) Pilot Controller and794
Hydraulic Lines, Joystick (w/o FNR) Pilot Controller792
Hydraulic Lines, Main674
Hydraulic Lines, Pin Disconnect (Powerllel™)852
Hydraulic Lines, Pin Disconnect (Tool Carrier)854
Hydraulic Lines, Pin Disconnect (Z-Bar)850
Hydraulic Lines, Pin Disconnect Valve848
Hydraulic Lines, Ride Control (Powerllel™)838
Hydraulic Lines, Ride Control (Tool Carrier)842
Hydraulic Lines, Ride Control (Z-Bar)840
Hydraulic Lines, Ride Control844
Hydraulic Oil Cooler318
Hydraulic Oil Reservoir676
Hydraulic Oil Sampling Fitting434
Hydraulic Pressure Switch Connector, Engine Frame Harness484
Hydraulic Pressure Transducer Connector, Engine Frame Harness484
Hydraulic Pump Manifold Guard672
Hydraulic Pump Manifold668
Hydraulic Pump664
Hydraulic Reservoir, High Altitude Pressurization Kit678
Hydraulic Temperature Sensor Connector, Engine Frame Harness484
I 0
IDLER GEAR (3614) HDW74166
Idler Pulley, 100 A Alternator (w/ A/C)452
Idler Pulley, 100 A Alternator (w/o A/C)450
Idler Pulley, 80 A Alternator (w/ A/C)448
Idler Pulley, 80 A Alternator (w/o A/C)446
Ignition Key418
In-Line Fuel Filter (Severe Duty Fuel Filter Kit)374
In-Line Fuel Filter (Severe Duty Fuel System)372
In-Line Fuel Filter370
INJECTION NOZZLE, WIRING HARNESS (169Z) (HDW79)148
Inlet Valve Section with Relief Valve774
INLET, WATER PUMP (5728) (HDW79)192
INLET, WATER PUMP (5728)274
Input Gear, Transmission100
INPUT HOUSING, STANDARD NON- OSC 70
Input Shaft, Torque Converter 98
Input Shaft, Transmission100
Input Speed Sensor Connector, Transmission Harness488
INPUT YOKE WITH SLINGER 58
INPUT YOKE WITH SLINGER 60
INTAKE MANIFOLD AND GASKET (1797)232
Intake System, Air (Engine 6068HDW79)350
Intake System, Air (Engine 6068HDW83)352
INTAKE VALVE (5120) (HDW79)188
INTAKE VALVE (5128)270
INTAKE, AIR (17BL) (HDW79)150
INTAKE, OIL PUMP (1946) (HDW74)152
INTAKE, OIL PUMP (1946)234
Interior Covers, Cab562
Interior Covers, Canopy564
Isolators, Cab Noise Reduction528
J 0
JDLink™ Ultimate680
Joystick Armrest, RH568
Joystick Controller, Auxiliary836
Joystick Handle (with FNR) Conversion Kit824
Joystick Pilot Controller (with FNR) and Auxiliary Lever798
Joystick Pilot Controller (with FNR)796
Joystick Pilot Controller (without FNR) and Auxiliary Lever794
Joystick Pilot Controller (without FNR)792
Joystick Pilot Controller Components832
Joystick Steering Deluxe Seat580
Joystick Steering Joystick Handle404
Joystick Steering Kit392
Joystick Steering Left Armrest572
Joystick Steering Valve394
Joystick Steering Wiring Harness402
Joystick Steering390
Joystick To Joystick with Auxiliary Lever Conversion Kit820
Joystick To Joystick with Auxiliary Lever Conversion Kit (Z-Bar)818
Joystick To Two Lever Controller Conversion Kit816
Joystick with Auxiliary Lever to Three Lever Controller822
Jumper Harness, Wiper Motor510
K 0
Key, Ignition418
Kickdown Switch, 2-Lever Pilot Controller826
KIT ENGINE GASKET 9901298
KIT, EGR VALVE GASKET (9901)300
Kit, 10 A Converter (24 V to 12 V) (Dual Outlet)508
Kit, 10 A Converter (24 V to 12 V)506
Kit, Air Pre-Cleaner354
Kit, AM/FM/WB Radio w/ CD Player640
Kit, AM/FM/WB Radio636
Kit, Auxiliary Cutting Edge (2690 mm)682
Kit, Auxiliary Dual Lever Controller Detent830
Kit, Auxiliary Single Lever Controller Detent828
Kit, Axle Cooling System (SN -626437)328
Kit, Axle Cooling System (SN 626438- )330
Kit, Beacon Light Bracket468
KIT, BEARING (9901)286
Kit, Bucket Spillguard698
Kit, Bucket Teeth (2690 mm Edge)684
Kit, Cable Reinforced Coupler Hydraulics (High Lift Z-Bar)888
Kit, Cable Reinforced Coupler Hydraulics (Z-Bar) (Powerllel™)886
Kit, Cable Reinforced Hi-Vis Coupler Hydraulics (High Lift892
Kit, Cable Reinforced Hi-Vis Coupler Hydraulics (Powerllel™)894
Kit, Cable Reinforced Hi-Vis Coupler Hydraulics (Z-Bar)890
KIT, CONNECTING ROD BEARING (9901) (STANDARD)284
Kit, Conversion – Pilot Controller, 2-Lever to 3-Lever804
Kit, Conversion – Pilot Controller, 2-Lever to 3-Lever (Z-Bar)802
Kit, Conversion – Pilot Controller, 2-Lever to Joystick810
Kit, Conversion – Pilot Controller, 3-Lever to 4-Lever808
Kit, Conversion – Pilot Controller, 3-Lever to 4-Lever (Z-Bar)806
Kit, Conversion – Pilot Controller, 3-Lever to Joystick w/812
Kit, Conversion – Pilot Controller, 4-Lever to Dual Joysticks814
Kit, Conversion – Pilot Controller, Joystick (w/o FNR) to824
Kit, Conversion – Pilot Controller, Joystick to 2-Lever816
Kit, Conversion – Pilot Controller, Joystick to Joystick w/820
Kit, Conversion – Pilot Controller, Joystick to Joystick w/818
Kit, Conversion – Pilot Controller, Joystick w/ Auxiliary822
Kit, Electric Fifth Function800
Kit, Embedded Payload Scale656
KIT, ENGINE OVERHAUL (9901)308
Kit, Environmental Drain432
Kit, Fork Frame Guard704
Kit, Fuel-Fired Coolant Heater316
Kit, Full Coverage Front Fenders626
Kit, Full Coverage Rear Fenders628
Kit, Hi-Vis Coupler (Z-Bar)714
Kit, Hi-Vis Coupler Bucket Blanks724
Kit, Hi-Vis Coupler Forks702
Kit, High Altitude Reservoir Pressurization678
Kit, JDLink™ Ultimate680
Kit, Joystick Steering392
Kit, License Plate Light (RH)470
KIT, MAIN BEARING (9901)287
KIT, MAIN BEARING (9901)288
KIT, O-RING (9901)290
Kit, Pin Disconnect (Powerllel™)852
Kit, Pin Disconnect (Tool Carrier)854
Kit, Pin Disconnect (Z-Bar)850
Kit, Pin Disconnect Hi-Vis Coupler Hydraulics (Tool Carrier)896
KIT, PISTON RING (9901)304
Kit, Pump Manifold Guard672
Kit, Rear Object Detection System654
Kit, Reversing Fan Drive344
Kit, Ride Control844
Kit, Seal – Auxiliary Joystick Controller836
Kit, Seal – Auxiliary Valve Section780
Kit, Seal – Axle Oil Circulation Pump (Axle Cooling System328
Kit, Seal – Axle Oil Circulation Pump (Axle Cooling System330
Kit, Seal – Axle Oil Circulation Pump (Axle Cooling System w/332
Kit, Seal – Axle Oil Circulation Pump (SN -626437)324
Kit, Seal – Axle Oil Circulation Pump (SN 626438- )326
Kit, Seal – Boom Cylinder (Powerllel™)908
Kit, Seal – Boom Cylinder (Tool Carrier)914
Kit, Seal – Boom Cylinder (Z-Bar)902
Kit, Seal – Boom Valve Section776
Kit, Seal – Brake Valve406
Kit, Seal – Bucket Cylinder (Powerllel™)910
Kit, Seal – Bucket Cylinder (Tool Carrier)916
Kit, Seal – Bucket Cylinder (Z-Bar)904
Kit, Seal – Bucket Valve Section778
Kit, Seal – Electric Fifth Function Valve Section784
Kit, Seal – Fan Drive Pump (Axle Cooling System Kit) (SN328
Kit, Seal – Fan Drive Pump (Axle Cooling System Kit) (SN330
Kit, Seal – Fan Drive Pump (Axle Cooling System w/ Secondary332
Kit, Seal – Fan Drive Pump (Axle Cooling System) (SN -626437)324
Kit, Seal – Fan Drive Pump (Axle Cooling System) (SN 626438- )326
Kit, Seal – Fan Drive Pump (Reversing Fan Drive Kit)344
Kit, Seal – Fan Drive Pump (Reversing)340
Kit, Seal – Fan Drive Pump (Standard)336
Kit, Seal – Hi-Vis Coupler Cylinder720
Kit, Seal – Hydraulic Pump664
Kit, Seal – Hydraulic Reservoir Oil Filter676
Kit, Seal – Inlet Valve Section774
Kit, Seal – Outlet Valve Section782
Kit, Seal – Pin Disconnect Valve (Powerllel™)852
Kit, Seal – Pin Disconnect Valve (Tool Carrier)854
Kit, Seal – Pin Disconnect Valve (Z-Bar)850
Kit, Seal – Steering Cylinder400
Kit, Seal – Steering Valve388
Kit, Seat Suspension582
Kit, Secondary Steering380
KIT, SERVICE INJECTOR (9901)306
Kit, Severe Duty Fuel Filter374
Kit, Slow Moving Vehicle Sign660
Kit, Standard Coupler Bucket Blanks722
Kit, Standard Coupler Forks700
Kit, Third Function Coupler Hydraulics (High Lift Z-Bar)880
Kit, Third Function Coupler Hydraulics (Powerllel™)882
Kit, Third Function Coupler Hydraulics (Tool Carrier)884
Kit, Third Function Coupler Hydraulics (Z-Bar)878
Knob, Cab LH Console562
Knob, Heater Control (Heater Only)604
Knob, Heater Control606
Knob, Steering Wheel384
L 0
Label, 2-Lever Fingertip Controls786
Label, 3-Lever Fingertip Controls788
Label, 4-Lever Fingertip Controls790
Label, Axle/Gearbox Oil (Axle Cooling System Kit) (SN -626437)328
Label, Axle/Gearbox Oil (Axle Cooling System Kit) (SN330
Label, Axle/Gearbox Oil (Axle Cooling System w/ Secondary332
Label, Axle/Gearbox Oil (SN -626437)324
Label, Axle/Gearbox Oil (SN 626438- )326
Label, Boom Lock746
Label, Engine Coolant432
Label, Engine Oil432
Label, High Lift Loader Boom (NeverGrease™)740
Label, High Lift Loader Boom738
Label, Hydraulic Oil432
Label, Joystick (w/ FNR) and Auxiliary Lever Controls798
Label, Joystick (w/ FNR) Controls796
Label, Joystick (w/o FNR) and Auxiliary Lever Controls794
Label, Joystick (w/o FNR) Controls792
Label, Load Capacity – Hi-Vis Coupler Forks702
Label, Load Capacity – Standard Coupler Forks700
Label, Quick Service434
Label, Ride Control Accumulator844
Label, Secondary Steering Kit380
LABEL, STARTER (3041) (HDW79)162
Label, Transmission Oil432
Labels (English)416
Labels (French)422
Labels (Russian)426
Labels (Spanish)424
Labels, Cab (English)418
Labels, Canopy (English)420
Latch, Battery Box444
Latch, Cab Door544
Latch, Engine Door614
Latch, Fan Guard334
Latch, Hood612
Latch, Rear Fender628
Latch, RH Cab Window542
LED Front Lights (Powerllel™)460
LED Front Lights (Z-Bar)456
Left-hand Joystick Handle404
Level 1 Sound Package620
Level 2 Sound Package622
Lever, 2-Lever Pilot Controller826
Lever, Auxiliary Dual Lever Controller830
Lever, Auxiliary Joystick Controller836
Lever, Auxiliary Single Lever Controller828
License Plate Bracket (LH)472
License Plate Bracket (RH)470
License Plate Light (LH)472
License Plate Light (RH)470
License Plate Light Connector, Rear Frame Harness490
Lift Hooks430
LIFT STRAPS (9801)283
LIFT STRAPS (9801)212
Light, Beacon468
Light, License Plate (LH)472
Light, License Plate (RH)470
Light, Strobe468
Lights, Cab Work466
Lights, Front (Powerllel™)458
Lights, Front (Z-Bar)454
Lights, Front LED (Powerllel™)460
Lights, Front LED (Z-Bar)456
Lights, Heavy Duty LED Turn Signal and Marker (Powerllel™)460
Lights, Heavy Duty LED Turn Signal and Marker (Z-Bar)456
Lights, Rear464
Lights, Turn Signal and Marker (Powerllel™)458
Lights, Turn Signal and Marker (Z-Bar)454
Lights, Work466
Line, Brake Accumulator410
Line, Brake Valve to Axles408
Line, Brake Valve406
Line, Environmental Drain432
Line, Front Differential Lock 46
Line, Fuel-Fired Coolant Heater316
Line, Park Brake Breather412
Line, Rear Differential Lock 48
Line, Secondary Steering (Joystick)378
Line, Secondary Steering Kit380
Line, Secondary Steering376
Line, Steering Cylinder396
LINER KIT, PISTON (9901)294
LINER, CYLINDER (4834)264
LINER, CYLINDER (4836) HDW79182
LINERS, BLOCK (4633) (HDW79)178
Lines, (Axle Cooling System w/ Secondary Steering) (SN332
Lines, 2-Function872
Lines, 2-Lever Pilot Controller786
Lines, 3-Function874
Lines, 3-Lever Pilot Controller788
Lines, 4-Function876
Lines, 4-Lever Pilot Controller790
Lines, A/C Compressor598
Lines, A/C Condenser and Receiver-Dryer602
Lines, Axle Cooling System (Axle Cooling System Kit) (SN328
Lines, Axle Cooling System (Axle Cooling System Kit) (SN330
Lines, Axle Cooling System (SN -626437)324
Lines, Axle Cooling System (SN 626438- )326
Lines, Boom Cylinder (Powerllel™) (2-Spool Control Valve)864
Lines, Boom Cylinder (Powerllel™) (3-Spool Control Valve)866
Lines, Boom Cylinder (Powerllel™) (4-Spool Control Valve)868
Lines, Boom Cylinder (Tool Carrier) (3-Spool Control Valve)870
Lines, Boom Cylinder (Z-Bar) (2-Spool Control Valve)858
Lines, Boom Cylinder (Z-Bar) (3-Spool Control Valve)860
Lines, Boom Cylinder (Z-Bar) (4-Spool Control Valve)862
Lines, Bucket Cylinder (Powerllel™) (2-Spool Control Valve)864
Lines, Bucket Cylinder (Powerllel™) (3-Spool Control Valve)866
Lines, Bucket Cylinder (Powerllel™) (4-Spool Control Valve)868
Lines, Bucket Cylinder (Tool Carrier) (3-Spool Control Valve)870
Lines, Bucket Cylinder (Z-Bar) (2-Spool Control Valve)858
Lines, Bucket Cylinder (Z-Bar) (3-Spool Control Valve)860
Lines, Bucket Cylinder (Z-Bar) (4-Spool Control Valve)862
Lines, Coupler Cable Reinforced (High Lift Z-Bar)888
Lines, Coupler Cable Reinforced (Z-Bar) (Powerllel™)886
Lines, Coupler Third Function (High Lift Z-Bar)880
Lines, Coupler Third Function (Powerllel™)882
Lines, Coupler Third Function (Tool Carrier)884
Lines, Coupler Third Function (Z-Bar)878
Lines, Electric Fifth Function800
Lines, Fuel (Severe Duty Fuel Filter Kit)374
Lines, Fuel (Severe Duty Fuel System)372
LINES, FUEL – HIGH PRESSURE (169Z) (HDW79)148
LINES, FUEL FILTER (6389) (HDW79)196
Lines, Fuel370
Lines, Hi-Vis Coupler Cable Reinforced (High Lift Z-Bar)892
Lines, Hi-Vis Coupler Cable Reinforced (Powerllel™)894
Lines, Hi-Vis Coupler Cable Reinforced (Z-Bar)890
Lines, Hi-Vis Coupler Pin Disconnect (Tool Carrier)896
Lines, HVAC Module (Heater Only)604
Lines, HVAC Module606
Lines, Joystick (w/ FNR) Pilot Controller and Auxiliary Lever798
Lines, Joystick (w/ FNR) Pilot Controller796
Lines, Joystick (w/o FNR) Pilot Controller and Auxiliary Lever794
Lines, Joystick (w/o FNR) Pilot Controller792
Lines, Joystick Steering Kit392
Lines, Joystick Steering390
Lines, Main Hydraulic674
Lines, Pin Disconnect (Powerllel™)852
Lines, Pin Disconnect (Tool Carrier)854
Lines, Pin Disconnect (Z-Bar)850
Lines, Pin Disconnect Valve848
Lines, Reversing Fan Drive Kit344
Lines, Reversing Fan Drive342
Lines, Ride Control (Powerllel™)838
Lines, Ride Control (Tool Carrier)842
Lines, Ride Control (Z-Bar)840
Lines, Ride Control844
Lines, Standard Fan Drive338
Lines, Transmission Oil (Internal)110
Lines, Transmission136
LINES, TURBOCHARGER OIL (65TE) (HDW79)198
Linkage, Brake Pedal406
Linkage, Loader Boom (High Lift Z-Bar) (NeverGrease™)754
Linkage, Loader Boom (High Lift Z-Bar)752
Linkage, Loader Boom (Powerllel™)756
Linkage, Loader Boom (Tool Carrier)758
Linkage, Loader Boom (Z-Bar) (NeverGrease™)750
Linkage, Loader Boom (Z-Bar)748
Load Center Harness Connector, Cab Roof Harness494
Load Center Harness Connector, Engine Frame Harness484
Load Center Harness Connector, Engine Harness486
Load Center Harness Connector, HVAC Module Harness504
Load Center Harness Connector, Steering Column Harness502
Load Center Harness Connector, Transmission Harness488
Load Center Wiring Harness496
Loader Boom (High Lift Z-Bar) (NeverGrease™)740
Loader Boom (High Lift Z-Bar)738
Loader Boom (Powerllel™)742
Loader Boom (Tool Carrier)744
Loader Boom (Z-Bar) (NeverGrease™)736
Loader Boom (Z-Bar)734
Loader Boom Linkage (High Lift Z-Bar) (NeverGrease™)754
Loader Boom Linkage (High Lift Z-Bar)752
Loader Boom Linkage (Powerllel™)756
Loader Boom Linkage (Tool Carrier)758
Loader Boom Linkage (Z-Bar) (NeverGrease™)750
Loader Boom Linkage (Z-Bar)748
Loader Boom-Height Kick-Out (Powerllel™)926
Loader Boom-Height Kick-Out (Tool Carrier)928
Loader Boom-Height Kick-Out (Z-Bar)924
Loader Bucket, Hi-Vis Coupler (30 yd³)694
Loader Bucket, Hi-Vis Coupler (35 yd³)696
Loader Bucket, Pin-On (35 yd³) (NeverGrease™)688
Loader Bucket, Pin-On (35 yd³)686
Loader Bucket, Standard Coupler (30 yd³)690
Loader Bucket, Standard Coupler (35 yd³)692
Loader Control Valve (2-Spool) (Powerllel™)762
Loader Control Valve (2-Spool) (Z-Bar)760
Loader Control Valve (3-Spool) (Powerllel™)766
Loader Control Valve (3-Spool) (Tool Carrier)768
Loader Control Valve (3-Spool) (Z-Bar)764
Loader Control Valve (4-Spool) (Powerllel™)772
Loader Control Valve (4-Spool) (Z-Bar)770
Loader Frame (Powerllel™)730
Loader Frame (Tool Carrier)732
Loader Frame (Z-Bar) (NeverGrease™)728
Loader Frame (Z-Bar)726
Loader Frame Guard524
Loader Frame Wiring Harness (Powerllel™)482
Loader Frame Wiring Harness (Z-Bar)480
Loader Frame Wiring Harness Mounting (Powerllel™)476
Loader Frame Wiring Harness Mounting (Tool Carrier)478
Loader Frame Wiring Harness Mounting (Z-Bar)474
Loader Return-to-Carry (Powerllel™)926
Loader Return-to-Carry (Tool Carrier)928
Loader Return-to-Carry (Z-Bar)924
Lock Bar, Frame616
Lock Line, Front Differential 46
Lock Line, Rear Differential 48
LOCK, DIFFERENTIAL 78
LOCK, DIFFERENTIAL 80
Lock, Fork – Hi-Vis Coupler702
Lock, Fork – Standard Coupler700
Lock, Loader Boom746
Lock-up Torque Converter Connector, Transmission Harness488
Locking Pin, Rear Hitch and Counterweight440
Locking Pin, Rear Hitch438
Logger Rim, 1 pc (28L X 26 Tire) 34
Louvers, HVAC590
Low Pressure Fuel Pump Connector, Engine Harness486
Low Pressure Fuel Pump Connector, Water Separator w/ Electric512
Low Range Forward Clutch Assembly122
Lubrication Lines, Axle436
M 0
MAGNETIC PICK-UP SENSOR (6721) (HDW79)202
MAGNETIC PICK-UP SENSOR (6744)278
MAIN BEARING KIT287
MAIN BEARING THRUST (9901)289
Main Counterweight526
Main Hydraulic Lines674
Main Hydraulic Pump Manifold668
MAIN THRUST BEARING286
Main Wiring Harness (Powerllel™)476
Main Wiring Harness (Tool Carrier)478
Main Wiring Harness (Z-Bar)474
MANIFOLD AIR PRESSURE SENSOR (6721) (HDW79)202
Manifold Air Temperature (MAT) Sensor Connector, Engine Harness486
Manifold Guard, Main Hydraulic Pump672
Manifold Hydraulic Lines, Pump674
MANIFOLD, EXHAUST (2876) HDW79)158
MANIFOLD, EXHAUST (28AY)240
MANIFOLD, INTAKE (1797)232
Manifold, Main Hydraulic Pump668
Manifold, Transmission Control Valve112
Manual Holder, Operator’s Manual (Cab)562
Manual Holder, Operator’s Manual (Canopy)564
Marker Light (Powerllel™)458
Marker Light (Z-Bar)454
Marker Light Connector, Loader Frame Harness (Powerllel™)482
Marker Light Connector, Loader Frame Harness (Z-Bar)480
Marker Light, LED (Powerllel™)460
Marker Light, LED (Z-Bar)456
Mat, Cab Floor552
Mat, Canopy Floor554
MIDLAND AUX DRIVE AIR COMPRESSOR (9901)303
MIG Controller, JDLink™ Ultimate680
Mirror, Exterior644
Mirror, Heated Exterior646
Mirror, Rear View642
Module, HVAC (Heater Only)604
Module, HVAC606
Module, Sealed Switch496
Monitor, Cab516
Motor, Reversing Fan Drive Kit344
Motor, Reversing Fan Drive340
Motor, Secondary Steering Pump (Joystick)378
Motor, Secondary Steering Pump (Secondary Steering Kit)380
Motor, Secondary Steering Pump376
Motor, Standard Fan Drive336
MOTOR, STARTING (3041) (HDW79)162
MOTOR, STARTING (3041)244
Mount, Park Brake412
MOUNTING BRACKETS, ALTERNATOR (6275) (HDW83)276
Mounting, Axle 44
Mounting, Transmission 94
Mounts, Cab532
Mounts, Engine (Engine 6068HDW79)364
Mounts, Engine (Engine 6068HDW83)366
Muffler and Black Exhaust Pipe (Engine 6068HDW79)356
Muffler and Black Exhaust Pipe (Engine 6068HDW83)360
Muffler and Chrome Exhaust Pipe (Engine 6068HDW79)358
Muffler and Chrome Exhaust Pipe (Engine 6068HDW83)362
N 0
Neck, Oil Filler226
No Engine Coolant Heater157
Noise Reduction Foam, Cab528
NOZZLE INJECTION, WIRING HARNESS (169Z) (HDW79)148
O 0
O-RING KIT (9901)294
Oil Circulation Pump (Axle Cooling System w/ Secondary332
Oil Circulation Pump, Axle (Axle Cooling System Kit) (SN328
Oil Circulation Pump, Axle (Axle Cooling System Kit) (SN330
Oil Circulation Pump, Axle (SN -626437)324
Oil Circulation Pump, Axle (SN 626438- )326
Oil Cooler, Axle (Axle Cooling System Kit) (SN -626437)328
Oil Cooler, Axle (Axle Cooling System Kit) (SN 626438- )330
Oil Cooler, Axle (Axle Cooling System w/ Secondary Steering)332
Oil Cooler, Axle (SN -626437)324
Oil Cooler, Axle (SN 626438- )326
OIL COOLER, ENGINE (5945) (HDW79)193
Oil Cooler, Hydraulic318
Oil Cooler, Transmission318
OIL DIPSTICK (4035) (HDW79)172
OIL DIPSTICK, ENGINE (4035)254
Oil Dipstick, Engine (Axle Cooling System Kit) (SN -626437)328
Oil Dipstick, Engine (Axle Cooling System Kit) (SN 626438- )330
Oil Dipstick, Engine (Axle Cooling System w/ Secondary332
Oil Dipstick, Engine (Axle Cooling System) (SN -626437)324
Oil Dipstick, Engine (Axle Cooling System) (SN 626438- )326
OIL FILL (1241) (HDW79)144
Oil Fill Tube, Transmission136
Oil Filler Neck226
Oil Filler Neck226
OIL FILTER / FILTER HEAD (8842)282
Oil Filter Restriction Indicator Connector, Transmission Harness488
Oil Filter Restriction Indicator Switch, Transmission112
Oil Filter, (Axle Cooling System w/ Secondary Steering) (SN332
Oil Filter, Axle Cooling System (SN -626437)324
Oil Filter, Axle Cooling System (SN 626438- )326
Oil Filter, Axle Cooling System Kit (SN -626437)328
Oil Filter, Axle Cooling System Kit (SN 626438- )330
OIL FILTER, FILTER HEAD (8842) (HDW79)208
Oil Filter, Hydraulic Reservoir676
Oil Filter, Transmission 96
Oil Lines, Transmission (Internal)110
OIL LINES, TURBOCHARGER (65TE) (HDW79)198
OIL PAN (1946) (HDW74)152
OIL PAN (1946)234
Oil Pressure Sensor Connector, Engine Harness486
OIL PUMP (5024) (HDW79)186
OIL PUMP (5024)268
OIL PUMP INTAKE (1946) (HDW74)152
OIL PUMP INTAKE (1946)234
Oil Pump, Transmission106
Oil Reservoir, Hydraulic676
OIL SEAL, REAR (9901)291
Operator’s Manual Holder, Cab562
Operator’s Manual Holder, Canopy564
OSCILLATION, DUAL CENTER PIVOT 72
Outlet Valve Section782
Outlet, 12 V (Dual)508
Outlet, 12 V506
Output Speed Sensor Connector, Transmission Harness488
Outside Mirror, Heated646
Outside Mirror644
OVERHAUL KIT, ENGINE (9901)308
P 0
Pallet Forks, Hi-Vis Coupler702
Pallet Forks, Standard Coupler700
PAN, OIL (1946) (HDW74)152
PAN, OIL (1946)234
Panel, Cab538
Panel, Canopy546
Panels, Engine Side614
Park Brake Mounting412
Park Brake Solenoid Connector, Engine Frame Harness484
Park Brake Switch Connector, Engine Frame Harness484
Park Brake414
Payload Scale, Embedded656
Payload Weight Connector, Loader Frame Harness (Powerllel™)482
Payload Weight Connector, Loader Frame Harness (Z-Bar)480
Pedal, Brake406
Pedal, Engine Speed Control348
Pedal, Steering Column386
Pilot Controller Conversion Kit, 2-Lever to 3-Lever (Powerllel™)804
Pilot Controller Conversion Kit, 2-Lever to 3-Lever (Z-Bar)802
Pilot Controller Conversion Kit, 2-Lever to Joystick810
Pilot Controller Conversion Kit, 3-Lever to 4-Lever (Powerllel™)808
Pilot Controller Conversion Kit, 3-Lever to 4-Lever (Z-Bar)806
Pilot Controller Conversion Kit, 3-Lever to Joystick w/812
Pilot Controller Conversion Kit, 4-Lever to Dual Joysticks814
Pilot Controller Conversion Kit, Joystick (w/o FNR) to824
Pilot Controller Conversion Kit, Joystick to 2-Lever816
Pilot Controller Conversion Kit, Joystick to Joystick w/820
Pilot Controller Conversion Kit, Joystick to Joystick w/818
Pilot Controller Conversion Kit, Joystick w/ Auxiliary Lever822
Pilot Controller, 2-Lever786
Pilot Controller, 2-Lever826
Pilot Controller, 3-Lever788
Pilot Controller, 4-Lever790
Pilot Controller, Auxiliary Dual Lever830
Pilot Controller, Auxiliary Joystick836
Pilot Controller, Auxiliary Single Lever828
Pilot Controller, Joystick (w/ FNR) and Auxiliary Lever798
Pilot Controller, Joystick (w/ FNR)796
Pilot Controller, Joystick (w/o FNR) and Auxiliary Lever794
Pilot Controller, Joystick (w/o FNR)792
Pilot Controller, Joystick832
Pilot Enable Solenoid Connector, Engine Frame Harness484
Pilot Lines, 2-Function872
Pilot Lines, 2-Lever Controller786
Pilot Lines, 3-Function874
Pilot Lines, 3-Lever Controller788
Pilot Lines, 4-Function876
Pilot Lines, 4-Lever Controller790
Pilot Lines, Joystick Controller (w/ FNR) and Auxiliary Lever798
Pilot Lines, Joystick Controller (w/ FNR)796
Pilot Lines, Joystick Controller (w/o FNR) and Auxiliary Lever794
Pilot Lines, Joystick Controller (w/o FNR)792
Pin Disconnect Connector, Loader Frame Harness (Powerllel™)482
Pin Disconnect Connector, Loader Frame Harness (Z-Bar)480
Pin Disconnect Hi-Vis Coupler Hydraulics (Tool Carrier)896
Pin Disconnect Hydraulic Lines (Powerllel™)852
Pin Disconnect Hydraulic Lines (Tool Carrier)854
Pin Disconnect Hydraulic Lines (Z-Bar)850
Pin Disconnect Valve Hydraulic Lines848
Pin Disconnect Valve856
Pin, Loader Boom (High Lift Z-Bar) (NeverGrease™)740
Pin, Loader Boom (High Lift Z-Bar)738
Pin, Loader Boom (Powerllel™)742
Pin, Loader Boom (Tool Carrier)744
Pin, Loader Boom (Z-Bar) (NeverGrease™)736
Pin, Loader Boom (Z-Bar)734
Pin, Loader Boom Linkage (High Lift Z-Bar) (NeverGrease™)754
Pin, Loader Boom Linkage (High Lift Z-Bar)752
Pin, Loader Boom Linkage (Powerllel™)756
Pin, Loader Boom Linkage (Tool Carrier)758
Pin, Loader Boom Linkage (Z-Bar) (NeverGrease™)750
Pin, Loader Boom Linkage (Z-Bar)748
Pin, Rear Hitch and Counterweight440
Pin, Rear Hitch438
Pin, Steering Cylinder398
Pin-On Bucket (35 yd³) (NeverGrease™)688
Pin-On Bucket (35 yd³)686
Pins, Boom Cylinder (Powerllel™)906
Pins, Boom Cylinder (Tool Carrier)912
Pins, Boom Cylinder (Z-Bar) (NeverGrease™)900
Pins, Boom Cylinder (Z-Bar)898
Pins, Bucket (35 yd³) (NeverGrease™)688
Pins, Bucket (35 yd³)686
Pins, Hi-Vis Coupler (Powerllel™)716
Pins, Hi-Vis Coupler (Tool Carrier)718
Pins, Hi-Vis Coupler (Z-Bar) (NeverGrease™)712
Pins, Hi-Vis Coupler (Z-Bar)710
Pins, Loader Frame (Powerllel™)730
Pins, Loader Frame (Tool Carrier)732
Pins, Loader Frame (Z-Bar) (NeverGrease™)728
Pins, Loader Frame (Z-Bar)726
Pins, Standard Coupler (Powerllel™)708
Pins, Standard Coupler (Z-Bar)706
Pipe, Exhaust – Black (Engine 6068HDW79)356
Pipe, Exhaust – Black (Engine 6068HDW83)360
Pipe, Exhaust – Chrome (Engine 6068HDW79)358
Pipe, Exhaust – Chrome (Engine 6068HDW83)362
PISTON (4834)264
PISTON (4836) HDW79182
PISTON LINER KIT (9901)294
PISTON RING KIT (9901)304
Pivot Pin, Loader Frame (Powerllel™)730
Pivot Pin, Loader Frame (Tool Carrier)732
Pivot Pin, Loader Frame (Z-Bar) (NeverGrease™)728
Pivot Pin, Loader Frame (Z-Bar)726
Pivot Plates, Hi-Vis Coupler Bucket724
Pivot Plates, Standard Coupler Bucket722
PLATE, FRONT (3626)248
PLATE, FRONT (3614) (HDW74)166
Plates, Skid524
Platform, Access588
Platform, Rear632
Plenum, Engine Air614
PLUG, TEMPERATURE SWITCH (6698) (HDW79)200
Plug, Transmission Drain102
Power Converter, 10 A (24 V to 12 V) (Dual Outlet)508
Power Converter, 10 A (24 V to 12 V)506
Power Takeoff120
Powerllel™ Loader Boom742
Pre-Cleaner, Air354
Pre-Cleaner, HVAC610
Pressure Regulator Valve (PRV) Fittings668
Pressure Regulator Valve (PRV) Guard672
Pressure Regulator Valve (PRV) Hydraulic Lines674
Pressure Regulator Valve (PRV)670
PRIMARY FUEL FILTER (8169) (HDW79)204
PRV Fittings668
PRV Guard672
PRV Hydraulic Lines674
PRV670
Pulley and Clutch Kit, A/C Compressor598
PULLEY, CRANKSHAFT (1320) (HDW79)145
PULLEY, CRANKSHAFT (1320)227
PULLEY, FAN DRIVE (8718) (HDW79)207
PULLEY, FAN DRIVE (8718)281
Pulley, Idler – 100 A Alternator (w/ A/C)452
Pulley, Idler – 100 A Alternator (w/o A/C)450
Pulley, Idler – 80 A Alternator (w/ A/C)448
Pulley, Idler – 80 A Alternator (w/o A/C)446
PULLEY, TENSIONER (8718) (HDW79)207
PULLEY, TENSIONER (8718)281
PULLEY, WATER PUMP (2001)236
PULLEY, WATERPUMP (2001) (HDW79)154
Pump Hydraulic Lines, Main674
PUMP INLET, WATER (5728) (HDW79)192
Pump Manifold Guard672
Pump Manifold Hydraulic Lines674
Pump Manifold, Main Hydraulic668
PUMP PULLEY, WATER (2001) HDW79154
Pump, Axle Oil Circulation (Axle Cooling System Kit) (SN328
Pump, Axle Oil Circulation (Axle Cooling System Kit) (SN330
Pump, Axle Oil Circulation (Axle Cooling System w/ Secondary332
Pump, Axle Oil Circulation (SN -626437)324
Pump, Axle Oil Circulation (SN 626438- )326
Pump, Fan Drive (Axle Cooling System Kit) (SN -626437)328
Pump, Fan Drive (Axle Cooling System Kit) (SN 626438- )330
Pump, Fan Drive (Axle Cooling System w/ Secondary Steering)332
Pump, Fan Drive (Axle Cooling System) (SN -626437)324
Pump, Fan Drive (Axle Cooling System) (SN 626438- )326
Pump, Fuel – Fuel-Fired Coolant Heater316
PUMP, FUEL INJECTION (16S4)230
Pump, Hydraulic664
PUMP, INTAKE OIL (1946) (HDW74)152
PUMP, INTAKE OIL (1946)234
PUMP, OIL (5024) (HDW79)186
PUMP, OIL (5024)268
Pump, Reversing Fan Drive Kit344
Pump, Reversing Fan Drive340
Pump, Secondary Steering (Joystick)378
Pump, Secondary Steering Kit380
Pump, Secondary Steering376
Pump, Standard Fan Drive336
PUMP, TRANSFER FUEL (3713) (HDW79)168
Pump, Transmission Oil106
PUMP, WATER (4440) (HDW79)176
Pump, Window Washer560
PUSH ROD (4905) (HDW79)184
PUSH ROD/ROCKER ARM/SHAFT/TAPPET (4905)266
Q 0
Quick Service434
R 0
Radar Cover524
Radar Sensor, Ground Speed 52
Radar, Rear Object Detection System654
Radiator Hose (Engine 6068HDW79)320
Radiator Hose (Engine 6068HDW83)322
Radiator318
Radio Connector, AM/FM/WB Radio Kit Speaker Harness636
Radio Connector, AM/FM/WB Radio Speaker Harness634
Radio Connector, AM/FM/WB Radio w/ CD Player Kit Speaker Harness640
Radio Connector, AM/FM/WB Radio w/ CD Player Speaker Harness638
Radio Harness Connector, Cab Roof Harness494
Radio Kit, AM/FM/WB w/ CD Player640
Radio Kit, AM/FM/WB636
Radio, AM/FM/WB w/ CD Player638
RADIO, AM/FM/WB634
RE35709 SPIRAL BEVEL ASSEMBLY 4778;LH,TMIV,1400 SERIES 56
Rear Axle with Hydraulic Differential 40
Rear Axle with Standard Differential 38
Rear Differential Lock Line 48
Rear Fenders, Full Coverage628
Rear Frame Harness Connector, Engine Frame Harness484
Rear Frame Wiring Harness Mounting (Powerllel™)476
Rear Frame Wiring Harness Mounting (Tool Carrier)478
Rear Frame Wiring Harness Mounting (Z-Bar)474
Rear Frame Wiring Harness490
Rear Hanging Step584
Rear Hitch and Counterweight440
Rear Hitch438
Rear Lights464
Rear Object Detection System654
REAR OIL SEAL (9901)291
Rear Platforms632
Rear View Mirror, Exterior (Heated)646
Rear View Mirror, Exterior644
Rear View Mirror642
Rear Window, Cab542
Rear Window, Canopy550
Rear Windshield Wiper558
Receiver-Dryer, A/C602
Recirculation Air Filter, Cab594
Regulator, Fuel-Fired Coolant Heater316
Relay Excitation Connector, Engine Harness486
RELAY STARTER (9901)305
RELAY STARTER(9901)302
Relay, Load Center Harness496
Relief Valve, Auxiliary Valve Section780
Relief Valve, Boom Valve Section776
Relief Valve, Bucket Valve Section778
Relief Valve, Electric Fifth Function Valve Section784
Relief Valve, Inlet Valve Section774
Relief Valve, Outlet Valve Section782
Relief Valve, Park Brake Breather412
Relief Valve, Park Brake414
Relief Valve, Torque Converter118
Reman Complete Block Assembly214
Reman Fuel Injection Nozzle148
Reman Fuel Injection Pump230
Reman Fuel Injection Pump148
Reman Injection Nozzle230
Reman Injection Nozzle306
REPAIR KIT, WATER PUMP292
REPLACEMENT ENGINE310
Reservoir Pressurization Kit, Hydraulic678
Reservoir, Fuel368
Reservoir, Hydraulic Oil676
Reservoir, Window Washer560
Resistor Connector, HVAC Module Harness504
Resistor Connector, Water Separator w/ Electric Fuel Pump512
Resistor, HVAC Module608
Restriction Indicator Switch, Hydraulic Reservoir Oil Filter676
Restriction Indicator Switch, Transmission Oil Filter112
Restriction Indicator, Air Filter (Engine 6068HDW79)350
Restriction Indicator, Air Filter (Engine 6068HDW83)352
Return-to-Carry Sensor Connector, Loader Frame Harness482
Return-to-Carry Sensor Connector, Loader Frame Harness (Z-Bar)480
Return-to-Dig (Powerllel™)920
Return-to-Dig (Tool Carrier)922
Return-to-Dig (Z-Bar)918
Return-to-Dig Connector, Loader Frame Harness (Powerllel™)482
Return-to-Dig Connector, Loader Frame Harness (Z-Bar)480
Reverse Alarm Connector, Rear Frame Harness490
Reverse Clutch Assembly124
Reverse Clutch Assembly124
Reverse Light, License Plate Bracket (LH)472
Reverse Warning Alarm652
Reversing Fan Drive Hoses342
Reversing Fan Drive Kit344
Reversing Fan Drive Pump and Motor340
Reversing Fan Drive Valve346
Reversing Fan Solenoid Connector, Rear Frame Harness490
Ride Control (Powerllel™)838
Ride Control (Tool Carrier)842
Ride Control (Z-Bar)840
Ride Control Connector, Loader Frame Harness (Powerllel™)482
Ride Control Connector, Loader Frame Harness (Z-Bar)480
Ride Control Valve846
Ride Control844
Ride Zone Indicator Kit, Seat Suspension582
Right Armrest (Four Lever Pilot Controller)570
Right Armrest (Joystick Pilot Controller)568
Right Armrest566
Right-hand Joystick Handle with FNR Switch834
Rim, 1 pc (28L X 26 Tire) 34
Rim, 3 pc (205 X 25 Tire) 32
Rim, 3 pc (600/65R25 Low Profile Tire) 32
RING KIT, PISTON (4834)264
RING KIT, PISTON (4836) HDW79182
ROCKER ARM COVER (1144) (HDW79)142
ROCKER ARM COVER (1144)224
ROCKER ARM COVER VENT HOSE(2917)(HDW79)160
ROCKER ARM VENT HOSE COVER (2917)242
ROCKER ARM/SHAFT/TAPPET/PUSH ROD (4905)266
ROCKER ARMS (4905) (HDW79)184
ROD BEARINGS, CONNECTING (4836) HDW79182
ROD, PUSH (4905) (HDW79)184
Roof Wiring Harness Mounting, Cab492
Roof530
ROPS, Cab538
ROPS, Canopy546
Rotating Beacon Light468
S 0
Safety Belt, Cloth Seat574
Safety Belt, Deluxe Seat (Joystick Steering)580
Safety Belt, Deluxe Seat578
Safety Belt, Vinyl Seat576
Sampling Port, Axle Oil (Axle Cooling System Kit) (SN -626437)328
Sampling Port, Axle Oil (Axle Cooling System Kit) (SN330
Sampling Port, Axle Oil (Axle Cooling System w/ Secondary332
Sampling Port, Axle Oil (Axle Cooling System) (SN -626437)324
Sampling Port, Axle Oil (Axle Cooling System) (SN 626438- )326
Screen, HVAC Pre-Cleaner610
Seal Kit, Auxiliary Joystick Controller836
Seal Kit, Auxiliary Valve Section780
Seal Kit, Axle Oil Circulation Pump (Axle Cooling System Kit)328
Seal Kit, Axle Oil Circulation Pump (Axle Cooling System Kit)330
Seal Kit, Axle Oil Circulation Pump (Axle Cooling System w/332
Seal Kit, Axle Oil Circulation Pump (SN -626437)324
Seal Kit, Axle Oil Circulation Pump (SN 626438- )326
Seal Kit, Boom Cylinder (Powerllel™)908
Seal Kit, Boom Cylinder (Tool Carrier)914
Seal Kit, Boom Cylinder (Z-Bar)902
Seal Kit, Boom Valve Section776
Seal Kit, Brake Valve406
Seal Kit, Bucket Cylinder (Powerllel™)910
Seal Kit, Bucket Cylinder (Tool Carrier)916
Seal Kit, Bucket Cylinder (Z-Bar)904
Seal Kit, Bucket Valve Section778
Seal Kit, Electric Fifth Function Valve Section784
Seal Kit, Fan Drive Pump (Axle Cooling System Kit) (SN328
Seal Kit, Fan Drive Pump (Axle Cooling System Kit) (SN330
Seal Kit, Fan Drive Pump (Axle Cooling System w/ Secondary332
Seal Kit, Fan Drive Pump (Axle Cooling System) (SN -626437)324
Seal Kit, Fan Drive Pump (Axle Cooling System) (SN 626438- )326
Seal Kit, Fan Drive Pump (Reversing Fan Drive Kit)344
Seal Kit, Fan Drive Pump (Reversing)340
Seal Kit, Fan Drive Pump (Standard)336
Seal Kit, Hi-Vis Coupler Cylinder720
Seal Kit, Hydraulic Pump664
Seal Kit, Hydraulic Reservoir Oil Filter676
Seal Kit, Inlet Valve Section774
Seal Kit, Outlet Valve Section782
Seal Kit, Pin Disconnect Valve (Powerllel™)852
Seal Kit, Pin Disconnect Valve (Tool Carrier)854
Seal Kit, Pin Disconnect Valve (Z-Bar)850
Seal Kit, Steering Cylinder400
Seal Kit, Steering Valve388
SEAL, REAR OIL (9901)291
Sealed Switch Module (SSM)496
Seat Base Plate, Cab540
Seat Base Plate, Canopy548
Seat Belt, Cloth Seat574
Seat Belt, Deluxe Seat (Joystick Steering)580
Seat Belt, Deluxe Seat578
Seat Belt, Vinyl Seat576
Seat Suspension Service Kits582
Seat, Cloth574
Seat, Deluxe (Joystick Steering)580
Seat, Deluxe578
Seat, Vinyl576
Second Gear Clutch Assembly128
Secondary Steering (Joystick)378
Secondary Steering Connector, Engine Harness486
Secondary Steering Kit380
Secondary Steering Valve382
Secondary Steering376
Section, Control Valve Auxiliary780
Section, Control Valve Boom776
Section, Control Valve Bucket778
Section, Control Valve Electric Fifth Function784
Section, Control Valve Inlet774
Section, Control Valve Outlet782
Sender, Fuel (Severe Duty Fuel System)372
Sender, Fuel370
Sensor, Air Filter Restriction Indicator (Engine 6068HDW79)350
Sensor, Air Filter Restriction Indicator (Engine 6068HDW83)352
SENSOR, AIR PRESSURE (6744)278
SENSOR, AIR TEMPERATURE (6721) (HDW79)202
SENSOR, AIR TEMPERATURE (6744)278
Sensor, Boom-Height Kick-Out (Powerllel™)926
Sensor, Boom-Height Kick-Out (Tool Carrier)928
Sensor, Boom-Height Kick-Out (Z-Bar)924
SENSOR, CRANKSHAFT POSITION (6721) (HDW79)202
SENSOR, ENGINE SPEED (6721) (HDW79)202
SENSOR, ENGINE SPEED (6744)278
Sensor, Ground Speed Radar 52
Sensor, Hydraulic Reservoir Oil Temperature676
SENSOR, MAGNETIC PICK-UP (6721) (HDW79)202
SENSOR, MAGNETIC PICK-UP (6744)278
SENSOR, MANIFOLD AIR PRESSURE (6721) (HDW79)202
Sensor, Rear Object Detection System654
Sensor, Return-to-Carry (Powerllel™)926
Sensor, Return-to-Carry (Tool Carrier)928
Sensor, Return-to-Carry (Z-Bar)924
Sensor, Return-to-Dig (Powerllel™)920
Sensor, Return-to-Dig (Tool Carrier)922
Sensor, Return-to-Dig (Z-Bar)918
Sensor, Spin Control666
Sensor, Transmission Speed104
Sensor, Transmission Temperature114
SENSOR, WATER IN FUEL (8169) (HDW79)204
Sensor, Water In Fuel (Severe Duty Fuel Filter Kit)374
SENSOR, WATER TEMPERATURE (6698)277
SEPARATOR, WATER (8169) (HDW79)204
Serpentine Belt, 100 A Alternator (w/ A/C)452
Serpentine Belt, 100 A Alternator (w/o A/C)450
Serpentine Belt, 80 A Alternator (w/ A/C)448
Serpentine Belt, 80 A Alternator (w/o A/C)446
Service Door, Engine614
SERVICE ENGINE (9901)310
SERVICE ENGINE (9901)216
SERVICE INJECTOR KIT (9901)306
SERVICE KIT (9901)292
Service Kits, Cloth Seat574
Service Kits, Deluxe Seat (Joystick Steering)580
Service Kits, Deluxe Seat578
Service Kits, Seat Suspension582
Service Kits, Vinyl Seat576
Severe Duty Fuel Filter (Severe Duty Fuel Filter Kit)374
Severe Duty Fuel Filter Kit374
Severe Duty Fuel Filter372
Severe Duty Fuel System372
Shaft Kit, Seat Suspension582
SHAFT, AXLE HOUSING 62
SHAFT, AXLE HOUSING 64
SHAFT, AXLE HOUSING 66
Shaft, Drive 92
Shaft, Power Takeoff120
Shaft, Torque Converter 98
Shaft, Transmission Input100
Shaft, Transmission Output116
SHAFT/TAPPET/PUSH ROD/ROCKER ARM (4905)266
Shields, Cab556
Shields, Transmission618
Shifter Switch Connector, Steering Column Harness502
Shifter, Steering Column FNR498
Shock Absorber Kit, Seat Suspension582
Shroud, Fan334
Side Counterweight526
Side Shields, Engine614
Sight Gauge, Hydraulic Reservoir676
Sight Gauge, Transmission Oil136
Sign, Slow Moving Vehicle (SMV)660
Single Lever Controller, Auxiliary828
Skid Plates, Hi-Vis Coupler (30 yd³)694
Skid Plates, Hi-Vis Coupler (35 yd³)696
Skid Plates, Pin-On Bucket (35 yd³) (NeverGrease™)688
Skid Plates, Pin-On Bucket (35 yd³)686
Skid Plates, Standard Coupler Bucket (30 yd³)690
Skid Plates, Standard Coupler Bucket (35 yd³)692
Skid Plates524
Slow Moving Vehicle Sign660
SMV Sign660
Socket Outlet, 12 V (Dual)508
Socket Outlet, 12 V506
Solenoid, 2-Lever Pilot Controller826
Solenoid, Auxiliary Dual Lever Controller830
Solenoid, Auxiliary Single Lever Controller828
Solenoid, Electric Fifth Function Valve Section784
Solenoid, Joystick Pilot Controller832
Solenoid, Pin Disconnect Valve (Powerllel™)852
Solenoid, Pin Disconnect Valve (Tool Carrier)854
Solenoid, Pin Disconnect Valve (Z-Bar)850
Solenoid, Pin Disconnect Valve856
Solenoid, Pressure Regulator Valve (PRV)670
Solenoid, Reversing Fan Drive Valve346
Solenoid, Ride Control Valve846
Solenoid, Secondary Steering Pump (Joystick)378
Solenoid, Secondary Steering Pump (Secondary Steering Kit)380
Solenoid, Secondary Steering Pump376
Solenoid, Transmission Control Valve114
Sound Absorption Package, Level 1620
Sound Absorption Package, Level 2622
Speaker Connector, AM/FM/WB Radio Kit Speaker Harness636
Speaker Connector, AM/FM/WB Radio Speaker Harness634
Speaker Connector, AM/FM/WB Radio w/ CD Player Kit Speaker640
Speaker Connector, AM/FM/WB Radio w/ CD Player Speaker Harness638
Speaker, AM/FM/WB Radio Kit636
Speaker, AM/FM/WB Radio w/ CD Player Kit640
Speaker, AM/FM/WB Radio w/ CD Player638
Speaker, AM/FM/WB Radio634
Speed Sensor Connector, Transmission Harness488
Spillguard698
Spin Control666
SPIRAL BEVEL ASSEMBLY 4778:1 54
SPIRAL BEVEL ASSEMBLY 4778 56
SSM (Sealed Switch Module)496
Standard Coupler (Powerllel™)708
Standard Coupler (Z-Bar)706
Standard Coupler Bucket (30 yd³)690
Standard Coupler Bucket (35 yd³)692
Standard Coupler Bucket Blanks722
Standard Coupler Forks700
STANDARD DIFFERENTIAL CASE 84
STANDARD DIFFERENTIAL CASE 86
STANDARD DIFFERENTIAL 82
Standard Fan Drive Hoses338
Standard Fan Drive Pump and Motor336
STANDARD INPUT HOUSING, NON-OSCILLATING (YZ121049) 70
STANDARD INPUT HOUSING, OSCILLATING 68
STARTER (3041) (HDW79)162
STARTER MOTOR (3041)244
STARTER RELAY (9901)302
STARTER RELAY (9901)305
Starter Relay, Load Center Harness496
STARTING AID (4330) (HDW79)174
STARTING AID256
STARTING MOTOR (3041) (HDW79)162
Stator Kit, A/C Compressor598
Steering Column Components386
Steering Column Wiring Harness (Joystick FNR)500
Steering Column Wiring Harness (Steering Column FNR)498
Steering Column Wiring Harness502
Steering Column384
Steering Cushions520
Steering Cylinder and Fittings398
Steering Cylinder Hydraulic Hoses396
Steering Cylinder400
Steering Hydraulics, Joystick390
Steering Kit, Joystick392
Steering Kit, Secondary380
Steering Pressure Switch Connector, Engine Frame Harness484
Steering Valve, Joystick394
Steering Valve, Secondary382
Steering Valve388
Steering Wheel384
Steering, Secondary (Joystick)378
Steering, Secondary376
Step, Engine Compartment584
Step, Rear584
Steps, Access Platform588
Steps, Close Mounted586
Stop Block, Axle (8 Degree) 42
Strainer, Fuel368
Strainer, Hydraulic Reservoir676
Strap, Fuel Tank522
STRAPS, LIFT (9801)283
STRAPS, LIFT (9801)212
Striker, Cab Door538
Striker, Cab Window538
Striker, RH Cab Window542
Strobe Light468
Stud Assembly, 2-Spool Control Valve (Powerllel™)762
Stud Assembly, 2-Spool Control Valve (Z-Bar)760
Stud Assembly, 3-Spool Control Valve (Powerllel™)766
Stud Assembly, 3-Spool Control Valve (Tool Carrier)768
Stud Assembly, 3-Spool Control Valve (Z-Bar)764
Stud Assembly, 4-Spool Control Valve (Powerllel™)772
Stud Assembly, 4-Spool Control Valve (Z-Bar)770
SUCTION CONTROL VALVE (16S4)230
Suction Lines, Hydraulic Pump674
Sun Visor658
SUPPORT, ALTERNATOR (6275) (HDW79)194
Support, Axle 44
Support, Transmission 94
Surge Tank (Engine 6068HDW79)320
Surge Tank (Engine 6068HDW83)322
Switch Panel, Sealed496
Switch, Battery Disconnect442
Switch, Cycle Counter496
Switch, Differential Lock 50
Switch, Domelight462
Switch, Electric Fifth Function800
Switch, Heater Control (Heater Only)604
Switch, Heater Control606
Switch, High Beam (Joystick FNR)500
Switch, High Beam (Steering Column FNR)498
Switch, Horn384
Switch, Hydraulic Reservoir Oil Filter Restriction Indicator676
Switch, Joystick Steering Kit392
Switch, Joystick Steering402
Switch, Kickdown – 2-Lever Pilot Controller826
Switch, Left-hand Joystick Handle404
Switch, Right-hand Joystick Handle with FNR Switch834
Switch, Steering Column FNR498
Switch, Thermostat – HVAC Module608
Switch, Transmission Oil Filter Restriction Indicator112
Switch, Turn Signal (Joystick FNR)500
Switch, Turn Signal (Steering Column FNR)498
SYSTEM, VENTILATING (2917)242
T 0
Tail Lights464
Tank, Coolant Recovery (Engine 6068HDW79)320
Tank, Coolant Recovery (Engine 6068HDW83)322
Tank, Fuel368
Tank, Hydraulic Oil676
Tank, Window Washer560
TAPPET, ROCKER ARM (4905) (HDW79)184
TAPPET/PUSH ROD/ROCKER ARM/SHAFT (4905)266
Teeth, Bucket (2690 mm Edge)684
Temperature Control (Heater Only)604
Temperature Control606
Temperature Sensor, Hydraulic Reservoir676
Temperature Sensor, Transmission114
TEMPERATURE SWITCH PLUG (6698) (HDW79)200
TEMPERATURE SWITCH, WATER277
TENSIONER, BELT (8718) HDW79207
TENSIONER, BELT (8718)281
Test Port, Axle Oil (Axle Cooling System Kit) (SN -626437)328
Test Port, Axle Oil (Axle Cooling System Kit) (SN 626438- )330
Test Port, Axle Oil (Axle Cooling System w/ Secondary332
Test Port, Axle Oil (Axle Cooling System) (SN -626437)324
Test Port, Axle Oil (Axle Cooling System) (SN 626438- )326
Test Ports, Fluid434
Tether Kit, Seat Suspension582
Thermal Bypass Valve136
THERMOCOUPLE (6721) (HDW79)202
THERMOCOUPLE (6744)278
THERMOSTAT (2255) (HDW79)156
THERMOSTAT COVER (2154) (HDW79)155
THERMOSTAT COVER (2154)237
THERMOSTAT HOUSING (3917) (HDW79)170
THERMOSTAT HOUSING (3933)252
Thermostat Switch, HVAC Module608
THERMOSTAT238
Third Function Coupler Hydraulics (High Lift Z-Bar)880
Third Function Coupler Hydraulics (Powerllel™)882
Third Function Coupler Hydraulics (Tool Carrier)884
Third Function Coupler Hydraulics (Z-Bar)878
Third Gear Clutch Assembly130
Three Function Pilot Lines874
Three Lever Controller to Joystick with Auxiliary Lever812
Three Lever Pilot Controller788
Three Lever To Four Lever Pilot Controller Conversion Kit808
Three Lever To Four Lever Pilot Controller Conversion Kit806
Three Spool Loader Control Valve (Powerllel™ )766
Three Spool Loader Control Valve (Tool Carrier)768
Three Spool Loader Control Valve (Z-Bar)764
THRUST BEARING MAIN (9901)289
Timer, Fuel-Fired Coolant Heater316
TIMING GEAR COVER (4440) (HDW79)176
TIMING GEAR COVER (4451)258
TIMING GEAR COVER (4657)260
Tine, Fork – Hi-Vis Coupler702
Tine, Fork – Standard Coupler700
Tool Carrier Loader Boom744
Torque Converter Connector, Transmission Harness488
Torque Converter Relief Valve and Transmission Minimum118
Torque Converter 98
Torsional Drive Damper134
Transducer, Embedded Payload Scale656
Transducer, Spin Control666
TRANSFER FUEL, PUMP (3713) (HDW79)168
Transmission Control Valve Manifold112
Transmission Control Valve114
Transmission Controller496
Transmission Cover and Gasket108
Transmission Drive Shafts 92
Transmission Gear Selector (FNR), Steering Column498
Transmission Guard524
Transmission Harness Connector, Engine Harness486
Transmission Housing102
Transmission Input Gear100
Transmission Input Shaft100
Transmission Internal Oil Lines110
Transmission Lines and Fittings136
Transmission Minimum Pressure Valve118
Transmission Oil Cooler318
Transmission Oil Fill Tube136
Transmission Oil Filter Restriction Indicator Switch112
Transmission Oil Filter 96
Transmission Oil Pump106
Transmission Oil Sampling Fitting434
Transmission Oil Sight Gauge136
Transmission Output Shaft116
Transmission Shields618
Transmission Sound Absorption622
Transmission Speed Sensor104
Transmission Wiring Harness Mounting (Powerllel™)476
Transmission Wiring Harness Mounting (Tool Carrier)478
Transmission Wiring Harness Mounting (Z-Bar)474
Transmission Wiring Harness488
Transmission 94
Travel Alarm652
Trim, Cab540
Trim, Canopy548
TUBE, BY PASS – THERMOSTAT HOUSING(3917) (HDW79)170
TUBE, OIL PUMP INTAKE (5024) (HDW79)186
TUBE, OIL PUMP INTAKE (5024)268
TUBE, THERMOSTAT HOUSING (3933)252
TUBE, WATER PUMP BYPASS (2154) (HDW79)155
TURBO AIR INLET BRACKET (5497) (HDW79)191
TURBO AIR INLET BRACKET (5497)273
TURBOCHARGER (65TE) (HDW79)198
TURBOCHARGER OIL LINES (65TE) (HDW79)198
Turn Signal and Marker Lights (Powerllel™)458
Turn Signal and Marker Lights (Z-Bar)454
Turn Signal Light (Powerllel™)458
Turn Signal Light (Z-Bar)454
Turn Signal Light Connector, Loader Frame Harness (Powerllel™)482
Turn Signal Light Connector, Loader Frame Harness (Z-Bar)480
Turn Signal Light, LED (Powerllel™)460
Turn Signal Light, LED (Z-Bar)456
Turn Signal Lights, Rear464
Turn Signal Switch (Joystick FNR)500
Turn Signal Switch (Steering Column FNR)498
Turn Signal Switch Connector, Steering Column Harness502
Two Function Pilot Lines872
Two Lever Controller to Joystick Conversion Kit810
Two Lever Pilot Controller786
Two Lever Pilot Controller826
Two Lever To Three Lever Pilot Controller Conversion Kit804
Two Lever To Three Lever Pilot Controller Conversion Kit (Z-Bar)802
Two Spool Loader Control Valve (Powerllel™)762
Two Spool Loader Control Valve (Z-Bar)760
U 0
Underfloor Ducts592
Universal Joint Yoke, Park Brake412
Universal Joint 92
V 0
VALVE , CONTROLLING (9901)301
Valve Manifold, Transmission Control112
Valve Section, Auxiliary780
Valve Section, Boom776
Valve Section, Bucket778
Valve Section, Electric Fifth Function784
Valve Section, Electric Fifth Function800
Valve Section, Inlet774
Valve Section, Outlet782
Valve Stem, 1 pc Rim (28L X 26 Tire) 34
Valve Stem, 3 pc Rim (205 X 25 Tire) 32
Valve Stem, 3 pc Rim (600/65R25 Low Profile Tire) 32
Valve, Brake406
Valve, Environmental Drain432
VALVE, EXHAUST (5120) HDW79188
VALVE, EXHAUST (5128)270
Valve, HVAC Module608
VALVE, INTAKE (5120) HDW79188
VALVE, INTAKE (5128)270
Valve, Joystick Steering394
Valve, Loader Control (2-Spool) (Powerllel™)762
Valve, Loader Control (2-Spool) (Z-Bar)760
Valve, Loader Control (3-Spool) (Powerllel™)766
Valve, Loader Control (3-Spool) (Tool Carrier)768
Valve, Loader Control (3-Spool) (Z-Bar)764
Valve, Loader Control (4-Spool) (Powerllel™)772
Valve, Loader Control (4-Spool) (Z-Bar)770
Valve, Pin Disconnect (Powellel™)852
Valve, Pin Disconnect (Tool Carrier)854
Valve, Pin Disconnect (Z-Bar)850
Valve, Pin Disconnect848
Valve, Pin Disconnect856
Valve, Pressure Regulator668
Valve, Pressure Regulator670
Valve, Reversing Fan Drive346
Valve, Ride Control (Powerllel™)838
Valve, Ride Control (Tool Carrier)842
Valve, Ride Control (Z-Bar)840
Valve, Ride Control844
Valve, Ride Control846
Valve, Secondary Steering (Components)382
Valve, Secondary Steering (Joystick)378
Valve, Secondary Steering Kit380
Valve, Secondary Steering376
Valve, Steering388
VALVE, SUCTION CONTROL (169Z) (HDW79)148
VALVE, SUCTION CONTROL (16S4)230
Valve, Thermal Bypass136
Valve, Torque Converter Relief118
Valve, Transmission Minimum Pressure118
VEC (Vehicle Electrical Center)496
Vehicle Electrical Center (VEC)496
VENT HOSE, ROCKER ARM COVER(2917)(HDW79)160
VENT HOSE, ROCKER ARM COVER(2917)242
Vent, Fuel Tank368
VENTILATING SYSTEM (2917)242
Vents, Front Console590
Vinyl Seat576
Visor, Sun658
W 0
WATER IN FUEL SENSOR (8169) (HDW79)204
Water in Fuel Sensor Connector, Engine Harness486
WATER PUMP (4440) (HDW79)176
WATER PUMP AND PULLEY (2001)236
WATER PUMP BYPASS TUBE (2154) (HDW79)155
WATER PUMP INLET (5728) (HDW79)192
WATER PUMP INLET (5728)274
WATER PUMP PULLEY (2001) (HDW79)154
WATER PUMP REPAIR KIT292
WATER SEPARATOR (8169) (HDW79)204
Water Separator w/ Electric Fuel Pump Wiring Harness512
WATER TEMPERATURE SENSOR (6698)277
Water Valve, HVAC Module608
Weighing Kit, Payload656
Wheel Rim Assembly, 1 pc (28L X 26 Tire) 34
Wheel Rim Assembly, 3 pc (205 X 25 Tire) 32
Wheel Rim Assembly, 3 pc (600/65R25 Low Profile Tire) 32
Wheel, Steering384
WIF SENSOR (8169) (HDW79)204
Window Washer Reservoir560
Window, Cab Door544
Window, Cab Rear542
Window, Canopy Rear550
Windows, Cab542
Windshield Washer Pump Connector, Engine Frame Harness484
Windshield Wiper558
Windshield, Cab542
Wiper Arm558
Wiper Blade558
Wiper Jumper Harness Connector, Cab Roof Harness494
Wiper Motor Connector, Wiper Motor Jumper Harness510
Wiper Motor Jumper Harness510
WIRING HARNESS BRACKETS (8484)280
WIRING HARNESS BRACKETS (8491) (HDW79)206
Wiring Harness Mounting, Cab Roof492
Wiring Harness Mounting, Engine (Powerllel™)476
Wiring Harness Mounting, Engine (Tool Carrier)478
Wiring Harness Mounting, Engine (Z-Bar)474
Wiring Harness Mounting, Engine Frame (Powerllel™)476
Wiring Harness Mounting, Engine Frame (Tool Carrier)478
Wiring Harness Mounting, Engine Frame (Z-Bar)474
Wiring Harness Mounting, Load Center496
Wiring Harness Mounting, Loader Frame (Powerllel™)476
Wiring Harness Mounting, Loader Frame (Tool Carrier)478
Wiring Harness Mounting, Loader Frame (Z-Bar)474
Wiring Harness Mounting, Rear Frame (Powerllel™)476
Wiring Harness Mounting, Rear Frame (Tool Carrier)478
Wiring Harness Mounting, Rear Frame (Z-Bar)474
Wiring Harness Mounting, Transmission (Powerllel™)476
Wiring Harness Mounting, Transmission (Tool Carrier)478
Wiring Harness Mounting, Transmission (Z-Bar)474
Wiring Harness, AM/FM/WB Radio Kit Speaker636
Wiring Harness, AM/FM/WB Radio Speaker634
Wiring Harness, AM/FM/WB Radio w/ CD Player Kit Speaker640
Wiring Harness, AM/FM/WB Radio w/ CD Player Speaker638
Wiring Harness, Auto Differential Lock 52
Wiring Harness, Beacon Light Jumper468
Wiring Harness, Cab Roof494
Wiring Harness, Electric Fifth Function Valve Section784
Wiring Harness, Electric Fifth Function800
Wiring Harness, Engine Frame484
Wiring Harness, Engine486
Wiring Harness, Fuel-Fired Coolant Heater316
Wiring Harness, HVAC Module504
WIRING HARNESS, INJECTION NOZZLE (169Z) (HDW79)148
Wiring Harness, JDLink™ Ultimate680
Wiring Harness, Joystick Steering Kit392
Wiring Harness, Joystick Steering402
Wiring Harness, License Plate Light (LH)472
Wiring Harness, License Plate Light (RH)470
Wiring Harness, Loader Frame (Powerllel™)482
Wiring Harness, Loader Frame (Z-Bar)480
Wiring Harness, Main (Powerllel™)476
Wiring Harness, Main (Tool Carrier)478
Wiring Harness, Main (Z-Bar)474
Wiring Harness, Rear Frame490
Wiring Harness, Rear Object Detection System654
Wiring Harness, Return-to-Dig (Z-Bar)918
Wiring Harness, Ride Control844
Wiring Harness, Right-hand Joystick Handle with FNR Switch834
Wiring Harness, Secondary Steering (Joystick)378
Wiring Harness, Secondary Steering Kit380
Wiring Harness, Secondary Steering376
Wiring Harness, Steering Column (Components)502
Wiring Harness, Steering Column (Joystick FNR)500
Wiring Harness, Steering Column (Steering Column FNR)498
Wiring Harness, Transmission Control Valve114
Wiring Harness, Transmission488
Wiring Harness, Water Separator w/ Electric Fuel Pump512
Wiring Harness, Water Separator w/ Electric Fuel Pump372
Wiring Harness, Wiper Motor Jumper510
WITHOUT FUEL PUMP, COVER (3799)250
Work Lights, Cab466
Y 0
YOKE, INPUT 58
YOKE, INPUT 60
Yoke, Park Brake412
Yoke, Torque Converter 98
Yoke, Transmission Output116
YZ120709 AXLE HOUSING AND SHAFT TMIV,1200 SERIES 62
YZ120713 DUAL BRAKES; TMIV,1200 SERIES 76
YZ120720 AXLE HOUSING AND SHAFT; TMIV,1400 SERIES 64
YZ120724 DUAL BRAKES 4800:1; TMIV,1400 SERIES 74
YZ120747 INPUT YOKE WITH SLINGER (1550)TMIV,1200 SERIES 58
YZ120750 INPUT YOKE WITH SLINGER 1550, TMIV(1400 SERIES) 60
YZ120753 FINAL DRIVE 48:1; TMIV,1400 SERIES 90
YZ120777 SPIRAL BEVEL ASSEMBLY 4778:1;RH,TMIV,1200 SERIES 54
YZ120944 STANDARD DIFFERENTIAL CASE; TMIV,1200 SERIES 84
YZ120946 FINAL DRIVE 48:1; TMIV,1200 SERIES 88
YZ120988 STANDARD DIFFERENTIAL; TMIV,1200 SERIES 82
YZ121049 STANDARD INPUT HOUSING, NON-OSCILLATING (1400);CODE 70
YZ121182 STANDARD DIFFERENTIAL CASE; TMIV,1400 SERIES 86
YZ121237 DIFFERENTIAL LOCK; TMIV,1200 SERIES 78
YZ121256 DIFFERENTIAL LOCK; TMIV,1400 SERIES 80
YZ121322 OSCILLATION, DUAL CENTER PIVOT; TMIV,1200 SERIES 72
YZ121323 STANDARD INPUT HOUSING, OSCILLATING;TMIV,1200 SERIES 68
YZ121797 AXLE HOUSING AND SHAFT; TMIV,1400 SERIES 66
Z 0
Z-Bar Loader Boom (High Lift) (NeverGrease™)740
Z-Bar Loader Boom (High Lift)738
Z-Bar Loader Boom (NeverGrease™)736
Z-Bar Loader Boom734
# 0
1 Pc Logger Rim (28L X 26 Tire) 34
10 Amp Converter (24 V to 12 V) (Dual Outlet)508
10 Amp Converter (24 V to 12 V)506
100 Amp Alternator (with A/C)452
100 Amp Alternator (without A/C)450
1144 (ROCKER ARM COVER)142
1144 ROCKER ARM COVER224
1241 (OIL FILL)144
1320 (CRANKSHAFT PULLEY)145
1320 CRANKSHAFT PULLEY227
1405 (FLYWHEEL HOUSING)146
1405 FLYWHEEL HOUSING228
1503 (FLYWHEEL)147
1503 FLYWHEEL229
169Z (FUEL INJECTION PUMP)148
16S4 FUEL INJECTION PUMP230
1797 INTAKE MANIFOLD232
17BL (AIR INLET)150
1946 (OIL PAN)152
1946 OIL PAN234
2001 (WATER PUMP PULLEY)154
2001 WATER PUMP PULLEY236
2154 (THERMOSTAT COVER)155
2154 THERMOSTAT COVER237
2255 (THERMOSTAT)156
2255 THERMOSTAT238
2698 ENGINE COOLANT HEATER239
2876 (EXHAUST MANIFOLD)158
28AY EXHAUST MANIFOLD240
2917 (VENTILATING SYSTEM)160
2917 VENTILATING SYSTEM242
3 Pc Rim (205 X 25 Tire) (600/65R25 Low Profile Tire) 32
3041 (STARTING MOTOR)162
3041 STARTING MOTOR244
35DZ (FUEL FILTER)164
35EM FUEL FILTER246
3614 FRONT PLATE AND IDLE GEARS (UPPER AND LOWER)166
3626 FRONT PLATE248
3713 (FUEL TRANSFER PUMP)168
3799 COVER, WITHOUT FUEL PUMP250
3917 (THERMOSTAT HOUSING / BY PASS TUBE TO WATER PUMP)170
3933 THERMOSTAT HOUSING BY PASS TUBE TO WATER PUMP252
4035 (ENGINE OIL DIPSTICK)172
4035 ENGINE OIL DIPSTICK254
4330 (STARTING AID)174
4330 STARTING AID256
4440 (TIMING GEAR COVER)176
4451 TIMING GEAR COVER258
4633 (CYLINDER BLOCK)178
4657 CYLINDER BLOCK260
4712 (CRANKSHAFT / BEARINGS)180
4712 CRANKSHAFT AND BEARINGS262
4834 CONNECTING RODS AND PISTONS264
4836 (CONNECTING RODS AND PISTONS)182
4905 (ROCKER ARM / SHAFT / TAPPET / PUSH ROD)184
4905 ROCKER ARM, SHAFT, PUSH ROD266
5024 (OIL PUMP)186
5024 OIL PUMP268
5120 (CYLINDER HEAD)188
5128 CYLINDER HEAD270
5204 (AUXILIARY DRIVE)190
5204 AUXILIARY DRIVE272
5497 (TURBO AIR INLET BRACKET)191
5497 TURBO AIR INLET273
5728 (WATER PUMP INLET)192
5728 WATER PUMP INLET274
5945 (OIL COOLER)193
5951 OIL COOLER275
6275 (ALTERNATOR BRACKETS)194
6275 ALTERNATOR BRACKETS276
6284 (ALTERNATOR BRACKETS)195
6389 (FUEL LINES)196
65TE (TURBOCHARGER)198
6698 (TEMPERATURE SWITCH)200
6698 TEMPERATURE SWITCH, WITHOUT277
6721 (SENSORS)202
6744 SENSORS278
80 Amp Alternator (with A/C)448
80 Amp Alternator (without A/C)446
8169 (PRIMARY FUEL FILTER)204
8484 ENGINE WIRING HARNESS280
8491 (WIRING HARNESS ACCESSORIES)206
8718 (BELT TENSIONER)207
8718 BELT TENSIONER281
8842 (OIL FILTER)208
8842 OIL FILTER282
8903 (EXHAUST GAS RECIRCULATION (EGR)210
9801 (LIFT STRAPS)212
9801 LIFT STRAPS283
9901 (REPLACEMENT ENGINE)216
9901 -(COMPLETE BLOCK ASSEMBLY)214
9901 AIR COMPRESSOR KIT MIDLAND303
9901 BEARING KIT286
9901 CONNECTING ROD BEARING KIT285
9901 CONNECTING ROD, BEARINGS284
9901 CONTROL VALVE301
9901 CYLINDER LINER PACKING290
9901 EGR VALVE GASKET KIT300
9901 ENGINE GASKET KIT298
9901 ENGINE GASKET SET, OVERHAUL296
9901 ENGINE OVERHAUL KIT308
9901 INJECTION NOZZLE306
9901 MAIN BEARING KIT287
9901 MAIN BEARING288
9901 PISTON LINER KIT294
9901 PISTON RING KIT304
9901 REAR OIL SEAL291
9901 REPLACEMENT ENGINE310
9901 STARTER RELAY302
9901 STARTER RELAY305
9901 THRUST BEARING289
9901 WATER PUMP REPAIR KIT292

G.B 06/01/25
