John Deere 640D Advanced Draper Platform Parts Catalog Manual – PDF DOWNLOAD

Description

John Deere 640D Advanced Draper Platform Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

John Deere 640D Advanced Draper Platform Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 244
Downloadable : Yes
File Type : PDF
Size: 5.45 MB

TABLE OF CONTENTS:

John Deere 640D Advanced Draper Platform Parts Catalog Manual – PDF DOWNLOAD

640D Advanced DraperPlatform…………………………………… 1
Contents…………………………………………………. 1
Primary Pictorial Index………………………………… 3
Introduction………………………………………….. 13
SECTIONS……………………………………………… 1
010 CENTER FEED SYSTEM……………………………… 21
21 – Sectional Pictorial Index…………………… 21
1 – CENTER FEED SYSTEM GEARCASE………………….. 22
3 – CENTER FEED DRUM HOUSING…………………….. 24
5 – CENTER FEED DRUM FINGERS…………………….. 26
7 – CENTER FEED DRUM FRAME………………………. 28
9 – CENTER FEED BELT FRAME………………………. 30
11 – FEED BELT, FRAME, ROLLERS, AND TENSIONER……… 32
020 ATTACHMENT FRAME……………………………….. 35
35 – Sectional Pictorial Index…………………… 35
1 – ATTACHMENT FRAME……………………………. 36
3 – CENTER FEED AND KNIFE DRIVE GEARCASE………….. 38
5 – UNIVERSAL DRIVESHAFT………………………… 40
7 – CENTER FEED DRIVESHAFT………………………. 42
9 – UNIVERSAL JOINT LOCKING COLLAR KIT……………. 44
11 – MAIN DRIVE DRIVESHAFT………………………. 46
030 MAINFRAME MODULE ASSEMBLY……………………….. 49
49 – Sectional Pictorial Index…………………… 49
1 – MAIN FRAME…………………………………. 50
3 – DIVIDER POINT………………………………. 52
5 – KNIFE DRIVE SHIELD………………………….. 54
7 – GEARCASE SHIELD AND WARNING LIGHT…………….. 56
9 – DRAPER SHIELDS……………………………… 58
11 – SIDE DRAPER FRONT RAILS AND SEALS……………. 60
13 – FEED BELT COVER……………………………. 62
15 – FEED SECTION FILLER STRIP…………………… 64
17 – SKID PLATES……………………………….. 66
19 – TOP CROP CONVEYING AUGER……………………. 68
21 – QUICK LINK AND PARK………………………… 70
23 – QUICK LINK AND PARK………………………… 72
25 – Raised Side Draper Bracket Kit………………. 74
040 DRAPER ASSEMBLIES………………………………. 77
77 – Sectional Pictorial Index…………………… 77
78 – Sectional Pictorial Index…………………… 78
1 – DRAPER BELT………………………………… 80
3 – DRAPER BELT TENSIONER……………………….. 82
5 – DRAPER FRAME AND DRIVE ROLLER………………… 84
7 – DRAPER PANELS………………………………. 86
9 – SIDE DRAPER HYDRAULIC DRIVE SYSTEM……………. 88
11 – HYDRAULIC VALVE BLOCK AND HOSES……………… 90
13 – DRIVE VALVE BLOCK………………………….. 92
15 – DRIVE VALVE BLOCK………………………….. 94
17 – MULTICOUPLER AND STORAGE BRACKET…………….. 96
050 FLOAT SYSTEM…………………………………… 99
99 – Sectional Pictorial Index…………………… 99
100 – Sectional Pictorial Index…………………..100
1 – FLOAT SYSTEM HYDRAULICS………………………102
3 – REEL DRIVE VALVE BLOCK……………………….104
5 – DRAPER TILT CYLINDER…………………………106
7 – FLOAT CYLINDER………………………………108
9 – GAUGE WHEEL CONTROL CYLINDER………………….110

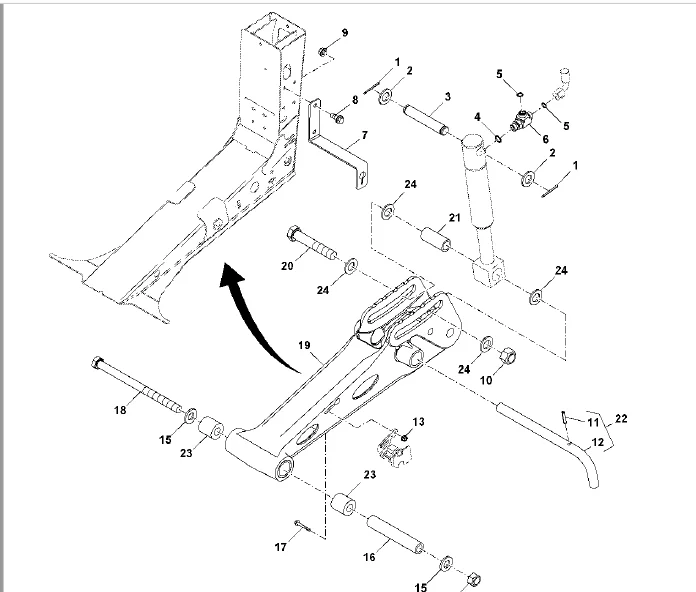

11 – FLOAT ARM………………………………….112
13 – FLOAT ARM POSITION SENSOR……………………114
15 – SLOPE FLOAT HYDRAULIC ACCUMULATOR…………….116
17 – DUAL ZONE FLOAT KIT…………………………118
060 REELS………………………………………….121
121 – Sectional Pictorial Index…………………..121
122 – Sectional Pictorial Index…………………..122
123 – Sectional Pictorial Index…………………..123
124 – Sectional Pictorial Index…………………..124
125 – Sectional Pictorial Index…………………..125
1 – PICKUP REEL ECCENTRIC SPIDER………………….126
3 – PICKUP REEL…………………………………128
5 – PICKUP REEL…………………………………130
7 – REEL DRIVE, CENTER MOUNTINGS AND GEARS…………132
9 – REEL MOUNTINGS (L.H. ILLUSTRATED)……………..134
11 – REEL ARM…………………………………..136
13 – CENTER REEL ARM…………………………….138
15 – REEL DRIVE MOTOR, TUBES AND HOSES…………….140
17 – REEL LIFT AND FORE/AFT HOSES…………………142
19 – REEL LIFT HOSES AND CYLINDERS………………..144
21 – REEL LIFT CYLINDER (SLAVE)…………………..146
23 – REEL LIFT CYLINDER (MASTER)………………….148
25 – REEL POSITION AND SPEED SENSOR……………….150
27 – REEL HEIGHT SENSOR………………………….152
29 – Side Draper Deck Swap Hoses………………….154
31 – MAIN WIRING HARNESS…………………………156
33 – Speed Sensor Extension Wiring Harness…………158
070 CUTTING SYSTEM………………………………….159
159 – Sectional Pictorial Index…………………..159
1 – KNIFE DRIVE BELT AND TENSIONER………………..160
3 – BACKSHAFT AND SHIELD…………………………162
5 – DUAL KNIFE DRIVE GEARCASE AND SHAFT (L.H.)……..164
7 – DUAL KNIFE DRIVE GEARCASE AND SHAFT (R.H.)……..166
9 – L.H. KNIFE DRIVESHAFT………………………..168
11 – R.H. KNIFE DRIVESHAFT……………………….170
13 – KNIFE DRIVE GEARCASE………………………..172
15 – DRIVE GEARCASE……………………………..174
17 – Gear Case, Gear Case Drive Pump………………176
19 – DUAL KNIFE…………………………………178
21 – CUTTERBAR HEAD SECTION………………………180
23 – CUTTERBAR MIDDLE SECTIONS……………………182
24 – KNIFE ASSEMBLY……………………………..183
25 – DUEL KNIFE OVERLAP SECTION…………………..184
27 – CUTTERBAR GEARCASE………………………….186
29 – JOINT KIT FOR SECTIONALIZED KNIVES……………188
30 – CROP LIFTER (LONG POINT RIGID GUARDS)…………189
31 – DUAL CUTTERBAR KNIFE GUARDS AND HOLDDOWN………190
33 – CUTTERBAR COMPLETE KNIFE SECTIONS – REFERENCE….192

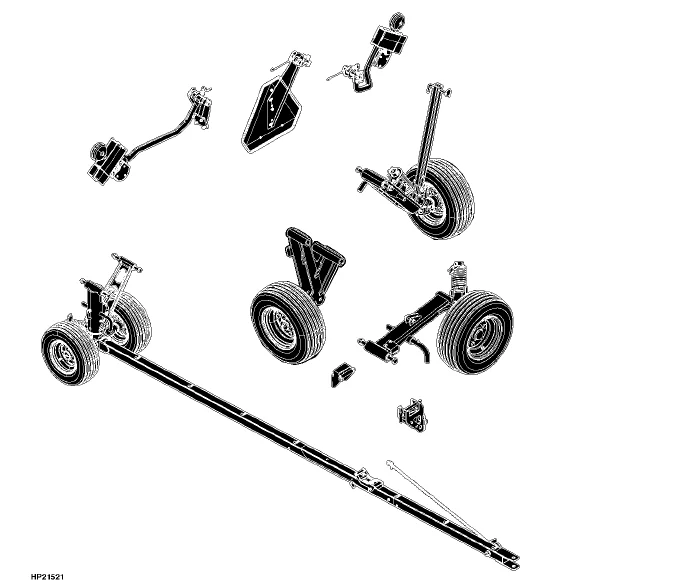

080 TRANSPORT AND GUAGE WHEEL SYSTEM………………….193
193 – Sectional Pictorial Index…………………..193
194 – Sectional Pictorial Index…………………..194
1 – WHEEL………………………………………195
2 – GAUGE WHEEL…………………………………196
4 – TRANSPORT HITCH……………………………..198
6 – DRAPER HITCH EXTENSION-RUSSIA ONLY…………….200
8 – TRANSPORT TONGUE EXTENSION WIRING HARNESS………202
10 – FRONT TRANSPORT WHEEL ASSEMBLY……………….204
12 – LEFT REAR TRANSPORT WHEEL ASSEMBLY……………206
14 – RIGHT REAR TRANSPORT WHEEL ASSEMBLY…………..208
16 – TRANSPORT WARNING LIGHTS…………………….210
18 – TRANSPORT WIRING HARNESS…………………….212
20 – WARNING LIGHT ADAPTER HARNESS………………..214
21 – GAUGE WHEEL POSITION SENSOR………………….215
22 – TRANSPORT MOUNTING BRACKET…………………..216
24 – SLOW MOVING SIGN BRACKET…………………….218
26 – TRANSPORT STORAGE BRACKETS…………………..220
090 DECALS…………………………………………223
223 – Sectional Pictorial Index…………………..223
224 – Sectional Pictorial Index…………………..224
1 – CENTER FEED DECALS…………………………..226
3 – ATTACHMENT FRAME DECALS………………………228
5 – FRAME DECALS………………………………..230
7 – DRAPER DECALS……………………………….232
9 – REEL DECALS…………………………………234
Alphabetical Index………………………………………… 17
A……………………………………………………. 0
ACCUMULATOR………………………………………..116
ARM, REEL PICKUP……………………………………128
ARM, REEL PICKUP……………………………………130
ARM, REEL………………………………………….136
ARM, REEL………………………………………….138
ATTACHMENT FRAME DECALS……………………………..228
ATTACHMENT FRAME…………………………………… 36
AUGER, TOP CROP CONVEYING…………………………… 68
B……………………………………………………. 0
BACKSHAFT AND SHIELD………………………………..162
BEARING, REEL ARM SPIDER…………………………….126
BEARING, REEL ARM…………………………………..128
BEARING, REEL ARM…………………………………..130
BELT TENSIONER, DRAPER……………………………… 82
BELT, DRAPER………………………………………. 80
BELT, FEED………………………………………… 32
BELT, KNIFE DRIVE…………………………………..160
Bracket Kit……………………………………….. 74
BRACKET, MULTICOUPLER………………………………. 96
BRACKET, SLOW MOVING SIGN……………………………218
BRACKET……………………………………………116
BRACKET……………………………………………200
C……………………………………………………. 0
CENTER FEED AND KNIFE DRIVE GEARCASE…………………. 38
CENTER FEED BELT FRAME……………………………… 30
CENTER FEED DECALS………………………………….226
CENTER FEED DRIVESHAFT……………………………… 42
CENTER FEED DRUM FINGERS……………………………. 26
CENTER FEED DRUM FRAME……………………………… 28
CENTER FEED DRUM HOUSING……………………………. 24
CENTER FEED SYSTEM GEARCASE…………………………. 22
CENTER REEL ARM…………………………………….138
CENTER SHAFT, REEL PICKUP……………………………128
CENTER SHAFT, REEL PICKUP……………………………130
COLLAR, LOCKING KIT………………………………… 44
COVER, FEED BELT…………………………………… 62
CROP LIFTER (LONG POINT RIGID GUARDS)…………………189
CUTTERBAR COMPLETE KNIFE SECTIONS – REFERENCE………….192
CUTTERBAR GEARCASE………………………………….186
CUTTERBAR HEAD SECTION………………………………180
CUTTERBAR MIDDLE SECTIONS……………………………182
CYLINDER, FLOAT ARM…………………………………110
CYLINDER, FLOAT…………………………………….108
CYLINDER, REEL LIFT (MASTER)…………………………146
CYLINDER, REEL LIFT (SLAVE)………………………….148
CYLINDER, TILT……………………………………..106
CYLINDERS, REEL LIFT………………………………..144
D……………………………………………………. 0
DECALS, ATTACHMENT FRAME…………………………….228
DECALS, CENTER FEED…………………………………226
DECALS, DRAPER……………………………………..232
DECALS, FRAME………………………………………230
DECALS, REEL……………………………………….234
Deck Swap Hoses, Side Draper…………………………154
DIVIDER POINT……………………………………… 52
DRAPER BELT TENSIONER………………………………. 82
DRAPER BELT……………………………………….. 80
DRAPER DECALS………………………………………232
DRAPER FRAME AND DRIVE ROLLER……………………….. 84
DRAPER HITCH EXTENSION-RUSSIA ONLY……………………200
DRAPER PANELS……………………………………… 86
DRAPER SHIELDS…………………………………….. 58
DRAPER TILT CYLINDER………………………………..106
DRIVE GEARCASE……………………………………..174
DRIVE VALVE BLOCK………………………………….. 94
DRIVE VALVE BLOCK………………………………….. 92
DRIVE, REEL………………………………………..132
DRIVESHAFT, CENTER FEED…………………………….. 42
DRIVESHAFT, KNIFE DRIVE…………………………….. 46
DRIVESHAFT, L.H. KNIFE………………………………168
DRIVESHAFT, R.H. KNIFE………………………………170
DRIVESHAFT, UNIVERSAL………………………………. 40
DRUM FINGERS, CENTER FEED…………………………… 26
DRUM HOUSING, CENTER FEED…………………………… 24
DUAL CUTTERBAR HOLDDOWN (COARSE)……………………..190
DUAL CUTTERBAR KNIFE GUARDS AND HOLDDOWN………………190
DUAL KNIFE DRIVE GEARCASE AND SHAFT (L.H.)…………….164
DUAL KNIFE DRIVE GEARCASE AND SHAFT (R.H.)…………….166
DUAL KNIFE DRIVE SHAFT (L.H.)………………………..164
DUAL KNIFE DRIVE SHAFT (R.H.)………………………..166
DUAL KNIFE…………………………………………178
DUAL ZONE FLOAT KIT…………………………………118
DUEL KNIFE OVERLAP SECTION…………………………..184
E……………………………………………………. 0
END KNIFE ASSEMBLY LH……………………………….183
F……………………………………………………. 0
FEED BELT COVER……………………………………. 62
FEED BELT, FRAME, ROLLERS, AND TENSIONER……………… 32
FEED BELT…………………………………………. 32
FEED ROLLER……………………………………….. 32
FEED SECTION FILLER STRIP…………………………… 64
FEED SYSTEM, CENTER, GEARCASE……………………….. 22
FEED TENSIONER…………………………………….. 32
FILLER STRIP, FEED SECTION………………………….. 64
FILLER STRIPS……………………………………… 60
FINGER REPAIR KIT…………………………………..128
FINGER REPAIR KIT…………………………………..130
FLOAT ARM CYLINDER………………………………….110
FLOAT ARM POSITION SENSOR……………………………114
FLOAT ARM………………………………………….112
FLOAT ARM………………………………………….118
FLOAT CYLINDER……………………………………..108
FLOAT SYSTEM HYDRAULICS……………………………..102
FLOW CONTROL HYDRAULIC VALVE………………………… 68
FRAME DECALS……………………………………….230
FRAME, ATTACHMENT………………………………….. 36
FRAME, CENTER FEED BELT…………………………….. 30
FRAME, CENTER FEED DRUM…………………………….. 28
FRAME, DRAPER……………………………………… 84
FRAME, MAIN……………………………………….. 50
FRAME,QUICK TACH…………………………………… 70
FRAME,QUICK TACH…………………………………… 72
FRONT TRANSPORT WHEEL ASSEMBLY……………………….204
G……………………………………………………. 0
GAUGE WHEEL CONTROL CYLINDER…………………………110
GAUGE WHEEL POSITION SENSOR………………………….215
GAUGE WHEEL………………………………………..196
Gear Case Drive Pump………………………………..176
GEAR CASE………………………………………….176
GEAR, REEL…………………………………………132
GEARCASE SHIELD AND WARNING LIGHT……………………. 56
GEARCASE, CENTER FEED SYSTEM………………………… 22
GEARCASE, CENTER FEED………………………………. 38
GEARCASE, CUTTERBAR…………………………………186
GEARCASE, DRIVE…………………………………….174
GEARCASE, KNIFE DRIVE………………………………. 38
GEARCASE, KNIFE DRIVE……………………………….172
GROMMET……………………………………………116
GUAGE WHEEL………………………………………..196
H……………………………………………………. 0
HARNESS, MAIN WIRING………………………………..156
Harness, Wiring, Speed Sensor Extension……………….158
HEAD SECTION, CUTTERBAR……………………………..180
HITCH, TRANSPORT……………………………………198
HITCH, TRANSPORT……………………………………200
HOLDDOWN, DUAL CUTTERBAR (COARSE)…………………….190
HOSE,HYDRAULIC……………………………………..116
HOSES, HYDRAULIC MOTOR……………………………… 88
HOSES, REEL LIFT AND FORE/AFT………………………..142
HOSES, REEL LIFT……………………………………140
HOSES, REEL LIFT……………………………………144
Hoses, Side Draper Deck Swap…………………………154
HYDRAULIC HOSE……………………………………..116
HYDRAULIC MOTOR AND HOSES…………………………… 88
HYDRAULIC MOTOR……………………………………. 68
HYDRAULIC VALVE BLOCK AND HOSES……………………… 90
HYDRAULIC VALVE…………………………………….116
J……………………………………………………. 0
JACK STAND WELDMENT………………………………… 70
JACK STAND WELDMENT………………………………… 72
JOINT KIT FOR SECTIONALIZED KNIVES……………………188
JOINT KIT, KNIVES…………………………………..188
JOINT LOCKING COLLAR KIT……………………………. 44
K……………………………………………………. 0
KIT, PLASTIC FINGER REPAIR…………………………..128
KIT, PLASTIC FINGER REPAIR…………………………..130
KIT,LOCKING COLLAR…………………………………. 44
KNIFE ASSEMBLY, END LH………………………………183
KNIFE ASSEMBLY……………………………………..183
KNIFE DRIVE BELT AND TENSIONER……………………….160
KNIFE DRIVE DRIVESHAFT……………………………… 46
KNIFE DRIVE GEARCASE………………………………..172
KNIFE DRIVE SHIELD…………………………………. 54
KNIFE HEAD SECTION………………………………….180
KNIFE JOINT KIT…………………………………….188
KNIFE SECTIONS, CUTTERBAR, COMPLETE – REFERENCE………..192
KNIFE SECTIONS……………………………………..188
KNIFE, DUAL………………………………………..178
L……………………………………………………. 0
L.H. KNIFE DRIVESHAFT……………………………….168
L.H. REEL MOUNTING………………………………….134
LATCH……………………………………………..200
LEFT REAR TRANSPORT WHEEL ASSEMBLY……………………206
LIFTER, CROP (LONG POINT RIGID GUARDS)………………..189
LIGHT, WARNING…………………………………….. 56
LOCKING COLLAR KIT…………………………………. 44
M……………………………………………………. 0
MAIN DRIVE DRIVESHAFT………………………………. 46
MAIN FRAME………………………………………… 50
MAIN WIRING HARNESS…………………………………156
MIDDLE SECTIONS, CUTTERBAR…………………………..182
MOTOR, HYDRAULIC…………………………………… 68
MOUNTING BRACKET, TRANSPORT………………………….216
MOUNTING, REEL, L.H…………………………………134
MULTICOUPLER AND STORAGE BRACKET…………………….. 96
O……………………………………………………. 0
OVERLAP SECTION, DUEL KNIFE………………………….184
P……………………………………………………. 0
PANELS, DRAPER…………………………………….. 86
PICKUP REEL ECCENTRIC SPIDER…………………………126
PICKUP REEL………………………………………..128
PICKUP REEL………………………………………..130
PIN, QUICK LOCK…………………………………….200
PIN, SPRING LOCKING………………………………… 70
PIN, SPRING LOCKING………………………………… 72
PIN, TILT CYLINDER…………………………………. 70
PIN, TILT CYLINDER…………………………………. 72
PLATES, SKID………………………………………. 66
POINT, DIVIDER…………………………………….. 52
POSITIONING TOOL ASSY, CENTER……………………….. 70
POSITIONING TOOL ASSY, CENTER……………………….. 72
Q……………………………………………………. 0
QUICK LINK AND PARK………………………………… 70
QUICK LINK AND PARK………………………………… 72
QUICK LOCK PIN……………………………………..200
QUICK TACH FRAME…………………………………… 70
QUICK TACH FRAME…………………………………… 72
R……………………………………………………. 0
R.H. KNIFE DRIVESHAFT……………………………….170
R.H. MOUNTING, REEL…………………………………132
Raised Side Draper…………………………………. 74
REEL ARM…………………………………………..136
REEL ARM…………………………………………..138
REEL DECALS………………………………………..234
REEL DRIVE MOTOR, TUBES AND HOSES…………………….140
REEL DRIVE VALVE BLOCK………………………………104
REEL DRIVE, CENTER MOUNTINGS AND GEARS………………..132
REEL DRIVE, R.H. MOUNTINGS AND GEARS………………….132
REEL HEIGHT SENSOR………………………………….152
REEL L.H. MOUNTING………………………………….134
REEL LIFT AND FORE/AFT HOSES…………………………142
REEL LIFT CYLINDER (MASTER)………………………….146
REEL LIFT CYLINDER (MASTER)………………………….148
REEL LIFT CYLINDER (SLAVE)…………………………..146
REEL LIFT CYLINDER (SLAVE)…………………………..148
REEL LIFT HOSES AND CYLINDERS………………………..144
REEL MOUNTINGS (L.H. ILLUSTRATED)…………………….134
REEL PICKUP………………………………………..128
REEL PICKUP………………………………………..130
REEL POSITION AND SPEED SENSOR……………………….150
REEL POSITION………………………………………150
REEL, L.H. MOUNTING…………………………………134
REFERENCE, CUTTERBAR COMPLETE KNIFE SECTIONS…………..192
RIGHT REAR TRANSPORT WHEEL ASSEMBLY…………………..208
ROLLER, DRIVE……………………………………… 84
ROLLER, FEED………………………………………. 32
S……………………………………………………. 0
SECTION, OVERLAP, DUEL KNIFE…………………………184
SECTIONS, KNIFE…………………………………….188
SECTIONS, MIDDLE, CUTTERBAR………………………….182
SENSOR, FLOAT ARM POSITION…………………………..114
SENSOR, GAUGE WHEEL POSITION…………………………215
SHAFT, DUAL KNIFE DRIVE (L.H.)……………………….164
SHAFT, DUAL KNIFE DRIVE (R.H.)……………………….166
SHAFT, REEL PICKUP………………………………….128
SHAFT, REEL PICKUP………………………………….128
SHAFT, REEL PICKUP………………………………….130
SHAFT, REEL PICKUP………………………………….130
SHIELD, BACKSHAFT…………………………………..162
SHIELD, DRAPER…………………………………….. 58
SHIELD, GEARCASE…………………………………… 56
SHIELD, KNIFE DRIVE………………………………… 54
SHIELD, REEL PICKUP SPIDER…………………………..126
Side Draper Deck Swap Hoses………………………….154
SIDE DRAPER FRONT RAILS AND SEALS……………………. 60
SIDE DRAPER HYDRAULIC DRIVE SYSTEM…………………… 88
SKID PLATES……………………………………….. 66
SLEEVE…………………………………………….200
SLOPE FLOAT HYDRAULIC ACCUMULATOR…………………….116
SLOW MOVING SIGN BRACKET…………………………….218
Speed Sensor Extension Wiring Harness…………………158
SPEED SENSOR……………………………………….150
SPIDER, REEL PICKUP…………………………………126
SPRING LOCKING PIN…………………………………. 70
SPRING LOCKING PIN…………………………………. 72
STAND JACK,WELDMENT………………………………… 70
STAND JACK,WELDMENT………………………………… 72
STORAGE BRACKET, MULTICOUPLER……………………….. 96
STORAGE BRACKETS, TRANSPORT………………………….220
STRIPS, FILLER…………………………………….. 60
T……………………………………………………. 0
TENSIONER, FEED……………………………………. 32
TENSIONER, KNIFE DRIVE………………………………160
TONGUE…………………………………………….200
TOP CROP CONVEYING AUGER……………………………. 68
TRANSPORT HITCH…………………………………….198
TRANSPORT MOUNTING BRACKET…………………………..216
TRANSPORT STORAGE BRACKETS…………………………..220
TRANSPORT TONGUE EXTENSION WIRING HARNESS……………..202
TRANSPORT TONGUE EXTENSION, WIRING HARNESS…………….202
TRANSPORT WARNING LIGHTS…………………………….210
TRANSPORT WHEEL ASSEMBLY (FRONT)……………………..204
TRANSPORT WHEEL ASSEMBLY (LEFT REAR)………………….206
TRANSPORT WHEEL ASSEMBLY (RIGHT REAR)…………………208
TRANSPORT WIRING HARNESS…………………………….212
TUBES, REEL DRIVE OIL……………………………….140
U……………………………………………………. 0
UNIVERSAL DRIVESHAFT……………………………….. 40
UNIVERSAL JOINT LOCKING COLLAR KIT…………………… 44
V……………………………………………………. 0
VALVE BLOCK, DRIVE…………………………………. 94
VALVE BLOCK, DRIVE…………………………………. 92
VALVE BLOCK, HYDRAULIC……………………………… 90
VALVE BLOCK, REEL DRIVE……………………………..104
VALVE, FLOW CONTROL HYDRAULIC……………………….. 68
VALVE, HYDRAULIC……………………………………116
W……………………………………………………. 0
WARNING LIGHT ADAPTER HARNESS………………………..214
WARNING LIGHTS, TRANSPORT……………………………210
WHEEL ASSEMBLY, TRANSPORT (FRONT)…………………….204
WHEEL ASSEMBLY, TRANSPORT (LEFT REAR)…………………206
WHEEL ASSEMBLY, TRANSPORT (RIGHT REAR)………………..208
WHEEL, GUAGE……………………………………….196
WHEEL……………………………………………..195
wiring Harness, Speed Sensor Extension………………..158
WIRING HARNESS, TRANSPORT TONGUE EXTENSION…………….202
WIRING HARNESS, TRANSPORT……………………………212

IMAGES PREVIEW OF THE MANUAL:

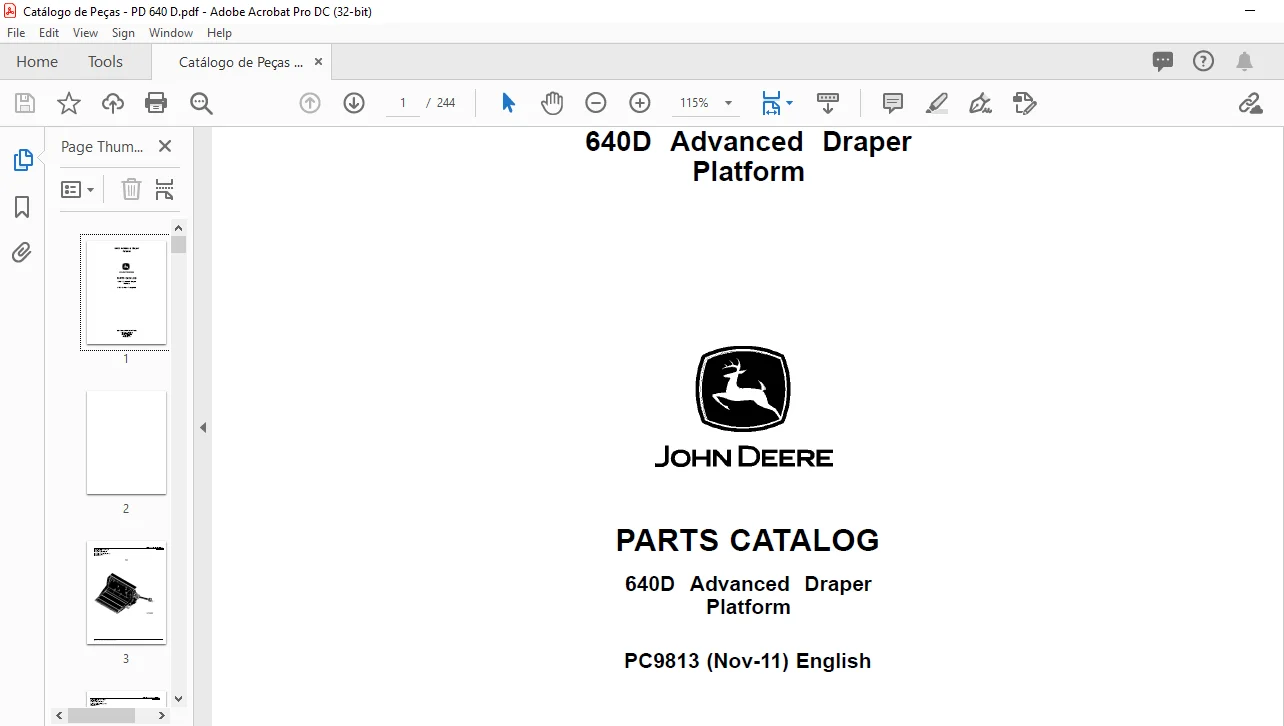

JOHN DEERE 640D ADVANCED DRAPER PLATFORM PARTS CATALOG MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
