John Deere 640FD Flex Draper Platform Parts Catalog Manual – PDF DOWNLOAD

Description

John Deere 640FD Flex Draper Platform Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

John Deere 640FD Flex Draper Platform Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 168
Downloadable : Yes
File Type : PDF
Size: 5.05 MB

TABLE OF CONTENTS:

John Deere 640FD Flex Draper Platform Parts Catalog Manual – PDF DOWNLOAD

640FD Flex Draper Platform………………………………………. 1
Contents…………………………………………………… 1
Primary Pictorial Index………………………………….. 3
Introduction……………………………………………. 11
SECTIONS……………………………………………….. 1
010 CENTER FEED SYSTEM……………………………….. 19
19 – Sectional Pictorial Index…………………….. 19
1 – CENTER FEED SYSTEM GEARCASE……………………. 20
3 – CENTER FEED DRUM HOUSING………………………. 22
5 – CENTER FEED DRUM FINGERS………………………. 24
7 – CENTER FEED DRUM FRAME………………………… 26
9 – Center Feed Belt, Frame And Rollers…………….. 28
11 – Center Feed And Knife Drive Gearcase…………… 30
13 – CENTER FEED DRIVESHAFT……………………….. 32
15 – MAIN DRIVE DRIVESHAFT………………………… 34
17 – UNIVERSAL JOINT LOCKING COLLAR KIT…………….. 36
030 MAINFRAME MODULE ASSEMBLY…………………………. 37
37 – Sectional Pictorial Index…………………….. 37
38 – Sectional Pictorial Index…………………….. 38
1 – MAIN FRAME…………………………………… 40
3 – Grain Sample Door…………………………….. 42
5 – TOP CROP CONVEYING AUGER………………………. 44
7 – SHORT LOOP CROP DIVIDER……………………….. 46
9 – TOP CROP CONVEYING AUGER MOTOR…………………. 48
11 – DIVIDER POINT……………………………….. 50
13 – LH End Shield……………………………….. 52
15 – RH End Shield……………………………….. 54
17 – MAIN WIRING HARNESS………………………….. 56
19 – AUTOMATIC HEADER HEIGHT CONTROL SENSOR…………. 58
20 – LATERAL TILT SENSOR………………………….. 59
21 – AUTOMATIC HEADER HEIGHT CONTROL ROD……………. 60
040 DRAPER ASSEMBLIES………………………………… 61
61 – Sectional Pictorial Index…………………….. 61
1 – DRAPER BELT………………………………….. 62
3 – SIDE DRAPER HYDRAULIC DRIVE SYSTEM……………… 64
5 – SIDE DRAPER DRIVE GEAR CASE……………………. 66
7 – REAR BELT SUPPORT…………………………….. 68
9 – MULTICOUPLER AND STORAGE BRACKET……………….. 70
11 – Spring Board Assembly………………………… 72
050 FLOAT SYSTEM…………………………………….. 75
75 – Sectional Pictorial Index…………………….. 75
1 – Outer Float Arm, RH…………………………… 76
3 – Outer Float Arm, LH…………………………… 78
5 – FLOAT SYSTEM HYDRAULICS……………………….. 80
7 – DOG LEG FLOAT ARM…………………………….. 82
9 – DRIVE ARM FLOAT………………………………. 84
11 – RIGID HEIGHT SENSING…………………………. 86
13 – INTERMEDIATE FLOAT ARM……………………….. 88
060 REELS…………………………………………… 91
91 – Sectional Pictorial Index…………………….. 91
92 – Sectional Pictorial Index…………………….. 92
93 – Sectional Pictorial Index…………………….. 93
1 – PICKUP REEL ECCENTRIC SPIDER…………………… 94
3 – PICKUP REEL………………………………….. 96
5 – PICKUP REEL………………………………….. 98
7 – REEL DRIVE, CENTER MOUNTINGS AND GEARS…………..100
9 – Reel Mountings (LH Illustrated)…………………102
11 – Eccentric, Reel Bat Flip Over (Anti Wrapping)……104
13 – LEFT REEL ARM………………………………..106
15 – RIGHT REEL ARM……………………………….108
17 – CENTER REEL ARM………………………………110
19 – REEL LIFT AND FORE/AFT HOSES…………………..112
21 – REEL LIFT HOSES AND CYLINDERS………………….114
23 – REEL LIFT CYLINDER (SLAVE)…………………….116
25 – REEL LIFT CYLINDER (MASTER)……………………118
27 – REEL POSITION AND SPEED SENSOR…………………120
070 CUTTING SYSTEM……………………………………123
123 – Sectional Pictorial Index…………………….123
1 – BACKSHAFT AND SHIELD…………………………..124
3 – BACKSHAFT AND SHIELD…………………………..126
5 – CUTTING DRIVE AND DRIVESHAFT……………………128
7 – KNIFE DRIVE GEARCASE…………………………..130
9 – CUTTERBAR GEARCASE…………………………….132
11 – CUTTERBAR……………………………………134
13 – KNIFE GUARD………………………………….136
15 – REGULAR HEIGHT SKID PLATE……………………..138
17 – RAISED HEIGHT SKID PLATE………………………140
19 – FINE SECTION DUAL KNIFE……………………….142
21 – LONG-SHORT COARSE DUAL KNIFE…………………..144
23 – COARSE SECTION DUAL KNIFE……………………..146
090 DECALS…………………………………………..149
149 – Sectional Pictorial Index…………………….149
150 – Sectional Pictorial Index…………………….150
1 – CENTER FEED DECALS…………………………….152
3 – FRAME DECALS (NORTH AMERICA)……………………154
5 – FRAME DECALS (EXPORT)………………………….156
7 – REEL DECALS…………………………………..158
9 – END SHIELD DECALS……………………………..160
Alphabetical Index………………………………………….. 15
A……………………………………………………… 0
ARM HEIGHT CONTROL, HEADER……………………………. 60
ARM POT SHAFT……………………………………….. 58
ARM, DOG LEG FLOAT…………………………………… 82
ARM, LEFT REEL……………………………………….106
ARM, OFF THE GROUND FLOAT…………………………….. 86
ARM, OFF THE GROUND SKID……………………………… 86
ARM, REEL FLIP OVER ARM……………………………….104
ARM, REEL FLIP OVER FIXED ARM………………………….104
ARM, REEL FLIP OVER PIVOT ARM………………………….104
ARM, REEL PICKUP…………………………………….. 96
ARM, REEL PICKUP…………………………………….. 98
ARM, REEL……………………………………………110
ARM, RIGHT REEL………………………………………108
ARM, SPRING RETURN, AUTOMATIC HEADER HEI GHT CONTROL ROD…. 60
AUGER, TOP CROP CONVEYING…………………………….. 44
AUTOMATIC HEADER HEIGHT CONTROL ROD……………………. 60
AUTOMATIC HEADER HEIGHT CONTROL SENSOR…………………. 58
B……………………………………………………… 0
BACKSHAFT AND SHIELD………………………………….124
BACKSHAFT AND SHIELD………………………………….126
BEARING, ECCENTRIC, 54 IN 8 BAT………………………..104
BEARING, REEL ARM SPIDER……………………………… 94
BEARING, REEL ARM……………………………………. 96
BEARING, REEL ARM……………………………………. 98
BELT, CENTER FEED……………………………………. 28
BELT, DRAPER………………………………………… 62
BRACKET, BELT DRIVE SUPPORT SLIDE……………………… 84
BRACKET, BELT SUPPORT………………………………… 68
BRACKET, DUAL DRIVE PIVOT…………………………….. 84
BRACKET, DUAL DRIVE PIVOT…………………………….. 84
BRACKET, FLOW CONTROL MOUNTING………………………… 48
BRACKET, INNER AUGER MOUNT ASSY……………………….. 44
BRACKET, LONG DIVIDER STABILIZER………………………. 50
BRACKET, MULTICOUPLER STORAGE…………………………. 70
BRACKET, OUTER AUGER SUPPORT………………………….. 44
BRACKET, TWO PIECE BELT SUPPORT……………………….. 88
BULB……………………………………………….. 56
C……………………………………………………… 0
Center Feed And Knife Drive Gearcase…………………… 30
CENTER FEED BELT FRAME……………………………….. 28
Center Feed Belt, Frame And Rollers……………………. 28
CENTER FEED DECALS……………………………………152
CENTER FEED DRIVESHAFT……………………………….. 32
CENTER FEED DRUM FINGERS……………………………… 24
CENTER FEED DRUM FRAME……………………………….. 26
CENTER FEED DRUM HOUSING……………………………… 22
CENTER FEED SYSTEM GEARCASE…………………………… 20
CENTER REEL ARM………………………………………110
CENTER SHAFT, REEL PICKUP…………………………….. 96
CENTER SHAFT, REEL PICKUP…………………………….. 98
COARSE SECTION DUAL KNIFE……………………………..146
COLLAR, LOCKING KIT………………………………….. 36
Coupling, Multicoupler, Mobile Platform………………… 70
COVER, DIVIDER SHIELD, L.H……………………………. 52
COVER, DIVIDER SHIELD, R.H……………………………. 54
COVER, OFF THE GROUND SENSOR………………………….. 86
COVER, SHAFT END…………………………………….. 44
COVER, SLIP CLUTCH……………………………………124
CROP DIVIDER, FRONT………………………………….. 50
CROP DIVIDER, SHORT LOOP……………………………… 46
CUTTERBAR GEARCASE……………………………………132
CUTTERBAR WEAR PLATE………………………………….134
CUTTERBAR……………………………………………134
CUTTING DRIVE AND DRIVESHAFT…………………………..128
CUTTING DRIVE AND DRIVESHAFT…………………………..128
CYLINDER, FLOAT SYSTEM……………………………….. 80
CYLINDER, GAS OPERATED……………………………….. 52
CYLINDER, GAS OPERATED……………………………….. 54
CYLINDER, REEL LIFT (MASTER)…………………………..116
CYLINDER, REEL LIFT (SLAVE)……………………………118
CYLINDERS, REEL LIFT………………………………….114
D……………………………………………………… 0
DECALS, CENTER FEED…………………………………..152
DECALS, FRAME………………………………………..154
DECALS, FRAME………………………………………..156
DECALS, REEL…………………………………………158
DECALS, REEL…………………………………………160
DIVIDER POINT……………………………………….. 50
DIVIDER SHIELD COVER, L.H…………………………….. 52
DIVIDER SHIELD COVER, R.H…………………………….. 54
DIVIDER, CROP……………………………………….. 50
DOG LEG FLOAT ARM……………………………………. 82
Door, Grain Sample…………………………………… 42
DRAPER BELT…………………………………………. 62
DRIVE ARM FLOAT……………………………………… 84
DRIVE, REEL………………………………………….100
DRIVESHAFT, CENTER FEED………………………………. 32
DRIVESHAFT, MAIN DRIVE……………………………….. 34
DRIVESHAFT…………………………………………..126
Driveshaft…………………………………………..128
DRUM FINGERS, CENTER FEED…………………………….. 24
DRUM HOUSING, CENTER FEED…………………………….. 22
DUAL KNIFE, COARSE SECTION…………………………….146
DUAL KNIFE, FINE SECTION………………………………142
DUAL KNIFE, LONG-SHORT COARSE………………………….144
E……………………………………………………… 0
Eccentric, Reel Bat Flip Over (Anti Wrap)……………….104
Eccentric, Reel Bat Flip Over (Anti Wrapping)……………104
END SHIELD ASSY, L.H…………………………………. 52
END SHIELD ASSY, R.H…………………………………. 54
END SHIELD DECALS…………………………………….160
F……………………………………………………… 0
FEED SYSTEM, GEARCASE, CENTER…………………………. 20
FINE SECTION DUAL KNIFE……………………………….142
FINGER REPAIR KIT……………………………………. 96
FINGER REPAIR KIT……………………………………. 98
FINGERS, CENTER FEED DRUM…………………………….. 24
FITTING, FLANGE, BELT SUPPORT…………………………. 68
FITTING, PRESSURE RELIEF……………………………… 66
FLANGE FITTING, BELT SUPPORT………………………….. 68
Float Arm, Outer, LH…………………………………. 78
Float Arm, Outer, RH…………………………………. 76
FLOAT SYSTEM HYDRAULICS………………………………. 80
FLOODLAMP, GLASS FLOOD……………………………….. 56
FLOW CONTROL HYDRAULIC VALVE, TOP AUGER………………… 48
FRAME DECALS (EXPORT)…………………………………156
FRAME DECALS (NORTH AMERICA)…………………………..154
FRAME DECALS…………………………………………154
FRAME DECALS…………………………………………156
FRAME, CENTER FEED BELT………………………………. 28
FRAME, CENTER FEED DRUM………………………………. 26
FRAME, CENTER TENSIONING……………………………… 28
FRAME, FRONT DIVIDER…………………………………. 50
FRAME, MAIN…………………………………………. 40
FRAME, REAR DIVIDER………………………………….. 52
FRAME, REAR DIVIDER………………………………….. 54
G……………………………………………………… 0
GAS OPERATED CYLINDER………………………………… 52
GAS OPERATED CYLINDER………………………………… 54
GEAR CASE, SIDE DRAPER DRIVE………………………….. 66
GEAR, CENTER FEED SYSTEM GEARCASE……………………… 20
GEAR, REEL…………………………………………..100
GEAR, SIDE DRAPER DRIVE GEAR CASE……………………… 66
GEARCASE, CENTER FEED AND KNIFE DRIVE………………….. 30
GEARCASE, CENTER FEED SYSTEM………………………….. 20
GEARCASE, CUTTERBAR…………………………………..132
GEARCASE, KNIFE DRIVE…………………………………130
GEARCASE, KNIFE DRIVE………………………………… 30
Grain Sample Door……………………………………. 42
Guard Knife………………………………………….136
H……………………………………………………… 0
HEADER HEIGHT CONTROL ROD, AUTOMATIC…………………… 60
HEADLIGHT, STUBBLE LIGHT……………………………… 56
HEIGHT CONTROL ROD, HEADER, AUTOMATIC………………….. 60
HOSE, HYDRAULIC……………………………………… 64
HOSES, REEL LIFT AND FORE/AFT………………………….112
HOSES, REEL LIFT……………………………………..114
HOUSING, CENTER FEED DRUM…………………………….. 22
HOUSING, CENTER FEED…………………………………. 30
HOUSING, CUTTING DRIVESHAFT……………………………128
HOUSING, DRIVESHAFT…………………………………..126
HOUSING, SIDE DRAPER DRIVE GEAR CASE…………………… 66
HOUSING, WARNING LAMP SUP…………………………….. 56
HYDRAULIC ACCUMULATOR, FLOAT SYSTEM……………………. 80
HYDRAULIC CYLINDER, FLOAT SYSTEM………………………. 80
HYDRAULIC HOSE, AUGER MOTOR…………………………… 48
HYDRAULIC HOSE, DRAPER MOTOR………………………….. 48
HYDRAULIC HOSE, FLOAT SYSTEM………………………….. 80
HYDRAULIC HOSE, MANIFOLD……………………………… 48
HYDRAULIC HOSE………………………………………. 64
HYDRAULIC MOTOR, SIDE DRAPER………………………….. 48
HYDRAULIC MOTOR……………………………………… 64
Hydraulic Quick Coupler Socket, Multicoupler……………. 70
HYDRAULICS, FLOAT SYSTEM……………………………… 80
I……………………………………………………… 0
INTERMEDIATE FLOAT ARM……………………………….. 88
J……………………………………………………… 0
JOINT LOCKING COLLAR KIT……………………………… 36
K……………………………………………………… 0
Kit, Locking Collar………………………………….. 36
KIT, PLASTIC FINGER REPAIR……………………………. 96
KIT, PLASTIC FINGER REPAIR……………………………. 98
KNIFE DRIVE GEARCASE………………………………….130
KNIFE GUARD, 4 INCH ” L/S/L BLUNT PT”…………………..136
KNIFE GUARD, 4 INCH ” S/L/S BLUNT PT”…………………..136
KNIFE GUARD, 4 INCH DUAL KNIFE, CENTER………………….136
KNIFE GUARD, 4 INCH NON CLOG, OPEN……………………..136
KNIFE GUARD, SINGLE POINT, RH………………………….136
KNIFE GUARD………………………………………….136
KNIFE, COARSE, DUAL KNIFE……………………………..146
KNIFE, DUAL OVERLAP ASSEMBLY…………………………..142
KNIFE, DUAL, FINE SECTION……………………………..142
KNIFE, DUAL, LONG-SHORT COARSE…………………………144
L……………………………………………………… 0
L.H. REEL MOUNTING……………………………………102
LATERAL TILT SENSORS…………………………………. 59
LATERAL TILT SENSOR………………………………….. 59
LEFT REEL ARM………………………………………..106
LH End Shield……………………………………….. 52
LOCKING COLLAR KIT…………………………………… 36
LONG-SHORT COARSE DUAL KNIFE…………………………..144
M……………………………………………………… 0
MAIN DRIVE DRIVESHAFT………………………………… 34
MAIN FRAME………………………………………….. 40
MAIN HOUSING, CENTER FEED…………………………….. 30
MAIN WIRING HARNESS………………………………….. 56
MOTOR, HYDRAULIC…………………………………….. 64
MOTOR, TOP CROP CONVEYING AUGER……………………….. 48
MOUNTING, REEL, L.H…………………………………..102
MULTI COUPLER STORAGE BRACKET…………………………. 70
MULTICOUPLER AND STORAGE BRACKET………………………. 70
O……………………………………………………… 0
Outer Float Arm, LH………………………………….. 78
Outer Float Arm, RH………………………………….. 76
P……………………………………………………… 0
PANEL, CENTER FEED…………………………………… 28
PICKUP REEL ECCENTRIC SPIDER………………………….. 94
PICKUP REEL…………………………………………. 96
PICKUP REEL…………………………………………. 98
PLATE, POLY SKID…………………………………….. 84
PLATE, SENSOR MOUNT………………………………….. 58
POTENTIOMETER SHAFT………………………………….. 58
PRESSURE RELIEF FITTING………………………………. 66
R……………………………………………………… 0
R.H. MOUNTING, REEL…………………………………..100
RAISED HEIGHT SKID PLATE………………………………140
RAMP, CENTER FEED…………………………………….134
RAMP, CROP CENTER FEED SECTION…………………………134
RAMP, CROP…………………………………………..134
RAMP, OUTER FLOAT ARM…………………………………134
REAR BELT SUPPORT……………………………………. 68
REAR DIVIDER FRAME…………………………………… 52
REAR DIVIDER FRAME…………………………………… 54
REEL ARM, LEFT……………………………………….106
REEL ARM, RIGHT………………………………………108
REEL ARM…………………………………………….110
REEL DECALS………………………………………….158
REEL DECALS………………………………………….160
REEL DRIVE, CENTER MOUNTINGS AND GEARS………………….100
REEL DRIVE, R.H. MOUNTINGS AND GEARS……………………100
REEL L.H. MOUNTING……………………………………102
REEL LIFT AND FORE/AFT HOSES…………………………..112
REEL LIFT CYLINDER (MASTER)……………………………116
REEL LIFT CYLINDER (MASTER)……………………………118
REEL LIFT CYLINDER (SLAVE)…………………………….116
REEL LIFT CYLINDER (SLAVE)…………………………….118
REEL LIFT HOSES AND CYLINDERS………………………….114
Reel Mountings (LH Illustrated)………………………..102
REEL PICKUP…………………………………………. 96
REEL PICKUP…………………………………………. 98
REEL POSITION AND SPEED SENSOR…………………………120
REEL POSITION SENSOR………………………………….120
REEL, L.H. MOUNTING…………………………………..102
REFLECTIVE LABEL…………………………………….. 56
REGULAR HEIGHT SKID PLATE……………………………..138
RH End Shield……………………………………….. 54
RIGHT REEL ARM……………………………………….108
RIGID HEIGHT SENSING…………………………………. 86
ROD, BELT SUPPORT……………………………………. 68
ROLLER, CENTER DRAPER DRIVE…………………………… 28
ROLLER, DRIVE……………………………………….. 84
ROLLER, SIDE DRAPER IDLER…………………………….. 82
S……………………………………………………… 0
SENSOR CONTACTING POTENTIOMETER, LATERAL TILT…………… 59
SENSOR, AUTOMATIC HEADER HEIGHT CONTROL………………… 58
SENSOR, CONTACTING POTENTIOMETER………………………. 58
SENSOR, LATERAL TILT…………………………………. 59
SENSOR, REEL HEIGHT ASSY………………………………108
SENSOR, REEL POSITION…………………………………120
SENSOR, RIGID HEIGHT SENSING………………………….. 86
SENSOR, SPEED………………………………………..120
SHAFT POTENTIOMETER, LATERAL TILT……………………… 59
SHAFT POTENTIOMETER………………………………….. 58
SHAFT, DRIVESHAFT…………………………………….126
SHAFT, FRONT SLIDER STUB……………………………… 28
SHAFT, REEL PICKUP…………………………………… 96
SHAFT, REEL PICKUP…………………………………… 96
SHAFT, REEL PICKUP…………………………………… 98
SHAFT, REEL PICKUP…………………………………… 98
SHAFT, SLIDE RAIL……………………………………. 84
SHIELD, BACKSHAFT…………………………………….124
SHIELD, END SHIELD ASSY, LH…………………………… 52
SHIELD, END SHIELD ASSY, RH…………………………… 54
SHIELD, REEL PICKUP SPIDER……………………………. 94
SHIELD, SLIDING, MAIN FRAME…………………………… 40
SHOE, OUTER NARROW…………………………………… 50
SHORT LOOP CROP DIVIDER………………………………. 46
SIDE DRAPER DRIVE GEAR CASE…………………………… 66
SIDE DRAPER HYDRAULIC DRIVE SYSTEM…………………….. 64
SKID PLATE, FRONT SHORT DIVIDE………………………… 50
SKID PLATE, RAISED HEIGHT……………………………..140
SKID PLATE, REGULAR HEIGHT…………………………….138
SKID PLATE, STEEL SKID SHOE…………………………… 84
SKID PLATE………………………………………….. 28
SLIDING SHIELD, MAIN FRAME……………………………. 40
SLIP CLUTCH………………………………………….124
SPEED SENSOR…………………………………………120
SPIDER, REEL PICKUP………………………………….. 94
SPRING, HYDROPNEUMATIC……………………………….. 52
SPRING, HYDROPNEUMATIC……………………………….. 54
STORAGE BRACKET, MULTICOUPLER…………………………. 70
Stripper, Angled, Top Crop Conveying Auger……………… 44
STRUCTURAL TUBING, TUBE, HITC…………………………. 82
STRUCTURAL TUBING……………………………………. 56
SUPPORT, PIVOTING IDLER ROLLER………………………… 82
T……………………………………………………… 0
TIE ROD ASSEMBLY, LINKAGE POTENTIOMETER, LATERAL TILT……. 59
TIE ROD ASSEMBLY, LINKAGE POTENTIOMETER………………… 58
TOP CROP CONVEYING AUGER MOTOR………………………… 48
TOP CROP CONVEYING AUGER……………………………… 44
TUBE, AUTOMATIC HEADER HEIGHT CONTROL RO D……………… 60
TUBE,LAMP BRACKET ASSEMBLY……………………………. 56
U……………………………………………………… 0
UNIVERSAL JOINT LOCKING COLLAR KIT…………………….. 36
V……………………………………………………… 0
VALVE, FLOW CONTROL HYDRAULIC, TOP AUGER……………….. 48
W……………………………………………………… 0
WARNING LAMP ASSY……………………………………. 56
WEAR PLATE, CUTTERBAR…………………………………134
WIRING HARNESS, BASE ELECTRICAL……………………….. 56
WIRING HARNESS, OFF GROUND CUTTING…………………….. 86

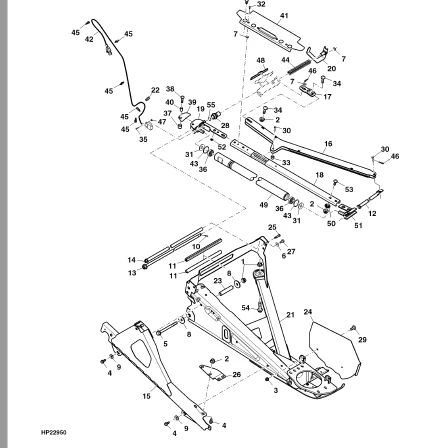

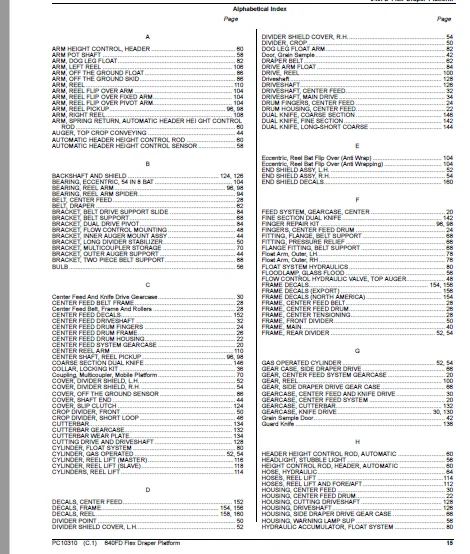

IMAGES PREVIEW OF THE MANUAL:

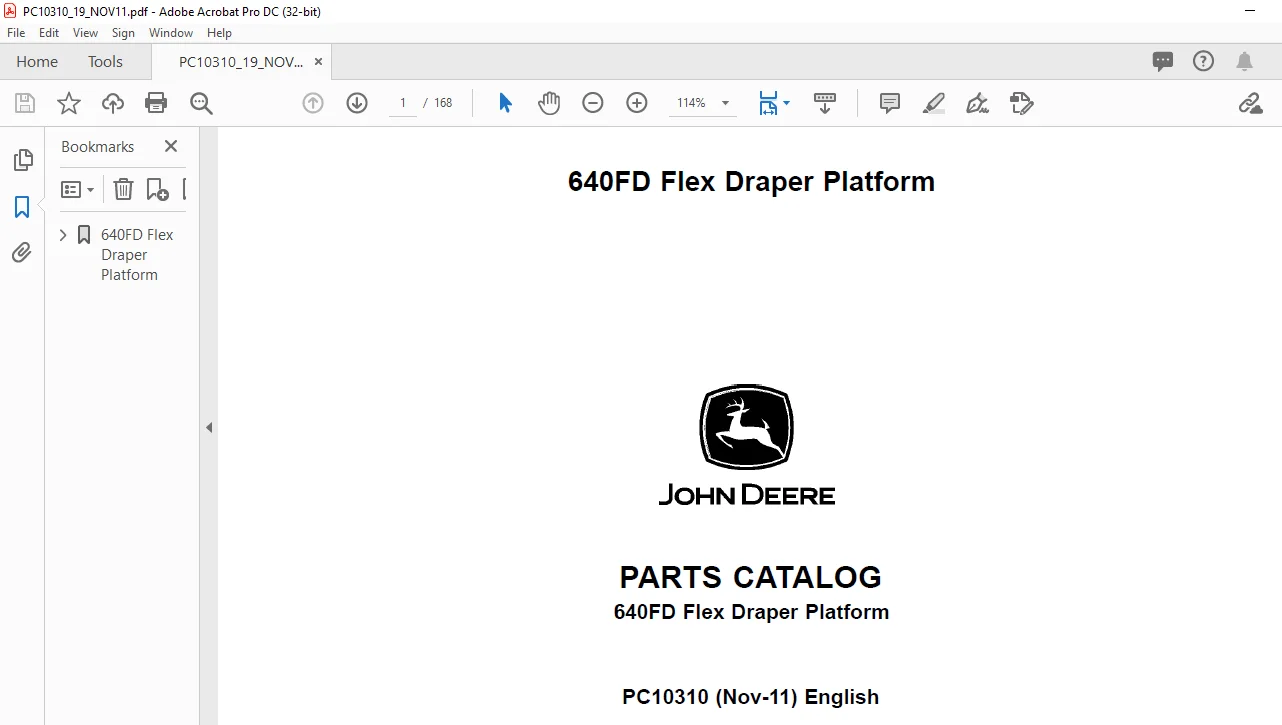

JOHN DEERE 640FD FLEX DRAPER PLATFORM PARTS CATALOG MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.V
