John Deere 655 755 855 955 756 856 Compact Utility Tractors Technical Manual – PDF DOWNLOAD

Description

John Deere 655 755 855 955 756 856 Compact Utility Tractors Technical Manual – PDF DOWNLOAD

DESCRIPTION:

John Deere 655 755 855 955 756 856 Compact Utility Tractors Technical Manual – PDF DOWNLOAD

TM1360

FOREWORD :

This manual is written for an experienced technician. Essential tools required in performing certain service work are identified in this manual and are recommended for use. LIVE WITH SAFETY: Read the safety messages in the introduction of this manual and the cautions presented throughout the text of the manual.

• A This is the safety-alert symbol. When you see .. t~is symbol on the machine or in this manual, be alert to the potential for personal injury. Technical manuals are divided in two parts: repair and diagnostics. Repair sections tell how to repair the components. Diagnostic sections help you identify the majority of routine failures quickly. Information is organized in groups for the various components requiring service instruction.
• At the beginning of each group are summary listings of all applicable essential tools, service equipment and tools, other materials needed to do the job, service parts kits, specifications, wear tolerances, and torque values. Binders, binder labels, and tab sets can be ordered by John Deere dealers direct from the John Deere Distribution Service Center. This manual is part of a total product support program.
• FOS MANUALS-REFERENCE TECHNICAL MANUALS-MACHINE SERVICE COMPONENT MANUALS-COMPONENT SERVICE Fundamentals of Service (FOS) Manuals cover basic theory of operation, fundamentals of troubleshooting, general maintenance, and basic type of failures and their causes.
• FOS Manuals are for training new personnel and for reference by experienced technicians. Technical Manuals are concise guides for specific machines. Technical manuals are on-the-job guides containing only the vital information needed for diagnosis, analysis, testing, and repair .

TABLE OF CONTENTS:

John Deere 655 755 855 955 756 856 Compact Utility Tractors Technical Manual – PDF DOWNLOAD

SECTION 10-GENERAL INFORMATION
Group 05-Safety
Group 1 O-Repair Specifications
Group 15-Repair Information
Group 20-Fuels, Lubricants, and Coolants
Group 25-Serial Number Locations
SECTION 20-DIESEL ENGINE REPAIR
Group 05-Yanmar Diesel Engine Repair
Group 10-Remove and Install Oil Cooler
Group 15-Remove and Install Radiator
Group 20-Remove and Install Diesel Engine
SECTION 30-FUEL AND AIR REPAIR
Group 05-Fuel Transfer Pump
Group 10-Fuel Tank
Group 15-Fuel Tank Tube and Sender
Group 20-Air Cleaner
SECTION 40-ALTERNATOR REPAIR
Group 05-Alternator Repair Specifications
Group 10-Alternator Installation
SECTION 50-POWER TRAIN REPAIR
Group 05-Hydrostatic Transmission
Group 10-Transaxle
Group 15-Final Drives
Group 20-Mechanical Front Wheel Drive
(MFWD)
Group 25-Power Train Gears and Shafts
Group 30-Speed Control Linkage
SECTION GO-STEERING AND BRAKES REPAIR
Group 05-Standard Front Axle
Group 1 O-Steering Valve
Group 15-Brake Linkage
SECTION 70-HYDRAULICS REPAIR
Group 05-Hydraulic Pump
Group 10-Flow Divider and Selective Control
Valves (SCV’s)
Group 15-Rockshaft
Group 20-Hydraulic Hoses
SECTION aO-MISCELLANEOUS REPAIR
Group 15-0perator’s Seat
Group 20-European Roll-Gard®
Group 25-German Rear Hitch
Group 30-3-Point Hitch
SECTION 210-MACHINE OPERATIONAL
CHECKOUT PROCEDURE
Group 05-Machine Operational Checkout
Procedure
SECTION 220-ENGINE/FUEL OPERATION AND
TESTS
Group 05-Engine Systems Operational Checkout
Procedure
Group 10-Engine System Diagnosis
SECTION 240-ELECTRICAL OPERATION
AND TESTS
Group 05-Electrical System Checkout
Group 10-Electrical System Diagnosis
Group 15-Theory of Operation
SECTION 250-POWER TRAIN OPERATION
AND TESTS
Group 05-Power Train System Checkout
Group 1 O-Power Train Tests and Adjustments
Group 15-Theory of Operation
SECTION 2GO-STEERING AND BRAKE
OPERATION AND TESTS
Group 05-Steering and Brakes System Checkout
Group 10-Steering and Brakes Tests and
Adjustments
Group 15-Theory of Operation
SECTION 270-HYDRAULIC OPERATION
AND TESTS
Group 05-Hydraulic System Checkout
Group 1 O-Hydraulic System Tests and
Adjustments
Group 15-Theory of Operation
INDEX

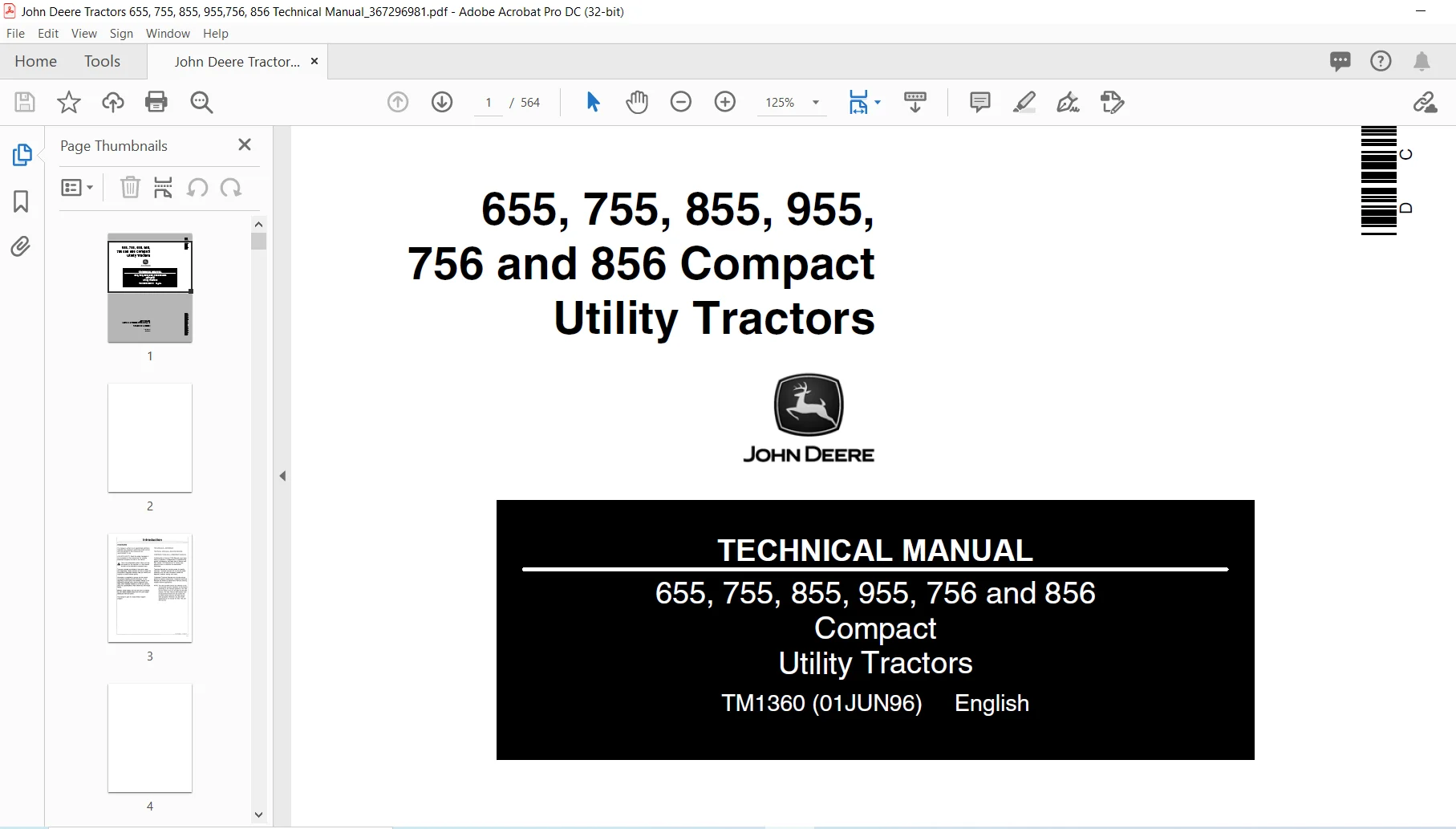

IMAGES PREVIEW OF THE MANUAL:
