John Deere 6675 & 7775 Skid Steer Loaders Operator’s Manual PDF

Description

John Deere 6675 & 7775 Skid Steer Loaders Operator’s Manual – PDF DOWNLOAD

FILE DETAILS:

John Deere 6675 & 7775 Skid Steer Loaders Operator’s Manual – PDF DOWNLOAD

P/N: OMM120995_UA
Language: English
Division: Construction
Product Lines: Skid Steers
Publication Type: Operator’s Manuals
Associated Models: 6675, 7775
Serial: 010001–

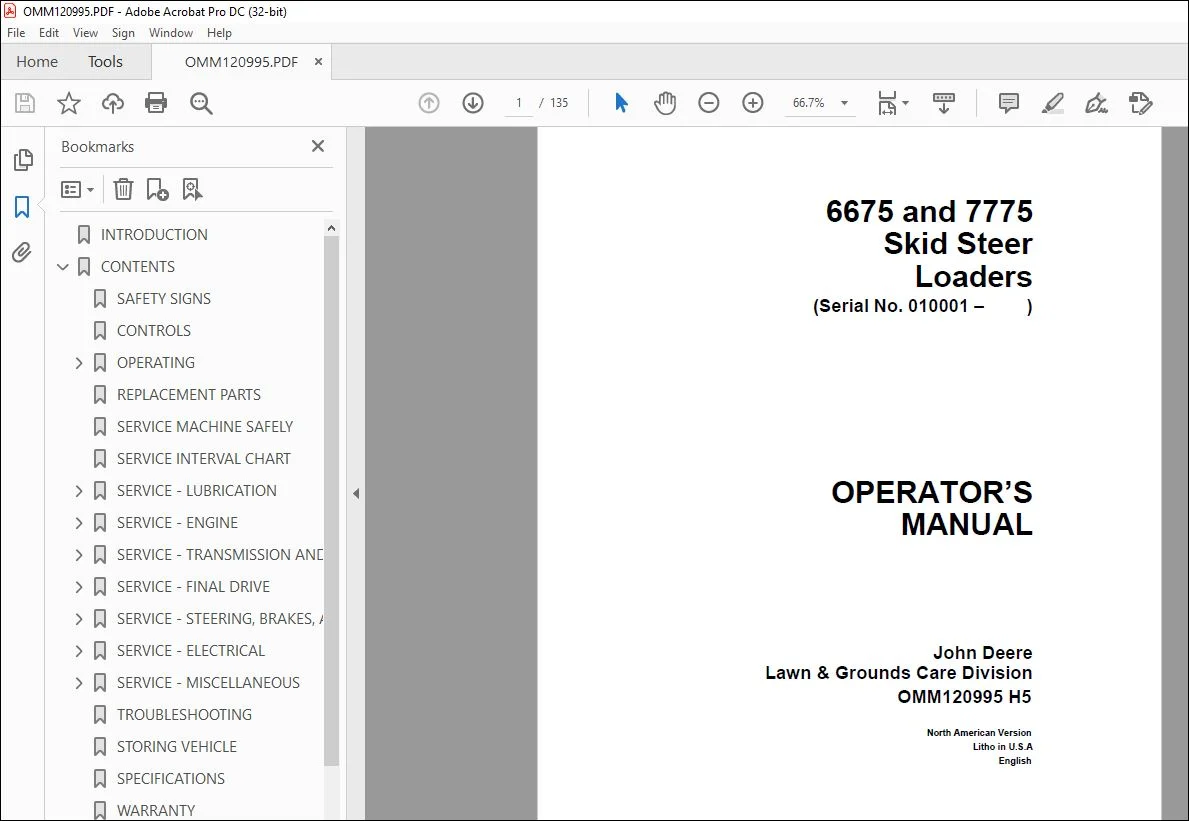

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere 6675 & 7775 Skid Steer Loaders Operator’s Manual – PDF DOWNLOAD

INTRODUCTION 2
CONTENTS 3
SAFETY SIGNS 11
CONTROLS 16
OPERATING 19
Safety 19
Seat 24
Entering And Exiting Loader 25
Using Fuel Shut-Off Valve 26
Using The Park Brake 26
Using Service/Run Switch 26
Using Electronic Instrument Monitor (EIM) 27
Using Select Switches 33
Using Cold Start Button 35
Starting The Engine 36
Stopping The Engine 39
Using Drive Controls 40
Using Auxiliary Boom Hydraulic Control Lever 41
Using Boom Pedal 42
Using Bucket Pedal 43
Using Boom Stops 44
Using Emergency Exit 44
Using “Quick-Attach” Attachment Mounting System 45
Filling The Bucket 47
Digging 48
Dumping The Bucket 49
Returning The Bucket To The Loading Position 49
Bulldozing With The Bucket 50
Dislodging The Machine 50
Transporting Loaded Bucket 51
Job Layout 51
Daily Operating Checklist 52
Testing Safety Systems 52
Transporting Machine On A Trailer 54
Craning The Skid Steer Loader 55
REPLACEMENT PARTS 56
SERVICE MACHINE SAFELY 57
SERVICE INTERVAL CHART 60
SERVICE – LUBRICATION 64
Grease 64
Lubricating Axles 64
Lubricate Boom And Cylinders 65
Lubricate Mounting Plate Latches And Cylinders 65
SERVICE – ENGINE 66
Engine Oil 66
Checking Engine Oil Level 67
Changing Engine Oil And Filter 67
Cleaning Radiator And Oil Cooler Fins 69
Replacing Primary Air Cleaner Element 70
Replacing Secondary Air Cleaner Element 71
Service Cooling System Safely 72
Engine Coolant 72
Checking Coolant Level 73
Draining Cooling System 74
Flushing Cooling System 75
Filling Cooling System 76
Checking And Adjusting Fan Belt 77
Replacing In-Line Fuel Filter 78
Adjusting Throttle Control 78
SERVICE – TRANSMISSION AND HYDRAULICS 80
Transmission And Hydraulic Oil 80
Checking Hydraulic Reservoir Oil Level 80
Cleaning Reservoir Cap And Breather 81
Changing Hydraulic Oil Filter 82
Changing Hydraulic Oil 82
Adjusting Neutral Creep 84
SERVICE – FINAL DRIVE 86
Oil 86
Lubricating Final Drive (2) 86
Adjusting Final Drive Chain 86
Final Drive Chain Routing 87
Gear Box Oil 88
Lubricate Gear Boxes (2) 88
SERVICE – STEERING, BRAKES, AND PEDALS 89
Oil 89
Lubricate Steering, Foot Control, And Parking Brake Linkages 89
Adjusting Control Lever Stops 91
Adjusting Park Brake 92
Adjusting Boom And Bucket Foot Pedals 93
Adjusting Auxiliary Boom Hydraulic Control Lever Linkage 93
SERVICE – ELECTRICAL 95
Cleaning Or Replacing Battery 95
Checking Battery Electrolyte Level 97
Charging The Battery 99
Using Booster Battery 102
Replacing Fuses 103
Replacing EIM Panel LIght Bulb 104
Replacing Headlight Bulb 104
Replacing Taillight Bulb 104
SERVICE – MISCELLANEOUS 105
Checking Tire Pressure 105
Opening Engine Cover 106
Removing Belly Pan 107
Removing Engine Side Panels 107
Refueling Machine 108
Raising And Blocking Loader 110
TROUBLESHOOTING 111
STORING VEHICLE 120
SPECIFICATIONS 122
WARRANTY 131
SERVICE LITERATURE ORDER FORM 133
QUESTIONS? 135
