John Deere 724L 4WD Loader Operator’s Manual OMT426947X19 PDF

Description

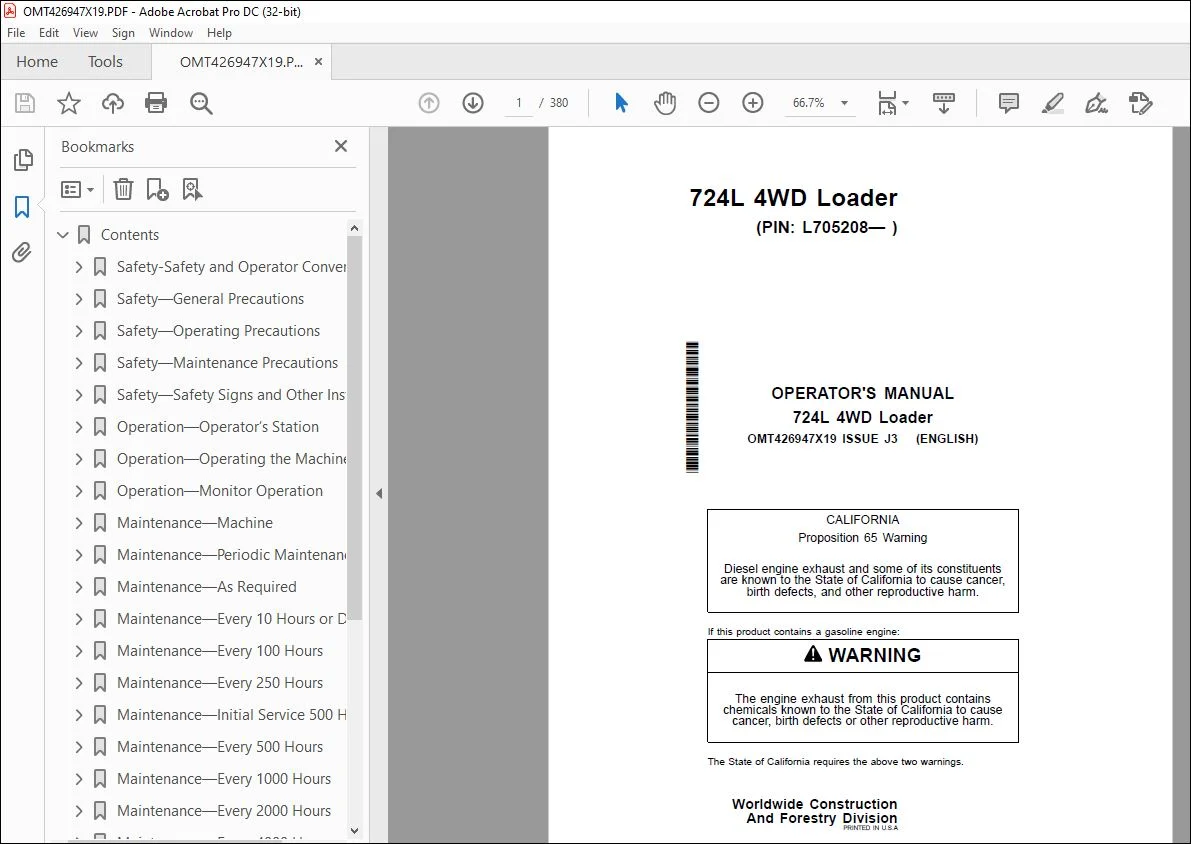

John Deere 724L 4WD Loader Operator’s Manual OMT426947X19 – PDF DOWNLOAD

• Part Number (P/N): OMT426947X19_04
• Language: English
• Division: Construction
• Product Lines: Loaders
• Publication Type: Operator’s Manuals
• Associated Model: 724L
• Serial Number Range: 1DW724L_ _ _L705208—

TABLE OF CONTENTS:

John Deere 724L 4WD Loader Operator’s Manual OMT426947X19 – PDF DOWNLOAD

Contents 27
Safety-Safety and Operator Conveniences 31
Safety and Operator Convenience Features 31
Safety—General Precautions 33
Information for European Union Directives and Eurasian Economic Union Technical Regulations Compliance 33
Recognize Safety Information 34
Follow Safety Instructions 35
Operate Only If Qualified 35
Wear Protective Equipment 35
Protect Against Noise 36
Avoid Unauthorized Machine Modifications 36
Inspect Machine 36
Stay Clear of Moving Parts 36
Avoid High-Pressure Fluids 37
Avoid High-Pressure Oils 37
Work In Ventilated Area 37
Avoid Static Electricity Risk When Refueling 38
High Debris Applications 38
Prevent Fires, Clean Debris From Machine 39
In Case of Machine Fire 39
Prevent Battery Explosions 40
Handle Chemical Products Safely 40
Handle Starting Fluid Safely 40
Decommissioning — Proper Recycling and Disposal of Fluids and Components 41
Exhaust Filter Ash Handling and Disposal 41
Prepare for Emergencies 41
Clean Debris from Machine 42
Add Cab Guarding for Special Uses 42
Safety—Operating Precautions 43
Use Steps and Handholds Correctly 43
Start Only From Operator’s Seat 43
Use and Maintain Seat Belt 43
Heated and Ventilated Operator’s Seat 44
Prevent Unintended Machine Movement 44
Avoid Work Site Hazards 45
Keep Riders Off Machine 46
Avoid Backover Accidents 46
Avoid Machine Tip Over and Machine Damage 47
Avoid Power Lines 47
Use Special Care When Operating Loader 48
Operating on Slopes 48
Operating or Traveling On Public Roads 48
Inspect and Maintain ROPS 49
Travel Safely 49
Prevent Acid Burns 50
Add and Operate Attachments Safely 50
Safety—Maintenance Precautions 51
Park and Prepare for Service Safely 51
Service Machines Safely 51
Service Cooling System Safely 52
Service Accumulator Systems Safely 52
Remove Paint Before Welding or Heating 52
Make Welding Repairs Safely 53
Drive Metal Pins Safely 53
Service Tires Safely 54
Use Proper Lifting Equipment 54
Clean Exhaust Filter Safely 55
Safety—Safety Signs and Other Instructions 56
Safety Signs and Other Instructions 56
Operation—Operator’s Station 64
Levers—Two Function Hydraulic Control 64
Levers—Three Function Hydraulic Control 65
Levers—Four Function Hydraulic Control 66
Steering Control 66
Pedals 67
Sealed Switch Module (SSM) Functions 68
Primary Display Unit (PDU) Functions 73
Horn Button 81
Turn Signals 81
Joystick Steering Armrest Adjustment—If Equipped 82
Dome Light 82
Air Conditioner and Heater Operation 83
Counter Switch—If Equipped 84
Radio—If Equipped 85
Auxiliary Power Supply 89
Opening and Securing Side Door 90
Opening Side Window (Alternative Exit) 91
Seat Adjustment 92
Fire Extinguisher Mounting Location 94
Operation—Operating the Machine 95
Before Starting Work 95
Inspect Machine Daily Before Starting 96
Check Instruments Before Starting 97
Security System 98
Battery Disconnect Switch 98
Engine Break-In Period 99
Starting the Engine 100
Cold Start Aid—Block Heater—If Equipped 102
Cold Start Aid—Starting Fluid—If Equipped 103
Cold Weather Warm-Up 103
Required Machine Stop Warning 104
Park Brake Switch 106
Shifting the Transmission 107
Automatic Idle and Automatic Shutdown 109
Operating in Water and Mud 109
Driving Up a Steep or Slippery Slope 109
Turbocharger Cool Down 110
Stopping the Engine 110
Joystick Bucket and Boom Control 111
Two Lever Bucket and Boom Control 113
Auxiliary Control 114
Ride Control 115
Secondary Steering—If Equipped 117
Differential Lock Operation 118
Throttle Lock—If Equipped 120
Service ADVISOR™ Remote (SAR) Software Delivery Process 121
Exhaust Filter 122
Selective Catalytic Reduction (SCR) System Overview 124
US EPA Qualified Emergency Use — SCR Derate Override Option 126
EU Qualified Emergency Use — SCR Derate Override Option 127
Rear Camera and Radar Object Detection (ROD) System—If Equipped 128
Counter Switch Operation—If Equipped 131
Embedded Payload Scale—If Equipped 132
Boom Height Kickout Adjustment 136
Return-to-Carry Adjustment 136
Return-to-Dig Adjustment 137
Operating Loader Coupler—If Equipped 137
Using the Loader Bucket 138
Backdragging 139
Fork Attachment 140
Parking the Machine 142
Loading Machine for Transport 144
Towing—Recovery Procedure 146
Lifting the Machine 148
Joystick Steering Control—If Equipped 149
Operation—Monitor Operation 150
Aftertreatment Indicators Overview 150
Primary Display Unit (PDU) 151
Main Menu 152
Main Menu—Display Settings 153
Main Menu—Diagnostics 154
Main Menu—Exhaust Filter 156
Main Menu—Exhaust Filter Auto Cleaning 157
Main Menu—Exhaust Filter Parked Cleaning 158
Main Menu—Exhaust Filter Emergency Override 159
Main Menu—Software Update 159
Main Menu—Calibrations—Electro-Hydraulic Valves 160
Main Menu—Calibrations—Implement Control Levers 161
Main Menu—Calibrations—Loader Position Sensors 162
Main Menu—Calibrations—Loader Linkage 162
Main Menu—Calibrations—Armrest Position Sensor 163
Main Menu—Calibrations—Transmission Clutches 163
Main Menu—Calibrations—Hydraulic Pressure Management (HPM) Valve 164
Main Menu—Calibrations—Brake Pedal 164
Main Menu—Machine Setup 165
Main Menu—Security 170
Main Menu—Machine Fan 172
Main Menu—Fuel Consumption 173
Main Menu—About 174
Main Menu—Job Timer 174
Main Menu—Camera—If Equipped 175
Main Menu—Payload Weighing—If Equipped 176
Main Menu—Tire Pressure Monitoring System (TPMS)—If Equipped 177
Main Menu—Attachments—If Equipped 178
Maintenance—Machine 179
Required Emission-Related Information 179
Diesel Fuel 179
Diesel Fuel Specifications 180
Lubricity of Diesel Fuel 180
Handling and Storing Diesel Fuel 180
Biodiesel Fuel 181
Testing Diesel Fuel 182
Supplemental Diesel Fuel Additives 182
Fuel Filters 182
Diesel Exhaust Fluid (DEF) — Use in Selective Catalytic Reduction (SCR) Equipped Engines 183
Refilling Diesel Exhaust Fluid (DEF) Tank 184
Testing Diesel Exhaust Fluid (DEF) 185
Storing Diesel Exhaust Fluid (DEF) 185
Disposal of Diesel Exhaust Fluid (DEF) 186
Minimizing the Effect of Cold Weather on Diesel Engines 187
John Deere Break-In Plus™ Engine Oil — Interim Tier 4, Final Tier 4, Stage IIIB, Stage IV, and Stage V 188
Diesel Engine Oil — Interim Tier 4, Final Tier 4, Stage IIIB, Stage IV, and Stage V 189
Engine Oil and Filter Service Intervals — Interim Tier 4, Final Tier 4, Stage IIIB, Stage IV, and Stage V Engines 190
Diesel Engine Oil Service Interval for Operation at High Altitude 190
Oil Filters 191
Diesel Engine Coolant (engine with wet sleeve cylinder liners) 192
Water Quality for Mixing with Coolant Concentrate 193
Operating in Warm Temperature Climates 193
Testing Coolant Freeze Point 194
Disposing of Coolant 194
Alternative and Synthetic Lubricants 195
Lubricant Storage 195
Mixing of Lubricants 195
Hydraulic Oil 196
Transmission, Park Brake, and Axle Oil 197
Multipurpose Extreme Pressure (EP) Grease 197
Maintenance—Periodic Maintenance 198
Service Machine at Specified Intervals 198
Check the Hour Meter Regularly 198
Prepare Machine for Maintenance 199
Frame Locking Bar 200
Locking Loader Boom 201
Engine Service Doors and Side Shields 201
Cooling System Doors 202
Fuel Tank 203
Fluid Analysis Program Test Kits and 3-Way Coolant Test Kit 203
Service Intervals 204
Required Parts 206
Maintenance—As Required 208
Check Windshield Washer Fluid Level 208
Check Cab Fresh Air Filter 208
Check Cab Recirculation Air Filter 209
Check and Clean Cab Air Precleaner Housing—If Equipped 210
Check and Clean Heating and Air Conditioner Housing 211
Inspect Tires and Check Pressure 212
Tire Pressures 214
Check Wheel Bolt Torque 215
Clean Hydraulic Pump Case Drain In-Line Screen 216
Clean Hydraulic Fan Drive Case Drain In-Line Screen 219
Check Rear Camera and Radar Object Detection (ROD) System—If Equipped 221
Inspect Engine Air Cleaner Elements 223
Inspect Serpentine Belt 224
Clean Cooler Cores 225
Drain Water From Primary Fuel Filter With Water Separator 227
Service Exhaust Filter 227
Drain, Flush, and Refill Fuel Tank 228
Lubricate Cab Door Hinges 229
Clean Debris From Coupler Lock Cylinder—If Equipped 229
Clean and Tighten Battery Terminals 231
Maintenance—Every 10 Hours or Daily 232
Clean Air Cleaner Dust Unloader Valve 232
Check Coolant Level at Surge Tank 233
Check Engine Oil Level 234
Check Hydraulic System Oil Level 235
Check Transmission Oil Level 236
Inspect Outer Pin Seals 237
Maintenance—Every 100 Hours 238
Lubricate Loader Linkage and Cylinder Pivots 238
Lubricate Coupler Lock Pins—If Equipped 242
Maintenance—Every 250 Hours 243
Take Engine Oil Sample 243
Maintenance—Initial Service 500 Hours 244
Replace Axle Oil Filters 244
Maintenance—Every 500 Hours 245
Lubricate Driveline Upper and Lower Sliding Joints and Lower U-joints 245
Lubricate Front and Rear Axle Shaft Seals 246
Check Hybrid Battery Electrolyte Level—If Equipped 247
Replace Hydraulic Reservoir Breather Filter 249
Check Front and Rear Axle Oil Level 250
Check Air Intake Hoses and Charge Air Cooler Tube Couplings 251
Take Fluid Samples 251
Replace Fast Fill Fuel Breather Filter—If Equipped 251
Drain and Refill Engine Oil and Replace Filter 252
Replace Primary Fuel Filter 254
Replace Final Fuel Filter 255
Replace In-Line Fuel Filter 255
Check Park Brake Oil Level 256
Lubricate Front and Rear Shaft Seals on Park Brake 256
Check Ride Control Accumulator—If Equipped 257
Maintenance—Every 1000 Hours 258
Replace Air Cleaner Dust Unloader Valve 258
Replace Engine Air Cleaner Elements 259
Replace Fuel Tank Breather Filter 260
Check Coolant Condition 260
Replace Axle Oil Filters 261
Lubricate Frame Hinge Pivots 261
Drain and Refill Park Brake Oil 262
Maintenance—Every 2000 Hours 263
Drain and Refill Transmission Oil and Replace Filter 263
Drain and Refill Front and Rear Axle Oil 265
Check and Adjust Engine Valve Lash 265
Replace Outer Pin Seals—If Equipped 266
Rerun Transmission Clutch Calibration 266
Maintenance—Every 4000 Hours 267
Access Diesel Exhaust Fluid (DEF) Dosing Unit Filter 267
Replace Diesel Exhaust Fluid (DEF) Dosing Unit Filter 268
Replace Diesel Exhaust Fluid (DEF) Tank Breather Filter 269
Replace Hydraulic System Return Filter 270
Drain, Flush, and Refill Hydraulic System Oil 271
Clean Hydraulic System Fill Strainer 273
Maintenance—Every 5000 Hours 274
Check Driveline Damper for Cracks 274
Maintenance—Every 6000 Hours 275
Drain Cooling System 275
Cooling System Fill and Deaeration Procedure 277
Replace Diesel Exhaust Fluid (DEF) In-Line Filter 278
Miscellaneous—Machine 279
Check Air Inlet Cover 279
Bleed Fuel System 279
Do Not Service or Adjust Injection Nozzles or High-Pressure Fuel Pump 279
Do Not Service Control Valves, Cylinders, Pumps, or Motors 279
Clean Machine Regularly 280
Precautions for Alternator and Regulator 280
Handling, Checking, and Servicing Batteries Carefully 281
Using Battery Charger 282
Using Booster Batteries—24-Volt System 283
Replacing Batteries 284
Welding on Machine 285
Keep Electronic Control Unit Connectors Clean 285
JDLink™ Machine Monitoring System (MMS)—If Equipped 285
Replacing Fuses 286
Remove and Install Halogen Bulbs 289
Remove and Install Light-Emitting Diode (LED) Lights 290
Fluid Sampling Test Ports—If Equipped 291
Service Recommendations For Snap-To-Connect (STC®) Fittings 293
Keep ROPS Installed Properly 294
External Service Brake Inspection 295
Verified Anchor Point Information 296
Replacing Seat Belt 296
Replacing Bucket Teeth—TK Series 297
Air Conditioning System Service 297
Hardware Torque Specifications 298
Unified Inch Bolt and Screw Torque Values 299
Metric Bolt and Screw Torque Values 300
Miscellaneous—Operational Checkout 301
Operational Checkout 301
Diagnostic Trouble Code (DTC) Check 301
Operational Checks—Ignition OFF, Engine OFF Checks 301
Operational Checks—Ignition ON, Engine OFF Checks 302
Operational Checks—Ignition On, Engine On Checks 311
Miscellaneous—Troubleshooting 339
Troubleshooting Procedure 339
Engine 340
Transmission 345
Differential and Axle 347
Service Brake 348
Driveline 348
Park Brake 349
Hydraulic System 350
Steering 353
Air Conditioning System 354
Heater System 355
Software Update 356
Miscellaneous—Storage 357
Prepare Machine for Storage 357
Monthly Storage Procedure 358
Preparing Engine for Long-Term Storage 359
Removing Engine From Long-Term Storage 360
Miscellaneous—Machine Numbers 361
Record Product Identification Number (PIN) 361
Record Engine Serial Number 361
Record Transmission Serial Number 361
Record Hydraulic Pump Serial Number 362
Record Front and Rear Axle Housing Serial Numbers 362
Keep Proof of Ownership 362
Keep Machines Secure 362
Miscellaneous—Specifications 363
Engine Specifications 363
Drain and Refill Capacities 363
Standard Z-Bar Specifications 364
High Lift Z-Bar Specifications 366
Travel Speeds 368
Eurasian Economic Union 368
Machine Design Life 368
Page Number 27
Section 1-1 31
Section 1-2 33
Section 1-3 43
Section 1-4 51
Section 1-5 56
Section 2-1 64
Section 2-2 95
Section 2-3 150
Section 3-1 179
Section 3-2 198
Section 3-3 208
Section 3-4 232
Section 3-5 238
Section 3-6 243
Section 3-7 244
Section 3-8 245
Section 3-9 258
Section 3-10 263
Section 3-11 267
Section 3-12 274
Section 3-13 275
Section 4-1 279
Section 4-2 301
Section 4-3 339
Section 4-4 357
Section 4-5 361
Section 4-6 363

S.V 04/24
