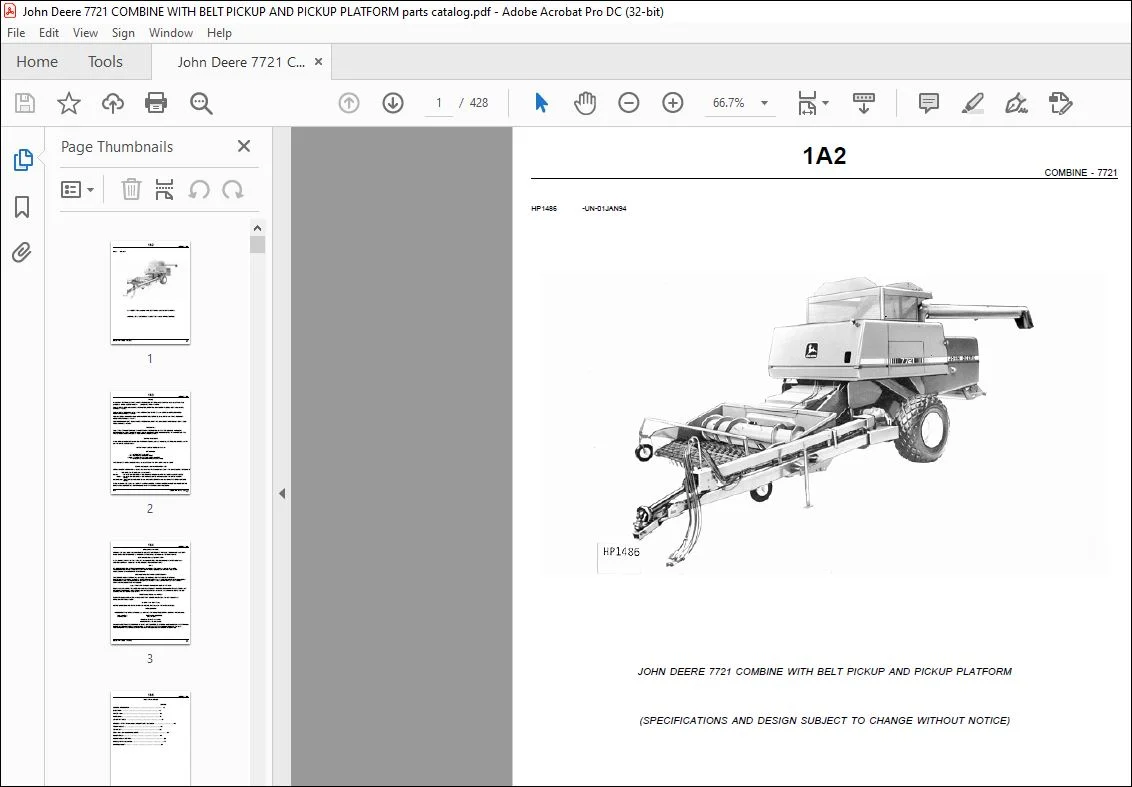

JOHN DEERE 7721 COMBINE WITH BELT PICKUP AND PICKUP PLATFORM PARTS CATALOG MANUAL – PDF DOWNLOAD

DESCRIPTION:

JOHN DEERE 7721 COMBINE WITH BELT PICKUP AND PICKUP PLATFORM PARTS CATALOG MANUAL – PDF DOWNLOAD

DIRECTION ARROW:

ARROWS ARE USED WITH ILLUSTRATIONS TO INDICATE THE FRONT OF THE UNIT. “RIGHT-HAND” AND “LEFTHAND”
SIDES ARE DETERMINED BY FACING IN THE DIRECTION OF MACHINE FORWARD TRAVEL.

BOX-ENCLOSED ILLUSTRATIONS:

A KEY NUMBER, SHOWN IN THE PARTS LIST, IS ASSIGNED TO A BOX ENCLOSING ALL PARTS SOLD AS A
SERVICE ASSEMBLY. A BOX NOT KEYED INCLUDES NON-CURRENT PARTS.

KITS:

KIT INFORMATION WILL BE FOUND IMMEDIATLEY FOLLOWING THE STORY IN WHICH IT IS USED.
THE ILLUSTRATION IS REPEATED WITH ONLY THE KIT PARTS CALLED OUT AND WITH ALL OTHER
PARTS SHOWN IN PHANTOM FOR RELATIONSHIP.

TABLE OF CONTENTS:

JOHN DEERE 7721 COMBINE WITH BELT PICKUP AND PICKUP PLATFORM PARTS CATALOG MANUAL – PDF DOWNLOAD

GENERAL INFORMATION 10
ELECTRICAL 40
POWER TRAIN 50
HYDRAULICS 70
SEPARATOR SHELL 80
HEADERS – REFER TO INDIVIDUAL HEADER PARTS CATALOGS 100
FEEDER HOUSE 110
SEPARATOR 120
GRAIN TANK AND UNLOADING AUGER 130
MAJOR DRIVES 140
HEADER HEIGHT CONTROL 160
DECALS, BELTS AND CHAINS 170

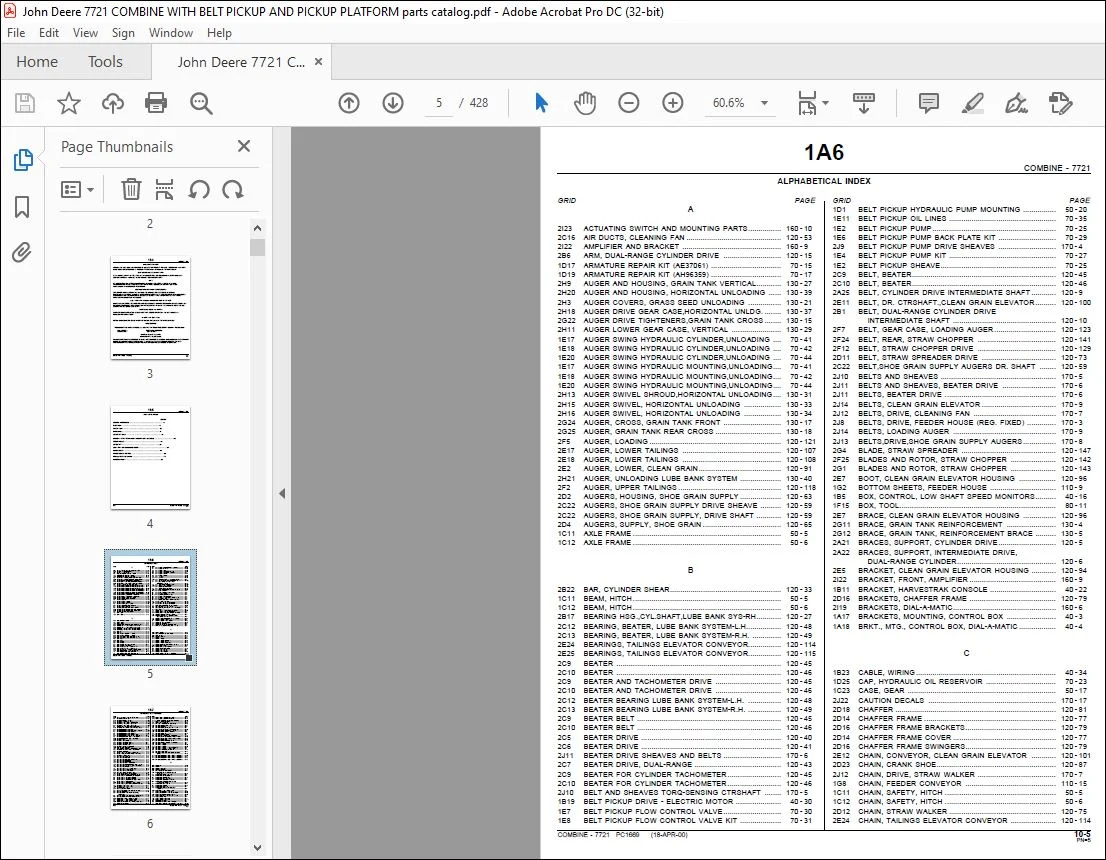

NUMERICAL INDEX 180

2I23 ACTUATING SWITCH AND MOUNTING PARTS 160 – 10 1E2 BELT PICKUP PUMP 70 – 25
2C16 AIR DUCTS, CLEANING FAN 120 – 53 1E6 BELT PICKUP PUMP BACK PLATE KIT 70 – 29
2I22 AMPLIFIER AND BRACKET 160 – 9 2J9 BELT PICKUP PUMP DRIVE SHEAVES 170 – 4
2B6 ARM, DUAL-RANGE CYLINDER DRIVE 120 – 15 1E4 BELT PICKUP PUMP KIT 70 – 27
1D17 ARMATURE REPAIR KIT (AE37061) 70 – 15 1E2 BELT PICKUP SHEAVE 70 – 25
1D19 ARMATURE REPAIR KIT (AH96359) 70 – 17 2C9 BELT, BEATER 120 – 45
2H9 AUGER AND HOUSING, GRAIN TANK VERTICAL 130 – 27 2C10 BELT, BEATER 120 – 46
2H20 AUGER AND HOUSING, HORIZONTAL UNLOADING 130 – 39 2A25 BELT, CYLINDER DRIVE INTERMEDIATE SHAFT 120 – 9
2H3 AUGER COVERS, GRASS SEED UNLOADING 130 – 21 2E11 BELT, DR CTRSHAFT ,CLEAN GRAIN ELEVATOR 120 – 100
2H18 AUGER DRIVE GEAR CASE,HORIZONTAL UNLDG 130 – 37 2B1 BELT, DUAL-RANGE CYLINDER DRIVE
2G22 AUGER DRIVE TIGHTENERS,GRAIN TANK CROSS 130 – 15 INTERMEDIATE SHAFT 120 – 10
2H11 AUGER LOWER GEAR CASE, VERTICAL 130 – 29 2F7 BELT, GEAR CASE, LOADING AUGER 120 – 123
1E17 AUGER SWING HYDRAULIC CYLINDER,UNLOADING 70 – 41 2F24 BELT, REAR, STRAW CHOPPER 120 – 141
1E18 AUGER SWING HYDRAULIC CYLINDER,UNLOADING 70 – 42 2F12 BELT, STRAW CHOPPER DRIVE 120 – 129
1E20 AUGER SWING HYDRAULIC CYLINDER,UNLOADING 70 – 44 2D11 BELT, STRAW SPREADER DRIVE 120 – 73
1E17 AUGER SWING HYDRAULIC MOUNTING,UNLOADING 70 – 41 2C22 BELT,SHOE GRAIN SUPPLY AUGERS DR SHAFT 120 – 59
1E18 AUGER SWING HYDRAULIC MOUNTING,UNLOADING 70 – 42 2J10 BELTS AND SHEAVES 170 – 5
1E20 AUGER SWING HYDRAULIC MOUNTING,UNLOADING 70 – 44 2J11 BELTS AND SHEAVES, BEATER DRIVE 170 – 6
2H13 AUGER SWIVEL SHROUD,HORIZONTAL UNLOADING 130 – 31 2J11 BELTS, BEATER DRIVE 170 – 6
2H15 AUGER SWIVEL, HORIZONTAL UNLOADING 130 – 33 2J14 BELTS, CLEAN GRAIN ELEVATOR 170 – 9
2H16 AUGER SWIVEL, HORIZONTAL UNLOADING 130 – 34 2J12 BELTS, DRIVE, CLEANING FAN 170 – 7
2G24 AUGER, CROSS, GRAIN TANK FRONT 130 – 17 2J8 BELTS, DRIVE, FEEDER HOUSE (REG FIXED) 170 – 3
2G25 AUGER, GRAIN TANK REAR CROSS 130 – 18 2J14 BELTS, LOADING AUGER 170 – 9
2F5 AUGER, LOADING 120 – 121 2J13 BELTS,DRIVE,SHOE GRAIN SUPPLY AUGERS 170 – 8
2E17 AUGER, LOWER TAILINGS 120 – 107 2G4 BLADE, STRAW SPREADER 120 – 147
2E18 AUGER, LOWER TAILINGS 120 – 108 2F25 BLADES AND ROTOR, STRAW CHOPPER 120 – 142
2E2 AUGER, LOWER, CLEAN GRAIN 120 – 91 2G1 BLADES AND ROTOR, STRAW CHOPPER 120 – 143
2H21 AUGER, UNLOADING LUBE BANK SYSTEM 130 – 40 2E7 BOOT, CLEAN GRAIN ELEVATOR HOUSING 120 – 96
2F2 AUGER, UPPER TAILINGS 120 – 118 1G2 BOTTOM SHEETS, FEEDER HOUSE 110 – 9
2D2 AUGERS, HOUSING, SHOE GRAIN SUPPLY 120 – 63 1B5 BOX, CONTROL, LOW SHAFT SPEED MONITORS 40 – 16
2C22 AUGERS, SHOE GRAIN SUPPLY DRIVE SHEAVE 120 – 59 1F15 BOX, TOOL 80 – 11
2C22 AUGERS, SHOE GRAIN SUPPLY, DRIVE SHAFT 120 – 59 2E7 BRACE, CLEAN GRAIN ELEVATOR HOUSING 120 – 96
2D4 AUGERS, SUPPLY, SHOE GRAIN 120 – 65 2G11 BRACE, GRAIN TANK REINFORCEMENT 130 – 4
1C11 AXLE FRAME 50 – 5 2G12 BRACE, GRAIN TANK, REINFORCEMENT BRACE 130 – 5
1C12 AXLE FRAME 50 – 6 2A21 BRACES, SUPPORT, CYLINDER DRIVE 120 – 5
2A22 BRACES, SUPPORT, INTERMEDIATE DRIVE,
DUAL-RANGE CYLINDER 120 – 6
B 2E5 BRACKET, CLEAN GRAIN ELEVATOR HOUSING 120 – 94
2I22 BRACKET, FRONT, AMPLIFIER 160 – 9
2B22 BAR, CYLINDER SHEAR 120 – 33 1B11 BRACKET, HARVESTRAK CONSOLE 40 – 22
1C11 BEAM, HITCH 50 – 5 2D16 BRACKETS, CHAFFER FRAME 120 – 79
1C12 BEAM, HITCH 50 – 6 2I19 BRACKETS, DIAL-A-MATIC 160 – 6
2B17 BEARING HSG ,CYL SHAFT,LUBE BANK SYS-RH 120 – 27 1A17 BRACKETS, MOUNTING, CONTROL BOX 40 – 3
2C12 BEARING, BEATER, LUBE BANK SYSTEM-L H 120 – 48 1A18 BRKT , MTG , CONTROL BOX, DIAL-A-MATIC 40 – 4
2C13 BEARING, BEATER, LUBE BANK SYSTEM-R H 120 – 49
2E24 BEARINGS, TAILINGS ELEVATOR CONVEYOR 120 – 114
2E25 BEARINGS, TAILINGS ELEVATOR CONVEYOR 120 – 115 C
2C9 BEATER 120 – 45
2C10 BEATER 120 – 46 1B23 CABLE, WIRING 40 – 34
2C9 BEATER AND TACHOMETER DRIVE 120 – 45 1D25 CAP, HYDRAULIC OIL RESERVOIR 70 – 23
2C10 BEATER AND TACHOMETER DRIVE 120 – 46 1C23 CASE, GEAR 50 – 17
2C12 BEATER BEARING LUBE BANK SYSTEM-L H 120 – 48 2J22 CAUTION DECALS 170 – 17
2C13 BEATER BEARING LUBE BANK SYSTEM-R H 120 – 49 2D18 CHAFFER 120 – 81
2C9 BEATER BELT 120 – 45 2D14 CHAFFER FRAME 120 – 77
2C10 BEATER BELT 120 – 46 2D16 CHAFFER FRAME BRACKETS 120 – 79
2C5 BEATER DRIVE 120 – 40 2D14 CHAFFER FRAME COVER 120 – 77
2C6 BEATER DRIVE 120 – 41 2D16 CHAFFER FRAME SWINGERS 120 – 79
2J11 BEATER DRIVE SHEAVES AND BELTS 170 – 6 2E12 CHAIN, CONVEYOR, CLEAN GRAIN ELEVATOR 120 – 101
2C7 BEATER DRIVE, DUAL-RANGE 120 – 43 2D23 CHAIN, CRANK SHOE 120 – 87
2C9 BEATER FOR CYLINDER TACHOMETER 120 – 45 2J12 CHAIN, DRIVE, STRAW WALKER 170 – 7
2C10 BEATER FOR CYLINDER TACHOMETER 120 – 46 1G8 CHAIN, FEEDER CONVEYOR 110 – 15
2J10 BELT AND SHEAVES TORQ-SENSING CTRSHAFT 170 – 5 1C11 CHAIN, SAFETY, HITCH 50 – 5
1B19 BELT PICKUP DRIVE – ELECTRIC MOTOR 40 – 30 1C12 CHAIN, SAFETY, HITCH 50 – 6
1E7 BELT PICKUP FLOW CONTROL VALVE 70 – 30 2D12 CHAIN, STRAW WALKER 120 – 75
1E8 BELT PICKUP FLOW CONTROL VALVE KIT 70 – 31 2E24 CHAIN, TAILINGS ELEVATOR CONVEYOR 120 – 114
COMBINE – 7721 PC1669 (18-APR-00) 10-5
PN=5
1A7
COMBINE – 7721
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
2E25 CHAIN, TAILINGS ELEVATOR CONVEYOR 120 – 115 2G24 CROSS AUGER, GRAIN TANK FRONT 130 – 17
2H1 CHANNELS, GRAIN TANK 130 – 19 2G25 CROSS AUGER, GRAIN TANK REAR 130 – 18
2F15 CHOPPER HOUSING, STRAW 120 – 132 2B16 CTRSHAFT BRG HSG ,CYL DR LUBE BANK-RH 120 – 26
2F17 CHOPPER, HOUSING, STRAW 120 – 134 2F14 CURTAIN, STRAW CHOPPER 120 – 131
2F23 CHOPPER, STRAW, KNIFE AND SUPPORT 120 – 140 2D5 CURTAINS, SEPARATOR 120 – 67
2F19 CHOPPER, STRAW, PLATE AND FINS 120 – 136 2B18 CYL SHAFT BRG HSG LUBE BANK (R H ) 120 – 28
2F21 CHOPPER, STRAW, PLATE AND FINS 120 – 138 2B21 CYLINDER COVER DEFLECTOR 120 – 31
2J1 CIRCUIT BOX AND SWITCHES,DIAL-A-MATIC 160 – 12 2B21 CYLINDER COVERS 120 – 31
2E10 CLEAN GR ELEV DRIVE TIGHTENER AND IDLER 120 – 99 1F6 CYLINDER DOOR, SEALS, AND FEED PLATE 80 – 1
2J14 CLEAN GRAIN ELEVATOR DRIVE 170 – 9 2B16 CYLINDER DR CTRSHAFT BRG HSG LUBE-RH 120 – 26
2E11 CLEAN GRAIN ELEVATOR DRIVE COUNTERSHAFT 120 – 100 2A25 CYLINDER DRIVE INTERMEDIATE SHAFT 120 – 9
2E4 CLEAN GRAIN ELEVATOR HOUSING 120 – 93 2A21 CYLINDER DRIVE SUPPORT BRACES 120 – 5
2E5 CLEAN GRAIN ELEVATOR HOUSING 120 – 94 2B4 CYLINDER DRIVE TIGHTENER 120 – 13
2E7 CLEAN GRAIN ELEVATOR HOUSING BOOT 120 – 96 2A18 CYLINDER DRIVES SHIELD 120 – 1
2J14 CLEAN GRAIN ELEVATOR SHEAVES AND BELTS 170 – 9 1G6 CYLINDER KIT, HEADER LIFT HYDRAULIC 110 – 13
2E2 CLEAN GRAIN LOWER AUGER AND HOUSING 120 – 91 2B19 CYLINDER SHAFT BEARING LUBE BANK SYS-LH 120 – 29
2D25 CLEAN GRAIN LOWER AUGER HOUSING 120 – 89 2B17 CYLINDER SHAFT BRG HSG LUBE BANK SYS-RH 120 – 27
2C20 CLEANING FAN 120 – 57 2B22 CYLINDER SHEAR BAR 120 – 33
2C16 CLEANING FAN AIR DUCTS 120 – 53 1D15 CYLINDER SPEED CONTROL VALVE 70 – 13
2J12 CLEANING FAN DRIVE BELTS 170 – 7 1A24 CYLINDER SPEED, TACHOMETER SENSOR 40 – 11
2J12 CLEANING FAN DRIVE SHEAVES 170 – 7 1A21 CYLINDER TACHOMETER 40 – 7
2C18 CLEANING FAN HOUSING 120 – 55 2C9 CYLINDER TACHOMETER 120 – 45
2C15 CLEANING FAN SPEED CONTROL 120 – 51 2C10 CYLINDER TACHOMETER 120 – 46
1B20 CLUTCH, ELECTROMAGNETIC 40 – 31 1A22 CYLINDER TACHOMETER AND MOUNTINGS 40 – 8
1B21 CLUTCH,ELECTROMAGNETIC,UNLOADING AUGER 40 – 32 1A21 CYLINDER TACHOMETER MOUNTINGS 40 – 7
2C4 CONCAVE ADJUSTING SHAFT AND RATCHET 120 – 39 1G5 CYLINDER, HYDRAULIC, HEADER LIFT 110 – 12
2B24 CONCAVE, OPEN-BAR 120 – 35 2B8 CYLINDER, RASP-BAR 120 – 17
1C1 CONNECTOR, ELECTRICAL, SERVICE KIT 40 – 36 2B9 CYLINDER, RASP-BAR (DUAL-RANGE CYLINDER
1C5 CONNECTORS, SUPPLEMENTARY TERMINALS 40 – 40 DRIVE) 120 – 18
1B11 CONSOLE, HARVESTRAK 40 – 22 1E15 CYLINDER,UNLOADING AUGER SWING HYDRAULIC 70 – 39
1A17 CONTROL BOX HARNESS 40 – 3 1E17 CYLINDER,UNLOADING AUGER SWING HYDRAULIC 70 – 41
1A17 CONTROL BOX HOUSING 40 – 3 1E18 CYLINDER,UNLOADING AUGER SWING HYDRAULIC 70 – 42
1A18 CONTROL BOX HOUSING, DIAL-A-MATIC 40 – 4 1E20 CYLINDER,UNLOADING AUGER SWING HYDRAULIC 70 – 44
1A21 CONTROL BOX INDICATORS 40 – 7
1A22 CONTROL BOX INDICATORS 40 – 8
1A17 CONTROL BOX MOUNTING BRACKETS 40 – 3 D
1A18 CONTROL BOX WIRING HARNESS, DIAL-A-MATIC 40 – 4
1B5 CONTROL BOX, LOW SHAFT SPEED MONITORS 40 – 16 2J25 DECAL KIT 170 – 20
1C15 CONTROL ROD (HITCH TUBE) 50 – 9 2J24 DECALS 170 – 19
1E7 CONTROL VALVE, BELT PICKUP FLOW 70 – 30 2J22 DECALS, CAUTION 170 – 17
1D15 CONTROL VALVE, CYLINDER SPEED 70 – 13 2J22 DECALS, WARNING 170 – 17
2I15 CONTROL VALVE, DIAL-A-MATIC 160 – 1 2B21 DEFLECTOR, CYLINDER COVER 120 – 31
2C15 CONTROL, SPEED, CLEANING FAN 120 – 51 2I23 DIAL-A-MATIC ACTUATING SWITCH AND
1D9 CONVERSION HOSES AND COUPLERS 70 – 6 MOUNTING 160 – 10
2E12 CONVEYOR CHAIN, CLEAN GRAIN ELEVATOR 120 – 101 2I17 DIAL-A-MATIC BLOCK SOLENOID 160 – 3
2I13 COUNTERSHAFT DRIVE IDLER, SECONDARY 140 – 17 2I16 DIAL-A-MATIC CHECK BLOCK KIT 160 – 2
2I5 COUNTERSHAFT SHEAVES, PRIMARY 140 – 9 2J1 DIAL-A-MATIC CIRCUIT BOX 160 – 12
2I6 COUNTERSHAFT SHEAVES, PRIMARY 140 – 10 2I15 DIAL-A-MATIC CONTROL VALVE 160 – 1
2I3 COUNTERSHAFT, PRIMARY AND MOUNTINGS 140 – 7 2I21 DIAL-A-MATIC DROP RATE VALVE KIT 160 – 8
2I11 COUNTERSHAFT, SECONDARY 140 – 15 2J4 DIAL-A-MATIC HARNESS ADAPTER FOR
2G20 COUNTERSHAFT, UNLOADING AUGER DRIVE 130 – 13 900 SERIES HEADERS 160 – 15
2E11 COUNTERSHAFT,DRIVE,CLEAN GRAIN ELEVATOR 120 – 100 2I18 DIAL-A-MATIC SOLENOID KIT 160 – 5
1F21 COUPLER, QUIK-TATCH (L H ) 110 – 3 2J1 DIAL-A-MATIC SWITCHES 160 – 12
1F20 COUPLER, QUIK-TATCH (R H ) 110 – 1 2I15 DIAL-A-MATIC VALVE KIT 160 – 1
1D7 COUPLERS AND HOSES 70 – 4 2I19 DIAL-A-MATIC VALVES, FITTINGS, AND
2D14 COVER, CHAFFER FRAME 120 – 77 BRACKETS 160 – 6
2B11 COVER, DUAL-RANGE CYLINDER GEAR CASE 120 – 20 1F25 DOOR LEVER, TOP, FEEDER HOUSE 110 – 7
2B21 COVERS, CYLINDER 120 – 31 2E4 DOOR, CLEAN GRAIN ELEVATOR 120 – 93
2H2 COVERS, GRAIN TANK FRONT AND REAR, 2E7 DOOR, CLEAN GRAIN ELEVATOR HOUSING 120 – 96
ADJUSTABLE 130 – 20 2D25 DOOR, CLEAN GRAIN LOWER AUGER 120 – 89
2H1 COVERS, GRAIN TANK INNER UNLOADING AUGER 130 – 19 1F6 DOOR, CYLINDER, SEALS AND FEED PLATE 80 – 1
2H3 COVERS, GRASS SEED UNLOADING AUGER 130 – 21 2G13 DOOR, GRAIN TANK 130 – 6
2D23 CRANKSHAFT DRIVE TIGHTENER, SHOE 120 – 87 2E21 DOOR, TAILINGS ELEVATOR 120 – 111
2D9 CRANKSHAFT, STRAW WALKER FRONT 120 – 71 2E22 DOOR, TAILINGS ELEVATOR 120 – 112
2D11 CRANKSHAFT, STRAW WALKER REAR 120 – 73 1C8 DRAWBAR EXTENSION 50 – 1
2G22 CROSS AUGER DRIVE TIGHTENERS,GRAIN TANK 130 – 15 1C9 DRAWBAR EXTENSION (4430 TRACTOR) 50 – 3
2J18 CROSS AUGER DRIVES 170 – 13 2E11 DRIVE COUNTERSHAFT, CLEAN GRAIN ELEVATOR 120 – 100
10-6 COMBINE – 7721 PC1669 (18-APR-00)
PN=6
1A8
COMBINE – 7721
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
2C9 DRIVE FOR CYLINDER TACHOMETER 120 – 45 1G8 FEEDER CONVEYOR CHAIN 110 – 15
2C10 DRIVE FOR CYLINDER TACHOMETER 120 – 46 1G7 FEEDER CONVEYOR DRUM 110 – 14
2H18 DRIVE GEAR CASE,HORIZONTAL UNLDG AUGER 130 – 37 1G7 FEEDER CONVEYOR IDLER SHAFT 110 – 14
2H25 DRIVE IDLER, FEEDER HOUSE 140 – 4 1G2 FEEDER HOUSE BOTTOM SHEETS 110 – 9
2I13 DRIVE IDLER, SECONDARY COUNTERSHAFT 140 – 17 2J8 FEEDER HOUSE DRIVE BELTS (REG FIXED) 170 – 3
2A25 DRIVE INTERMEDIATE SHAFT, CYLINDER 120 – 9 2H25 FEEDER HOUSE DRIVE IDLER 140 – 4
2C22 DRIVE SHAFT, SHOE GRAIN SUPPLY AUGERS 120 – 59 2J8 FEEDER HOUSE DRIVE SHEAVES (REG FIXED) 170 – 3
2E10 DRIVE TIGHTENER, CLEAN GRAIN ELEVATOR 120 – 99 1G13 FEEDER HOUSE DRIVE TIGHTENER 110 – 20
2B4 DRIVE TIGHTENER, CYLINDER 120 – 13 1G4 FEEDER HOUSE FALSE BOTTOM 110 – 11
2C24 DRIVE TIGHTENER,SHOE GRAIN SUPPLY AUGERS 120 – 61 1G4 FEEDER HOUSE FRAME 110 – 11
2G22 DRIVE TIGHTENERS,GRAIN TANK CROSS AUGER 130 – 15 1F23 FEEDER HOUSE FRONT SHEETS 110 – 5
2C5 DRIVE, BEATER 120 – 40 2J8 FEEDER HOUSE IDLERS (REG FIXED) 170 – 3
2C6 DRIVE, BEATER 120 – 41 1G9 FEEDER HOUSE LEFT-HAND SHIELD 110 – 16
2C7 DRIVE, BEATER, DUAL-RANGE 120 – 43 1G11 FEEDER HOUSE LOWER BELT TIGHTENER 110 – 18
2J14 DRIVE, CLEAN GRAIN ELEVATOR 170 – 9 1G10 FEEDER HOUSE LOWER SHAFT 110 – 17
2B1 DRIVE, DUAL-RANGE CYLINDER, 1G10 FEEDER HOUSE LOWER SHEAVE 110 – 17
INTERMEDIATE SHAFT 120 – 10 1G4 FEEDER HOUSE SIDE SHEETS 110 – 11
2J14 DRIVE, LOADING AUGER 170 – 9 2J8 FEEDER HOUSE TIGHTENERS (REG FIXED) 170 – 3
2C9 DRIVE, TACHOMETER 120 – 45 1F25 FEEDER HOUSE TOP DOOR LEVER 110 – 7
2C10 DRIVE, TACHOMETER 120 – 46 1F25 FEEDER HOUSE TOP SHEETS 110 – 7
2A18 DRIVES SHIELD, CYLINDER 120 – 1 1G12 FEEDER HOUSE UPPER SHAFT 110 – 19
2J18 DRIVES, CROSS AUGER 170 – 13 1G12 FEEDER HOUSE UPPER SHEAVES 110 – 19
2J20 DRIVES, STRAW CHOPPER 170 – 15 1B16 FIELD LAMP 40 – 27
2J20 DRIVES, STRAW SPREADER 170 – 15 1B16 FIELD LAMP HARNESS 40 – 27
2J16 DRIVES, TAILINGS ELEVATOR AND AUGER 170 – 11 1D25 FILTER, HYDRAULIC RESERVOIR 70 – 23
2J18 DRIVES, UNLOADING AUGER 170 – 13 2F21 FINS AND PLATE, STRAW CHOPPER 120 – 138
2J18 DRIVES, VERTICAL UNLOADING AUGER 170 – 13 2F19 FINS, PLATE, STRAW CHOPPER 120 – 136
1G7 DRUM, FEEDER CONVEYOR 110 – 14 2B18 FITTING,CYL SHAFT BRG HSG LUBE BANK-RH 120 – 28
2C7 DUAL-RANGE BEATER DRIVE 120 – 43 2G18 FLIP-UPS, GRAIN TANK 130 – 11
2B6 DUAL-RANGE CYLINDER DRIVE ARM 120 – 15 1F10 FRAME AND SIDE SHEETS, SEPARATOR L H 80 – 5
2B15 DUAL-RANGE CYLINDER DRIVE GEAR CASE 1F8 FRAME AND SIDE SHEETS, SEPARATOR R H 80 – 3
SHIELD 120 – 25 2D16 FRAME BRACKETS, CHAFFER 120 – 79
2B1 DUAL-RANGE CYLINDER DRIVE INTERMEDIATE 1C11 FRAME, AXLE 50 – 5
SHAFT 120 – 10 1C12 FRAME, AXLE 50 – 6
2B14 DUAL-RANGE CYLINDER DRIVE LOCKOUT ARM 120 – 23 2D14 FRAME, CHAFFER 120 – 77
2B13 DUAL-RANGE CYLINDER DRIVE PINION GEARS 120 – 22 1G4 FRAME, FEEDER HOUSE 110 – 11
2B6 DUAL-RANGE CYLINDER DRIVE TIGHTENER 120 – 15 2D20 FRAME, SIEVE 120 – 83
2B11 DUAL-RANGE CYLINDER GEAR CASE 120 – 20 2H2 FRONT AND REAR GRAIN TANK AUGER COVERS,
2A22 DUAL-RANGE CYLINDER INTERMEDIATE DRIVE ADJUSTABLE 130 – 20
SUPPORT BRACES 120 – 6 2G24 FRONT CROSS AUGER, GRAIN TANK 130 – 17
2C16 DUCTS, AIR, CLEANING FAN 120 – 53 1B16 FRONT REFLECTOR 40 – 27
2G10 FRONT, FALSE, GRAIN TANK 130 – 3
E
G
1B19 ELECTRIC MOTOR – BELT PICKUP DRIVE 40 – 30
1C1 ELECTRICAL CONNECTOR SERVICE KIT 40 – 36 1C23 GEAR CASE 50 – 17
1B20 ELECTROMAGNETIC CLUTCH 40 – 31 2B11 GEAR CASE, CYLINDER, DUAL-RANGE 120 – 20
1B21 ELECTROMAGNETIC CLUTCH,UNLOADING AUGER 40 – 32 2H18 GEAR CASE, DRIVE, HORIZONTAL UNLDG AUGER 130 – 37
2E5 ELEVATOR HOUSING, CLEAN GRAIN 120 – 94 2F8 GEAR CASE, GRAIN TANK 120 – 124
2E4 ELEVATOR, HOUSING, CLEAN GRAIN 120 – 93 2F7 GEAR CASE, LOADING AUGER 120 – 123
1C8 EXTENSION, DRAWBAR 50 – 1 2F8 GEAR CASE, LOADING AUGER 120 – 124
1C9 EXTENSION, DRAWBAR (4430 TRACTOR) 50 – 3 2H11 GEAR CASE, VERTICAL AUGER LOWER 130 – 29
2G18 EXTENSIONS, GRAIN TANK 130 – 11 1C23 GEAR CASE, WITH GEARS AND SHAFTS 50 – 17
2A22 EYEBOLTS, DUAL-RANGE CYLINDER 2B13 GEARS, PINION, DUAL-RANGE CYLINDER DRIVE 120 – 22
INTERMEDIATE DRIVE SUPPORT 120 – 6 1D25 GLASS, LEVEL SIGHT, HYDRAULIC RESERVOIR 70 – 23
2F8 GRAIN TANK AND LOADING AUGER GEAR CASE 120 – 124
2G22 GRAIN TANK CROSS AUGER DRIVE TIGHTENERS 130 – 15
F 2G18 GRAIN TANK EXTENSIONS 130 – 11
2G10 GRAIN TANK FALSE FRONT 130 – 3
1G4 FALSE BOTTOM, FEEDER HOUSE 110 – 11 2G18 GRAIN TANK FLIP-UPS 130 – 11
2G10 FALSE FRONT, GRAIN TANK 130 – 3 2G24 GRAIN TANK FRONT CROSS AUGER 130 – 17
2C20 FAN, CLEANING 120 – 57 1B14 GRAIN TANK HARNESS 40 – 25
2C16 FAN, CLEANING, AIR DUCTS 120 – 53 2H1 GRAIN TANK INNER UNLOADING AUGER COVERS 130 – 19
2C18 FAN, CLEANING, HOUSING 120 – 55 1B14 GRAIN TANK LAMP 40 – 25
2C15 FAN, CLEANING, SPEED CONTROL 120 – 51 2G25 GRAIN TANK REAR CROSS AUGER 130 – 18
1F6 FEED PLATE, CYLINDER 80 – 1 2G16 GRAIN TANK SKIRTS 130 – 9
COMBINE – 7721 PC1669 (18-APR-00) 10-7
PN=7
1A9
COMBINE – 7721
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
2H5 GRAIN TANK SUMP HOUSING AND SHIELD 130 – 23 1A18 HOUSING, CONTROL BOX, DIAL-A-MATIC 40 – 4
2H6 GRAIN TANK SUMP HOUSING AND SHIELD 130 – 24 2F5 HOUSING, LOADING AUGER 120 – 121
2H9 GRAIN TANK VERTICAL AUGER AND HOUSING 130 – 27 2E15 HOUSING, LOWER TAILINGS 120 – 105
2G11 GRAIN TANK, REINFORCEMENT BRACE 130 – 4 2D2 HOUSING, SHOE GRAIN SUPPLY AUGERS 120 – 63
2G12 GRAIN TANK, REINFORCEMENT BRACE 130 – 5 1D2 HOUSING, SPINDLE, AND WHEEL 50 – 21
2G13 GRAIN TANK, SKIRTS 130 – 6 2F15 HOUSING, STRAW CHOPPER 120 – 132
2H3 GRASS SEED UNLOADING AUGER COVERS ATT 130 – 21 2F17 HOUSING, STRAW CHOPPER 120 – 134
2G6 GUARD, STRAW SPREADER 120 – 149 2E21 HOUSING, TAILINGS ELEVATOR 120 – 111
2E22 HOUSING, TAILINGS ELEVATOR 120 – 112
2F2 HOUSING, UPPER TAILINGS 120 – 118
H 1G6 HYDRAULIC CYLINDER KIT, HEADER LIFT 110 – 13
1G5 HYDRAULIC CYLINDER, HEADER LIFT 110 – 12
2F14 HANDLE, STRAW CHOPPER CURTAIN 120 – 131 1C24 HYDRAULIC HOSE SUPPORT 50 – 18
2F15 HANDLE, STRAW CHOPPER HOUSING 120 – 132 1D6 HYDRAULIC LINES AND HOSES, HITCH BEAM 70 – 3
2F17 HANDLE, STRAW CHOPPER HOUSING 120 – 134 1D13 HYDRAULIC OIL LINES AND HOSES 70 – 11
2F23 HANDLE, STRAW CHOPPER KNIFE AND SUPPORT 120 – 140 1D25 HYDRAULIC OIL RESERVOIR 70 – 23
2J4 HARNESS ADAPTER, DIAL-A-MATIC, FOR 1D1 HYDRAULIC PUMP MOUNTING, BELT PICKUP 50 – 20
900 SERIES HEADERS 160 – 15
1A17 HARNESS, CONTROL BOX 40 – 3
1B16 HARNESS, FIELD LAMP 40 – 27 I
1B14 HARNESS, GRAIN TANK 40 – 25
1B3 HARNESS, HITCH TUBE 40 – 14 2C5 IDLER, BEATER 120 – 40
1B7 HARNESS, MAIN SEPARATOR AND SHAFT 2C6 IDLER, BEATER 120 – 41
MONITORS 40 – 18 2E10 IDLER, CLEAN GRAIN ELEVATOR 120 – 99
1B2 HARNESS, MAIN, HITCH TUBE 40 – 13 2H25 IDLER, FEEDER HOUSE DRIVE 140 – 4
1B5 HARNESS, MAIN, SEPARATOR 40 – 16 2I13 IDLER, SECONDARY COUNTERSHAFT DRIVE 140 – 17
1B14 HARNESS, UNLOADING AUGER 40 – 25 2C24 IDLER, SHOE GRAIN SUPPLY AUGERS 120 – 61
1B9 HARVESTRAK COMBINE MONITOR 40 – 20 2F12 IDLER, STRAW CHOPPER DRIVE 120 – 129
1B11 HARVESTRAK CONSOLE AND BRACKET 40 – 22 2G21 IDLER, UNLOADING AUGER DRIVE 130 – 14
2J3 HARVESTRAK LEVER SELECTOR LOCK 160 – 14 2J8 IDLERS, FEEDER HOUSE (REG FIXED) 170 – 3
1B20 HEADER ELECTROMAGNETIC CLUTCH 40 – 31 2J20 IDLERS, STRAW CHOPPER 170 – 15
2J4 HEADER HEIGHT CONTROL, DIAL-A-MATIC, 1A21 INDICATORS, CONTROL BOX 40 – 7
HARNESS ADAPTER FOR 900 SERIES HEADERS 160 – 15 1A22 INDICATORS, CONTROL BOX 40 – 8
1G5 HEADER LIFT HYDRAULIC CYLINDER 110 – 12 2H1 INNER UNLOADING AUGER COVERS 130 – 19
1G6 HEADER LIFT HYDRAULIC CYLINDER KIT 110 – 13
1D11 HEADER LIFT OIL LINES 70 – 9
2G13 HINGE, GRAIN TANK 130 – 6 J
1C11 HITCH BEAM 50 – 5
1C12 HITCH BEAM 50 – 6 1C16 JACK STAND, HITCH BEAM 50 – 10
1D6 HITCH BEAM HYDRAULIC LINES AND HOSES 70 – 3 1F17 JACKSTAND, REAR 80 – 13
1C16 HITCH BEAM JACK STAND 50 – 10 1C19 JOINT, UNIVERSAL REAR 50 – 13
1B3 HITCH TUBE HARNESS AND SHORT TURN SENSOR 40 – 14 1C20 JOINT, UNIVERSAL, REAR 50 – 14
1C15 HITCH TUBE LOCKING MECHANISM 50 – 9
1B2 HITCH TUBE MAIN HARNESS 40 – 13
1F12 HOOD, REAR 80 – 7 K
2H18 HORIZONTAL UNLDG AUGER DRIVE GEAR CASE 130 – 37
2H20 HORIZONTAL UNLOADING AUGER AND HOUSING 130 – 39 1E9 KIT, ADJUSTING SCREW 70 – 33
2H15 HORIZONTAL UNLOADING AUGER SWIVEL 130 – 33 1D17 KIT, ARMATURE REPAIR (AE37061) 70 – 15
2H16 HORIZONTAL UNLOADING AUGER SWIVEL 130 – 34 1D19 KIT, ARMATURE REPAIR (AH96359) 70 – 17
2H13 HORIZONTAL UNLOADING AUGER SWIVEL SHROUD 130 – 31 1E8 KIT, BELT PICKUP FLOW CONTROL VALVE 70 – 31
1D9 HOSE AND COUPLER CONVERSION 70 – 6 1E4 KIT, BELT PICKUP PUMP 70 – 27
2B18 HOSE,CYL SHAFT BRG HSG LUBE BANK-RH 120 – 28 1E6 KIT, BELT PICKUP PUMP BACK PLATE 70 – 29
1D7 HOSES AND COUPLERS 70 – 4 2I16 KIT, CHECK BLOCK, DIAL-A-MATIC 160 – 2
1D13 HOSES AND LINES, HYDRAULIC OIL 70 – 11 2J25 KIT, DECAL 170 – 20
1D6 HOSES, HITCH BEAM HYDRAULIC 70 – 3 2I18 KIT, DIAL-A-MATIC MAIN VALVE 160 – 5
1E13 HOSES, UNLOADING AUGER SWING HYDRAULIC 70 – 37 2I15 KIT, DIAL-A-MATIC VALVE 160 – 1
1F23 HOUSE, FEEDER, FRONT SHEETS 110 – 5 2I21 KIT, DROP RATE VALVE, DIAL-A-MATIC 160 – 8
2H9 HOUSING AND AUGER, GRAIN TANK VERTICAL 130 – 27 1C1 KIT, ELECTRICAL CONNECTOR SERVICE 40 – 36
2H20 HOUSING AND AUGER, HORIZONTAL UNLOADING 130 – 39 1G6 KIT, HEADER LIFT HYDRAULIC CYLINDER 110 – 13
2H5 HOUSING AND SHIELD, GRAIN TANK SUMP 130 – 23 2I18 KIT, MAIN VALVE BLOCK SOLENOID 160 – 5
2H6 HOUSING AND SHIELD, GRAIN TANK SUMP 130 – 24 1E6 KIT, PLATE, BACK, BELT PICKUP PUMP 70 – 29
2E4 HOUSING, CLEAN GRAIN ELEVATOR 120 – 93 1D21 KIT, POPPET REPAIR (AH102055) 70 – 19
2E5 HOUSING, CLEAN GRAIN ELEVATOR 120 – 94 1D23 KIT, POPPET REPAIR (AH102056) 70 – 21
2D25 HOUSING, CLEAN GRAIN LOWER AUGER 120 – 89 1B23 KIT, TERMINAL AND WIRING 40 – 34
2E2 HOUSING, CLEAN GRAIN LOWER AUGER 120 – 91 1F1 KIT, UNLOADING AUGER SWING HYD CYL 70 – 50
2C18 HOUSING, CLEANING FAN 120 – 55 1F3 KIT, UNLOADING AUGER SWING HYD CYL 70 – 52
1A17 HOUSING, CONTROL BOX 40 – 3 1E23 KIT, UNLOADING AUGER SWING HYD CYLINDER 70 – 47
10-8 COMBINE – 7721 PC1669 (18-APR-00)
PN=8
1A10
COMBINE – 7721
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
1E25 KIT,UNLOADING AUGER SWING HYD CYLINDER 70 – 49 1E17 MOUNTING,UNLOADING AUGER SWING HYDRAULIC 70 – 41
2F23 KNIFE AND SUPPORT, STRAW CHOPPER 120 – 140 1E18 MOUNTING,UNLOADING AUGER SWING HYDRAULIC 70 – 42
1E20 MOUNTING,UNLOADING AUGER SWING HYDRAULIC 70 – 44
2C5 MOUNTINGS AND BEATER IDLER 120 – 40
L 2C6 MOUNTINGS AND BEATER IDLER 120 – 41
1A21 MOUNTINGS, CYLINDER TACHOMETER 40 – 7
1F14 LADDER, REAR 80 – 9 1A22 MOUNTINGS, CYLINDER TACHOMETER 40 – 8
1B16 LAMP, FIELD 40 – 27 2I3 MOUNTINGS, PRIMARY COUNTERSHAFT 140 – 7
1B14 LAMP, GRAIN TANK 40 – 25 1A18 MTG BRKT , CONTROL BOX, DIAL-A-MATIC 40 – 4
1B14 LAMP, UNLOADING AUGER 40 – 25
2E4 LATCH, CLEAN GRAIN ELEVATOR 120 – 93
2E5 LEVER, CLEAN GRAIN ELEVATOR HOUSING 120 – 94 O
1F25 LEVER, DOOR, TOP, FEEDER HOUSE 110 – 7
1B18 LIGHTS, TAIL 40 – 29 1D13 OIL LINES AND HOSES, HYDRAULIC 70 – 11
1B18 LIGHTS, WARNING 40 – 29 1E11 OIL LINES, BELT PICKUP 70 – 35
1D13 LINES AND HOSES, HYDRAULIC OIL 70 – 11 1D11 OIL LINES, HEADER LIFT 70 – 9
1D11 LINES, HEADER LIFT OIL 70 – 9 1E13 OIL LINES, UNLOADING AUGER SWING HYD 70 – 37
1D6 LINES, HITCH BEAM HYDRAULIC 70 – 3 1D25 OIL RESERVOIR, HYDRAULIC 70 – 23
1E11 LINES, OIL, BELT PICKUP 70 – 35 2B24 OPEN-BAR CONCAVE 120 – 35
1E13 LINES,OIL,UNLOADING AUGER SWING HYD 70 – 37 2H2 OPTIONAL ADJUSTABLE FRONT AND REAR GRAIN
2B14 LINK, DUAL-RANGE CYLINDER DRIVE LOCKOUT TANK AUGER COVERS 130 – 20
ARM 120 – 23
2C15 LINKAGE, CLEANING FAN SPEED CONTROL 120 – 51
2F8 LOADING AUGER AND GRAIN TANK GEAR CASE 120 – 124 P
2F5 LOADING AUGER AND HOUSING 120 – 121
2J14 LOADING AUGER BELTS 170 – 9 2D7 PAN, EXTENSION, STRAW WALKER 120 – 69
2J14 LOADING AUGER DRIVE 170 – 9 2G13 PANEL, GRAIN TANK 130 – 6
2F7 LOADING AUGER GEAR CASE 120 – 123 1C15 PIN, LOCKING (HITCH TUBE) 50 – 9
2J14 LOADING AUGER SHEAVES 170 – 9 2D20 PITMAN, SIEVE 120 – 83
2J3 LOCK, HARVESTRAK LEVER SELECTOR 160 – 14 2F19 PLATE AND FINS, STRAW CHOPPER 120 – 136
1C15 LOCKING MECHANISM, HITCH TUBE 50 – 9 2F21 PLATE AND FINS, STRAW CHOPPER 120 – 138
1C15 LOCKING PIN (HITCH TUBE) 50 – 9 1E6 PLATE, BACK, BELT PICKUP PUMP KIT 70 – 29
2B14 LOCKOUT ARM, DUAL-RANGE CYLINDER DRIVE 120 – 23 1F6 PLATE, FEED, CYLINDER 80 – 1
1B5 LOW SHAFT SPEED MONITORS 40 – 16 2B8 PLATE, FILLER, RASP-BAR 120 – 17
1B7 LOW SHAFT SPEED MONITORS 40 – 18 2B9 PLATE, FILLER, RASP-BAR (DUAL-RANGE
2E2 LOWER AUGER, CLEAN GRAIN 120 – 91 CYLINDER DRIVE) 120 – 18
2H11 LOWER GEAR CASE, VERTICAL AUGER 130 – 29 1D21 POPPET REPAIR KIT (AH102055) 70 – 19
2E17 LOWER TAILINGS AUGER 120 – 107 1D23 POPPET REPAIR KIT (AH102056) 70 – 21
2E18 LOWER TAILINGS AUGER 120 – 108 1C24 POWERSHAFT AND FRONT UNIV JOINT SHIELDS 50 – 18
2E13 LOWER TAILINGS AUGER DRIVE TIGHTENER 120 – 103 1C17 POWERSHAFT AND SHIELD, TELESCOPING 50 – 11
2E18 LOWER TAILINGS AUGER SHAFT 120 – 108 1C14 POWERSHAFT BEARING SUPPORT 50 – 8
2E18 LOWER TAILINGS AUGER TIGHTENER 120 – 108 1C19 POWERSHAFT, MAIN 50 – 13
2E15 LOWER TAILINGS HOUSING 120 – 105 1C20 POWERSHAFT, MAIN 50 – 14
2B19 LUBE BANK SYS,CYLINDER SHAFT BEARING-LH 120 – 29 2I3 PRIMARY COUNTERSHAFT AND MOUNTINGS 140 – 7
2B17 LUBE BANK SYS,CYLINDER SHAFT BRG HSG -RH 120 – 27 2J9 PRIMARY COUNTERSHAFT DRIVE SHEAVES 170 – 4
2F8 LUBE BANK SYSTEM (R H ) 120 – 124 2I1 PRIMARY COUNTERSHAFT DRIVE SHIELD 140 – 5
2C12 LUBE BANK SYSTEM, BEATER BEARING-L H 120 – 48 2H24 PRIMARY COUNTERSHAFT DRIVE TIGHTENER 140 – 3
2C13 LUBE BANK SYSTEM, BEATER BEARING-R H 120 – 49 2I8 PRIMARY COUNTERSHAFT LUBE BANK SYSTEM-LH 140 – 12
2H21 LUBE BANK SYSTEM, UNLOADING AUGER 130 – 40 2I9 PRIMARY COUNTERSHAFT LUBE BANK SYSTEM-RH 140 – 13
2I8 LUBE BANK SYSTEM,PRIMARY COUNTERSHAFT-LH 140 – 12 2I5 PRIMARY COUNTERSHAFT SHEAVES 140 – 9
2I9 LUBE BANK SYSTEM,PRIMARY COUNTERSHAFT-RH 140 – 13 2I6 PRIMARY COUNTERSHAFT SHEAVES 140 – 10
2B16 LUBE BANK,CYL DR CTRSHAFT BRG HSG -RH 120 – 26 2J10 PRIMARY COUNTERSHAFT TO TIGHTENERS 170 – 5
2B18 LUBE BANK,CYL SHAFT BRG HSG (R H ) 120 – 28 2J10 PRIMARY CTRSHFT TO TORQ-SENSING CTRSHFT 170 – 5
1D1 PUMP MOUNTING, BELT PICKUP HYDRAULIC 50 – 20
1E2 PUMP, BELT PICKUP 70 – 25
M 1E4 PUMP, BELT PICKUP KIT 70 – 27
1C19 MAIN POWERSHAFT 50 – 13
1C20 MAIN POWERSHAFT 50 – 14 Q
2I17 MAIN VALVE BLOCK SOLENOID 160 – 3
1B9 MONITOR, HARVESTRAK 40 – 20 1F21 QUIK-TATCH COUPLER (L H ) 110 – 3
1B5 MONITORS, LOW SHAFT SPEED 40 – 16 1F20 QUIK-TATCH COUPLER (R H ) 110 – 1
1B7 MONITORS, LOW SHAFT SPEED 40 – 18 1F21 QUIK-TATCH COUPLER SHIELDS (L H ) 110 – 3
1B19 MOTOR, ELECTRIC – BELT PICKUP DRIVE 40 – 30 1F20 QUIK-TATCH COUPLER SHIELDS (R H ) 110 – 1
1D1 MOUNTING, BELT PICKUP HYDRAULIC PUMP 50 – 20 2B11 QUILL, DUAL-RANGE CYLINDER GEAR CASE 120 – 20
2G6 MOUNTING, STRAW SPREADER 120 – 149
1E15 MOUNTING,UNLOADING AUGER SWING HYDRAULIC 70 – 39
COMBINE – 7721 PC1669 (18-APR-00) 10-9
PN=9
1A11
COMBINE – 7721
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
R 1E2 SHEAVE, BELT PICKUP 70 – 25
2E12 SHEAVE, CHAIN, CLEAN GRAIN ELEVATOR 120 – 101
2B8 RASP-BAR CYLINDER 120 – 17 2E10 SHEAVE, CLEAN GRAIN ELEVATOR 120 – 99
2B9 RASP-BAR CYLINDER (DUAL-RANGE CYLINDER 2C22 SHEAVE, DRIVE, SHOE GRAIN SUPPLY AUGERS 120 – 59
DRIVE) 120 – 18 2B11 SHEAVE, DUAL-RANGE CYLINDER GEAR CASE 120 – 20
2C4 RATCHET, CONCAVE ADJUSTING SHAFT 120 – 39 2F7 SHEAVE, GEAR CASE, LOADING AUGER 120 – 123
2G25 REAR CROSS AUGER, GRAIN TANK 130 – 18 2E17 SHEAVE, LOWER TAILINGS AUGER 120 – 107
1F12 REAR HOOD 80 – 7 2E13 SHEAVE, LOWER TAILINGS AUGER DRIVE 120 – 103
1F13 REAR HOOD SUPPORT ROD 80 – 8 1G10 SHEAVE, LOWER, FEEDER HOUSE 110 – 17
1F17 REAR JACKSTAND 80 – 13 2F24 SHEAVE, STRAW CHOPPER ROTOR 120 – 141
1F14 REAR LADDER 80 – 9 2G4 SHEAVE, STRAW SPREADER 120 – 147
1B18 REAR REFLECTORS 40 – 29 2D11 SHEAVE, STRAW SPREADER DRIVE 120 – 73
2F9 REAR SHIELD, SEPARATOR (R H ) 120 – 125 2G20 SHEAVE, UNLOADING AUGER DRIVE 130 – 13
1F17 REAR SUPPORT TUBE 80 – 13 2E11 SHEAVE,DR CTRSHAFT ,CLEAN GRAIN ELEVATOR 120 – 100
1B16 REFLECTOR, FRONT 40 – 27 2J11 SHEAVES AND BELTS, BEATER DRIVE 170 – 6
1B18 REFLECTORS, REAR 40 – 29 2J10 SHEAVES AND BELTS, CYLINDER DRIVE 170 – 5
2G11 REINFORCEMENT BRACE, GRAIN TANK 130 – 4 2J10 SHEAVES AND BELTS, TORQ-SENSING CTRSHAFT 170 – 5
2G12 REINFORCEMENT BRACE, GRAIN TANK 130 – 5 2J16 SHEAVES AND SPROCKETS, TAILINGS ELEVATOR 170 – 11
2C2 REMOTE DUMP STONE TRAP 120 – 37 2J11 SHEAVES, BEATER DRIVE 170 – 6
1D25 RESERVOIR, HYDRAULIC OIL 70 – 23 2J14 SHEAVES, CLEAN GRAIN ELEVATOR 170 – 9
2D7 RISER, STRAW WALKER 120 – 69 2J9 SHEAVES, DRIVE, BELT PICKUP PUMP 170 – 4
1C15 ROD, CONTROL (HITCH TUBE) 50 – 9 2J12 SHEAVES, DRIVE, CLEANING FAN 170 – 7
1F13 ROD, SUPPORT, REAR HOOD 80 – 8 2J9 SHEAVES, DRIVE, PRIMARY COUNTERSHAFT 170 – 4
2F25 ROTOR AND BLADES, STRAW CHOPPER 120 – 142 2J14 SHEAVES, LOADING AUGER 170 – 9
2G1 ROTOR AND BLADES, STRAW CHOPPER 120 – 143 2I5 SHEAVES, PRIMARY COUNTERSHAFT 140 – 9
2I6 SHEAVES, PRIMARY COUNTERSHAFT 140 – 10
2B8 SHEAVES, RASP-BAR CYLINDER 120 – 17
S 1G12 SHEAVES, UPPER, FEEDER HOUSE 110 – 19
2J8 SHEAVES,DRIVE,FEEDER HOUSE (REG FIXED) 170 – 3
1C11 SAFETY CHAIN, HITCH 50 – 5 2J13 SHEAVES,DRIVE,SHOE GRAIN SUPPLY AUGERS 170 – 8
1C12 SAFETY CHAIN, HITCH 50 – 6 1G2 SHEETS, BOTTOM, FEEDER HOUSE 110 – 9
1F6 SEALS, CYLINDER DOOR 80 – 1 1F23 SHEETS, FRONT, FEEDER HOUSE 110 – 5
2I11 SECONDARY COUNTERSHAFT 140 – 15 2G13 SHEETS, GRAIN TANK 130 – 6
2I13 SECONDARY COUNTERSHAFT DRIVE IDLER 140 – 17 1G4 SHEETS, SIDE, FEEDER HOUSE 110 – 11
1B22 SENSING UNIT, STRAW WALKER PLUGGING 40 – 33 1F25 SHEETS, TOP, FEEDER HOUSE 110 – 7
1B3 SENSOR, HITCH TUBE 40 – 14 2H5 SHIELD AND HOUSING, GRAIN TANK SUMP 130 – 23
1B2 SENSOR, SHORT TURN 40 – 13 2H6 SHIELD AND HOUSING, GRAIN TANK SUMP 130 – 24
1B3 SENSOR, SHORT TURN 40 – 14 1C17 SHIELD AND TELESCOPING POWERSHAFT 50 – 11
1A24 SENSOR, TACHOMETER CYLINDER SPEED 40 – 11 2A18 SHIELD, CYLINDER DRIVES 120 – 1
2D5 SEPARATOR CURTAINS 120 – 67 2I1 SHIELD, DRIVE, PRIMARY COUNTERSHAFT 140 – 5
1F10 SEPARATOR L H SIDE SHEETS AND FRAME 80 – 5 2B15 SHIELD, DUAL-RANGE CYLINDER DRIVE GEAR
1B5 SEPARATOR MAIN HARNESS 40 – 16 CASE 120 – 25
1B7 SEPARATOR MAIN HARNESS AND SHAFT 1G9 SHIELD, LEFT-HAND, FEEDER HOUSE 110 – 16
MONITORS 40 – 18 1C25 SHIELD, REAR UNIVERSAL JOINT 50 – 19
1F8 SEPARATOR R H SIDE SHEETS AND FRAME 80 – 3 2F9 SHIELD, REAR, SEPARATOR (R H ) 120 – 125
2F9 SEPARATOR REAR SHIELD (R H ) 120 – 125 2A19 SHIELD, SEPARATOR, RIGHT-HAND 120 – 3
2A19 SEPARATOR RIGHT-HAND SHIELD 120 – 3 2F10 SHIELD, SEPARATOR, RIGHT-HAND 120 – 127
2F10 SEPARATOR, RIGHT-HAND SHIELD 120 – 127 2F24 SHIELD, STRAW CHOPPER ROTOR 120 – 141
2J24 SERIAL NO PLATE 170 – 19 2D11 SHIELD, STRAW SPREADER DRIVE 120 – 73
1C1 SERVICE KIT, ELECTRICAL CONNECTOR 40 – 36 2D7 SHIELD, STRAW WALKER 120 – 69
1C23 SHAFT (GEAR CASE) 50 – 17 2E22 SHIELD, TAILINGS ELEVATOR 120 – 112
2E12 SHAFT, CHAIN, CLEAN GRAIN ELEVATOR 120 – 101 1B5 SHIELDS, MAIN, ELECTRICAL HARNESS 40 – 16
2C4 SHAFT, CONCAVE ADJUSTING 120 – 39 1F21 SHIELDS, QUIK-TATCH COUPLER (L H ) 110 – 3
2A25 SHAFT, CYLINDER DRIVE INTERMEDIATE 120 – 9 1F20 SHIELDS, QUIK-TATCH COUPLER (R H ) 110 – 1
2B1 SHAFT, DUAL-RANGE CYLINDER DRIVE 2G2 SHIELDS, STRAW SPREADER 120 – 145
INTERMEDIATE 120 – 10 1C24 SHIELDS,POWERSHAFT AND FRONT UNIV JOINT 50 – 18
1G7 SHAFT, IDLER, FEEDER CONVEYOR 110 – 14 2D23 SHOE CRANKSHAFT DRIVE TIGHTENER 120 – 87
2E18 SHAFT, LOWER TAILINGS AUGER 120 – 108 2D4 SHOE GRAIN SUPPLY AUGERS 120 – 65
1G10 SHAFT, LOWER, FEEDER HOUSE 110 – 17 2J13 SHOE GRAIN SUPPLY AUGERS DRIVE BELTS 170 – 8
2B13 SHAFT, PINION, DUAL-RANGE CYLINDER DRIVE 120 – 22 2C24 SHOE GRAIN SUPPLY AUGERS DRIVE IDLER 120 – 61
2B9 SHAFT, RASP-BAR (DUAL-RANGE CYLINDER 2C22 SHOE GRAIN SUPPLY AUGERS DRIVE SHAFT 120 – 59
DRIVE) 120 – 18 2C22 SHOE GRAIN SUPPLY AUGERS DRIVE SHEAVE 120 – 59
2B8 SHAFT, RASP-BAR CYLINDER 120 – 17 2J13 SHOE GRAIN SUPPLY AUGERS DRIVE SHEAVES 170 – 8
2D22 SHAFT, SHOE PITMAN 120 – 85 2C24 SHOE GRAIN SUPPLY AUGERS DRIVE TIGHTENER 120 – 61
2G4 SHAFT, STRAW SPREADER 120 – 147 2D2 SHOE GRAIN SUPPLY AUGERS HOUSING 120 – 63
1G12 SHAFT, UPPER, FEEDER HOUSE 110 – 19 2D22 SHOE PITMAN 120 – 85
2B22 SHEAR BAR, CYLINDER 120 – 33 2D22 SHOE PITMAN SHAFT 120 – 85
10-10 COMBINE – 7721 PC1669 (18-APR-00)
PN=10
1A12
COMBINE – 7721
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
1B2 SHORT TURN SENSOR 40 – 13 2D20 SWINGERS, SIEVE FRAME 120 – 83
2H13 SHROUD,HORIZONTAL UNLOADING AUGER SWIVEL 130 – 31 2I23 SWITCH, ACTUATING 160 – 10
1F10 SIDE SHEETS AND FRAME, SEPARATOR L H 80 – 5 2H13 SWIVEL SHROUD,HORIZONTAL UNLOADING AUGER 130 – 31
1F8 SIDE SHEETS AND FRAME, SEPARATOR R H 80 – 3 2H15 SWIVEL, HORIZONTAL UNLOADING AUGER 130 – 33
2D18 SIEVE 120 – 81 2H16 SWIVEL, HORIZONTAL UNLOADING AUGER 130 – 34
2D20 SIEVE FRAME 120 – 83
2D20 SIEVE FRAME SWINGERS 120 – 83
2D20 SIEVE PITMAN 120 – 83 T
2G13 SKIRTS, GRAIN TANK 130 – 6
2G16 SKIRTS, GRAIN TANK 130 – 9 2J1 TACHOMETER AND CIRCUIT BOX BRACKET 160 – 12
2I17 SOLENOID, MAIN VALVE BLOCK, DIAL-A-MATIC 160 – 3 1A24 TACHOMETER CYLINDER SPEED SENSOR 40 – 11
1D2 SPINDLE, HOUSING, AND WHEEL 50 – 21 2C9 TACHOMETER DRIVE 120 – 45
2E10 SPRING, CLEAN GRAIN ELEVATOR 120 – 99 2C10 TACHOMETER DRIVE 120 – 46
2E13 SPRING, LOWER TAILINGS AUGER DRIVE 120 – 103 1A21 TACHOMETER, CYLINDER 40 – 7
2F12 SPRING, STRAW CHOPPER DRIVE 120 – 129 1B18 TAIL LIGHTS 40 – 29
2E12 SPROCKET, CHAIN, CLEAN GRAIN ELEVATOR 120 – 101 2J16 TAILINGS ELEVATOR AND AUGER DRIVES 170 – 11
2D9 SPROCKET, DRIVEN, STRAW WALKER 120 – 71 2E24 TAILINGS ELEVATOR CONVEYOR BEARINGS 120 – 114
2D12 SPROCKET, STRAW WALKER DRIVE TIGHTENER 120 – 75 2E25 TAILINGS ELEVATOR CONVEYOR BEARINGS 120 – 115
2G20 SPROCKET, UNLOADING AUGER DRIVE 130 – 13 2E24 TAILINGS ELEVATOR CONVEYOR CHAIN 120 – 114
2D23 SPROCKET,SHOE CRANKSHAFT DRIVE TIGHTENER 120 – 87 2E25 TAILINGS ELEVATOR CONVEYOR CHAIN 120 – 115
2J16 SPROCKETS AND SHEAVES, TAILINGS ELEVATOR 170 – 11 2E24 TAILINGS ELEVATOR CONVEYOR SPROCKETS 120 – 114
2J12 SPROCKETS, DRIVE, STRAW WALKER 170 – 7 2E25 TAILINGS ELEVATOR CONVEYOR SPROCKETS 120 – 115
2E24 SPROCKETS, TAILINGS ELEVATOR CONVEYOR 120 – 114 2E21 TAILINGS ELEVATOR HOUSING 120 – 111
2E25 SPROCKETS, TAILINGS ELEVATOR CONVEYOR 120 – 115 2E22 TAILINGS ELEVATOR HOUSING 120 – 112
1C16 STAND, JACK, HITCH BEAM 50 – 10 2J16 TAILINGS ELEVATOR SHEAVES AND SPROCKETS 170 – 11
1F6 STONE TRAP 80 – 1 2G11 TANK, GRAIN, REINFORCEMENT BRACE 130 – 4
2C2 STONE TRAP, REMOTE DUMP 120 – 37 2G12 TANK, GRAIN, REINFORCEMENT BRACE 130 – 5
1D25 STRAINER, HYDRAULIC RESERVOIR 70 – 23 2G13 TANK, GRAIN, SKIRTS 130 – 6
2F14 STRAW CHOPPER CURTAIN 120 – 131 1C17 TELESCOPING POWERSHAFT AND SHIELD 50 – 11
2F12 STRAW CHOPPER DRIVE IDLER AND TIGHTENER 120 – 129 1B23 TERMINAL AND WIRING KIT 40 – 34
2J20 STRAW CHOPPER DRIVES 170 – 15 1C5 TERMINALS, SUPPLEMENTARY, AND CONNECTORS 40 – 40
2F15 STRAW CHOPPER HOUSING 120 – 132 2B4 TIGHTENER, CYLINDER DRIVE 120 – 13
2F17 STRAW CHOPPER HOUSING 120 – 134 2H24 TIGHTENER, DRIVE, PRIMARY COUNTERSHAFT 140 – 3
2J20 STRAW CHOPPER IDLERS 170 – 15 2H24 TIGHTENER, DRIVE, UNLOADING AUGER 140 – 3
2F23 STRAW CHOPPER KNIFE AND SUPPORT 120 – 140 2B6 TIGHTENER, DUAL-RANGE CYLINDER DRIVE 120 – 15
2F19 STRAW CHOPPER PLATE AND FINS 120 – 136 1G13 TIGHTENER, FEEDER HOUSE DRIVE 110 – 20
2F21 STRAW CHOPPER PLATE AND FINS 120 – 138 1G11 TIGHTENER, LOWER BELT, FEEDER HOUSE 110 – 18
2F25 STRAW CHOPPER ROTOR AND BLADES 120 – 142 2E18 TIGHTENER, LOWER TAILINGS AUGER 120 – 108
2G1 STRAW CHOPPER ROTOR AND BLADES 120 – 143 2E13 TIGHTENER, LOWER TAILINGS AUGER DRIVE 120 – 103
2F24 STRAW CHOPPER ROTOR SHEAVE AND SHIELD 120 – 141 2D23 TIGHTENER, SHOE CRANKSHAFT DRIVE 120 – 87
2J20 STRAW CHOPPER TIGHTENERS 170 – 15 2F12 TIGHTENER, STRAW CHOPPER DRIVE 120 – 129
2G4 STRAW SPREADER 120 – 147 2D12 TIGHTENER, STRAW WALKER DRIVE 120 – 75
2D11 STRAW SPREADER DRIVE SHEAVE AND SHIELD 120 – 73 2F1 TIGHTENER, UPPER TAILINGS AUGER DRIVE 120 – 116
2J20 STRAW SPREADER DRIVES 170 – 15 2C24 TIGHTENER,DRIVE,SHOE GRAIN SUPPLY AUGERS 120 – 61
2G6 STRAW SPREADER MOUNTING AND GUARD 120 – 149 2J8 TIGHTENERS, FEEDER HOUSE (REG FIXED) 170 – 3
2G2 STRAW SPREADER SHIELDS 120 – 145 2J20 TIGHTENERS, STRAW CHOPPER 170 – 15
2J20 STRAW SPREADER TIGHTENERS 170 – 15 2J20 TIGHTENERS, STRAW SPREADER 170 – 15
2D7 STRAW WALKER 120 – 69 2G22 TIGHTENERS,GRAIN TANK CROSS AUGER DRIVE 130 – 15
2J12 STRAW WALKER DRIVE CHAIN 170 – 7 1F15 TOOL BOX 80 – 11
2J12 STRAW WALKER DRIVE SPROCKETS 170 – 7 2J10 TORQ-SENSING CTRSHAFT SHEAVES AND BELTS 170 – 5
2D12 STRAW WALKER DRIVE TIGHTENER 120 – 75 2J10 TORQ-SENSING CYL DR SHEAVES AND BELTS 170 – 5
2D9 STRAW WALKER FRONT CRANKSHAFT 120 – 71 1F6 TRAP, STONE 80 – 1
1B22 STRAW WALKER PLUGGING SENSING UNIT 40 – 33 2C2 TRAP, STONE, REMOTE DUMP 120 – 37
2D11 STRAW WALKER REAR CRANKSHAFT 120 – 73 1F17 TUBE SUPPORT, REAR 80 – 13
2H5 SUMP HOUSING AND SHIELD, GRAIN TANK 130 – 23
2H6 SUMP HOUSING AND SHIELD, GRAIN TANK 130 – 24
1C5 SUPPLEMENTARY TERMINALS AND CONNECTORS 40 – 40 U
2D4 SUPPLY AUGERS, SHOE GRAIN 120 – 65
2F23 SUPPORT AND KNIFE, STRAW CHOPPER 120 – 140 1C25 UNIVERSAL JOINT SHIELD (REAR) 50 – 19
2A21 SUPPORT BRACES, CYLINDER DRIVE 120 – 5 1C19 UNIVERSAL JOINT, REAR 50 – 13
1F13 SUPPORT ROD, REAR HOOD 80 – 8 1C20 UNIVERSAL JOINT, REAR 50 – 14
1C24 SUPPORT, HYDRAULIC HOSE 50 – 18 1C25 UNIVERSAL SHIELD, GEAR CASE 50 – 19
1C14 SUPPORT, POWERSHAFT, BEARING 50 – 8 2H18 UNLOADING AUG DRIVE GEAR CASE,HORIZONTAL 130 – 37
2E22 SUPPORT, TAILINGS ELEVATOR 120 – 112 2H20 UNLOADING AUGER AND HOUSING, HORIZONTAL 130 – 39
1F17 SUPPORT, TUBE, REAR 80 – 13 2H1 UNLOADING AUGER COVERS 130 – 19
2B18 SUPPORT,CYL SHAFT BRG HSG LUBE BANK-RH 120 – 28 2G20 UNLOADING AUGER DRIVE COUNTERSHAFT 130 – 13
2D16 SWINGERS, CHAFFER FRAME 120 – 79 2G21 UNLOADING AUGER DRIVE IDLER 130 – 14
COMBINE – 7721 PC1669 (18-APR-00) 10-11
PN=11
1A13
COMBINE – 7721
ALPHABETICAL INDEX – CONTINUED
GRID PAGE GRID PAGE
2G20 UNLOADING AUGER DRIVE SHEAVE 130 – 13
2G20 UNLOADING AUGER DRIVE SPROCKET 130 – 13
2H24 UNLOADING AUGER DRIVE TIGHTENER 140 – 3
2J18 UNLOADING AUGER DRIVES 170 – 13
1B21 UNLOADING AUGER ELECTROMAGNETIC CLUTCH 40 – 32
1B14 UNLOADING AUGER HARNESS 40 – 25
1B14 UNLOADING AUGER LAMP 40 – 25
2H21 UNLOADING AUGER LUBE BANK SYSTEM 130 – 40
1E25 UNLOADING AUGER SWING HYD CYLINDER KIT 70 – 49
1E13 UNLOADING AUGER SWING HYD OIL LINES 70 – 37
1E15 UNLOADING AUGER SWING HYDRAULIC CYLINDER 70 – 39
1E17 UNLOADING AUGER SWING HYDRAULIC CYLINDER 70 – 41
1E18 UNLOADING AUGER SWING HYDRAULIC CYLINDER 70 – 42
1E20 UNLOADING AUGER SWING HYDRAULIC CYLINDER 70 – 44
1E13 UNLOADING AUGER SWING HYDRAULIC HOSES 70 – 37
1E15 UNLOADING AUGER SWING HYDRAULIC MOUNTING 70 – 39
1E17 UNLOADING AUGER SWING HYDRAULIC MOUNTING 70 – 41
1E18 UNLOADING AUGER SWING HYDRAULIC MOUNTING 70 – 42
1E20 UNLOADING AUGER SWING HYDRAULIC MOUNTING 70 – 44
2H13 UNLOADING AUGER SWIVEL SHROUD,HORIZONTAL 130 – 31
2H15 UNLOADING AUGER SWIVEL, HORIZONTAL 130 – 33
2H16 UNLOADING AUGER SWIVEL, HORIZONTAL 130 – 34
2F2 UPPER TAILINGS AUGER AND HOUSING 120 – 118
2F1 UPPER TAILINGS AUGER DRIVE TIGHTENER 120 – 116
V
1E7 VALVE, BELT PICKUP FLOW CONTROL 70 – 30
1E7 VALVE, CONTROL, BELT PICKUP FLOW 70 – 30
1D15 VALVE, CYLINDER SPEED CONTROL 70 – 13
2I19 VALVES, DIAL-A-MATIC 160 – 6
2H9 VERTICAL AUGER AND HOUSING, GRAIN TANK 130 – 27
2H11 VERTICAL AUGER LOWER GEAR CASE 130 – 29
2J18 VERTICAL UNLOADING AUGER DRIVES 170 – 13
W
1B22 WALKER, STRAW, PLUGGING SENSING UNIT 40 – 33
2J22 WARNING DECALS 170 – 17
1B18 WARNING LIGHTS 40 – 29
2B11 WHEEL, DUAL-RANGE CYLINDER GEAR CASE 120 – 20
1D2 WHEEL, SPINDLE, AND HOUSING 50 – 21
1B23 WIRING AND TERMINAL KIT 40 – 34
1B23 WIRING CRIMPING TOOL 40 – 34
1B9 WIRING HARNESS, HARVESTRAK COMBINE
MONITOR 40 – 20
1A18 WIRING HARNESS,CONTROL BOX,DIAL-A-MATIC 40 – 4
1B23 WIRING STRIPPING TOOL 40 – 34
1C5 WIRING, SUPPLEMENTARY TERMINALS AND
CONNECTORS 40 – 40
Y
2E5 YOKE, CLEAN GRAIN ELEVATOR HOUSING 120 – 94
10-12 COMBINE – 7721 PC1669 (18-APR-00)
PN=12
ELECTRICAL
MEMORANDA
COMBINE

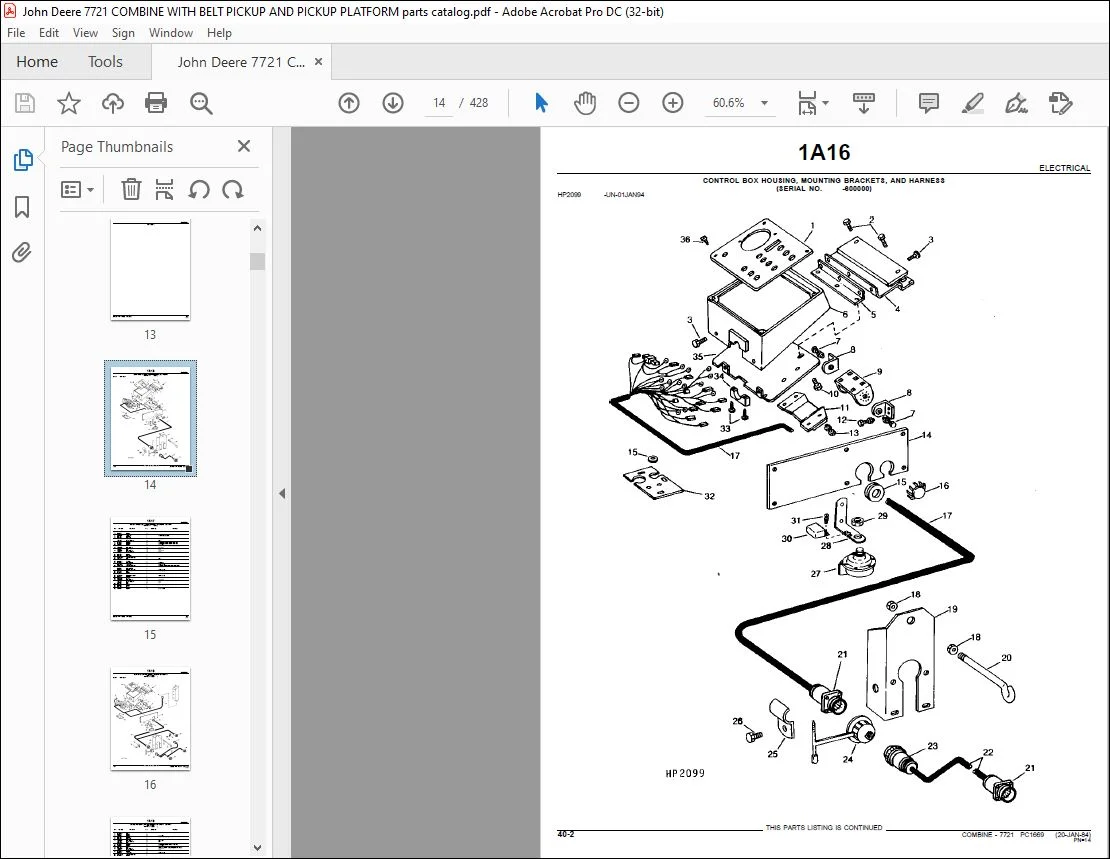

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

https://vimeo.com/742939253

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

I.G
