John Deere 7722 COMBINE Parts Catalog Manual – PDF DOWNLOAD

Description

John Deere 7722 COMBINE Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

John Deere 7722 COMBINE Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 176
Downloadable : Yes
File Type : PDF
Size: 1.83 MB

TABLE OF CONTENTS:

John Deere 7722 COMBINE Parts Catalog Manual – PDF DOWNLOAD

GRIDS 1

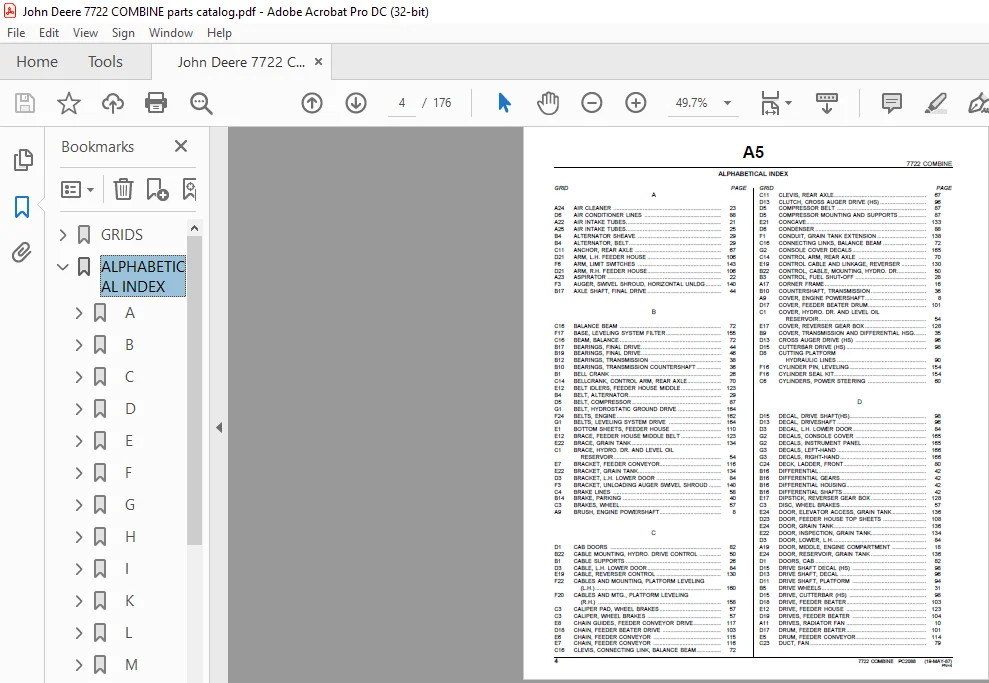

ALPHABETICAL INDEX 4
A4
AIR CLEANER 23
AIR CONDITIONER LINES88
AIR INTAKE TUBES 21
AIR INTAKE TUBES 25
ALTERNATOR SHEAVE 29
ALTERNATOR, BELT 29
ANCHOR, REAR AXLE 67
ARM, LH FEEDER HOUSE 106
ARM, LIMIT SWITCHES 143
ARM, RH FEEDER HOUSE 106
ASPIRATOR22
AUGER, SWIVEL SHROUD, HORIZONTAL UNLDG140
AXLE SHAFT, FINAL DRIVE 44
B4
BALANCE BEAM72
BASE, LEVELING SYSTEM FILTER 155
BEAM, BALANCE 72
BEARINGS, FINAL DRIVE44
BEARINGS, FINAL DRIVE46
BEARINGS, TRANSMISSION 38
BEARINGS, TRANSMISSION COUNTERSHAFT 36
BELL CRANK 26
BELLCRANK, CONTROL ARM, REAR AXLE70
BELT IDLERS, FEEDER HOUSE MIDDLE123
BELT, ALTERNATOR 29
BELT, COMPRESSOR 87
BELT, HYDROSTATIC GROUND DRIVE 164
BELTS, ENGINE 162
BELTS, LEVELING SYSTEM DRIVE 164
BOTTOM SHEETS, FEEDER HOUSE 110
BRACE, FEEDER HOUSE MIDDLE BELT 123
BRACE, GRAIN TANK134
BRACE, HYDRO DR AND LEVEL OIL RESERVOIR54
BRACKET, FEEDER CONVEYOR 116
BRACKET, GRAIN TANK 134
BRACKET, LH LOWER DOOR84
BRACKET, UNLOADING AUGER SWIVEL SHROUD140
BRAKE LINES 58
BRAKE, PARKING 40
BRAKES, WHEEL 57
BRUSH, ENGINE POWERSHAFT 8
C4
CAB DOORS82
CABLE MOUNTING, HYDRO DRIVE CONTROL50
CABLE SUPPORTS 26
CABLE, LH LOWER DOOR 84
CABLE, REVERSER CONTROL130
CABLES AND MOUNTING, PLATFORM LEVELING (LH) 160
CABLES AND MTG, PLATFORM LEVELING (RH) 158
CALIPER PAD, WHEEL BRAKES 57
CALIPER, WHEEL BRAKES57
CHAIN GUIDES, FEEDER CONVEYOR DRIVE117
CHAIN, FEEDER BEATER DRIVE103
CHAIN, FEEDER CONVEYOR 115
CHAIN, FEEDER CONVEYOR 116
CLEVIS, CONNECTING LINK, BALANCE BEAM 72
CLEVIS, REAR AXLE67
CLUTCH, CROSS AUGER DRIVE (HS)96
COMPRESSOR BELT87
COMPRESSOR MOUNTING AND SUPPORTS 87
CONCAVE 133
CONDENSER88
CONDUIT, GRAIN TANK EXTENSION138
CONNECTING LINKS, BALANCE BEAM72
CONSOLE COVER DECALS165
CONTROL ARM, REAR AXLE 70
CONTROL CABLE AND LINKAGE, REVERSER130
CONTROL, CABLE, MOUNTING, HYDRO DR50
CONTROL, FUEL SHUT-OFF 28
CORNER FRAME16
COUNTERSHAFT, TRANSMISSION 36
COVER, ENGINE POWERSHAFT 8
COVER, FEEDER BEATER DRUM 101
COVER, HYDRO DR AND LEVEL OIL RESERVOIR54
COVER, REVERSER GEAR BOX 128
COVER, TRANSMISSION AND DIFFERENTIAL HSG 35
CROSS AUGER DRIVE (HS) 96
CUTTERBAR DRIVE (HS) 98
CUTTING PLATFORM HYDRAULIC LINES90
CYLINDER PIN, LEVELING 154
CYLINDER SEAL KIT154
CYLINDERS, POWER STEERING 60
D4
DECAL, DRIVE SHAFT(HS) 98
DECAL, DRIVESHAFT 96
DECAL, LH LOWER DOOR 84
DECALS, CONSOLE COVER 165
DECALS, INSTRUMENT PANEL 165
DECALS, LEFT-HAND166
DECALS, RIGHT-HAND 166
DECK, LADDER, FRONT 80
DIFFERENTIAL42
DIFFERENTIAL GEARS42
DIFFERENTIAL HOUSING 42
DIFFERENTIAL SHAFTS 42
DIPSTICK, REVERSER GEAR BOX 128
DISC, WHEEL BRAKES57
DOOR, ELEVATOR ACCESS, GRAIN TANK 136
DOOR, FEEDER HOUSE TOP SHEETS108
DOOR, GRAIN TANK 136
DOOR, INSPECTION, GRAIN TANK 134
DOOR, LOWER, LH 84
DOOR, MIDDLE, ENGINE COMPARTMENT 18
DOOR, RESERVOIR, GRAIN TANK 136
DOORS, CAB 82
DRIVE SHAFT DECAL (HS) 98
DRIVE SHAFT, DECAL96
DRIVE SHAFT, PLATFORM94
DRIVE WHEELS31
DRIVE, CUTTERBAR (HS)98
DRIVE, FEEDER BEATER103
DRIVE, FEEDER HOUSE 123
DRIVES, FEEDER BEATER 104
DRIVES, RADIATOR FAN 10
DRUM, FEEDER BEATER 101
DRUM, FEEDER CONVEYOR 114
DUCT, FAN79
E4
ENGINE COMPARTMENT FRAME18
ENGINE COMPARTMENT MIDDLE DOOR18
ENGINE POWERSHAFT 8
ENGINE SHEAVES162
ENGINE, BELT 162
ENGINE, TIGHTENERS 162
EXHAUST PIPE22
EXTENSION, FEEDER HOUSE106
EXTENSION, FRONT, GRAIN TANK 138
EXTENSION, LH, GRAIN TANK 138
EXTENSION, RH, GRAIN TANK 138
EXTENSION, REAR, GRAIN TANK 138
EXTENSIONS, GRAIN TANK 138
F4
FAN DRIVE SHIELD 32
FAN DUCT 79
FAN SHROUD 14
FAN, RADIATOR 10
FEEDER BEATER DRIVE 103
FEEDER BEATER DRIVE SHIELDS 104
FEEDER BEATER DRIVE, HUB 103
FEEDER BEATER DRIVE, SLIP CLUTCH103
FEEDER BEATER DRIVES104
FEEDER BEATER DRUM 101
FEEDER BEATER FINGERS 100
FEEDER BEATER HEADS 100
FEEDER BEATER SHAFTS100
FEEDER BEATER SHIELDS 100
FEEDER CONVEYOR BRACKET116
FEEDER CONVEYOR CHAIN 115
FEEDER CONVEYOR DRIVE CHAIN 116
FEEDER CONVEYOR DRIVE CHAIN GUIDES 117
FEEDER CONVEYOR FEEDER DRUM 114
FEEDER CONVEYOR IDLER 116
FEEDER CONVEYOR IDLER SHAFT 114
FEEDER HOUSE BOTTOM SHEETS110
FEEDER HOUSE DRIVE 123
FEEDER HOUSE EXTENSION 106
FEEDER HOUSE FRAME 112
FEEDER HOUSE LOWER MOUNTINGS 126
FEEDER HOUSE LOWER SHAFT 126
FEEDER HOUSE LOWER SHEAVE 126
FEEDER HOUSE MIDDLE BELT BRACE 123
FEEDER HOUSE MIDDLE BELT IDLERS 123
FEEDER HOUSE ROCKER 106
FEEDER HOUSE SHIELD,(RH)119
FEEDER HOUSE SHIELDS (LH) 120
FEEDER HOUSE SIDE SHEETS 112
FEEDER HOUSE TOP SHEETS108
FEEDER HOUSE UPPER SHAFT 124
FEEDER HOUSE UPPER SPROCKETS 124
FILTER, AIR CLEANER 23
FILTER, HYDRO DR AND LEVEL OIL RESERVOIR 54
FILTERS, LEVELING SYSTEM 155
FINAL DRIVE AXLE SHAFT 44
FINAL DRIVE BEARINGS 44
FINAL DRIVE BEARINGS 46
FINAL DRIVE GEARS 46
FINAL DRIVE INNER HOUSING 46
FINAL DRIVE OUTER HOUSING 44
FINAL DRIVE PINION SHAFT46
FINAL DRIVE PLANETARY PINION 44
FINAL DRIVE SHAFT 49
FINGERS, FEEDER BEATER 100
FIREWALL 14
FRAME 71
FRAME, CORNER 16
FRAME, ENGINE COMPARTMENT 18
FRAME, FEEDER HOUSE 112
FRAME, PLATFORM92
FRAME, REAR AXLE 64
FRONT PANEL 16
FUEL SHUT-OFF CONTROL28
FUSE, LEVELING CAB 146
G4
GASKET,TRANSMISSION AND DIFFERENTIAL HSG 35
GEARS, DIFFERENTIAL 42
GEARS, FINAL DRIVE46
GEARS, TRANSMISSION 38
GEARS, TRANSMISSION COUNTERSHAFT 36
GRAIN TANK 134
GRAIN TANK EXTENSIONS 138
GRAIN TANK, SKIRTS 136
GREASE CUP, AIR CLEANER 23
H4
HANDLE, FEEDER HOUSE BOTTOM SHEETS 110
HANDLES, CAB DOORS82
HANDRAIL, DOOR, ENGINE COMPARTMENT 18
HANDRAIL, LH DOOR 80
HARNESS, LEVELING CAB 146
HARNESS, WIRING, LEVELING SYSTEM148
HEADS, FEEDER BEATER100
HINGE, GRAIN TANK136
HITCH, REAR AXLE 64
HOOD, PLATFORM 92
HORIZONTAL UNLOADING AUGER SWIVEL SHROUD 140
HOSE, AIR INTAKE 25
HOSE, ASPIRATOR22
HOSES, LEVELING SYSTEM 156
HOSES, RADIATOR12
HOUSING, DIFFERENTIAL42
HOUSING, ENGINE POWERSHAFT 8
HOUSING, INNER, FINAL DRIVE46
HOUSING, PARKING BRAKE 40
HOUSING, REVERSER GEAR BOX128
HOUSING, SPINDLE, REAR WHEELS 68
HOUSING, TRANSM AND DIFFERENTIAL34
HUB, FEEDER BEATER DRIVE 103
HUB, REAR WHEELS 68
HYDRAULIC LINES CUTTING PLATFORM90
HYDROSTATIC DRIVE CONTROL CABLE MOUNTING 50
HYDROSTATIC DRIVE OIL RESERVOIR 54
HYDROSTATIC DRIVE OIL RESERVOIR MTG 54
HYDROSTATIC DRIVE UNIT 53
HYDROSTATIC DRIVE UNIT SHEAVES53
HYDROSTATIC DRIVE UNIT SUPPORTS 53
HYDROSTATIC GROUND DRIVE BELTS 164
HYDROSTATIC GROUND DRIVE SHEAVES164
HYDROSTATIC GROUND DRIVE SHIELD 32
I4
IDLER, FEEDER CONVEYOR DRIVE CHAIN 116
IDLER, RADIATOR10
IDLERS, FEEDER HOUSE MIDDLE BELT123
INPUT SHAFT, TRANSMISSION 36
INSTRUMENT PANEL DECALS165
ISOLATOR, WINDOW, GRAIN TANK EXTENSION138
K4
KIT, LEVELING SYSTEM152
KIT, SEAL, CYLINDER 154
KIT, STEERING CYLINDER 61
KNOB, GRAIN TANK 134
L4
LADDER, FRONT 80
LATCH, GRAIN TANK134
LEFT-HAND DECALS 166
LENS, HYDRO DR AND LEVEL OIL RESERVOIR 54
LEVELING CAB FUSE146
LEVELING CAB HARNESS146
LEVELING CAB LIGHTS 146
LEVELING CAB SWITCH 146
LEVELING CABLES AND MOUNTING, PLATFORM (LH) 160
LEVELING CABLES AND MTG, PLATFORM (RH) 158
LEVELING CONTROL SWITCH BOX 142
LEVELING CYLINDER154
LEVELING OIL RESERVOIR 54
LEVELING OIL RESERVOIR MTG 54
LEVELING SOLENOID VALVE145
LEVELING SYSTEM 150
LEVELING SYSTEM DRIVE BELTS 164
LEVELING SYSTEM DRIVE SHEAVES164
LEVELING SYSTEM FILTER SWITCH155
LEVELING SYSTEM FILTERS155
LEVELING SYSTEM HOSES 156
LEVELING SYSTEM LINES 156
LEVELING SYSTEM PUMP150
LEVELING SYSTEM TESTER 149
LEVELING SYSTEM WIRING HARNESS 148
LEVELING SYSTEM, KIT152
LEVER, DOOR, FEEDER HOUSE TOP SHEETS 108
LIGHTS, LEVELING CAB146
LIMIT SWITCH ARM 143
LIMIT SWITCHES143
LINES, AIR CONDITIONER 88
LINES, BRAKE58
LINES, LEVELING SYSTEM 156
LINKAGE, REVERSER CONTROL CABLE 130
LINKAGE, THROTTLE 26
LINKS, CONNECTING, BALANCE BEAM 72
LOWER DOOR, LH 84
M4
MANIFOLD SHIELD20
MERCURY SWITCH142
MOUNTING, CABLES, PLATFORM LEVELING (LH)160
MOUNTING, CABLES, PLATFORM LEVELING (RH) 158
MOUNTING, COMPRESSOR 87
MOUNTING,HYDROSTATIC DRIVE CONTROL CABLE 50
MOUNTINGS, FEEDER HOUSE, LOWER 126
MTG, HYDRO DR AND LEVELING OIL RESERVOIR 54
MUFFLER 22
O4
OIL RESERVOIR, HYDRO DR AND LEVELING 54
OUTER HOUSING, FINAL DRIVE 44
P4
PANEL, FRONT16
PANEL, GRAIN TANK136
PARKING BRAKE 40
PARKING BRAKE HOUSING40
PIN, LEVELING CYLINDER 154
PINION SHAFT, TRANSMISSION 38
PIVOT SHAFT, FEEDER BEATER DRIVE104
PIVOT, FEEDER BEATER DRIVE104
PLANETARY PINION, FINAL DRIVE 44
PLATE, UNLOAING AUGER SWIVEL SHROUD140
PLATE, WHEEL BRAKES 57
PLATFORM DRIVE SHAFT 94
PLATFORM FRAME 92
PLATFORM HOOD 92
PLATFORM LEVELING CABLES AND MOUNTING (LH) 160
PLATFORM LEVELING CABLES AND MOUNTING (RH) 158
POWER STEERING CYLINDERS60
POWERSHAFT, ENGINE 8
PRECLEANER 21
PRESSURE SWITCH, AIR INTAKE25
PUMP, LEVELING SYSTEM 150
R4
RH SEPARATOR SHIELD79
RADIATOR 12
RADIATOR FAN10
RADIATOR FAN DRIVES 10
RADIATOR HOSES 12
RAILINGS 80
REAR AXLE67
REAR AXLE CONTROL ARM70
REAR AXLE FRAME64
REAR AXLE SUPPORT 64
REAR WHEELS AND SPINDLES68
RECEIVER 88
REINFORCEMENT, GRAIN TANK 134
REVERSER CONTROL CABLES AND LINKAGE130
REVERSER GEAR BOX128
RIGHT-HAND DECALS166
ROCKER, FEEDER HOUSE106
ROD, HINGE, GRAIN TANK 136
S4
SAFETY CHAIN, PLATFORM DRIVE SHAFT 94
SEALS, CAB DOORS 82
SEPARATOR RIGHT-HAND SHIELD78
SEPARATOR SIDE SHEET, LH 77
SEPARATOR SIDE SHEET, RH 76
SHAFT, CROSS AUGER DRIVE (HS) 96
SHAFT, FEEDER CONVEYOR IDLER 114
SHAFT, FEEDER HOUSE LOWER 126
SHAFT, FINAL DRIVE46
SHAFT, FINAL DRIVE49
SHAFT, UPPER, FEEDER HOUSE124
SHAFTS, DIFFERENTIAL 42
SHAFTS, FEEDER BEATER 100
SHEAVE, ALTERNATOR29
SHEAVE, CUTTERBAR DRIVE (HS) 98
SHEAVE, ENGINE POWERSHAFT8
SHEAVE, FEEDER HOUSE LOWER126
SHEAVE, HYDROSTATIC DRIVE UNIT53
SHEAVES, ENGINE 162
SHEAVES, HYDROSTATIC GROUND DRIVE 164
SHEAVES, LEVELING SYSTEM DRIVE 164
SHEET, FRONT, UNLDG AUGER SWIVEL SHROUD 140
SHEET, GRAIN TANK136
SHEET, SIDE, UNLDG AUGER SWIVEL SHROUD140
SHEETS, BOTTOM, FEEDER HOUSE 110
SHEETS, TOP, FEEDER HOUSE 108
SHIELD MANIFOLD20
SHIELD, CROSS AUGER DRIVE (HS)96
SHIELD, CUTTERBAR DRIVE (HS) 98
SHIELD, FAN DRIVE 32
SHIELD, HYDROSTATIC GROUND DRIVE 32
SHIELD, PLATFORM DRIVE SHAFT 94
SHIELD, SEPARATOR, RH 79
SHIELD, SEPARATOR, RIGHT-HAND 78
SHIELD,FEEDER HOUSE,(RH)119
SHIELDS, FEEDER BEATER 100
SHIELDS, FEEDER BEATER DRIVE 104
SHIELDS, FEEDER HOUSE (LH) 120
SHIFTER CAM, TRANSMISSION AND DIFFERENTIAL HOUSING35
SHIFTER FORKS,TRANSM AND DIFFERENTIAL 34
SHROUD, FAN 14
SHROUD, SWIVEL, HORIZONTAL UNLDG AUGER140
SHUT-OFF CONTROL, FUEL 28
SIDE SHEET, SEPARATOR, LH77
SIDE SHEET, SEPARATOR, RH76
SIDE SHEETS, FEEDER HOUSE 112
SKIRTS, GRAIN TANK 136
SLIP CLUTCH, FEEDER BEATER103
SLIP CLUTCH, FEEDER BEATER DRIVE103
SOLENOID VALVE, LEVELING 145
SPINDLE, LH, REAR WHEELS 68
SPINDLE, RH, REAR WHEELS 68
SPINDLES AND REAR WHEELS68
SPRING, LATCH, GRAIN TANK 134
SPROCKET, CROSS AUGER DRIVE (HS) 96
SPROCKET, FEEDER BEATER104
SPROCKET, FEEDER CONVEYOR DRIVE CHAIN 116
SPROCKET, UPPER, FEEDER HOUSE124
STEERING CYLINDER KIT61
STEERING TIE RODS 63
STRAINER, HYDRO DR AND LEVEL OIL RESERVOIR54
STRAP, GRAIN TANK134
SUPPORT, HYDRO DR AND LEVEL OIL RESERVOIR54
SUPPORT, REAR AXLE64
SUPPORT, UNLOADING AUGER SWIVEL SHROUD140
SUPPORTS, CABLE26
SUPPORTS, COMPRESSOR 87
SUPPORTS, HYDROSTATIC DRIVE UNIT 53
SWING ARMS 74
SWITCH BOX, LEVELING CONTROL 142
SWITCH, LEVELING CAB146
SWITCH, LEVELING SYSTEM FILTERS 155
SWITCHES, LIMIT 143
SWIVEL SHROUD, HORIZONTAL UNLDG AUGER140
T4
TANK, GRAIN134
TESTER, LEVELING SYSTEM149
THROTTLE LINKAGE 26
TIE RODS, STEERING63
TIGHTENERS, ENGINE 162
TRANSM AND DIFFERENTIAL SHIFTER FORKS 34
TRANSMISSION AND DIFFERENTIAL HSG SHIFTER CAM 35
TRANSMISSION AND DIFFERENTIAL HSG GASKET 35
TRANSMISSION AND DIFFERENTIAL HSG 34
TRANSMISSION AND DIFFERENTIAL HSG COVER 35
TRANSMISSION BEARINGS38
TRANSMISSION GEARS38
TRANSMISSION PINION SHAFT 38
TRANSMISSION, COUNTERSHAFT 36
TRANSMISSION, GEARS AND BEARINGS 36
TRANSMISSION, INPUT SHAFT 36
TUBE, REAR AXLE67
TUBES, AIR INTAKE 21
TUBES, AIR INTAKE 25
U4
UNLDG AUGER, SWIVEL SHROUD, HORIZONTAL 140
V4
VALVE, SOLENOID, LEVELING 145
W4
WHEEL BRAKES57
WHEELS, DRIVE 31
WINDOW, GRAIN TANK EXTENSION 138
WIRING HARNESS, LEVELING SYSTEM 148
Y4
YOKE, FINAL DRIVE SHAFT 49
YOKE, PLATFORM DRIVE SHAFT 94

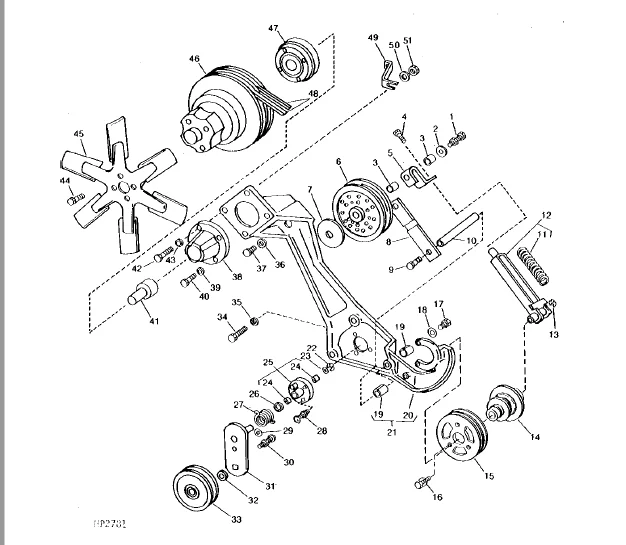

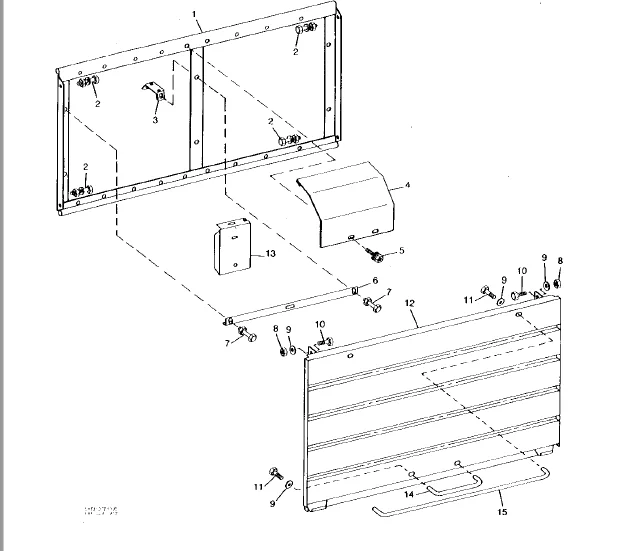

IMAGES PREVIEW OF THE MANUAL:

JOHN DEERE 7722 COMBINE PARTS CATALOG MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
