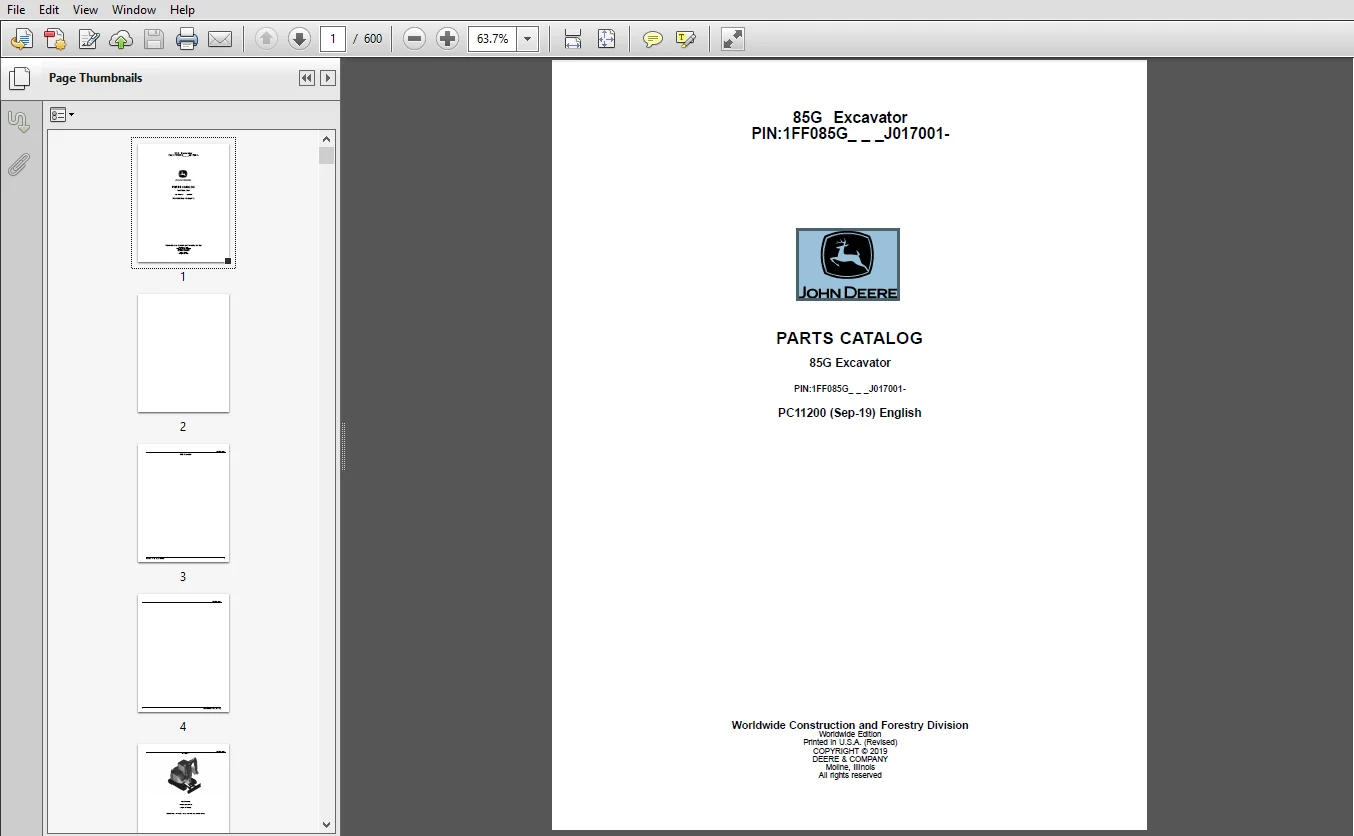

John Deere 85G Excavator Parts Catalog Manual (PC11200)
Video Preview:
Image Preview:
Description:
John Deere 85G Excavator Parts Catalog Manual (PC11200)
To The Customer
The part numbers in this Parts Catalog were correct at the time of publication. Per John Deere policy, we continuously improve our products. Therefore, when ordering parts verify the part numbers with your dealer.
SI Units of Measure
Metric dimensions are provided as applicable throughout this parts catalog.
Bolt and Cap Screw Strength Identification
Bolts and cap screws required to have high-strength qualities equivalent to metric property class 10.9 (SAE grade 8) or higher are identified throughout this catalog by the description 10.9, 12.9 or 14.9. All standard bolts and cap screws are metric property class 8.8 (SAE grade 5) or lower.
Serial Number Listing Information
Serial number information is listed to show on which machines each part can be used; for example:
– The part can be used on all products.
000000 – The part can be used on products beginning with the serial number listed.
– 000000 The part can be used on products up to and including the serial number listed.
000000 – 000000 The part can be used on products between and including the serial number listed.
When XXXXXX’s are listed in place of a serial number, a serial number change was made, but the exact serial number was not available at the time of publication.
Direction Arrow
Arrows are used with illustrations to indicate the front of the unit. “Right-Hand” and “Left-Hand” sides are determined by facing in direction of machine forward travel.
Box-Enclosed Illustrations
Box-enclosed keyed parts in the illustration are available as a service assembly or an attachment. These parts may also include parts not available for service. The illustrations may not show all individual parts of an attachment. A box not keyed includes non-current parts.
Complete Goods Listings
Complete Goods are listed in bold face type. Order separately. Do not include on replacement part order.
Orientation of Engine
Right Hand (RH) and Left Hand (LH) sides are determined by standing at flywheel and facing the engine.
John Deere Remanufactured Components
The REMAN parts listed in this catalog are intended for the repair or replacement of failed or worn original equipment components. John Deere Reman components are manufactured to stringent John Deere standards and produced to original John Deere specifications that incorporates the latest design and performance improvement updates.
Table Of Contents:
John Deere 85G Excavator Parts Catalog Manual (PC11200)
01 Wheels & Tires & Tracks
0110 Powered Wheels, Tires & Fastenings 46
0130 Track Systems 48
02 Axles, Differentials & Suspension Systems
0260 Axles, Diff & Susp Sys Hyd (Incl Fwd) 72
04 Engine – Miscellaneous Engine / Complete Engine
0404 Cylinder Block 84
05 Engine Auxiliary System
0505 Cold Weather Starting Aids 124
0510 Engine Cooling Systems 126
0520 Intake System 132
0530 External Exhaust Systems 134
0540 Engine Mounting 136

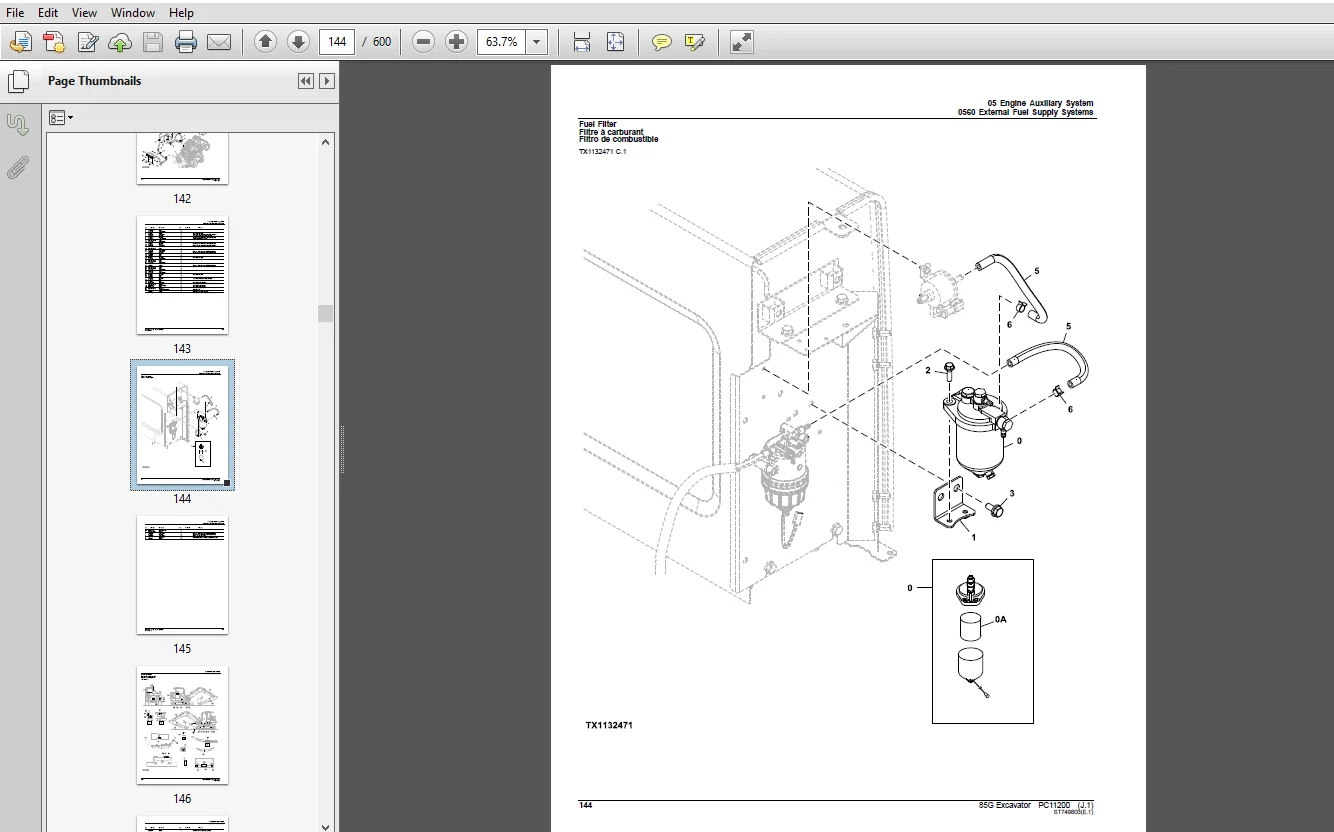

0560 External Fuel Supply Systems 138
13 Miscellaneous Vehicle

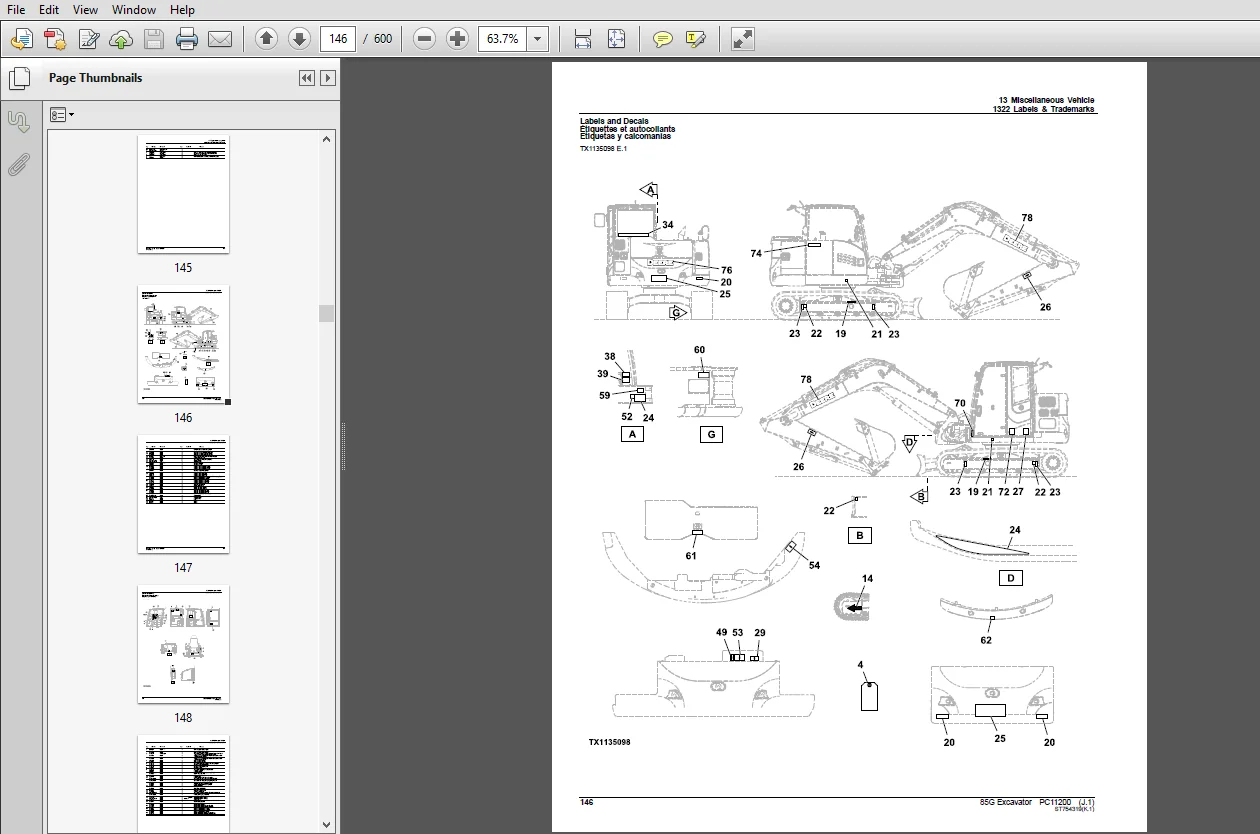

1322 Labels & Trademarks 146
16 Vehicle Electrical Systems
1671 Batteries, Support & Cables 152
1673 Vehicle Lighting System 156
1674 Wiring Harnesses & Switches 172
17 Frame Chassis Or Supporting Structure
1740 Frame Installation 216
18 Operator’s Station
1810 Operator Enclosure 230
1821 Seat And Seat Belts 272
1830 Heating & Air Conditioning 276
19 Sheet Metal & Styling
1910 Hood Or Engine Enclosure 292
20 Safety, Convenience & Miscellaneous
2001 Radio 310
2002 Mirror 314
2004 Warning Devices Including Horn & Reverse Alarm 318
2007 Sun Visor 322
2010 Miscellaneous 324
21 Vehicle Main Hydraulic System
2161 Hyd Pumps & Drives 326
2164 Hyd Reservoir, Filter & Cooler 336
33 Backhoe & Excavator
3301 Blades & Side Cutters 342
3302 Bucket With Teeth 346
3315 Controls Linkage 368
3344 Boom 392
3361 Hydraulic Pump 416
3362 Control & Load Holding Valves 426
3363 Lines, Hoses & Fittings 466
3364 Hydraulic Reservoir, Filter and Cooler 534
3365 Hydraulic Cylinders 536
43 Swing, Rotation Or Pivoting System
4353 Swing Bearing & Mounting 558
4360 Hydraulics 560
Please Note:
⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
