JOHN DEERE 9950 COTTON PICKER Parts Catalog Manual – PDF DOWNLOAD

Description

JOHN DEERE 9950 COTTON PICKER Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS

JOHN DEERE 9950 COTTON PICKER Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 605
Downloadable : Yes
File Type : PDF
Size: 18.2 MB

TABLE OF CONTENTS:

JOHN DEERE 9950 COTTON PICKER Parts Catalog Manual – PDF DOWNLOAD

GRIDS 1
ALPHABETICAL INDEX 7
A7
ACCUMULATOR260
ADAPTER, EXHAUST 90
ADJUSTABLE REAR AXLE TIE RODS350
ADJUSTABLE TREAD REAR AXLE347
ADJUSTABLE TREAD REAR AXLE KNEE 348
ADJUSTMENT, SEAT 370
AFTERCOOLER 76
AFTERCOOLER 78
AID, COLD WEATHER STARTING 86
AIR CLEANER 71
AIR CLEANER BRACKET 73
AIR CONDITIONING COMPRESSOR PARTS 398
AIR CONDITIONING COMPRESSOR(NIPPONDENSO) 400
AIR DUCT, TRANSITION512
AIR DUCTS, UNIT TO BASKET 514
AIR FILTER, CAB 389
AIR INTAKE TUBES 74
AIR LOUVER, PANEL AND SWITCHES 388
AIR SWITCH INSTRUMENT PANEL 158
ALTERNATOR (90 AMP) (SERIAL NO 2001- ) 132
ALTERNATOR (90-AMP) (SERIAL NO 101-2000) 130
ALTERNATOR AND MOUNTING BRACKETS128
AM RADIO KIT (TY15278) 144
AM-FM STEREO RADIO KIT (TY15279)144
ANEROID ACTIVATOR, HYDRAULIC 110
ANEROID CONTROLS AND FUEL SHUT-OFF 105
ANTENNA BRACKET KIT, LEFT-HAND 147
ANTENNA, EXTERIOR MOUNTED 146
ARM, STEERING MOTOR 350
ARMATURE, STARTER121
ARMREST, SEAT (PERSONAL-POSTURE ™ SEAT) 366
ARMS, ROCKER24
AUGER, BASKET COMPACTOR544
AXLE AND PLANETARY, DIFFERENTIAL188
AXLE HOUSING WITH DRIVE GEAR 187
AXLE STABILIZER CYLINDER, 3 1/2 X 10″ 318
AXLE, ADJUSTABLE TREAD REAR 347
B7
BAFFLES, PICKING UNIT 422
BAR, METERING 558
BAR, PICKER462
BAR, REAR VIEW MIRROR 395
BARS, GRID 424
BASKET COMPACTOR AUGER AND SUPPORTS544
BASKET COMPACTOR HYDRAULIC TUBES300
BASKET COMPACTOR MOTOR AND DRIVE547
BASKET COMPLETE 529
BASKET CYLINDER END LUBRICATION LINES 538
BASKET EXTENSION, 12-INCH (ON BASKET WITH CONVEYOR) 550
BASKET EXTENSION, 12-INCH (ON STANDARD BASKET)548
BASKET EXTENSION, 24-INCH (ON BASKET WITH CONVEYOR) 554
BASKET EXTENSION, 24-INCH (ON STANDARD BASKET)552
BASKET FLOOR FOR CONVEYOR 566
BASKET HYDRAULIC CYLINDER 316
BASKET LID COVERS AND FLAP 12″ EXTENSION WITH CONVEYOR 556
BASKET LID FRONT AND SIDE FRAMES 540
BASKET LID LINKAGE 543
BASKET LID REAR FRAME 542
BASKET LID, SCREENS, GRATES 539
BASKET LIFT HYDRAULIC HOSES AND FITTINGS 284
BASKET SIDE, LH LOWER, CONVEYOR BASKET 568
BASKET SIDE, LH UPPER, CONVEYOR BASKET 570
BASKET SIDE, LH, STANDARD BASKET 536
BASKET STOP VALVE284
BASKET SUPPORT532
BASKET VALVE CONTROL LEVER AND LINKAGE530
BASKET WITH CONVEYOR COMPLETE529
BASKET, RH SIDE AND FLOOR 534
BATTERY AND CABLES (SERIAL NO 101-2000) 126
BATTERY AND CABLES (SERIAL NO 2001-) 127
BEARING, DIFFERENTIAL QUILLS 184
BEARING, PICKER BAR 464
BEARING,SEAL,HYDRODRPUMP FRONT COVER ASSY (EATON) 195
BEARINGS, MAIN 41
BEARINGS,HYDRO DRIVE PUMP (EATON) 199
BELLCRANK, THROTTLE 114
BELT, COMPRESSOR 402
BELT, COTTON FAN(SN 4001- )522
BELT, COTTON FAN (SN 101-4000) 520
BELT, ENGINE FAN 61
BELTS, ALTERNATOR128
BELTS, UNIT DRIVE442
BLADE, WINDSHIELD WIPER393
BLOCK, CYLINDER28
BLOCK, ENGINE SHORT 30
BLOWER, PRESSURIZER 386
BOLTS, HEAD 20
BOTTOM FRAMES 420
BRACKET, AIR CLEANER 73
BRACKET, CONTROL VALVE 278
BRACKET, FIRE EXTINGUISHER354
BRACKET, FUEL SHUT-OFF 104
BRACKET, HEIGHT SENSING VALVE MOUNTING440
BRACKETS, MOUNTING, COMPRESSOR 402
BRACKETS, UNIT LIFT 405
BRAKE LINES (SERIAL NO 101-2000) 248
BRAKE LINES (SERIAL NO 2001-4000) 250
BRAKE LINES (SERIAL NO 4001- ) 252
BRAKE PEDALS 255
BRAKE PLATE AND FACING 262
BRAKE VALVE256
BRAKE VALVE, REPAIR KIT258
BREAKERS, CIRCUIT134
BRG-SEAL-HYDRODRPUMP FRONT COVER ASSY (SUNDSTRAND) 211
BRGS,TRUNNIONS,HYDRODRPUMP SWASHPLATE (SUNDSTRAND)214
BYPASS VALVE, OIL COOLER48
C7
CAB AIR FILTER AND HOUSING389
CAB DOOR (SOUND-GARD CAB) 378
CAB REAR UPHOLSTERY 380
CAB ROOF AND SUPPORTS 382
CAB ROOF HEADLINER 385
CAB TO UNIT LUBRICATION VALVE (SERIAL NO 101-2000) 482
CAB TO UNIT LUBRICATION VALVE (SERIAL NO 2001- )484
CAB WINDOWS (SOUND-GARD) 375
CAB WIRING DIAGRAM 150
CAB, SOUND-GARD 374
CABLE, FUEL SHUT-OFF105
CABLE, THROTTLE 114
CABLES, BATTERY (SERIAL NO 101-2000) 126
CABLES, BATTERY (SERIAL NO 2001- )127
CAM FOLLOWER ARM 462
CAM, PICKER BAR (SERIAL NO 101-2000) 456
CAM, PICKER BAR (SERIAL NO 2001- )458
CAMSHAFT 25
CAMSHAFT GEAR 25
CAP, FUEL TANK 92
CAP, PICKER BAR (SERIAL NO 101-2000) 456
CAP, PICKER BAR (SERIAL NO 2001- )458
CAP, RADIATOR 58
CASE, DIFFERENTIAL 182
CASE, DIFFERENTIAL COVER 183
CASE, GEAR UNIT DRIVE, INNER 444
CASE, GEAR UNIT DRIVE, OUTER 446
CASE, TRANSMISSION 176
CENTER HOUSING, TURBOCHARGER 83
CENTER HOUSING, TURBOCHARGER 85
CENTER SECTION, HYDRO, DRIVE (EATON) 204
CENTER SECTION, HYDROSTATIC DRIVE (SUNDSTRAND)225
CHAIN, CONVEYOR 562
CHAIN, METERING DRIVE 558
CHARGE PRESSURE RELIEF VALVE BLOCK (EATON) 207
CHARGE PUMP, HYDROSTATIC 231
CHARGE PUMP, HYDROSTATIC DRIVE 232
CHASSIS DECAL SET573
CIRCUIT BREAKER SUPPORT KIT 137
CIRCUIT BREAKERS 134
CLEANER, AIR71
CLUTCH, COMPRESSOR (NIPPONDENSO)400
CLUTCH, LUBRICATION PUMP 476
CLUTCH, LUBRICATION PUMP 479
COIL, COMPRESSOR (NIPPONDENSO) 400
COIL, STARTER 123
COLD WEATHER STARTING AID 86
COLUMN, MOISTENER508
COMMUTATOR END FRAME, STARTER122
COMPACTOR AUGER AND SUPPORTS 544
COMPACTOR HYDRAULIC MOTOR (CHAR-LYNN) 320
COMPACTOR HYDRAULIC MOTOR (WHITE) 322
COMPACTOR HYDRAULIC MOTOR KIT (WHITE) 323
COMPACTOR/CONVEYOR CONTROL VALVE312
COMPACTOR/CONVEYOR VALVE REPAIR KIT315
COMPACTOR, MOTOR DRIVE 547
COMPRESSOR BELT AND MOUNTING BRACKETS 402
COMPRESSOR CLUTCH PULLEY (NIPPONDENSO)400
COMPRESSOR COIL (NIPPONDENSO)400
COMPRESSOR DRIVE PULLEY 40
COMPRESSOR HARDWARE KIT (NIPPONDENSO) 401
COMPRESSOR HEAD 398
COMPRESSOR PARTS 398
COMPRESSOR SEAL KIT 398
COMPRESSOR, AIR CONDITIONING (NIPPONDENSO) 400
CONDENSER, AIR CONDITIONER235
CONDITIONER, COOLANT 55
CONNECTING RODS36
CONNECTOR, ELECTRICAL, SERVICE KIT 166
CONNECTORS, ELECTRICAL, WEATHERPACK170
CONNECTORS, FUEL INJECTION PUMP HOUSING 106
CONSOLE (SN 101-4000) 355
CONSOLE (SN 4001- ) 356
CONSOLE INSTRUMENT GAUGES 117
CONTROL HANDLE,HYDRODRDISPLACEMENT (SUNDSTRAND) (SN 2001-6000) 220
CONTROL HANDLE,HYDRODRDISPLACEMENT (SUNDSTRAND) (SN 6001- ) 224
CONTROL LINES, FUEL 102
CONTROL VALVE AND BRACKET 278
CONTROL VALVE SEAL REPAIR KIT280
CONTROL VALVE, COMPACTOR/CONVEYOR 312
CONTROL VALVE, HYDROSTATIC (SN 6001-) 222
CONTROL VALVE, HYDROSTATIC (SUNDSTRAND) (SN 2001-6000) 218
CONTROL VALVE,HYDRO DR DISPLACEMENT (EATON) 202
CONTROLS, ANEROID105
CONTROLS, TURN SIGNAL 142
CONVEYOR BASKET, LH SIDE LOWER568
CONVEYOR BASKET, LH SIDE UPPER570
CONVEYOR HYDRAULIC MOTOR (TWR (ROSS GEAR)) 328
CONVEYOR HYDRAULIC MOTOR (WHITE)326
CONVEYOR HYDRAULIC MOTOR REPAIR KIT (TWR (ROSS GEAR)) 329
CONVEYOR HYDRAULIC MOTOR REPAIR KIT (WHITE)327
CONVEYOR MOTOR AND DRIVE 562
CONVEYOR MOTOR HYDRAULIC HOSES 304
CONVEYOR ROCKSHAFT AND PIVOTS564
COOLANT CONDITIONER 55
COOLANT TEMPERATURE SENDER 22
COOLER, ENGINE OIL50
COOLER, ENGINE OIL51
COOLER, HYDROSTATIC OIL235
COTTON DOORS 512
COTTON FAN COMPLETE 511
COTTON FAN COVER 341
COUNTERSHAFT, TRANSMISSION180
COUNTERSHAFT, UNIT DRIVE 442
COVER, BASKET LID, 12″ EXT W/CONVEYOR 556
COVER, CHAIN, METERING DRIVE 561
COVER, DIFFERENTIAL CASE 183
COVER, DOOR TRACK378
COVER, FRONT, HYDRO DRIVE PUMP (EATON) 195
COVER, FRONT, HYDROSTATIC DRIVE PUMP (SUNDSTRAND)211
COVER, INJECTION PUMP ACCESS 44
COVER, INSPECTION426
COVER, ROCKER ARM 19
COVER, STABILIZER CYLINDER344
COVER, STARTER SOLENOID SWITCH 124
COVER, TACH DRIVE GEAR 26
COVER, TIMING GEAR44
COVERS AND INNER ROOF 384
COVERS, STEERING MOTOR 338
CRANKSHAFT 39
CRANKSHAFT DAMPER 40
CRANKSHAFT FRONT OIL SEAL 44
CRANKSHAFT OIL SEAL 43
CRANKSHAFT OIL SEAL HOUSING43
CRANKSHAFT PULLEY 40
CROSS SHAFT AND SHIELD (SERIAL NO 101-2000) 450
CROSS SHAFT AND SHIELD (SERIAL NO 2001- ) 451
CUSHIONS, SEAT (FABRIC)364
CYLINDER BLOCK 28
CYLINDER BLOCK ASSEMBLY, HYDROSTATIC DRIVE PUMP (EATON)196
CYLINDER BLOCK, HYDRO DRIVE PUMP (SUNDSTRAND) 212
CYLINDER HEAD 20
CYLINDER HEAD GASKET KIT68
CYLINDER LINER PACKING LUBRICANT 55
CYLINDER LINERS36
CYLINDER LUBRICATION LINES538
CYLINDER, UNIT LIFT 317
D7
DAMPER, CRANKSHAFT40
DECALS 574
DECALS, CHASSIS SET 573
DECALS, PICKING UNIT SET 573
DIFFERENTIAL AXLE AND PLANETARY 188
DIFFERENTIAL BEARING QUILLS 184
DIFFERENTIAL CASE182
DIFFERENTIAL HOUSING WITH BEVEL GEAR AND DRIVE SHAFT190
DIFFERENTIAL QUILL AND HUB185
DIFFERENTIAL, CASE COVER 183
DIMMER SWITCH 141
DIPSTICK, ENGINE OIL 33
DISPLACEMENT CONTROL VALVE, HYDRO DR (EATON)202
DISPLAY, MONITOR 155
DOFFER 468
DOFFER DRIVE TIGHTENER SPROCKET 471
DOFFER GAGES 470
DOME LIGHT (ROCKER TYPE) 143
DOOR CAB (SOUND-GARD CAB) 378
DOOR, FRONT AND OUTER SIDE SWING432
DOOR, SUCTION 512
DOORS, COTTON 512
DRIER, HOSES AND FITTINGS 396
DRIVE GEAR WITH AXLE HOUSING 187
DRIVE GEAR, OIL PUMP 39
DRIVE HOUSING, INNER444
DRIVE HOUSING, OUTER446
DRIVE SHAFT, DIFFERENTIAL HOUSING 190
DRIVE UNIT, HYDROSTATIC192
DRIVE, CONVEYOR 562
DRIVE, HYDROSTATIC PUMP228
DRIVE, INNER UNIT, GEAR CASE 444
DRIVE, METERING 558
DRIVE, OUTER UNIT, GEAR CASE 446
DRUM SLIP CLUTCH AND IDLER GEARS455
DRUM, PICKER BAR 464
DRY AIR CLEANER ELEMENT CLEANING GUN 116
DUCT SUPPORTS 516
DUCTS, AIR, UNIT TO BASKET514
E7
ELECTRICAL CONNECTOR SERVICE KIT166
ELECTRICAL TERMINALS AND CONNECTORS, WEATHERPACK 170
ELECTRICALLY OPERATED STARTING AID 86
ELECTROMAGNETIC LUBRICATION PUMP CLUTCH 479
ELEMENTS, AIR CLEANER71
END FRAME, STARTER COMMUTATOR 122
ENGINE COOLANT HEATER 161
ENGINE FAN AND BELT 61
ENGINE HOOD334
ENGINE HOOD SIDE SCREENS AND SUPPORTS 336
ENGINE OIL 54
ENGINE OIL COOLER 50
ENGINE OIL COOLER 51
ENGINE OIL DIPSTICK 33
ENGINE OIL DIPSTICK TUBE33
ENGINE OIL FILLER 53
ENGINE OIL FILTER 49
ENGINE OIL PUMP46
ENGINE RAILS 332
ENGINE REBUILD GASKET KIT 68
ENGINE SHORT BLOCK30
ENGINE VALVE STEM, LUBRICANT 55
ETHER START SWITCH 117
ETHER STARTING FLUID 86
EVAPORATOR AND HOSES392
EXHAUST ADAPTER90
EXHAUST MANIFOLD 90
EXHAUST MANIFOLD GASKET 90
EXHAUST PIPE AND MUFFLER91
EXHAUST VALVES 20
EXTENSION, BASKET, 12-INCH (ON BASKET WITH CONVEYOR)550
EXTENSION, BASKET, 12-INCH (ON STANDARD BASKET) 548
EXTENSION, BASKET, 24-INCH (ON BASKET WITH CONVEYOR)554
EXTENSION, BASKET, 24-INCH (ON STANDARD BASKET) 552
EXTERIOR MOUNTED ANTENNA 146
EXTINGUISHER, FIRE 354
F7
FACING AND PLATE, BRAKE262
FAN BELT, ENGINE 61
FAN COVER, COTTON341
FAN DRIVE PULLEY 60
FAN HOUSING518
FAN IDLER AND LINKAGE (SN 101-4000) 524
FAN IDLER AND LINKAGE (SN 4001- )526
FAN LEVER 528
FAN SHAFT, SHEAVE AND FAN ROTOR (SN 101-4000) 520
FAN SHAFT, SHEAVE AND FAN ROTOR (SN 4001- ) 522
FAN, COTTON, COMPLETE 511
FAN, ENGINE 61
FIELD LIGHT154
FIELD LIGHT RELAYS 150
FILLER, ENGINE OIL53
FILTER, AIR, CAB 389
FILTER, ENGINE OIL49
FILTER, FUEL94
FILTER, FUEL97
FILTER, WATER 500
FIRE EXTINGUISHER354
FITTINGS, WATER PUMP (MOISTENER SYSTEM) 498
FLAP, 12″ EXTENSION WITH CONVEYOR 556
FLAP, 24″ EXTENSION WITH CONVEYOR 557
FLOOR MAT 381
FLOOR, BASKET, FOR CONVEYOR 566
FLOOR, PLATFORM 360
FLYWHEEL 37
FOOT FLUSH VALVE 504
FRAME, MAIN332
FRAME, PLATFORM 358
FRAMES BOTTOM AND STIFFENER 420
FRONT COVER, HYDRO DRIVE PUMP (EATON)195
FRONT COVER, HYDROSTATIC DRIVE PUMP (SUNDSTRAND) 211
FRONT DRUM PRESSURE PLATES430
FRONT DRUM SIDE SHEETS AND PANELS 428
FRONT PICKING UNIT GRID BARS 425
FRONT SWING DOOR 432
FRONT WARNING LAMP 139
FRONT WATER MANIFOLD 63
FUEL CHECK VALVE 94
FUEL CHECK VALVE 97
FUEL CONTROL LINES 102
FUEL FILTER 94
FUEL FILTER 97
FUEL FILTER PIPES 97
FUEL INJECTION LINES100
FUEL INJECTION NOZZLE99
FUEL INJECTION NOZZLE 100
FUEL INJECTION PUMP GOVERNORS LEVERS AND CONTROL 108
FUEL INJECTION PUMP HOUSING CONNECTORS106
FUEL INJECTION PUMP LUBE LINES 102
FUEL PIPES 94
FUEL SHUT-OFF BRACKET 104
FUEL SHUT-OFF CONTROLS 105

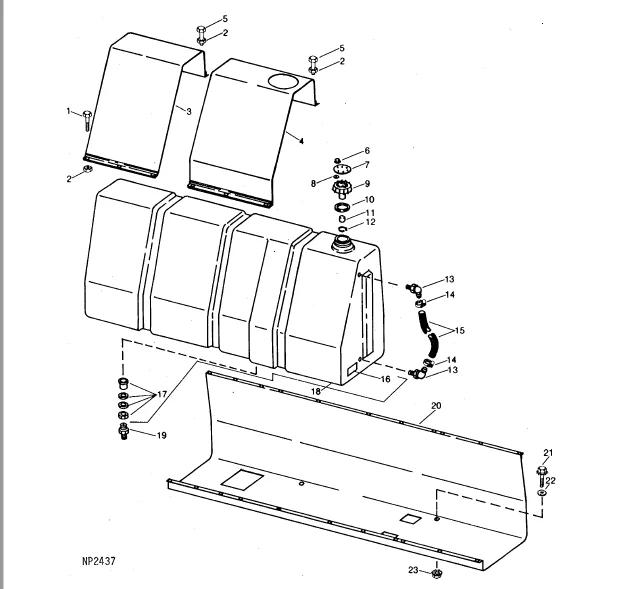

FUEL TANK92
FUEL TRANSFER PUMP 112
FUEL TRANSFER PUMP 113
G7
GAGES, DOFFER 470
GASKET KIT, CYLINDER HEAD 68
GASKET KIT, ENGINE REBUILD 68
GASKET, EXHAUST MANIFOLD90
GASKET, HEAD20
GASKET, OIL PAN34
GASKET, ROCKER ARM COVER19
GASKET, WATER MANIFOLD 63
GASKET,HYDRODRDISPLACEMENT CTLVALVE (SUNDSTRAND) (SN 2001-6000) 220
GASKET,HYDRODRDISPLACEMENT CTLVALVE (SUNDSTRAND) (SN 6001- ) 224
GASKETS, INTAKE MANIFOLD78
GAUGES AND INDICATOR LAMPS118
GAUGES, CONSOLE 117
GEAR CASE, INNER UNIT DRIVE 444
GEAR CASE, OUTER UNIT DRIVE 446
GEAR COVER, TACH DRIVE 26
GEAR, CAMSHAFT 25
GEAR, OIL PUMP DRIVE 39
GEAR, STARTER 37
GEARS AND SHAFT (DRIVE HOUSING), INNER444
GEARS AND SHAFT (DRIVE HOUSING), OUTER446
GEARS, PICKER BAR460
GEARS, TRANSMISSION 178
GEARS, TRANSMISSION 180
GEARS, UPPER HOUSING452
GOVERNOR LEVERS AND CONTROLS, FUEL INJECTION PUMP108
GRATES, BASKET LID 539
GRATES, STALK LIFTER434
GRID BARS AND SUPPORTS 424
GRID BARS, FRONT 425
GRILLE, AM RADIO (TY15278)144
GRILLE, AM-FM STEREO RADIO (TY15279) 144
GUN, DRY AIR CLEANER ELEMENT CLEANING 116
H7
HANDRAIL, PICKING UNIT UPPER HOUSING 418
HARDWARE KIT, COMPRESSOR (NIPPONDENSO)401
HARNESS, MAGNETIC PICK-UP 45
HARNESS, WIRING 148
HARNESS, WIRING, LUBRICATION SYSTEM149
HARNESS, WIRING, MONITOR 156
HARNESS, WIRING, OPERATOR PRESENCE 152
HARNESS, WIRING, STARTER AND POWER 134
HEAD BOLTS 20
HEAD GASKET 20
HEAD LAMP 138
HEAD, CYLINDER 20
HEAD, PICKER BAR (SERIAL NO 101-2000)456
HEAD, PICKER BAR (SERIAL NO 2001- ) 458
HEADLINER, CAB ROOF 385
HEATER CONTROL VALVE AND HOSES 390
HEATER, ENGINE COOLANT 161
HEIGHT SENSING HYDRAULICS 282
HEIGHT SENSING LINKAGE, INNER436
HEIGHT SENSING OUTER LINKAGE AND SHOE 438
HEIGHT SENSING UNIT VALVE (SERIAL NO 101-2000) 308
HEIGHT SENSING UNIT VALVE (SERIAL NO 2001-4000) 309
HEIGHT SENSING UNIT VALVE (SERIAL NO 4001- ) 310
HEIGHT SENSING VALVE MOUNTING BRACKETS440
HIGH PRESSURE RELIEF VALVE (EATON) 205
HOOD, ENGINE 334
HOOD, REAR 340
HOOD, UNIT, RH AND LH, WITH DECALS426
HOSE, FIRE EXTINGUISHER354
HOSE, STEERING RETURN (SERIAL NO 101-2000)248
HOSE, STEERING RETURN (SERIAL NO 2001-4000) 250
HOSE, STEERING RETURN (SERIAL NO 4001- ) 252
HOSES, FUEL 92
HOSES, HEATER 390
HOSES, HYDRAULIC BASKET LIFT 284
HOSES, HYDRAULIC RETURN (SERIAL NO 101-2000) 288
HOSES, HYDRAULIC RETURN (SERIAL NO 2001- )290
HOSES, HYDRAULIC, BASKET COMPACTOR 300
HOSES, LUBRICATION CAB TO UNIT (SERIAL NO 101-2000)482
HOSES, LUBRICATION CAB TO UNIT (SERIAL NO 2001- ) 484
HOSES, RADIATOR58
HOSES, WATER CONTROL (SERIAL NO 101-2000) 502
HOSES, WATER CONTROL (SERIAL NO 2001- )503
HOUSING AND CONNECTORS, STEERING VALVE242
HOUSING, CRANKSHAFT OIL SEAL 43
HOUSING, DRUM SLIP CLUTCH 455
HOUSING, FAN 518
HOUSING, HYDROSTATIC DRIVE PUMP (SUNDSTRAND) 212
HOUSING, HYDROSTATIC DRIVE PUMP (EATON) 196
HOUSING, PICKING UNIT 417
HOUSING, PICKING UNIT UPPER 418
HOUSING, STARTER DRIVE 121
HOUSING, THERMOSTAT, FRONT 63
HOUSING, TURBOCHARGER82
HOUSING, TURBOCHARGER84
HOUSING, TURBOCHARGER CENTER 83
HOUSING, TURBOCHARGER CENTER 85
HOUSING, UPPER DOFFER 466
HOUSING, UPPER DRIVE GEARS452
HUB AND QUILL, DIFFERENTIAL 185
HYDRAULIC ANEROID ACTIVATOR 110
HYDRAULIC CYLINDER, BASKET316
HYDRAULIC CYLINDER, 3-1/2″ X 10″318
HYDRAULIC HOSES, CONVEYOR MOTOR 304
HYDRAULIC HOSES, PRESSURE CONTROL VALVE (SN 101-4000)302
HYDRAULIC HOSES, STABILIZER CYLINDER 292
HYDRAULIC LINE, MAIN PRESSURE (SERIAL NO 4001- )298
HYDRAULIC LINES, MAIN PRESSURE (SERIAL NO 2001-4000) 296
HYDRAULIC MOTOR (CHAR-LYNN) 324
HYDRAULIC MOTOR REPAIR KIT321
HYDRAULIC MOTOR, CONVEYOR (TWR (ROSS GEAR))328
HYDRAULIC MOTOR, CONVEYOR (WHITE) 326
HYDRAULIC OIL RESERVOIR287
HYDRAULIC OIL, AND TRANSMISSION 331
HYDRAULIC PUMP (SERIAL NO 101-2000) 268
HYDRAULIC PUMP (SERIAL NO 2001- ) 272
HYDRAULIC PUMP ASSEMBLY, REPLACEMENT 267
HYDRAULIC PUMP OVERHAUL KIT (138 IN3)270
HYDRAULIC PUMP OVERHAUL KIT (24 IN3) 276
HYDRAULIC PUMP STROKE CONTROL VALVE (SERIAL NO 2001- )274
HYDRAULIC PUMP, DRIVE AND SUPPORTS (SERIAL NO 101-2000) 264
HYDRAULIC PUMP, DRIVE AND SUPPORTS (SERIAL NO 2001- )265
HYDRAULIC RETURN TUBES AND HOSES (SERIAL NO 101-2000) 288
HYDRAULIC RETURN TUBES AND HOSES (SERIAL NO 2001- )290
HYDRAULIC TUBES, BASKET COMPACTOR 300
HYDRAULICS, UNIT LIFT AND HEIGHT SENSING 282
HYDRO DR CENTER SECTION (EATON) 204
HYDRO DR DISPLACEMENT CONTROL VALVE (EATON) 202
HYDRO DR PUMP SERVO PISTON ASSEMBLIES (EATON) 201
HYDRO DRIVE PUMP CYLINDER BLOCK (SUNDSTRAND) 212
HYDRO DRIVE PUMP CYLINDER BLOCK KIT (EATON) 198
HYDRO DRIVE PUMP FRONT COVER (EATON) 195
HYDRO DRIVE PUMP HOUSING KIT (EATON) 198
HYDRO DRIVE PUMP SWASHPLATE (EATON) 199
HYDRO DRIVE PUMP,SWASHPLATE,BEARINGS, AND TRUNNIONS (EATON) 199
HYDRO DRIVE SHAFT KIT (EATON) 198
HYDRODRDISPLACEMENT CONTROL HANDLE (SUNDSTRAND) (SN 2001-6000)220
HYDRODRDISPLACEMENT CONTROL HANDLE (SUNDSTRAND) (SN 6001- ) 224
HYDRODRDISPLACEMENT CTLVALVE GASKET (SUNDSTRAND) (SN 2001-6000) 220
HYDRODRDISPLACEMENT CTLVALVE GASKET (SUNDSTRAND) (SN 6001- ) 224
HYDRODRDISPLACEMENT CTLVALVE ORIFICE (SUNDSTRAND) (SN 2001-6000) 220
HYDRODRDISPLACEMENT CTLVALVE ORIFICE (SUNDSTRAND) (SN 6001- ) 224
HYDRODRPUMP FRONT COVER-BRG-SEAL ASSY (SUNDSTRAND) 211
HYDRODRPUMP FRONT COVER,BRG,SEAL ASSY (EATON) 195
HYDRODRPUMP SWASHPLATE,BRGS,TRUNNIONS (SUNDSTRAND)214
HYDROSTATIC CHARGE PUMP AND BELT231
HYDROSTATIC DRIVE CENTER SECTION (SUNDSTRAND) 225
HYDROSTATIC DRIVE CHARGE PUMP232
HYDROSTATIC DRIVE CHARGE PUMP REPAIR KIT 233
HYDROSTATIC DRIVE DISPLACEMENT VALVE (SN 6001-)222
HYDROSTATIC DRIVE DISPLACEMENT VALVE (SUNDSTRAND) (SN 2001-6000) 218
HYDROSTATIC DRIVE MOTOR (EATON) 208
HYDROSTATIC DRIVE MOTOR (SUNDSTRAND) 226
HYDROSTATIC DRIVE OIL RESERVOIR 234
HYDROSTATIC DRIVE PUMP CYLINDER BLOCK ASSEMBLY (EATON) 196
HYDROSTATIC DRIVE PUMP FRONT COVER (SUNDSTRAND) 211
HYDROSTATIC DRIVE PUMP HOUSING (SUNDSTRAND)212
HYDROSTATIC DRIVE PUMP HOUSING (EATON)196
HYDROSTATIC DRIVE PUMP SERVO ASSEMBLIES (SUNDSTRAND) (SN 101-4000) 216
HYDROSTATIC DRIVE PUMP SERVO ASSEMBLIES (SUNDSTRAND)(SN 4001- ) 217
HYDROSTATIC DRIVE PUMP SWASHPLATE (SUNDSTRAND)214
HYDROSTATIC DRIVE UNIT AND SHEAVE 192
HYDROSTATIC OIL COOLER 235
HYDROSTATIC OIL LINES 236
HYDROSTATIC PUMP DRIVE AND SUPPORTS228
HYDROSTATIC SAFETY SWITCH 134
HYDROSTATIC SPEED RANGE LEVER (SERIAL NO 101-2000) 193
HYDROSTATIC SPEED RANGE LEVER (SERIAL NO 2001-) 194
I7
IDLER CLUTCH SWITCH 160
IDLER GEARS, DRUM SLIP CLUTCH455
IDLER, COTTON FAN (SN 101-4000) 524
IDLER, COTTON FAN (SN 4001- ) 526
IGNITION SWITCH 117
INJECTION PUMP ACCESS COVER44
INNER HEIGHT SENSING LINKAGE 436
INNER ROOF 384
INNER ROOF AND COVERS 384
INPUT SHAFT178
INSIDE CAB MIRROR394
INTAKE MANIFOLD76
INTAKE MANIFOLD78
INTAKE MANIFOLD GASKETS 78
INTAKE VALVES 20
K7
KIT, AM RADIO (TY15278)144
KIT, AM-FM STEREO RADIO (TY15279) 144
KIT, CIRCUIT BREAKER SUPPORT 137
KIT, COMPRESSOR HARDWARE (NIPPONDENSO)401
KIT, COMPRESSOR SEAL398
KIT, CONTROL VALVE SEAL REPAIR 280
KIT, ELECTRICAL CONNECTOR SERVICE 166
KIT, ETHER STARTING TUBE87
KIT, ETHER STARTING TUBE89
KIT, HYDRAULIC MOTOR SEAL 325
KIT, HYDRAULIC PUMP OVERHAUL (138 IN3) 270
KIT, HYDRAULIC PUMP OVERHAUL (24 IN3)276
KIT, HYDRO DRIVE PUMP CYLINDER BLOCK (EATON) 198
KIT, HYDRO DRIVE PUMP HOUSING (EATON)198
KIT, HYDRO DRIVE PUMP SHAFT (EATON) 198
KIT, LUBRICATOR DRIVE 491
KIT, REPAIR HYDROSTATIC CHARGE PUMP233
KIT, REPAIR, COMPACTOR HYDRAULIC MOTOR (WHITE)323
KIT, REPAIR, COMPACTOR/CONVEYOR VALVE 315
KIT, REPAIR, HYDRAULIC MOTOR 321
KIT, REPAIR, UNIT LIFT CYLINDER 317
KIT, REPAIR, 3-1/2″ X 10″ CYLINDER AXLE STABILIZER CYLINDER 319
KIT, SPEAKER 145
KIT, STROKE CONTROL VALVE SHUT-OFF (SERIAL NO 2001- ) 274
KIT, TERMINAL AND WIRING 164
KNEE, REAR AXLE 348
KNUCKLE, REAR AXLE 348
L7
LADDER (WATER TANK) 362
LAMP, FRONT WARNING 139
LAMP, HEAD 138
LAMP, REAR WARNING 140
LAMP, TAIL 140
LAMPS, INDICATOR AND GAUGES 118
LATCH, DOOR378
LEFT-HAND ANTENNA BRACKET KIT147
LEVER, BASKET CONTROL 530
LEVER, FAN 528
LEVER, HYDROSTATIC SPEED LEVER (SERAIL NO 101-2000)193
LEVER, HYDROSTATIC SPEED LEVER (SERAIL NO 2001-)194
LEVER, LUBRICATION CAB TO UNIT (SERIAL NO 101-2000)482
LEVER, LUBRICATION CAB TO UNIT (SERIAL NO 2001- ) 484
LEVER, MAIN SHIFT172
LEVER, PARK LOCK 172
LEVER, UNIT SHIFT174
LEVERS, UNIT LIFT408
LID FOR BASKET COMPLETE529
LID, BASKET, REAR FRAME542
LIFT LEVERS, UNIT 408
LIFT STRAPS 23
LIFTERS, STALK434
LIGHT SWITCH 117
LIGHT, DOME (ROCKER TYPE) 143
LIGHT, FIELD 154
LINE, HYDRAULIC UNIT LIFT282
LINE, HYDRAULIC, HEIGHT SENSING 282
LINERS, CYLINDER 36
LINES, AIR CONDITIONING (CAB ROOF) 392
LINES, FUEL CONTROL 102
LINES, FUEL INJECTION 100
LINES, FUEL INJECTION PUMP LUBE 102
LINES, HYDRAULIC BASKET LIFT 284
LINES, HYDROSTATIC OIL 236
LINES, PRESSURE, WATER 506
LINES, STEERING 246
LINES, TURBOCHARGER OIL 80
LINES, WATER, FOOT FLUSH 504
LINKAGE AND SPROCKET, DOFFER DRIVE TIGHT 471
LINKAGE, BASKET CONTROL LEVER530
LINKAGE, BASKET LID 543
LINKAGE, COTTON FAN (SN 101-4000)524
LINKAGE, COTTON FAN (SN 4001- ) 526
LINKAGE, FAN 528
LINKAGE, INNER HEIGHT SENSING436
LINKAGE, MAIN SHIFT 172
LINKAGE, OUTER HEIGHT SENSING438
LINKAGE, UNIT LIFT 409
LINKAGE, UNIT LIFT CONTROL VALVE (SERIAL NO 101-2000) 410
LINKAGE, UNIT LIFT CONTROL VALVE (SERIAL NO 2001-4000)412
LINKAGE, UNIT LIFT CONTROL VALVE (SERIAL NO 4001- )414
LINKAGE, UNIT SHIFT 174
LOCK, PARK, TRANSMISSION 175
LUBE LINES, FUEL INJECTION PUMP 102
LUBE LINES, PICKER BAR DRUM 433
LUBRICANT, CYLINDER LINER PACKING55
LUBRICANT, ENGINE VALVE STEM 55
LUBRICATION DIVERTER VALVE (SN 101-4000) 306
LUBRICATION DIVERTER VALVE (SN 4001- )307
LUBRICATION FILL AND PRESSURE FITTINGS480
LUBRICATION PANEL473
LUBRICATION PUMP AND CLUTCH 476
LUBRICATION PUMP CLUTCH479
LUBRICATION SYSTEM WIRING 149
LUBRICATION TANK AND WRAPPER 474
LUBRICATION TRANSFER PUMP 492
LUBRICATION, CAB TO UNIT (SERIAL NO 101-2000)482
LUBRICATION, CAB TO UNIT (SERIAL NO 2001- ) 484
LUBRICATION, PICKER BAR MANIFOLD489
LUBRICATION, RESERVE PANEL490
LUBRICATION, UPPER UNIT MANIFOLD486
LUBRICATOR DRIVE POWER KIT491
M7
MAGNETIC PICK-UP 45
MAGNETIC PICK-UP HARNESS45
MAIN BEARINGS 41
MAIN FRAME 332
MAIN FRAME, STARTER 123
MAIN HYDRAULIC PRESSURE LINES (SERIAL NO 2001-4000)296
MAIN HYDRAULIC PRESSURE LINES (SERIAL NO 4001- )298
MAIN HYDRAULIC PRESSURE TUBES (SERIAL NO 101-2000) 294
MAIN SHIFT LEVER AND LINKAGE 172
MAIN WHEEL 346
MANIFOLD, EXHAUST 90
MANIFOLD, INTAKE 76
MANIFOLD, INTAKE 78
MANIFOLD, LUBRICATION, UPPER UNIT 486
MANIFOLD, PICKER BAR LUBRICATION489
MANIFOLD, WATER OUTLET 62
MANIFOLD, WATER, FRONT 63
MAT 381
METERING BAR AND DRIVE 558
METERING DRIVE CHAIN COVER561
METERING VALVE, STEERING 241
MIRROR, INSIDE CAB 394
MIRROR, REAR VIEW395
MOISTENER COLUMN 508
MOISTENER PAD 508
MONITOR DISPLAY 155
MONITOR SUPPORT PANEL (SN 101-4000) 355
MONITOR SUPPORT PANEL (SN 4001- )356
MONITOR WIRING HARNESS 156
MOTOR DRIVE, BASKET COMPACTOR547
MOTOR, CONVEYOR 562
MOTOR, HYDRAULIC (CHAR-LYNN) 324
MOTOR, HYDRAULIC, COMPACTOR (CHAR-LYNN) 320
MOTOR, HYDRAULIC, COMPACTOR (WHITE)322
MOTOR, HYDRAULIC, CONVEYOR (TWR (ROSS GEAR)) 328
MOTOR, HYDRAULIC, CONVEYOR (WHITE) 326
MOTOR, HYDROSTATIC DRIVE (EATON)208
MOTOR, HYDROSTATIC DRIVE (SUNDSTRAND) 226
MOTOR, STARTING 120
MOTOR, STEERING 244
MOTOR, WINDSHIELD WIPER393
MUD SCRAPERS 343
MUFFLER AND EXHAUST PIPE91
N7
NOZZLE, AIR512
NOZZLE, FUEL INJECTION 99
NOZZLE, FUEL INJECTION 100
NOZZLE, MOISTENER508
O7
OIL COOLER BYPASS VALVE 48
OIL COOLER, ENGINE50
OIL COOLER, ENGINE51
OIL FILTER, ENGINE49
OIL LINES, TURBOCHARGER 80
OIL PAN 34
OIL PAN GASKET 34
OIL PUMP DRIVE GEAR 39
OIL PUMP, ENGINE 46
OIL RESERVOIR, HYDROSTATIC234
OIL SEAL, CRANKSHAFT 43
OIL SEAL, CRANKSHAFT FRONT44
OIL, ENGINE 54
OIL, TRANSMISSION AND HYDRAULIC 331
OPERATOR PRESENCE INSPECTION BYPASS403
OPERATOR PRESENCE WIRING HARNESS AND MODULE152
ORIFICE,HYDRODRDISPLACEMENT CTLVALVE (SUNDSTRAND) (SN 2001-6000) 220
ORIFICE,HYDRODRDISPLACEMENT CTLVALVE (SUNSSTRAND) (SN 6001- ) 224
OUTER HEIGHT SENSING LINKAGE 438
OUTER SIDE SWING DOOR 432
OVERFLOW TANK, RADIATOR 58
OVERHAUL KIT, HYDRAULIC PUMP (138 IN3) 270
OVERHAUL KIT, HYDRAULIC PUMP (24 IN3)276
P7
PAD, MOISTENER508
PAN, OIL 34
PANEL, AIR CONDITIONER 388
PANEL, MONITOR AIR SWITCH 158
PANELS AND SIDE SHEETS 426
PANELS AND SIDE SHEETS 428
PANELS, RH CAB 376
PARK LOCK, TRANSMISSION175
PEDALS, BRAKE 255
PICK-UP, MAGNETIC 45
PICKER BAR 462
PICKER BAR DRIVE SHAFT 460
PICKER BAR DRUM LUBE LINES433
PICKER BAR DRUM, STUD AND BEARING 464
PICKER BAR HEAD, CAM AND CAP (SERIAL NO 101-2000) 456
PICKER BAR HEAD, CAM AND CAP (SERIAL NO 2001- ) 458
PICKER BAR LUBRICATION MANIFOLD 489
PICKING UNIT COMPLETE 417
PICKING UNIT DECAL SET 573
PICKING UNIT HOUSING417
PICKING UNIT REAR POSTS AND BAFFLES422
PICKING UNIT UPPER HOUSING418
PIPE, EXHAUST 91
PIPES, FUEL 94
PIPES, FUEL FILTER97
PISTON ASSEMBLIES, HYDRO DR PUMP SERVO (EATON) 201
PISTON RINGS36
PISTON, ENGINE 36
PISTON, SERVO, HYDROSTATIC DRIVE PUMP (SUNDSTRAND)(SN 101-4000) 216
PISTON, SERVO, HYDROSTATIC DRIVE PUMP (SUNDSTRAND)(SN 4001- ) 217
PIVOT, ROCKSHAFT, FOR CONVEYOR 564
PLANETARY AND AXLE, DIFFERENTIAL188
PLANT SHIELDS 353
PLATE AND FACING, BRAKE262
PLATES, PRESSURE, FRONT DRUM 430
PLATES, PRESSURE, REAR DRUM 431
PLATFORM FLOOR AND SKIRTS 360
PLATFORM FRAME358
POST, “JET AIR” 428
POST, STEERING239
POSTS, REAR, PICKING UNIT 422
PRE SCREENER74
PRESSURE CONTROL VALVE (SN 101-4000) 302
PRESSURE PLATE, REAR DRUM 431
PRESSURE PLATES, FRONT DRUM 430
PRESSURE SWITCH, COTTON FAN 158
PRESSURE WATER LINES AND FITTINGS 506
PRESSURIZER BLOWER 386
PULLEY FAN DRIVE 60
PULLEY, COMPRESSOR (NIPPONDENSO)400
PULLEY, COMPRESSOR DRIVE40
PULLEY, CRANKSHAFT40
PUMP ASSEMBLY, HYDRAULIC, REPLACEMENT 267
PUMP HOUSING CONNECTORS, FUEL INJECTION 106
PUMP, CHARGE, HYDROSTATIC 231
PUMP, CHARGE, HYDROSTATIC DRIVE 232
PUMP, ENGINE OIL 46
PUMP, FUEL TRANSFER 112
PUMP, FUEL TRANSFER 113
PUMP, HYDRAULIC (SERIAL NO 101-2000) 264
PUMP, HYDRAULIC (SERIAL NO 101-2000) 268
PUMP, HYDRAULIC (SERIAL NO 2001- ) 265
PUMP, HYDRAULIC (SERIAL NO 2001- )272
PUMP, LUBRICATION476
PUMP, LUBRICATION TRANSFER492
PUMP, WATER 64
PUMP, WATER499
PUSH RODS24
Q7
QUILL AND HUB, DIFFERENTIAL 185
QUILLS, DIFFERENTIAL BEARING 184
R7
RH CAB PANELS AND WINDOW HINGE376
RADIATOR AND HOSES58
RADIATOR SUPPORTS AND SIDE SCREENS 338
REAR AXLE, ADJUSTABLE TREAD 347
REAR DRUM PRESSURE PLATES 431
REAR HOOD 340
REAR UNIT SIDE SHEETS AND FRONT HOOD 426
REAR WARNING LAMP AND TAIL LAMP 140
REAR WHEEL 352
RELAYS AND CIRCUIT BREAKERS 134
RELAYS, FIELD LIGHT 150
RELIEF VALVE, HIGH PRESSURE (EATON)205
REPAIR KIT, BRAKE VALVE258
REPAIR KIT, COMPACTOR HYDRAULIC MOTOR (WHITE) 323
REPAIR KIT, COMPACTOR/CONVEYOR VALVE 315
REPAIR KIT, CONTROL VALVE SEAL 280
REPAIR KIT, CONVEYOR HYDRAULIC MOTOR (TWR (ROSS GEAR)) 329
REPAIR KIT, CONVEYOR HYDRAULIC MOTOR (WHITE) 327
REPAIR KIT, HYDRAULIC MOTOR 321
REPAIR KIT, HYDROSTATIC CHARGE PUMP233
REPAIR KIT, UNIT LIFT CYLINDER 317
REPAIR KIT, WATER PUMP 66
REPAIR KIT, 3-1/2″ X 10″ CYLINDER AXLE STABILIZER CYLINDER319
REPLACEMENT HYDRAULIC PUMP ASSEMBLY267
RESERVE LUBRICATION PANEL 490
RESERVOIR, HYDRAULIC OIL 287
RESERVOIR, HYDROSTATIC OIL 234
RINGS, PISTON 36
ROCKER ARM COVER 19
ROCKER ARM COVER GASKET 19
ROCKER ARM SHAFT 24
ROCKER ARMS 24
ROCKSHAFT 405
ROCKSHAFT PIVOT LUBRICATION LINES 538
ROCKSHAFT, FOR CONVEYOR564
ROCKSHAFT, STABILIZER 406
ROCKSHAFT, STANDARD BASKET, LH SIDE 536
RODS, CONNECTING 36
RODS, PUSH 24
RODS, STALKLIFTER441
ROOF, CAB 382
ROOF, INNER384
ROTOR, COTTON FAN (SN 101-4000) 520
ROTOR, COTTON FAN (SN 4001- )522
ROW ADJUSTMENT SCREW428
RUBBER FLAP, 12″ EXTENSION WITH CONVEYOR 556
RUBBER FLAP, 24″ EXTENSION WITH CONVEYOR 557
S7
SADDLE, WATER TANK 496
SAFETY STOP, UNIT LIFT 405
SCRAPERS, MUD 343
SCREENS, BASKET LID 539
SCREENS, BASKET RH SIDE AND ENDS 534
SCREENS, SIDE AND REAR 338
SCREENS, SIDE, ENGINE HOOD336
SEAL KIT, COMPRESSOR398
SEAL KIT, HYDRAULIC MOTOR 325
SEAL REPAIR KIT, CONTROL VALVE 280
SEAL, CRANKSHAFT OIL 43
SEAT ADJUSTMENT AND COVER 370
SEAT ARMREST LINKS (PERSONAL- POSTURE ™ SEAT)366
SEAT BACKREST SUPPORT (PERSONAL-POSTURE ™ SEAT) 368
SEAT BELT (FOR FABRIC SEAT) 364
SEAT CUSHIONS (FABRIC) 364
SEAT SUSPENSION 372
SEAT SUSPENSION SUPPORT369
SECTION, CENTER, HYDROSTATIC DRIVE (EATON) 204
SENDER, FUEL92
SENSOR, AIR DUCT 158
SEPARATOR, WATER 98
SERVICE KIT, ELECTRICAL CONNECTOR 166
SERVO PISTON ASSEMBLIES, HYDRO DR PUMP (EATON) 201
SERVO PISTON, HYDROSTATIC DRIVE PUMP (SUNDSTRAND)(SN 101-4000)216
SERVO PISTON, HYDROSTATIC DRIVE PUMP (SUNDSTRAND)(SN 4001- ) 217
SET, COMPRESSOR HARDWARE (NIPPONDENSO)401
SHAFT, COTTON FAN (SN 101-4000) 520
SHAFT, COTTON FAN (SN 4001- )522
SHAFT, PICKER BAR460
SHAFT, ROCKER ARM 24
SHEAVE, COTTON FAN (SN 101-4000) 520
SHEAVE, COTTON FAN (SN 4001- )522
SHEAVE, HYDROSTATIC DRIVE 192
SHEAVES, COUNTERSHAFT, UNIT DRIVE 442
SHELL, PICKING UNIT 417
SHIELD, CHAIN, METERING DIRVE561
SHIELD, CROSS SHAFT (SERIAL NO 101-2000) 450
SHIELD, CROSS SHAFT (SERIAL NO 2001- ) 451
SHIELDS, PLANT353
SHIELDS, REAR AXLE 350
SHIFTER, CAM, TRANSMISSION176
SHOE, INNER HEIGHT SENSING436
SHOE, OUTER HEIGHT SENSING438
SHORT BLOCK, ENGINE 30
SHUT-OFF BRACKET, FUEL 104
SIDE SHEETS AND PANELS 428
SKIRTS, PLATFORM 360
SLEEVE JOURNAL, PICKER BAR462
SLEEVE JOURNAL, PICKER BAR (SERIAL NO 101-2000) 456
SLIP CLUTCH, DRUM455
SLOPE SHEET, LOWER, CONVEYOR BASKET568
SLOPE SHEET, STANDARD BASKET 536
SLOPE SHEET, UPPER, CONVEYOR BASKET570
SOLENOID SWITCH COVER, STARTER 124
SOLENOID SWITCH, STARTER 124
SOUND-GARD CAB374
SPACER, ENGINE FAN61
SPEAKER KIT145
SPINDLE MOISTENER508
SPINDLES, PICKER 462
SPIRAL BEVEL GEAR, DIFFERENTIAL HOUSING 190
SPROCKET AND LINKAGE, DOFFER DRIVE TIGHT 471
SPROCKETS, UPPER DOFFER466
SPROCKETS, UPPER HOUSING 452
STABILIZER CYLINDER COVER 344
STABILIZER CYLINDER HYDRAULIC HOSES292
STABILIZER ROCKSHAFT AND TUBES 406
STABILIZER VALVE 311
STALK LIFTERS 434
STALKLIFTER RODS 441
STANDARD BASKET, LH SIDE536
STARTER ARMATURE 121
STARTER COIL 123
STARTER COMMUTATOR END FRAME 122
STARTER DRIVE HOUSING 121
STARTER GEAR37
STARTER MAIN FRAME 123
STARTER SOLENOID SWITCH124
STARTER SOLENOID SWITCH COVER124
STARTING AID TUBE KIT87
STARTING AID TUBE KIT89
STARTING FLUID TUBE KIT 87
STARTING FLUID TUBE KIT 89
STARTING MOTOR120
STEERING LINE (SERIAL NO 2001-4000) 250
STEERING LINE (SERIAL NO 4001- ) 252
STEERING LINES246
STEERING LINES (SERIAL NO 101-2000) 248
STEERING METERING VALVE241
STEERING MOTOR244
STEERING POST AND SUPPORT 239
STEERING VALVE242
STEERING, TELESCOPING 240
STOP VALVE, BASKET 284
STOP, SAFETY, UNIT LIFT405
STRAPS, LIFT 23
STROKE CONTROL VALVE SHUT-OFF KIT (SERIAL NO 2001- ) 274
STROKE CONTROL VALVE, HYDRAULIC PUMP (SERIAL NO 2001- ) 274
STUD, PICKER BAR 464
SUN GEAR, UPPER HOUSING452
SUPPLEMENTARY TERMINALS AND CONNECTORS163
SUPPORT, BASKET 532
SUPPORT, FOOT FLUSH VALVE 504
SUPPORT, SEAT BACKREST (PERSONAL-POSTURE ™ SEAT)368
SUPPORT, SEAT SUSPENSION 369
SUPPORT, STEERING POST 239
SUPPORTS, DUCT516
SUPPORTS, HYDROSTATIC OIL COOLER235
SUPPORTS, HYDROSTATIC PUMP228
SUPPORTS, RADIATOR 338
SUPPORTS, SIDE, ENGINE HOOD 336
SWASHPLATE, HYDRO DRIVE PUMP (EATON) 199
SWASHPLATE, HYDROSTATIC DRIVE PUMP (SUNDSTRAND) 214
SWITCH COVER, STARTER SOLENOID 124
SWITCH, AIR MONITOR 158
SWITCH, DIMMER141
SWITCH, HYDROSTATIC SAFETY134
SWITCH, IDLER CLUTCH160
SWITCH, STARTER SOLENOID 124
SWITCH, THERMAL 287
SWITCH, UNIT LIFT119
SWITCHES, AIR CONDITIONER 388
SWITCHES, CONSOLE117
T7
TACH DRIVE GEAR COVER26
TACHOMETER 27
TANK, FUEL 92
TANK, LUBRICATION474
TANK, OVERFLOW, RADIATOR58
TANK, WATER496
TELESCOPING STEERING240
TEMPERATURE SENDER, COOLANT22
TERMINAL AND WIRING KIT164
TERMINALS AND CONNECTORS 163
TERMINALS, ELECTRICAL, WEATHERPACK 170
TETHER, OPERATOR PRESENCE BYPASS403
THERMOSTAT HOUSING, FRONT 63
THERMOSTATS 62
THROTTLE LEVER114
TIE RODS, REAR AXLE 350
TIGHTENER, DOFFER DRIVE471
TIMING GEAR COVER 44
TOP PLATE, PICKING UNIT HOUSING 418
TRANSFER PUMP, FUEL 112
TRANSFER PUMP, FUEL 113
TRANSFER PUMP, LUBRICATION492
TRANSMISSION AND HYDRAULIC OIL 331
TRANSMISSION CASE, SHIFTER CAM AND FORKS 176
TRANSMISSION COUNTERSHAFT 180
TRANSMISSION INPUT SHAFT 178
TRANSMISSION PARK LOCK 175
TRANSMISSION UNIT DRIVE SHAFT178
TRUNNIONS, HYDRO DRIVE PUMP (EATON) 199
TRUNNIONS,BRGS,HYDRODRPUMP SWASHPLATE (SUNDSTRAND)214
TUBE STEERING PRESSURE (SERIAL NO 2001-4000) 250
TUBE STEERING PRESSURE (SERIAL NO 4001- ) 252
TUBE, BRAKE PRESSURE (SERIAL NO 101-2000) 248
TUBE, BRAKE PRESSURE (SERIAL NO 2001-4000)250
TUBE, BRAKE PRESSURE (SERIAL NO 4001- )252
TUBE, ENGINE OIL DIPSTICK 33
TUBE, LID LIFT543
TUBE, STEERING PRESSURE (SERIAL NO 101-2000) 248
TUBE, VENTILATOR 19
TUBES, AIR INTAKE 74
TUBES, BASKET COMPACTOR300
TUBES, HYDRAULIC RETURN (SERIAL NO 101-2000) 288
TUBES, HYDRAULIC RETURN (SERIAL NO 2001- )290
TUBES, MAIN HYDRAULIC PRESSURE (SERIAL NO 101-2000)294
TURBOCHARGER82
TURBOCHARGER84
TURBOCHARGER CENTER HOUSING83
TURBOCHARGER CENTER HOUSING85
TURBOCHARGER HOUSING 82
TURBOCHARGER HOUSING 84
TURBOCHARGER OIL LINES 80
TURN SIGNAL CONTROLS142
U7
UNIT DRIVE COUNTERSHAFT AND SLIP CLUTCH 442
UNIT DRIVE GEAR CASE, INNER 444
UNIT DRIVE GEAR CASE, OUTER 446
UNIT DRIVE SHAFT 178
UNIT DRIVE UNIVERSAL JOINT (SN 101-4000) 448
UNIT DRIVE UNIVERSAL JOINT (SN 4001-) 449
UNIT LIFT BRACKETS 405
UNIT LIFT CONTROL VALVE LINKAGE (SERIAL NO 101-2000) 410
UNIT LIFT CONTROL VALVE LINKAGE (SERIAL NO 2001-4000) 412
UNIT LIFT CONTROL VALVE LINKAGE (SERIAL NO 4001- ) 414
UNIT LIFT CYLINDER 317
UNIT LIFT HYDRAULICS282
UNIT LIFT LEVERS 408
UNIT LIFT LINKAGE409
UNIT LIFT SWITCH 119
UNIT SHIFT LEVER AND LINKAGE 174
UNIVERSAL JOINT, UNIT DRIVE (SN 101-4000)448
UNIVERSAL JOINT, UNIT DRIVE (SN 4001 – )449
UPHOLSTERY, CAB REAR380
UPPER DOFFER ADJUSTING HOUSING AND SPROCKETS 466
UPPER UNIT LUBRICATION MANIFOLD 486
V7
VALVE BLOCK, CHARGE PRESSURE RELIEF (EATON)207
VALVE MOUNTING BRACKETS, HEIGHT SENSING 440
VALVE STEM LUBRICANT, ENGINE 55
VALVE, BASKET STOP 284
VALVE, BRAKE 256
VALVE, BRAKE, REPAIR KIT 258
VALVE, COMPACTOR/CONVEYOR CONTROL 312
VALVE, CONTROL278
VALVE, CONTROL, HYDROSTATIC (SN 6001-)222
VALVE, CONTROL, HYDROSTATIC (SUNDSTRAND) (SN 2001-6000) 218
VALVE, FOOT FLUSH504
VALVE, FUEL CHECK 94
VALVE, FUEL CHECK 97
VALVE, HEATER CONTROL 390
VALVE, HEIGHT SENSING (SERIAL NO 101-2000)308
VALVE, HEIGHT SENSING (SERIAL NO 2001-4000) 309
VALVE, HEIGHT SENSING (SERIAL NO 4001- ) 310
VALVE, HIGH PRESSURE RELIEF (EATON)205
VALVE, HYDRO DR DISPLACEMENT CONTROL (EATON)202
VALVE, LUBRICATION CAB TO UNIT (SERIAL NO 101-2000)482
VALVE, LUBRICATION CAB TO UNIT (SERIAL NO 2001- ) 484
VALVE, LUBRICATION DIVERTER (SN 101-4000)306
VALVE, LUBRICATION DIVERTER (SN 4001- ) 307
VALVE, METERING, STEERING 241
VALVE, OIL COOLER BYPASS48
VALVE, PRESSURE CONTROL (SN 101-4000) 302
VALVE, STABILIZER311
VALVE, STEERING 242
VALVE, WATER 494
VALVES, EXHAUST20
VALVES, INTAKE 20
VENTILATOR TUBE19
VOLTAGE REGULATOR (90-AMP) (SERIAL NO 101-2000) 130
VOLTAGE REGULATOR (90-AMP) (SERIAL NO 2001- )132
W7
WARNING LAMP, FRONT 139
WARNING LAMP, REAR 140
WATER CONTROL HOSES AND FITTINGS (SERIAL NO 101-2000) 502
WATER CONTROL HOSES AND FITTINGS (SERIAL NO 2001- )503
WATER FILTER 500
WATER LINES, PRESSURE 506
WATER MANIFOLD GASKET63
WATER MANIFOLD, FRONT63
WATER OUTLET MANIFOLD62
WATER PUMP 64
WATER PUMP 499
WATER PUMP FITTINGS AND SUPPORTS498
WATER PUMP REPAIR KIT66
WATER SEPARATOR98
WATER TANK AND WRAPPER 496
WATER VALVE494
WEATHERPACK CONNECTORS 170
WEATHERPACK TERMINALS 170
WHEEL, MAIN346
WHEEL, REAR352
WINDOW HINGE 376
WINDOWS, CAB 375
WINDSHIELD WIPER 393
WINDSHIELD WIPER BLADE 393
WINDSHIELD WIPER MOTOR 393
WIRING HARNESS148
WIRING HARNESS, AIR SWITCH158
WIRING HARNESS, LUBRICATION SYSTEM 149
WIRING HARNESS, MONITOR156
WIRING HARNESS, OPERATOR PRESENCE 152
WIRING HARNESS, OPERATOR PRESENCE BYPASS 403
WIRING, CAB150
WRAPPER, LUBRICATION TANK 474
WRAPPER, WATER TANK 496
WRENCH, PICKER BAR SPINDLE462

IMAGES PREVIEW OF THE MANUAL:

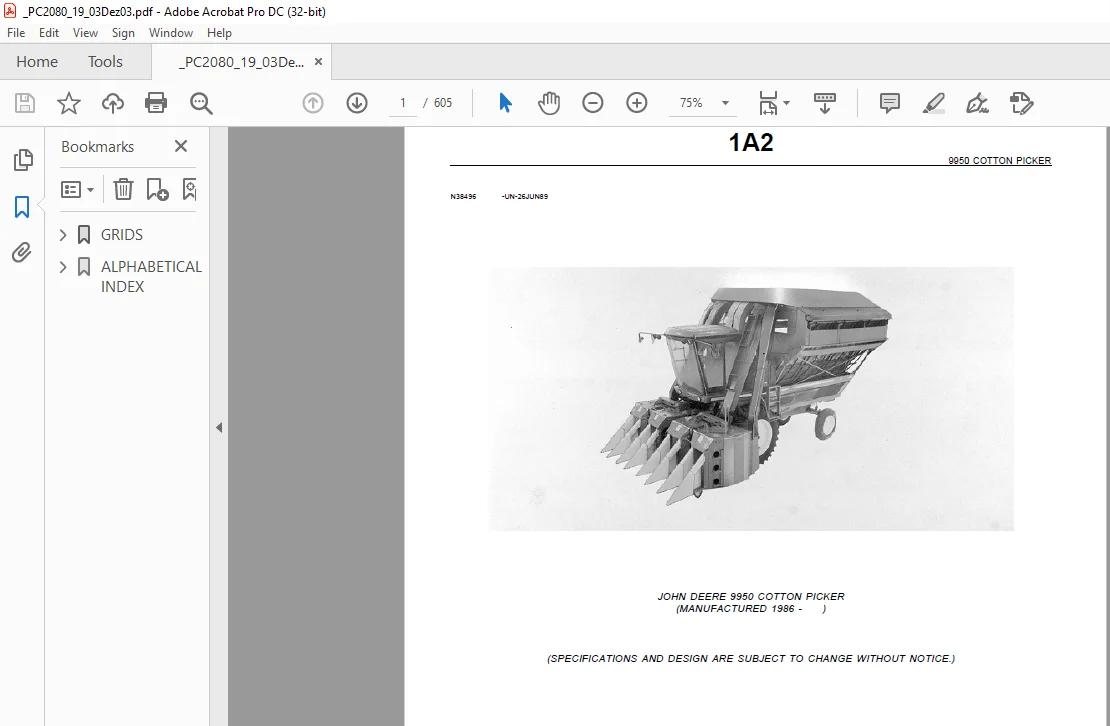

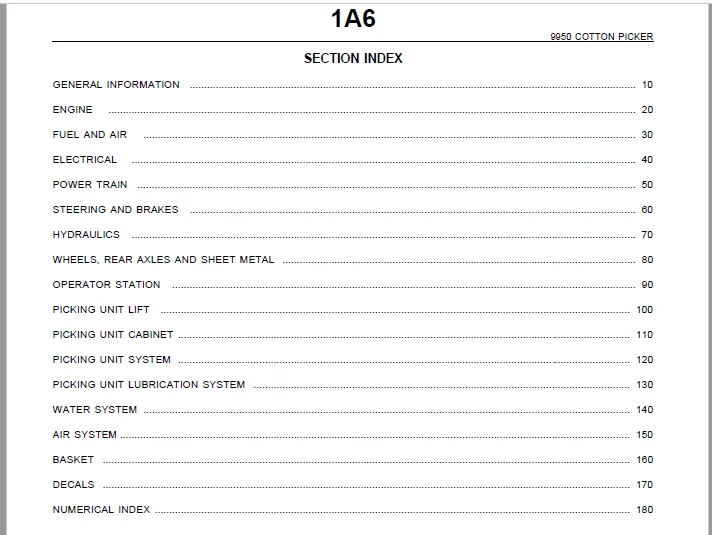

JOHN DEERE 9950 COTTON PICKER PARTS CATALOG MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
