John Deere Barber-Greene BG-260B Asphalt Paver Parts Manual 370134860 – PDF DOWNLOAD

Description

John Deere Barber-Greene BG-260B Asphalt Paver Parts Manual 370134860 – PDF DOWNLOAD

DESCRIPTION:

John Deere Barber-Greene BG-260B Asphalt Paver Parts Manual 370134860 – PDF DOWNLOAD

HOW TO ORDER PARTS :
To Insure Accuracy and Promptness in Filling Your Order, the Following Must Be Given:
1. Your order number
2. Type and model number of machine for which Parts are being ordered
(If ordering for more than one machine, group the Parts for each machine and give the corresponding
machine serial number.)
3. YOUR MACHINE SERIAL NUMBER (See illustration below)
4. Part Numbers
5. Description of Parts
6. Quantity of each item needed
7. Name of sub-assembly where part is to be used (For example:
Part of main transmission)
8. State whether to ship by freight, truck, UPS, parcel post, or air
9. Name and address of person or company to whom Parts are to be shipped
1 O. Name and address of person or company to whom invoice Is to be sent
11. Shipments are collect unless otherwise specified.

TABLE OF CONTENTS:

John Deere Barber-Greene BG-260B Asphalt Paver Parts Manual 370134860 – PDF DOWNLOAD

116-1887 1 6AA ENGINE ARRANGEMENT
122-7056 1 6AB ENGINE ARRANGEMENT
BD-876-53008 1 11 ENGINE COVER (GMC ENGINE)
AE-876-53008 1 10 ENGINE COVER (J.D. ENGINE)
AE 1-876-53008 1 10A ENGINE COVER (J.D. ENGINE)
AE2-876-5300B 1 108 ENGINE COVER (J.D. ENGINE)
BA 1-876-54758 1 14 FUEL TANK
BA2-876-54 758 1 15 FUEL TANK
BC 1-876-54208 1 7 POWER UNIT (GMC)
BD-876-54208 1 1 POWER UNIT (JOHN DEERE)
BB 1-876-54208 1 4 POWER UNIT (JOHN DEERE)
883-876-54208 1 6A POWER UNIT (JOHN DEERE)

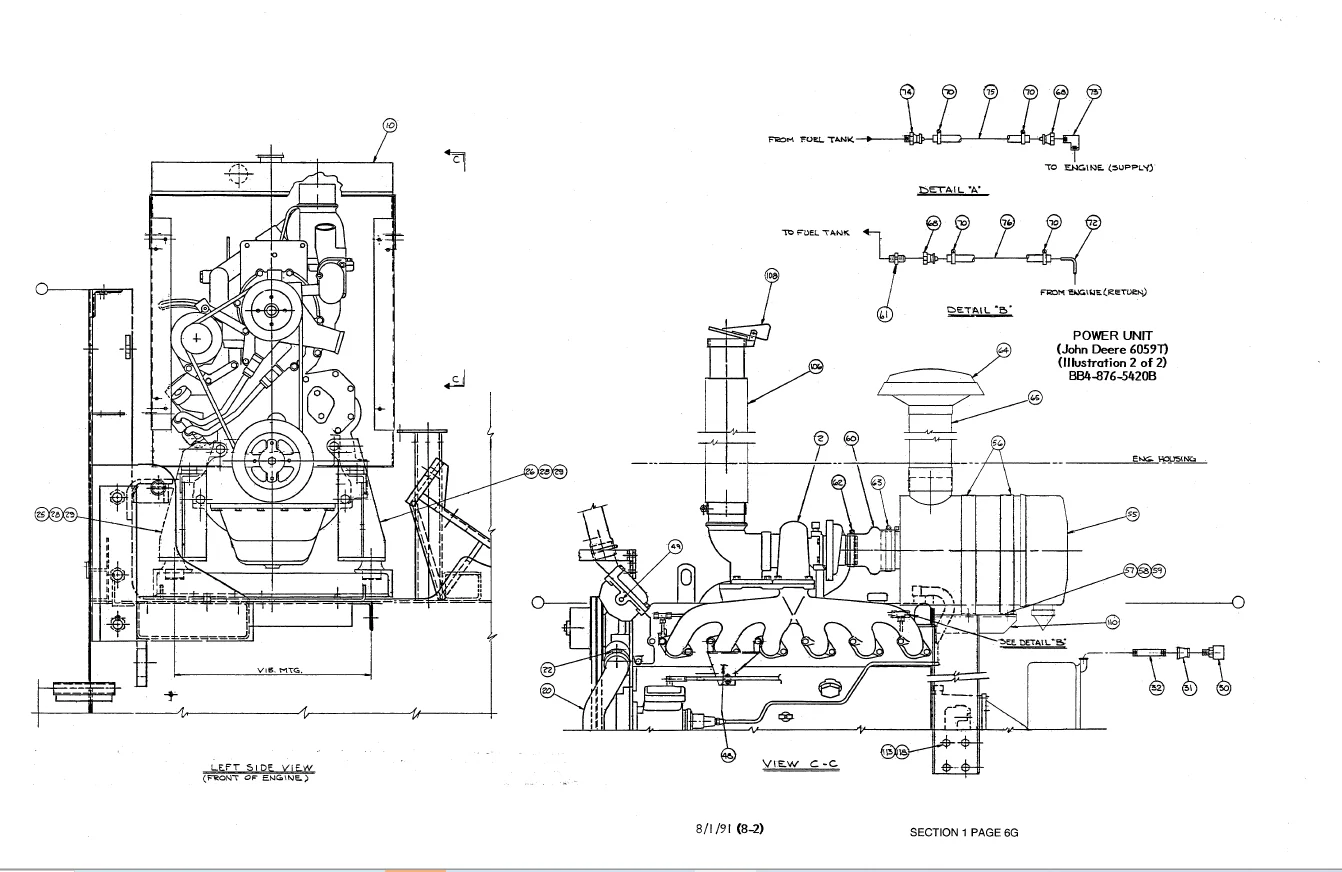

884-876-54208 1 6F POWER UNIT (JOHN DEERE)

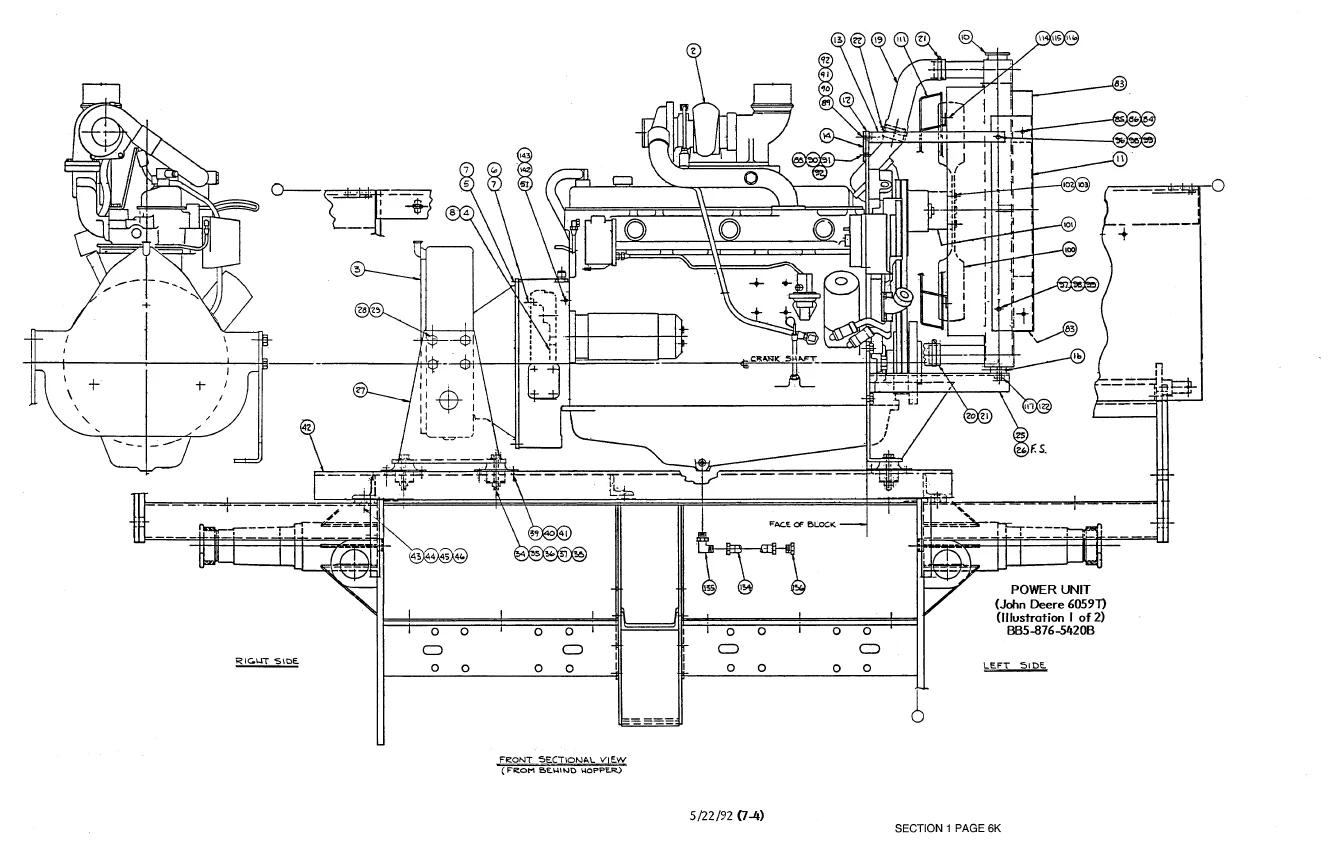

885-876-54208 1 6K POWER UNIT (JOHN DEERE)
886-876-54208 1 6P POWER UNIT (JOHN DEERE)
887-876-54208 1 6U POWER UNIT (JOHN DEERE)
FA-876-54208 1 6AC POWER UNIT CAT 3116T
FA 1-876-54208 1 6AI POWER UNIT CAT 3116T
FA2-876-5420B 1 6AO POWER UNIT CAT 3116T
BA 1-876-54258 1 12 THROTTLE CONTROL
SECTION 2 WHEEL DRIVE & BOGIE WHEELS
BB-876-5435B 2 14 BOGIE FRAME, REAR BOGIE WHEELS
& STEERING COMP
CB-876-5435B 2 16 BOGIE FRAME, REAR BOGIE WHEELS
& STEERING COMP
BA-876-5435B 2 5 BOGIE FRAME, WHEEL & STEER LINK
CC2-876-5435B 2 33 BOGIE-FORWARD
116-1885 2 3 CARRIAGE GROUP
A 1-53-2830A 2 39 DRIVE AXLE ASSEMBLY
BA4-876-5430B 2 37 DRIVE AXLE ASSEMBLY & SPROCKET
BA5-876-5430B 2 38 DRIVE AXLE ASSEMBLY & SPROCKET
104-2719 2 4 DRIVE GROUP-FRONT WHEEL
BC-876-5435B 2 18 FRONT WHEEL DRIVE PACKAGE
BC 1-876-54358 2 24 FRONT WHEEL DRIVE PACKAGE
CC1-876-5435B 2 29 FRONT WHEEL DRIVE PACKAGE
BA 1-876-5435B 2 8 FRONT BOGIE WHEEL & STEER LINK
BA2-876-5435B 2 10 FRONT BOGIE WHEEL & STEER LINK
CA-876-5435B 2 12 FRONT BOGIE WHEEL & STEER LINK
13X80 2 46 HUB GROUP
BG-2608 PAGE 4
TABLE OF CONTENTS
BILL OF MATERIAL SECTION PAGE DESCRIPTION
B-53-2810A 2 43 HYDRAULIC SHIFT UNIT
BF-876-5430B 2 53 INDEPENDENT WHEEL BRAKES
BL-876-5430B 2 56 INDEPENDENT WHEEL BRAKES
BD2-876-5430B 2 49 PARKING & TRAVEL BRAKE
BM-876-5430B 2 47 WHEEL DRIVE
116-1880 2 2 WHEEL GROUP-TIRE
BC-876-5430B 2 48 WHEEL RIM & TIRE
BB-876-5430B 2 44 WHEEL, HUB & SPROCKET
BB1-876-5430B 2 45 WHEEL, HUB & SPROCKET
113-7457 2 1 WHEELS GROUP-BOGIE
SECTION 3 PUSH ROLLERS & TRUCK HITCH
EB-876-5240B 3 8 ALLATT TRUCK HITCH
F-876-5240B 3 12 BARBER-GREENE TRUCK HITCH
BG-876-5240B 3 15 BARBER-GREENE TRUCK HITCH COMP
BG 1-876-5240B 3 16 BARBER-GREENE TRUCK HITCH COMP
A-876-5240B 3 1 FIXED PUSH ROLLER
113-7469 3 26 HITCH ARRANGEMENT
133-2874 3 28 HITCH ARRANGEMENT-TRUCK
116-6871 3 27 HITCH GROUP-COMPONENTS
133-8682 3 24 HITCH GROUP-TRUCK
BB-876-5240B 3 4 LAYTON TRUCK HITCH
BB 1-876-5240B 3 6 LAYTON TRUCK HITCH
E-876-5240B 3 7B LAYTON TRUCK HITCH
BB2-876-5240B 3 7A LAYTON TRUCK HITCH COMPONENTS
B3-876-3165B 3 2 OSCILLATING PUSH ROLLER
EB1-876-5240B 3 10 ROADTEC TRUCK HITCH
102-4646 3 29 ROLLER ARRANGEMENT-PUSH
118-8358 3 30 ROLLER GROUP-PUSH
103-4353 3 17 TRUCK HITCH
103-4354 3 19 TRUCK HITCH
111-1370 3 21 TRUCK HITCH
111-1368 3 22 TRUCK HITCH ASSEMBLY
A3-876-2790B 3 3 WEIGHTED OSCILLATING PUSH
ROLLER
SECTION 4 HOPPER. APRONS & FLASHING
AC-876-5235B 4 6 DELUXE HOPPER FLASHING
AA2-876-5235B 4 1 HOPPERS & APRONS
AA3-876-5235B 4 3 HOPPERS & APRONS
CB-876-5235B 4 4A HOPPERS & APRONS
BG-260B PAGE 5
TABLE OF CONTENTS
BILL OF MATERIAL SECTION PAGE DESCRIPTION
CB 1-876-5235B 4 4C HOPPERS & APRONS
AB-876-5235B 4 5 STANDARD HOPPER FLASHING
SECTION 5 FEEDER COMPONENTS
BL2-876-5245B 5 15 CHAIN GUARDS & WEAR BARS
BB1-876-5245B 5 8 FEEDER & SCREW PLANETARY,
SPROCKET & CHAIN
BB2-876-5245B 5 9 FEEDER & SCREW PLANETARY,
SPROCKET & CHAIN
BL 1-876-5245B 5 13 FEEDER CHAIN GUARDS & WEAR
BARS
BH-876-5245B 5 12 FEEDER DRAG PANS
GA-876-5245B 5 24 FEEDER DRIVE
GA 1-876-5245B 5 26 FEEDER DRIVE
FA 1-876-5245B 5 18 FEEDER DRIVE PLANETARY,
SPROCKET & CHAIN
FA2-876-5245B 5 20 FEEDER DRIVE PLANETARY,
SPROCKET & CHAIN
FA3-876-5245B 5 22 FEEDER DRIVE PLANETARY,
SPROCKET & CHAIN
CJ 1-876-5245B 5 7 FEEDER FLIGHT CHAIN (HEAVY DUTY)
AT-876-5245B 5 5 FEEDER FOOT SHAFT
FD-876-5245B 5 6 FEEDER FOOT SHAFT GREASE PIPING
AA 1-876-5245B 5 1 FEEDER GATES
AA2-876-5245B 5 3 FEEDER GATES ASSEMBLY
BC 1-876-5245B 5 10 FEEDER HEAD SHAFT
F-876-5245B 5 11 FEEDER HEAD SHAFT GREASE
FITTING
BD-876-5245B 5 11 FEEDER HEAD SHAFT GREASE
FITTING
CA-876-5245B 5 28 FEEDER HEADSHAFT GROUP
CA 1-876-5245B 5 29 FEEDER HEADSHAFT GROUP
FA-876-5245B 5 16 IND. FEEDER DRIVE PLANETARY,
SPROCKET & CHAIN
SECTION 6 SCREW CONVEYOR COMPONENTS
113-7471 6 3 AUGER ARRANGEMENT-ADJUSTABLE
113-7470 6 2 AUGER ARRANGEMENT-FIXED
DM-876-5350B 6 40 AUGER DRIVE WITH LIFT
DM1-876-5350B 6 46 AUGER DRIVE WITH LIFT
116-1958 6 5 AUGER GROUP-EXTENSION (6 INCH)
BG-2608 PAGE 6
TABLE OF CONTENTS
BILL OF MATERIAL SECTION PAGE DESCRIPTION
DL-876-52508 6 38 AUGER HYDRAULICS-FIXED
DN-876-52508 6 52 AUGER LIFT CYINDER BRACKET
DG-876-52508 6 34 AUGER LIFT-HYDRAULICS
116-1886 6 4 CONVEYOR ARRANGEMENT
BC-876-52508 6 27 HYDRAULIC AUGER LIFT HOSE ASSY
CB-876-52508 6 29 OUTER SCREW CONVEYOR SUPPORT
AB 1-876-52508 6 9 OUTER SCREW CONVEYOR
SUPPORTS
AA2-876-52508 6 6 SCREW CONVEYOR
CA-876-52508 6 30 SCREW CONVEYOR
CA2-876-52508 6 32 SCREW CONVEYOR
BA-876-52508 6 16 SCREW CONVEYOR & IND DRIVE
BA 1-876-52508 6 23 SCREW CONVEYOR & IND DRIVE
AC-876-52508 6 11 SCREW CONVEYOR BEARING
SUPPORT & SHAFT
AC1-876-52508 6 12 SCREW CONVEYOR BEARING
SUPPORT & SHAFT
AC2-876-52508 6 13 SCREW CONVEYOR BEARING
SUPPORT & SHAFT
W1 -876-19658 6 14 SCREW CONVEYOR EXTENSIONS &
COMPONENTS
X1-876-19658 6 14 SCREW CONVEYOR EXTENSIONS &
COMPONENTS
Y1-876-19658 6 14 SCREW CONVEYOR EXTENSIONS &
COMPONENTS
AA 1-876-19658 6 14 SCREW CONVEYOR EXTENSIONS &
COMPONENTS
AC-876-19658 6 15 SCREW CONVEYOR EXTENSIONS &
COMPONENTS
104-2752 6 1 SUPPORT GROUP-BEARING
SECTION 7 LEVELING ARMS, TOW POINTS & SCREED TRAVEL SUPPORT
BA 1-876-52608 7 2 LEVELING ARMS
BA2-876-52608 7 3 LEVELING ARMS
BA3-876-52608 7 4 LEVELING ARMS
BA4-876-52608 7 5 LEVELING ARMS
DB-876-54858 7 7 REMOTE TOWPOINT
AA-876-52708 7 6 SCREED TRAVEL SUPPORT
AA 1-876-52558 7 1 TOW POINTS
BG-2608 PAGE 7
TABLE OF CONTENTS
BILL OF MATERIAL SECTION PAGE DESCRIPTION
SECTION 8 OPERATOR STATION
AC-876-5490B 8 6 OPERATOR’S STATION & MECHANICAL
CONTROLS
AA2-876-5490B 8 1 OPERATOR’S STATION & MECHANICAL
CONTROLS
AA3-876-5490B 8 3 OPERATOR’S STATION & MECHANICAL
CONTROLS
AC-876-5490B 8 5 OPERATOR’S STATION & MECHANICAL
CONTROLS
AB 1-876-5490B 8 5 OPERATOR’S STATION & MECHANICAL
CONTROLS
B2-876-4 790B 8 8 SEAT OPERATOR-DELUXE
A-876-4790B 8 7 STANDARD OPERATOR’S SEAT
B 1-876-4 790B 8 7 STANDARD OPERATOR’S SEAT
SECTION 9 ELECTRICAL COMPONENTS
B 1-876-5285B 9 54 AUTOMATIC GRADE CONTROL
ELECTRICAL
E-876-5485B 9 69 BACK-UP ALARM ELECTRICAL
E1-876-5485B 9 71 BACK-UP ALARM ELECTRICAL
116-1882 9 4 ELECTRICAL ARRANGEMENT
BA 10-876-5485B 9 24 ELECTRICAL-TRACTOR
113-7458 9 3 FEEDER ARRANGEMENT-ELECTRICAL
PROPORTIONAL
C2-876-5285B 9 56 FEEDER ELECTRICAL (ON/OFF)
C3-876-5285B 9 57 FEEDER ELECTRICAL (ON/OFF)
D2-876-5285B 9 58 FEEDER ELECTRICAL
(PROPORTIONAL)
CA-876-5285B 9 59 FEEDER ELECTRICAL-SONIC
(EXTEND-A-MAT)
CA 1-876-5285B 9 61 FEEDER ELECTRICAL-SONIC
(EXTEND-A-MAT)
CA2-876-5285B 9 63 FEEDER ELECTRICAL-SONIC
(EXTEND-A-MAT)
CB-876-5285B 9 64 FEEDER ELECTRICAL-SONIC
(STANDARD, VIB)
CB 1-876-5285B 9 66 FEEDER ELECTRICAL-SONIC
(STANDARD, VIB)
CB2-876-5285B 9 68 FEEDER ELECTRICAL-SONIC
(STANDARD, VIB)
H-876-2480B 9 83 FEEDER EXT CORD (WIDE WIDTH)
BG-260B PAGE 8
TABLE OF CONTENTS
BILL OF MATERIAL SECTION PAGE DESCRIPTION
JB-876-5285B 9 81 FUEL-STARTER RELAY KIT
SA-876-5487W 9 44 INSTRUMENT PANEL & HARNESS
SA 1-876-5487W 9 46 INSTRUMENT PANEL & HARNESS
SA2-876-5487W 9 48 INSTRUMENT PANEL & HARNESS
SA3-876-5487W 9 50 INSTRUMENT PANEL & HARNESS
SA4-876-5487W 9 52 INSTRUMENT PANEL & HARNESS
XA-876-5487W 9 34 JUNCTION BOX (LEFT SIDE)
XA 1-876-5487W 9 35 JUNCTION BOX (LEFT SIDE)
XA2-876-5487W 9 36 JUNCTION BOX (LEFT SIDE)
XA3-876-5487W 9 37 JUNCTION BOX (LEFT SIDE)
XB-876-5487W 9 38 JUNCTION BOX (RIGHT SIDE)
XB 1-876-5487W 9 39 JUNCTION BOX (RIGHT SIDE)
XB2-876-5487W 9 40 JUNCTION BOX (RIGHT SIDE)
XB3-876-5487W 9 41 JUNCTION BOX (RIGHT SIDE)
104-2725 9 1 LIGHT GROUP-ROADING
F2-876-5285B 9 76 LIGHTS-PAVING
TA-876-5487W 9 42 OPERATOR’S STATION PANEL &
HARNESS (LEFT SIDE)
VA-876-5487W 9 43 OPERATOR’S STATION PANEL &
HARNESS (LEFT SIDE)
HB-876-5285B 9 80 PADDLE
F-876-5285B 9 73 PAVING LIGHTS
F1 -876-5285B 9 75 PAVING LIGHTS
107-9434 9 2 SENSOR GROUP
GC-876-5285B 9 78 SONIC FEEDERS (EXT-A-MAT SCREED)
GD-876-5285B 9 79 SONIC FEEDERS (SV SCREED)
BA3-876-5485B 9 5 TRACTOR ELECTRICAL
BA4-876-5485B 9 8 TRACTOR ELECTRICAL
BA5-876-5485B 9 11 TRACTOR ELECTRICAL
BA6-876-5485B 9 14 TRACTOR ELECTRICAL
BA8-876-5485B 9 17 TRACTOR ELECTRICAL
BA9-876-5485B 9 20 TRACTOR ELECTRICAL
BA 10-876-5485B 9 24 TRACTOR ELECTRICAL
BA 11-876-5485B 9 26 TRACTOR ELECTRICAL PART 1 OF 2
BA 12-876-5485B 9 30 TRACTOR ELECTRICAL PART 1 OF 2
BA 11-876-5485B 9 28 TRACTOR ELECTRICAL PART 2 OF 2
BA 12-876-5485B 9 32 TRACTOR ELECTRICAL PART 2 OF 2
G-876-5285B 9 77 WARNING LIGHTS
BG-260B PAGE 9
TABLE OF CONTENTS
BILL OF MATERIAL SECTION PAGE DESCRIPTION
SECTION 10 HYDRAULIC COMPONENTS
AC 1-876-5280B 10 61 AUTOMATIC GRADE CONTROL HYO
AC2-876-5280B 10 63 AUTOMATIC GRADE CONTROL HYO
AC3-876-5280B 10 66 AUTOMATIC GRADE CONTROL HYO
AC4-876-5280B 10 69 HYO. AUTO GRADE CONTROL
116-1883 10 68 HYDRAULIC ARRANGEMENT
EA-876-5485B 10 71 SCREED HOLD VALVE
EB-876-5485B 10 73 SCREED LOCK VALVE
BA2-876-5480B 10 1 TRACTOR HYDRAULICS (HYO TANK)
BA3-876-5480B 10 9 TRACTOR HYDRAULICS (HYO TANK)
BA4-876-5480B 10 17 TRACTOR HYDRAULICS (HYO TANK)
BA5-876-5480B 10 25 TRACTOR HYDRAULICS (HYO TANK)
BA6-876-5480B 10 33 TRACTOR HYDRAULICS (HYO TANK)
BA 7-876-5480B 10 41 TRACTOR HYDRAULICS (HYO TANK)
BA9-876-5480B 10 48A TRACTOR HYDRAULICS (HYO TANK)
BA 1 0-876-5480B 10 481 TRACTOR HYDRAULICS (HYO TANK)
BA 11-876-5480B 10 48Q TRACTOR HYDRAULICS (HYO TANK)
BA 12-876-5480B 10 49 TRACTOR HYDRAULICS (HYO TANK)
BA 13-876-5480B 10 50 TRACTOR HYDRAULICS PART 1 OF 6
BA 13-876-5480B 10 52 TRACTOR HYDRAULICS PART 2 OF 6
BA 13-876-5480B 10 54 TRACTOR HYDRAULICS PART 3 OF 6
BA 13-876-5480B 10 56 TRACTOR HYDRAULICS PART 4 OF 6
BA 13-876-5480B 10 58 TRACTOR HYDRAULICS PART 5 OF 6
BA 13-876-5480B 10 60 TRACTOR HYDRAULICS PART 6 OF 6
CC-876-5480B 10 75 TRACTOR-HYDRAULICS PART 1 OF 6
CC-876-5480B 10 77 TRACTOR-HYDRAULICS PART 2 OF 6
CC-876-5480B 10 79 TRACTOR-HYDRAULICS PART 3 OF 6
CC-876-5480B 10 81 TRACTOR-HYDRAULICS PART 4 OF 6
CC-876-5480B 10 83 TRACTOR-HYDRAULICS PART 5 OF 6
CC-876-5480B 10 85 TRACTOR-HYDRAULICS PART 6 OF 6
SECTION 11 MISCELLANEOUS TRACTOR COMPONENTS
104-2745 11 3 AUGER GROUP-EXTENSION
104-2747 11 4 AUGER GROUP-EXTENSION
104-7880 11 5 EXT AR-24 FOOT PAVING PACKAGE
BA-876-5500B 11 77 FENDERS
E-876-5315B 11 36 FINISH GROUP
104-2748 11 1 FRAME GP-MAIN EXTENSION (20 INCH)
104-2753 11 2 FRAME GP-MAIN EXTENSION BRACE
C-876-5520B 11 37 FUEL SPRAY DOWN
A-876-5520B 11 32 FUEL SPRAY DOWN
BG-2608 PAGE 10
TABLE OF CONTENTS
BILL OF MATERIAL SECTION PAGE DESCRIPTION
A 1-876-5520B 11 34 FUEL SPRAY DOWN
104-6579 11 31 GUIDE GROUP-STEERING
DA-876-5250B 11 78 HINGED REAR STEP
DC-876-5250B 11 79 HINGED REAR STEP
AC-876-5325B 11 51 MAIN FRAME EXT (1 FT-7 3/4 INCH)
AA-876-5325B 11 53 MAIN FRAME EXTENSION
AB-876-5325B 11 54 MAIN FRAME EXTENSION
EA4-876-5415B 11 41 MAIN FRAME TRACTOR
EA5-876-5415B 11 42 MAIN FRAME TRACTOR
EA6-876-5415B 11 43 MAIN FRAME TRACTOR
BA6-876-5415B 11 44 MAIN FRAME TRACTOR
BA5-876-551 0B 11 9 NAMEPLATES
BA6-876-551 0B 11 13 NAMEPLATES
BA7-876-551 0B 11 17 NAMEPLATES
BA8-876-551 0B 11 21 NAMEPLATES
BA9-876-551 0B 11 25 NAMEPLATES
104-7654 11 81 PLATE GROUP
CA3-876-5300B 11 59 PLATFORMS
CB-876-5300B 11 61 PLATFORMS
CB 1-876-5300B 11 63 PLATFORMS
JA-876-5300B 11 65 PLATFORMS PART 1 OF 3
JA 1-876-5300B 11 71 PLATFORMS PART 1 OF 3
JA-876-5300B 11 67 PLATFORMS PART 2 OF 3
JA 1-876-5300B 11 73 PLATFORMS PART 2 OF 3
JA-876-5300B 11 69 PLATFORMS PART 3 OF 3
JA 1-876-5300B 11 75 PLATFORMS PART 3 OF 3
116-6873 11 8 REPAIR GROUP
116-1888 11 7 SHIPPING ARRANGEMENT
A-876-4825B 11 27 STEERING GAUGE
A-876-1930B 11 28 STEERING GAUGE
A 1-876-1930B 11 29 STEERING GAUGE
B-876-1930B 11 30 STEERING GAUGE
118-7295 11 80 STEP GROUP
116-1884 11 6 STRUCTURAL ARRANGEMENT
B-876-5315B 11 58 TOOLS & SPARES (GRADE CONTROL)
BA-876-5515B 11 59 TOOLS & SPARES (TRACTOR)
BA2-876-5415B 11 39 TRACTOR MAIN FRAME
BA3-876-5415B 11 39 TRACTOR MAIN FRAME
BA4-876-5415B 11 39 TRACTOR MAIN FRAME
EA-876-5415B 11 39 TRACTOR MAIN FRAME
EA2-876-5415B 11 40 TRACTOR MAIN FRAME
EA3-876-5415B 11 40A TRACTOR MAIN FRAME
B-876-5325B 11 45 MAIN FRAME BRACE (16 FT-26 FT)
BG-260B PAGE 11
TABLE OF CONTENTS
BILL OF MATERIAL SECTION PAGE DESCRIPTION
C-876-5325B 11 46 MAIN FRAME BRACE (1 FT)
D-876-5325B 11 47 MAIN FRAME BRACE (2 FT)
E-876-5325B 11 48 MAIN FRAME BRACE (4 FT)
F-876-5325B 11 49 MAIN FRAME BRACE (1 FT-7 3/4 INCH)
G-876-5325B 11 50 MAIN FRAME BRACE (28-40 FT)
105-9688 11 52 MAIN FRAME BRACE (2 FT-4 INCH)
F-876-1860B 11 56 UMBRELLA
104-2727 11 55 UMBRELLA GROUP
D-876-1860B 11 56 UMBRELLA WITH SUPPORT
G-876-1860B 11 56 UMBRELLA WITH SUPPORT
SECTION 12 COMPONENT BREAKDOWNS
27X64 12 8 DIFFERENTIAL HEAD ASSEMBLY
28F59 12 13 DISC BRAKE ASSEMBLY
28L27 12 26 ELECTRIC SHIFT UNIT
28G33 12 16 FEEDER & SCREW PLANETARY
28L38 12 28 HYO FEEDER & SCREW TANDEM
PUMP (FRONT SECT.)
28L38 12 29 HYO FEEDER & SCREW TANDEM
PUMP (REAR SECT.)
28H10 12 25 HYDRAULIC CLYINDER (STEERING)
28W09 12 39 HYDRAULIC CYLINDER (AGC)
28L43 12 33 HYDRAULIC CYLINDER (HOPPER LIFT)
27V85 12 3 HYDRAULIC CYLINDER (HOPPER)
28N95 12 34 HYO FEEDER & SCREW MOTOR
28G40 12 18 HYDRAULIC PROPEL PUMP
28G42 12 22 HYDRAULIC PROPEL PUMP
27X33 12 5 HYDRAULIC SBS PUMP
28F39 12 11 MASTER CYLINDER
28P34 12 36 PUMP DRIVE GEARBOX
15K55 12 1 SBS VALVE
26N60 12 2 SOLENOID VALVE
27X16 12 4 SOLENOID VALVE

IMAGES PREVIEW OF THE MANUAL:

JOHN DEERE BARBER-GREENE BG-260B ASPHALT PAVER PARTS MANUAL 370134860 – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
