John Deere DF180 Powershift Transmission Repair Manual – PDF DOWNLOAD

Description

John Deere DF180 Powershift Transmission Repair Manual – PDF DOWNLOAD

DESCRIPTION:

John Deere DF180 Powershift Transmission Repair Manual – PDF DOWNLOAD

This manual is written for an experienced technician. Essential tools required in performing certain service work are identified in this manual and are recommended for use. Live with safety: Read the safety messages in the introduction of this manual and the cautions presented throughout the text of the manual.

• This is the safety-alert symbol. When you see this symbol on the machine or in this manual, be alert to the potential for personal injury. Technical manuals are divided in two parts: repair and operation and tests. Repair sections tell how to repair the components.
• Operation and tests sections help you identify the majority of routine failures quickly. Information is organized in groups for the various components requiring service instruction. At the beginning of each group are summary listings of all applicable essential tools, service equipment and tools, other materials needed to do the job, service parts kits, specifications, wear tolerances, and torque values. Technical Manuals are concise guides for specific Transmission.
• They are on-the-job guides containing only the vital information needed for diagnosis, analysis, testing, and repair. Fundamental service information is available from other sources covering basic theory of operation, fundamentals of troubleshooting, general maintenance, and basic type of failures and their causes

TABLE OF CONTENTS:

John Deere DF180 Powershift Transmission Repair Manual – PDF DOWNLOAD

SECTION 01—General Information PTO Housing
Group 005—Safety Group 445—Specifications for Transmission Tests
Group 015—Transmission Identifications and
General Procedures
02
SECTION 02—Repair and Adjustments –
Transmission
Group 025—Repair Procedures and Repair Stand
Group 027—Winch Drive – Remote Mount
Group 029—Park Brake
Group 031—Output Seals
Group 033—Suction Tube
Group 035—Charge Pump and Idler Gears/Shaft –
Remote Mount
Group 036—Charge Pump and Idler Gears/Shaft –
Engine Mount
03
Group 037—Control Valve
Group 039—Input Yoke – Remote Mount
Transmission
Group 040—Input Drive Hub – Engine Mount
Transmission
Group 041—Front and Rear Housing and Clutch
Assembly Group
Group 043—Gears, Bearings, and Shafts
Group 045—Drive Plate and Torque Converter
Assembly
Group 047—Torque Converter PTO Housing
04
SECTION 03—Theory of Operation
Group 100—Transmission Operation
SECTION 04—Diagnostics
Group 200—Transmission Diagnostics and Tests
Group 225—Transmission Tests
SECTION 05—Tools and Other Materials
Group 300—Essential Tools
Group 325—Dealer Fabricated Service Tools
05
SECTION 06—Specifications
Group 400—Bolt and Cap Screw Specification
Group 415—Transmission Specification
Group 425—Specifications for Drive Plate and
Torque Converter Assembly
Group 435—Specifications for Torque Converter

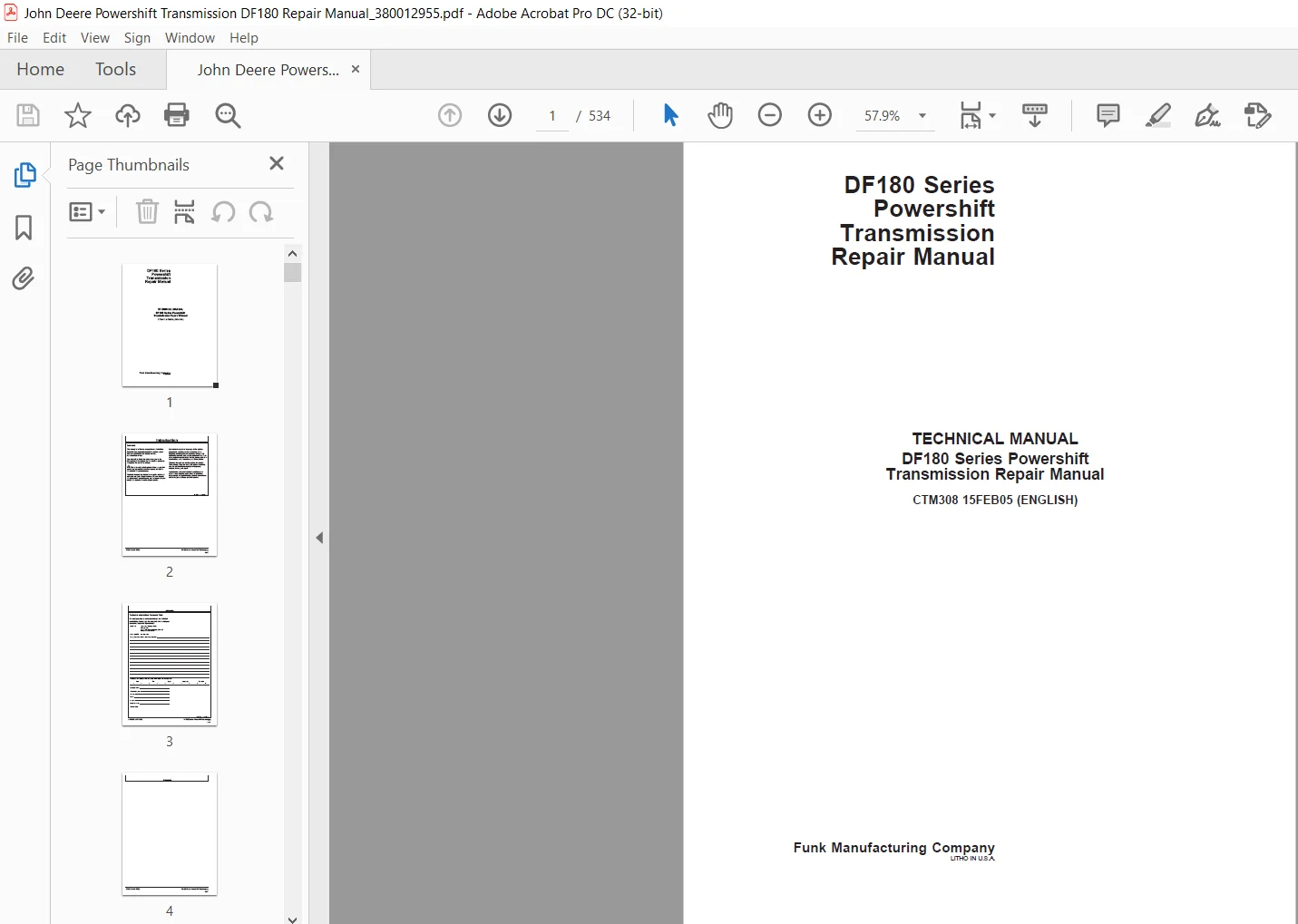

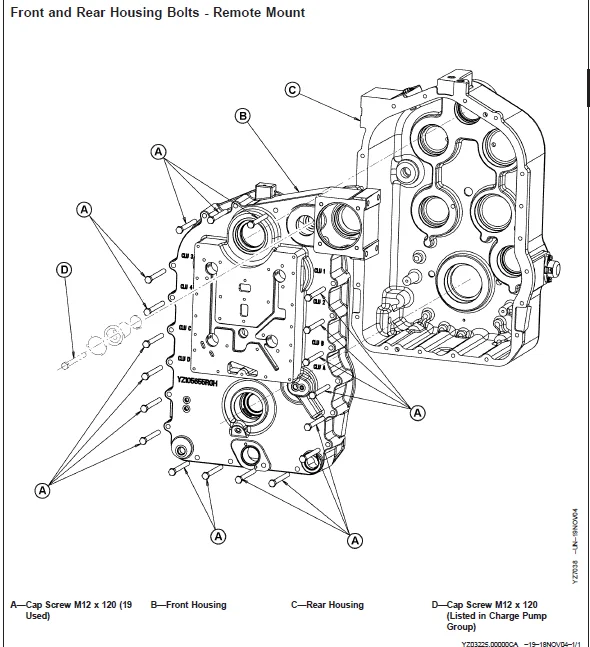

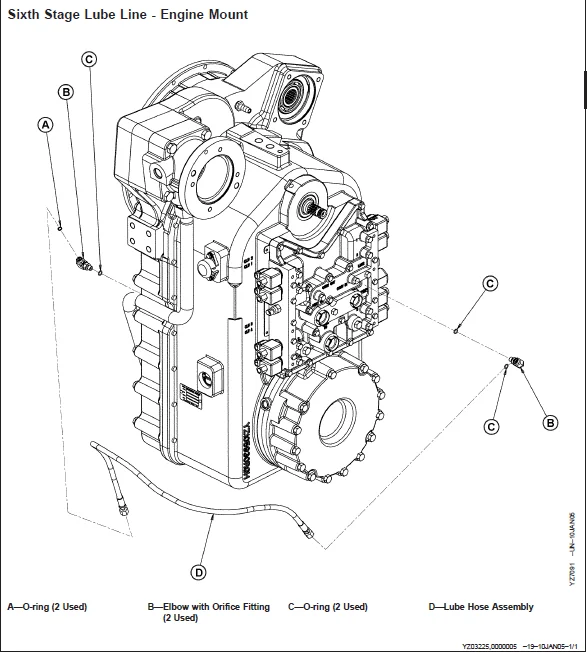

IMAGES PREVIEW OF THE MANUAL:
