John Deere Tractor 435 Diesel Parts Catalog Manual – PDF DOWNLOAD

Description

John Deere Tractor 435 Diesel Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

John Deere Tractor 435 Diesel Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages :126
Downloadable : Yes
File Type : PDF
Size:9.92 MB

TABLE OF CONTENTS:

John Deere Tractor 435 Diesel Parts Catalog Manual – PDF DOWNLOAD

Adapter, pressure switch 85-2 Control valve assembly, pover steering 45-7, 8
Adiustable front axle 50-2 Controls and linkage for control valve 55-13
Air cleaner 15-2 Coupling, breakaway 55-18
Air intake blower 15-3 Cover assembly, engine front 10-14
Ammeter 85-6 Cover, control valve , , 55-14
Anchor yoke assembly , , , 30-11 Cover, crankshaft front , , , , 10-14
Arm, steering 50-2 Cover, cylinder head water hole 10-4
Armature, generator 85-10 Cover, engine front upper , 10-2
Armature, starting motor 85-8 Cover, fuel filler cap , 75-2
Auxiliary light socket 85-5 Cover, fuel pmnp 15-6
Axle, front 50-2, 4 Cover, high speed drive 30-2
Axle shaft 35-2 Cover, oil pump 10-14
B
Back rest, seat 80-2
Balance shaft 10-8
Battery tray and cables 75- 1
Bearing, connecting rod , , 10-10
Bearing, crankshaft , 10-12
Bearing, throw-out 25-4, 6
Belt, fan 20-4
Belt, generator 20-4
Belt pulley 30-14
Belt pulley shifter assembly , 30-2
Belt, water pump and generator 85-11
Belts, power steering pump drive 45-9, 55-2
Belts, Touch-o-matic pump drive 45-9, 55-2, 3
Block, cylinder 10-2
Blower, air intal-e 15-3
Bolt, cylinder head , 10-4
Bracket, air cleaner 15-2
Bracket assembly, float-ride seat 80-4
Bracket, breakaway coupling 55-18
Bracket, conttOl valve , , , 55-14
Bracket, fan shaft 20-4
Bracl<et, fender , , , , 75-5
Bracket, fuel tank, front 15-4
Bracket, fuel tank, rear 15-4
Bracket, generator 85-11
Bracket, power steering pump 45-9, 55-2
Bracket, radiator 20-2
Bracket, rocker shaft , , 10-6
Bracket, seat mounting , , 80-2
Bracket, Touch-o-m&tic pump 45-9, 55-2, 3
Brake assembly 65-2
Brake pedals , 65-2
Breakaway coupling and coupling bracket 55-18
Breather cap, engine , 10-4
Brush, generator 85-10
Brushes, starting motor 85-8
Bushinll:, balancer shaft 10-8
BllSbing, cam shaft 10-8
BllSbing, piston pin 10-10
Bypass valve, Touch-o-matic 55-8
C
Cables, battery-
Cage, differential
Cam follower assembly
Cam shaft
Cap, air cleaner 15-2
Cap, main bearing 10-12
Cap, muffler weather 15-1
Cap, radiator 2<>-2
Chaim, SYtay 70-2
Clamp, implement 25-2
Clutch assembly 25-4, 6
Clutch control rod 25-2
Clutch control shaft 25-2
Clutcb pedal
Clutch pedal shaft
Connecting rod
Control arm, anchor yoke
Control rod, Touch-o-matic
Control valve assembly
PC-642-(10-63) Litho in USA
Cover, rear powershaft drive 30-2
Cover, rocker arm 10-4
Cover, transmission shifthlg (5-~) 30-13
Cover, transmission shifting (4-speed) , 30-12
Crank, leveling 70-2
Cranlcshaft 10-12
Crankshaft bearings 10-12
Crankshaft gear 10-12
Cushion, float-ride seat 80-4
Cmhion, seat 80-2
Cushion, seat arm 8()-2
Cylinder and valve houring, Touch-o-matic 55-8
Cylinder block , , , , , , 10-2
Cylinder head , , , , , , 10-4
Cylinder head overhaul gasket kit 90-3
Cylinder, remote control 55-16
D
Dash lamp 85-4
Decal, fuel filter 15-7
Decal, oil filter 10-16, 17
Diaphragm, governor shaft 15-12
Differential assembly , , , 30-10
Dip stick, engine , , , , 10-2
Drawbar assembly 70-4
E
Elbows, water outlet 20-3
Electrical gauges 85-6
Electrical system 85-2
Element, fuel filter 15-7
Element, oil filter 10-16, 17
End plate, blower 15-3
Engine front cover , , 10-2
Engine, hour meter 15-11
Engine overhaul gasket kit , 90-4
Exhaust deflector 15-1
Exhaust pipe 15-1
F
Fan 20-4
Fender attachment, heavy-duty , , 75-5
Fenders, regular 75-4
Filter, fuel 15-4, 7
Filter, oil 10-16, 17
Final drive assembly , 35-2
Final drive gasket set 90-2
Final drive gear 35-2
5-Speed transmission gears and shafts 30-6, 8
Float-ride seat attachment , , , , , , 80-4
Flywheel 25-4, 6
Flywheel housing cover , 10-2
Follower assembly, cam , , , 10-6
Footrests 75-4
Forks, transmission shifting (5-speed) , 30-13
Forks, transmission shifting (4-speed) 30-12
4-Speed transmission gears and shafts 30-4
Frame, center 25-2
Front end support 40-2, 3
Fl’Ont ligltts 85-4
Frcnt wheels 60-1
Fuel filter 15-4, 7
Fuel injector 15-10, 13
5-4 Tractor — 435 Diesel

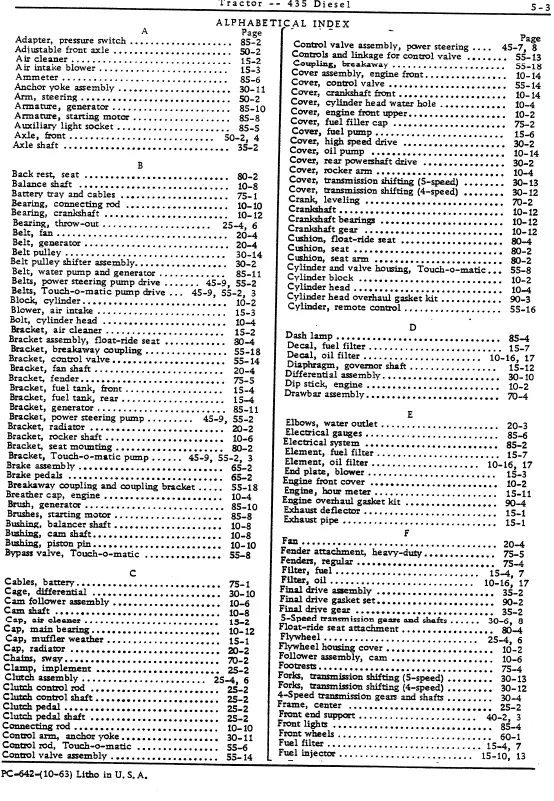

ALPHABETICAL INDEX – – Continued
Fuel pUlllp
Fuel pmnp cover
Fuel tank
Fuse··············

Gasket, cylinder block 10-2
Gasket, cylinder head 10-4
Gasket kit, overhaul, cyliJ:Jder head 90-3
Gasket kit, overhaul, engine 90-4
Gasket set, final drive 90-2
Gasket set, transmission 90-2
Gear, balance shaft 10-8
Gear, blower 15-3
Gear, cam shaft 10-8
Gear, cranl<shaft 10-12
Gear, final drive 35-2
Gear, governor 15-12
Gear, idler 10-8
Gear, oil pUltlp 10-14
Gear, ring 25-4, 6
Gear, transmission (5-speed) 30-6, 8
Gear, transmission (4-speed) 30-4
Generator assembly 85-10, 11
Generator belt 85-11
Generator mounting parts 85-11
Governor assembly 15-12
Govemor guard ( -437927) 10-16
Governor guard (437928 – up) 10-18
Governor linkage 15-8, 10
Grille 75-2
Guard, powershaft 30-15
Guide, transmission shift (5-speed) 30-13
Guide, transmission shift (4-speed) 30-12
H
Harness, wiring
Head, cylinder
Heat indicator
Hitch, 3-point
Hood and grille assemblies
Horizontal muffler
Hose, air cleaner
He>se, radiator
Hose, water bypass
Hour meter
Hour meter sending tmit
Housing, contr0l valve
Housing, transmission······
Hllb, idler gear
Hydraulic pump (with touch-o-matic only)
I
bnpeller, w ter puxnp 20-4
Implement clamp 25-2
Injector, fuel 15-10, 13
Input shaft, transmission (5-speed) 30-6, 8
Input shaft, trammission (4-speed) 30-4
Jnstruxnent panel 75-3
K
Key switch 85-6
Kit, overhaul, fuel injector 15-13
L
lamp, dash 85-4
Leveling crank 70-2
Lever assembly, injector control 15-10
Lever, fuel control 15-8
Lever, remote control valve 55-13
Lever, transmission shaft 30-12, 13
Lift lillks 70-2
Lights, front 85-4
Lights, rear 85-5
Line, fuel filter outlet 15-4
PC-642-( 10-63) Litho in U S A
Page
Line, fuel pUlllp to cylinder head 15-4
Line, fuel return 15-4
Lme, fuel tank drain 15-4
Line, oil filter 10-16, 17
Liner, cylinder 10-10
Lmkage, governor 15-8, 10
Lubricating oil PUlllP 10-14
M
Main bearing cap
Manual steering gear
Medallion
Meter, hour
Motor, starting
M01mt, radiator
Mllffler
Muffler, horizontal
0
Oil fllter 10-16, 17
Oil line, Touch-o-matic bypass 55-6
Oil lines, hydraulic, remote control 55-12
Oil lines, power steering 45-8
Oil lines, Touch-o-matic 55-4
Oil pan 10-14
Oil pressure sending unit 85-2
Oil seal, crankshaft rear 10-12
p
Pan, oil
Panel, instrunlent
Panel, rear
Pedal, brake·
Pedal, clutch····
Pin, piston
PiniOD, differential
Pinion, power steering
Pipe, exhaust
Piston · ·
Piston rings
Pivot shaft, axle
Plate, cylinder block rear
Plate, p;enerator mounting 85-11
Plate, l’l’essure 25-4, 6
Powershaft attachment 30-15
Powershaft shifter assembly 30-2
Powershaft, transmission (5-speed) 30-6, 8
Powershaft, transmission (4-speed) 30-4
Power steering and Touch-o-matic pump 55-10
Power steering and Touch-o-matic PUlllP and
mounting 45-9, 55-2
Power steering control valve 45-7, 8
Power steering gear 45-3
Power steering oil lines 45-8
Power steering rack and pinion 45-4
Power steering shaft assembly 45-6
Pre-cleaner 15-2
Pressure plate 25-4, 6
Pressure sw’itch SS-2
Propeller shaft 25-4, 6
Propeller &haft outer tube 25-6
Pulley, belt ~- 30-14
Pulley, crankshaft 10-12
Pulley, fan 20-4
Pulley, power steering pmnp 45-9, 55-2
Pulley, Touch-o-matic pmnp 45-9, 55-2, 3
Puxnp, fuel 15-6
Plll?lp, hydraulic 55-2
Pump, lubricating oil 10-14
Pump, power steering and Touch-o-matic 55-10
Puxnp, Touch-o-matic 55-3, 11
P=p, Touch-o-matic and power steering 55-2
Pump, water 20-4
PllSh rod 10-6
Tractor — 435 Diesel 5-5
ALPHABETICAL INDEX — Continued
Q Pa~
Quadrant, Touch-o-matic 55-6
Quill, differential 30-10
R
Rack and pinion, power steering 45-4
Radiator 20-2
Rear cover, transniission 30-2
Rear lights 85-5
Rear wheel weights 60-2, 3
Rear wheels 60-2, 3
Re,:ulator 85-3
Remote control cylinder assembly 55-16
Remote contrOl hydraulic oil lines 55-12
Ring gear 25-4, 6
Rin11; gear and pinion transmission 30-4, 6, 8
Rings, piston 10-10
Rocker arm cover 10-4
Rocker arm shaft 10-6
Rocksahft assembly, Touch-o-matic 55-5
Rod, clutch control 25-2
Rod, connecting 10-10
Rcxi, pllSh 10-6
Rotor, blower 15-3
s
Screen, grille , 75-2
Seal, oil blower 15-3
Seat 8()-2
Seat, float-ride attachment 80-4
Sending unit, hoor meter 85-2
Sending unit, oil pressure 85-2
Sending unit, tempera tore 85-2
Shaft, axle 35-2
Shaft, clutch control 25-2
Shaft, clutch pedal , 25-2
Shaft, propeller 25-4, 6
Shaft, rocker arm 10-6
Shaft, steering, manual 45-5
Shaft, steering, power 45-6
Shaft, a-ansmission ( 5-speed} 30-6, 8
Shaft, transmission ( 4-speed) 30-4
Shell, fuel filter 15-7
Sheild, powershaft 30-15
Shroud radiator 20-2
Shut-off, fuel tank 15-4
Socket, auxiliary light 85-5
Solenoid switch 85-7
Spindle and knuckle assembly 50-2
Spring, governor 15-12
Starting motor 85-8
Starting SW itch , , , , , 85-6
Steering anns ······· 40-4, 50-2
Steering gear , 45-2, 3
Steering shaft, manual 45-5
Steering wheel 45-5
Support, engine rear 15-8
Support, fan 20-4
Support, front end 40-2, 3
Support, hood and grille , 75-2
Support, steering gear 45-2, 3
Support, steering shaft 45-5
PC-642-( 10-63) !itho in U S, A
Sway chains
Swept-back front axle
Switch, combination
Switch, light
Switch, solenoid
Switch, starting , , ,
T
Tank, fuel
Temperature gauge
Temperature sending unit
Thermostat
Thrust washer, crankshaft
Tie rods
Touch-o-matic and power steering pump
Touch-o-matic and power steering pump and
moU11ting 45-9, 55-2
Touch-o-matic cylinder and valve housing 55-8
Touch-o-matic oil lines 55-4
Touch-o-matic pump 55-11
Touch-o-matic pump and mounting 55-3
Touch-o-matic rockshaft assembly 55-5
TransmissiOll cover, rear 30-2
Transmission gasket set 90-2
Transmission gears and shafts ( 5-speed) 30-6, 8
Transmission gears and shafts (4-speed) 30-4
Transmission housing 30-2
Transmission rear cover 30-2
Transmission shifting pares ( 5-speed) 30-13
Tra:nsmission shifting parts (4-speed) 30-12
Transmission top cover (5-speed) 30-13
Transmission top cover (4-speed) 30-12
Tray, battery- 75-1
Trunnion, drawbar 70-4
Tube, injector control 15-10
Tube, propeller shaft, outer 25-6
Tube, water bypass 20-3
Turnbuckle, upper link 70-2
u
Universal joint, steering shaft 45-5
Universal shaft, throttle lever 15-8
Upper linlc 70-2
V
Valve, exhaust 10-6
Valve, control, power steering 45-7, 8
Voltage regulator assembly 85-3
w
Water hole cover 10-2
Water pUIIl p , 20-4
Weight, balance shaft 10-8
W eight, canishaft 10-8
Weights, governor 15-12
Wheel, front 60-1
Wheel weights, rear 60-2, 3
Wheels, rear, power adjusted 60-3
Wheels, rear, regulator 60-2
Wiring hamess 85-2

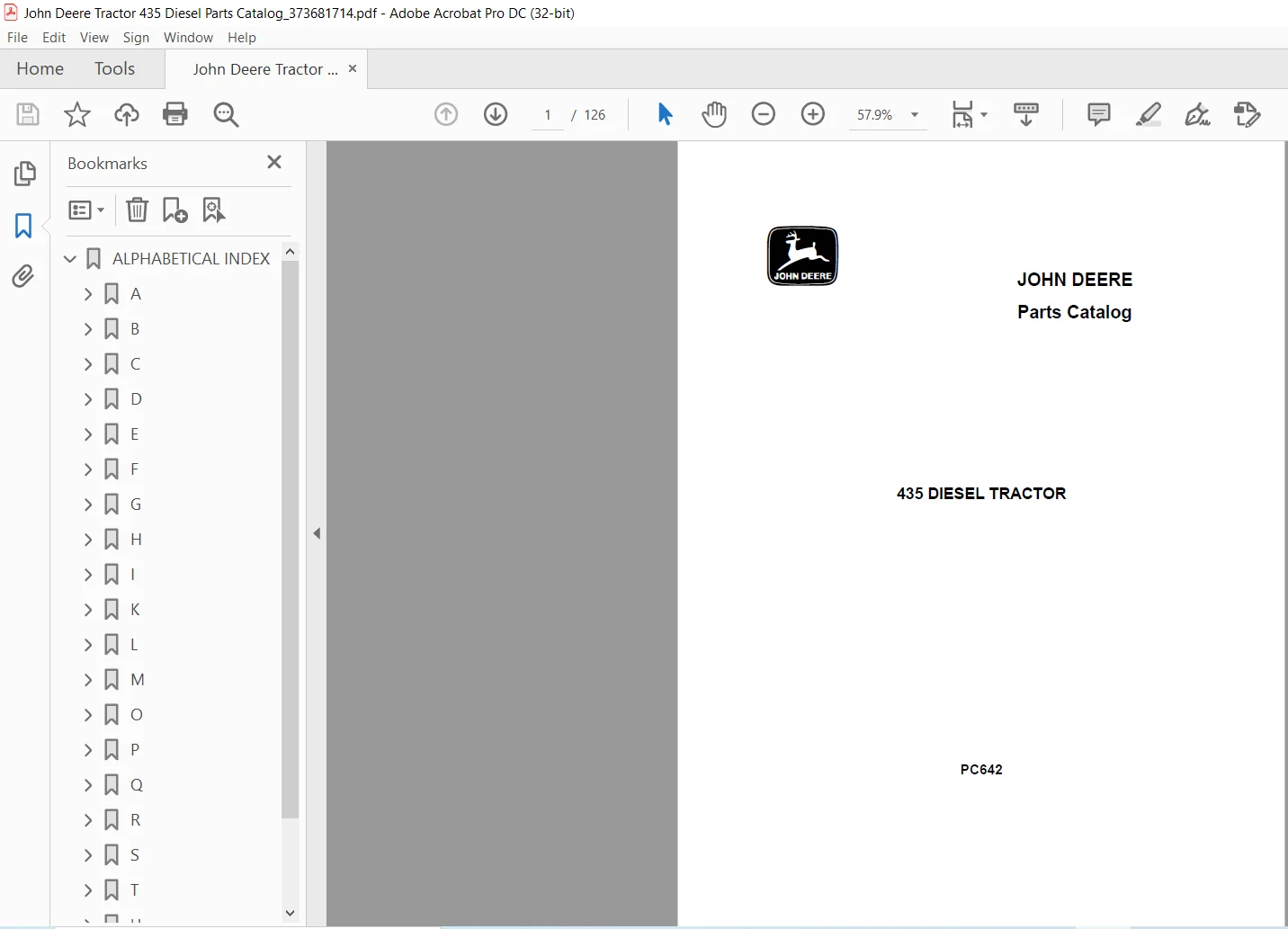

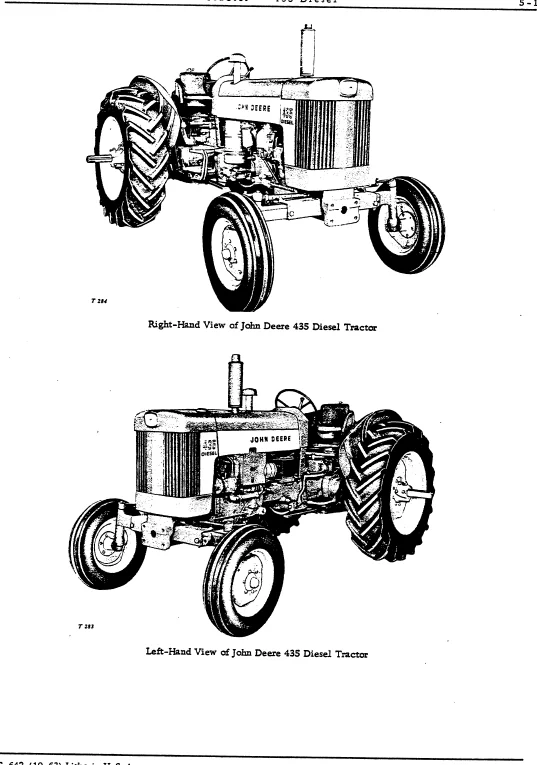

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

https://vimeo.com/670682549

JOHN DEERE TRACTOR 435 DIESEL PARTS CATALOG MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

s.m
