John Deere Transport 1110E F684745 A8 2015 Hydraulic Schematic Spanish PDF

Description

John Deere Transport 1110E F684745 A8 2015 Hydraulic Schematic Spanish PDF

FILE DETAILS:

Language : Spanish
Pages : 37
Downloadable : Yes
File Type : PDF
Size: 19.8 MB

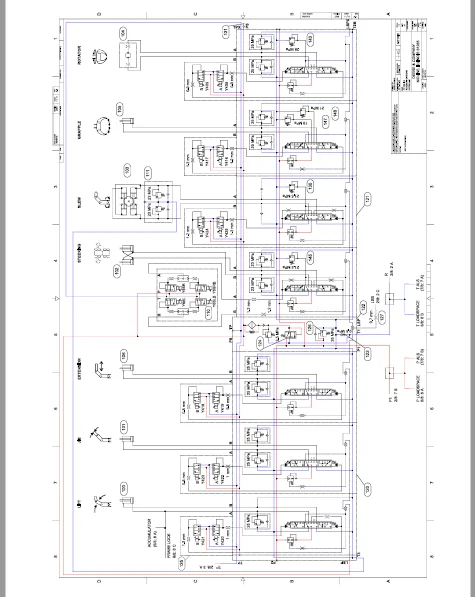

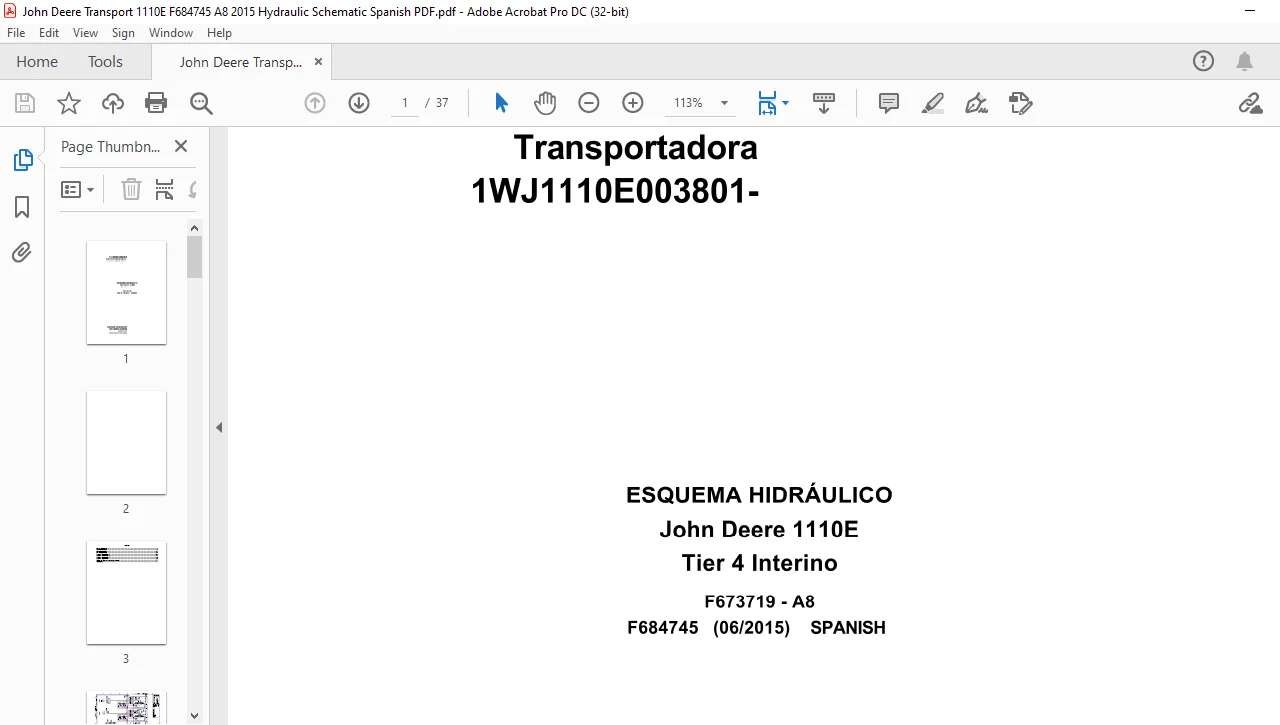

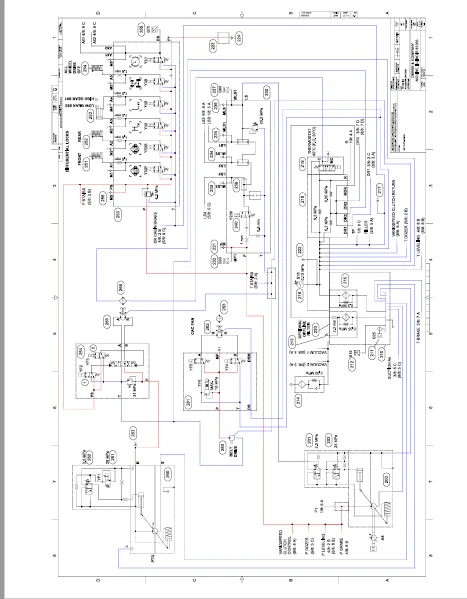

IMAGE PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

John Deere Transport 1110E F684745 A8 2015 Hydraulic Schematic Spanish PDF

Boom􀀊Hydraulics ………………………………………………………………………………………………………………….. 1
Work􀀊Hydraulics …………………………………………………………………………………………………………………… 5
Drive􀀊Hydraulics …………………………………………………………………………………………………………………. 11
Brake􀀊Hydraulics ………………………………………………………………………………………………………………… 15
Options􀀊Hydraulics􀀊1 …………………………………………………………………………………………………………… 19
Options􀀊Hydraulics􀀊2 …………………………………………………………………………………………………………… 23
Options􀀊Hydraulics􀀊3 …………………………………………………………………………………………………………… 25
Options􀀊Hydraulics􀀊4 …………………………………………………………………………………………………………… 29
Appendix:􀀊Boom􀀊valve􀀊LS􀀊pressures …………………………………………………………………………………… 33
Copyright ……………………………………………………………………………………………………………………………. 34
