Jungheinrich Forklift ESC 213 216 Z13 Z16 Operating Instructions Manual 50453609 – PDF DOWNLOAD

Description

Jungheinrich Forklift ESC 213 216 Z13 Z16 Operating Instructions Manual 50453609 – PDF DOWNLOAD

FILE DETAILS:

Jungheinrich Forklift ESC 213 216 Z13 Z16 Operating Instructions Manual 50453609 – PDF DOWNLOAD

Language : English
Pages : 54
Downloadable : Yes
File Type : PDF

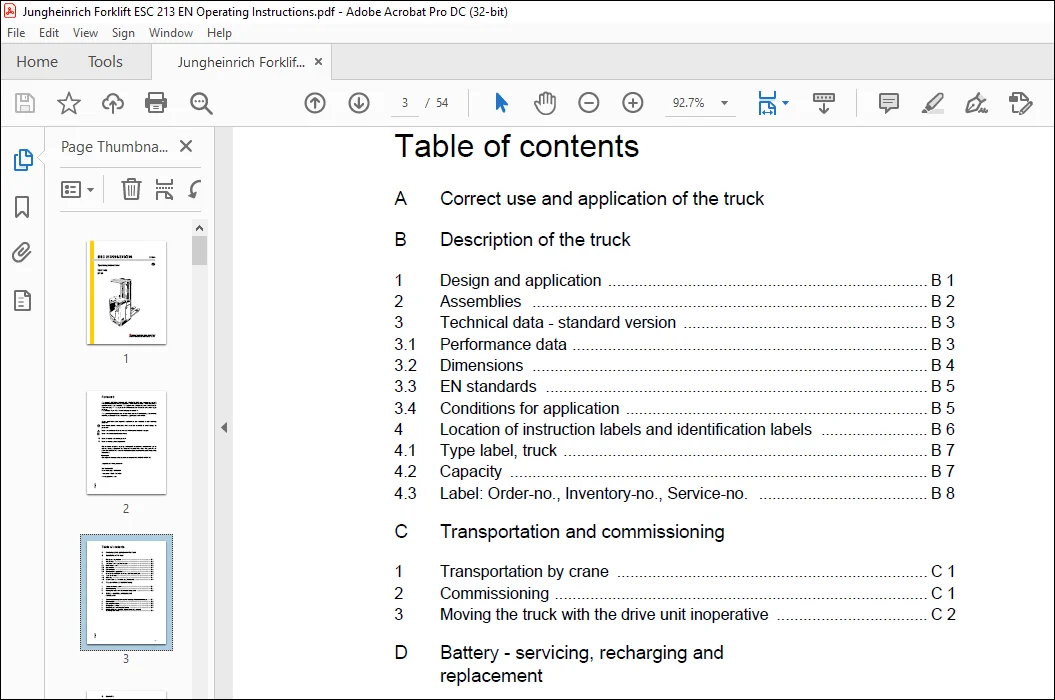

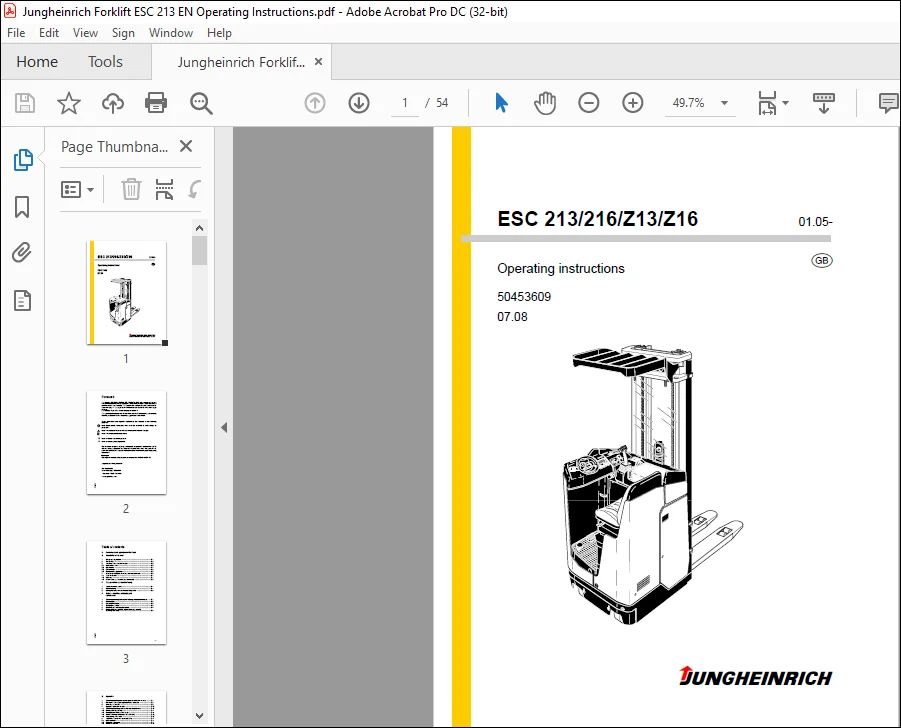

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Jungheinrich Forklift ESC 213 216 Z13 Z16 Operating Instructions Manual 50453609 – PDF DOWNLOAD

A Correct use and application of the truck
B Description of the truck
1 Design and application B 1
2 Assemblies B 2
3 Technical data – standard version B 3
3 1 Performance data B 3
3 2 Dimensions B 4
3 3 EN standards B 5
3 4 Conditions for application B 5
4 Location of instruction labels and identification labels B 6
4 1 Type label, truck B 7
4 2 Capacity B 7
4 3 Label: Order-no , Inventory-no , Service-no B 8
C Transportation and commissioning
1 Transportation by crane C 1
2 Commissioning C 1
3 Moving the truck with the drive unit inoperative C 2
D Battery – servicing, recharging and
replacement
1 Safety regulations governing the handling of lead-acid batteries D 1
2 Battery types D 2
3 Exposing the battery D 2
4 Charging the battery D 3
5 Removing and installing the battery D 4
6 Battery discharge indicator, battery discharge monitor,
operating hour meter D 5
I 2
E Operation
1 Safety regulations governing the operation of the fork lift truck E 1
2 Description of the operating controls and indicators E 2
3 Switching on the truck E 6
4 Operation of the fork lift truck E 10
4 1 Safety regulations applicable when operating the truck E 10
4 2 Driving, steering, braking E 11
4 3 Picking up and setting down loads E 14
4 4 Wheel-arm lifting device (only ESC Z13/Z16) E 15
4 5 Safe parking of the truck E 16
5 Information and service indicator (LISA) E 17
5 1 LED indicators E 17
5 2 Keyboard assignment E 17
5 3 Display messages E 18
6 Fault location E 20
F Maintenance of the fork lift truck
1 Operational safety and environmental protection F 1
2 Safety regulations applicable to truck maintenance F 1
3 Servicing and inspection F 3
4 Maintenance checklist F 4
5 Lubrication schedule F 6
5 1 Fuels, coolants and lubricants F 7
6 Instructions for the servicing operations F 8
6 1 Preparing the truck for servicing and maintenance operations F 8
6 2 Tilting up the armrest F 8
6 3 Opening the battery door and the seat hood F 9
6 4 Opening the control hood F 10
6 5 Tightening the wheel screws F 11
6 6 Checking the electric fuses F 12
6 7 Recommissioning the truck F 13
7 Decommissioning the fork lift truck F 13
7 1 Operations to be performed prior to decommissioning F 13
7 2 Measures to be taken during decommissioning F 13
7 3 Recommissioning the truck F 14
8 Safety checks to be performed at regular intervals and
following any unusual incidents F 14
9 Final de-commissioning, disposal F 14
