JVC RS-840UD / PS-840UD 84″ 4K Display Service Manual PDF

Description

JVC RS-840UD / PS-840UD 84″ 4K Display Service Manual PDF DOWNLOAD

Description

This is the factory service manual for the JVC Professional RS-840UD and PS-840UD 84-inch UHD LCD displays, classified as Top Confidential by JVC Professional Products Company.

The manual provides complete technical documentation required for diagnosis, servicing, calibration, and board-level repair of these large-format 4K commercial displays. It includes detailed signal timing charts, connector pinouts, HDMI/UHD specifications, power and environmental data, main board I/O mappings, MEMC and T-CON interfaces, circuit theory, and troubleshooting procedures.

Designed for professional service engineers, AV technicians, and electronics repair specialists, this manual is indispensable for maintaining and repairing JVC RS-840UD / PS-840UD displays used in control rooms, signage, and professional environments.

 Table of Contents

Chapter 1 — Features

• PC RGB (D-Sub 15-pin) input

• Multiple HDMI inputs (including 4K/2K @ 60Hz)

• Composite, Component, OPS module support

• Advanced video processing & smoothing

• Power saving standby (<3W)

• Full On-Screen Display control

Chapter 2 — Specifications

• 84.04″ LGD LC840EQD-SEM1 TFT-LCD panel

• Native resolution 3840 × 2160 (UHD)

• Contrast ratio, luminance, response time

• Viewing angles (178°)

• Power supply (90–264V AC, 658W)

• Environmental & mounting precautions

Chapter 3 — On-Screen Display (OSD)

• Input selection (HDMI, OPS, PC, Component, Composite)

• Picture modes & gamma

• Color temperature & RGB gain/offset

• Audio controls & equalizer

• Network & RS-232 control

• Sleep timer & system info

Chapter 4 — Factory Preset Timings

• VGA / RGB timing tables

• HDMI timing up to UHD@60Hz

• Component & CVBS timings

• Sync polarity & pixel clock data

Chapter 5 — Pin Assignment

• VGA (D-Sub 15-pin) pinout

• HDMI pin assignment

• Ethernet (RJ-45) pinout

• RS-232 connector pinout

• Signal voltage & frequency specifications

Chapter 6 — Main Board I/O Connections

• Main board ↔ Power board

• IR board, Key board, OPS board

• LVDS panel connections

• MEMC board I/O

• Speaker & audio interfaces

• Detailed connector pin tables

Chapter 7 — Theory of Circuit Operation

• HDMI / RGB / Component signal flow

• MT5396CUFJ processor architecture

• LVDS & MEMC processing

• Audio amplifier path

• Keypad & LED operation

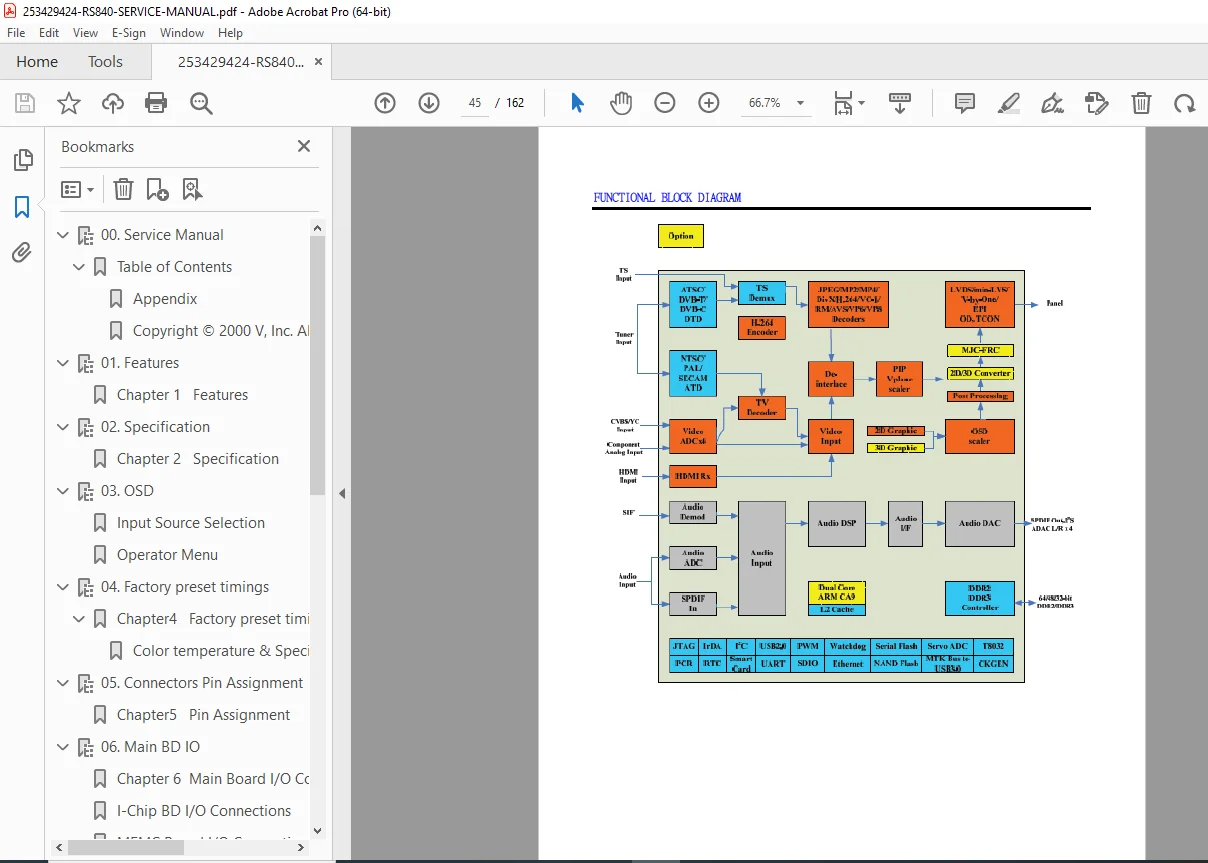

• Functional block diagrams

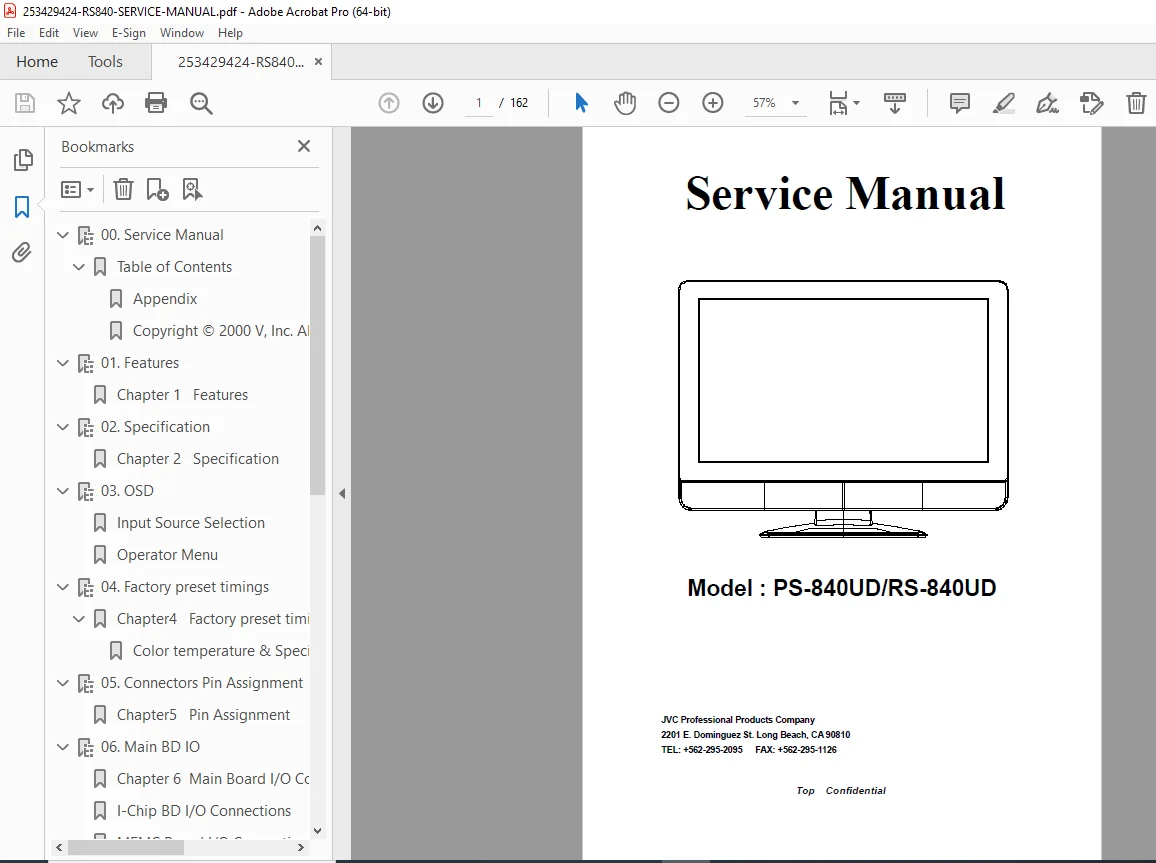

253429424-RS840-SERVICE-MANUAL

Additional Sections

• Waveforms

• Troubleshooting

• Block diagrams

• Spare parts list

• Complete parts list

🛠 Key Technical Highlights

• Native 3840×2160 UHD panel servicing

• Complete HDMI 1.4a & UHD60Hz signal specs

• Detailed LVDS / MEMC / T-CON board mappings

• Board-level connector pinouts (over 100+ signals)

• Power supply & standby diagnostics

• Professional-grade circuit theory and block diagrams

📄 File Details
