KATO HD1430-R5 Hydraulic Excavator Service Repair Manual – PDF

Description

KATO HD1430-R5 Hydraulic Excavator Service Repair Manual – PDF DOWNLOAD

Description:

Product Overview: The KATO HD1430-R5 Hydraulic Excavator Service Repair Manual is the definitive technical resource for maintaining and repairing the REGZAM HD1430-R5 series (Serial No. 5101 and up). Whether you are troubleshooting the Mitsubishi 6M60-TLC3A engine repair guide protocols or performing complex hydraulic calibrations, this manual provides factory-approved procedures. It is meticulously organized to help technicians diagnose issues with the HD1430-R5 hydraulic circuit diagram, adjust system pressures, and overhaul major mechanical components.

Key Technical Coverage: This manual offers in-depth coverage of the machine’s core systems, ensuring precise execution of KATO excavator main relief valve adjustment and pump maintenance.

• General Maintenance & Safety:

  • Inspection & Servicing: detailed schedules for daily, monthly, and yearly checks.

  • Safety Parts: Replacement intervals for fuel hoses, hydraulic hoses, and seatbelts.

  • Torque Specs: Tightening torques for meter screw standard bolts, hydraulic joints, and engine mounting.

  • Fluids & Lubricants: Genuine grease (Lithium) and oil (API GL-4) specifications.

• Hydraulic Systems:

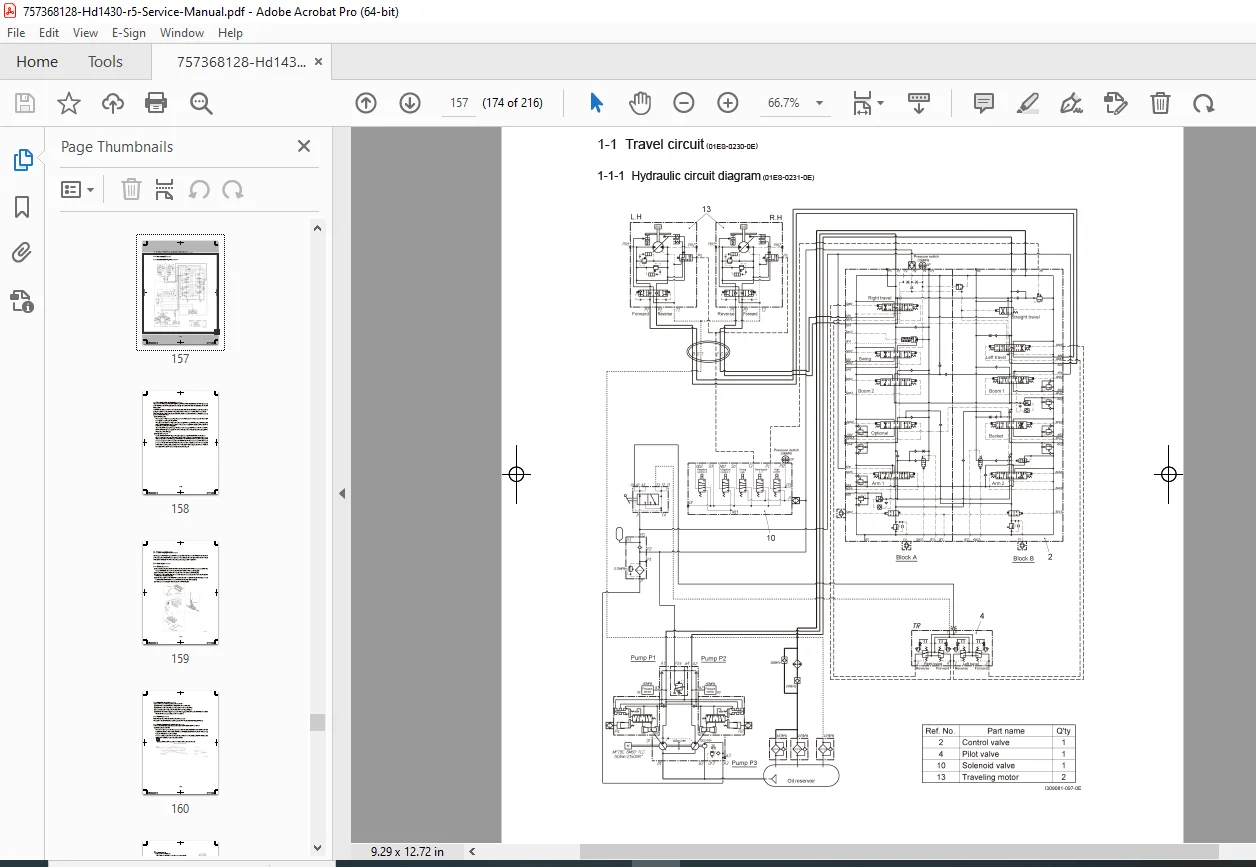

  • Schematics: Complete HD1430-R5 hydraulic circuit diagram covering Pumps P1, P2, and P3.

  • Pump Equipment: Service procedures for the Main Pump (Plunger Pump) and Pilot Gear Pump.

  • Pressure Adjustment: Measurement and adjustment of the two-stage main relief valve and pilot relief valve.

  • Component Repair: Overhaul guides for the Control Valve, Swing Motor, and Travel Motor.

  • Cylinders: Removal and repair of Boom, Arm, and Bucket cylinders including seal replacement.

• Engine & Fuel System:

  • Mitsubishi 6M60-TLC3A: Specifications, removal/mounting of the engine assembly.

  • Engine Control: ECU system blocks, fuel injection control maps, and sensor diagnostics.

  • Accessories: Servicing the radiator, intercooler, air cleaner, and muffler.

• Electrical Systems:

  • Wiring Diagrams: Detailed HD1430-R5 electrical wiring schematics for the cab, controller, and engine harnesses.

  • Component Layout: Location of the APC300 controller, relay boards, and fuse boxes.

  • Troubleshooting: Diagnostic procedures for the monitor, wiper motor, and lighting systems.

• Undercarriage & Structure:

  • Travel Equipment: Maintenance of track shoes, carrier rollers, track rollers, and front idlers.

  • Adjuster Cylinder: Disassembly and assembly of the track tensioning system.

  • Upper Structure: Swing bearing and counterweight removal instructions.

Table of Contents Overview:

• Summary: Safety parts, Inspection tables, Torque tables.

• Layout & Circuits: Hydraulic and Electrical diagrams.

• Service Standards: Performance criteria and wear limits.

• Engine Unit: Engine control and fuel system.

• Hydraulic Pump: Hydraulic pump plunger pump service, flushing, and oil replacement.

• Control Equipment: Pilot valves and lever configuration.

• Front Attachment: Boom, Arm, and Bucket circuits and repair.

• Upper Structure: Swing equipment and machinery cover.

• Lower Structure: Travel circuit and undercarriage components.

• Electrical Equipment: Air conditioner and electrical layout.

File Details:

• Manual Name: KATO HD1430-R5 Service Manual

• Models Covered: KATO HD1430-R5 REGZAM Hydraulic Excavator (Serial No. 5101-)

• Year: 2020

• Manual PDF Quality: High Quality, Searchable Text, Clear Diagrams & Tables

• No. of Pages: ~216
