Kawasaki 115ZV WHEEL LOADER SHOP MANUAL 93216-00162 – PDF DOWNLOAD

Description

Kawasaki 115ZV WHEEL LOADER SHOP MANUAL 93216-00162 – PDF DOWNLOAD

FILE DETAILS:

Kawasaki 115ZV WHEEL LOADER SHOP MANUAL 93216-00162 – PDF DOWNLOAD

Language :English
Pages :32
Downloadable : Yes
File Type : PDF

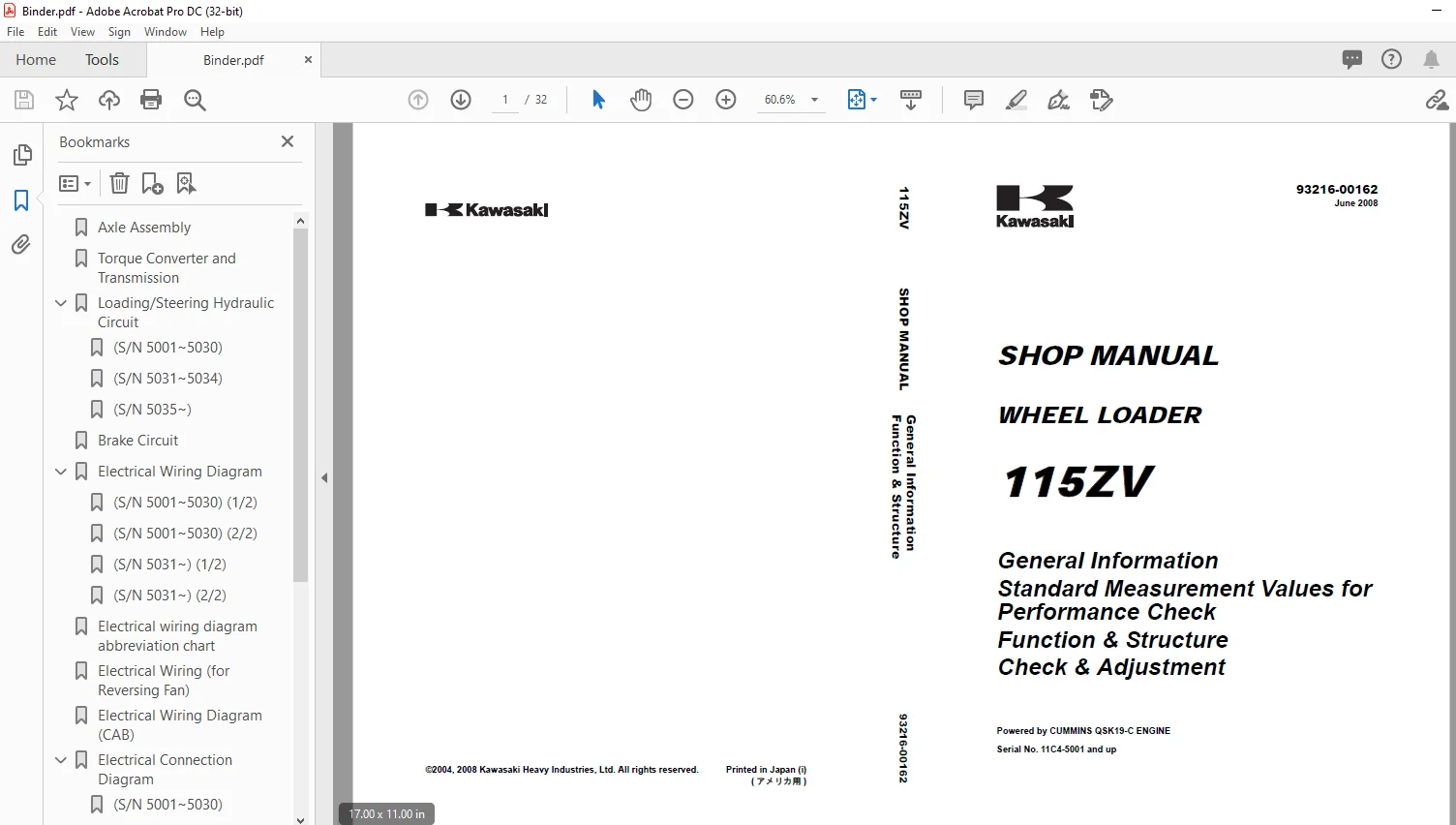

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kawasaki 115ZV WHEEL LOADER SHOP MANUAL 93216-00162 – PDF DOWNLOAD

General Information
Standard Measurement Values for
Performance Check
Function & Structure
Check & Adjustment
CUMMINS QSK19-C ENGINE
Serial No. 11C4-5001 and up

Axle Assembly 92-2
Torque Converter and Transmission 92-3
Loading/Steering Hydraulic Circuit (S/N 5001~5030) 92-4
Loading/Steering Hydraulic Circuit (S/N 5031~5034) 92-5
Loading/Steering Hydraulic Circuit (S/N 5035~) 92-6
Brake Circuit 92-7
Electrical Wiring Diagram (1/2) (S/N 5001~5030) 92-8
Electrical Wiring Diagram (2/2) (S/N 5001~5030) 92-9
Electrical Wiring Diagram (1/2) (S/N 5031~) 92-10
Electrical Wiring Diagram (2/2) (S/N 5031~) 92-11
Electrical wiring diagram abbreviation chart 92-12
Electrical Wiring (for Reversing Fan) 92-13
Electrical Wiring Diagram (CAB) 92-14
Electrical Connection Diagram (S/N 5001~5030) 92-16
Electrical Connection Diagram (S/N 5031~5046) 92-17
Electrical Connection Diagram (S/N 5047~) 92-18
Electrical Connections (Air Conditioner) (S/N 5001~5086) 92-19
Electrical Equipment Layout 92-20
Front chassis 92-20
Rear chassis 92-22
Floor board 92-28
Hot Slag 92-29
