Kawasaki 6HK1 ISUZU DIESEL ENGINE Wheel Loader 85Z7 Shop Manual – PDF
$31.95
Kawasaki 6HK1 ISUZU DIESEL ENGINE For Wheel Loader(Removal & Installation Disassembly & Reassembly Inspection)85Z7 Shop Manual – PDF DOWNLOAD
SN 85J1-5001 and up
PN 93211-00570
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Kawasaki 6HK1 ISUZU DIESEL ENGINE For Wheel Loader(Removal & Installation Disassembly & Reassembly Inspection)85Z7 Shop Manual – PDF DOWNLOAD
FILE DETAILS:
Kawasaki 6HK1 ISUZU DIESEL ENGINE For Wheel Loader(Removal & Installation Disassembly & Reassembly Inspection)85Z7 Shop Manual – PDF DOWNLOAD
SN 85J1-5001 and up
PN 93211-00570
Language : English
Pages : 612
Downloadable : Yes
File Type : PDF
Pages : 612
Downloadable : Yes
File Type : PDF

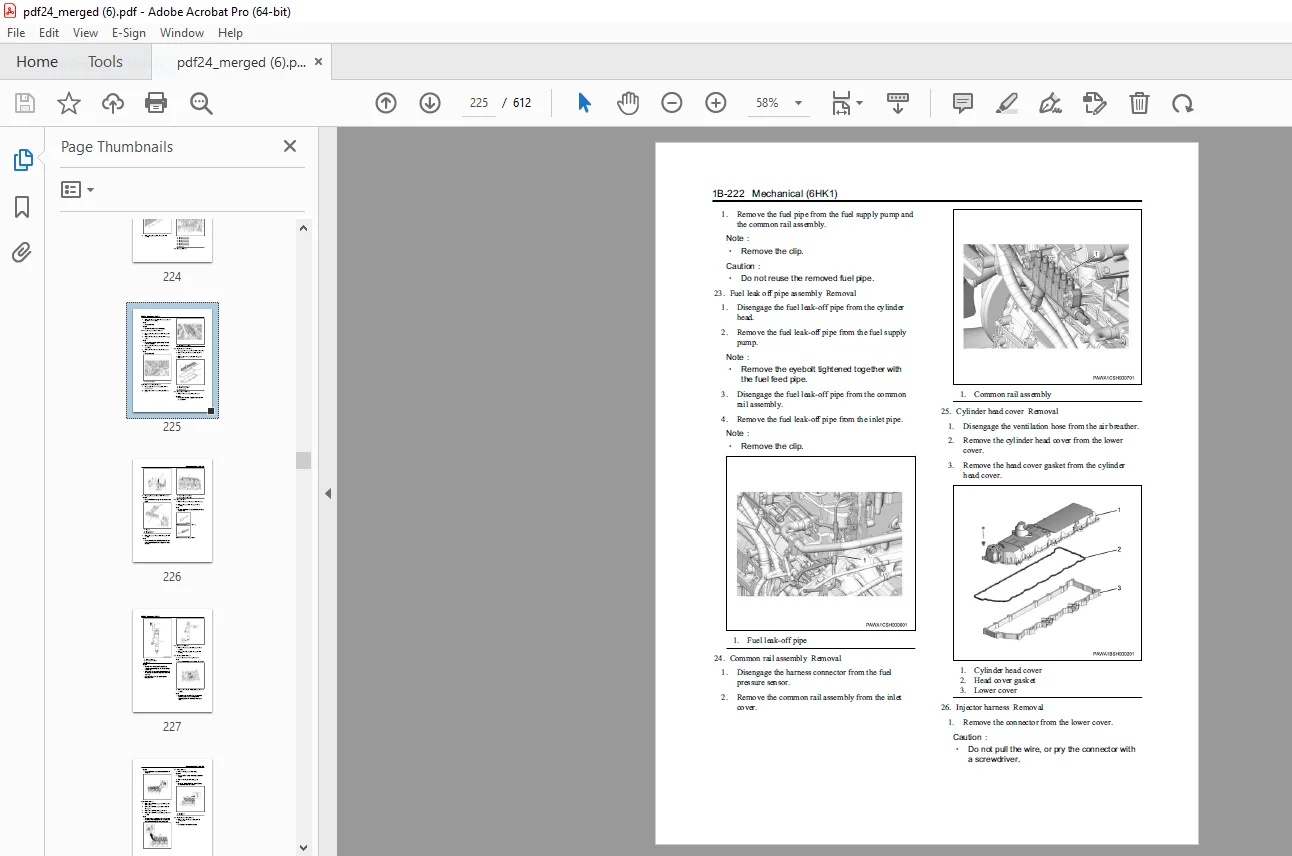

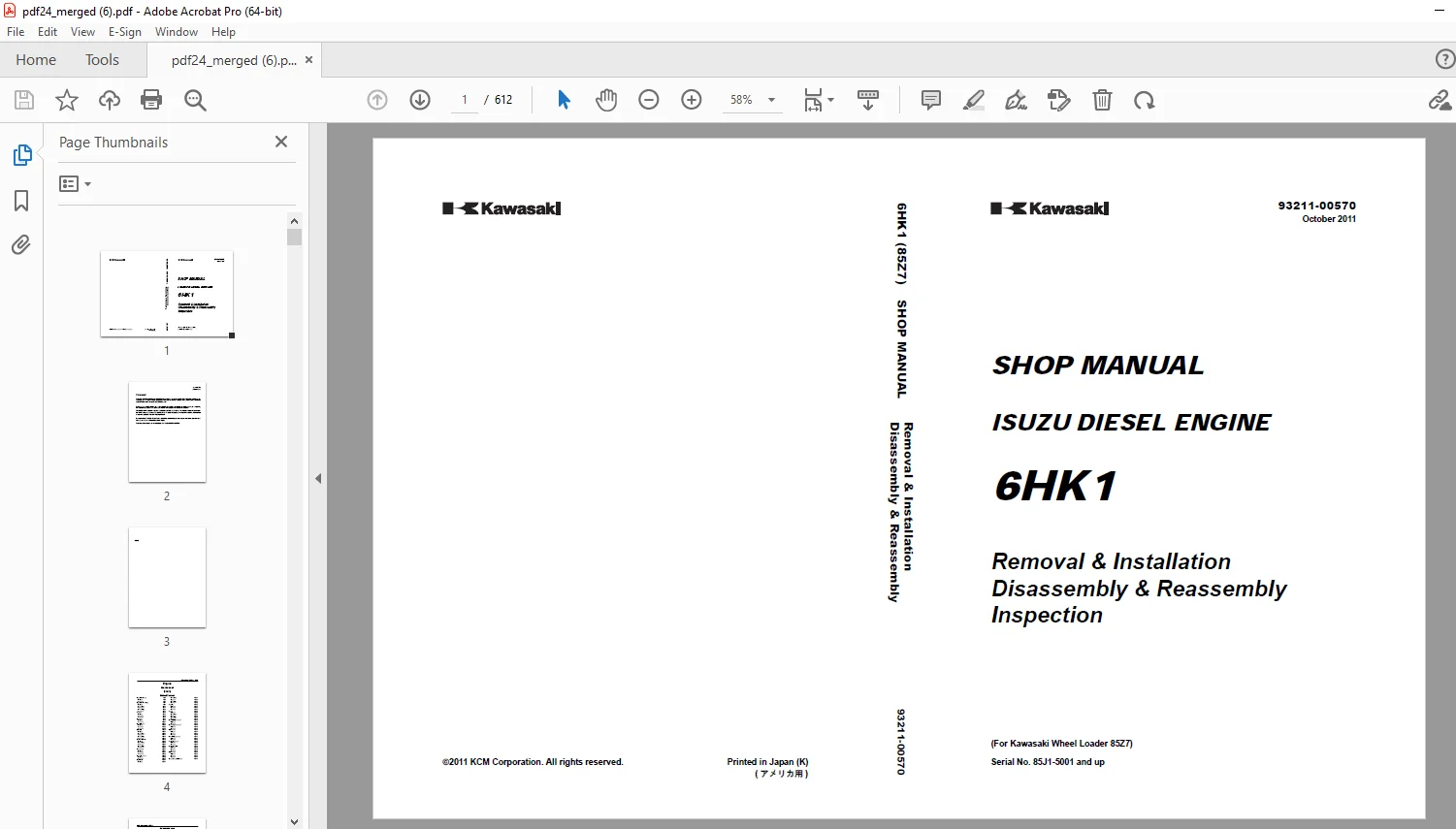

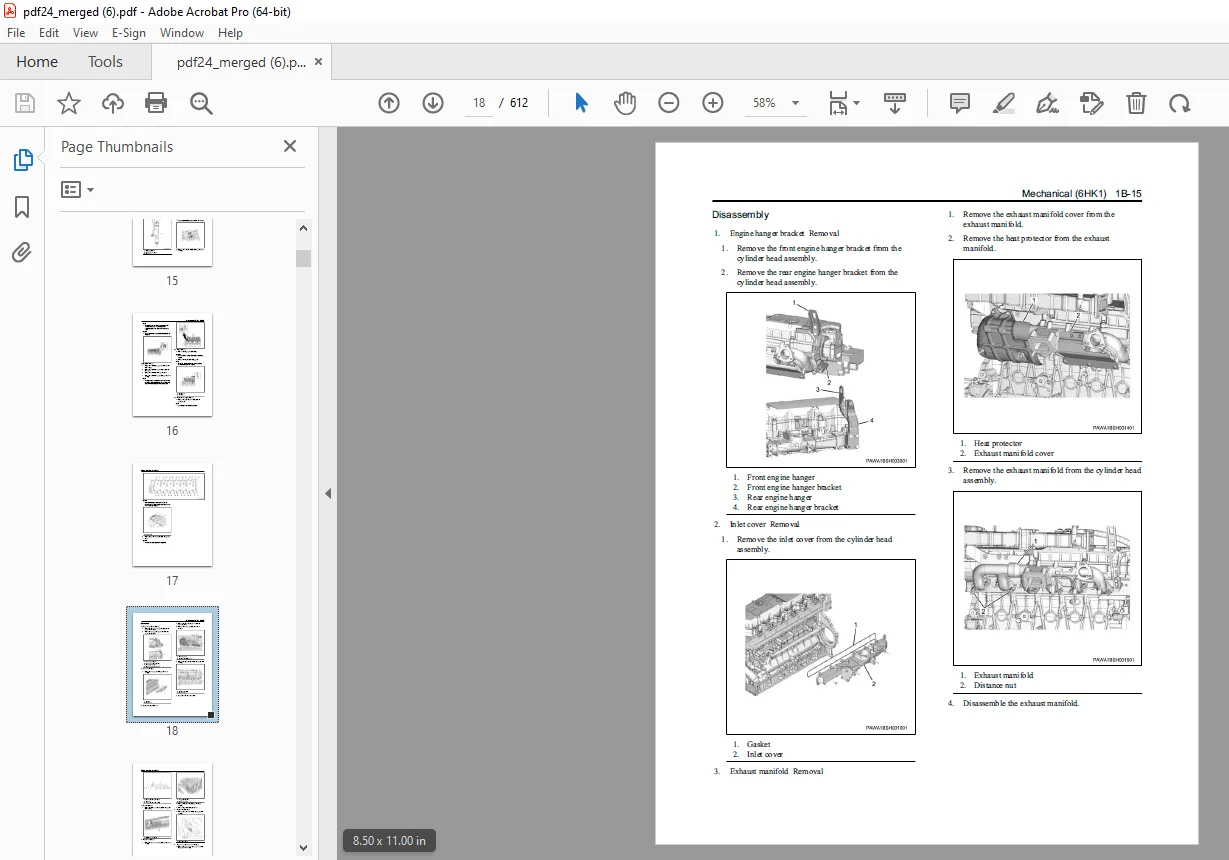

IMAGES PREVIEW OF THE MANUAL:
