Kawasaki KCM 60Z7 Wheel Loader Parts Manual 93306-00292 – PDF DOWNLOAD

Description

Kawasaki KCM 60Z7 Wheel Loader Parts Manual 93306-00292 – PDF DOWNLOAD

FILE DETAILS:

Kawasaki KCM 60Z7 Wheel Loader Parts Manual 93306-00292 – PDF DOWNLOAD

Language : English
Pages : 192
Downloadable : Yes
File Type : PDF

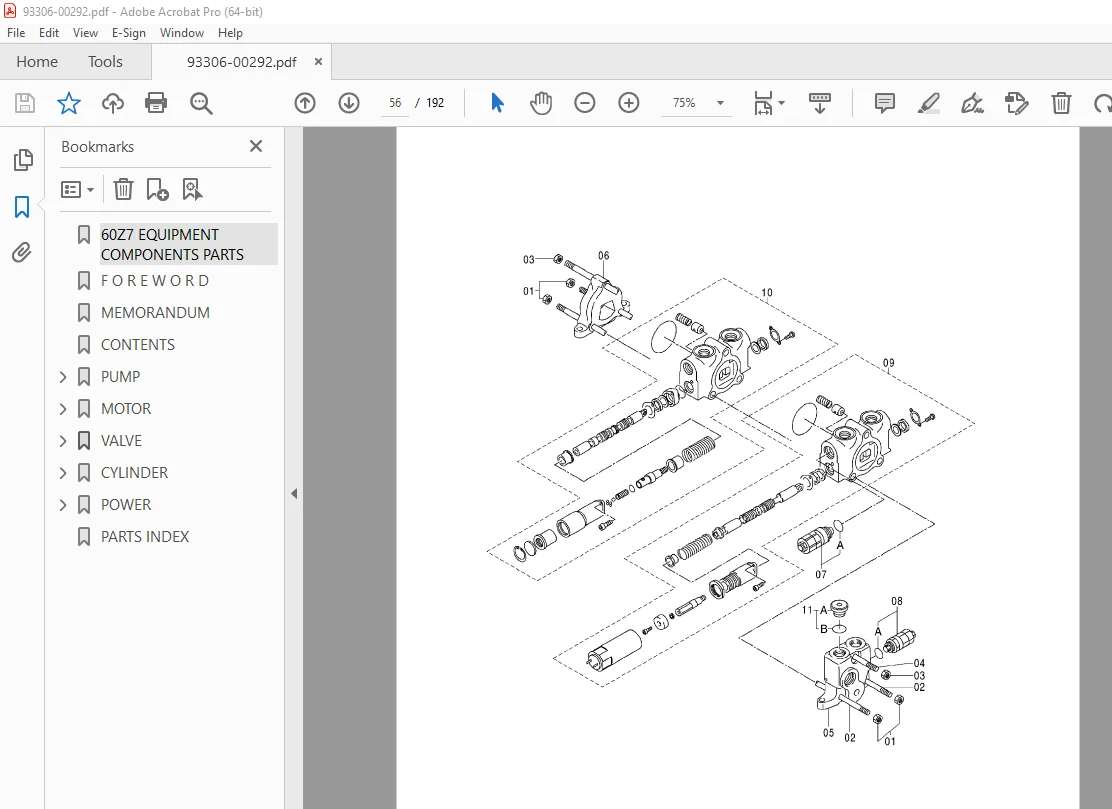

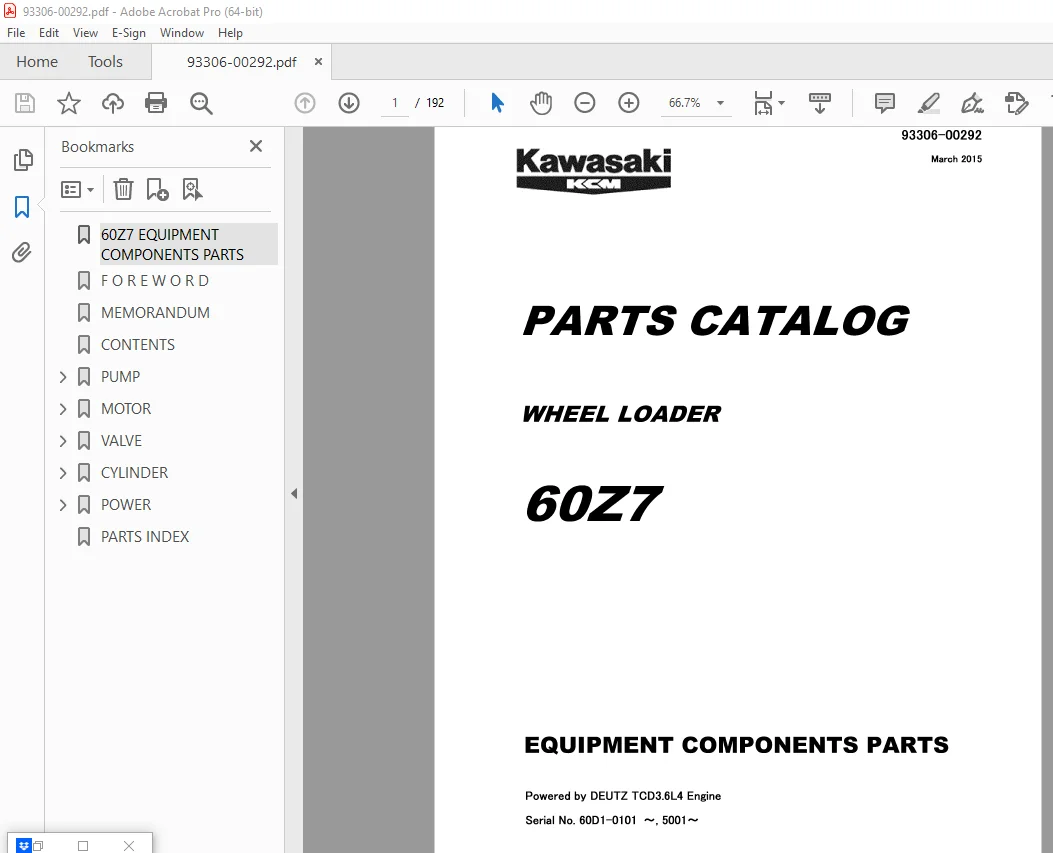

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kawasaki KCM 60Z7 Wheel Loader Parts Manual 93306-00292 – PDF DOWNLOAD

60Z7 EQUIPMENT COMPONENTS PARTS 1
FOREWORD 5
MEMORANDUM 31
CONTENTS 33
PUMP 36
PUMP,GEAR 36
PUMP,PISTON (HST) 38
VALVE,HOUSING 46
PUMP UNIT 48
MOTOR 50
MOTOR,OIL (HST) 50
VALVE 56
VALVE,CONTROL (2 SPOOL) 56
SPOOL SECTION (BUCKET)(FOR 2 SPOOL) 58
SPOOL SECTION (LIFT ARM)(FOR 2 SPOOL) 60
VALVE,CONTROL (3 SPOOL) 62
SPOOL SECTION (BUCKET)(FOR 3,4 SPOOL)(FOR 2,3,4 SPOOL+LIFT ARM KICKOUT) 64
SPOOL SECTION (LIFT ARM)(FOR 3,4 SPOOL) 66
SPOOL SECTION (ATTACHMENT)(FOR 3,4 SPOOL)(FOR 3,4 SPOOL+LIFT ARM KICKOUT) 68
VALVE,CONTROL (4 SPOOL) 70
SPOOL SECTION (ATTACHMENT)(FOR 4 SPOOL)(FOR 4 SPOOL+LIFT ARM KICKOUT) 72
VALVE,CONTROL (2 SPOOL+LIFT ARM KICKOUT) 74
SPOOL SECTION (LIFT ARM)(FOR 2,3,4 SPOOL+LIFT ARM KICKOUT) 76
VALVE,CONTROL (3 SPOOL+LIFT ARM KICKOUT) 78
VALVE,CONTROL (4 SPOOL+LIFT ARM KICKOUT) 80
VALVE,CONTROL (2 SPOOL)(POC) 82
SPOOL SECTION (BUCKET)(POC)(FOR 2,3,4 SPOOL) 84
SPOOL SECTION (LIFT ARM)(POC)(FOR 2,3,4 SPOOL) 86
VALVE,CONTROL (3 SPOOL)(POC) 88
SPOOL SECTION (ATTACHMENT)(POC)(FOR 3,4 SPOOL) 90
VALVE,CONTROL (4 SPOOL)(POC) 92
VALVE,STREERING 94
VALVE,BRAKE 96
VALVE,PRIORITY 98
VALVE,BRAKE (INCHING VALVE) 100
VALVE,CUSION 102
VALVE,PILOT (FOR MONO LEVER) 104
VALVE,PILOT (AUXILIARY LEVER) 106
VALVE,PILOT (FRONT, SWING) 108
VALVE,LOCK 110
VALVE,CONTOROL （RIDE CONTOROL） 112
VALVE,CONTOROL （RIDE CONTOROL） 114
VALVE,SOLENOID 116
VALVE ASSY,STEERING 118
CYLINDER 120
CYL,STEERING 120
CYLINDER,LIFT 122
CYLINDER,BUCKET 124
CYLINDER (QUICK COUPLER) 126
ANGLING CYLINDER (ANP,SAP)(L) 128
ANGLING CYLINDER (ANP,SAP)(R) 130
SLIDE CYLINDER (SAP) 132
CYLINDER,BLADE (MULTI PLOW) 134
POWER 136
TRANSMISSION (1/2) 136
TRANSMISSION (1/2) 138
VALVE,CONTROL 140
TRANSMISSION (2/2) 142
CLUTCH 146
AXLE ASSY,FRONT (TPD)(1/2) 148
CARRIER,PLANETARY 152
AXLE ASSY,FRONT (TPD)(2/2) 154
AXLE ASSY,REAR (TPD)(1/2) 158
AXLE ASSY,REAR (TPD)(2/2) 162
AXLE ASSY,FRONT (LSD)(1/2) 166
AXLE ASSY,FRONT (LSD)(2/2) 170
AXLE ASSY,REAR (LSD)(1/2) 172
AXLE ASSY,REAR (LSD)(2/2) 176
SHAFT,PROPELLER (FRONT) 178
SHAFT,PROPELLER (REAR) 180
PARTS INDEX 182

S.V 06/24
