Kawasaki KT-19-C CUMMINS Engine For 110Z,110ZII Parts Manual – PDF
$27.95
Kawasaki KT-19-C CUMMINS Engine For 110Z,110ZII Parts Manual – PDF DOWNLOAD
SN 31117025
PN AAAP11005-3
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Kawasaki KT-19-C CUMMINS Engine For 110Z,110ZII Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Kawasaki KT-19-C CUMMINS Engine For 110Z,110ZII Parts Manual – PDF DOWNLOAD
SN 31117025
PN AAAP11005-3
Language : English, Japanese
Pages : 166
Downloadable : Yes
File Type : PDF
Pages : 166
Downloadable : Yes
File Type : PDF

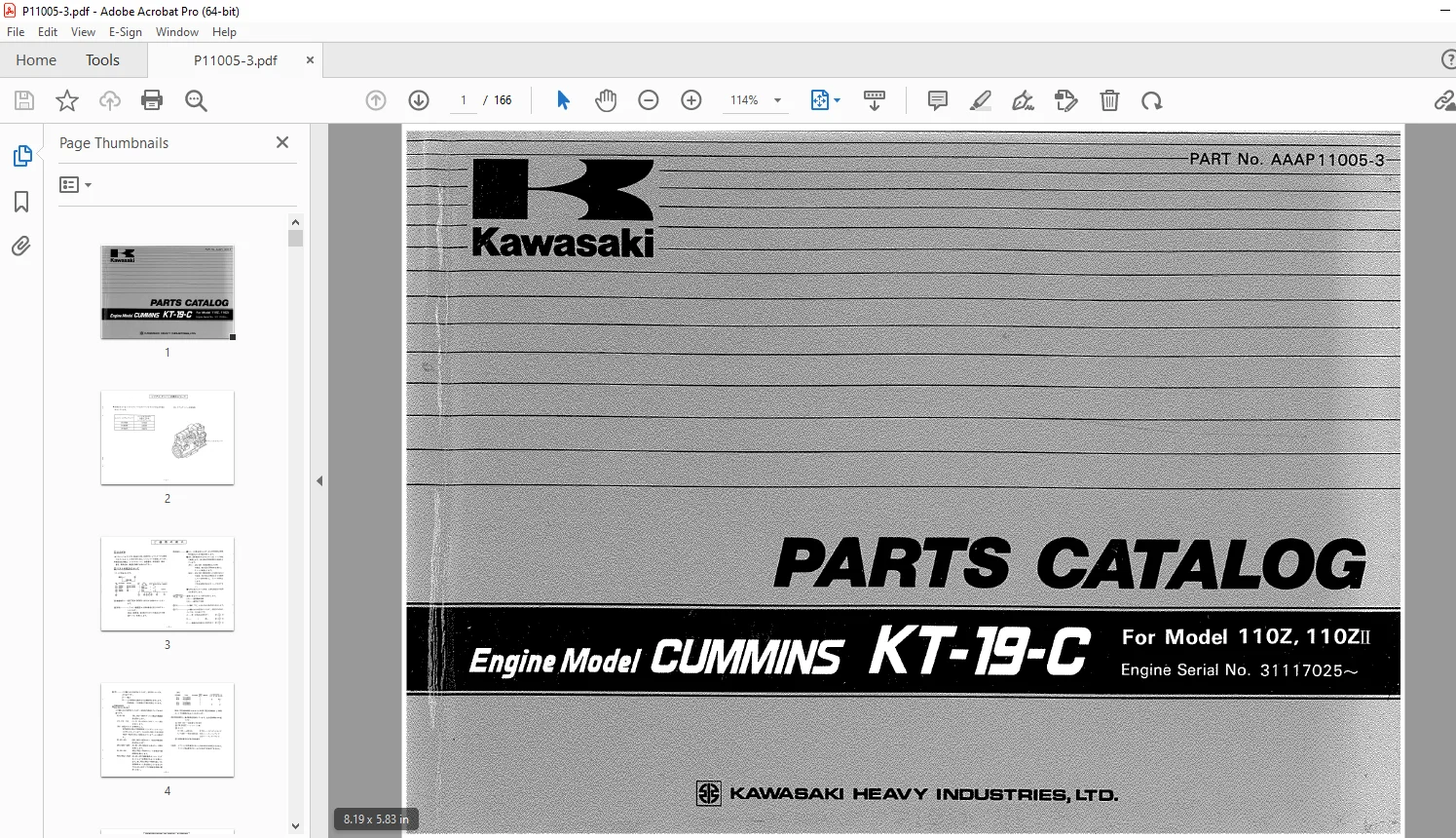

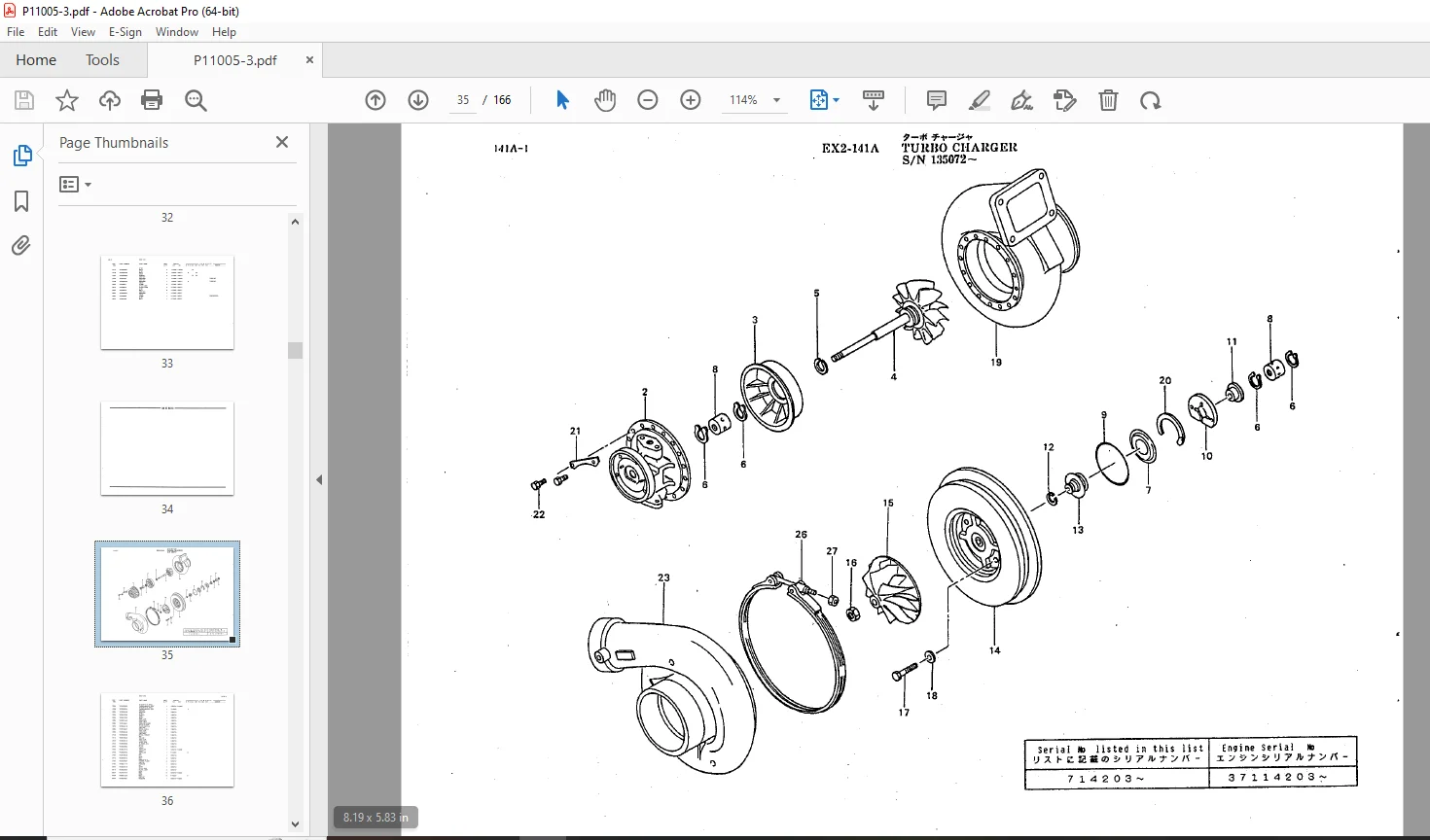

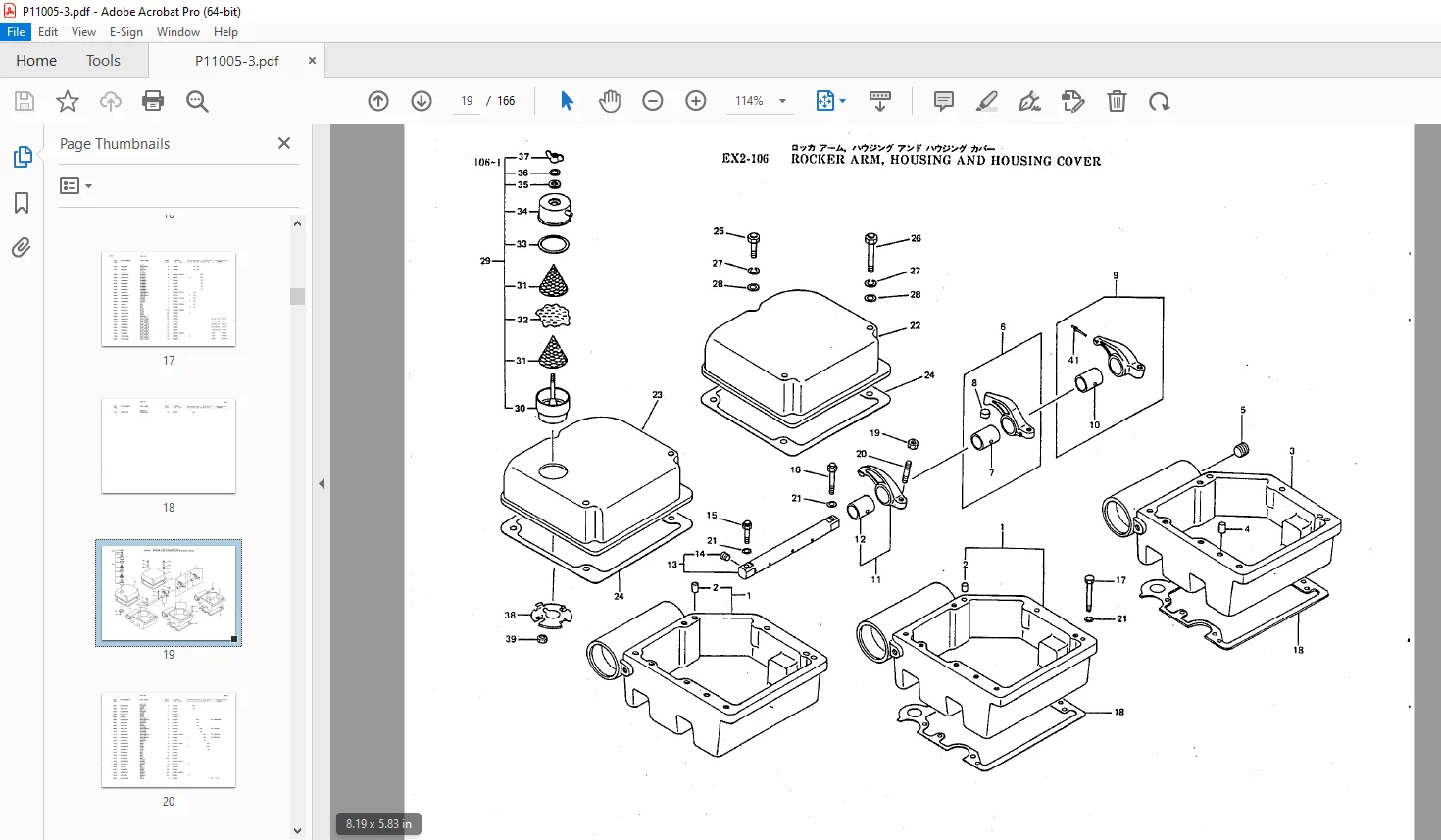

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Kawasaki KT-19-C CUMMINS Engine For 110Z,110ZII Parts Manual – PDF DOWNLOAD
SN 31117025
PN AAAP11005-3
1 CYLINDER HEAD
EX2-101 – CYLINDER HEAD 101-1
EX2-106 – ROCKER ARM, HOUSING AND HOUSING COVER 106-1
EX2-111 – AIR INTAKE MANIFOLD GROUP 111-1
EX2-121 – EXHAUST MANIFOLD GROUP 121-1
EX2-131 – WATER MANIFOLD GROUP 131-1
EX2-141 – TURBO CHARGER (S/N 117025-135071) 141-1
EX2-141A – TURBO CHARGER (S/N 135072~)
2 CYLINDER BLOCK
EX2-201 – CYLINDER BLOCK 201-1
EX2-211 – GEAR CASE COVER GROUP (S/N 117025-119022) 211-1
EX2-211A – GEAR CASE COVER GROUP (S/N 119023~) 211A-1
EX2-215 – OIL PAN 215-1
EX2-221 – FLYWHEEL AND FLYWHEEL HOUSING 221-1
EX2-231 – CRANKSHAFT AND VIBRATION DAMPER 231-1
EX2-233 – PISTON AND CONNECTING ROD 233-1
2 CYLINDER BLOCK (continued)
EX2-235 – CAM SHAFT 235-1
EX2-237 – CAM FOLLOWER AND PUSH ROD 237-1
3 LUBRICATING OIL SYSTEM
EX2-301 – OIL PUMP 301-1
EX2-312 – OIL FILTER 312-1
EX2-315 – BYPASS FILTER 315-1
EX2-321 – OIL COOLER 321-1
EX2-325 – TURBO CHARGER OIL PIPING 325-1
4 FUEL SYSTEM
EX2-401 – FUEL PIPING 401-1
EX2-411 – FUEL FILTER 411-1
EX2-422 – FUEL INJECTOR 422-1
EX2-451 – FUEL PUMP (1/4) 451-1
EX2-452 – FUEL PUMP (2/4) 452-1
EX2-453 – FUEL PUMP (3/4) 453-1
EX2-454 – FUEL PUMP (4/4) 454-1
5 COOLING AND ELECTRICAL SYSTEM
EX2-501 – WATER PUMP 501-1
EX2-503 – FAN AND FAN HUB 503-1
EX2-521 – GENERATOR MOUNT (S/N 117025-713310) 521-1
EX2-521A – GENERATOR MOUNT (S/N 713311~) 521A-1
EX2-525 – STARTER MOTOR MOUNT 525-1
EX2-541 – GENERATOR (S/N 117025-713310) 541-1
EX2-541A – GENERATOR (S/N 713311~) 541A-1
EX2-545 – STARTER MOTOR (S/N 117025-120208) 545-1
EX2-545A – STARTER MOTOR (S/N 120209~) 545A-1
6 ACCESSORY PARTS
EX2-601 – AIR COMPRESSOR PIPING 601-1
EX2-603 – ACCESSORY DRIVE 603-1
EX2-606 – BARRING MECHANISM 606-1
EX2-608 – COLD STARTING AID 608-1
EX2-611 – AIR COMPRESSOR 611-1
EX2-101 – CYLINDER HEAD 101-1
EX2-106 – ROCKER ARM, HOUSING AND HOUSING COVER 106-1
EX2-111 – AIR INTAKE MANIFOLD GROUP 111-1
EX2-121 – EXHAUST MANIFOLD GROUP 121-1
EX2-131 – WATER MANIFOLD GROUP 131-1
EX2-141 – TURBO CHARGER (S/N 117025-135071) 141-1
EX2-141A – TURBO CHARGER (S/N 135072~)
2 CYLINDER BLOCK
EX2-201 – CYLINDER BLOCK 201-1
EX2-211 – GEAR CASE COVER GROUP (S/N 117025-119022) 211-1
EX2-211A – GEAR CASE COVER GROUP (S/N 119023~) 211A-1
EX2-215 – OIL PAN 215-1
EX2-221 – FLYWHEEL AND FLYWHEEL HOUSING 221-1
EX2-231 – CRANKSHAFT AND VIBRATION DAMPER 231-1
EX2-233 – PISTON AND CONNECTING ROD 233-1
2 CYLINDER BLOCK (continued)
EX2-235 – CAM SHAFT 235-1
EX2-237 – CAM FOLLOWER AND PUSH ROD 237-1
3 LUBRICATING OIL SYSTEM
EX2-301 – OIL PUMP 301-1
EX2-312 – OIL FILTER 312-1
EX2-315 – BYPASS FILTER 315-1
EX2-321 – OIL COOLER 321-1
EX2-325 – TURBO CHARGER OIL PIPING 325-1
4 FUEL SYSTEM
EX2-401 – FUEL PIPING 401-1
EX2-411 – FUEL FILTER 411-1
EX2-422 – FUEL INJECTOR 422-1
EX2-451 – FUEL PUMP (1/4) 451-1
EX2-452 – FUEL PUMP (2/4) 452-1
EX2-453 – FUEL PUMP (3/4) 453-1
EX2-454 – FUEL PUMP (4/4) 454-1
5 COOLING AND ELECTRICAL SYSTEM
EX2-501 – WATER PUMP 501-1
EX2-503 – FAN AND FAN HUB 503-1
EX2-521 – GENERATOR MOUNT (S/N 117025-713310) 521-1
EX2-521A – GENERATOR MOUNT (S/N 713311~) 521A-1
EX2-525 – STARTER MOTOR MOUNT 525-1
EX2-541 – GENERATOR (S/N 117025-713310) 541-1
EX2-541A – GENERATOR (S/N 713311~) 541A-1
EX2-545 – STARTER MOTOR (S/N 117025-120208) 545-1
EX2-545A – STARTER MOTOR (S/N 120209~) 545A-1
6 ACCESSORY PARTS
EX2-601 – AIR COMPRESSOR PIPING 601-1
EX2-603 – ACCESSORY DRIVE 603-1
EX2-606 – BARRING MECHANISM 606-1
EX2-608 – COLD STARTING AID 608-1
EX2-611 – AIR COMPRESSOR 611-1
DESCRIPTION:
Kawasaki KT-19-C CUMMINS Engine For 110Z,110ZII Parts Manual – PDF DOWNLOAD
SN 31117025
PN AAAP11005-3
I PREFACE:
• This PARTS CATALOG contains spare parts information for CUMMINS “KT-19-C” engine mounted on Model ll0Z, ll0ZII.
• In case of spare parts ordering, be sure to state “Serial Number”, “Section Number”, “Symbol Number”, “Part Number”, “Part Name” and “Quantity”.
HOW TO USE THE LIST:
- ® (Section No.) It is a title number for each explosion-figure page.
- @ (Symbol) It is a key for finding out parts No. from illustration. The symbol to which three zeros are prefixed, e.g., 000A, 000B, etc. tells that the unit is an assembly. The individual parts not numbered in illustration will not be sold separately.
- O It indicates number of piece(s) for a set where as in case three zeroes are prefixed it indicates that for one unit. f) In case indicated as IM, 2M the part will be as pieces 1 meter, 2 meter long where as actual length values are indicated in the REMARK.
- (Example 1)
- In case of the indication “Q’ty 2M REMARK L=1700” the part will be sold as a piece 2 meter long where as actually a Piece of 1700 mm length is required.
- (Example 2)
- In case of the indication “Q’ty 2M REMARK L=1400 x Q’ty 2” the part will be sold as a piece 3 meter long where as actually 2 pieces of 1400 mm length are required.
G.B 08/02/25
